Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

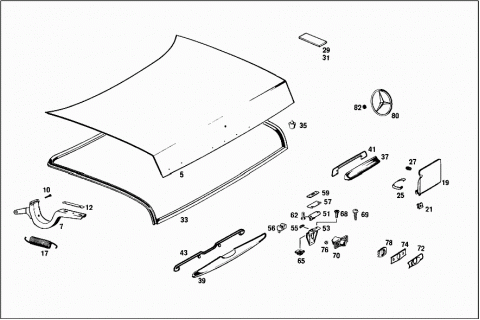

Grupė: 75 TRUNK LID - 001 OUTSIDE FLAPS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1157500175 | REAR LID | |
| Repalced by: A 1157500775 | ||
| 005 | A 1157500775 | REAR LID |
| 007 | A 1157500587 | HINGE |
| LEFT | ||
| A 1157500687 | HINGE | |
| RIGHT | ||
| 010 | A 1157580015 | PIN |
| 012 | A 1087580010 | BASE PLATE |
| N 000933006026 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| A 1157580034 | SPRING | |
| Repalced by: A 1237580336 | ||
| 017 | A 1237580336 | SPRING |
| A 1157500006 | FLAP | |
| Repalced by: A 1157500106 | ||
| 019 | A 1157500106 | FLAP |
| 021 | A 0009940545 | LOCK |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000137005203 | SPRING WASHER | |
| 025 | A 1157580334 | SPRING |
| 027 | A 1159870040 | RUBBER BUFFER |
| 029 | A 1157580897 | INTERMEDIATE LAYER |
| 11 MM | ||
| 031 | A 1157580997 | INTERMEDIATE LAYER |
| Repalced by: A 1237580397 | ||
| 031 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 033 | A 1147580098 | SEAL |
| 035 | A 1119871540 | RUBBER BUFFER |
| 037 | A 1157580002 | HANDLE |
| A 1077580102 | HANDLE | |
| Repalced by: A 1077580202 | ||
| 039 | A 1077580202 | HANDLE |
| 041 | A 1157580005 | PAD |
| A 1077580105 | PAD | |
| Repalced by: A 1077580205 | ||
| 043 | A 1077580205 | PAD |
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| N 007985004149 | SCREW | |
| N 000137005203 | SPRING WASHER | |
| N 000137004202 | SPRING WASHER | |
| 051 | A 1137500185 | LOCK |
| 053 | A 1137500285 | LOCK |
| 055 | A 1137580072 | BUFFER |
| Repalced by: A 1169870539 | ||
| 055 | A 1169870539 | RUBBER BUFFER |
| 056 | A 1169870539 | RUBBER BUFFER |
| 057 | A 1117585010 | BASE PLATE |
| A 1117585111 | PLATE | |
| Repalced by: A 1167500011 | ||
| 059 | A 1167500011 | PLATE |
| 062 | A 0009903330 | SCREW |
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| 065 | A 0009909991 | NUT RETAINER |
| N 007987006103 | SCREW | |
| Repalced by: A 0009903330 | ||
| 068 | A 0009903330 | SCREW |
| 069 | N 007985006196 | SCREW |
| Repalced by: N 007985006193 | ||
| 069 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 069 | N 000000001146 | SCREW |
| A 1157500285 | LOCK | |
| WORKSHOP VERSION WITH KEY; ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM) | ||
| A 1157500485 | LOCK | |
| WORKSHOP VERSION WITH KEY; ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM) | ||
| 070 | A 1157500085 | LOCK |
| LESS KEY | ||
| A 1157500185 | LOCK | |
| LESS KEY | ||
| 072 | A 1157580030 | LINING |
| 074 | A 1157580105 | PAD |
| A 0019904851 | NUT | |
| Repalced by: N 913004005001 | ||
| 076 | N 913004005001 | NUT |
| 078 | A 1157580891 | FILLER |
| 080 | A 1157580058 | MERCEDES STAR |
| 082 | A 1109870741 | RUBBER RING |
| N 000125008418 | WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
