Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021

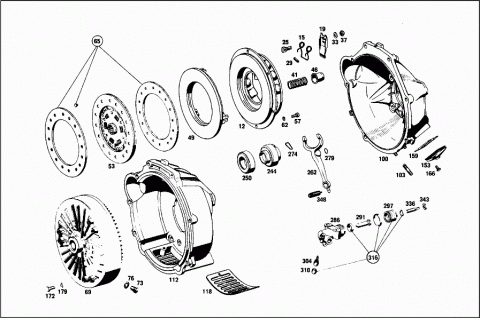

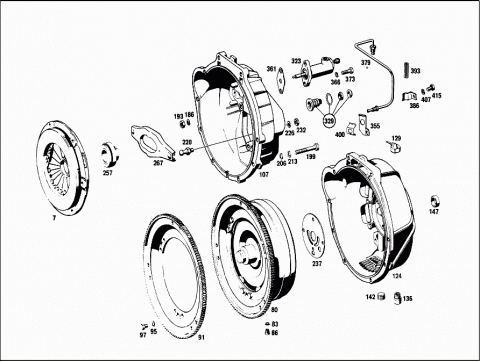

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 0012504204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032509104 | ||
| 007 | A 0032509104 | CLUTCH PRESSURE PLATE |
| A 0012507704 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032504704 | ||
| A 0022502204 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032504704 | ||
| A 0032504704 | CLUTCH PRESSURE PLATE | |
| 012 | A 0002509604 | CLUTCH PRESSURE PLATE |
| 015 | A 0002520427 | SPRING |
| 019 | A 0002524213 | RELEASE LEVER |
| 025 | A 0002520374 | PIN |
| 029 | N 001481006002 | CLAMPING SLEEVE |
| 033 | A 0002520151 | SPACER RING |
| 037 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 037 | A 0002522772 | NUT |
| 041 | A 0002521820 | PRESSURE SPRING |
| 046 | A 0002520335 | SLEEVE |
| 049 | A 0002522106 | CLUTCH PRESSURE PLATE |
| 053 | A 0102502603 | CLUTCH DISC |
| A 0102503103 | CLUTCH DISC | |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002526010 | CLUTCH LINING | |
| A 0002521075 | RIVET | |
| A 0002522275 | RIVET | |
| 057 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 057 | N 304017008034 | SCREW |
| 062 | N 000127008203 | LOCK WASHER |
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| 065 | A 1145860025 | REPAIR KIT |
| CLUTCH LINING | ||
| A 1095860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HYDRAULIC CLUTCH USED FOR MERCEDES-BENZ AUTOMATIC TRANSMISSION | ||
| A 1112501602 | HYDRAULIC CLUTCH | |
| 069 | A 1112501502 | HYDRAULIC CLUTCH |
| A 1302500902 | HYDRAULIC CLUTCH | |
| A 1152501202 | HYDRAULIC CLUTCH | |
| 073 | A 1809970530 | SCREW PLUG |
| N 000908010000 | SCREW PLUG | |
| 076 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| 080 | A 1092501502 | HYDRAULIC CLUTCH |
| WITH STARTING RING GEAR | ||
| 083 | N 007603010100 | SEAL RING |
| 086 | N 000908010000 | SCREW PLUG |
| 091 | A 1160300312 | RING GEAR |
| 095 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 095 | N 000137008212 | SPRING WASHER |
| 097 | N 000933008325 | SCREW |
| Repalced by: A 1249902101 | ||
| 097 | A 1249902101 | SCREW |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BELL HOUSING | ||
| 100 | A 1112502005 | HOUSING |
| 100 | A 1112502005 | HOUSING |
| 103 | N 000835008062 | STUD |
| 103 | N 000835008062 | STUD |
| 107 | A 1152512601 | BELL HOUSING |
| A 1172512501 | BELL HOUSING | |
| 112 | A 1112502205 | HOUSING |
| HYDRAULIC CLUTCH | ||
| 112 | A 1112502205 | HOUSING |
| HYDRAULIC CLUTCH | ||
| 118 | A 1122570590 | COVER PLATE |
| 118 | A 1122570590 | COVER PLATE |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 304017006016 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000137006204 | SPRING WASHER | |
| 124 | A 1152501905 | HOUSING |
| A 1092500105 | HOUSING | |
| 129 | A 1152500357 | BREATHER |
| Repalced by: A 1152500066 | ||
| 129 | A 1152500066 | OIL PIPE |
| 129 | A 1152500066 | OIL PIPE |
| 136 | A 1152571057 | SCREW COLLAR |
| 136 | A 1152571057 | SCREW COLLAR |
| 142 | N 000908022010 | SCREW PLUG |
| 142 | N 000908022010 | SCREW PLUG |
| N 000908022010 | SCREW PLUG | |
| N 000908022010 | SCREW PLUG | |
| 147 | A 1092570150 | BUSHING |
| 147 | A 1092570150 | BUSHING |
| 153 | A 1202540097 | BOOT |
| 153 | A 1202540097 | BOOT |
| 159 | A 1202540058 | SEAL HOLDER |
| 159 | A 1202540058 | SEAL HOLDER |
| 166 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 166 | N 304017006018 | SCREW |
| 166 | N 304017006018 | SCREW |
| N 000912008047 | SCREW | |
| 172 | N 000933008316 | SCREW |
| Repalced by: A 0089907401 | ||
| 172 | A 0089907401 | SCREW |
| 172 | A 0089907401 | SCREW |
| 179 | N 000137008200 | SPRING WASHER |
| 179 | N 000137008200 | SPRING WASHER |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012071 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012050 | SCREW | |
| Repalced by: N 304017012002 | ||
| N 304017012002 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 186 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 186 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 193 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 193 | N 304032010002 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 193 | N 304032010002 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 199 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 199 | N 304017010050 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010239 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010258 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010274 | SCREW | |
| Repalced by: N 304014010004 | ||
| N 304014010004 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012133 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012137 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 206 | N 000125010504 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 206 | N 000125010504 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000125013005 | WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 213 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 213 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010014 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010014 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 220 | A 1159910115 | BALL PIVOT |
| A 1179910315 | BALL PIVOT | |
| 226 | N 000137010201 | SPRING WASHER |
| 226 | N 000137010201 | SPRING WASHER |
| 232 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 232 | N 304035010001 | NUT |
| 232 | N 304035010001 | NUT |
| 237 | A 1152770314 | INTERMEDIATE PLATE |
| 237 | A 1152770314 | INTERMEDIATE PLATE |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RELEASE PARTS | ||
| 244 | A 1112500115 | RELEASE BEARING |
| A 1112500215 | RELEASE BEARING | |
| 250 | A 0009814325 | BALL BEARING |
| A 0019815225 | BALL BEARING | |
| A 0002500515 | RELEASE BEARING | |
| 257 | A 0002505515 | RELEASE BEARING |
| 257 | A 0002506815 | RELEASE BEARING |
| 262 | A 1112930211 | RELEASE YOKE |
| 262 | A 1112930211 | RELEASE YOKE |
| 267 | A 1152900029 | RELEASE YOKE |
| A 1152900029 | RELEASE YOKE | |
| 274 | A 3199930025 | SPRING |
| 274 | A 3199930025 | SPRING |
| 279 | N 071805016301 | SNAP RING |
| 279 | N 071805016301 | SNAP RING |
| 286 | A 0002951907 | SLAVE CYLINDER |
| 291 | A 0002950374 | PIN |
| A 0002950583 | BOOT | |
| 297 | A 0002951683 | BOOT |
| 304 | A 0002950120 | VALVE |
| 310 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 310 | A 0004210887 | PROTECTIVE CAP |
| A 0005860929 | REPAIR KIT | |
| 316 | A 0005861329 | REPAIR KIT |
| A 0002954207 | SLAVE CYLINDER | |
| A 0002950473 | LOCK | |
| Repalced by: A 0005862029 | ||
| A 0005862029 | REPAIR KIT | |
| A 0002950573 | LOCK | |
| A 0002951683 | BOOT | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| 323 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 323 | A 0012956807 | SLAVE CYLINDER |
| A 0002952183 | BOOT | |
| A 0009945935 | SNAP RING | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| A 0005862029 | REPAIR KIT | |
| 329 | A 0002903367 | REPAIR KIT |
| A 0002956407 | SLAVE CYLINDER | |
| A 0005861829 | REPAIR KIT | |
| 336 | A 1112950733 | ROD |
| 343 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 343 | N 304035008001 | NUT |
| 348 | A 1119931110 | SPRING |
| N 000127008203 | LOCK WASHER | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000127008203 | LOCK WASHER | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000934008013 | NUT | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000934008013 | NUT | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 355 | A 1152951340 | BRACKET |
| 355 | A 1152951340 | BRACKET |
| A 1152951140 | BRACKET | |
| A 1152951140 | BRACKET | |
| 361 | A 1152510080 | GASKET |
| 361 | A 1152510080 | GASKET |
| 366 | N 000127008203 | LOCK WASHER |
| 366 | N 000127008203 | LOCK WASHER |
| 373 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 373 | N 304017008027 | SCREW |
| 373 | N 304017008027 | SCREW |
| A 1152900713 | LINE | |
| Repalced by: A 1082901113 | ||
| 379 | A 1082901113 | LINE |
| Repalced by: A 1093207753 | ||
| 379 | A 1093207753 | LINE |
| A 1092900013 | LINE | |
| Repalced by: A 1072900113 | ||
| A 1072900113 | LINE | |
| A 1152900913 | LINE | |
| Repalced by: A 1082901213 | ||
| A 1082901213 | LINE | |
| A 1092900113 | LINE | |
| Repalced by: A 1003203953 | ||
| A 1003203953 | LINE | |
| 386 | A 1152950740 | BRACKET |
| A 1092950040 | BRACKET | |
| A 1152951240 | BRACKET | |
| A 1092950140 | BRACKET | |
| 393 | N 073379006101 | HOSE |
| 393 | N 073379006101 | HOSE |
| 400 | A 1072950173 | LOCK |
| 400 | A 1072950173 | LOCK |
| 407 | N 000127008203 | LOCK WASHER |
| 407 | N 000127008203 | LOCK WASHER |
| 415 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 415 | N 304017008016 | SCREW |
| 415 | N 304017008016 | SCREW |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
