Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021

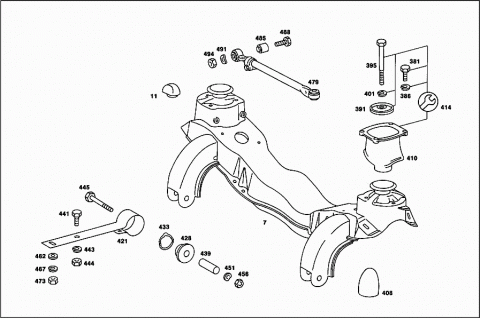

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 1113303042 | FRONT SUBFRAME |
| 011 | A 1123330165 | RUBBER BUFFER |
| A 1083300298 | HALF FRONT AXLE | |
| LEFT | ||
| A 1083300298 | HALF FRONT AXLE | |
| LEFT | ||
| A 1113303298 | HALF FRONT AXLE | |
| Repalced by: A 1083301298 | ||
| A 1083301298 | HALF FRONT AXLE | |
| LEFT | ||
| A 1083300398 | HALF FRONT AXLE | |
| RIGHT | ||
| A 1083300398 | HALF FRONT AXLE | |
| RIGHT | ||
| A 1113303398 | HALF FRONT AXLE | |
| Repalced by: A 1083301398 | ||
| A 1083301398 | HALF FRONT AXLE | |
| RIGHT | ||
| 024 | A 1083300020 | STEERING KNUCKLE |
| LEFT | ||
| 024 | A 1083300120 | STEERING KNUCKLE |
| RIGHT | ||
| 029 | A 1803320148 | BUSHING |
| TOP | ||
| 035 | A 1113320148 | BUSHING |
| BOTTOM | ||
| 041 | N 000007002208 | CYLINDRICAL PIN |
| 047 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 047 | N 071412008102 | GREASE NIPPLE |
| 054 | A 1113320106 | KINGPIN |
| 061 | N 071412008200 | GREASE NIPPLE |
| 068 | A 1203320051 | SPACER RING |
| 073 | A 1203320162 | THRUST WASHER |
| BOTTOM | ||
| 078 | A 1203320262 | THRUST WASHER |
| TOP | ||
| 083 | A 1203320260 | DUST CAP |
| 088 | A 1363320852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.7 MM | ||
| 088 | A 1363320952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.9 MM | ||
| 088 | A 1363321052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.1 MM | ||
| 088 | A 1363320052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.3 MM | ||
| 088 | A 1363320152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.5 MM | ||
| 088 | A 1363320252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.7 MM | ||
| 095 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 095 | N 071412008102 | GREASE NIPPLE |
| 102 | A 1819940015 | LOCK |
| 108 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 108 | N 308673014001 | NUT |
| 110 | A 1803330009 | STEERING KNUCKLE SUPPORT |
| 112 | A 1203300187 | ECCENTRIC BUSHING |
| 114 | A 1103300218 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 120 | A 1103300318 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 124 | A 1115860033 | REPAIR KIT |
| KINGPIN | ||
| 127 | A 1123340501 | WHEEL HUB |
| 132 | A 1113340064 | RETAINER |
| 137 | A 0039979346 | SEAL RING |
| 142 | A 1203340772 | NUT |
| A 1123300057 | HUB CAP | |
| Repalced by: A 1083340025 | ||
| 147 | A 1083340025 | HUB CAP |
| 152 | A 2015470085 | CONTACT SPRING |
| 157 | A 1154211112 | BRAKE DISC |
| 157 | A 1154211112 | BRAKE DISC |
| 157 | A 1094200005 | BRAKE DISC |
| 157 | A 1094200005 | BRAKE DISC |
| 162 | A 0009907212 | SCREW |
| 163 | A 1159940732 | LOCK |
| 163 | A 1159940732 | LOCK |
| 164 | A 0009815805 | TAPERED ROLLER BEARING |
| 165 | A 0009815905 | TAPERED ROLLER BEARING |
| 166 | A 1153340315 | RING |
| 168 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 168 | A 1073300051 | REPAIR KIT |
| WHEEL BEARING | ||
| 175 | A 1113302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| 175 | A 1113303007 | TRANSVERSE CONTROL ARM |
| BOTTOM RIGHT | ||
| 182 | A 1203330180 | SEAL RING |
| 189 | A 1089900801 | SCREW |
| 194 | N 912004012100 | LOCK WASHER |
| 199 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 199 | N 308673012002 | NUT |
| 202 | A 1089900840 | WASHER |
| 205 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 205 | N 071412008102 | GREASE NIPPLE |
| 212 | A 1203330474 | PIN |
| 219 | A 1813330180 | SEAL RING |
| 226 | A 1819900055 | NUT |
| N 000094003007 | COTTER PIN | |
| 232 | A 1113330330 | PIN |
| 234 | A 1113330548 | SCREW COLLAR |
| 236 | A 1113330448 | SCREW COLLAR |
| 238 | A 1103300118 | REPAIR KIT |
| LOWER CONTROL ARM PIVOT PIN | ||
| 245 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| 251 | A 1089900801 | SCREW |
| 255 | A 1109940010 | LOCK |
| 262 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 262 | N 000433013010 | WASHER |
| 267 | A 1203330180 | SEAL RING |
| 274 | N 071412008200 | GREASE NIPPLE |
| 276 | A 1113330230 | PIN |
| 278 | A 1203330248 | SCREW COLLAR |
| 280 | A 1203330348 | SCREW COLLAR |
| 281 | A 1203330548 | SCREW COLLAR |
| 287 | A 1203330374 | PIN |
| 294 | A 1209903240 | WASHER |
| 299 | A 1813330180 | SEAL RING |
| 305 | A 1209901340 | WASHER |
| 312 | N 000127010200 | LOCK WASHER |
| 317 | N 000934010014 | NUT |
| 324 | A 1203330073 | LOCK |
| 330 | N 000933006010 | SCREW |
| 334 | N 912004006102 | LOCK WASHER |
| 340 | A 1103300018 | REPAIR KIT |
| UPPER CONTROL ARM PIVOT PIN | ||
| A 1103300003 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 346 | A 1073300103 | TIE ROD |
| A 0003381515 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| 353 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 353 | A 0003384245 | CLAMP |
| 355 | N 000960008011 | SCREW |
| 357 | N 000127008200 | LOCK WASHER |
| 359 | N 000934008007 | NUT |
| Repalced by: N 000934008020 | ||
| 359 | N 000934008020 | NUT |
| A 0003381910 | BALL JOINT | |
| Repalced by: A 0003385210 | ||
| 360 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 360 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| 360 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 360 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| 360 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 371 | A 1209900155 | NUT |
| TO 115 330 07 03,08 03 | ||
| 371 | N 913002010010 | NUT |
| TO 107 330 01 03 | ||
| 374 | N 000094002077 | COTTER PIN |
| 376 | A 0003300485 | REPAIR KIT |
| BOOT | ||
| 381 | N 000933008145 | SCREW |
| 386 | N 000127008203 | LOCK WASHER |
| 391 | A 1113310645 | RETAINER |
| 395 | N 000960012095 | SCREW |
| 401 | N 000127012200 | LOCK WASHER |
| 408 | A 1113330265 | RUBBER BUFFER |
| 410 | A 1113301575 | RUBBER MOUNTING |
| 414 | A 1083300275 | REPAIR KIT |
| 421 | A 1123310012 | STRUT |
| 428 | A 1103221585 | RUBBER MOUNTING |
| 428 | A 1123220385 | RUBBER MOUNTING |
| 433 | A 1103220276 | WASHER |
| 439 | A 1113320053 | SPACER TUBE |
| 441 | N 000933008145 | SCREW |
| 443 | N 000127008203 | LOCK WASHER |
| 444 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 444 | N 304032008006 | NUT |
| 445 | N 000960016138 | SCREW |
| 451 | N 000137016202 | SPRING WASHER |
| 456 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 456 | N 308673016001 | NUT |
| 462 | N 000125015004 | WASHER |
| 467 | N 912004014100 | LOCK WASHER |
| 473 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 473 | N 308673014001 | NUT |
| 479 | A 1113300330 | GUIDE ROD |
| 485 | A 0009883310 | RUBBER MOUNTING |
| 488 | N 000960012225 | SCREW |
| 491 | N 912004012100 | LOCK WASHER |
| 494 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 494 | N 308673012002 | NUT |
