Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021

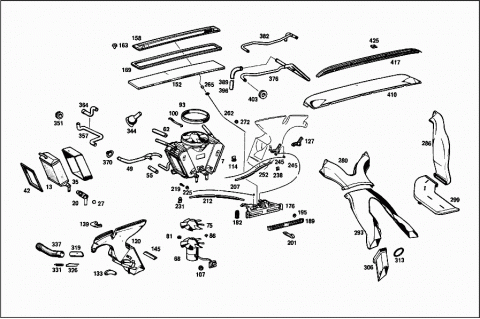

Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1118305162 | HEATER CASE | |
| Repalced by: A 1118305762 | ||
| A 1118305162 | HEATER CASE | |
| 007 | A 1118305762 | HEATER CASE |
| 007 | A 1118305762 | HEATER CASE |
| 013 | A 0008350101 | HEAT EXCHANGER |
| LEFT | ||
| A 0008350201 | HEAT EXCHANGER | |
| RIGHT | ||
| 020 | A 0008350320 | CONTROL VALVE |
| LEFT | ||
| A 0008350420 | CONTROL VALVE | |
| RIGHT | ||
| A 0008350098 | SEAL | |
| Repalced by: A 0008351298 | ||
| A 0008351298 | SEAL | |
| Repalced by: A 0008354198 | ||
| 027 | A 0008354198 | SEAL |
| Repalced by: A 0008355898 | ||
| 027 | A 0008355898 | SEAL |
| 035 | A 0008350023 | WEATHERSTRIP |
| 042 | A 0008350123 | WEATHERSTRIP |
| 049 | A 0008350415 | PIPE LINE |
| DISTRIBUTOR | ||
| 049 | A 0008350415 | PIPE LINE |
| DISTRIBUTOR | ||
| A 0008351615 | PIPE LINE | |
| DISTRIBUTOR | ||
| A 0008351615 | PIPE LINE | |
| DISTRIBUTOR | ||
| A 0008350515 | PIPE LINE | |
| DISTRIBUTOR | ||
| A 0008350515 | PIPE LINE | |
| DISTRIBUTOR | ||
| A 0008351715 | PIPE LINE | |
| DISTRIBUTOR | ||
| A 0008351715 | PIPE LINE | |
| DISTRIBUTOR | ||
| 055 | N 900271015069 | HOSE |
| Repalced by: N 900271015037 | ||
| 055 | N 900271015037 | HOSE |
| FROM HEAT EXCHANGER TO FEED LINE | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| 062 | N 900271015069 | HOSE |
| Repalced by: N 900271015037 | ||
| 062 | N 900271015037 | HOSE |
| RETURN LINE TO HEAT EXCHANGER | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| 068 | A 0008350902 | MOTOR |
| BLOWER | ||
| A 0008350575 | CARBON BRUSH SET | |
| 2 PIECES | ||
| 075 | A 0008350785 | FAN |
| 081 | A 0009976181 | GROMMET |
| BLOWER TO FRAME | ||
| 086 | A 0009871840 | RUBBER BUFFER |
| BLOWER TO FRAME | ||
| N 000137005203 | SPRING WASHER | |
| BLOWER TO FRAME | ||
| N 000934005014 | NUT | |
| BLOWER TO FRAME | ||
| 093 | A 0008350223 | WEATHERSTRIP |
| 100 | A 0008350034 | SPRING |
| 107 | A 0009976181 | GROMMET |
| N 000933006130 | SCREW | |
| HEATER CASE TO WATER TANK | ||
| N 000125006421 | WASHER | |
| HEATER CASE TO WATER TANK | ||
| N 912004006102 | LOCK WASHER | |
| HEATER CASE TO WATER TANK | ||
| 114 | A 0009904291 | NUT RETAINER |
| HEATER CASE TO FIRE WALL | ||
| N 000933006123 | SCREW | |
| HEATER CASE TO FIRE WALL | ||
| N 000137006204 | PART NAME MISSING | |
| HEATER CASE TO FIRE WALL | ||
| A 1118305119 | DEFROSTER NOZZLE | |
| Repalced by: A 1118305519 | ||
| A 1118305119 | DEFROSTER NOZZLE | |
| 120 | A 1118305519 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1118305419 | DEFROSTER NOZZLE | |
| Repalced by: A 1118305619 | ||
| A 1118305219 | DEFROSTER NOZZLE | |
| Repalced by: A 1118305619 | ||
| A 1118305619 | DEFROSTER NOZZLE | |
| RIGHT | ||
| A 1108310433 | LEVER | |
| RIGHT | ||
| A 1108310433 | LEVER | |
| RIGHT | ||
| 127 | A 1118315233 | LEVER |
| RIGHT | ||
| 127 | A 1118315233 | LEVER |
| RIGHT | ||
| A 1108310733 | LEVER | |
| LEFT | ||
| A 1108310733 | LEVER | |
| LEFT | ||
| 133 | A 1118315133 | LEVER |
| LEFT | ||
| 133 | A 1118315133 | LEVER |
| LEFT | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| N 000137006204 | SPRING WASHER | |
| 139 | A 1108310020 | MOUNTING |
| 145 | A 0009874651 | RUBBER SEAL |
| MEDIUM GREEN/YELLOW | ||
| 152 | A 1118315065 | SCREEN |
| 158 | A 1108300743 | AIR DISTRIBUTOR |
| A 1119871340 | RUBBER BUFFER | |
| Repalced by: A 0009871840 | ||
| 163 | A 0009871840 | RUBBER BUFFER |
| N 000933006085 | SCREW | |
| AIR DISTRIBUTOR TO HINGES | ||
| N 006797006343 | TOOTHED WASHER | |
| AIR DISTRIBUTOR TO HINGES | ||
| 169 | A 1118315198 | SEAL |
| A 1118305333 | OPERATING LEVER | |
| Repalced by: A 1118305633 | ||
| 176 | A 1118305633 | OPERATING LEVER |
| WITH ROLLERS | ||
| H 101868880034 | SPRING | |
| Repalced by: A 1868880034 | ||
| 182 | A 1868880034 | SPRING |
| 189 | A 1118305089 | ESCUTCHEON |
| 195 | A 0009900148 | WASHER |
| N 000934006007 | NUT | |
| A 1118330340 | OPERATING HANDLE | |
| Repalced by: A 1118330440 | ||
| A 1118330440 | OPERATING HANDLE | |
| 201 | A 1118330440 | OPERATING HANDLE |
| 201 | A 1118330440 | OPERATING HANDLE |
| 207 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1118336130 | ||
| 212 | A 1118336130 | SPIRAL |
| WITH CASING | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| 219 | A 1368310089 | SCREW |
| WIRE CABLES TO CONTROL COCKS | ||
| 225 | A 1360720050 | BUSHING |
| WIRE CABLES TO CONTROL COCKS | ||
| N 000433004307 | WASHER | |
| WIRE CABLES TO CONTROL COCKS | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLES TO CONTROL COCKS | ||
| N 000934004006 | NUT | |
| WIRE CABLES TO CONTROL COCKS | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLES TO OPERATING LEVERS | ||
| 231 | A 0019886878 | CLIP |
| WIRE CABLES TO HEATER CASE | ||
| 238 | A 1109950001 | CLAMP |
| WIRE CABLE TO LEFT BEARING BRACKET | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO LEFT BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO LEFT BEARING BRACKET | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO RIGHT BEARING BRACKET | ||
| N 000933004046 | SCREW | |
| WIRE CABLE TO RIGHT BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO RIGHT BEARING BRACKET | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO RIGHT BEARING BRACKET | ||
| H 401218330431 | WIRE CABLE | |
| Repalced by: A 1218330431 | ||
| 245 | A 1218330431 | WIRE CABLE |
| 1200 MM DEFROSTER NOZZLE AND CONNECTION | ||
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1118336130 | ||
| 252 | A 1118336130 | SPIRAL |
| WITH CASING | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO OPERATING LEVER | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO RIGHT LEVER | ||
| A 1109950001 | CLAMP | |
| WIRE CABLES TO DEFROSTER NOZZLE | ||
| N 007981003257 | SHEET METAL SCREW | |
| WIRE CABLES TO DEFROSTER NOZZLE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLES TO DEFROSTER NOZZLE | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO LEFT DEFROSTER NOZZLE LEVER | ||
| H 121368310090 | BUSHING | |
| WIRE CABLE TO LEFT DEFROSTER NOZZLE LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO LEFT DEFROSTER NOZZLE LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO LEFT DEFROSTER NOZZLE LEVER | ||
| H 401218330431 | WIRE CABLE | |
| Repalced by: A 1108330331 | ||
| 262 | A 1108330331 | WIRE CABLE |
| A 1108331230 | SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 0009880672 | WIRE SPIRAL | |
| Repalced by: A 1118336130 | ||
| A 1118336130 | SPIRAL | |
| WITH CASING | ||
| 265 | A 1108330091 | GROMMET |
| Repalced by: A 1093270059 | ||
| 265 | A 1093270059 | PROTECTIVE CAP |
| A 0009978481 | GROMMET | |
| Repalced by: A 0009974981 | ||
| 272 | A 0009974981 | GROMMET |
| Repalced by: A 0009971881 | ||
| 272 | A 0009971881 | GROMMET |
| WIRE CABLE THRU WATER TANK | ||
| H 121368310089 | SCREW | |
| Repalced by: A 1368310089 | ||
| A 1368310089 | SCREW | |
| WIRE CABLE TO OPERATING LEVER | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 000433004307 | WASHER | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO OPERATING LEVER | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO OPERATING LEVER | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO BRACKET OF BEARING BRACKET | ||
| A 1109950001 | CLAMP | |
| WIRE CABLE TO INTERIOR PLATE | ||
| N 000933004016 | SCREW | |
| WIRE CABLE TO INTERIOR PLATE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| WIRE CABLE TO INTERIOR PLATE | ||
| N 000934004006 | NUT | |
| WIRE CABLE TO INTERIOR PLATE | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO AIR DISTRIBUTOR | ||
| 280 | A 1118305024 | INTERMEDIATE PIECE |
| HEATING IN THE REAR | ||
| 280 | A 1118305024 | INTERMEDIATE PIECE |
| HEATING IN THE REAR | ||
| 286 | A 1118315346 | DUCT |
| LEFT HEATING IN THE REAR | ||
| 286 | A 1118315346 | DUCT |
| LEFT HEATING IN THE REAR | ||
| A 1118315446 | DUCT | |
| RIGHT HEATING IN THE REAR | ||
| A 1118315446 | DUCT | |
| RIGHT HEATING IN THE REAR | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE 5 X 10 X 220 MM | ||
| N 007985006131 | SCREW | |
| CONNECTION DUCT TO DEFROSTER NOZZLES | ||
| N 000137006204 | PART NAME MISSING | |
| CONNECTION DUCT TO DEFROSTER NOZZLES | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE 5 X 20 X 260 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| MOLTOPRENE 5 X 20 X 260 MM | ||
| 293 | A 1118305045 | AIR DUCT |
| 293 | A 1118305045 | AIR DUCT |
| 299 | A 1088310546 | DUCT |
| LEFT HEATING IN THE REAR | ||
| 299 | A 1088310546 | DUCT |
| LEFT HEATING IN THE REAR | ||
| A 1088310646 | DUCT | |
| RIGHT HEATING IN THE REAR | ||
| A 1088310646 | DUCT | |
| RIGHT HEATING IN THE REAR | ||
| 306 | A 1108310345 | DUCT |
| LEFT HEATING IN THE REAR | ||
| 306 | A 1108310345 | DUCT |
| LEFT HEATING IN THE REAR | ||
| A 1108310445 | DUCT | |
| RIGHT HEATING IN THE REAR | ||
| A 1108310445 | DUCT | |
| RIGHT HEATING IN THE REAR | ||
| 313 | A 1119870141 | RUBBER RING |
| 313 | A 1119870141 | RUBBER RING |
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| HEATING DUCT AND CONNECTION DUCT TO TUNNEL | ||
| N 000000000453 | SHEET METAL SCREW | |
| HEATING DUCT AND CONNECTION DUCT TO TUNNEL | ||
| A 0009841755 | WASHER | |
| HEATING DUCT AND CONNECTION DUCT TO TUNNEL | ||
| A 0009841755 | WASHER | |
| HEATING DUCT AND CONNECTION DUCT TO TUNNEL | ||
| N 007981004331 | SHEET METAL SCREW | |
| REAR DUCT TO MAIN FLOOR | ||
| N 007981004331 | SHEET METAL SCREW | |
| REAR DUCT TO MAIN FLOOR | ||
| N 007981004330 | SHEET METAL SCREW | |
| REAR DUCT TO MAIN FLOOR | ||
| N 007981004330 | SHEET METAL SCREW | |
| REAR DUCT TO MAIN FLOOR | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| REAR DUCT TO MAIN FLOOR | ||
| 319 | A 1118300154 | NOZZLE |
| LEFT | ||
| A 1118300254 | NOZZLE | |
| RIGHT | ||
| H 101208310032 | WIRE CLAMP | |
| Repalced by: A 1208310032 | ||
| 326 | A 1208310032 | VALVE |
| 331 | A 1209931610 | SPRING |
| H 101208310188 | HOSE | |
| Repalced by: A 1108310188 | ||
| 337 | A 1108310188 | HOSE |
| ANNULAR NOZZLES TO DEFROSTER NOZZLES | ||
| 344 | A 1108310132 | VALVE |
| WATER TANK DRAIN | ||
| 351 | A 1869970781 | GROMMET |
| HOSE THRU FIRE WALL | ||
| N 900271018036 | HOSE | |
| FEED LINE | ||
| N 900271018036 | HOSE | |
| FEED LINE | ||
| A 1088310094 | HOSE | |
| FEED LINE | ||
| A 1088310094 | HOSE | |
| FEED LINE | ||
| 357 | A 1088310494 | HOSE |
| FEED LINE | ||
| A 1098310494 | HOSE | |
| FEED LINE | ||
| 364 | A 1098310694 | HOSE |
| FEED LINE | ||
| A 1118315494 | HOSE | |
| FEED LINE | ||
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 1109972181 | GROMMET | |
| FEED LINE THRU FIRE WALL | ||
| A 1109972181 | GROMMET | |
| FEED LINE THRU FIRE WALL | ||
| 370 | A 1089970081 | GROMMET |
| Repalced by: A 1139970081 | ||
| 370 | A 1139970081 | GROMMET |
| FEED LINE THRU FIRE WALL | ||
| 370 | A 1139970081 | GROMMET |
| FEED LINE THRU FIRE WALL | ||
| A 1118305115 | PIPE LINE | |
| RETURN | ||
| A 1118305115 | PIPE LINE | |
| RETURN | ||
| 376 | A 1118305215 | PIPE LINE |
| RETURN | ||
| 382 | A 1118305315 | PIPE LINE |
| RETURN | ||
| 389 | N 900271018036 | HOSE |
| 1000 MM HEATING RETURN | ||
| 389 | N 900271018036 | HOSE |
| 1000 MM HEATING RETURN | ||
| A 1088310294 | HOSE | |
| 396 | A 1088310594 | HOSE |
| A 1088300415 | PIPE LINE | |
| Repalced by: A 1088310385 | ||
| A 1088310385 | PIPE LINE | |
| N 900271018036 | HOSE | |
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| HOSE TO RETURN LINE | ||
| N 000000000667 | CLAMP | |
| HOSE TO RETURN LINE | ||
| N 000000000667 | CLAMP | |
| HOSE TO RETURN LINE | ||
| N 916026023001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| HOSE TO WATER PUMP | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| RETURN LINE HOSE TO HEAT EXCHANGER | ||
| 403 | A 1869970781 | GROMMET |
| RETURN LINE THRU FIRE WALL | ||
| N 007976004205 | SHEET METAL SCREW | |
| RETURN LINE TO SIDE MEMBER | ||
| 410 | A 1118365023 | CAP |
| 417 | A 1118300218 | GRILLE |
| N 007982003215 | SHEET METAL SCREW | |
| CAP TO COWL | ||
| N 007981003203 | SHEET METAL SCREW | |
| CAP TO COWL | ||
| N 007983004202 | SHEET METAL SCREW | |
| GRILLE TO CENTRAL PART, OUTSIDE | ||
| 425 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 425 | A 1409941045 | LOCK |
| GRILLE TO CENTRAL PART, OUTSIDE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
