Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021
Grupė: 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 001 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MERCEDES-BENZ AUTOMATIC TRANSMISSION | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 024,025 UP TO CHASSIS, SEE FOOTNOTE 1 | ||

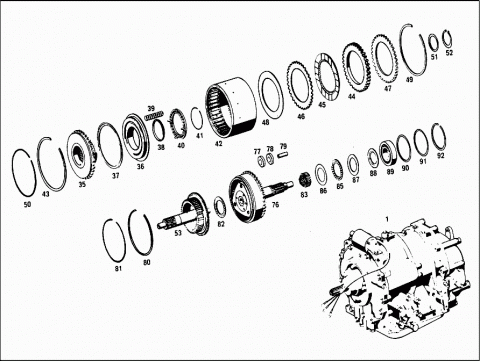

| A 1132700101 | AUTOMATIC TRANSMISSION | |
| 001 | A 1132700901 | AUTOMATIC TRANSMISSION |
| 002 | A 1122700705 | COVER |
| A 1122710550 | BUSHING | |
| 003 | A 1129970530 | SCREW PLUG |
| 003 | A 1129970530 | SCREW PLUG |
| 004 | N 007603010100 | SEAL RING |
| 004 | N 007603010100 | SEAL RING |
| 005 | A 1002720155 | SEAL RING |
| 006 | A 1122701490 | HOUSING |
| A 1122774350 | BUSHING | |
| 007 | A 0089979146 | SEAL RING |
| 008 | A 0049970548 | SEAL RING |
| 009 | N 000137008100 | SPRING WASHER |
| 010 | N 006912008000 | SCREW |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 011 | A 1122710480 | GASKET |
| Repalced by: A 1122711380 | ||
| 011 | A 1122711380 | GASKET |
| 012 | A 1122710052 | SPACER WASHER |
| 0.1 MM | ||
| A 1122710152 | SPACER WASHER | |
| Repalced by: A 1122710052 | ||
| A 1122710052 | SPACER WASHER | |
| 0.2 MM | ||
| A 1122710252 | SPACER WASHER | |
| 0.5 MM | ||
| 013 | A 1122710062 | THRUST WASHER |
| 014 | N 000933007019 | SCREW |
| 015 | N 000933007020 | SCREW |
| 016 | N 000137007200 | SPRING WASHER |
| 017 | A 1122700320 | FLANGE |
| 018 | A 1122720762 | GUARD PLATE |
| 019 | A 1002720155 | SEAL RING |
| 020 | A 1122703420 | FLANGE |
| 021 | A 1122722331 | PISTON |
| 022 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 022 | A 3162720792 | BOOT |
| 023 | A 1152721492 | BOOT |
| 024 | A 1129935001 | SPRING |
| A 1129930802 | SPRING | |
| 025 | A 1122720764 | SPRING RETAINER |
| 026 | A 1129940035 | SNAP RING |
| 027 | A 1092721526 | OUTER DISC |
| 028 | A 1122720225 | INNER DISC |
| 029 | A 1122721462 | GUARD PLATE |
| 030 | A 1129934801 | SPRING |
| A 1122723162 | GUARD PLATE | |
| 031 | A 1122723362 | GUARD PLATE |
| 032 | A 1122720173 | LOCK |
| A 1122700325 | DRIVE SHAFT | |
| 033 | A 1122702925 | DRIVE SHAFT |
| 034 | A 1122720062 | GUARD PLATE |
| 035 | A 1122703720 | FLANGE |
| 036 | A 1122722631 | PISTON |
| 037 | A 1122721192 | BOOT |
| 038 | A 1152721492 | BOOT |
| 039 | A 1129933102 | SPRING |
| 040 | A 1122720664 | SPRING RETAINER |
| 041 | A 1129940035 | SNAP RING |
| 042 | A 1122721824 | DISC SUPPORT |
| 043 | A 1122720173 | LOCK |
| A 1122720826 | OUTER DISC | |
| Repalced by: A 1122720726 | ||
| 044 | A 1122720726 | OUTER DISC |
| 045 | A 1122720225 | INNER DISC |
| A 1092721526 | OUTER DISC | |
| 046 | A 1092721526 | OUTER DISC |
| A 1002720026 | OUTER DISC | |
| Repalced by: A 1092721826 | ||
| A 1092721826 | OUTER DISC | |
| 047 | A 1122721126 | OUTER DISC |
| 048 | A 1122721462 | GUARD PLATE |
| 049 | A 1122720073 | LOCK |
| 050 | A 1129940039 | WIRE RING |
| 051 | A 1122720052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 051 | A 1122720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.7 MM | ||
| 051 | A 1122720252 | SPACER WASHER |
| Repalced by: A 1122720052 | ||
| 051 | A 1122720052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 051 | A 1122721052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 052 | N 900055040301 | LOCK RING |
| 053 | A 1122703025 | DRIVE SHAFT |
| 054 | A 1122701643 | PLANETARY CARRIER |
| 055 | A 1122723762 | GUARD PLATE |
| 056 | A 1122723562 | GUARD PLATE |
| 057 | A 1122720074 | PIN |
| 058 | A 1129930005 | SPRING |
| 059 | N 005401307000 | BALL |
| 060 | A 1122720067 | RING |
| 061 | N 000472012000 | LOCK RING |
| 062 | A 3072720255 | SEAL RING |
| 063 | A 1122720062 | GUARD PLATE |
| 064 | A 1122703920 | FLANGE |
| 065 | A 1122722231 | PISTON |
| 066 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 066 | A 3162720792 | BOOT |
| 067 | A 1129933102 | SPRING |
| 068 | A 1152721492 | BOOT |
| 069 | A 1122720664 | SPRING RETAINER |
| 070 | A 1129940035 | SNAP RING |
| 071 | A 0009814710 | NEEDLE BEARING |
| A 1092721526 | OUTER DISC | |
| 072 | A 1092721526 | OUTER DISC |
| A 1122720626 | OUTER DISC | |
| Repalced by: A 1122721126 | ||
| 073 | A 1122721126 | OUTER DISC |
| 074 | A 1122720225 | INNER DISC |
| 075 | A 1122721462 | GUARD PLATE |
| 076 | A 1122701743 | PLANETARY CARRIER |
| 077 | A 1122723662 | GUARD PLATE |
| 078 | A 1122723862 | GUARD PLATE |
| 079 | A 1122720174 | PIN |
| 080 | A 1152720273 | LOCK |
| 081 | A 1129940735 | SNAP RING |
| 082 | A 0009819910 | NEEDLE BEARING |
| 083 | A 0009814810 | NEEDLE BEARING |
| 084 | A 1122720173 | LOCK |
| 085 | A 1009810010 | NEEDLE BEARING |
| 086 | A 0002721062 | GUARD PLATE |
| 087 | A 1002720152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1002720252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| 088 | A 1122721962 | GUARD PLATE |
| 089 | N 000625506207 | GROOVED BALL BEARING |
| 090 | A 1122720952 | SPACER WASHER |
| 091 | A 1122720652 | SPACER WASHER |
| 0.1 MM | ||
| 091 | A 1122720752 | SPACER WASHER |
| 0.15 MM | ||
| 091 | A 1122720852 | SPACER WASHER |
| Repalced by: A 1122720652 | ||
| 091 | A 1122720652 | SPACER WASHER |
| 0.20 MM | ||
| 092 | A 0009941640 | SNAP RING |
| 093 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 093 | N 304017008034 | SCREW |
| 094 | N 000137008200 | SPRING WASHER |

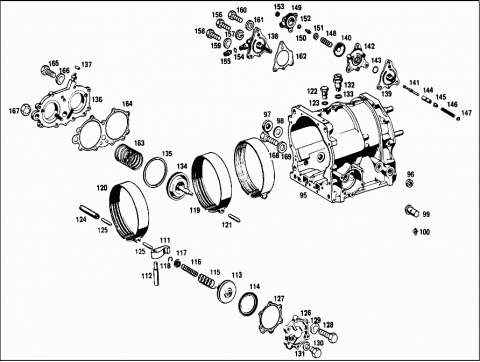

| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION CASE | ||
| 095 | A 1122703611 | TRANSMISSION CASE |
| N 900421006001 | THREADED INSERT | |
| REPAIR SIZE | ||
| N 900421007000 | THREADED INSERT | |
| REPAIR SIZE | ||
| N 900421008003 | THREADED INSERT | |
| REPAIR SIZE | ||
| 096 | N 006503010100 | SEAL RING |
| 097 | A 0019972346 | SEAL RING |
| 098 | A 1129900240 | WASHER |
| A 1129970032 | SCREW PLUG | |
| A 1129970335 | PLUG | |
| 099 | A 1122701389 | VALVE |
| 100 | A 1122770747 | TUBE |
| 101 | A 1122700556 | LEVER |
| 102 | A 1122700357 | DETENT |
| 103 | N 000125006421 | WASHER |
| 104 | N 000093006400 | LOCK PLATE |
| 105 | N 000934006007 | NUT |
| 106 | A 1122700064 | SHIFTING FORK |
| 107 | A 1122700065 | LINKAGE |
| 108 | N 071805010200 | BALL SOCKET |
| 109 | N 000439006100 | NUT |
| 110 | N 071805010400 | SECURING CLIP |
| 111 | A 1122770624 | LEVER |
| 112 | A 1122771074 | PIN |
| 113 | A 1122700132 | PISTON |
| 114 | A 1122770192 | BOOT |
| 115 | A 1129937201 | SPRING |
| 116 | A 1129937101 | SPRING |
| 117 | A 1122770853 | SPACER TUBE |
| 118 | A 0009942741 | LOCK |
| 119 | A 1122702062 | BRAKE BAND |
| Repalced by: A 1122702562 | ||
| 119 | A 1122702562 | BRAKE BAND |
| 120 | A 1122702362 | BRAKE BAND |
| Repalced by: A 1122702662 | ||
| 120 | A 1122702662 | BRAKE BAND |
| Repalced by: A 1122702362 | ||
| 120 | A 1122702362 | BRAKE BAND |
| 121 | A 1122770475 | PIN |
| AS REQUIRED | ||
| 35 MM | ||
| 121 | A 1122770575 | PIN |
| AS REQUIRED | ||
| 36 MM | ||
| 121 | A 1122770675 | PIN |
| AS REQUIRED | ||
| 37 MM | ||
| 122 | A 1129970130 | SCREW PLUG |
| 123 | N 007603016401 | SEAL RING |
| 124 | A 1122770171 | SCREW |
| 125 | A 1122773175 | PIN |
| 126 | A 1122770003 | COVER |
| 127 | A 1122770080 | GASKET |
| Repalced by: A 1122771780 | ||
| 127 | A 1122771780 | GASKET |
| 128 | N 000933070019 | SCREW |
| 129 | N 000137007200 | SPRING WASHER |
| 130 | A 1129970030 | SCREW PLUG |
| 131 | N 007603008109 | SEAL RING |
| A 1112600058 | BREATHER | |
| A 1122700382 | BREATHER | |
| REPAIR SIZE | ||
| 132 | A 1122700182 | BREATHER |
| N 007603010100 | SEAL RING | |
| 133 | N 007603014100 | SEAL RING |
| 134 | A 1122700932 | PISTON |
| 135 | A 1122770055 | SEAL RING |
| 136 | A 1122700814 | BEARING COVER |
| 137 | A 0009976041 | SEAL RING |
| 138 | A 1112700071 | HOUSING |
| 139 | A 1122700188 | INSULATING PLATE |
| 140 | A 1122700079 | DIAPHRAGM |
| 141 | A 1122772475 | PIN |
| AS REQUIRED | ||
| 80 MM | ||
| 141 | A 1122772575 | PIN |
| AS REQUIRED | ||
| 81 MM | ||
| 141 | A 1122772675 | PIN |
| AS REQUIRED | ||
| 82 MM | ||
| 142 | A 1122770514 | INTERMEDIATE PLATE |
| 143 | A 0009976845 | SEAL RING |
| 144 | A 1122770753 | SPACER TUBE |
| 145 | A 1122770977 | GUIDE |
| 146 | A 1129932402 | SPRING |
| 147 | N 006799003202 | LOCK PLATE |
| 148 | A 1129934002 | SPRING |
| 148 | A 1129935202 | SPRING |
| 149 | A 1112770003 | COVER |
| 150 | A 1122770271 | SCREW |
| 151 | A 1122771046 | SPRING RETAINER |
| 152 | N 007603006100 | SEAL RING |
| 153 | N 000934006007 | NUT |
| 154 | N 007603010100 | SEAL RING |
| 155 | N 915013004002 | SCREW FITTING |
| 156 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 156 | N 304017005002 | SCREW |
| 157 | N 000137005100 | SPRING WASHER |
| 158 | N 000933005103 | SCREW |
| 159 | N 000137005100 | SPRING WASHER |
| A 1122770157 | INSULATING RING | |
| 160 | A 1129970030 | SCREW PLUG |
| 161 | N 007603008109 | SEAL RING |
| 162 | A 1122771380 | GASKET |
| Repalced by: A 1122771580 | ||
| 162 | A 1122771580 | GASKET |
| Repalced by: A 1102770180 | ||
| 162 | A 1102770180 | GASKET |
| 163 | A 1129931401 | SPRING |
| 164 | A 1122770380 | GASKET |
| Repalced by: A 1122771980 | ||
| 164 | A 1122771980 | GASKET |
| 165 | N 000933007017 | SCREW |
| N 000933007021 | SCREW | |
| N 000933007019 | SCREW | |
| 166 | N 000137007200 | SPRING WASHER |
| A 1122770257 | INSULATING RING | |
| 167 | N 000936014005 | NUT |
| 168 | A 1129970030 | SCREW PLUG |
| CHECK BORE | ||
| 169 | N 007603008109 | SEAL RING |
| CHECK BORE | ||
| 170 | A 1122701116 | CASE COVER |
| LESS GOVERNOR, PUMP, AND DRIVE GEAR | ||
| N 900421005000 | THREADED INSERT | |
| 171 | A 1122772731 | PISTON |
| 172 | A 1129937601 | SPRING |
| 173 | A 1129937701 | SPRING |
| A 1129935402 | SPRING | |
| 174 | A 1122770852 | SPACER WASHER |
| MAXIMUM,4 PIECES | ||
| 175 | A 1122775531 | PISTON |
| 176 | A 1129936801 | SPRING |
| 177 | A 1122770752 | SPACER WASHER |
| MAXIMUM,2 PIECES | ||
| 178 | A 1122770180 | GASKET |
| Repalced by: A 1122771680 | ||
| 178 | A 1122771680 | GASKET |
| 179 | A 1122770083 | LOCKING SHEET |
| 180 | N 000084005131 | SCREW |
| 181 | N 000137005100 | SPRING WASHER |
| 182 | A 1092700193 | DRIVE SHAFT |
| 183 | A 1862770055 | SEAL RING |
| 184 | A 1129910201 | PIN |
| REPAIR SIZE | ||
| 5.4 MM | ||
| A 1129910301 | PIN | |
| REPAIR SIZE | ||
| 5.5 MM | ||
| 185 | A 1122700950 | BUSHING |
| 186 | A 1129930102 | SPRING |
| 187 | A 1122700097 | OIL PUMP |
| 188 | A 1122700187 | GASKET KIT |
| 189 | A 1122770453 | SPACER TUBE |
| FOLLOWER TO DRIVE SHAFT | ||
| 190 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 190 | N 304017006027 | SCREW |
| 191 | N 000137006204 | SPRING WASHER |
| 192 | A 1122770980 | GASKET |
| Repalced by: A 1122771880 | ||
| 192 | A 1122771880 | GASKET |
| 193 | A 1132700069 | SENDER UNIT |

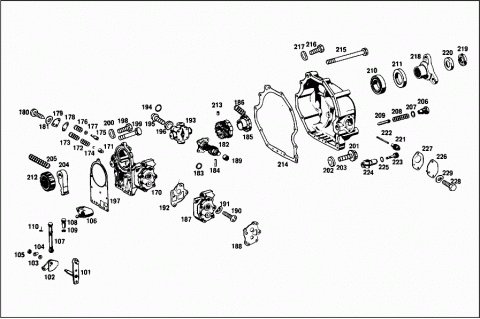

| 194 | A 0009977845 | SEAL RING |
| 195 | N 000912005004 | SCREW |
| 196 | N 000137005100 | SPRING WASHER |
| 197 | A 1122770480 | GASKET |
| Repalced by: A 1122771480 | ||
| 197 | A 1122771480 | GASKET |
| 198 | N 000933006123 | SCREW |
| 199 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 199 | N 304014006004 | SCREW |
| 200 | N 000137006204 | SPRING WASHER |
| 201 | A 1122701211 | TRANSMISSION CASE |
| 202 | N 007603008109 | SEAL RING |
| 202 | N 007603008109 | SEAL RING |
| 203 | A 1129970030 | SCREW PLUG |
| 203 | A 1129970030 | SCREW PLUG |
| 204 | A 1122780221 | PAWL |
| 205 | A 1129939001 | SPRING |
| 206 | A 1122780069 | SCREW |
| 207 | N 007603016401 | SEAL RING |
| 208 | A 1129939901 | SPRING |
| 209 | A 1122780374 | PIN |
| 210 | N 000625900201 | GROOVED BALL BEARING |
| 211 | A 0039974746 | SEAL RING |
| 212 | A 1002720017 | GEAR |
| 213 | A 1002720074 | PIN |
| 214 | A 1122710680 | GASKET |
| Repalced by: A 1122711480 | ||
| 214 | A 1122711480 | GASKET |
| 215 | N 000933007022 | SCREW |
| 216 | N 000933007021 | SCREW |
| 217 | N 000137007200 | SPRING WASHER |
| 218 | A 1112620045 | FLANGE |
| 219 | A 1862620226 | GROOVED NUT |
| 220 | A 1862620173 | LOCK |
| 221 | A 1122700527 | SPEEDOMETER DRIVE |
| 222 | A 1122740032 | DRIVE SHAFT |
| 223 | A 1122700627 | SPEEDOMETER DRIVE |
| 224 | A 1122700113 | BEARING BODY |
| 225 | A 0009976845 | SEAL RING |
| 226 | A 1122700008 | COVER |
| 227 | A 1122740180 | GASKET |
| 228 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 228 | N 304017006016 | SCREW |
| 229 | N 000137006204 | SPRING WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| VALVE BODY ASSEMBLY | ||
| A 1132700307 | VALVE BODY ASSEMBLY | |

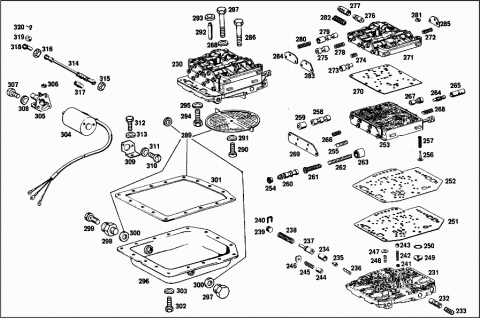

| 230 | A 1122702307 | VALVE BODY ASSEMBLY |
| 231 | A 1122702207 | VALVE BODY ASSEMBLY |
| 232 | A 1122775329 | SHIFT VALVE |
| 233 | A 1129932701 | SPRING |
| 234 | A 1122773550 | BUSHING |
| 235 | A 1122774531 | PISTON |
| 236 | A 1129933502 | SPRING |
| 237 | A 1122774631 | PISTON |
| 238 | A 1129933702 | SPRING |
| 239 | A 1122771174 | PIN |
| 240 | A 1122770073 | LOCK |
| 241 | A 1122773750 | BUSHING |
| 242 | A 1129933802 | SPRING |
| 243 | A 1122774731 | PISTON |
| 244 | A 1122775031 | PISTON |
| 245 | A 1129934402 | SPRING |
| 246 | A 1122770583 | LOCKING SHEET |
| 247 | A 1152772936 | VALVE PART |
| 248 | A 1129934802 | SPRING |
| 249 | A 1122701489 | VALVE |
| 250 | A 0059974145 | SEAL RING |
| 251 | A 1122771314 | INTERMEDIATE PLATE |
| 252 | A 1122771280 | GASKET |
| Repalced by: A 1122772380 | ||
| 252 | A 1122772380 | GASKET |
| A 1132700107 | VALVE BODY ASSEMBLY | |
| 253 | A 1122701707 | VALVE BODY ASSEMBLY |
| 254 | A 1122773150 | BUSHING |
| 255 | A 1129930902 | SPRING |
| 256 | A 1122770436 | VALVE PART |
| 257 | A 1129930301 | SPRING |
| 258 | A 1122775629 | SHIFT VALVE |
| 259 | A 1122774031 | PISTON |
| 260 | A 1122700870 | REGULATOR VALVE |
| 261 | A 1122700677 | THRUST PIN |
| A 1129938501 | SPRING | |
| 262 | A 1129934202 | SPRING |
| A 1129935702 | SPRING | |
| A 1132770031 | PISTON | |
| 263 | A 1122774931 | PISTON |
| 264 | A 1122774729 | SHIFT VALVE |
| 265 | A 1122772950 | BUSHING |
| 266 | A 1129933902 | SPRING |
| 267 | A 1122775429 | SHIFT VALVE |
| 268 | A 1129931901 | SPRING |
| 269 | A 1122771783 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| 270 | A 1122771114 | INTERMEDIATE PLATE |
| 271 | A 1122702107 | VALVE BODY ASSEMBLY |
| 272 | A 1129931502 | SPRING |
| A 1129934302 | SPRING | |
| A 1122775131 | PISTON | |
| 273 | A 1122775231 | PISTON |
| 274 | A 1129934402 | SPRING |
| 275 | A 1122772929 | SHIFT VALVE |
| 276 | A 1122775529 | SHIFT VALVE |
| 277 | A 1122773650 | BUSHING |
| 278 | A 1129931901 | SPRING |
| 279 | A 1122771530 | SHIFT VALVE |
| 280 | A 1129935002 | SPRING |
| 281 | A 1122770392 | BOOT |
| A 1122774050 | BUSHING | |
| 282 | A 1129933602 | SPRING |
| 283 | A 1122770883 | LOCKING SHEET |
| 284 | A 1122770983 | LOCKING SHEET |
| 285 | A 1122770483 | LOCKING SHEET |
| N 000084005131 | SCREW | |
| N 000137005100 | SPRING WASHER | |
| N 900421005000 | THREADED INSERT | |
| 286 | N 000931006055 | SCREW |
| 287 | N 000931006061 | SCREW |
| 288 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 288 | N 000137006204 | SPRING WASHER |
| 289 | A 1122700098 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012104 OIL DRAN HYDRAULIC CLUTCH | ||
| A 1132700098 | FILTER | |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 112 271 09 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3 SEAL 007603 014100 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 012113 OIL DRAN HYDRAULIC CLUTCH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| 290 | N 000084006134 | SCREW |
| 291 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 291 | N 000137006204 | SPRING WASHER |
| 292 | A 1122770647 | TUBE |
| 293 | A 0009976345 | SEAL RING |
| 294 | N 000933007019 | SCREW |
| 295 | N 000137007201 | SPRING WASHER |
| 296 | A 1122700412 | OIL PAN |
| 297 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 297 | N 007604014110 | SCREW PLUG |
| 298 | A 1129970372 | FITTING |
| 299 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 299 | N 915036010108 | HOLLOW SCREW |
| 300 | N 007603014100 | SEAL RING |
| 300 | N 007603014100 | SEAL RING |
| 301 | A 1122710980 | GASKET |
| 302 | N 000933007027 | SCREW |
| 303 | N 000137007200 | SPRING WASHER |
| 304 | A 0003040290 | SOLENOID |
| 305 | A 1123000636 | BEARING BRACKET |
| 306 | A 1123040060 | SEAL RING |
| 307 | N 000084005131 | SCREW |
| 308 | N 000137005100 | SPRING WASHER |
| 309 | A 1123040040 | BRACKET |
| 310 | N 000084005402 | SCREW |
| 311 | N 000137005100 | SPRING WASHER |
| 312 | N 000933007023 | SCREW |
| 313 | N 000137007200 | SPRING WASHER |
| 314 | A 1123001015 | ROD |
| 315 | N 000934005008 | NUT |
| 316 | N 000934005010 | NUT |
| 317 | N 900333005001 | TURNBUCKLE |
| 318 | N 071805008204 | BALL SOCKET |
| 319 | A 0009976041 | SEAL RING |
| 320 | N 071805008400 | SECURING CLIP |
| A 1122700080 | GASKET KIT | |
| Repalced by: A 1122701800 | ||
| A 1122701800 | GASKET KIT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONNECTING PARTS | ||
| 321 | N 000912006025 | SCREW |
| Repalced by: N 000912006175 | ||
| 321 | N 000912006175 | SCREW |
| Repalced by: A 0019907212 | ||
| 321 | A 0019907212 | SCREW |
| FLEXIBLE SHAFT TO BEARING BODY | ||
| 322 | N 000137006204 | SPRING WASHER |
| FLEXIBLE SHAFT TO BEARING BODY | ||
| N 000912008047 | SCREW | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| N 000933008316 | SCREW | |
| Repalced by: A 0089907401 | ||
| A 0089907401 | SCREW | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| N 000137008200 | SPRING WASHER | |
| HYDRAULIC CLUTCH TO ENGINE | ||
| A 1082700084 | OIL FILLER PIPE | |
| Repalced by: A 1082700284 | ||
| A 1082700284 | OIL FILLER PIPE | |
| A 1082700184 | OIL FILLER PIPE | |
| Repalced by: A 1082700384 | ||

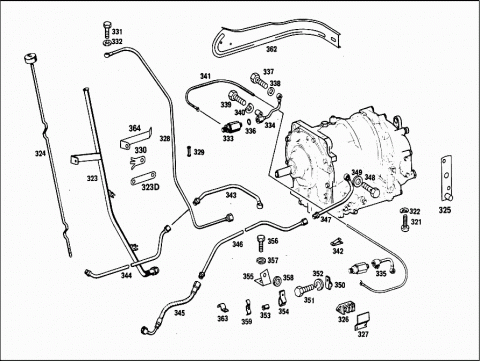

| 323 | A 1082700384 | OIL FILLER PIPE |
| 323D | A 1112710940 | BRACKET |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BRACKET TO OIL FILLER PIPE | ||
| N 000127008203 | LOCK WASHER | |
| BRACKET TO OIL FILLER PIPE | ||
| N 000934008013 | NUT | |
| BRACKET TO OIL FILLER PIPE | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| OIL FILLER PIPE TO INTAKE MANIFOLD | ||
| N 000127008200 | LOCK WASHER | |
| OIL FILLER PIPE TO INTAKE MANIFOLD | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| N 007603014100 | SEAL RING | |
| A 1122700083 | OIL DIPSTICK | |
| 324 | A 1162700083 | OIL DIPSTICK |
| 325 | A 1122700656 | LEVER |
| N 000933006130 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000125006407 | WASHER | |
| N 000934006007 | NUT | |
| 326 | A 0005466541 | CABLE CONNECTOR |
| 327 | A 1272570490 | COVER PLATE |
| N 000084004164 | SCREW | |
| N 000137004100 | SPRING WASHER | |
| 328 | A 1142702247 | LINE |
| 329 | A 1129970381 | GROMMET |
| 330 | A 1112760040 | BRACKET |
| 331 | N 007623004302 | HOLLOW SCREW |
| 332 | N 007603010100 | SEAL RING |
| 333 | A 0015421317 | SENDER UNIT |
| 334 | A 1125400173 | BRACKET |
| 335 | A 1125400273 | BRACKET |
| 336 | N 007603012405 | SEAL RING |
| 337 | A 1129900263 | HOLLOW SCREW |
| 338 | N 007603008101 | SEAL RING |
| 339 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 339 | N 304017006027 | SCREW |
| 340 | N 000137006204 | SPRING WASHER |
| 341 | A 1115400438 | ELECTRIC CABLE |
| 342 | A 1119950101 | CLAMP |
| 343 | A 1112700896 | LINE |
| 344 | A 1142700996 | LINE |
| Repalced by: A 1232700396 | ||
| 344 | A 1232700396 | LINE |
| 345 | A 0019971852 | HOSE |
| Repalced by: A 0199978182 | ||
| 345 | A 0199978182 | HOSE |
| A 0019971952 | HOSE | |
| 346 | A 1112700696 | LINE |
| A 1092700396 | LINE | |
| 347 | A 1112700796 | LINE |
| 348 | N 007623006302 | HOLLOW SCREW |
| 349 | N 007603012405 | SEAL RING |
| 350 | A 1209950005 | CLAMP |
| 351 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 351 | N 304017006016 | SCREW |
| 352 | N 912004006102 | LOCK WASHER |
| 353 | A 1129970281 | GROMMET |
| A 1152600168 | GASKET KIT | |
| 354 | A 1209950005 | CLAMP |
| A 1129970281 | GROMMET | |
| 355 | A 1112770440 | BRACKET |
| A 1092710140 | BRACKET | |
| A 1092710240 | BRACKET | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000137006204 | SPRING WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| 356 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 356 | N 304017008021 | SCREW |
| 357 | N 000127008200 | LOCK WASHER |
| 358 | A 1801550851 | SPACER RING |
| 359 | A 1119951232 | CLAMP |
| N 000084004164 | SCREW | |
| CLAMP TO OIL PIPE | ||
| N 000127004200 | LOCK WASHER | |
| CLAMP TO OIL PIPE | ||
| N 000934004006 | NUT | |
| CLAMP TO OIL PIPE | ||
| N 000931010268 | SCREW | |
| Repalced by: N 304017010050 | ||
| N 304017010050 | SCREW | |
| CLUTCH HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000931010239 | SCREW | |
| CLUTCH HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000125010500 | WASHER | |
| CLUTCH HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000137010200 | SPRING WASHER | |
| CLUTCH HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000934010014 | NUT | |
| CLUTCH HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| 362 | A 1114920430 | PROTECTIVE PLATE |
| 363 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 363 | A 1109950401 | CLAMP |
| A 1114920819 | BRACKET | |
| 364 | A 1114921019 | BRACKET |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO TRANSMISSION | ||
| N 912004006102 | LOCK WASHER | |
| COVER PLATE TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| COVER PLATE TO TRANSMISSION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MERCEDES-BENZ AUTOMATIC TRANSMISSION | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 024,025 FROM CHASSIS, SEE FOOTNOTE 2 | ||
| A 1082701701 | AUTOMATIC TRANSMISSION | |
| A 1092702001 | AUTOMATIC TRANSMISSION | |

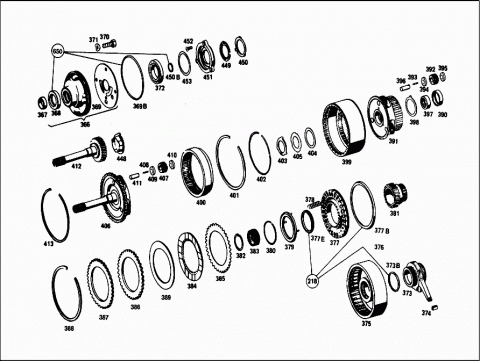

| 366 | A 1152700890 | HOUSING |
| 367 | A 1122774350 | BUSHING |
| 368 | A 0089979146 | SEAL RING |
| 369 | A 1152770314 | INTERMEDIATE PLATE |
| 369B | A 0049970548 | SEAL RING |
| 369B | A 0049970548 | SEAL RING |
| 370 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 370 | N 304017008018 | SCREW |
| 371 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 371 | N 000137008212 | SPRING WASHER |
| 372 | N 000625016008 | GROOVED BALL BEARING |
| A 1152701150 | BUSHING | |
| Repalced by: A 1152702150 | ||
| A 1152702150 | BUSHING | |
| A 1152701650 | BUSHING | |
| Repalced by: A 1152702150 | ||
| A 1152702150 | BUSHING | |
| 373 | A 1152702150 | BUSHING |
| 373B | A 1152720655 | SEAL RING |
| Repalced by: A 3162720455 | ||
| 373B | A 3162720455 | SEAL RING |
| 374 | A 1152720792 | BOOT |
| 375 | A 1092704020 | FLANGE |
| A 1152701520 | FLANGE | |
| Repalced by: A 1152704120 | ||
| A 1152703320 | FLANGE | |
| Repalced by: A 1152704120 | ||
| A 1152704120 | FLANGE | |
| A 1152708620 | FLANGE | |
| 376 | N 005401303000 | BALL |
| A 1152720231 | PISTON | |
| 377 | A 1092720931 | PISTON |
| A 1152721292 | BOOT | |
| Repalced by: A 3162720792 | ||
| A 3162720792 | BOOT | |
| 377B | A 1092720092 | BOOT |
| Repalced by: A 3162720892 | ||
| 377B | A 3162720892 | BOOT |
| 377E | A 1152721492 | BOOT |
| A 1159935201 | SPRING | |
| 378 | A 1099931003 | SPRING |
| A 1152700441 | BRACKET | |
| 379 | A 1092700341 | BRACKET |
| 380 | A 1159940835 | SNAP RING |
| 381 | A 1152721407 | SUN GEAR |
| 382 | A 0009941440 | SNAP RING |
| 383 | A 0069814210 | NEEDLE BEARING |
| 384 | A 1122720225 | INNER DISC |
| 385 | A 1092721526 | OUTER DISC |
| A 1092720826 | OUTER DISC | |
| 386 | A 1092722326 | OUTER DISC |
| 386 | A 1092722326 | OUTER DISC |
| A 1092720526 | OUTER DISC | |
| A 1002720026 | OUTER DISC | |
| Repalced by: A 1092721826 | ||
| A 1092721826 | OUTER DISC | |
| 387 | A 1092721926 | OUTER DISC |
| 387 | A 1092721926 | OUTER DISC |
| 388 | A 1152721273 | LOCK |
| 389 | A 1122721462 | GUARD PLATE |
| 0.6 MM | ||
| 390 | A 1092720351 | SPACER RING |
| A 1152706043 | PLANETARY CARRIER | |
| 391 | A 1092702143 | PLANETARY CARRIER |
| 392 | A 1152720406 | PLANET GEAR |
| 393 | A 0009814787 | NEEDLE |
| 394 | A 1152723962 | GUARD PLATE |
| 395 | A 1152723862 | GUARD PLATE |
| 396 | A 1152721074 | PIN |
| 397 | A 0049812110 | NEEDLE BEARING |
| Repalced by: A 0009811411 | ||
| 397 | A 0009811411 | NEEDLE BEARING |
| A 1152723362 | GUARD PLATE | |
| 398 | A 1152724962 | GUARD PLATE |
| 399 | A 1152721008 | ANNULUS |
| A 1152720008 | ANNULUS | |
| 400 | A 1092720008 | ANNULUS |
| 401 | A 1152720273 | LOCK |
| 402 | A 1129940735 | SNAP RING |
| 403 | A 1152723462 | GUARD PLATE |
| 404 | A 1152711752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 404 | A 1152711852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.2 MM | ||
| 404 | A 1152711952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 405 | A 1152712152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1152712252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1152712352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1152702443 | PLANETARY CARRIER | |
| Repalced by: A 1152703143 | ||
| A 1152703143 | PLANETARY CARRIER | |
| Repalced by: A 1152705643 | ||
| A 1152705643 | PLANETARY CARRIER | |
| 406 | A 1092701143 | PLANETARY CARRIER |
| Repalced by: A 1092702043 | ||
| 406 | A 1092702043 | PLANETARY CARRIER |
| 407 | A 1152720406 | PLANET GEAR |
| 408 | A 0009814787 | NEEDLE |
| 409 | A 1152723962 | GUARD PLATE |
| 410 | A 1152723862 | GUARD PLATE |
| 411 | A 1152701074 | PIN |
| A 1152704125 | DRIVE SHAFT | |
| Repalced by: A 1152705925 | ||
| A 1152705925 | DRIVE SHAFT | |
| 412 | A 1092700925 | DRIVE SHAFT |
| Repalced by: A 1092702025 | ||
| 412 | A 1092702025 | DRIVE SHAFT |
| 413 | A 1152720473 | LOCK |
| A 1152723245 | FLANGE | |
| 414 | A 1152723345 | FLANGE |
| 414 | A 1152723345 | FLANGE |
| A 1152721031 | PISTON | |
| A 1152721231 | PISTON | |

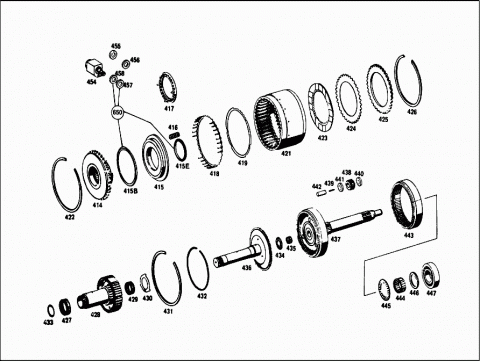

| 415 | A 1092721331 | PISTON |
| A 1122721292 | BOOT | |
| Repalced by: A 1152720692 | ||
| A 1152720692 | BOOT | |
| 415B | A 1092720392 | BOOT |
| A 1152721392 | BOOT | |
| A 1152721692 | BOOT | |
| A 1152721492 | BOOT | |
| 415E | A 1092720492 | BOOT |
| 415E | A 1092720492 | BOOT |
| A 1159935301 | SPRING | |
| A 1159934303 | SPRING | |
| 416 | A 1159934103 | SPRING |
| 417 | A 1152700441 | BRACKET |
| 418 | A 1092720267 | RING |
| 418 | A 1092720267 | RING |
| 419 | A 1092720062 | GUARD PLATE |
| A 1152723724 | DISC SUPPORT | |
| A 1152724424 | DISC SUPPORT | |
| 421 | A 1152725424 | DISC SUPPORT |
| 422 | A 1152720473 | LOCK |
| 423 | A 1122720225 | INNER DISC |
| A 1092721526 | OUTER DISC | |
| 424 | A 1092722126 | OUTER DISC |
| A 1092721826 | OUTER DISC | |
| A 1152720626 | OUTER DISC | |
| Repalced by: A 1092722026 | ||
| A 1092722026 | OUTER DISC | |
| 425 | A 1092722326 | OUTER DISC |
| A 1092720526 | OUTER DISC | |
| 426 | A 1152721373 | LOCK |
| A 1002720173 | LOCK | |
| 427 | A 0029813110 | NEEDLE BEARING |
| A 1152704925 | DRIVE SHAFT | |
| 428 | A 1092700825 | DRIVE SHAFT |
| 429 | A 0029813210 | NEEDLE BEARING |
| 430 | A 1152723462 | GUARD PLATE |
| 431 | A 1152720273 | LOCK |
| 432 | A 1129940735 | SNAP RING |
| 433 | N 000471030000 | LOCK RING |
| A 0029942641 | LOCK | |
| A 0029811210 | NEEDLE BEARING | |
| A 0049814110 | NEEDLE BEARING | |
| Repalced by: A 0059818110 | ||
| A 0059818110 | NEEDLE BEARING | |
| 434 | A 0059818110 | NEEDLE BEARING |
| 435 | A 0029813010 | NEEDLE BEARING |
| A 1152703725 | DRIVE SHAFT | |
| A 1152704025 | DRIVE SHAFT | |
| Repalced by: A 1152705425 | ||
| A 1152705425 | DRIVE SHAFT | |
| A 1092700425 | DRIVE SHAFT | |
| Repalced by: A 1092701925 | ||
| A 1092701225 | DRIVE SHAFT | |
| Repalced by: A 1092701925 | ||
| 436 | A 1092701925 | DRIVE SHAFT |
| A 1092701043 | PLANETARY CARRIER | |
| Repalced by: A 1152702643 | ||
| A 1152702643 | PLANETARY CARRIER | |
| 437 | A 1092701643 | PLANETARY CARRIER |
| A 1152720506 | PLANET GEAR | |
| 438 | A 1002720406 | PLANET GEAR |
| A 0009814787 | NEEDLE | |
| 439 | A 0009815587 | NEEDLE |
| A 1152723862 | GUARD PLATE | |
| A 1152723962 | GUARD PLATE | |
| 440 | A 1002722662 | GUARD PLATE |
| 441 | A 1002722762 | GUARD PLATE |
| A 1152721074 | PIN | |
| 442 | A 1002721674 | PIN |
| A 1152720008 | ANNULUS | |
| 443 | A 1092720008 | ANNULUS |
| 444 | A 0079813910 | NEEDLE BEARING |
| 445 | A 0049814010 | NEEDLE BEARING |
| 446 | A 1152723762 | GUARD PLATE |
| 447 | A 0019811825 | BALL BEARING |
| A 1152723362 | GUARD PLATE | |
| 448 | A 1152724962 | GUARD PLATE |
| 448 | A 1152724962 | GUARD PLATE |
| 449 | A 0029818810 | NEEDLE BEARING |
| 450 | A 1152724762 | GUARD PLATE |
| 450B | A 3072720555 | SEAL RING |
| A 1152722445 | FLANGE | |
| 451 | A 1152723045 | FLANGE |
| 452 | N 007987006108 | SCREW |
| N 006797006340 | TOOTHED WASHER | |
| 453 | A 1152711352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1152711452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1152711552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 454 | A 0003040590 | SOLENOID |
| A 0003040690 | SOLENOID | |
| Repalced by: A 0003040590 | ||
| A 0003040590 | SOLENOID | |
| A 0003040790 | SOLENOID | |
| 455 | A 0109977745 | SEAL RING |
| 456 | A 0079979645 | SEAL RING |
| 457 | A 0079978045 | SEAL RING |
| 458 | A 1153040160 | SEAL RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION CASE | ||
| A 1152700511 | TRANSMISSION CASE | |
| Repalced by: A 1152706011 | ||
| A 1152703211 | TRANSMISSION CASE | |
| Repalced by: A 1152706011 | ||
| A 1152706011 | TRANSMISSION CASE | |
| Repalced by: A 1152705911 | ||
| A 1152705911 | TRANSMISSION CASE | |
| Repalced by: A 1152707711 | ||
| A 1092700611 | TRANSMISSION CASE | |
| Repalced by: A 1152706011 | ||

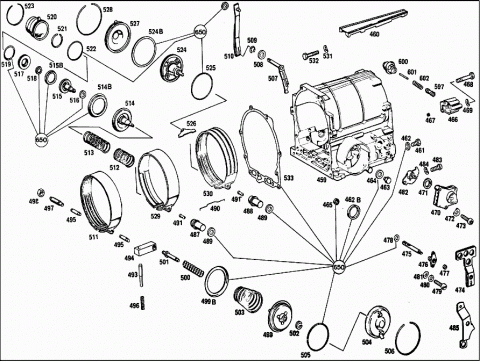

| 459 | A 1152706011 | TRANSMISSION CASE |
| Repalced by: A 1152705911 | ||
| A 1152705911 | TRANSMISSION CASE | |
| Repalced by: A 1152707711 | ||
| 459 | A 1152707711 | TRANSMISSION CASE |
| 460 | A 1152771540 | BRACKET |
| A 1092771140 | BRACKET | |
| 461 | A 1159970630 | SCREW PLUG |
| 462 | N 007603008105 | SEAL RING |
| 462B | A 1152721192 | BOOT |
| BRAKE BAND PISTON 2 | ||
| 463 | A 1109970330 | SCREW PLUG |
| 464 | N 007603012405 | SEAL RING |
| 465 | A 0069976146 | SEAL RING |
| A 1152700868 | GUIDE TUBE | |
| 466 | A 1152770705 | HOUSING |
| A 1152772005 | HOUSING | |
| 467 | A 1159932010 | SPRING |
| 468 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 468 | N 000933006151 | SCREW |
| 469 | N 000137006204 | SPRING WASHER |
| 470 | A 0005453306 | SWITCH |
| STARTER NON-REPEAT AND BACK-UP LIGHT | ||
| 471 | A 1159970740 | SEAL RING |
| 472 | N 000137005203 | SPRING WASHER |
| 473 | N 000084005174 | SCREW |
| 474 | A 1152781620 | LEVER |
| 475 | A 1152780910 | CONTROL SHAFT |
| 476 | A 1152780950 | BUSHING |
| 477 | A 1152780153 | SPACER TUBE |
| 478 | A 0049973745 | SEAL RING |
| N 000931006114 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| N 000125006407 | WASHER | |
| N 000934006007 | NUT | |
| 479 | N 000084004139 | SCREW |
| 480 | N 009021004202 | WASHER |
| Repalced by: N 009021004207 | ||
| 480 | N 009021004207 | WASHER |
| 481 | N 000137004202 | SPRING WASHER |
| 482 | A 1152700157 | DETENT |
| 483 | N 006912006006 | SCREW |
| 484 | N 000137006204 | SPRING WASHER |
| 485 | A 1092780020 | LEVER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 1099900051 | NUT | |
| A 1152700989 | VALVE | |
| A 1092700389 | VALVE | |
| A 1152701289 | VALVE | |
| A 1152701289 | VALVE | |
| 487 | A 1092700689 | VALVE |
| Repalced by: A 1092701089 | ||
| 487 | A 1092701089 | VALVE |
| 487 | A 1092701089 | VALVE |
| A 1152701389 | VALVE | |
| A 1152701389 | VALVE | |
| A 1152701389 | VALVE | |
| Repalced by: A 1152701489 | ||
| A 1152701489 | VALVE | |
| 488 | A 1152701589 | VALVE |
| Repalced by: A 1152702089 | ||
| 488 | A 1152701589 | VALVE |
| 488 | A 1152702089 | VALVE |
| A 0059971645 | SEAL RING | |
| A 0059971645 | SEAL RING | |
| 489 | A 0109970845 | SEAL RING |
| Repalced by: A 0169973448 | ||
| 489 | A 0169973448 | SEAL RING |
| 489 | A 0169973448 | SEAL RING |
| 490 | A 1159930022 | SPRING |
| 491 | A 1092770175 | PIN |
| AS REQUIRED | ||
| 22 MM | ||
| A 1092770275 | PIN | |
| AS REQUIRED | ||
| 23 MM | ||
| A 1092770375 | PIN | |
| AS REQUIRED | ||
| 24 MM | ||
| A 1092770475 | PIN | |
| AS REQUIRED | ||
| 25 MM | ||
| A 1092770575 | PIN | |
| AS REQUIRED | ||
| 26 MM | ||
| 493 | A 1152770274 | PIN |
| 494 | A 1152770424 | LEVER |
| 495 | A 1152775375 | PIN |
| 496 | A 1159930225 | SPRING |
| 497 | A 1152771771 | SCREW |
| 498 | A 1159900451 | NUT |
| 499 | A 1152706132 | PISTON |
| 499B | A 1152720892 | BOOT |
| 500 | A 1159930902 | SPRING |
| 501 | A 1152774875 | PIN |
| 502 | A 1159941735 | SNAP RING |
| 503 | A 1159931805 | SPRING |
| 504 | A 1152771603 | COVER |
| 505 | A 0089973545 | SEAL RING |
| 506 | A 1159940435 | SNAP RING |
| 507 | A 1152700659 | LEVER |
| 508 | A 1159901740 | WASHER |
| 509 | N 006799009002 | LOCK PLATE |
| 510 | A 1152700859 | LEVER |
| N 000933006123 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 511 | A 1162700362 | BRAKE BAND |
| Repalced by: A 1162701762 | ||
| 511 | A 1162701762 | BRAKE BAND |
| A 1159939501 | SPRING | |
| A 1159939501 | SPRING | |
| 512 | A 1159935503 | SPRING |
| A 1099931101 | SPRING | |
| 513 | A 1159935403 | SPRING |
| A 1099931001 | SPRING | |
| A 1152705232 | PISTON | |
| 514 | A 1152705932 | PISTON |
| A 1152705432 | PISTON | |
| A 1092701632 | PISTON | |
| 514B | A 1152720392 | BOOT |
| 515 | A 1152704232 | PISTON |
| 515B | A 1002770292 | BOOT |
| 516 | A 0079978045 | SEAL RING |
| A 1152771903 | COVER | |
| 517 | A 1152701208 | COVER |
| A 1092700208 | COVER | |
| 518 | A 0069973146 | SEAL RING |
| 519 | A 0049976945 | SEAL RING |
| A 0109971745 | SEAL RING | |
| 520 | A 1152772603 | COVER |
| A 1092770503 | COVER | |
| 521 | N 912009043200 | SNAP RING |
| N 912009050200 | SNAP RING | |
| 522 | A 0109975945 | SEAL RING |
| 523 | A 1159941435 | SNAP RING |
| A 1152705532 | PISTON | |
| A 1002702632 | PISTON | |
| Repalced by: A 1092703432 | ||
| 524 | A 1092703432 | PISTON |
| Repalced by: A 1152706232 | ||
| 524 | A 1152706232 | PISTON |
| 524B | A 1152770255 | SEAL RING |
| 525 | A 0089973545 | SEAL RING |
| 526 | A 1002772675 | THRUST FORK |
| A 1152771603 | COVER | |
| 527 | A 1152700508 | COVER |
| Repalced by: A 1092700408 | ||
| 527 | A 1092700408 | COVER |
| 528 | A 1159940435 | SNAP RING |
| A 1152705862 | BRAKE BAND | |
| Repalced by: A 1152707062 | ||
| A 1152707062 | BRAKE BAND | |
| 529 | A 1152705662 | BRAKE BAND |
| Repalced by: A 1152706962 | ||
| 529 | A 1152706962 | BRAKE BAND |
| A 1152705962 | BRAKE BAND | |
| Repalced by: A 1152707362 | ||
| A 1152707362 | BRAKE BAND | |
| A 1002702162 | BRAKE BAND | |
| Repalced by: A 1002703562 | ||
| 530 | A 1002703562 | BRAKE BAND |
| Repalced by: A 1162700562 | ||
| A 1162700562 | BRAKE BAND | |
| Repalced by: A 1162701562 | ||
| A 1162701562 | BRAKE BAND | |
| 531 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 531 | N 000137008212 | SPRING WASHER |
| 532 | N 000931008244 | SCREW |
| 533 | A 1152772680 | GASKET |
| Repalced by: A 1152773380 | ||
| 533 | A 1152773380 | GASKET |
| 534 | A 1152720117 | GEAR |
| Repalced by: A 7222720017 | ||
| 534 | A 7222720017 | GEAR |
| 535 | A 1152780774 | PIN |
| 536 | A 0009944241 | LOCK |
| 537 | A 1159930222 | SPRING |
| 538 | A 1152780221 | PAWL |
| 539 | A 1152701065 | LINKAGE |
| Repalced by: A 1152700665 | ||
| 539 | A 1152700665 | LINKAGE |
| 540 | A 1152780517 | ROLLER |
| 541 | A 1152780874 | PIN |
| 542 | A 1152780062 | THRUST WASHER |
| 543 | A 0009815187 | NEEDLE |
| 544 | A 1152780417 | ROLLER |
| 545 | N 006799008005 | LOCK PLATE |
| 546 | A 1159902140 | WASHER |
| 547 | A 1152700478 | SPRING |
| 548 | A 1152780440 | BRACKET |
| 549 | N 000137006204 | SPRING WASHER |
| 550 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 550 | N 304017006016 | SCREW |
| A 1152701574 | GOVERNOR | |
| A 1152701574 | GOVERNOR | |

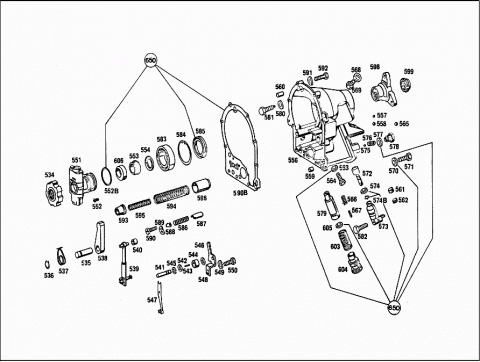

| 551 | A 1152701974 | GOVERNOR |
| 551 | A 1152701974 | GOVERNOR |
| A 1152770595 | OIL FILTER | |
| Repalced by: A 1152700098 | ||
| 552 | A 1152700098 | FILTER |
| 552B | A 1152720355 | SEAL RING |
| 552B | A 1152721355 | SEAL RING |
| A 1152740330 | DRIVE GEAR | |
| Repalced by: A 1152740530 | ||
| A 1152740530 | DRIVE GEAR | |
| Repalced by: A 1152740330 | ||
| 553 | A 1152700342 | GEAR |
| 554 | A 1159930426 | DISC SPRING |
| A 1152701211 | TRANSMISSION CASE | |
| Repalced by: A 1152704911 | ||
| A 1152701711 | TRANSMISSION CASE | |
| Repalced by: A 1152704911 | ||
| A 1152702711 | TRANSMISSION CASE | |
| Repalced by: A 1152704911 | ||
| A 1152703011 | TRANSMISSION CASE | |
| Repalced by: A 1152704911 | ||
| A 1152703911 | TRANSMISSION CASE | |
| Repalced by: A 1152704911 | ||
| 556 | A 1152704911 | TRANSMISSION CASE |
| 557 | N 005401306000 | BALL |
| 6 MM | ||
| 558 | N 005401308000 | BALL |
| 8 MM | ||
| 559 | A 1159910241 | FITTING SLEEVE |
| 560 | N 000007012219 | CYLINDRICAL PIN |
| N 005401310000 | BALL | |
| 561 | A 1159970103 | PLUG |
| 562 | A 1159970303 | PLUG |
| 563 | N 007603010100 | SEAL RING |
| 564 | A 1159970130 | SCREW PLUG |
| 565 | A 0009818185 | BALL |
| 566 | A 1159933803 | SPRING |
| 567 | A 1152776275 | PIN |
| 568 | N 007603012102 | SEAL RING |
| 569 | N 007604012102 | SCREW PLUG |
| 570 | N 007603008105 | SEAL RING |
| 571 | A 1159970630 | SCREW PLUG |
| A 1152700427 | SPEEDOMETER DRIVE | |
| Repalced by: A 1152700327 | ||
| 572 | A 1152700327 | SPEEDOMETER DRIVE |
| A 1152740228 | CASE | |
| 573 | A 1152740628 | CASE |
| 574 | A 0059975245 | SEAL RING |
| 574B | A 1152740060 | SEAL RING |
| 575 | A 1149910129 | BALL |
| 576 | A 1159931302 | SPRING |
| 577 | N 007603018100 | SEAL RING |
| 578 | A 1159970330 | SCREW PLUG |
| 579 | A 1152705132 | PISTON |
| A 0099970945 | SEAL RING | |
| 580 | N 000137006204 | SPRING WASHER |
| 581 | A 1152771671 | SCREW |
| 582 | A 1152770871 | SCREW |
| A 1152771071 | SCREW | |
| A 1159903901 | SCREW | |
| 583 | N 000625900201 | GROOVED BALL BEARING |
| 584 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 584 | A 0039945241 | LOCK |
| 585 | A 0089979246 | SEAL RING |
| 586 | A 1159933404 | SPRING |
| 587 | A 1152774131 | PISTON |
| 588 | A 1152772740 | BRACKET |
| 589 | N 000137005203 | SPRING WASHER |
| 590 | N 007985005175 | SCREW |
| 590B | A 1092710080 | GASKET |
| Repalced by: A 1092710180 | ||
| 590B | A 1092710180 | GASKET |
| 591 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 591 | N 000137008212 | SPRING WASHER |
| 592 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 592 | N 304017008018 | SCREW |
| 593 | A 1152772203 | COVER |
| 594 | A 1159930103 | SPRING |
| 595 | A 1159930203 | SPRING |
| 596 | A 1152774738 | PISTON |
| 597 | A 1152774331 | PISTON |
| 598 | A 1152621145 | FLANGE |
| 599 | A 1239900060 | NUT |
| A 1162720076 | WASHER | |
| 600 | A 0002700179 | VACUUM BOX |
| 601 | A 1152772975 | PIN |
| AS REQUIRED | ||
| 39.65 MM | ||
| A 1152773075 | PIN | |
| AS REQUIRED | ||
| 40.15 MM | ||
| A 1232770275 | PIN | |
| AS REQUIRED | ||
| 40.65 MM | ||
| 602 | A 1159937202 | SPRING |
| 603 | A 1159938402 | SPRING |
| 604 | A 1152700672 | SCREW |
| 605 | A 0069974145 | SEAL RING |
| Repalced by: A 0079971448 | ||
| 605 | A 0079971448 | SEAL RING |
| Repalced by: A 0189971948 | ||
| 605 | A 0189971948 | SEAL RING |
| 606 | A 1152770858 | ECCENTRIC RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| VALVE BODY ASSEMBLY | ||
| A 1082700407 | VALVE BODY ASSEMBLY | |
| Repalced by: A 1082700607 | ||
| A 1082700607 | VALVE BODY ASSEMBLY | |
| A 1082700607 | VALVE BODY ASSEMBLY | |
| A 1092701607 | VALVE BODY ASSEMBLY | |

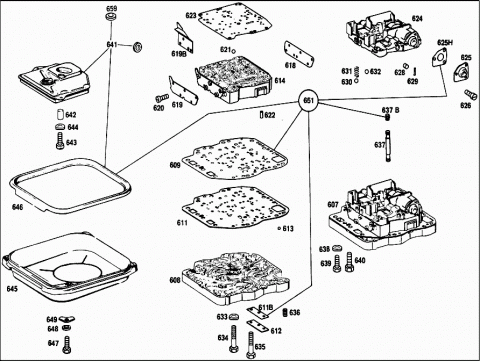

| 607 | A 1092702907 | VALVE BODY ASSEMBLY |
| A 1152771801 | VALVE BODY ASSEMBLY | |
| A 1152771801 | VALVE BODY ASSEMBLY | |
| 608 | A 1152772001 | VALVE BODY ASSEMBLY |
| 608 | A 1152772001 | VALVE BODY ASSEMBLY |
| A 1152771336 | VALVE PART | |
| A 1159931501 | SPRING | |
| A 1152772636 | VALVE PART | |
| A 1152771580 | GASKET | |
| Repalced by: A 1152772980 | ||
| A 1152772980 | GASKET | |
| A 1152772980 | GASKET | |
| A 1002770880 | GASKET | |
| 609 | A 1002770880 | GASKET |
| 609 | A 1002770880 | GASKET |
| A 1152770814 | INTERMEDIATE PLATE | |
| A 1152770814 | INTERMEDIATE PLATE | |
| A 1152771614 | INTERMEDIATE PLATE | |
| A 1152771614 | INTERMEDIATE PLATE | |
| 611 | A 1152771114 | INTERMEDIATE PLATE |
| 611 | A 1152771114 | INTERMEDIATE PLATE |
| 611B | A 1152771280 | GASKET |
| Repalced by: A 1152773280 | ||
| 611B | A 1152773280 | GASKET |
| 612 | A 1152770883 | LOCKING SHEET |
| 613 | N 005401305500 | BALL |
| A 1152771036 | VALVE PART | |
| A 1152700198 | FILTER | |
| PRESSURE RELIEF VALVE | ||
| A 1152700298 | FILTER | |
| PRESSURE RELIEF VALVE | ||
| N 000084005131 | SCREW | |
| A 1082700107 | VALVE BODY ASSEMBLY | |
| A 1082700507 | VALVE BODY ASSEMBLY | |
| A 1082700707 | VALVE BODY ASSEMBLY | |
| A 1092700707 | VALVE BODY ASSEMBLY | |
| A 1092701807 | VALVE BODY ASSEMBLY | |
| 614 | A 1092703007 | VALVE BODY ASSEMBLY |
| A 1152776931 | PISTON | |
| A 1152776831 | PISTON | |
| A 1152777131 | PISTON | |
| A 1152772029 | SHIFT VALVE | |
| A 1152773129 | SHIFT VALVE | |
| A 1152773029 | SHIFT VALVE | |
| A 1159938202 | SPRING | |
| A 1152771330 | SHIFT VALVE | |
| A 1152775831 | PISTON | |
| A 1159933102 | SPRING | |
| A 1159932803 | SPRING | |
| A 1152700477 | THRUST PIN | |
| A 1152771230 | SHIFT VALVE | |
| A 1152770930 | SHIFT VALVE | |
| A 1159933202 | SPRING | |
| A 1152774931 | PISTON | |
| A 1159933302 | SPRING | |
| A 1152771130 | SHIFT VALVE | |
| A 1159934802 | SPRING | |
| A 1152774431 | PISTON | |
| A 1159931602 | SPRING | |
| A 1152771729 | SHIFT VALVE | |
| A 1159937901 | SPRING | |
| A 1152775731 | PISTON | |
| A 1152775931 | PISTON | |
| A 1152770377 | GUIDE | |
| A 1152700377 | THRUST PIN | |
| A 1159936902 | SPRING | |
| A 1159930003 | SPRING | |
| A 1159930102 | SPRING | |
| A 1152775131 | PISTON | |
| 618 | A 1162770183 | LOCKING SHEET |
| A 1152770783 | LOCKING SHEET | |
| A 1152770783 | LOCKING SHEET | |
| 619 | A 1162770083 | LOCKING SHEET |
| 619 | A 1162770083 | LOCKING SHEET |
| 619B | A 1152771240 | BRACKET |
| N 000084005131 | SCREW | |
| N 000084005131 | SCREW | |
| N 000084005131 | SCREW | |
| 620 | N 000084005108 | SCREW |
| 621 | N 005401305500 | BALL |
| 622 | A 1159910160 | DOWEL PIN |
| A 1152700370 | REGULATOR VALVE | |
| A 1152770776 | DETENT | |
| A 1159932802 | SPRING | |
| A 1152770714 | INTERMEDIATE PLATE | |
| A 1152770714 | INTERMEDIATE PLATE | |
| 623 | A 1152771214 | INTERMEDIATE PLATE |
| Repalced by: A 1152771714 | ||
| 623 | A 1152771214 | INTERMEDIATE PLATE |
| 623 | A 1152771714 | INTERMEDIATE PLATE |
| 623 | A 1152771714 | INTERMEDIATE PLATE |
| A 1152701907 | VALVE BODY ASSEMBLY | |
| A 1152703407 | VALVE BODY ASSEMBLY | |
| A 1152704107 | VALVE BODY ASSEMBLY | |
| A 1092700807 | VALVE BODY ASSEMBLY | |
| A 1092701707 | VALVE BODY ASSEMBLY | |
| 624 | A 1092701307 | VALVE BODY ASSEMBLY |
| A 1152774731 | PISTON | |
| A 1159932002 | SPRING | |
| A 1159932102 | SPRING | |
| A 1152770983 | LOCKING SHEET | |
| Repalced by: A 1152771183 | ||
| 625 | A 1152771183 | LOCKING SHEET |
| 625H | A 1152771880 | GASKET |
| Repalced by: A 1152772880 | ||
| 625H | A 1152772880 | GASKET |
| 626 | N 000084005131 | SCREW |
| A 1152771629 | SHIFT VALVE | |
| A 1159932602 | SPRING | |
| A 1159932103 | SPRING | |
| A 1152772531 | PISTON | |
| A 1159931703 | SPRING | |
| A 1152770652 | SPACER WASHER | |
| A 1152772931 | PISTON | |
| A 1159931803 | SPRING | |
| A 1152775531 | PISTON | |
| A 1159933002 | SPRING | |
| A 1152772129 | SHIFT VALVE | |
| A 1159938102 | SPRING | |
| A 1152772831 | PISTON | |
| A 1159931303 | SPRING | |
| 628 | A 1152770674 | PIN |
| 629 | A 1152770673 | LOCK |
| 630 | N 005401305500 | BALL |
| 631 | A 1159939703 | SPRING |
| 632 | N 005401307000 | BALL |
| 632 | N 005401307000 | BALL |
| A 1149910229 | BALL | |
| 633 | N 000137006204 | SPRING WASHER |
| 634 | N 000931006911 | SCREW |
| 635 | N 000931006055 | SCREW |
| 636 | N 900421006001 | THREADED INSERT |
| N 900421005000 | THREADED INSERT | |
| 637 | A 1152701068 | GUIDE TUBE |
| 637B | A 1152773350 | BUSHING |
| 638 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 638 | N 000137008212 | SPRING WASHER |
| 639 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 639 | N 304017008034 | SCREW |
| 640 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 640 | N 304017008027 | SCREW |
| 641 | A 1152700398 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 115 271 15 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 2 SEAL 007603 014104 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| A 1152770495 | OIL FILTER | |
| Repalced by: A 1092700298 | ||
| A 1092700298 | FILTER | |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 115 271 15 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 2 SEAL 007603 014104 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN HYDRAULIC CLUTCH | ||
| 642 | A 1092770253 | SPACER TUBE |
| 643 | N 000084005108 | SCREW |
| 643 | N 000084005108 | SCREW |
| N 000084005120 | SCREW | |
| 644 | N 000137005203 | SPRING WASHER |
| A 1152700012 | OIL PAN | |
| 645 | A 1152700112 | OIL PAN |
| 646 | A 1152711580 | GASKET |
| 647 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 647 | N 304017008034 | SCREW |
| 648 | N 000125008407 | WASHER |
| 649 | A 1152710194 | SHIM |
| A 1152700280 | GASKET KIT | |
| Repalced by: A 1152702201 | ||
| A 1152702201 | GASKET KIT | |
| TRANSMISSION | ||
| A 1142700180 | GASKET KIT | |
| Repalced by: A 1142703301 | ||
| A 1142703301 | GASKET KIT | |
| TRANSMISSION | ||
| 650 | A 1092700080 | GASKET KIT |
| Repalced by: A 1092702501 | ||
| 650 | A 1092702501 | GASKET KIT |
| TRANSMISSION | ||
| A 1152700080 | GASKET KIT | |
| Repalced by: A 1152702001 | ||
| A 1152702001 | GASKET KIT | |
| VALVE BODY ASSEMBLY | ||
| A 1152702001 | GASKET KIT | |
| VALVE BODY ASSEMBLY | ||
| 651 | A 1152700180 | GASKET KIT |
| Repalced by: A 1152702101 | ||
| 651 | A 1152702101 | GASKET KIT |
| VALVE BODY ASSEMBLY | ||
| 651 | A 1152702101 | GASKET KIT |
| VALVE BODY ASSEMBLY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CONNECTING PARTS | ||
| 652 | N 000933008325 | SCREW |
| Repalced by: A 1249902101 | ||
| 652 | A 1249902101 | SCREW |
| 653 | N 000137008200 | SPRING WASHER |
| 654 | A 1109902040 | WASHER |
| 655 | A 1082700784 | OIL FILLER PIPE |
| A 1082700684 | OIL FILLER PIPE | |
| A 1082700484 | OIL FILLER PIPE | |
| A 1092700784 | OIL FILLER PIPE | |
| Repalced by: A 1092700984 | ||
| A 1092700984 | OIL FILLER PIPE | |
| A 1092700884 | OIL FILLER PIPE | |
| Repalced by: A 1092701184 | ||
| A 1092701184 | OIL FILLER PIPE | |
| 657 | A 1162700083 | OIL DIPSTICK |
| 658 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 658 | N 915036010108 | HOLLOW SCREW |
| 659 | N 007603014104 | SEAL RING |
| 660 | N 000933008145 | SCREW |
| 661 | N 912004008102 | LOCK WASHER |
| A 1082700847 | LINE | |
| Repalced by: A 1232701347 | ||
| A 1082700747 | LINE | |
| Repalced by: A 1232701347 | ||
| A 1142700547 | LINE | |
| Repalced by: A 1232701347 | ||
| A 1092700147 | LINE | |
| Repalced by: A 1232701347 | ||
| 662 | A 1232701347 | LINE |
| 663 | N 915036006102 | HOLLOW SCREW |
| 664 | N 007603010100 | SEAL RING |
| N 915036006101 | HOLLOW SCREW | |
| N 007603010100 | SEAL RING | |
| 665 | A 1129970381 | GROMMET |
| 666 | A 1092700596 | LINE |
| RIGHT | ||
| A 1072700496 | LINE | |
| RIGHT | ||
| 667 | A 1092700696 | LINE |
| LEFT | ||
| 668 | N 915036008104 | HOLLOW SCREW |
| 669 | N 007603012104 | SEAL RING |
| A 1142700996 | LINE | |
| Repalced by: A 1232700396 | ||
| A 1232700396 | LINE | |
| RIGHT | ||
| 670 | A 1112701396 | LINE |
| RIGHT | ||
| A 1112701496 | LINE | |
| RIGHT | ||
| A 1142700796 | LINE | |
| LEFT | ||
| 671 | A 1092700896 | LINE |
| LEFT | ||
| 672 | A 1129970281 | GROMMET |
| 673 | A 1209950005 | CLAMP |
| 674 | N 912004006102 | LOCK WASHER |
| 675 | N 914020006001 | COMBINATION BOLT |
| 676 | A 1092710140 | BRACKET |
| AT OIL PAN | ||
| 677 | A 1092710240 | BRACKET |
| AT OIL PAN | ||
| A 1129970281 | GROMMET | |
| 678 | A 1009950420 | CLAMP |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000137006204 | SPRING WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| CLAMP TO BRACKET | ||
| A 1209950005 | CLAMP | |
| 679 | A 1271550150 | BUSHING |
| N 000912006044 | SCREW | |
| N 007980006003 | LOCK WASHER | |
| A 1119951232 | CLAMP | |
| N 000084004164 | SCREW | |
| CLAMP TO OIL PIPE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CLAMP TO OIL PIPE | ||
| N 000934004006 | NUT | |
| CLAMP TO OIL PIPE | ||
| 680 | A 0019971852 | HOSE |
| Repalced by: A 0199978182 | ||
| 680 | A 0199978182 | HOSE |
| 687 | A 0003040040 | BRACKET |
| ELECTRIC CABLE TO KICK-DOWN SOLENOID VALVE | ||
| N 000085004119 | SCREW | |
| ELECTRIC CABLE TO KICK-DOWN SOLENOID VALVE | ||
| N 000931006083 | SCREW | |
| SPEEDOMETER DRIVE SHAFT TO BEARING BODY | ||
| N 000137006204 | SPRING WASHER | |
| SPEEDOMETER DRIVE SHAFT TO BEARING BODY | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| GEARSHIFT, STEERING COLUMN | ||
| 700 | A 1122600582 | SHIFTING TUBE |
| A 1082600882 | SHIFTING TUBE | |
| 702 | A 1092600182 | SHIFTING TUBE |
| A 1092600982 | SHIFTING TUBE | |
| Repalced by: A 1092600882 | ||
| A 1092600882 | SHIFTING TUBE | |
| 710 | A 1112680539 | GUIDE PIVOT |
| A 1082680039 | GUIDE PIVOT | |
| 711 | A 1119971240 | SEAL RING |
| 712 | A 1869906940 | WASHER |
| 713 | A 1862680273 | LOCK |
| 714 | A 1862680274 | PIN |
| 715 | A 1829930801 | SPRING |
| 717 | A 1112680397 | BOOT |
| A 1082680097 | BOOT | |
| A 1082680197 | BOOT | |
| 720 | A 1802680524 | SHIFT LEVER |
| A 1082680324 | SHIFT LEVER | |
| 721 | A 1112680392 | RUBBER PAD |
| 722 | A 1802680057 | COVER |
| 723 | A 1082680242 | KNOB |
| 724 | A 1122601294 | BEARING BRACKET |
| A 1092600294 | BEARING BRACKET | |
| 726 | A 1092600194 | BEARING BRACKET |
| 727 | A 1112680850 | BUSHING |
| 728 | A 1112600315 | LEVER |
| A 1102600315 | LEVER | |
| 729 | A 1122600115 | LEVER |
| 730 | A 1112601050 | BUSHING |
| 731 | A 1122680557 | COVER |
| 732 | A 1112680251 | SPACER RING |
| 733 | A 1122680546 | SHIFTING SEGMENT |
| 734 | N 006888002000 | WOODRUFF KEY |
| 735 | N 000471013000 | LOCK RING |
| 736 | N 000137006204 | SPRING WASHER |
| 737 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 737 | N 304032006008 | NUT |
| 738 | A 1122680474 | PIN |
| 739 | A 0005450806 | SWITCH |
| BACK-UP LIGHT | ||
| 740 | A 0015458724 | SWITCH,AUTOMATIC |
| STARTER NON-REPEAT AND BACK-UP LIGHT | ||
| 742 | A 1095400173 | BRACKET |
| N 000127005203 | LOCK WASHER | |
| SWITCH TO BRACKET | ||
| N 000934005008 | NUT | |
| SWITCH TO BRACKET | ||
| A 1092600066 | BALL SOCKET | |
| 746 | A 1092600166 | BALL SOCKET |
| N 000439005200 | NUT | |
| 748 | A 1122600881 | LEVER |
| A 1092600281 | LEVER | |
| 749 | A 0009812110 | NEEDLE BEARING |
| 750 | A 1809970840 | SEAL RING |
| 751 | A 3129900340 | WASHER |
| 752 | N 900055012001 | SPRING WASHER |
| 753 | N 006799010001 | LOCK PLATE |
| 754 | A 0002680166 | BALL SOCKET |
| 755 | N 071805010400 | SECURING CLIP |
| 756 | A 1112606233 | SHIFTING ROD |
| A 1082600133 | SHIFTING ROD | |
| 760 | A 1122680150 | BUSHING |
| 761 | N 070616010004 | NUT |
| 762 | A 0009913822 | BALL SOCKET |
| A 1092680073 | LOCK | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| N 912004006102 | LOCK WASHER | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| SHIFTING ROD TO GEAR SELECTOR LEVER | ||
| 768 | A 0015452524 | SWITCH,AUTOMATIC |
| A 0025450524 | SWITCH,AUTOMATIC | |
| STARTER NON-REPEAT AND BACK-UP LIGHT | ||
| 770 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 770 | N 304017005002 | SCREW |
| 771 | N 912004005100 | LOCK WASHER |
| 772 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 772 | N 000433005304 | WASHER |
| 775 | A 1122680039 | GUIDE PIVOT |
| 776 | N 000933006130 | SCREW |
| 777 | N 000127006207 | LOCK WASHER |
| 778 | A 1122600228 | GUIDE PLATE |
| 779 | A 1122680847 | SLOTTED GATE |
| 780 | N 000933006102 | SCREW |
| Repalced by: N 304017006016 | ||
| 780 | N 304017006016 | SCREW |
| 781 | N 912004006102 | LOCK WASHER |
| 782 | N 000125006421 | WASHER |
| 783 | A 1112680732 | SHAFT |
| 784 | A 1112680235 | BEARING |
| 785 | A 1092680001 | HOUSING |
| 786 | A 1112680086 | RUBBER RING |
| 787 | A 1119910029 | BALL |
| 788 | A 1802680076 | WASHER |
| 789 | A 1119971040 | SEAL RING |
| 790 | N 000988010000 | FITTED WASHER |
| 791 | N 000471010000 | LOCK RING |
| 792 | A 0009811810 | NEEDLE BEARING |
| 793 | A 1129910340 | SPACER TUBE |
| 794 | A 1092600081 | LEVER |
| 795 | A 1122601081 | LEVER |
| 796 | N 912004007100 | LOCK WASHER |
| 797 | N 000934007005 | NUT |
| N 000933006123 | SCREW | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| A 0009905991 | NUT RETAINER | |
| INTERMEDIATE SHAFT TO FIRE WALL | ||
| A 1122700352 | GEAR INDICATOR | |
| A 1122700252 | GEAR INDICATOR | |
| 802 | A 1122700452 | GEAR INDICATOR |
| A 1122700552 | GEAR INDICATOR | |
| Repalced by: A 1122700252 | ||
| A 1122700252 | GEAR INDICATOR | |
| 803 | A 1092680215 | LEVER |
| 804 | A 1092680215 | LEVER |
| 805 | N 000933006130 | SCREW |
| 806 | N 000137006204 | SPRING WASHER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 807 | A 1129900138 | SCREW |
| GEAR DISPLAY | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 808 | A 1122600262 | BRACKET |
| GEAR INDICATOR BOWDEN CABLE | ||
| 809 | A 1112600362 | BRACKET |
| GEAR INDICATOR BOWDEN CABLE | ||
| A 1112600462 | BRACKET | |
| GEAR INDICATOR BOWDEN CABLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| GEARSHIFT, STEERING COLUMN | ||
| 810 | A 1082600894 | BEARING BRACKET |
| 811 | A 0019818410 | NEEDLE BEARING |
| N 000931008246 | SCREW | |
| Repalced by: N 304017008028 | ||
| N 304017008028 | SCREW | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000561006103 | SCREW | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000137006204 | SPRING WASHER | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| 815 | A 1082601294 | BEARING BRACKET |
| A 1082602194 | BEARING BRACKET | |
| 817 | A 1082600437 | LEVER |
| 818 | A 0029810210 | NEEDLE BEARING |
| 819 | A 3129900340 | WASHER |
| 820 | N 006799010001 | LOCK PLATE |
| 821 | N 900055012001 | SPRING WASHER |
| 822 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 822 | N 000137008212 | SPRING WASHER |
| 823 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 823 | N 304032008006 | NUT |
| A 1092601082 | SHIFTING TUBE | |
| Repalced by: A 1092601382 | ||
| 824 | A 1092601382 | SHIFTING TUBE |
| A 1092601182 | SHIFTING TUBE | |
| Repalced by: A 1092601682 | ||
| A 1092601682 | SHIFTING TUBE | |
| 826 | A 1159910301 | PIN |
| 827 | A 1209932101 | SPRING |
| 828 | A 1152680439 | GUIDE PIVOT |
| 829 | A 1119971240 | SEAL RING |
| 830 | A 1869906940 | WASHER |
| 831 | A 1862680273 | LOCK |
| 833 | A 1082680424 | SHIFT LEVER |
| Repalced by: A 1152600639 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152601139 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152601239 | ||
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152602639 | ||
| A 1152601239 | SHIFT LEVER | |
| Repalced by: A 1152602739 | ||
| A 1152602639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| 833 | A 1152604439 | SHIFT LEVER |
| A 1152602739 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152604539 | SHIFT LEVER | |
| 836 | A 1152680842 | KNOB |
| 840 | A 1159939902 | SPRING |
| 842 | A 1152680750 | BUSHING |
| A 1152681050 | BUSHING | |
| 844 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 844 | N 001481005017 | CLAMPING SLEEVE |
| A 1159920225 | SLEEVE | |
| 846 | A 1152670114 | CAP |
| 847 | A 1162680397 | BOOT |
| A 1162680497 | BOOT | |
| A 1122700452 | GEAR INDICATOR | |
| A 1122700552 | GEAR INDICATOR | |
| Repalced by: A 1122700252 | ||
| A 1122700252 | GEAR INDICATOR | |
| 852 | A 1159900338 | SCREW |
| A 1099900238 | SCREW | |
| A 1099900138 | SCREW | |
| A 1099900338 | SCREW | |
| 854 | N 000934006007 | NUT |
| N 000934005008 | NUT | |
| 855 | A 1122680039 | GUIDE PIVOT |
| 856 | N 912004006102 | LOCK WASHER |
| 857 | N 000933006130 | SCREW |
| 858 | A 1092680047 | SLOTTED GATE |
| A 1092680147 | SLOTTED GATE | |
| 860 | N 000125006421 | WASHER |
| 861 | N 912004006102 | LOCK WASHER |
| 862 | N 000933006130 | SCREW |
| 863 | A 1082600837 | LEVER |
| A 1082600737 | LEVER | |
| 865 | A 1152680276 | WASHER |
| 867 | A 0002681266 | BALL SOCKET |
| A 0022681366 | BALL SOCKET | |
| 869 | N 071805010400 | SECURING CLIP |
| 870 | N 000988010000 | FITTED WASHER |
| 871 | N 000471010000 | LOCK RING |
| 872 | A 0009811810 | NEEDLE BEARING |
| 873 | A 1129910340 | SPACER TUBE |
| 874 | A 1122600981 | LEVER |
| 876 | A 1122601081 | LEVER |
| 877 | A 1112680732 | SHAFT |
| 878 | A 1112680235 | BEARING |
| 879 | A 1092680001 | HOUSING |
| 880 | A 1112680086 | RUBBER RING |
| 881 | A 1119910029 | BALL |
| 882 | A 1802680076 | WASHER |
| 883 | A 1119971040 | SEAL RING |
| 884 | N 912004007100 | LOCK WASHER |
| 885 | N 000934007005 | NUT |
| N 071805010400 | SECURING CLIP | |
| 887 | A 1082601133 | SHIFTING ROD |
| A 1082601233 | SHIFTING ROD | |
| 890 | A 0009913822 | BALL SOCKET |
| 891 | N 070616010004 | NUT |
| 893 | A 1159920310 | BUSHING |
| 895 | A 0009942960 | LOCK |
| 896 | A 1082600262 | BRACKET |
| A 1112600562 | BRACKET | |
| 898 | N 007981002325 | SHEET METAL SCREW |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
