Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021
Grupė: 35 REAR AXLE

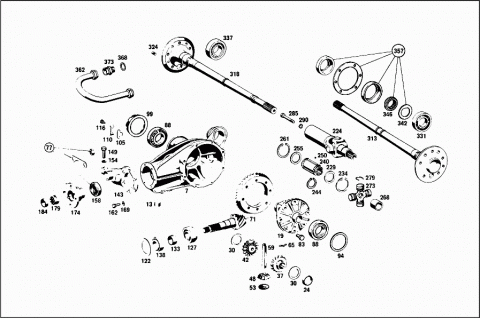

37489
37490
# Kodas Pavadinimas
A 1083500300 REAR AXLE
Repalced by: A 1113500003
A 1113500003 AXLE HOUSING
RATIO:
1:3.92
A 1113500003 AXLE HOUSING
RATIO:
1:3.92
A 1083503000 REAR AXLE
Repalced by: A 1113500003
A 1113500003 AXLE HOUSING
A 1083502800 REAR AXLE
Repalced by: A 1083500103
A 1083500103 AXLE HOUSING
RATIO:
1:3.69
A 1083502900 REAR AXLE
Repalced by: A 1113500103
A 1113500103 AXLE HOUSING
RATIO:
1:3.69
A 1083504300 REAR AXLE
Repalced by: A 1113500603
A 1113500603 AXLE HOUSING
RATIO:
1:3.46
A 1113500003 AXLE HOUSING
A 1113500003 AXLE HOUSING
A 1083500103 AXLE HOUSING
A 1113500103 AXLE HOUSING
A 1113500503 AXLE HOUSING
Repalced by: A 1113500603
A 1113500603 AXLE HOUSING
007 A 1083500020 AXLE HOUSING
A 1083500320 AXLE HOUSING
013 A 1869970032 SCREW PLUG
019 A 1083500223 DIFFERENTIAL GEAR
A 1083530001 DIFFERENTIAL CASE
A 1123570250 BUSHING
024 A 1083530048 RING
A 1083530148 RING
REPAIR SIZE
030 A 1843530062 THRUST WASHER
AS REQUIRED
1.3 MM
A 1843530162 THRUST WASHER
AS REQUIRED
1.4 MM
A 1843530262 THRUST WASHER
AS REQUIRED
1.5 MM
A 1843530362 THRUST WASHER
AS REQUIRED
1.6 MM
A 1843530462 THRUST WASHER
AS REQUIRED
1.7 MM
037 A 1083530115 SIDE GEAR
Repalced by: A 1083500140
037 A 1083500140 DIFFERENTIAL PINION
LEFT
042 A 1083500140 DIFFERENTIAL PINION
RIGHT
048 A 1163530214 DIFFERENTIAL PINION
Repalced by: A 1403530514
048 A 1403530514 DIFFERENTIAL PINION
053 A 1123530124 SPHERICAL WASHER
059 A 1083530021 PIN
065 A 1129930030 SPRING
071 A 1113500839 RING GEAR AND PINION
RATIO:
1:3.92
071 A 1113500839 RING GEAR AND PINION
RATIO:
1:3.92
A 1123500939 RING GEAR AND PINION
RATIO:
1:3.69
A 1123500939 RING GEAR AND PINION
RATIO:
1:3.69
A 1083500339 RING GEAR AND PINION
RATIO:
1:3.46
077 A 1085860135 REPAIR KIT
DRIVE PINION
083 A 1289900001 SCREW
088 A 0009801902 TAPERED ROLLER BEARING
094 A 1123530852 SPACER WASHER
AS REQUIRED
1.8 MM
A 1123530952 SPACER WASHER
AS REQUIRED
1.9 MM
A 1123531052 SPACER WASHER
AS REQUIRED
2.0 MM
A 1123531152 SPACER WASHER
AS REQUIRED
2.1 MM
A 1123531252 SPACER WASHER
Repalced by: A 1123531152
A 1123531152 SPACER WASHER
AS REQUIRED
2.2 MM
099 A 1123530125 SCREW COLLAR
105 A 1803530173 LOCK
A 1803530273 LOCK
A 1803530373 LOCK
A 1803530573 LOCK
A 1803530673 LOCK
110 A 1809940030 LOCK
116 N 000933006103 SCREW
Repalced by: N 304017006018
116 N 304017006018 SCREW
122 A 1123531452 SPACER WASHER
AS REQUIRED
1.50 MM
A 1123531652 SPACER WASHER
AS REQUIRED
1.60 MM
A 1123531852 SPACER WASHER
AS REQUIRED
1.70 MM
A 1123532052 SPACER WASHER
AS REQUIRED
1.80 MM
127 A 0009801002 TAPERED ROLLER BEARING
133 A 1083530042 SPACER BUSHING
138 A 0009801802 TAPERED ROLLER BEARING
A 0009801802 TAPERED ROLLER BEARING
A 0009805202 TAPERED ROLLER BEARING
143 A 1103530308 COVER
149 N 070613010000 SCREW
154 N 000127010200 LOCK WASHER
158 A 0049975646 SEAL RING
A 0049974146 SEAL RING
162 N 304017008023 SCREW
169 N 000127008200 LOCK WASHER
174 A 1103500145 FLANGE
179 A 1113500166 GROOVED NUT
184 A 1119940244 LOCK
190 A 1083500219 REAR AXLE TUBE
LEFT
A 1083500919 REAR AXLE TUBE
LEFT
197 A 1083500319 REAR AXLE TUBE
RIGHT
A 1103202443 BRACKET
LEFT SHOCK ABSORBER
N 900288088003 CLAMP
A 1103202543 BRACKET
RIGHT SHOCK ABSORBER
204 A 1803510150 BUSHING
207 A 1153500290 VALVE
A 1083500090 VALVE
212 A 1083510068 CAP
212 A 1083510068 CAP
219 N 000933010164 SCREW
224 A 1123500213 JOINT
229 A 1803570152 SPACER WASHER
234 A 0009942941 LOCK
240 A 1083500048 SLEEVE
244 A 1889940041 LOCK
250 A 1809810086 ROLLER
255 A 1883570052 SPACER WASHER
261 N 000472048000 LOCK RING
268 A 1123570350 BUSHING
273 A 1123500128 UNIVERSAL JOINT
279 A 1869941235 SNAP RING
AS REQUIRED
2.15 MM
A 1869940435 SNAP RING
AS REQUIRED
2.25 MM
A 1869941535 SNAP RING
AS REQUIRED
2.35 MM
A 1869941735 SNAP RING
AS REQUIRED
2.45 MM
A 1869941935 SNAP RING
AS REQUIRED
2.55 MM
285 N 000912010053 SCREW
290 N 000127010200 LOCK WASHER
296 A 1103570491 BOOT
301 A 1103570391 BOOT
SPLIT
307 A 0029881078 CLIP
313 A 1083500310 AXLE SHAFT
LEFT
318 A 1083500710 AXLE SHAFT
RIGHT
A 1089940035 SNAP RING
324 A 1159910560 DOWEL PIN
331 A 0019811525 BALL BEARING
Repalced by: A 0029812301
331 A 0029812301 CYLINDR. ROLLER BEARING
LEFT
337 A 0009810506 BARREL-TYPE BEARING
RIGHT
342 A 1833530373 LOCK
346 A 1533570026 GROOVED NUT
N 900288088003 CLAMP
REAR AXLE TUBE
N 900288121000 CLAMP
REAR AXLE HOUSING
351 A 1264230012 BRAKE DISC
357 A 1113500068 REPAIR KIT
REAR AXLE SHAFT SEALING
362 A 1083500080 LINE
368 N 007603026105 SEAL RING
373 N 915013020002 SCREW FITTING
378 A 1103510074 PIN
383 A 1803510153 SPACER TUBE
AS REQUIRED
26.0 MM
A 1803511853 SPACER TUBE
AS REQUIRED
25.8 MM
A 1803511753 SPACER TUBE
AS REQUIRED
25.6 MM
A 1803511653 SPACER TUBE
AS REQUIRED
25.4 MM
A 1803511553 SPACER TUBE
Repalced by: A 1803511653
A 1803511653 SPACER TUBE
AS REQUIRED
25.2 MM
A 1803511453 SPACER TUBE
AS REQUIRED
25.0 MM
389 A 1803511452 SPACER WASHER
AS REQUIRED
2.0 MM
394 A 1803511352 SPACER WASHER
Repalced by: A 1803511452
394 A 1803511452 SPACER WASHER
AS REQUIRED
1.9 MM
A 1803511452 SPACER WASHER
AS REQUIRED
2.0 MM
A 1803511552 SPACER WASHER
AS REQUIRED
2.1 MM
A 1803511652 SPACER WASHER
AS REQUIRED
2.2 MM
A 1803511752 SPACER WASHER
AS REQUIRED
2.3 MM
A 1803511852 SPACER WASHER
AS REQUIRED
2.4 MM
A 1803511952 SPACER WASHER
AS REQUIRED
2.5 MM
A 1803512752 SPACER WASHER
AS REQUIRED
2.6 MM
A 1803512852 SPACER WASHER
AS REQUIRED
2.7 MM
A 1803512952 SPACER WASHER
Repalced by: A 1803513052
A 1803513052 SPACER WASHER
AS REQUIRED
2.8 MM
A 1803513052 SPACER WASHER
AS REQUIRED
2.9 MM
A 1803512052 SPACER WASHER
AS REQUIRED
3.0 MM
A 1803513152 SPACER WASHER
AS REQUIRED
3.1 MM
A 1803513252 SPACER WASHER
Repalced by: A 1803513152
A 1803513152 SPACER WASHER
AS REQUIRED
3.2 MM
399 A 1803510351 SPACER RING
404 A 1803510986 RUBBER RING
409 A 1803510074 PIN
413 N 000127008200 LOCK WASHER
418 N 000934008010 NUT
Repalced by: N 304032008006
418 N 304032008006 NUT
423 A 1809940341 LOCK
426 N 000443020000 EXPANSION PLUG
429 A 1809970430 SCREW PLUG
433 A 1809940112 LOCK
436 N 071412006100 GREASE NIPPLE
439 N 071412006200 GREASE NIPPLE
442 A 1103501275 RUBBER MOUNTING
445 A 1093500032 SUPPORT
448 N 001473003001 GROOVED PIN
451 N 070613010000 SCREW
454 N 000127010200 LOCK WASHER
457 A 1103501029 THRUST ARM
LEFT
A 1103501129 THRUST ARM
RIGHT
461 A 1103521865 RUBBER MOUNTING
464 A 1113520509 PIVOT PIN
467 A 1113521276 WASHER
470 A 1103501475 REPAIR KIT
THRUST ARM
474 N 009045032000 SNAP RING
477 A 1103520151 SPACER RING
481 A 1113520171 SCREW
A 1113520371 SCREW
485 A 1113520173 LOCK
488 A 1103500675 RUBBER MOUNTING
491 A 1103510045 PAD
TOP
493 N 000961016004 SCREW
496 N 912004016101 LOCK WASHER
499 N 000933010129 SCREW
Repalced by: N 304017010002
499 N 304017010002 SCREW
505 N 912004010102 LOCK WASHER
509 A 1103500493 ROD
513 N 000936014008 NUT
515 A 1113510340 BRACKET
517 A 1113510448 RUBBER MOUNTING
519 A 1113510240 BRACKET
522 N 000933010238 SCREW
Repalced by: N 304017010028
522 N 304017010028 SCREW
524 N 000137010201 SPRING WASHER
527 N 000960012163 SCREW
529 N 000137012203 SPRING WASHER
Repalced by: N 000137012206
529 N 000137012206 SPRING WASHER
532 A 1103510743 CUP
INSIDE
535 A 1113510444 RUBBER BUFFER
538 A 1103510643 CUP
OUTSIDE
542 N 000934012023 NUT
Repalced by: N 308673012002
542 N 308673012002 NUT
547 N 007967012000 NUT
553 A 1103521065 RUBBER MOUNTING
558 A 1103520042 MOUNTING PLATE
WITH RETAINER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 000125008407 WASHER
563 A 1089900340 WASHER
569 N 000127008203 LOCK WASHER
575 N 000934008013 NUT
581 N 912004014100 LOCK WASHER
590 N 000934014019 NUT
Repalced by: N 308673014001
590 N 308673014001 NUT
