Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

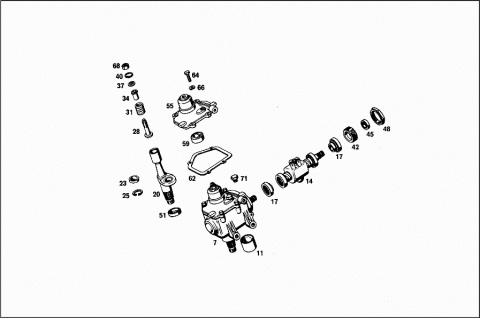

| 007 | A 1114604301 | STEERING BOX ASSEMBLY |
| A 1114604401 | STEERING BOX ASSEMBLY | |
| 011 | A 1114620350 | BUSHING |
| A 3094604008 | STEERING WORM | |
| 014 | A 3094600308 | STEERING WORM |
| A 3094600408 | STEERING WORM | |
| 017 | A 0009815027 | ANGULAR CONTACT BEARING |
| 020 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 023 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 025 | N 000472030000 | LOCK RING |
| 028 | A 1114620471 | SCREW |
| 031 | A 1119932101 | SPRING |
| 034 | A 1114620485 | THRUST PIECE |
| 037 | A 1114610462 | THRUST WASHER |
| 040 | A 0049949241 | LOCK |
| 042 | A 1114610406 | SET COLLAR |
| 045 | A 0029974746 | SEAL RING |
| A 0049971546 | SEAL RING | |
| A 0029977046 | SEAL RING | |
| 048 | A 1209900551 | NUT |
| 051 | A 0019979346 | SEAL RING |
| A 0029977146 | SEAL RING | |
| A 0029977246 | SEAL RING | |
| 055 | A 1114600814 | STEERING BOX COVER |
| REPAIR SIZE | ||
| 055 | A 1114600714 | STEERING BOX COVER |
| REPAIR SIZE | ||
| 059 | A 1114620250 | BUSHING |
| 062 | A 1114610280 | GASKET |
| 064 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 064 | N 304017008034 | SCREW |
| 066 | N 000127008200 | LOCK WASHER |
| 068 | N 000934010014 | NUT |
| 071 | N 007604012102 | SCREW PLUG |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MERCEDES-BENZ POWER STEERING | ||

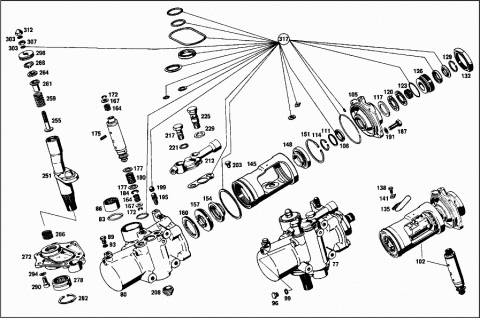

| 077 | A 1094600601 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| A 1094600901 | STEERING BOX ASSEMBLY | |
| LESS PITMAN ARM | ||
| 080 | A 1094600402 | STEERING BOX |
| A 1094601002 | STEERING BOX | |
| 083 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 083 | A 0139973648 | SEAL RING |
| 086 | A 0039811810 | NEEDLE BEARING |
| 089 | A 1129970030 | SCREW PLUG |
| 093 | N 007603008109 | SEAL RING |
| 096 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 096 | N 007604010108 | SCREW PLUG |
| 099 | N 007603010100 | SEAL RING |
| 102 | A 1124602885 | PISTON |
| (SERVO PISTON) WITH STEERING WORM AND SLEEVE VALVE | ||
| A 1094600185 | PISTON | |
| (SERVO PISTON) WITH STEERING WORM AND SLEEVE VALVE | ||
| 105 | A 1124602014 | STEERING BOX COVER |
| A 1004601814 | STEERING BOX COVER | |
| 108 | A 1124600061 | GASKET |
| 111 | A 1124620162 | THRUST WASHER |
| 114 | A 0009942641 | LOCK |
| 117 | A 1124610162 | THRUST WASHER |
| 120 | A 0009810418 | ROLLER BEARING |
| A 0009810810 | NEEDLE BEARING | |
| 123 | A 0009816310 | NEEDLE BEARING |
| 126 | A 1124600386 | THREADED INSERT |
| 129 | A 0009942641 | LOCK |
| 132 | A 1209900551 | NUT |
| 135 | A 1089950420 | CLAMP |
| 138 | A 1209900520 | SCREW |
| 141 | A 1129940005 | LOCK |
| 145 | A 1124603485 | PISTON |
| SERVO PISTON | ||
| A 1124603585 | PISTON | |
| SERVO PISTON | ||
| 148 | A 0009814627 | ANGULAR CONTACT BEARING |
| 151 | A 0019945141 | LOCK |
| 154 | A 0009814027 | ANGULAR CONTACT BEARING |
| 157 | A 1124661905 | COVER |
| 160 | A 1124660134 | SCREW COLLAR |
| 164 | A 1129939501 | SPRING |
| 167 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.1 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.2 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.3 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.4 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.5 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.6 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.7 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.8 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.0 MM | ||
| 172 | A 0009943841 | LOCK |
| 175 | A 1129910141 | CLAMPING PIN |
| 177 | A 1124660275 | WASHER |
| 180 | A 1129931902 | SPRING |
| 184 | A 0009945441 | LOCK |
| 187 | N 000933010105 | SCREW |
| 191 | N 912004010102 | LOCK WASHER |
| 195 | A 0004200855 | BLEEDER VALVE |
| A 1004600072 | BREATHER | |
| 199 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 199 | A 0004210887 | PROTECTIVE CAP |
| 203 | A 1099970030 | SCREW PLUG |
| 208 | A 1124661105 | COVER |
| 212 | A 1094660105 | COVER |
| TOP | ||
| A 1094660205 | COVER | |
| TOP | ||
| A 1094660305 | COVER | |
| TOP | ||
| 217 | A 1009971972 | FITTING |
| RETURN | ||
| 221 | N 007603016401 | SEAL RING |
| RETURN | ||
| 225 | A 1009971872 | FITTING |
| DELIVERY LINE | ||
| 229 | N 007603018100 | SEAL RING |
| DELIVERY LINE | ||
| 233 | N 915013010001 | SCREW FITTING |
| RETURN | ||
| 237 | N 007603016401 | SEAL RING |
| RETURN | ||
| 242 | N 915013006002 | SCREW FITTING |
| DELIVERY LINE | ||
| 245 | N 007603012110 | SEAL RING |
| DELIVERY LINE | ||
| 251 | A 1094600211 | STEERG. WORM SECTOR SHAFT |
| 255 | A 1094620171 | SCREW |
| 259 | A 1119932101 | SPRING |
| 261 | A 1114620485 | THRUST PIECE |
| 264 | A 1114610462 | THRUST WASHER |
| 268 | A 0049949241 | LOCK |
| 272 | A 1094600215 | STEERING BOX COVER |
| A 1094600315 | STEERING BOX COVER | |
| 278 | A 0009818110 | NEEDLE BEARING |
| 282 | A 0009945341 | LOCK |
| 286 | A 1129939701 | SPRING |
| 290 | N 000912008096 | SCREW |
| Repalced by: N 000912008202 | ||
| 290 | N 000912008202 | SCREW |
| 294 | N 000137008100 | SPRING WASHER |
| 298 | A 1094660072 | NUT |
| 303 | N 007603010404 | SEAL RING |
| 307 | A 1099900051 | NUT |
| 312 | N 000917010002 | NUT |
| A 1124660380 | GASKET | |
| A 1124660160 | SEAL RING | |
| A 0019973940 | SEAL RING | |
| A 0019974040 | SEAL RING | |
| A 0099977245 | SEAL RING | |
| A 0009979745 | SEAL RING | |
| A 0019970145 | SEAL RING | |
| A 0019972545 | SEAL RING | |
| A 0019972645 | SEAL RING | |
| Repalced by: A 0149976148 | ||
| A 0149976148 | SEAL RING | |
| A 0029974745 | SEAL RING | |
| A 0049974445 | SEAL RING | |
| A 0059975846 | SEAL RING | |
| A 0059975946 | SEAL RING | |
| N 007603014100 | SEAL RING | |
| 317 | A 1094600261 | GASKET KIT |

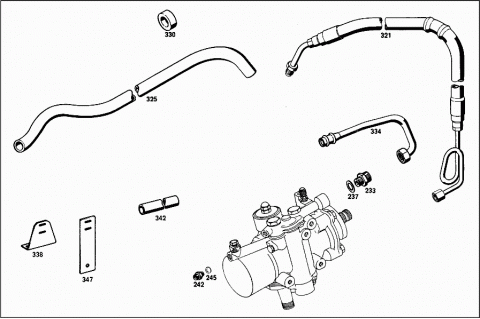

| 321 | A 1099973782 | HOSE |
| A 1099974282 | HOSE | |
| 325 | A 0069970982 | HOSE |
| ORDER BY THE METER | ||
| 330 | A 1109870541 | RUBBER RING |
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| 334 | A 1094600924 | LINE |
| A 1124601024 | LINE | |
| 338 | A 1094660740 | BRACKET |
| 342 | N 040621020200 | INSULATING HOSE |
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 347 | A 1094660840 | BRACKET |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR POWER STEERING PUMP AND OIL TANK, SEE GROUP 13 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PITMAN ARM | ||

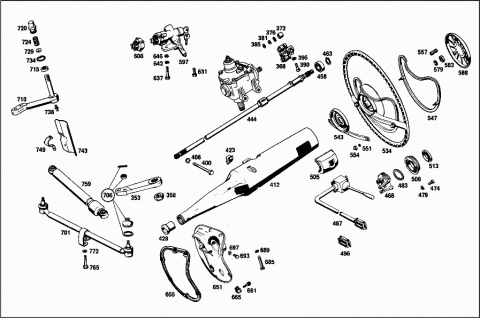

| 353 | A 1114632301 | PITMAN ARM |
| A 1094630701 | PITMAN ARM | |
| A 1114632401 | PITMAN ARM | |
| A 1094630801 | PITMAN ARM | |
| 358 | N 000937022000 | NUT |
| N 000094005033 | COTTER PIN | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COUPLING | ||
| 368 | A 1114600310 | STEERING COUPLING |
| Repalced by: A 3094600210 | ||
| A 3094600210 | STEERING COUPLING | |
| A 1154600510 | STEERING COUPLING | |
| A 1154600510 | STEERING COUPLING | |
| 372 | A 1114620165 | RING |
| 376 | A 1119903040 | WASHER |
| 381 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 381 | N 000137010205 | SPRING WASHER |
| 385 | A 1369909540 | WASHER |
| N 912002010001 | LOCK | |
| 390 | A 1119900420 | SCREW |
| 396 | N 000127008203 | LOCK WASHER |
| 400 | N 000931010253 | SCREW |
| 406 | N 912004010102 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COLUMN JACKET TUBE | ||

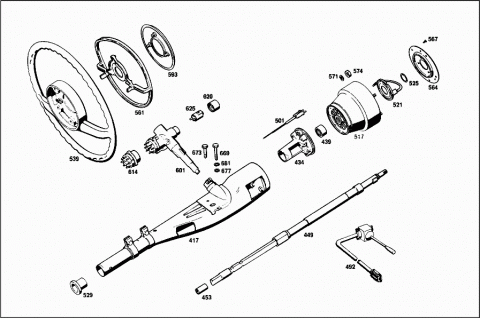

| 412 | A 1114608916 | STEER. COLUMN JACKET TUBE |
| 417 | A 1114601126 | STEER. COLUMN JACKET TUBE |
| 417 | A 1114601126 | STEER. COLUMN JACKET TUBE |
| A 1114600926 | STEER. COLUMN JACKET TUBE | |
| A 1114601526 | STEER. COLUMN JACKET TUBE | |
| A 1114601526 | STEER. COLUMN JACKET TUBE | |
| A 1114602526 | STEER. COLUMN JACKET TUBE | |
| A 1114602526 | STEER. COLUMN JACKET TUBE | |
| A 1114609016 | STEER. COLUMN JACKET TUBE | |
| A 1114601226 | STEER. COLUMN JACKET TUBE | |
| A 1114601226 | STEER. COLUMN JACKET TUBE | |
| A 1114601026 | STEER. COLUMN JACKET TUBE | |
| A 1114602226 | STEER. COLUMN JACKET TUBE | |
| A 1114602226 | STEER. COLUMN JACKET TUBE | |
| A 1114602626 | STEER. COLUMN JACKET TUBE | |
| A 1114602626 | STEER. COLUMN JACKET TUBE | |
| 423 | A 0009883478 | CLIP |
| 428 | A 1164620096 | BOOT |
| 434 | A 1154621835 | BEARING BODY |
| 434 | A 1154621835 | BEARING BODY |
| 439 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 439 | A 0189816110 | NEEDLE BEARING |
| 439 | A 0189816110 | NEEDLE BEARING |
| N 000912006064 | SCREW | |
| N 000912006064 | SCREW | |
| N 000137006100 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| N 000137006204 | SPRING WASHER | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHAFT | ||
| 444 | A 1084600409 | STEERING SHAFT |
| A 1104605009 | STEERING SHAFT | |
| 449 | A 1084602609 | STEERING SHAFT |
| 449 | A 1084602609 | STEERING SHAFT |
| A 1114603709 | STEERING SHAFT | |
| A 1114603709 | STEERING SHAFT | |
| 453 | A 1164620060 | SEAL RING |
| 453 | A 1164620060 | SEAL RING |
| 458 | N 000625006004 | GROOVED BALL BEARING |
| 463 | N 000471020001 | LOCK RING |
| 468 | A 1114620628 | BEARING RING |
| 474 | N 000912006014 | SCREW |
| 479 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 479 | N 000137006204 | SPRING WASHER |
| 483 | N 000472042001 | LOCK RING |
| 487 | A 0025450124 | SWITCH,AUTOMATIC |
| COMBINATION | ||
| A 0025451024 | SWITCH,AUTOMATIC | |
| 492 | A 0025459924 | SWITCH,AUTOMATIC |
| BLINKER | ||
| 492 | A 0025459924 | SWITCH,AUTOMATIC |
| BLINKER | ||
| A 0035451624 | SWITCH,AUTOMATIC | |
| BLINKER | ||
| A 0035451624 | SWITCH,AUTOMATIC | |
| BLINKER | ||
| A 0035450024 | SWITCH,AUTOMATIC | |
| BLINKER | ||
| A 0035450024 | SWITCH,AUTOMATIC | |
| BLINKER | ||
| A 0035452728 | PLUG | |
| 14-POLE | ||
| 496 | A 0035453728 | PLUG |
| Repalced by: A 0125450328 | ||
| 496 | A 0125450328 | PLUG HOUSING |
| Repalced by: A 0095455628 | ||
| 496 | A 0095455628 | PLUG HOUSING |
| 14-POLE | ||
| 496 | A 0095455628 | PLUG HOUSING |
| 14-POLE | ||
| A 0095455728 | COVER | |
| TO 009 545 56 28 | ||
| N 007985004105 | SCREW | |
| SWITCH TO BASE PLATE | ||
| N 000127004200 | LOCK WASHER | |
| SWITCH TO BASE PLATE | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| SWITCH TO BASE PLATE | ||
| N 914025004103 | COMBINATION BOLT | |
| 501 | A 1074640143 | CONTACT PIECE |
| 501 | A 1074640143 | CONTACT PIECE |
| A 1084620196 | BOOT | |
| A 1154621396 | BOOT | |
| 505 | A 1154621396 | BOOT |
| 505 | A 1154621396 | BOOT |
| 509 | A 0004640928 | CONTACT RING |
| 513 | A 0009811018 | ROLLER BEARING |
| 517 | A 1154600897 | PROTECTIVE SLEEVE |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| A 1164600003 | STEERING WHEEL | |
| 521 | A 1154640017 | CONTACT PLATE |
| 521 | A 1154640017 | CONTACT PLATE |
| 525 | N 900055032200 | LOCK RING |
| 525 | N 900055032200 | LOCK RING |
| 529 | A 1164620096 | BOOT |
| 529 | A 1164620096 | BOOT |
| A 1134620296 | BOOT | |
| CUT-OUT IN STEERING COLUMN JACKET TUBE | ||
| A 1084620496 | BOOT | |
| STEERING COLUMN JACKET TUBE CABLE OPENING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 534 | A 1124600203 | STEERING WHEEL |
| A 1154640201 | STEERING WHEEL | |
| Repalced by: A 1164600003 | ||
| 539 | A 1164600003 | STEERING WHEEL |
| 539 | A 1164600003 | STEERING WHEEL |
| A 1169900121 | SCREW | |
| TO 116 460 00 03 | ||
| A 1169935501 | SPRING | |
| TO 116 460 00 03 | ||
| A 1169935101 | SPRING | |
| TO 116 460 00 03 | ||
| A 1164640050 | BUSHING | |
| TO 116 460 00 03 | ||
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| TO 116 460 00 03 | ||
| A 1164640077 | PROTECTIVE RING | |
| TO 116 460 00 03 | ||
| A 1169901040 | WASHER | |
| TO 116 460 00 03 | ||
| 543 | A 1114641236 | HUB |
| 547 | A 1004640115 | SIGNAL RING |
| 551 | A 1114640073 | LOCK |
| 554 | A 1114640172 | NUT |
| 557 | A 1114640024 | INSULATING PART |
| 561 | A 1154640415 | SIGNAL RING |
| 561 | A 1154640415 | SIGNAL RING |
| 564 | A 1154640134 | BRACKET |
| 564 | A 1154640134 | BRACKET |
| 567 | N 007987003122 | SCREW |
| 567 | N 007987003122 | SCREW |
| 571 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 571 | N 000137008212 | SPRING WASHER |
| 571 | N 000137008212 | SPRING WASHER |
| 574 | N 000934008013 | NUT |
| 574 | N 000934008013 | NUT |
| 579 | N 912004014100 | LOCK WASHER |
| 583 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 583 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 583 | N 308675014002 | NUT |
| A 1154640024 | INSULATING PART | |
| A 1154640024 | INSULATING PART | |
| 588 | A 1114600642 | COVER PLATE |
| BLACK | ||
| 593 | A 1154640342 | PAD |
| BLACK | ||
| 593 | A 1154640342 | PAD |
| BLACK | ||
| 597 | A 0004622430 | STEERING LOCK |
| 601 | A 0004624930 | STEERING LOCK |
| 601 | A 0004624930 | STEERING LOCK |
| A 0004625330 | STEERING LOCK | |
| A 0004626830 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 0004628030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620830 | STEERING LOCK | |
| Repalced by: A 1164621030 | ||
| A 1164621030 | STEERING LOCK | |
| A 0004622530 | STEERING LOCK | |
| A 0004625030 | STEERING LOCK | |
| A 0004625030 | STEERING LOCK | |
| A 0004625430 | STEERING LOCK | |
| A 0004626930 | STEERING LOCK | |
| Repalced by: A 1164620930 | ||
| A 0004628130 | STEERING LOCK | |
| Repalced by: A 1164620930 | ||
| A 1164620130 | STEERING LOCK | |
| Repalced by: A 1164620930 | ||
| A 1164620930 | STEERING LOCK | |
| 608 | A 0004620693 | IGNITION SWITCH |
| 614 | A 1164620093 | IGNITION SWITCH |
| 614 | A 1164620093 | IGNITION SWITCH |
| N 000084004105 | SCREW | |
| 620 | A 0004620923 | COVER |
| 620 | A 0004620923 | COVER |
| A 0004621023 | COVER | |
| A 0004621023 | COVER | |
| 625 | A 0004624830 | TUMBLER |
| 625 | A 0004624830 | TUMBLER |
| A 0004626630 | TUMBLER | |
| A 0004626630 | TUMBLER | |
| A 0004600004 | TUMBLER | |
| WITH LOCK UNDEFINED | ||
| A 0004620332 | KEY | |
| BLANK | ||
| A 1114620132 | KEY | |
| A 0005830296 | RING | |
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| A 0007600406 | KEY | |
| MASTER KEY | ||
| A 0007600406 | KEY | |
| MASTER KEY | ||
| A 1154600322 | CLAMPING PIECE | |
| A 1154600322 | CLAMPING PIECE | |
| N 000931006024 | SCREW | |
| N 000931006024 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004200 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| 631 | N 000933008145 | SCREW |
| 637 | N 000931008244 | SCREW |
| 642 | N 000127008200 | LOCK WASHER |
| 646 | N 000125008407 | WASHER |
| 651 | A 1084620095 | COVERING |
| 651 | A 1084620095 | COVERING |
| A 1094620395 | COVERING | |
| A 1094620395 | COVERING | |
| A 1084600295 | COVERING | |
| A 1084600295 | COVERING | |
| A 1084620195 | COVERING | |
| A 1084620495 | COVERING | |
| A 1084620495 | COVERING | |
| A 1084600395 | COVERING | |
| A 1084600395 | COVERING | |
| N 000931006159 | SCREW | |
| N 000931006159 | SCREW | |
| N 000125006407 | WASHER | |
| N 000125006407 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 304032006008 | NUT | |
| A 0009870444 | EXPANSION PLUG | |
| COVER PLATE | ||
| A 1114620880 | GASKET | |
| COVER PLATE | ||
| 655 | A 1114621380 | GASKET |
| 655 | A 1114621380 | GASKET |
| A 1084620280 | GASKET | |
| A 1084620280 | GASKET | |
| A 1084600161 | GASKET | |
| A 1084600161 | GASKET | |
| A 1084620380 | GASKET | |
| A 1084620380 | GASKET | |
| A 1114620175 | WASHER | |
| A 1114620175 | WASHER | |
| A 1114620175 | WASHER | |
| A 1114620175 | WASHER | |
| A 1114620023 | COVER | |
| A 1114620023 | COVER | |
| 661 | N 914007006004 | COMBINATION BOLT |
| 661 | N 914007006004 | COMBINATION BOLT |
| 665 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 665 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 665 | A 0019906791 | NUT RETAINER |
| 665 | A 0019906791 | NUT RETAINER |
| A 1114600765 | STRAP | |
| A 1114600665 | STRAP | |
| A 1114600865 | STRAP | |
| Repalced by: A 1114600665 | ||
| A 1114600665 | STRAP | |
| N 000125008407 | WASHER | |
| N 000985008001 | NUT | |
| 669 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 669 | N 304014008001 | SCREW |
| 669 | N 304014008001 | SCREW |
| 673 | A 0029906601 | SCREW |
| 673 | A 0029906601 | SCREW |
| N 914112008012 | SCREW | |
| N 914112008012 | SCREW | |
| 677 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 677 | N 009021008213 | WASHER |
| 677 | N 009021008213 | WASHER |
| 681 | N 000127008203 | LOCK WASHER |
| 681 | N 000127008203 | LOCK WASHER |
| 685 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 685 | N 304017008042 | SCREW |
| 685 | N 304017008042 | SCREW |
| 689 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 689 | N 000137008212 | SPRING WASHER |
| 689 | N 000137008212 | SPRING WASHER |
| 693 | N 000561006103 | SCREW |
| 693 | N 000561006103 | SCREW |
| 697 | N 000137006204 | SPRING WASHER |
| 697 | N 000137006204 | SPRING WASHER |
| 701 | A 1104600205 | DRAG LINK |
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| 706 | A 0003300485 | REPAIR KIT |
| 710 | A 1114601319 | INTERMEDIATE LEVER |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1084630510 | STEERING INTERMEDIATE ARM | |
| A 1084630510 | STEERING INTERMEDIATE ARM | |
| A 1114601419 | INTERMEDIATE LEVER | |
| A 1084630410 | STEERING INTERMEDIATE ARM | |
| A 1084630610 | STEERING INTERMEDIATE ARM | |
| A 1084630610 | STEERING INTERMEDIATE ARM | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| A 1204630250 | BUSHING | |
| 715 | A 1114630060 | SEAL RING |
| 720 | A 1114630133 | CAP |
| 724 | A 1119930401 | SPRING |
| 729 | A 1114630062 | THRUST WASHER |
| 734 | A 1819940010 | LOCK |
| 738 | N 071412008100 | GREASE NIPPLE |
| 743 | A 1114630090 | PROTECTIVE PLATE |
| A 1084630090 | PROTECTIVE PLATE | |
| A 1074630090 | PROTECTIVE PLATE | |
| A 1074630090 | PROTECTIVE PLATE | |
| A 1074630190 | PROTECTIVE PLATE | |
| 749 | A 1114631140 | BRACKET |
| 749 | A 1114631140 | BRACKET |
| 749 | A 1114631140 | BRACKET |
| A 1114631640 | BRACKET | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 304017006016 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 304032006008 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| A 1209900155 | NUT | |
| N 000094002077 | COTTER PIN | |
| A 1114631056 | DUST CAP | |
| A 1114630052 | SPACER WASHER | |
| Repalced by: A 1244630077 | ||
| A 1244630077 | WASHER | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| A 1114600050 | REPAIR KIT | |
| STEERING INTERMEDIATE ARM | ||
| A 1244600019 | REPAIR KIT | |
| Repalced by: A 1264600819 | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHOCK ABSORBER | ||
| 759 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 765 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 765 | N 000961010031 | SCREW |
| 772 | N 912004010102 | LOCK WASHER |
| N 000960010026 | SCREW | |
| Repalced by: N 000961010031 | ||
| N 000961010031 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| N 000936010010 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
