Transporto priemonė: 250 SE/C; VIN numerio dalis: 111023

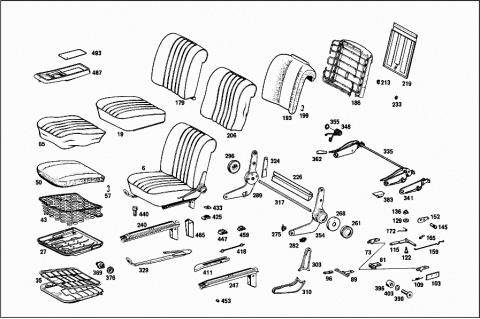

Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1119107901 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| 006 | A 1119105503 | FRONT SEAT |
| (LEATHER, PERFORATED), LEFT | ||
| 006 | A 1119105503 | FRONT SEAT |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119108101 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119108503 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119108503 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119106103 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119106303 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119106503 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119107303 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119109103 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119109303 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119109503 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119107503 | FRONT SEAT | |
| (LEATHER, PERFORATED), LEFT | ||
| A 1119108001 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119105603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119105603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119108201 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119108603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119108603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119106203 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119106403 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119106603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119107403 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119109203 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119109403 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119109603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119107603 | FRONT SEAT | |
| (LEATHER, PERFORATED), RIGHT | ||
| A 1119108130 | SEAT CUSHION | |
| 019 | A 1119108630 | SEAT CUSHION |
| 019 | A 1119108630 | SEAT CUSHION |
| A 1119108730 | SEAT CUSHION | |
| A 1119106531 | SEAT CUSHION | |
| Repalced by: A 1119106731 | ||
| A 1119106731 | SEAT CUSHION | |
| 027 | A 1109102022 | CUSHION FRAME |
| Repalced by: A 1159104322 | ||
| 027 | A 1159104322 | CUSHION FRAME |
| 035 | A 1119105822 | CUSHION FRAME |
| 035 | A 1119105822 | CUSHION FRAME |
| A 1119106722 | CUSHION FRAME | |
| Repalced by: A 1119107322 | ||
| A 1119107322 | CUSHION FRAME | |
| Repalced by: A 1119107522 | ||
| A 1119107522 | CUSHION FRAME | |
| 043 | A 1089100040 | SPRING CORE |
| A 1119145014 | PAD | |
| Repalced by: A 1119145314 | ||
| 050 | A 1119145314 | PAD |
| 057 | A 0009842061 | CLIP |
| A 1119105092 | COVER | |
| LEATHER | ||
| 065 | A 1119105592 | COVER |
| LEATHER | ||
| 065 | A 1119105592 | COVER |
| LEATHER | ||
| A 1119106392 | COVER | |
| LEATHER | ||
| A 1119106692 | COVER | |
| LEATHER | ||
| A 0009901521 | SCREW | |
| Repalced by: N 914028006101 | ||
| N 914028006101 | COMBINATION BOLT | |
| ADJUSTER TO FRONT SEAT CUSHION | ||
| N 914028006101 | COMBINATION BOLT | |
| ADJUSTER TO FRONT SEAT CUSHION | ||
| A 0009902821 | SCREW | |
| Repalced by: N 914028006100 | ||
| N 914028006100 | COMBINATION BOLT | |
| Repalced by: A 0049901601 | ||
| A 0049901601 | SCREW | |
| ADJUSTER TO FRONT SEAT CUSHION | ||
| A 0049901601 | SCREW | |
| ADJUSTER TO FRONT SEAT CUSHION | ||
| A 0049901601 | SCREW | |
| ADJUSTER TO FRONT SEAT CUSHION | ||
| A 0049901601 | SCREW | |
| ADJUSTER TO FRONT SEAT CUSHION | ||
| 073 | A 1119105274 | PULL |
| WITH SLIDE (VACUUM OPERATED BACKREST LOCKING MECHANISM) | ||
| 073 | A 1119105274 | PULL |
| WITH SLIDE (VACUUM OPERATED BACKREST LOCKING MECHANISM) | ||
| 081 | A 1119185022 | GUIDE |
| 081 | A 1119185022 | GUIDE |
| 089 | A 1119105671 | LEVER |
| 089 | A 1119105671 | LEVER |
| 096 | A 1119100060 | LOCKING LEVER |
| 096 | A 1119100060 | LOCKING LEVER |
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| VACUUM ELEMENT TO FRONT SEAT CUSHION FRAME | ||
| N 000000000460 | SHEET METAL SCREW | |
| VACUUM ELEMENT TO FRONT SEAT CUSHION FRAME | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| VACUUM ELEMENT TO FRONT SEAT CUSHION FRAME | ||
| N 000433005304 | WASHER | |
| VACUUM ELEMENT TO FRONT SEAT CUSHION FRAME | ||
| 103 | A 1119185130 | COVERING |
| LEFT | ||
| 103 | A 1119185130 | COVERING |
| LEFT | ||
| A 1119185230 | COVERING | |
| RIGHT | ||
| A 1119185230 | COVERING | |
| RIGHT | ||
| N 007988004103 | SCREW | |
| COVERING TO FRONT SEAT CUSHION FRAME | ||
| N 007988004103 | SCREW | |
| COVERING TO FRONT SEAT CUSHION FRAME | ||
| 109 | A 1119185037 | SPRING |
| COVERING TO FRONT SEAT CUSHION FRAME | ||
| 109 | A 1119185037 | SPRING |
| COVERING TO FRONT SEAT CUSHION FRAME | ||
| N 007976004205 | SHEET METAL SCREW | |
| VACUUM ELEMENT TO FRONT SEAT CUSHION FRAME | ||
| N 007976004205 | SHEET METAL SCREW | |
| VACUUM ELEMENT TO FRONT SEAT CUSHION FRAME | ||
| 115 | A 1119105514 | BRACKET |
| LEFT | ||
| 115 | A 1119105514 | BRACKET |
| LEFT | ||
| A 1119105614 | BRACKET | |
| RIGHT | ||
| A 1119105614 | BRACKET | |
| RIGHT | ||
| 122 | A 1159840131 | SCREW |
| 122 | A 1159840131 | SCREW |
| 129 | A 1159904240 | WASHER |
| Repalced by: A 2019900640 | ||
| 129 | A 2019900640 | WASHER |
| 129 | A 2019900640 | WASHER |
| 136 | A 0009909491 | NUT RETAINER |
| 136 | A 0009909491 | NUT RETAINER |
| 145 | A 1159910005 | PIN |
| 145 | A 1159910005 | PIN |
| 152 | A 1159180376 | HOOK |
| LEFT | ||
| 152 | A 1159180376 | HOOK |
| LEFT | ||
| A 1159180476 | HOOK | |
| RIGHT | ||
| A 1159180476 | HOOK | |
| RIGHT | ||
| A 1159190171 | SCREW | |
| A 1159190071 | SCREW | |
| Repalced by: A 1159190171 | ||
| A 1159190171 | SCREW | |
| 159 | A 1119185727 | LINK |
| LEFT | ||
| 159 | A 1119185727 | LINK |
| LEFT | ||
| A 1119185827 | LINK | |
| RIGHT | ||
| A 1119185827 | LINK | |
| RIGHT | ||
| 165 | A 1009940160 | LOCK |
| SHIFTING ROD TO BRACKET AND TO HOOK | ||
| 165 | A 1009940160 | LOCK |
| SHIFTING ROD TO BRACKET AND TO HOOK | ||
| 172 | A 1159180137 | SPRING |
| LEFT | ||
| 172 | A 1159180137 | SPRING |
| LEFT | ||
| A 1159180237 | SPRING | |
| RIGHT | ||
| A 1159180237 | SPRING | |
| RIGHT | ||
| A 1119106732 | BACKREST | |
| LEFT | ||
| A 1119106832 | BACKREST | |
| RIGHT | ||
| 179 | A 1119108332 | BACKREST |
| 179 | A 1119108332 | BACKREST |
| A 1119105233 | BACKREST | |
| A 1119105733 | BACKREST | |
| A 1119106033 | BACKREST | |
| A 1119106134 | BACKREST FRAME | |
| WITH SPRING CORE, LEFT | ||
| A 1119106234 | BACKREST FRAME | |
| WITH SPRING CORE, RIGHT | ||
| A 1119106934 | BACKREST FRAME | |
| Repalced by: A 1119107334 | ||
| 186 | A 1119107334 | BACKREST FRAME |
| WITH SPRING CORE | ||
| 186 | A 1119107334 | BACKREST FRAME |
| WITH SPRING CORE | ||
| A 1099102034 | BACKREST FRAME | |
| WITH SPRING CORE | ||
| A 1099102034 | BACKREST FRAME | |
| WITH SPRING CORE | ||
| A 1119146116 | PAD | |
| LEFT | ||
| A 1119146216 | PAD | |
| RIGHT | ||
| 193 | A 1119146016 | PAD |
| 193 | A 1119146016 | PAD |
| A 1099140616 | PAD | |
| Repalced by: A 1099140516 | ||
| A 1099140516 | PAD | |
| A 1099140516 | PAD | |
| 199 | A 0009842061 | CLIP |
| A 1119107947 | COVER | |
| LEFT | ||
| A 1119108047 | COVER | |
| RIGHT | ||
| 206 | A 1119105393 | COVER |
| 206 | A 1119105393 | COVER |
| A 1099103947 | COVER | |
| A 1099106347 | COVER | |
| 213 | A 0009882778 | CLIP |
| 213 | A 0009882778 | CLIP |
| A 1119105239 | PANELLING | |
| 219 | A 1119105639 | PANELLING |
| 219 | A 1119105639 | PANELLING |
| A 1099102439 | PANELLING | |
| A 1119105939 | PANELLING | |
| 226 | A 1119105718 | COVERING |
| 226 | A 1119105718 | COVERING |
| N 007983003216 | SHEET METAL SCREW | |
| N 007983003216 | SHEET METAL SCREW | |
| 233 | A 0009850662 | WASHER |
| 233 | A 0009850662 | WASHER |
| 240 | A 1089100105 | SEAT GUIDE |
| INSIDE LEFT | ||
| A 1119106705 | SEAT GUIDE | |
| INSIDE LEFT | ||
| A 1089100205 | SEAT GUIDE | |
| INSIDE RIGHT | ||
| A 1119106805 | SEAT GUIDE | |
| INSIDE RIGHT | ||
| 247 | A 1089101905 | SEAT GUIDE |
| OUTSIDE LEFT | ||
| A 1089102005 | SEAT GUIDE | |
| OUTSIDE RIGHT | ||
| A 1119106505 | SEAT GUIDE | |
| Repalced by: A 1119106905 | ||
| A 1119106905 | SEAT GUIDE | |
| OUTSIDE | ||
| A 0009103985 | BACKREST ADJUSTER | |
| LEFT, LEFT SEAT | ||
| 254 | A 0009105585 | BACKREST ADJUSTER |
| LEFT, LEFT SEAT | ||
| 254 | A 0009105585 | BACKREST ADJUSTER |
| LEFT, LEFT SEAT | ||
| A 0009105785 | BACKREST ADJUSTER | |
| LEFT, LEFT SEAT | ||
| A 0009106985 | BACKREST ADJUSTER | |
| LEFT, LEFT SEAT | ||
| A 0009104085 | BACKREST ADJUSTER | |
| RIGHT, RIGHT SEAT | ||
| A 0009105685 | BACKREST ADJUSTER | |
| RIGHT, RIGHT SEAT | ||
| A 0009105685 | BACKREST ADJUSTER | |
| RIGHT, RIGHT SEAT | ||
| A 0009105885 | BACKREST ADJUSTER | |
| RIGHT, RIGHT SEAT | ||
| A 0009107085 | BACKREST ADJUSTER | |
| RIGHT, RIGHT SEAT | ||
| A 0009180226 | HANDWHEEL | |
| Repalced by: A 0009180326 | ||
| A 0009180326 | HANDWHEEL | |
| 261 | A 0009180426 | HANDWHEEL |
| 261 | A 0009180426 | HANDWHEEL |
| 268 | A 0009180236 | COVERING |
| 268 | A 0009180236 | COVERING |
| 275 | A 0009941260 | LOCK |
| 282 | A 0009941460 | LOCK |
| A 0009103986 | BACKREST ADJUSTER | |
| LEFT, RIGHT SEAT | ||
| A 0009105586 | BACKREST ADJUSTER | |
| LEFT, RIGHT SEAT | ||
| A 0009105586 | BACKREST ADJUSTER | |
| LEFT, RIGHT SEAT | ||
| A 0009105986 | BACKREST ADJUSTER | |
| LEFT, RIGHT SEAT | ||
| A 0009107386 | BACKREST ADJUSTER | |
| LEFT, RIGHT SEAT | ||
| A 0009104086 | BACKREST ADJUSTER | |
| RIGHT, LEFT SEAT | ||
| 289 | A 0009105686 | BACKREST ADJUSTER |
| RIGHT, LEFT SEAT | ||
| 289 | A 0009105686 | BACKREST ADJUSTER |
| RIGHT, LEFT SEAT | ||
| A 0009106086 | BACKREST ADJUSTER | |
| RIGHT, LEFT SEAT | ||
| A 0009107486 | BACKREST ADJUSTER | |
| RIGHT, LEFT SEAT | ||
| 296 | A 0009180136 | COVERING |
| INSIDE | ||
| 296 | A 0009180136 | COVERING |
| INSIDE | ||
| A 0009941260 | LOCK | |
| A 0009941360 | LOCK | |
| A 1089130128 | COVERING | |
| Repalced by: A 1159132728 | ||
| A 1159132728 | COVERING | |
| AT UPPER PART, LEFT BACKREST ADJUSTER | ||
| A 1159132728 | COVERING | |
| AT UPPER PART, LEFT BACKREST ADJUSTER | ||
| 303 | A 1089130528 | COVERING |
| AT UPPER PART, LEFT BACKREST ADJUSTER | ||
| A 1089130228 | COVERING | |
| AT UPPER PART, RIGHT BACKREST ADJUSTER | ||
| A 1089130228 | COVERING | |
| AT UPPER PART, RIGHT BACKREST ADJUSTER | ||
| A 1089130628 | COVERING | |
| AT UPPER PART, RIGHT BACKREST ADJUSTER | ||
| A 1119135128 | COVERING | |
| AT LOWER PART, LEFT BACKREST ADJUSTER | ||
| A 1119135128 | COVERING | |
| AT LOWER PART, LEFT BACKREST ADJUSTER | ||
| 310 | A 1089130728 | COVERING |
| Repalced by: A 1149130328 | ||
| 310 | A 1149130328 | COVERING |
| AT LOWER PART, LEFT BACKREST ADJUSTER | ||
| A 1119135228 | COVERING | |
| Repalced by: A 1159133028 | ||
| A 1159133028 | COVERING | |
| AT LOWER PART, RIGHT BACKREST ADJUSTER | ||
| A 1159133028 | COVERING | |
| AT LOWER PART, RIGHT BACKREST ADJUSTER | ||
| A 1089130828 | COVERING | |
| Repalced by: A 1149130428 | ||
| A 1149130428 | COVERING | |
| AT LOWER PART, RIGHT BACKREST ADJUSTER | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| ESTER-MOLTOPRENE 5 MM COVERING TO UPPER AND LOWER PARTS | ||
| A 0009833598 | FOAM PLASTICS | |
| ESTER-MOLTOPRENE 5 MM COVERING TO UPPER AND LOWER PARTS | ||
| A 1119185027 | LINK | |
| 317 | A 1119185127 | LINK |
| 317 | A 1119185127 | LINK |
| 324 | A 0009180396 | UNDERLAYER |
| 329 | A 1139100105 | ADJUSTER |
| LEFT SEAT | ||
| A 1139100205 | ADJUSTER | |
| FOR RIGHT SEAT | ||
| 335 | A 1119106161 | DETENT |
| BACKREST, LEFT | ||
| A 1119106261 | DETENT | |
| BACKREST, RIGHT | ||
| 341 | A 1119196118 | PAD |
| LEFT | ||
| A 1119196218 | PAD | |
| RIGHT | ||
| A 1119195737 | SPRING | |
| LEFT, AT RIGHT FRONT SEAT | ||
| 348 | A 1119195837 | SPRING |
| RIGHT, AT LEFT FRONT SEAT | ||
| 355 | N 000471009001 | LOCK RING |
| A 1805450437 | BUTTON | |
| Repalced by: A 0005451737 | ||
| 362 | A 0005451737 | BUTTON |
| N 001473003001 | GROOVED PIN | |
| N 000088006107 | SCREW | |
| BACKREST ADJUSTERS TO FRONT SEAT BACKRESTS | ||
| N 007987006176 | SCREW | |
| BACKREST ADJUSTERS TO FRONT SEAT BACKRESTS | ||
| N 007987006176 | SCREW | |
| BACKREST ADJUSTERS TO FRONT SEAT BACKRESTS | ||
| N 000088006126 | SCREW | |
| 369 | H 101209190015 | PIN |
| 376 | H 101209190013 | WASHER |
| N 006797006342 | TOOTHED WASHER | |
| N 000063010105 | SCREW | |
| FRONT SEAT BACKREST DETENT TO SEAT CUSHION, REAR | ||
| N 006798010301 | SERRATED WASHER | |
| FRONT SEAT BACKREST DETENT TO SEAT CUSHION, REAR | ||
| 383 | A 1119195196 | BUFFER |
| FRONT SEAT BACKREST DETENT TO SEAT CUSHION, REAR | ||
| A 1119840232 | SCREW | |
| Repalced by: A 1119840332 | ||
| 390 | A 1119840332 | SCREW |
| Repalced by: A 1149840032 | ||
| 390 | A 1149840032 | SCREW |
| 390 | A 1149840032 | SCREW |
| 396 | A 1119185119 | SPACER |
| Repalced by: A 1119185219 | ||
| 396 | A 1119185219 | SPACER |
| 396 | A 1119185219 | SPACER |
| A 1119185219 | SPACER | |
| 403 | N 900055016001 | SPRING WASHER |
| 403 | N 900055016001 | SPRING WASHER |
| 411 | A 1119195134 | RAIL |
| 418 | A 1119105064 | PULL |
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| A 0009909991 | NUT RETAINER | |
| 425 | A 0009904291 | NUT RETAINER |
| A 0009903822 | SCREW | |
| N 000933006127 | SCREW | |
| 433 | A 1109840156 | WASHER |
| 440 | A 1089900322 | SCREW |
| Repalced by: A 1169900122 | ||
| 440 | A 1169900122 | SCREW |
| Repalced by: A 1409901122 | ||
| 440 | A 1409901122 | SCREW |
| 447 | A 0009907091 | NUT RETAINER |
| Repalced by: A 0019902891 | ||
| 447 | A 0019902891 | NUT RETAINER |
| A 1089190133 | SPACER TUBE | |
| Repalced by: A 1089190017 | ||
| 453 | A 1089190017 | SPACER |
| Repalced by: A 1169190017 | ||
| A 1169190017 | SPACER | |
| N 000931006114 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 0009908791 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 459 | A 0009907191 | NUT RETAINER |
| A 1089190720 | COVERING | |
| Repalced by: A 1089192020 | ||
| A 1089190320 | COVERING | |
| Repalced by: A 1089192020 | ||
| 465 | A 1089192020 | COVERING |
| INSIDE LEFT | ||
| A 1089191020 | COVERING | |
| OUTSIDE RIGHT | ||
| A 1089190820 | COVERING | |
| Repalced by: A 1089191920 | ||
| A 1089190420 | COVERING | |
| Repalced by: A 1089191920 | ||
| A 1089191920 | COVERING | |
| INSIDE RIGHT | ||
| A 1089190920 | COVERING | |
| OUTSIDE LEFT | ||
| A 1119105906 | SEAT CUSHION LESS COVER | |
| A 1119106006 | SEAT CUSHION LESS COVER | |
| A 1119106006 | SEAT CUSHION LESS COVER | |
| A 1119106306 | SEAT CUSHION LESS COVER | |
| Repalced by: A 1119106406 | ||
| A 1119106406 | SEAT CUSHION LESS COVER | |
| A 1119105507 | BACKREST | |
| LEFT | ||
| A 1119105607 | BACKREST | |
| RIGHT | ||
| A 1119105907 | BACKREST | |
| A 1119105907 | BACKREST | |
| A 1099101407 | BACKREST | |
| Repalced by: A 1089103107 | ||
| A 1089103107 | BACKREST | |
| A 1089103107 | BACKREST | |
| A 1118405374 | SHELL | |
| A 1118405374 | SHELL | |
| A 1118405274 | SHELL | |
| A 1118405274 | SHELL | |
| A 1088410574 | SHELL | |
| Repalced by: A 1098400774 | ||
| 487 | A 1098400774 | SHELL |
| 487 | A 1098400774 | SHELL |
| A 1098400674 | SHELL | |
| 493 | A 1098410390 | COVER |
| Repalced by: A 1098400275 | ||
| 493 | A 1098400275 | LINING |
| 493 | A 1098400275 | LINING |
| A 1098410290 | COVER | |
| A 0009872441 | RUBBER RING | |
| N 007983004261 | SHEET METAL SCREW | |
| N 007983004261 | SHEET METAL SCREW | |
| N 007983004236 | SHEET METAL SCREW | |
| N 007983004236 | SHEET METAL SCREW | |
| N 007983004266 | SHEET METAL SCREW | |
| N 007983004266 | SHEET METAL SCREW | |
| A 1118405275 | LINING | |
| A 1118405275 | LINING | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
