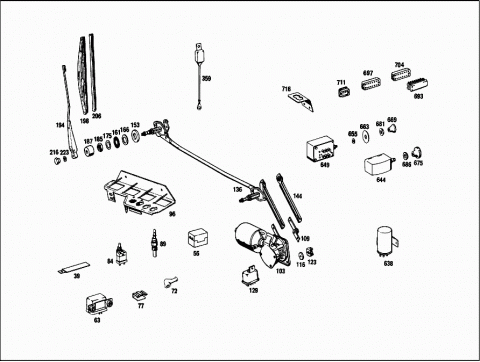

Transporto priemonė: 250 S USA; VIN numerio dalis: 108012
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 006 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 012 | A 0005454728 | PLUG |
| 1-POLE | ||
| 018 | A 0005454928 | PLUG |
| Repalced by: A 0045458428 | ||
| 018 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 018 | A 1265401081 | PLUG SOCKET |
| 1-PIN | ||
| A 0009972381 | GROMMET | |
| Repalced by: A 0009972281 | ||
| 023 | A 0009972281 | GROMMET |
| 023 | A 0009972281 | GROMMET |
| A 1149970490 | LOOM TIE | |
| Repalced by: A 1149970290 | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 028 | A 0029883878 | CLIP |
| A 0019887778 | CLIP | |
| Repalced by: A 0009881678 | ||
| 033 | A 0009881678 | CLIP |
| DOME LAMP CABLE TO ROOF FRONT AND REAR RAILS | ||
| A 0029883878 | CLIP | |
| DOME LAMP CABLE TO ROOF RAILS,FRONT AND REAR | ||
| A 0009881878 | CLIP | |
| DOME LAMP CABLE TO INSTRUMENT PANEL REINFORCEMENT | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| 2-POLE DOME LAMP CABLE HARNESS | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| 2-POLE DOME LAMP CABLE HARNESS | ||
| A 0008210625 | PLUG | |
| 2-POLE,DOOR CONTACT SWITCH ADDITIONAL CABLE HARNESS | ||
| A 0019887778 | CLIP | |
| Repalced by: A 0009881778 | ||
| A 0009881778 | CLIP | |
| CABLE HARNESS TO ROOF RAIL | ||
| 039 | A 1125400473 | BRACKET |
| Repalced by: A 1125401173 | ||
| 039 | A 1125401173 | BRACKET |
| REAR DOOR CONTACT CABLE HARNESS | ||
| N 007976004205 | SHEET METAL SCREW | |
| BRACKET TO INSTRUMENT PANEL | ||
| A 1149970190 | LOOM TIE | |
| REAR DOOR CONTACT CABLE TO FRONT PANEL PILLAR,INSIDE | ||
| 044 | A 0025455128 | PLUG |
| Repalced by: A 0045458628 | ||
| 044 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 044 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 044 | A 0155454928 | PLUG |
| 4-POLE AIR CONDITIONER CABLE HARNESS | ||
| A 0025454628 | PLUG | |
| Repalced by: A 0055451328 | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 4-POLE AIR CONDITIONER CABLE HARNESS | ||
| 048 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 048 | A 0085452028 | PIN BUSHING HOUSING |
| 1-POLE ADDITIONAL BLOWER ADDITIONAL FAN CABLE HARNESS | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| 2-POLE ADDITIONAL BLOWER ADDITIONAL FAN CABLE HARNESS | ||
| A 0025455128 | PLUG | |
| Repalced by: A 0045458628 | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE ADDITIONAL BLOWER ADDITIONAL FAN CABLE HARNESS | ||
| A 1158210914 | BRACKET | |
| 055 | A 0005457101 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 055 | A 0005459901 | FUSE BOX |
| RELAY BRACKET | ||
| N 007981003240 | SHEET METAL SCREW | |
| Repalced by: N 007981003207 | ||
| N 007981003207 | SHEET METAL SCREW | |
| A 0005454334 | FUSE | |
| Repalced by: N 072581016100 | ||
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| AIR CONDITIONER | ||
| A 0005456201 | FUSE BOX | |
| Repalced by: A 0005459901 | ||
| A 0005459901 | FUSE BOX | |
| ADDITIONAL BLOWER | ||
| A 0005454334 | FUSE | |
| Repalced by: N 072581016100 | ||
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| ADDITIONAL BLOWER | ||
| A 0005425919 | RELAY | |
| AIR CONDITIONER | ||
| 063 | A 0005425819 | RELAY |
| ADDITIONAL BLOWER | ||
| N 007985004129 | SCREW | |
| RELAY TO BRACKET | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| RELAY TO BRACKET | ||
| N 000934004004 | NUT | |
| RELAY TO BRACKET | ||
| A 0019974190 | LOOM TIE | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| RELAY TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| RELAY TO BRACKET | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| BRACKET TO RELAY SWITCH | ||
| N 007981004254 | SHEET METAL SCREW | |
| ADDITIONAL BLOWER RELAY TO BRACKET | ||
| 072 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 072 | A 0005463335 | BOOT |
| COVERING OF TEMPERATURE SWITCH CONNECTION | ||
| 077 | A 1119880478 | CLIP |
| Repalced by: A 0029884878 | ||
| 077 | A 0029884878 | CLIP |
| 084 | A 0005459411 | SWITCH |
| ADDITIONAL BLOWER | ||
| N 000137010205 | PART NAME MISSING | |
| SWITCH TO BRACKET | ||
| N 000936010003 | NUT | |
| SWITCH TO BRACKET | ||
| A 0035450124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035452424 | ||
| 089 | A 0035452424 | SWITCH,AUTOMATIC |
| TEMPERATURE,IN THERMOSTAT COVER | ||
| A 0009832991 | CARDBOARD | |
| 3X120X80 MM TAIL LAMP CABLE HARNESS TO TRUNK FLOOR | ||
| A 0019887778 | CLIP | |
| Repalced by: A 0009881778 | ||
| A 0009881778 | CLIP | |
| TRUNK LAMP CABLE TO TRUNK LID AND TO REINFORCEMENT | ||
| A 0009881778 | CLIP | |
| TRUNK LAMP CABLE TO TRUNK LID AND TO REINFORCEMENT | ||
| A 0009882878 | CLIP | |
| TRUNK LAMP CABLE UNDER HAT TRAY AND REAR BODY PANEL | ||
| A 0009882878 | CLIP | |
| TRUNK LAMP CABLE UNDER HAT TRAY AND REAR BODY PANEL | ||
| 096 | A 1098201714 | BRACKET |
| ADDITIONAL FUSE BOX AND RELAY | ||
| A 1098211814 | BRACKET | |
| RELAY | ||
| N 007981004336 | SHEET METAL SCREW | |
| Repalced by: N 000000000815 | ||
| N 000000000815 | SHEET METAL SCREW | |
| 103 | A 1088200042 | ELECTRIC MOTOR |
| A 1088200342 | ELECTRIC MOTOR | |
| Repalced by: A 1158201642 | ||
| A 1158200142 | ELECTRIC MOTOR | |
| Repalced by: A 1158201642 | ||
| A 1158201642 | ELECTRIC MOTOR | |
| A 1088200442 | ELECTRIC MOTOR | |
| A 0008242275 | CARBON BRUSH SET | |
| Repalced by: A 0008243075 | ||
| A 0008243075 | CARBON BRUSH SET | |
| 3 PIECES | ||
| 109 | A 1088240010 | CRANK |
| A 1088240110 | CRANK | |
| N 000933006026 | SCREW | |
| WIPER MOTOR TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| WIPER MOTOR TO FIRE WALL | ||
| A 1119971140 | SEAL RING | |
| Repalced by: A 0009873841 | ||
| 116 | A 0009873841 | RUBBER RING |
| WIPER MOTOR TO FIRE WALL | ||
| 123 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 123 | A 0009902291 | NUT RETAINER |
| WIPER MOTOR TO FIRE WALL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| WIPER MOTOR TO FIRE WALL | ||
| N 006797006145 | TOOTHED WASHER | |
| WIPER MOTOR TO FIRE WALL | ||
| A 0005425319 | RELAY | |
| Repalced by: A 0005426119 | ||
| 129 | A 0005426119 | RELAY |
| A 0005426819 | RELAY | |
| 136 | A 1088200043 | LINKAGE |
| Repalced by: A 1088200243 | ||
| 136 | A 1088200243 | LINKAGE |
| PANE WIPER | ||
| 144 | A 0008240806 | ROD |
| A 0008241106 | ROD | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| MOTOR DRIVE ROD TO LINKAGE | ||
| N 912004006102 | LOCK WASHER | |
| MOTOR DRIVE ROD TO LINKAGE | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| MOTOR DRIVE ROD TO LINKAGE | ||
| 153 | A 1088240397 | PAD |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| N 900161006101 | SCREW | |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| N 912004006102 | LOCK WASHER | |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| 161 | A 0009870741 | RUBBER RING |
| PANE WIPER LINKAGE TO CENTRAL PART | ||
| 166 | A 0019901140 | WASHER |
| 175 | A 0008242282 | WASHER |
| WINDSHIELD WIPER SPINDLE TO FIRE WALL | ||
| A 0008241472 | NUT | |
| Repalced by: A 0029902651 | ||
| 185 | A 0029902651 | NUT |
| WINDSHIELD WIPER SPINDLE TO FIRE WALL | ||
| 187 | A 1118240072 | NUT |
| Repalced by: A 1108240472 | ||
| 187 | A 1108240472 | CAPSULE |
| WINDSHIELD WIPER SPINDLE TO FIRE WALL | ||
| A 1118240172 | NUT | |
| Repalced by: A 1108240472 | ||
| A 1108240472 | CAPSULE | |
| WINDSHIELD WIPER SPINDLE TO FIRE WALL | ||
| A 1088200144 | WIPER ARM | |
| Repalced by: A 1088200344 | ||
| A 1088200344 | WIPER ARM | |
| Repalced by: A 1088200544 | ||
| A 1088200544 | WIPER ARM | |
| LEFT | ||
| A 1088200244 | WIPER ARM | |
| Repalced by: A 1088200444 | ||
| 194 | A 1088200444 | WIPER ARM |
| Repalced by: A 1088200644 | ||
| 194 | A 1088200644 | WIPER ARM |
| RIGHT | ||
| A 1088200045 | WIPER BLADE | |
| Repalced by: A 1158200045 | ||
| 198 | A 1158200045 | WIPER BLADE |
| 206 | A 0008240727 | WIPER RUBBER |
| A 1088200145 | WIPER BLADE | |
| Repalced by: A 1158200045 | ||
| A 1158200045 | WIPER BLADE | |
| A 0008240727 | WIPER RUBBER | |
| 216 | A 0008241172 | NUT |
| A 0008242572 | NUT | |
| Repalced by: A 0009901253 | ||
| A 0009901253 | NUT | |
| N 000934008201 | NUT | |
| 223 | A 0009901748 | WASHER |
| 229 | A 1088200052 | READING LAMP |
| 229 | A 1088200052 | READING LAMP |
| 236 | H 101868250089 | RIM |
| Repalced by: A 1088200052 | ||
| 236 | A 1088200052 | READING LAMP |
| 236 | A 1088200052 | READING LAMP |
| H 101868250010 | LENS | |
| Repalced by: A 1868250010 | ||
| 244 | A 1868250010 | LENS |
| 244 | A 1868250010 | LENS |
| 251 | A 1088200352 | READING LAMP |
| 251 | A 1088200352 | READING LAMP |
| N 072601012130 | BULB | |
| N 072601012130 | BULB | |
| N 072601012120 | BULB | |
| N 072601012120 | BULB | |
| N 072601012120 | BULB | |
| N 007982003316 | SHEET METAL SCREW | |
| READING LAMP TO ROOF RAIL,FRONT | ||
| N 007982003316 | SHEET METAL SCREW | |
| READING LAMP TO ROOF RAIL,FRONT | ||
| N 007981003254 | SHEET METAL SCREW | |
| N 007981003254 | SHEET METAL SCREW | |
| N 007981003254 | SHEET METAL SCREW | |
| 257 | A 1088250071 | LAMP |
| READING,IN THE REAR | ||
| N 007982003215 | SHEET METAL SCREW | |
| N 072601012701 | BULB | |
| 264 | A 0009973181 | GROMMET |
| ADDITIONAL CABLE HARNESS THRU ROOF RAIL | ||
| A 0019887778 | CLIP | |
| Repalced by: A 0009881778 | ||
| A 0009881778 | CLIP | |
| A 0008210452 | CONTACTOR | |
| Repalced by: A 0008211552 | ||
| 271 | A 0008211552 | CONTACTOR |
| FRONT DOOR | ||
| A 0008210652 | CONTACTOR | |
| REAR DOOR | ||
| 278 | H 101208250096 | PAD |
| N 007982002212 | SHEET METAL SCREW | |
| A 0019884878 | CLIP | |
| HEADLINER TO CUT-OUT FOR DOME LAMP | ||
| 285 | A 1088200152 | READING LAMP |
| DOME | ||
| 285 | A 1088200152 | READING LAMP |
| DOME | ||
| 293 | H 101808250109 | SHELL |
| 293 | H 101808250109 | SHELL |
| N 072601012130 | BULB | |
| DOME LAMP | ||
| N 072601012130 | BULB | |
| DOME LAMP | ||
| N 007982003316 | SHEET METAL SCREW | |
| DOME LAMP TO REAR ROOF RAIL | ||
| N 007982003316 | SHEET METAL SCREW | |
| DOME LAMP TO REAR ROOF RAIL | ||
| A 1088200452 | READING LAMP | |
| Repalced by: A 1088200352 | ||
| A 1088200352 | READING LAMP | |
| DOME | ||
| A 1088200352 | READING LAMP | |
| DOME | ||
| A 1088200352 | READING LAMP | |
| DOME | ||
| N 072601012120 | BULB | |
| N 072601012120 | BULB | |
| N 072601012120 | BULB | |
| N 007981003254 | SHEET METAL SCREW | |
| N 007981003254 | SHEET METAL SCREW | |
| N 007981003254 | SHEET METAL SCREW | |
| 299 | A 0018210251 | SWITCH |
| DOME LAMP | ||
| 307 | A 1128200023 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| N 072601012800 | BULB | |
| A 1158250143 | LAMP | |
| Repalced by: A 1238200101 | ||
| A 1238200101 | INTERIOR LAMP | |
| Repalced by: A 1268201301 | ||
| A 1268201301 | INTERIOR LAMP | |
| GLOVE COMPARTMENT | ||
| A 1158250043 | LAMP | |
| Repalced by: A 1238200101 | ||
| N 072601012130 | BULB | |
| A 0008210852 | CONTACTOR | |
| 314 | A 0009900557 | NUT |
| 321 | A 1088250142 | ENTRANCE LAMP |
| A 0005454928 | PLUG | |
| Repalced by: A 0045458428 | ||
| A 0045458428 | PLUG | |
| Repalced by: A 1265401081 | ||
| A 1265401081 | PLUG SOCKET | |
| N 072601012130 | BULB | |
| N 007981002306 | SHEET METAL SCREW | |
| Repalced by: N 007981002322 | ||
| N 007981002322 | SHEET METAL SCREW | |
| COURTESYLAMP TO FUSE BOX BRACKET | ||
| 329 | A 1108250041 | INTERIOR LAMP |
| N 072601012701 | BULB | |
| N 007981003246 | SHEET METAL SCREW | |
| TRUNK LAMP TO TRUNK LID | ||
| A 1108250553 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| 336 | A 1158250253 | CIGAR LIGHTER |
| A 1108250351 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| 344 | A 0008250551 | ELEMENT |
| 351 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 351 | A 0008250252 | INCANDESCENT SPIRAL |
| 359 | A 0001569701 | CONDENSER |
| A 0001569801 | CONDENSER | |
| N 000933006130 | SCREW | |
| SUPPRESSOR CONDENSER TO IGNITION COIL | ||
| A 1115400241 | GROUND STRAP | |
| Repalced by: A 1115400041 | ||
| A 1115400041 | GROUND STRAP | |
| Repalced by: A 0005460720 | ||
| A 0005460720 | GROUND STRAP | |
| RADIATOR | ||
| A 1805400441 | GROUND STRAP | |
| ENGINE HOOD | ||
| N 007976004205 | SHEET METAL SCREW | |
| ENGINE HOOD GROUND STRAP TO COWL | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| ENGINE HOOD GROUND STRAP TO COWL | ||
| N 000933005058 | SCREW | |
| GROUND STRAP TO RADIATOR | ||
| N 912004005100 | LOCK WASHER | |
| GROUND STRAP TO RADIATOR | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| GROUND STRAP TO RADIATOR | ||
| A 1088200461 | LIGHTING UNIT | |
| Repalced by: A 1088204461 | ||
| A 1088204461 | LIGHTING UNIT | |
| Repalced by: A 1088207161 | ||
| A 1088204261 | LIGHTING UNIT | |
| Repalced by: A 1088207161 | ||
| 371 | A 1088207161 | LIGHTING UNIT |
| LESS CONNECTION PLATE | ||
| 379 | A 1118260389 | RIM |
| A 1088204361 | TERMINAL PLATE | |
| 386 | A 1088260389 | RIM |
| 394 | A 1118260590 | LENS |
| LEFT | ||
| 401 | A 1118260690 | LENS |
| RIGHT | ||
| 408 | A 0008260884 | SPRING |
| 414 | A 1119900052 | NUT |
| 419 | A 1119930125 | SPRING |
| 426 | A 1118200520 | BLINKER LAMP |
| WITH PARKING AND CLEARANCE LIGHT | ||
| 433 | A 1118260790 | LENS |
| 439 | A 1118200096 | PAD |
| N 007981004325 | SHEET METAL SCREW | |
| 448 | A 1088200020 | BLINKER LAMP |
| WITH PARKING AND CLEARANCE LIGHT | ||
| 455 | A 0018264590 | LENS |
| 461 | A 0008266680 | SEAL |
| 467 | A 0008262984 | SPRING |
| N 007985005126 | SCREW | |
| Repalced by: N 007985005127 | ||
| N 007985005127 | SCREW | |
| Repalced by: N 007985005504 | ||
| N 007985005504 | SCREW | |
| N 072601012170 | BULB | |
| BLINKER AND PARKING LIGHTS | ||
| N 072601012210 | BULB | |
| BLINKER AND PARKING LIGHTS | ||
| N 072601012900 | BULB | |
| PARKING LIGHT | ||
| A 0008260099 | BEAM UNIT | |
| Repalced by: A 0008263699 | ||
| 474 | A 0008263699 | BEAM UNIT |
| Repalced by: A 0008265599 | ||
| 474 | A 0008265599 | BEAM UNIT |
| SEALED BEAM; BRIGHT AND DIMMED LIGHTS, TYPE 2 | ||
| 479 | A 0008260199 | BEAM UNIT |
| Repalced by: A 0008265499 | ||
| 479 | A 0008265499 | BEAM UNIT |
| SEALED BEAM; BRIGHT LIGHT,TYPE 1 | ||
| 486 | A 0008210124 | PLUG SOCKET |
| 492 | A 1118260012 | ANGLE |
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| A 1108260341 | SIDE REFLECTOR | |
| Repalced by: A 0008260741 | ||
| 496 | A 0008260741 | SIDE REFLECTOR |
| FRONT LEFT | ||
| A 0008260341 | SIDE REFLECTOR | |
| FRONT LEFT | ||
| A 1108260441 | SIDE REFLECTOR | |
| Repalced by: A 0008260841 | ||
| A 0008260841 | SIDE REFLECTOR | |
| FRONT RIGHT | ||
| A 0008260441 | SIDE REFLECTOR | |
| FRONT RIGHT | ||
| A 0008260441 | SIDE REFLECTOR | |
| ORANGE | ||
| 504 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 504 | A 0095454028 | PLUG HOUSING |
| 2-PIN | ||
| 510 | A 1159972081 | GROMMET |
| N 072601012900 | BULB | |
| A 1108260141 | SIDE REFLECTOR | |
| Repalced by: A 0008260541 | ||
| 516 | A 0008260541 | SIDE REFLECTOR |
| REAR LEFT | ||
| A 0008260141 | SIDE REFLECTOR | |
| REAR LEFT | ||
| A 1108260241 | SIDE REFLECTOR | |
| Repalced by: A 0008260641 | ||
| A 0008260641 | SIDE REFLECTOR | |
| REAR RIGHT | ||
| A 0008260241 | SIDE REFLECTOR | |
| REAR RIGHT | ||
| A 0008261557 | LENS | |
| RED | ||
| A 0025452428 | PLUG | |
| Repalced by: A 0095454028 | ||
| A 0095454028 | PLUG HOUSING | |
| 2-PIN | ||
| N 072601012900 | BULB | |
| 521 | N 000934004004 | NUT |
| SIDE REFLECTOR TO FENDER | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| SIDE REFLECTOR TO FENDER | ||
| A 1088200162 | LICENSE PLATE LAMP | |
| Repalced by: A 1088200362 | ||
| 529 | A 1088200362 | LICENSE PLATE LAMP |
| LEFT | ||
| A 1088200262 | LICENSE PLATE LAMP | |
| Repalced by: A 1088200462 | ||
| A 1088200462 | LICENSE PLATE LAMP | |
| RIGHT | ||
| H 101868260166 | LENS | |
| Repalced by: A 1868260166 | ||
| 536 | A 1868260166 | LENS |
| H 101868260169 | SEAL | |
| Repalced by: A 1868260169 | ||
| 543 | A 1868260169 | SEAL |
| N 000091003110 | SCREW | |
| 549 | A 1369970981 | GROMMET |
| H 101868200084 | FASTENER | |
| Repalced by: A 1868200084 | ||
| 554 | A 1868200084 | FASTENER |
| 559 | H 101868260091 | SEAL RING |
| H 101208260597 | PAD | |
| Repalced by: A 1088260097 | ||
| 565 | A 1088260097 | PAD |
| H 101208260076 | ORNAMENTAL RING | |
| Repalced by: A 1088260289 | ||
| 571 | A 1088260289 | RIM |
| N 072601012130 | BULB | |
| A 0005453128 | PLUG | |
| Repalced by: A 0025458628 | ||
| 578 | A 0025458628 | PLUG |
| 2-PIN | ||
| 584 | A 1209900063 | HOLLOW SCREW |
| 589 | N 912004008102 | LOCK WASHER |
| 593 | N 000433008406 | WASHER |
| 598 | A 1119970281 | GROMMET |
| A 0009870444 | EXPANSION PLUG | |
| Repalced by: A 1109870944 | ||
| 604 | A 1109870044 | EXPANSION PLUG |
| Repalced by: A 1139870044 | ||
| 604 | A 1139870044 | EXPANSION PLUG |
| A 0009883378 | CLIP | |
| A 1088200564 | TAIL LAMP | |
| Repalced by: A 1088200964 | ||
| A 1088200964 | TAIL LAMP | |
| RED; BLINKER LIGHT,LEFT | ||
| A 1088200164 | TAIL LAMP | |
| Repalced by: A 1088201564 | ||
| 609 | A 1088201564 | TAIL LAMP |
| AMBER;BLINKER LIGHT,LEFT | ||
| A 1088202364 | TAIL LAMP | |
| AMBER;BLINKER LIGHT,LEFT | ||
| A 1088200664 | TAIL LAMP | |
| Repalced by: A 1088201064 | ||
| A 1088201064 | TAIL LAMP | |
| RIGHT,RED BLINKER LIGHT | ||
| A 1088200264 | TAIL LAMP | |
| Repalced by: A 1088201664 | ||
| A 1088201664 | TAIL LAMP | |
| RIGHT,AMBER BLINKER LIGHT | ||
| A 1088202464 | TAIL LAMP | |
| 614 | A 1088260159 | RIM |
| LEFT | ||
| A 1088260259 | RIM | |
| RIGHT | ||
| A 1088261156 | LENS | |
| Repalced by: A 1088261356 | ||
| A 1088261356 | LENS | |
| RED; BLINKER LIGHT,LEFT | ||
| A 1088260756 | LENS | |
| Repalced by: A 1088260156 | ||
| 620 | A 1088260156 | LENS |
| AMBER;BLINKER LIGHT,LEFT | ||
| A 1088261256 | LENS | |
| Repalced by: A 1088261456 | ||
| A 1088261456 | LENS | |
| RIGHT,RED BLINKER LIGHT | ||
| A 1088260856 | LENS | |
| Repalced by: A 1088260256 | ||
| A 1088260256 | LENS | |
| RIGHT,AMBER BLINKER LIGHT | ||
| 627 | A 1088260158 | SEAL |
| LEFT | ||
| A 1088260258 | SEAL | |
| RIGHT | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT | ||
| N 072601012160 | BULB | |
| STOP LIGHT | ||
| N 072601012190 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012190 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012600 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012160 | BULB | |
| N 072601012701 | BULB | |
| TAIL LIGHT | ||
| N 072601012701 | BULB | |
| CLEARANCE LIGHT | ||
| 632 | A 1119900057 | NUT |
| N 000125006421 | WASHER | |
| LAMP TO TAIL | ||
| N 000934006007 | NUT | |
| LAMP TO TAIL | ||
| 638 | A 0005448332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 638 | A 0005445332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 638 | A 0005446132 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 638 | A 0015444232 | SENDER UNIT |
| Repalced by: A 0005445832 | ||
| 638 | A 0005445832 | SENDER UNIT |
| BLINKER LIGHT | ||
| BOSCH | ||
| A 0015446632 | SENDER UNIT | |
| Repalced by: A 0015449532 | ||
| 644 | A 0015449532 | SENDER UNIT |
| ELECTRONIC;HAZARD WARNING LIGHT | ||
| A 0018218851 | SWITCH | |
| HAZARD WARNING LIGHT | ||
| A 0015449732 | SENDER UNIT | |
| ELECTRONIC | ||
| A 1088210396 | PAD | |
| A 1088211614 | BRACKET | |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| N 000933004016 | SCREW | |
| BLINKER SENDER UNIT TO COWL | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| BLINKER SENDER UNIT TO COWL | ||
| N 000934004004 | NUT | |
| BLINKER SENDER UNIT TO COWL | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| BLINKER SENDER UNIT TO COWL | ||
| 649 | A 0018212951 | SWITCH |
| Repalced by: A 0015449532 | ||
| 655 | A 0009972040 | SEAL RING |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| 663 | A 1108260022 | WASHER |
| "EMERGENCY",HAZARD WARNING LIGHT SENDER UNIT | ||
| EMERGENCY | ||
| 669 | A 1108200092 | KNOB |
| Repalced by: A 1108200392 | ||
| 669 | A 1108200392 | KNOB |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| A 1108201492 | KNOB | |
| Repalced by: A 1158201992 | ||
| A 1158201992 | KNOB | |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| A 1158200592 | KNOB | |
| Repalced by: A 1158201792 | ||
| 675 | A 1158201792 | KNOB |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| A 1088200392 | KNOB | |
| Repalced by: A 1158201792 | ||
| A 1158201792 | KNOB | |
| 681 | A 1108260524 | COVERING |
| A 1108210259 | ESCUTCHEON | |
| 686 | A 1158210403 | ESCUTCHEON |
| A 1088200617 | ELECTRIC CABLE | |
| HAZARD WARNING LIGHT | ||
| 693 | A 0035450428 | PLUG |
| Repalced by: A 0035452728 | ||
| 693 | A 0035452728 | PLUG |
| 13-PIN | ||
| 697 | A 0035450528 | PLUG |
| Repalced by: A 0035452728 | ||
| 697 | A 0035452728 | PLUG |
| 13-POLE | ||
| A 1088200917 | ELECTRIC CABLE | |
| HAZARD WARNING LIGHT | ||
| 704 | A 0035453728 | PLUG |
| Repalced by: A 0095455628 | ||
| 704 | A 0095455628 | PLUG HOUSING |
| A 0095456028 | COVER | |
| TO 009 545 56 28 | ||
| A 0015453826 | PLUG PIN | |
| 711 | A 0025454428 | PLUG |
| Repalced by: A 0055451328 | ||
| 711 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 711 | A 0065458028 | PIN BUSHING HOUSING |
| 6-PIN | ||
| 716 | A 1088260014 | BRACKET |
| N 007976004205 | SHEET METAL SCREW | |
| A 0029880278 | CLIP | |
| A 1149970190 | LOOM TIE | |
| A 1158200110 | SWITCH | |
| Repalced by: A 1158200210 | ||
| A 1158200210 | SWITCH | |
| A 0025452428 | PLUG | |
| Repalced by: A 0095454028 | ||
| A 0095454028 | PLUG HOUSING | |
| 2-PIN | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
