Transporto priemonė: 250 S USA; VIN numerio dalis: 108012
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

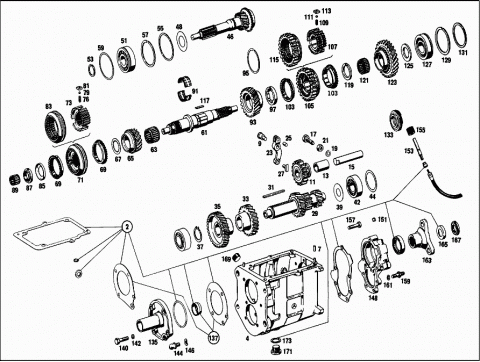

| A 1112601704 | TRANSMISSION | |
| WITH BELL HOUSING | ||
| A 1082600104 | TRANSMISSION | |
| A 1112601804 | TRANSMISSION | |
| 002 | A 1112600068 | GASKET KIT |
| A 1085860126 | REPAIR KIT | |
| 004 | A 1112600211 | TRANSMISSION CASE |
| Repalced by: A 1112600411 | ||
| A 1112600411 | TRANSMISSION CASE | |
| 007 | N 000007006205 | CYLINDRICAL PIN |
| 009 | A 1112620074 | PIN |
| 011 | A 1202600325 | GEAR |
| 013 | A 1202630350 | BUSHING |
| 015 | A 1862630030 | REVERSE IDLER SHAFT |
| N 000417010006 | HEADLESS SETSCREW | |
| Repalced by: A 1109900110 | ||
| 017 | A 1109900110 | SCREW |
| 019 | N 000137010201 | SPRING WASHER |
| 021 | N 000934010005 | NUT |
| 023 | A 1362600037 | LEVER |
| REVERSE SPEED | ||
| 025 | N 900037008104 | DOWEL PIN |
| 027 | A 1212630123 | COLLAR |
| REVERSE SPEED | ||
| A 1102630402 | COUNTERSHAFT | |
| Repalced by: A 1102630702 | ||
| A 1102630702 | COUNTERSHAFT | |
| 029 | A 1112630502 | COUNTERSHAFT |
| 029 | A 1112630502 | COUNTERSHAFT |
| A 1102630902 | COUNTERSHAFT | |
| A 1102630902 | COUNTERSHAFT | |
| 031 | A 1869910368 | KEY |
| 033 | A 1112630013 | GEAR |
| 38 TEETH; 3RD SPEED | ||
| 035 | A 1112630010 | GEAR |
| 43 TEETH, 4TH SPEED | ||
| 037 | N 900055035300 | LOCK RING |
| 039 | A 1869901840 | WASHER |
| 042 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 042 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 044 | A 1202630852 | SPACER WASHER |
| 1.00 MM | ||
| A 6022630252 | SPACER WASHER | |
| 0.10 MM | ||
| A 6022630352 | SPACER WASHER | |
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| 0.50 MM | ||
| 046 | A 1112601320 | DRIVE SHAFT |
| 048 | A 1862620066 | OIL RING |
| 051 | A 0029810625 | BALL BEARING |
| 051 | A 0029810725 | BALL BEARING |
| 053 | A 1232620494 | SNAP RING |
| 055 | A 1862620451 | SPACER RING |
| 057 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| 059 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 061 | A 1802620105 | MAIN SHAFT |
| 063 | A 0019816810 | NEEDLE BEARING |
| 3RD SPEED | ||
| 065 | A 1112600344 | GEAR |
| 31 TEETH | ||
| A 1112600444 | GEAR | |
| 31 TEETH | ||
| 067 | A 1202622362 | THRUST WASHER |
| 3RD SPEED GEAR | ||
| 069 | A 1132620034 | SYNCHRONIZER RING |
| 3RD AND 4TH SPEED | ||
| 071 | A 1112600845 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| A 1112601045 | SYNCHRONIZER BODY | |
| 3RD AND 4TH SPEED | ||
| 073 | A 1112620435 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| A 1112620735 | SYNCHRONIZER BODY | |
| 3RD AND 4TH SPEED | ||
| 076 | A 1809934101 | SPRING |
| 079 | N 005401306500 | BALL |
| 081 | A 1212620040 | FOLLOWER |
| 083 | A 1112620423 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| A 1112620723 | SLIDING COLLAR | |
| 3RD AND 4TH SPEED | ||
| 085 | A 1209940115 | LOCK |
| 087 | A 1202620326 | GROOVED NUT |
| A 0009816312 | ROLLER ASSEMBLY | |
| Repalced by: A 0029813412 | ||
| 089 | A 0029813412 | ROLLER ASSEMBLY |
| 091 | A 1209810312 | ROLLER ASSEMBLY |
| 093 | A 1102600119 | GEAR |
| 35 TEETH | ||
| A 1102600219 | GEAR | |
| 35 TEETH | ||
| 095 | N 005417065000 | SNAP RING |
| 097 | A 1202621662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.9 MM | ||
| 097 | A 1202621962 | THRUST WASHER |
| AS REQUIRED | ||
| 8.0 MM | ||
| 097 | A 1202622062 | THRUST WASHER |
| AS REQUIRED | ||
| 8.10 MM | ||
| 103 | A 1132620034 | SYNCHRONIZER RING |
| 1ST AND 2ND SPEED | ||
| 105 | A 1112600945 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 107 | A 1112620635 | SYNCHRONIZER BODY |
| 109 | A 1809934101 | SPRING |
| 111 | N 005401306500 | BALL |
| 113 | A 1212620040 | FOLLOWER |
| 115 | A 1112620623 | SLIDING COLLAR |
| 117 | A 1202620081 | KEY |
| 119 | A 1202621162 | THRUST WASHER |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1202621362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| A 1202621562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.60 MM | ||
| 121 | A 0019816910 | NEEDLE BEARING |
| 1ST SPEED | ||
| A 1132620111 | GEAR | |
| 1ST SPEED | ||
| 123 | A 1102600019 | GEAR |
| 1ST SPEED | ||
| 123 | A 1102600019 | GEAR |
| 1ST SPEED | ||
| N 005417065000 | SNAP RING | |
| 125 | A 1862620162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 1862620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 1862620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| A 1862620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.10 MM | ||
| A 1862620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.20 MM | ||
| A 1862620662 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.30 MM | ||
| A 1862620762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.40 MM | ||
| A 1862620862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.50 MM | ||
| 127 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 129 | A 0009941640 | SNAP RING |
| 131 | A 1362620452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620952 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 133 | A 1102640030 | DRIVE GEAR |
| 135 | A 1112600821 | TRANSMISSION CASE COVER |
| FRONT | ||
| A 1082600021 | TRANSMISSION CASE COVER | |
| A 1862610060 | SEAL RING | |
| A 1112610379 | GASKET | |
| A 0009874046 | SEALING CORD | |
| 137 | A 1115860126 | REPAIR KIT |
| A 1112610379 | GASKET | |
| A 1085860226 | REPAIR KIT | |
| 140 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 140 | N 304017008018 | SCREW |
| 142 | N 000137008204 | SPRING WASHER |
| 144 | A 1119910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 144 | A 1119910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 146 | N 000137010201 | SPRING WASHER |
| 148 | A 1112600416 | TRANSMISSION CASE COVER |
| REAR | ||
| 151 | A 1532640055 | PLUG |
| A 0009971746 | SEAL RING | |
| A 1152740060 | SEAL RING | |
| 153 | A 1112640032 | SHAFT |
| 155 | A 1202640231 | DRIVE GEAR |
| A 1112610079 | GASKET | |
| 157 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 157 | N 304017008018 | SCREW |
| 159 | A 1119900010 | SCREW |
| 161 | N 000137008204 | SPRING WASHER |
| N 000931006021 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 163 | A 1112620045 | FLANGE |
| 165 | A 1862620173 | LOCK |
| 167 | A 1862620226 | GROOVED NUT |
| 169 | A 1869970032 | SCREW PLUG |
| 171 | A 1869970032 | SCREW PLUG |
| 173 | N 007603024105 | SEAL RING |
| N 000931010236 | SCREW | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000125010504 | WASHER | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000137010201 | SPRING WASHER | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||
| N 000934010005 | NUT | |
| BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE | ||

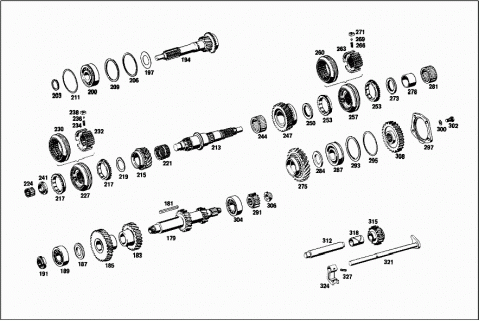

| A 1172602701 | TRANSMISSION | |
| A 1172603401 | TRANSMISSION | |
| A 1152600168 | GASKET KIT | |

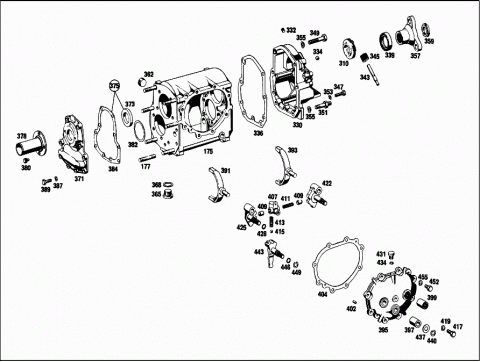

| 175 | A 1172601211 | TRANSMISSION CASE |
| 177 | N 000939010012 | STUD BOLT |
| 179 | A 1172631502 | COUNTERSHAFT |
| A 1172632302 | COUNTERSHAFT | |
| 181 | A 1179910768 | KEY |
| 183 | A 1172630313 | GEAR |
| 3RD SPEED | ||
| 185 | A 1172630810 | GEAR |
| 4TH SPEED | ||
| 187 | A 1152630752 | SPACER WASHER |
| 189 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 189 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 191 | A 1159900851 | NUT |
| 194 | A 1172601420 | DRIVE SHAFT |
| 197 | A 1862620066 | OIL RING |
| 200 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 203 | A 1232620494 | SNAP RING |
| 206 | A 1862620451 | SPACER RING |
| 209 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| 211 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 213 | A 3092620905 | MAIN SHAFT |
| 215 | A 1172601144 | GEAR |
| 3RD SPEED | ||
| 217 | A 1152621634 | SYNCHRONIZER RING |
| 3RD AND 4TH SPEED | ||
| A 1152623234 | SYNCHRONIZER RING | |
| 3RD AND 4TH SPEED | ||
| 219 | A 1202622362 | THRUST WASHER |
| 221 | A 0049810710 | NEEDLE BEARING |
| 3RD SPEED | ||
| A 0029810010 | NEEDLE BEARING | |
| 3RD SPEED | ||
| A 0039810410 | NEEDLE BEARING | |
| 3RD SPEED | ||
| A 0039811210 | NEEDLE BEARING | |
| Repalced by: A 0049810710 | ||
| A 0049810710 | NEEDLE BEARING | |
| 3RD SPEED | ||
| 224 | A 0059815410 | NEEDLE BEARING |
| DRIVE SHAFT AND MAIN SHAFT | ||
| A 0029818110 | NEEDLE BEARING | |
| DRIVE SHAFT AND MAIN SHAFT | ||
| A 1152601845 | SYNCHRONIZER BODY | |
| Repalced by: A 1152604945 | ||
| 227 | A 1152604945 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 230 | A 1152621823 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| 232 | A 1152621235 | SYNCHRONIZER BODY |
| 3RD AND 4TH SPEED | ||
| 234 | A 1809934101 | SPRING |
| 236 | N 005401306500 | BALL |
| 238 | A 1152620140 | FOLLOWER |
| 241 | A 1159901051 | NUT |
| 244 | A 0049810810 | NEEDLE BEARING |
| 2ND SPEED | ||
| A 0039811310 | NEEDLE BEARING | |
| 2ND SPEED | ||
| A 0049810810 | NEEDLE BEARING | |
| 2ND SPEED | ||
| 247 | A 1172600744 | GEAR |
| 250 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| 253 | A 1152621534 | SYNCHRONIZER RING |
| A 1152623134 | SYNCHRONIZER RING | |
| A 1172601645 | SYNCHRONIZER BODY | |
| Repalced by: A 1172603345 | ||
| 257 | A 1172603345 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 260 | A 1152621423 | SLIDING COLLAR |
| 1ST AND 2ND SPEED | ||
| A 1172620523 | SLIDING COLLAR | |
| 1ST AND 2ND SPEED | ||
| 263 | A 1172620435 | SYNCHRONIZER BODY |
| Repalced by: A 1172603345 | ||
| 263 | A 1172603345 | SYNCHRONIZER BODY |
| 1ST AND 2ND SPEED | ||
| 266 | A 1809934101 | SPRING |
| 269 | N 005401306500 | BALL |
| 271 | A 1152620240 | FOLLOWER |
| 273 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| 275 | A 1172620411 | GEAR |
| Repalced by: A 1172621011 | ||
| 275 | A 1172621011 | GEAR |
| 278 | A 1172620251 | SPACER RING |
| 281 | A 0049810810 | NEEDLE BEARING |
| 1ST SPEED | ||
| A 0039811310 | NEEDLE BEARING | |
| 1ST SPEED | ||
| A 0049810810 | NEEDLE BEARING | |
| 1ST SPEED | ||
| 284 | A 1152622562 | THRUST WASHER |
| 3.8 MM | ||
| A 1152622662 | THRUST WASHER | |
| 3.9 MM | ||
| A 1152622762 | THRUST WASHER | |
| 4.0 MM | ||
| A 1152622862 | THRUST WASHER | |
| 4.1 MM | ||
| A 1152622962 | THRUST WASHER | |
| 4.2 MM | ||
| 287 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| 291 | A 1152630932 | REVERSE IDLER GEAR |
| COUNTERSHAFT | ||
| A 1152632232 | REVERSE IDLER GEAR | |
| COUNTERSHAFT | ||
| 293 | A 1369940635 | SNAP RING |
| 1.9 MM MAINSHAFT REAR BEARING | ||
| A 1369940935 | SNAP RING | |
| 2.0 MM MAINSHAFT REAR BEARING | ||
| A 1159942235 | SNAP RING | |
| MAIN SHAFT BEARING,REAR | ||
| 2.1 MM | ||
| 295 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 297 | A 1152622639 | RETAINING RING |
| 300 | N 000137007201 | SPRING WASHER |
| 302 | A 1159900601 | SCREW |
| 304 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 304 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 306 | A 1159900951 | NUT |
| 308 | A 1172620721 | GEAR |
| MAIN SHAFT | ||
| 310 | A 1152640730 | DRIVE GEAR |
| Repalced by: A 1152600648 | ||
| 310 | A 1152600648 | DRIVE GEAR |
| SPEEDOMETER | ||
| 312 | A 1172630430 | REVERSE IDLER SHAFT |
| A 1152631330 | REVERSE IDLER SHAFT | |
| 315 | A 1152601025 | GEAR |
| 318 | A 1172630150 | BUSHING |
| 321 | A 1172600931 | SHIFTING ROD |
| REVERSE SPEED | ||
| 324 | A 1152650219 | FOLLOWER |
| REVERSE SPEED | ||
| 327 | N 001481006005 | CLAMPING SLEEVE |
| 330 | A 1152602216 | TRANSMISSION CASE COVER |
| REAR | ||
| A 1152602416 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603916 | ||
| A 1152603916 | TRANSMISSION CASE COVER | |
| REAR | ||
| 332 | A 1532640055 | PLUG |
| 334 | A 0019812185 | BALL |
| Repalced by: A 0019813385 | ||
| 334 | A 0019813385 | BALL |
| 336 | A 1152610279 | GASKET |
| 339 | A 0059972046 | SEAL RING |
| Repalced by: A 0059978747 | ||
| 339 | A 0059978747 | SEAL RING |
| MAIN SHAFT | ||
| A 1152740060 | SEAL RING | |
| 343 | A 1152640132 | SHAFT |
| SPEEDOMETER DRIVE | ||
| 345 | A 1202640231 | DRIVE GEAR |
| SPEEDOMETER DRIVE | ||
| N 000931006083 | SCREW | |
| FLEXIBLE SHAFT TO TRANSMISSION CASE REAR COVER | ||
| N 000137006204 | SPRING WASHER | |
| FLEXIBLE SHAFT TO TRANSMISSION CASE REAR COVER | ||
| 347 | N 000933007019 | SCREW |
| COVER TO TRANSMISSION CASE REAR COVER | ||
| 349 | N 000931010232 | SCREW |
| COVER TO TRANSMISSION CASE REAR COVER | ||
| N 000931010300 | SCREW | |
| COVER TO TRANSMISSION CASE REAR COVER | ||
| 351 | A 1159901310 | SCREW |
| COVER TO TRANSMISSION CASE REAR COVER | ||
| 353 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 353 | N 006902007100 | WASHER |
| COVER TO TRANSMISSION CASE REAR COVER | ||
| 355 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 355 | N 000125010532 | WASHER |
| COVER TO TRANSMISSION CASE REAR COVER | ||
| 357 | A 1152621145 | FLANGE |
| 359 | A 1239900060 | NUT |
| 362 | A 1869970032 | SCREW PLUG |
| OIL FILLING | ||
| 365 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 365 | A 2109970132 | SCREW PLUG |
| 368 | N 007603024105 | SEAL RING |
| 371 | A 1152601121 | TRANSMISSION CASE COVER |
| Repalced by: A 1152611618 | ||
| 371 | A 1152611618 | TRANSMISSION CASE COVER |
| Repalced by: A 6022610218 | ||
| 371 | A 6022610218 | TRANSMISSION CASE COVER |
| FRONT | ||
| 373 | A 0049973246 | SEAL RING |
| 375 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 378 | A 1152610243 | GUIDE TUBE |
| 380 | N 914005006002 | COMBINATION BOLT |
| Repalced by: N 914005006042 | ||
| 380 | N 914005006042 | COMBINATION BOLT |
| 382 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 384 | A 1152610079 | GASKET |
| 387 | N 000137007201 | SPRING WASHER |
| 389 | N 000933007032 | SCREW |
| 391 | A 6022650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 393 | A 3092650201 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| 395 | A 1172600813 | TRANSMISSION CASE COVER |
| Repalced by: A 1172603113 | ||
| 395 | A 1172603113 | TRANSMISSION CASE COVER |
| 397 | A 1152620450 | BUSHING |
| Repalced by: A 1152620550 | ||
| 397 | A 1152620550 | BUSHING |
| 399 | A 0149816710 | NEEDLE BEARING |
| Repalced by: A 0109816010 | ||
| 399 | A 0109816010 | NEEDLE BEARING |
| A 0099978248 | SEAL RING | |
| 402 | N 000007006203 | CYLINDRICAL PIN |
| 404 | A 1172610079 | GASKET |
| A 1152610080 | GASKET | |
| 407 | A 1172600973 | DETENT |
| 409 | A 1172650474 | PIN |
| 411 | A 1159933304 | SPRING |
| 413 | A 1159936102 | SPRING |
| 415 | N 005401999008 | BALL |
| 417 | N 000933008114 | SCREW |
| Repalced by: N 304017008021 | ||
| 417 | N 304017008021 | SCREW |
| 419 | N 000125008418 | WASHER |
| 422 | A 1152601973 | DETENT |
| 1ST AND 2ND SPEED | ||
| 425 | A 1152602073 | DETENT |
| Repalced by: A 1152603873 | ||
| 425 | A 1152603873 | DETENT |
| 3RD AND 4TH SPEED | ||
| 428 | A 0079970348 | SEAL RING |
| 431 | A 1152610066 | BREATHER |
| 434 | N 009045012000 | SNAP RING |
| 437 | A 1159901640 | WASHER |
| 440 | N 006799010001 | LOCK PLATE |
| 443 | A 1172600638 | SHAFT |
| Repalced by: A 1152601238 | ||
| 443 | A 1152601238 | SHAFT |
| REVERSE SPEED | ||
| 446 | A 0079970348 | SEAL RING |
| 449 | N 006799010001 | LOCK PLATE |
| 452 | N 000933007027 | SCREW |
| 455 | N 000125007408 | WASHER |
| Repalced by: N 006902007100 | ||
| 455 | N 006902007100 | WASHER |
| 458 | A 1112603214 | TRANSMISSION CASE COVER |
| TOP, WITH SELECTOR LEVER | ||
| A 1112602314 | TRANSMISSION CASE COVER | |
| Repalced by: A 1112603114 | ||
| 460 | A 1112603114 | TRANSMISSION CASE COVER |
| TOP | ||
| 460 | A 1112603114 | TRANSMISSION CASE COVER |
| TOP | ||
| 462 | A 1539920005 | BUSHING |
| 464 | A 1362650048 | INTERLOCK PIN |
| 466 | A 1809932601 | SPRING |
| 468 | N 007603018104 | SEAL RING |
| 470 | A 1369970830 | SCREW PLUG |
| 472 | A 1362650247 | INTERLOCK PLUG |
| 474 | A 1832650046 | DETENT PLATE |
| N 000933006130 | SCREW | |
| DETENT PLATE TO TRANSMISSION CASE TOP COVER | ||
| N 000137006204 | SPRING WASHER | |
| DETENT PLATE TO TRANSMISSION CASE TOP COVER | ||
| N 000934006007 | NUT | |
| DETENT PLATE TO TRANSMISSION CASE TOP COVER | ||
| 477 | A 3192680532 | SHAFT |
| 479 | A 1862680033 | SHIFTING FINGER |
| 481 | A 1832680052 | SPACER WASHER |
| 484 | A 0009810110 | NEEDLE BEARING |
| 487 | A 1869970120 | EXPANSION PLUG |
| 490 | N 000472022000 | LOCK RING |
| 492 | N 006503012100 | SEAL RING |
| 494 | A 1112600179 | SHIFTING FINGER |
| 496 | A 1869971140 | SEAL RING |
| 499 | A 1102600137 | LEVER |
| A 1102600337 | LEVER | |
| 503 | A 0009920110 | BUSHING |
| N 000931006096 | SCREW | |
| SELECTOR LEVER TO SELECTOR FINGER | ||
| N 912004006102 | LOCK WASHER | |
| SELECTOR LEVER TO SELECTOR FINGER | ||
| N 000934006007 | NUT | |
| SELECTOR LEVER TO SELECTOR FINGER | ||
| 505 | A 1862600328 | GUIDE PLATE |
| 508 | A 1369908240 | WASHER |
| 511 | A 1362650272 | NUT |
| 514 | A 1862650001 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| A 1862650701 | SHIFTING FORK | |
| 1ST AND 2ND SPEED | ||
| 517 | A 3092650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 520 | A 1802650107 | LEVER |
| REVERSE SPEED | ||
| 522 | A 1869931301 | SPRING |
| 525 | N 005401308000 | BALL |
| 527 | A 1362650053 | SPACER TUBE |
| SHIFTING FORKS | ||
| 529 | A 1362650153 | SPACER TUBE |
| SHIFTING HEAD | ||
| 531 | A 1119903440 | WASHER |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1119900940 | WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 1119900840 | WASHER | |
| AS REQUIRED | ||
| 1.0 MM | ||
| 533 | A 1362650404 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 535 | A 1362650504 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 537 | A 1362650204 | SHIFTING ROD |
| REVERSE SPEED | ||
| 539 | A 1842650053 | SPACER TUBE |
| 541 | A 1362650081 | KEY |
| 543 | A 1112600058 | BREATHER |
| A 1112610066 | PIPE | |
| A 1112610066 | PIPE | |
| 545 | A 1102600437 | LEVER |
| SHIFTING SHAFT | ||
| 547 | A 0009920110 | BUSHING |
| N 000931006096 | SCREW | |
| LEVER TO SHIFTING SHAFT | ||
| N 912004006102 | LOCK WASHER | |
| LEVER TO SHIFTING SHAFT | ||
| N 000934006007 | NUT | |
| LEVER TO SHIFTING SHAFT | ||
| 550 | A 1112610179 | GASKET |
| 553 | N 000931008171 | SCREW |
| 556 | N 000931008217 | SCREW |
| 558 | N 000137008204 | SPRING WASHER |
| 561 | A 0005451206 | SWITCH |
| BACK-UP LIGHT | ||
| 563 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 563 | A 0095454028 | PLUG HOUSING |
| DOUBLE | ||
| 565 | N 007603018104 | SEAL RING |
| 567 | A 1115460143 | BRACKET |
| 569 | A 0039887978 | CLIP |
| A 1112602582 | SHIFTING TUBE | |
| A 1112602582 | SHIFTING TUBE | |
| 571 | A 1082600882 | SHIFTING TUBE |
| 571 | A 1082600882 | SHIFTING TUBE |
| 571 | A 1082600882 | SHIFTING TUBE |
| A 1112680539 | GUIDE PIVOT | |
| A 1112680539 | GUIDE PIVOT | |
| 573 | A 1082680039 | GUIDE PIVOT |
| 573 | A 1082680039 | GUIDE PIVOT |
| 573 | A 1082680039 | GUIDE PIVOT |
| 575 | A 1119971240 | SEAL RING |
| 577 | A 1869906940 | WASHER |
| 579 | A 1862680273 | LOCK |
| 581 | A 1862680274 | PIN |
| 583 | A 1829930801 | SPRING |
| A 1112680397 | BOOT | |
| A 1112680397 | BOOT | |
| 586 | A 1082680097 | BOOT |
| 586 | A 1082680097 | BOOT |
| 586 | A 1082680097 | BOOT |
| A 1802680524 | SHIFT LEVER | |
| A 1802680524 | SHIFT LEVER | |
| 589 | A 1082680324 | SHIFT LEVER |
| 589 | A 1082680324 | SHIFT LEVER |
| 589 | A 1082680324 | SHIFT LEVER |
| 591 | A 1112680392 | RUBBER PAD |
| 593 | A 1802680057 | COVER |
| 595 | A 1082680042 | KNOB |
| 597 | A 1112602894 | BEARING BRACKET |
| 600 | A 0009812110 | NEEDLE BEARING |
| 603 | A 1112600415 | LEVER |
| SHIFTING TUBE | ||
| 606 | A 1112681050 | BUSHING |
| 609 | A 1112680251 | SPACER RING |
| 612 | N 000137006204 | SPRING WASHER |
| 615 | N 000934006007 | NUT |
| 618 | A 1112680705 | COVER |
| 621 | A 1112602181 | LEVER |
| Repalced by: A 1112601381 | ||
| 621 | A 1112601381 | LEVER |
| 624 | A 0009812110 | NEEDLE BEARING |
| 627 | A 1809970840 | SEAL RING |
| 630 | A 3129900340 | WASHER |
| 633 | N 900055012001 | SPRING WASHER |
| 636 | N 006799010001 | LOCK PLATE |
| 639 | N 000127008203 | LOCK WASHER |
| 642 | N 000934008013 | NUT |
| 645 | A 1802680215 | LEVER |
| 648 | A 1802680032 | SHAFT |
| 651 | N 000933006027 | SCREW |
| 653 | N 912004006102 | LOCK WASHER |
| 656 | A 1809970840 | SEAL RING |
| 659 | N 900055012001 | SPRING WASHER |
| 662 | A 1802600237 | LEVER |
| N 000931008171 | SCREW | |
| SELECTOR LEVER TO SELECTOR LEVER SHAFT | ||
| N 000127008203 | LOCK WASHER | |
| SELECTOR LEVER TO SELECTOR LEVER SHAFT | ||

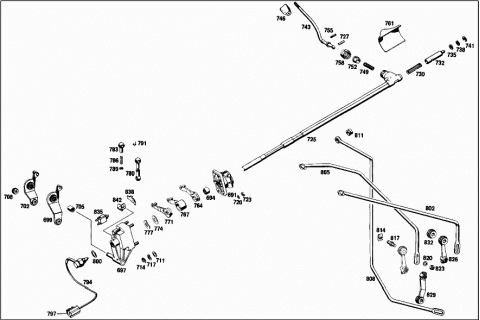

| N 000934008013 | NUT | |
| SELECTOR LEVER TO SELECTOR LEVER SHAFT | ||
| 665 | A 1112600066 | BALL SOCKET |
| 668 | N 000439006200 | NUT |
| 671 | N 071805010200 | BALL SOCKET |
| 673 | N 071805010400 | SECURING CLIP |
| 676 | A 1112605033 | SHIFTING ROD |
| 679 | A 1112604833 | SHIFTING ROD |
| 683 | N 070616010000 | NUT |
| 685 | A 0009913822 | BALL SOCKET |
| 688 | A 1219901840 | WASHER |
| N 000094002059 | COTTER PIN | |
| 691 | A 1082600894 | BEARING BRACKET |
| REAR | ||
| 694 | A 0019818410 | NEEDLE BEARING |
| N 000931008217 | SCREW | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000137008204 | SPRING WASHER | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000561006103 | SCREW | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| N 000137006204 | SPRING WASHER | |
| BEARING BRACKET TO STEERING COLUMN JACKET TUBE | ||
| 697 | A 1082600794 | BEARING BRACKET |
| FRONT | ||
| A 1082600694 | BEARING BRACKET | |
| FRONT | ||
| 699 | A 1082601137 | LEVER |
| 1ST AND 2ND SPEED | ||
| 702 | A 1082601237 | LEVER |
| 3RD AND 4TH SPEED | ||
| 705 | A 0029810210 | NEEDLE BEARING |
| 708 | A 1159920210 | BUSHING |
| 711 | A 3129900340 | WASHER |
| 714 | N 006799010001 | LOCK PLATE |
| 717 | N 900055012001 | SPRING WASHER |
| 720 | N 000137008204 | SPRING WASHER |
| 723 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 723 | N 304032008006 | NUT |
| 725 | A 1082602082 | SHIFTING TUBE |
| 727 | A 1159910301 | PIN |
| 730 | A 1209932101 | SPRING |
| 732 | A 1152680439 | GUIDE PIVOT |
| 735 | A 1119971240 | SEAL RING |
| 738 | A 1869906940 | WASHER |
| 741 | A 1862680273 | LOCK |
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152600639 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152601139 | ||
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152602639 | ||
| A 1152602639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| 743 | A 1152604439 | SHIFT LEVER |
| 746 | A 1152680942 | KNOB |
| Repalced by: A 1082680042 | ||
| 746 | A 1082680042 | KNOB |
| A 1152681242 | KNOB | |
| A 1152680172 | NUT | |
| 749 | A 1159939902 | SPRING |
| A 1152680550 | BUSHING | |
| 752 | A 1152680950 | BUSHING |
| A 1152680550 | BUSHING | |
| N 007346005000 | CLAMPING SLEEVE | |
| Repalced by: N 001481005017 | ||
| N 001481005017 | CLAMPING SLEEVE | |
| A 1159920225 | SLEEVE | |
| 755 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 755 | N 001481005017 | CLAMPING SLEEVE |
| 758 | A 1152670114 | CAP |
| 761 | A 1152680297 | BOOT |
| Repalced by: A 1162680397 | ||
| 761 | A 1162680397 | BOOT |
| A 1152680397 | BOOT | |
| Repalced by: A 1162680497 | ||
| A 1162680497 | BOOT | |
| 764 | A 1152607837 | LEVER |
| REVERSE SPEED | ||
| 767 | A 1152608037 | LEVER |
| 1ST AND 2ND SPEED | ||
| 771 | A 1152609437 | LEVER |
| 3RD AND 4TH SPEED | ||
| 774 | A 1152680276 | WASHER |
| 777 | A 1159900248 | WASHER |
| 780 | A 1152600389 | PULL ROD |
| Repalced by: A 1112600066 | ||
| 780 | A 1112600066 | BALL SOCKET |
| 783 | N 071805010204 | BALL SOCKET |
| 786 | N 000939006015 | STUD BOLT |
| 789 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 789 | N 304035006001 | NUT |
| 791 | N 071805010400 | SECURING CLIP |
| 794 | A 0005453406 | SWITCH |
| WITH REST CONTACT | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| 797 | A 0065457828 | PLUG HOUSING |
| 800 | N 007603018104 | SEAL RING |
| 802 | A 1082602033 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 805 | A 1082602233 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 808 | A 1082601333 | SHIFTING ROD |
| REVERSE SPEED | ||
| 811 | A 1082680066 | BALL SOCKET |
| A 0009942960 | LOCK | |
| SHIFTING ROD TO INTERMEDIATE LEVER | ||
| 814 | A 0009942960 | LOCK |
| SHIFTING ROD TO LEVER | ||
| 817 | A 1082680014 | PIVOT PIN |
| SHIFTING ROD TO LEVER | ||
| 820 | N 000125008418 | WASHER |
| SHIFTING ROD TO LEVER | ||
| 823 | N 913004008004 | NUT |
| SHIFTING ROD TO LEVER | ||
| 826 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 826 | A 1152682530 | SHIFT LEVER |
| 1ST THRU 4TH SPEED | ||
| 829 | A 1152607737 | LEVER |
| REVERSE SPEED | ||
| 832 | A 0009920510 | BUSHING |
| N 000933006089 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 835 | A 0005458411 | SWITCH |
| Repalced by: A 0045450414 | ||
| 835 | A 0045450414 | SWITCH |
| Repalced by: A 0045451814 | ||
| 835 | A 0045451814 | SWITCH |
| 838 | A 1082670038 | THRUST PIECE |
| 842 | A 1082670040 | BRACKET |
| A 1089901001 | SCREW | |
| THRUST PIECE TO LEVER | ||
| N 912004006102 | LOCK WASHER | |
| THRUST PIECE TO LEVER | ||
| N 000934006007 | NUT | |
| THRUST PIECE TO LEVER | ||
| N 000933006123 | SCREW | |
| BRACKET TO BEARING BRACKET | ||
| N 900055006001 | SPRING WASHER | |
| BRACKET TO BEARING BRACKET | ||
| N 000934006007 | NUT | |
| BRACKET TO BEARING BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
