Transporto priemonė: 250 USA; VIN numerio dalis: 114011

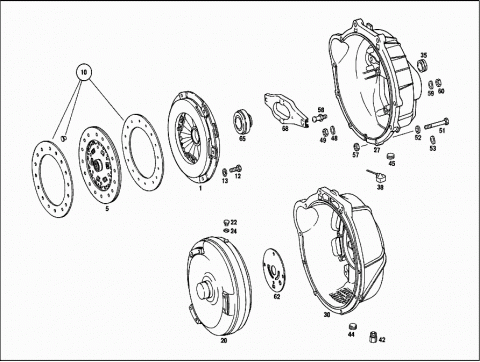

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0012504104 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0042502304 | ||
| 001 | A 0042502304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042501904 | ||
| 001 | A 0042501904 | CLUTCH PRESSURE PLATE |
| 005 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 005 | A 0102502603 | CLUTCH DISC |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| A 0002527110 | CLUTCH LINING | |
| A 0002527210 | CLUTCH LINING | |
| A 0002522110 | CLUTCH LINING | |
| A 0002526210 | CLUTCH LINING | |
| A 0002521075 | RIVET | |
| A 1085860025 | REPAIR KIT | |
| TO 001 250 11 03,001 250 88 03,002 250 16 03 | ||
| 010 | A 1145860025 | REPAIR KIT |
| TO 002 250 28 03, 002 250 60 03 | ||
| 012 | N 000912008012 | SCREW |
| 013 | N 912004008102 | LOCK WASHER |
| 020 | A 1152501202 | HYDRAULIC CLUTCH |
| 022 | N 000908010004 | SCREW PLUG |
| Repalced by: N 000000000648 | ||
| 022 | N 000000000648 | SCREW PLUG, FILLING |
| 024 | N 007603010100 | SEAL RING |
| 027 | A 1152512601 | BELL HOUSING |
| 030 | A 1152501905 | HOUSING |
| 035 | A 1152570650 | BUSHING |
| Repalced by: A 1092570150 | ||
| 035 | A 1092570150 | BUSHING |
| 038 | A 1152500357 | BREATHER |
| Repalced by: A 1152500066 | ||
| 038 | A 1152500066 | OIL PIPE |
| 042 | A 1152571057 | SCREW COLLAR |
| A 1159970001 | PLUG | |
| Repalced by: N 915058022000 | ||
| 044 | N 000908022010 | SCREW PLUG |
| 045 | N 000908022010 | SCREW PLUG |
| 048 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 049 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 049 | N 304032010002 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000931008244 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 051 | N 000931010236 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 052 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 052 | N 000125010532 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 053 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 057 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 057 | N 304032010002 | NUT |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 058 | A 1159910115 | BALL PIVOT |
| 059 | N 000137010201 | SPRING WASHER |
| 060 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 060 | N 304035010001 | NUT |
| 062 | A 1152770314 | INTERMEDIATE PLATE |
| A 0002500315 | RELEASE BEARING | |
| Repalced by: A 0002505515 | ||
| A 0002500715 | RELEASE BEARING | |
| Repalced by: A 0002505515 | ||
| 065 | A 0002505515 | RELEASE BEARING |
| 065 | A 0002506815 | RELEASE BEARING |
| 068 | A 1152900029 | RELEASE YOKE |
| A 0099978248 | SEAL RING | |
