Transporto priemonė: 250 USA; VIN numerio dalis: 114011
Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1158301362 | HEATER CASE | |
| Repalced by: A 1158303762 | ||
| A 1158302062 | HEATER CASE | |
| Repalced by: A 1158303762 | ||
| A 1158303762 | HEATER CASE | |
| USE ADDITIONALLY 1A1158301431 | ||
| A 1158302762 | HEATER CASE | |
| Repalced by: A 1158304462 | ||
| 010 | A 1158304462 | HEATER CASE |
| 010 | A 1158304462 | HEATER CASE |
| A 0008357101 | HEAT EXCHANGER | |
| Repalced by: A 0018353001 | ||
| 014 | A 0018353001 | HEAT EXCHANGER |
| A 1158300024 | INTERMEDIATE PIECE | |
| Repalced by: A 1148300024 | ||
| 017 | A 1148300024 | INTERMEDIATE PIECE |
| 019 | A 1158350039 | COVER |
| A 1158000675 | ELEMENT | |
| Repalced by: A 1158001475 | ||
| 021 | A 1158001475 | ELEMENT |
| 021 | A 1158001475 | ELEMENT |
| A 1158000775 | ELEMENT | |
| Repalced by: A 1158001575 | ||
| 024 | A 1158001575 | ELEMENT |
| 024 | A 1158001575 | ELEMENT |
| 026 | A 1158051074 | ROD |
| 028 | N 912001004000 | LOCK |
| 030 | A 0009941960 | LOCK |
| Repalced by: N 918002004000 | ||
| 030 | N 918002004000 | CLAMPING SPRING |
| 032 | A 1158050974 | ROD |
| N 912001004000 | LOCK | |
| 035 | A 1159950101 | CLAMP |
| 035 | A 1159950101 | CLAMP |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 007985004107 | SCREW | |
| A 1158300124 | INTERMEDIATE PIECE | |
| A 1158300224 | INTERMEDIATE PIECE | |
| 041 | A 1158300424 | INTERMEDIATE PIECE |
| 041 | A 1158300424 | INTERMEDIATE PIECE |
| A 1158310198 | SEAL | |
| LEFT | ||
| A 1158310298 | SEAL | |
| Repalced by: A 1158300424 | ||
| A 1158300424 | INTERMEDIATE PIECE | |
| RIGHT | ||
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| 047 | A 1158350198 | SEAL |
| 047 | A 1158350198 | SEAL |
| N 007976006303 | SHEET METAL SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 052 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 052 | A 0009905233 | SCREW |
| N 000934006007 | NUT | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 006797006145 | TOOTHED WASHER | |
| 057 | A 0019874651 | RUBBER SEAL |
| ORDER BY THE METER | ||
| A 1156870110 | COVERING | |
| Repalced by: A 1156870710 | ||
| 060 | A 1156870710 | COVERING |
| 062 | A 0019882378 | CLIP |
| A 1158350007 | BLOWER | |
| Repalced by: A 1158350107 | ||
| A 1158350107 | BLOWER | |
| Repalced by: A 1158350407 | ||
| A 1158350407 | BLOWER | |
| Repalced by: A 1158350207 | ||
| 065 | A 1158350207 | BLOWER |
| 067 | A 0008352575 | CARBON BRUSH SET |
| A 1158210451 | SWITCH | |
| Repalced by: A 1158211651 | ||
| A 1158211651 | PLUG | |
| Repalced by: A 1158211951 | ||
| 070 | A 1158211951 | SWITCH |
| 072 | A 1158350098 | SEAL |
| 074 | A 1158360133 | SCREENING |
| 076 | A 0009900492 | RIVET |
| A 1109970441 | SEAL RING | |
| Repalced by: A 1159971040 | ||
| A 1119971140 | SEAL RING | |
| Repalced by: A 1159971040 | ||
| 079 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 079 | A 2019870241 | RUBBER RING |
| N 007976004207 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 007985004149 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| 084 | A 1158310145 | DUCT |
| LEFT | ||
| A 1158310245 | DUCT | |
| RIGHT | ||
| N 007981004331 | SHEET METAL SCREW | |
| A 1158300119 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300719 | ||
| 089 | A 1158300719 | DEFROSTER NOZZLE |
| Repalced by: A 1158300119 | ||
| 089 | A 1158300119 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300819 | ||
| A 1158300819 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300219 | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 093 | A 1158310098 | SEAL |
| 095 | A 1158310046 | VALVE |
| 097 | A 1158313751 | WATER PASSAGE |
| 099 | A 0019886878 | CLIP |
| A 1158350020 | CONTROL VALVE | |
| 102 | A 1158350120 | CONTROL VALVE |
| 102 | A 1158350120 | CONTROL VALVE |
| 104 | A 1158350220 | CONTROL VALVE |
| 104 | A 1158350220 | CONTROL VALVE |
| A 0008350098 | SEAL | |
| Repalced by: A 0008351298 | ||
| 108 | A 0008351298 | SEAL |
| A 0008350898 | SEAL | |
| Repalced by: A 0008351398 | ||
| 111 | A 0008351398 | SEAL |
| Repalced by: A 0008354898 | ||
| 111 | A 0008354898 | SEAL |
| A 0008351520 | CONTROL VALVE | |
| A 1158351514 | BRACKET | |
| 115 | A 1158351814 | BRACKET |
| 115 | A 1158351814 | BRACKET |
| 117 | N 007976004205 | SHEET METAL SCREW |
| 119 | N 000125005306 | WASHER |
| N 007976005208 | SHEET METAL SCREW | |
| N 000125006407 | WASHER | |
| 123 | N 007976004215 | SHEET METAL SCREW |
| 123 | N 007976004215 | SHEET METAL SCREW |
| 123 | N 007976004215 | SHEET METAL SCREW |
| 126 | N 000125005306 | WASHER |
| 126 | N 000125005306 | WASHER |
| 126 | N 000125005306 | WASHER |
| A 1158300085 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| 130 | A 1158300485 | OPERATING UNIT |
| Repalced by: A 1158300585 | ||
| A 1158300585 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| 132 | A 1158300785 | OPERATING UNIT |
| KAMMERER | ||
| 134 | A 0008353706 | SWITCH |
| MAKE KAMMERER | ||
| A 0018351906 | SWITCH | |
| Repalced by: A 0008353706 | ||
| A 1155860083 | REPAIR KIT | |
| Repalced by: A 1238300133 | ||
| A 1238300133 | REPAIR KIT | |
| Repalced by: A 1158300033 | ||
| A 1158300033 | REPAIR KIT | |
| LEFT, MAKE KAMMERER | ||
| A 0008351943 | LEVER | |
| Repalced by: A 0008352743 | ||
| 137 | A 0008352743 | LEVER |
| Repalced by: A 1155860083 | ||
| A 0008352443 | LEVER | |
| LEFT | ||
| R.& S. | ||
| A 0008352043 | LEVER | |
| Repalced by: A 0008352843 | ||
| 141 | A 0008352843 | LEVER |
| Repalced by: A 1155860183 | ||
| 141 | A 1155860183 | REPAIR KIT |
| Repalced by: A 1238300233 | ||
| 141 | A 1238300233 | REPAIR KIT |
| Repalced by: A 1158300133 | ||
| 141 | A 1158300133 | REPAIR KIT |
| RIGHT MAKE KAMMERER | ||
| A 0008352543 | LEVER | |
| RIGHT MAKE R & S | ||
| N 912003005000 | DUO CLIP | |
| Repalced by: N 912010005001 | ||
| N 912010005001 | LOCK PLATE | |
| 145 | A 0009902248 | WASHER |
| 147 | A 0008330081 | CLIP |
| 149 | A 0009949941 | LOCK |
| 151 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 151 | N 304017006018 | SCREW |
| 152 | N 006797006145 | TOOTHED WASHER |
| 154 | A 1158330240 | OPERATING HANDLE |
| 156 | A 1158330540 | OPERATING HANDLE |
| 158 | A 1158330340 | OPERATING HANDLE |
| LEFT | ||
| 160 | A 1158330440 | OPERATING HANDLE |
| RIGHT | ||
| A 1158330131 | WIRE CABLE | |
| Repalced by: A 1158300231 | ||
| A 1158330231 | WIRE CABLE | |
| Repalced by: A 1158300331 | ||
| A 1158300231 | WIRE CABLE | |
| 830 MM | ||
| A 1158300331 | WIRE CABLE | |
| 930 MM | ||
| A 0029884978 | CLIP | |
| 167 | A 1158300731 | WIRE CABLE |
| LEFT | ||
| 167 | A 1158300731 | WIRE CABLE |
| LEFT | ||
| A 1158300431 | WIRE CABLE | |
| RIGHT | ||
| A 1158300431 | WIRE CABLE | |
| RIGHT | ||
| A 0029975982 | HOSE | |
| 170 | A 1159971581 | GROMMET |
| 170 | A 1159971581 | GROMMET |
| A 1158330030 | SPIRAL | |
| Repalced by: A 1158330330 | ||
| 173 | A 1158330330 | SPIRAL |
| Repalced by: A 1158301331 | ||
| 173 | A 1158301331 | WIRE CABLE |
| 175 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| 177 | A 1158301231 | WIRE CABLE |
| 300 MM | ||
| 179 | A 1158300631 | WIRE CABLE |
| 280 MM | ||
| 179 | A 1158300631 | WIRE CABLE |
| 280 MM | ||
| 181 | A 1158301431 | WIRE CABLE |
| 181 | A 1158301431 | WIRE CABLE |
| 184 | A 1158301331 | WIRE CABLE |
| 495 MM | ||
| 184 | A 1158301331 | WIRE CABLE |
| 495 MM | ||
| 187 | A 1159971681 | GROMMET |
| 187 | A 1159971681 | GROMMET |
| 189 | A 1159840556 | WASHER |
| 189 | A 1159840556 | WASHER |
| 191 | N 000471012001 | LOCK RING |
| 191 | N 000471012001 | LOCK RING |
| 194 | A 0019886878 | CLIP |
| 196 | A 0009840429 | SCREW |
| 198 | A 0019903840 | WASHER |
| 200 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 200 | N 912004004102 | LOCK WASHER |
| 202 | N 000934004004 | NUT |
| A 1158300289 | ESCUTCHEON | |
| Repalced by: A 1158301189 | ||
| A 1158301189 | ESCUTCHEON | |
| A 1158300789 | ESCUTCHEON | |
| Repalced by: A 1158301189 | ||
| A 1158300389 | ESCUTCHEON | |
| Repalced by: A 1158301189 | ||
| 206 | A 1158301189 | ESCUTCHEON |
| 206 | A 1158301189 | ESCUTCHEON |
| 209 | A 1158301089 | ESCUTCHEON |
| 211 | A 0009912022 | BALL SOCKET |
| 213 | A 0009970381 | GROMMET |
| 215 | A 1158330083 | GARNISH MOULDING |
| 217 | A 1158330183 | GARNISH MOULDING |
| A 1158300088 | CONSOLE | |
| Repalced by: A 1158300188 | ||
| 220 | A 1158300188 | LOUVRE |
| 222 | A 1108210159 | ESCUTCHEON |
| 224 | N 007981003341 | SHEET METAL SCREW |
| 226 | A 1158313851 | HOSE |
| Repalced by: A 1158300096 | ||
| A 1158300096 | HOSE | |
| 228 | A 0009900292 | RIVET |
| 230 | A 1158300154 | NOZZLE |
| LEFT | ||
| 230 | A 1158300154 | NOZZLE |
| LEFT | ||
| A 1158300254 | NOZZLE | |
| RIGHT | ||
| A 1158300254 | NOZZLE | |
| RIGHT | ||
| 234 | A 1158300354 | NOZZLE |
| LEFT | ||
| 234 | A 1158300354 | NOZZLE |
| LEFT | ||
| A 1158300454 | NOZZLE | |
| RIGHT | ||
| A 1158300454 | NOZZLE | |
| RIGHT | ||
| 237 | A 1158314351 | BALL INSERT |
| 239 | A 1158310001 | HANDLE |
| 241 | A 1158311351 | WAVE RING |
| A 0079973682 | HOSE | |
| Repalced by: A 1158310497 | ||
| A 0089970082 | HOSE | |
| Repalced by: A 1158310497 | ||
| 244 | A 1158310497 | HOSE |
| 485 MM ORDER BY THE METER | ||
| 244 | A 1158310497 | HOSE |
| 485 MM ORDER BY THE METER | ||
| 245 | A 1148310088 | HOSE |
| 485 MM | ||
| 246 | A 1158310114 | BRACKET |
| 246 | A 1158310114 | BRACKET |
| 248 | A 1158300015 | PIPE LINE |
| 248 | A 1158300015 | PIPE LINE |
| 250 | A 1158300715 | PIPE LINE |
| 252 | A 1148300515 | PIPE LINE |
| 254 | N 007976005203 | SHEET METAL SCREW |
| 256 | A 1085460253 | SPACER TUBE |
| 258 | N 007976004211 | SHEET METAL SCREW |
| A 1148300115 | PIPE LINE | |
| Repalced by: A 1148301715 | ||
| A 1148300015 | PIPE LINE | |
| Repalced by: A 1148301715 | ||
| 260 | A 1148301715 | PIPE LINE |
| 262 | A 1148300615 | PIPE LINE |
| A 1148301515 | PIPE LINE | |
| 267 | A 1148301815 | PIPE LINE |
| N 007976004205 | SHEET METAL SCREW | |
| A 0009900851 | NUT | |
| A 0009900851 | NUT | |
| N 006797008120 | TOOTHED WASHER | |
| N 006797008120 | TOOTHED WASHER | |
| 269 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 269 | N 304017008039 | SCREW |
| 271 | N 912004008102 | LOCK WASHER |
| 273 | N 000125008418 | WASHER |
| 276 | N 000933006026 | SCREW |
| 276C | N 912004006102 | LOCK WASHER |
| 276F | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 276F | N 009021006208 | WASHER |
| 276K | N 000934006007 | NUT |
| 277 | A 1139970081 | GROMMET |
| 278 | A 1159970481 | GROMMET |
| A 1158310194 | HOSE | |
| Repalced by: A 1148312394 | ||
| 280 | A 1158313894 | HOSE |
| Repalced by: A 1148312394 | ||
| 281 | A 1148312394 | HOSE |
| ZWISCHEN VORLAUFLEITUNG UND HEIZUNGSKASTEN | ||
| A 1158310294 | HOSE | |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 283 | A 1158312894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 283 | A 1158312894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 285 | A 1158313894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 287 | A 1148311094 | HOSE |
| 289 | A 1148311194 | HOSE |
| N 900271015069 | HOSE | |
| Repalced by: N 900271015037 | ||
| N 900271015037 | HOSE | |
| 15X22X1000 MM | ||
| 292 | A 1158312994 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| 292 | A 1158312994 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| 294 | A 1158313694 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| 294 | A 1158313694 | HOSE |
| BETWEEN FAUCET AND FEED LINE | ||
| N 900271018036 | HOSE | |
| 18X25X1000 MM | ||
| 297 | A 1148310594 | HOSE |
| 297 | A 1148310594 | HOSE |
| 299 | A 1148311294 | HOSE |
| 300 | A 1148312094 | HOSE |
| 301 | A 1148312194 | HOSE |
| A 1148310094 | HOSE | |
| A 1158312794 | HOSE | |
| Repalced by: A 1158313794 | ||
| 303 | A 1158313794 | HOSE |
| 303 | A 1158313794 | HOSE |
| 305 | A 1109870541 | RUBBER RING |
| A 1118310094 | HOSE | |
| BETWEEN WATER PUMP AND RETURN LINE | ||
| 308 | A 1088310394 | HOSE |
| 308 | A 1088310394 | HOSE |
| 310 | N 900271018036 | HOSE |
| 18X25X1000 MM | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | HOSE CLAMP | |
| N 916026020001 | CLAMP | |
| N 916026020001 | CLAMP | |
| N 916026023001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |

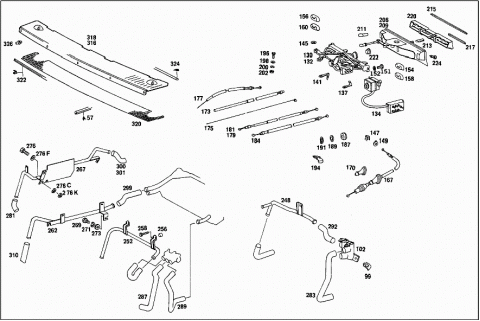

| 316 | A 1158360465 | GRILLE |
| 318 | A 1158360365 | GRILLE |
| 320 | A 1158360018 | SCREEN |
| 322 | A 0019872451 | RUBBER SEAL |
| ORDER BY THE METER | ||
| 324 | A 0019872651 | RUBBER SEAL |
| 326 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 326 | A 0009902292 | RIVET |
| A 0015450111 | SWITCH | |
| Repalced by: A 1158211851 | ||
| A 0005459511 | SWITCH | |
| Repalced by: A 1158211851 | ||
| 330 | A 1158211851 | SWITCH |
| 330 | A 1158211851 | SWITCH |
| 334 | N 007985004215 | SCREW |
| 334 | N 007985004215 | SCREW |
| 336 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 336 | N 912004004102 | LOCK WASHER |
| 336 | N 912004004102 | LOCK WASHER |
| 338 | N 000433004303 | WASHER |
| 338 | N 000433004303 | WASHER |

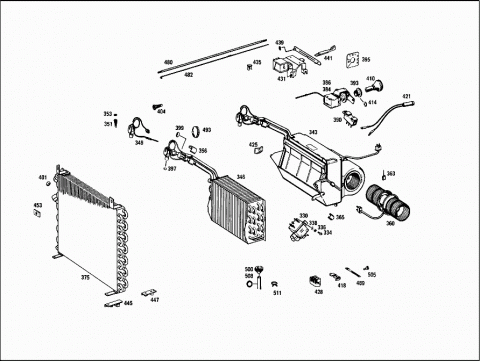

| A 1158300058 | EVAPORATOR | |
| 343 | A 1158300358 | EVAPORATOR |
| 343 | A 1158300358 | EVAPORATOR |
| 346 | A 0008350474 | EVAPORATOR |
| 349 | A 1158350072 | VALVE |
| 351 | A 1088350247 | FILTER |
| A 0008351498 | SEAL | |
| Repalced by: A 0008350598 | ||
| 353 | A 0008350598 | SEAL |
| 356 | A 1088350391 | CLAMP |
| Repalced by: A 0009952920 | ||
| 356 | A 0009952920 | CLAMP |
| 360 | A 1158300008 | BLOWER |
| A 0008352775 | CARBON BRUSH SET | |
| Repalced by: A 0008352575 | ||
| 363 | A 0008352575 | CARBON BRUSH SET |
| 365 | A 0008350434 | SPRING |
| Repalced by: A 0008351334 | ||
| 365 | A 0008351334 | SPRING |
| A 1158300931 | WIRE CABLE | |
| Repalced by: A 1158301131 | ||
| A 1108300331 | WIRE CABLE | |
| Repalced by: A 1158301131 | ||
| A 1158301131 | WIRE CABLE | |
| A 0019972381 | GROMMET | |
| A 1158350070 | CONDENSER | |
| A 1158350270 | CONDENSER | |
| Repalced by: A 1158300270 | ||
| 375 | A 1158300270 | CONDENSER |
| A 1158300470 | CONDENSER | |
| A 1158330080 | SWITCH | |
| A 1158300137 | SWITCH | |
| Repalced by: A 0018351106 | ||
| 384 | A 0008358006 | SWITCH |
| Repalced by: A 0018351106 | ||
| 386 | A 0018351106 | SWITCH |
| A 0008358106 | SWITCH | |
| Repalced by: A 0018352606 | ||
| 390 | A 0018352606 | SWITCH |
| Repalced by: A 0018352906 | ||
| 390 | A 0018352906 | SWITCH |
| 393 | A 1158330089 | ESCUTCHEON |
| 393 | A 1158330089 | ESCUTCHEON |
| A 1158330289 | ESCUTCHEON | |
| 395 | A 1158330173 | SIGN |
| 397 | A 0008350298 | SEAL |
| Repalced by: A 0008356598 | ||
| 397 | A 0008356598 | SEAL |
| 5/8" | ||
| 399 | A 0008350398 | SEAL |
| Repalced by: A 0008356798 | ||
| 399 | A 0008356798 | SEAL |
| 7/8" | ||
| 401 | A 0008350498 | SEAL |
| Repalced by: A 0008356698 | ||
| 401 | A 0008356698 | SEAL |
| 3/4" | ||
| 404 | A 1088350047 | FILTER |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 007976004211 | SHEET METAL SCREW | |
| A 1158200792 | KNOB | |
| TEMPERATURE SWITCH | ||
| 410 | A 1158200892 | KNOB |
| 410 | A 1158200892 | KNOB |
| A 1158202192 | KNOB | |
| N 072601012230 | BULB | |
| 414 | N 009045012002 | SNAP RING |
| 414 | N 009045012002 | SNAP RING |
| 418 | A 0019886878 | CLIP |
| 421 | A 1158200252 | TELL-TALE LAMP |
| 421 | A 1158200252 | TELL-TALE LAMP |
| 425 | A 0009947045 | LOCK |
| 425 | A 0009947045 | LOCK |
| 428 | A 0005467041 | CABLE CONNECTOR |
| N 007981003326 | SHEET METAL SCREW | |
| 431 | A 1158300185 | OPERATING UNIT |
| 435 | A 0008330081 | CLIP |
| N 007982004222 | SHEET METAL SCREW | |
| N 006797005331 | TOOTHED WASHER | |
| 439 | A 0009942745 | LOCK |
| 441 | A 1158330040 | OPERATING HANDLE |
| 445 | A 1158300314 | BRACKET |
| LEFT | ||
| 445 | A 1158300314 | BRACKET |
| LEFT | ||
| 447 | A 1158300714 | BRACKET |
| A 1158300414 | BRACKET | |
| RIGHT | ||
| A 1158300414 | BRACKET | |
| RIGHT | ||
| A 1158300814 | BRACKET | |
| N 007976004205 | SHEET METAL SCREW | |
| 453 | A 1159840022 | SHEET METAL NUT |
| Repalced by: N 913008006300 | ||
| 453 | N 913008006300 | SHEET METAL NUT |
| N 000933006026 | SCREW | |
| CONDENSER TO BRACKET AT FRONT CROSS MEMBER, BOTTOM | ||
| N 000125006407 | WASHER | |
| CONDENSER TO BRACKET AT FRONT CROSS MEMBER, BOTTOM | ||
| N 912004006102 | LOCK WASHER | |
| CONDENSER TO BRACKET AT FRONT CROSS MEMBER, BOTTOM | ||
| N 000933006026 | SCREW | |
| CONDENSER TO FRONT STIFFENING | ||
| N 000125006407 | WASHER | |
| CONDENSER TO FRONT STIFFENING | ||
| N 912004006102 | LOCK WASHER | |
| CONDENSER TO FRONT STIFFENING | ||

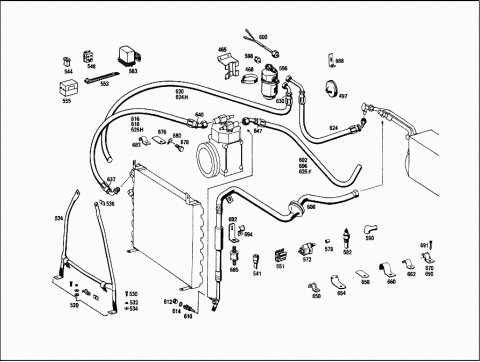

| 465 | A 1158350714 | BRACKET |
| A 3265060041 | CLAMP | |
| Repalced by: A 1149950335 | ||
| 468 | A 1149950335 | CLAMP |
| N 000933006179 | SCREW | |
| LIQUID TANK TO STRAP AND TO BRACKET | ||
| N 000934006007 | NUT | |
| LIQUID TANK TO STRAP AND TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| LIQUID TANK TO STRAP AND TO BRACKET | ||
| N 007976004205 | SHEET METAL SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| N 000127005203 | LOCK WASHER | |
| BETWEEN EVAPORATOR CASE CHANGEOVER FLAP AND OPERATING UNIT | ||
| 480 | A 1158330330 | SPIRAL |
| Repalced by: A 1158301331 | ||
| 480 | A 1158301331 | WIRE CABLE |
| BETWEEN EVAPORATOR CASE CHANGEOVER FLAP AND OPERATING UNIT | ||
| 482 | A 1108330331 | WIRE CABLE |
| BETWEEN EVAPORATOR CASE CHANGEOVER FLAP AND OPERATING UNIT | ||
| A 0009840429 | SCREW | |
| A 0019903840 | WASHER | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| A 0009979790 | LOOM TIE | |
| Repalced by: A 0019974390 | ||
| 489 | A 0019974390 | LOOM TIE |
| 493 | A 1869970781 | GROMMET |
| 493 | A 1869970781 | GROMMET |
| 497 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 497 | A 3359970081 | GROMMET |
| 497 | A 3359970081 | GROMMET |
| 500 | A 1109970481 | GROMMET |
| HOSE THRU FIRE WALL | ||
| 500 | A 1109970481 | GROMMET |
| MOLDED HOSE THRU TUNNEL | ||
| 505 | A 1109870539 | RUBBER BUFFER |
| A 1008352497 | HOSE | |
| Repalced by: A 0009978482 | ||
| 508 | A 0009978482 | HOSE |
| 511 | A 0009954244 | CLAMP |
| 520 | A 1148300008 | STRUT |
| WITH MOUNTING MATERIAL | ||
| 524 | A 1146200285 | STRUT |
| 530 | N 000933006026 | SCREW |
| 530 | N 000933006026 | SCREW |
| 532 | N 912004006102 | LOCK WASHER |
| 532 | N 912004006102 | LOCK WASHER |
| 534 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 534 | N 009021006208 | WASHER |
| 534 | N 009021006208 | WASHER |
| A 1159840022 | SHEET METAL NUT | |
| Repalced by: N 913008006300 | ||
| 536 | N 913008006300 | SHEET METAL NUT |
| 541 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 541 | A 0085452028 | PIN BUSHING HOUSING |
| 541 | A 0085452028 | PIN BUSHING HOUSING |
| 544 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 544 | A 0085453728 | PIN BUSHING HOUSING |
| 544 | A 0085453728 | PIN BUSHING HOUSING |
| 548 | A 0025455128 | PLUG |
| Repalced by: A 0045458628 | ||
| 548 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 548 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 548 | A 0155454928 | PLUG |
| 548 | A 0155454928 | PLUG |
| 551 | A 0029884878 | CLIP |
| 551 | A 0029884878 | CLIP |
| 553 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 553 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 555 | A 0005456201 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 555 | A 0005459901 | FUSE BOX |
| 555 | A 0005459901 | FUSE BOX |
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | TAPPING SCREW | |
| N 000000000454 | TAPPING SCREW | |
| A 0005454334 | FUSE | |
| Repalced by: N 072581016100 | ||
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| A 0005458334 | FUSE | |
| 563 | A 0005425819 | RELAY |
| 563 | A 0005425819 | RELAY |
| N 007985004129 | SCREW | |
| N 007985004129 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| N 000934004004 | NUT | |
| 572 | A 0005459411 | SWITCH |
| 572 | A 0005459411 | SWITCH |
| N 000137010205 | PART NAME MISSING | |
| N 000137010205 | PART NAME MISSING | |
| N 000936010003 | NUT | |
| N 000936010003 | NUT | |
| 578 | A 1085460253 | SPACER TUBE |
| 578 | A 1085460253 | SPACER TUBE |
| A 0035450124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035452424 | ||
| 582 | A 0035452424 | SWITCH,AUTOMATIC |
| 590 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 590 | A 0005463335 | BOOT |
| 590 | A 0005463335 | BOOT |
| A 1158350071 | TANK | |
| Repalced by: A 1158350471 | ||
| A 1158350271 | TANK | |
| Repalced by: A 1158350471 | ||
| A 1158350371 | TANK | |
| Repalced by: A 1158350471 | ||
| 596 | A 1158350471 | TANK |
| 598 | A 0018217351 | REGULATOR |
| Repalced by: A 0008200710 | ||
| 600 | A 0018219251 | REGULATOR |
| Repalced by: A 0008200710 | ||
| 600 | A 0008200710 | SWITCH |
| Repalced by: A 0008208010 | ||
| 600 | A 0008208010 | SWITCH |
| 602 | A 1158313294 | HOSE |
| Repalced by: A 1158301596 | ||
| 602 | A 1158301596 | HOSE |
| FROM EVAPORATOR TO COMPRESSOR 1000 MM | ||
| A 1148311694 | HOSE | |
| Repalced by: A 0009972352 | ||
| 606 | A 1148300396 | HOSE |
| FROM EVAPORATOR TO COMPRESSOR 930 MM | ||
| A 1148301415 | PIPE LINE | |
| A 1148301915 | PIPE LINE | |
| Repalced by: A 1148302015 | ||
| 608 | A 1148302015 | PIPE LINE |
| FOR COMPRESSOR-TO EVAPORATOR | ||
| 610 | A 1158320085 | VALVE INSERT |
| A 0001311356 | SCREW PLUG | |
| Repalced by: A 1158320098 | ||
| 612 | A 1158320098 | SEAL |
| Repalced by: A 1238320033 | ||
| 612 | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 612 | A 2019880635 | CAP |
| A 1158310494 | HOSE | |
| Repalced by: A 1158313394 | ||
| 614 | A 1159971540 | SEAL RING |
| Repalced by: A 1238320033 | ||
| 614 | A 1238320033 | CAP |
| Repalced by: A 2019880635 | ||
| 614 | A 2019880635 | CAP |
| A 1148310494 | HOSE | |
| Repalced by: A 1158313394 | ||
| A 1158311294 | HOSE | |
| Repalced by: A 1158313394 | ||
| A 1158311194 | HOSE | |
| Repalced by: A 1158313394 | ||
| A 1158212494 | INSULATING HOSE | |
| Repalced by: A 1158313394 | ||
| A 1158313394 | HOSE | |
| Repalced by: A 0009972152 | ||
| 616 | A 1148311894 | HOSE |
| Repalced by: A 0009972152 | ||
| 618 | A 1148300496 | HOSE |
| FROM COMPRESSOR TO CONDENSER 1000 MM | ||
| 620 | A 1158310794 | HOSE |
| Repalced by: A 0009973552 | ||
| 620 | A 0009973552 | HOSE |
| FROM CONDENSER TO LIQUID TANK 1300 MM | ||
| 624 | A 1158310994 | HOSE |
| Repalced by: A 0009971752 | ||
| A 1148311594 | HOSE | |
| Repalced by: A 0009973552 | ||
| A 0009971552 | HOSE | |
| Repalced by: A 0009973552 | ||
| 624H | A 0009973552 | HOSE |
| Repalced by: A 0189971882 | ||
| 624H | A 0189971882 | HOSE |
| Repalced by: A 0189975982 | ||
| 624H | A 0189975982 | HOSE |
| Repalced by: A 0009971752 | ||
| 624H | A 0009971752 | HOSE |
| I.D. 6 BLACK 2700 MM LONG | ||
| A 0009971752 | HOSE | |
| I.D. 8 5250 MM LANG | ||
| 625F | A 0009972352 | HOSE |
| I.D. 13 6000 MM LANG | ||
| 625H | A 0009972152 | HOSE |
| I.D. 10 6000 MM LONG | ||
| A 0009979568 | CONNECTOR | |
| 5/8" 90 DEG I.D.6 WITH UNION NUT | ||
| 630 | A 0009979368 | CONNECTOR |
| 3/4" 90 DEG I.D.6 WITH UNION NUT | ||
| A 0019972068 | CONNECTOR | |
| 3/4" 120 DEG I.D.6 WITH UNION NUT | ||
| A 0019971968 | CONNECTOR | |
| 3/4" 150 DEG I.D.6 WITH UNION NUT | ||
| A 0019971568 | CONNECTOR | |
| 3/4" 90 DEG I.D.6 WITH SOLDERED FITTING | ||
| A 0009970568 | CONNECTOR | |
| 5/8"135 DEG I.D.8 WITH UNION NUT | ||
| A 0009975168 | CONNECTOR | |
| 5/8" 180 DEG I.D.8 WITH UNION NUT | ||
| A 0009970268 | CONNECTOR | |
| 3/4" 90 DEG I.D.8 WITH UNION NUT | ||
| A 0009975268 | CONNECTOR | |
| 3/4" 180 DEG I.D.8 WITH UNION NUT | ||
| A 0009976668 | CONNECTOR | |
| 3/4" 90 DEG I.D.8 WITH LONG NECK AND UNION NUT | ||
| A 0009973368 | CONNECTOR | |
| 3/4" 150 DEG I.D.8 WITH SOLDERED FITTING | ||
| A 0009971168 | CONNECTOR | |
| 7/8" 90 DEG I.D.10 WITH UNION NUT | ||
| A 0009971468 | CONNECTOR | |
| 7/8" 120 DEG I.D.10 WITH UNION NUT | ||
| A 0009971768 | CONNECTOR | |
| 7/8" 135 DEG I.D.10 WITH UNION NUT | ||
| A 0009972068 | CONNECTOR | |
| 7/8" 150 DEG I.D.10 WITH UNION NUT | ||
| 637 | A 0009973568 | CONNECTOR |
| 3/4" 90 DEG N.W.10 WITH SOLDERED FITTING | ||
| 640 | A 0009974168 | CONNECTOR |
| 3/4" 135 DEG N.W.10 WITH SOLDERED FITTING | ||
| A 0009972168 | CONNECTOR | |
| 7/8" 90 DEG I.D.13 WITH UNION NUT | ||
| 647 | A 0009972368 | CONNECTOR |
| 7/8" 135 DEG I.D.13 WITH UNION NUT | ||
| A 0009975668 | CONNECTOR | |
| 7/8" 180 DEG I.D.13 WITH UNION NUT | ||
| 650 | A 1129950120 | CLAMP |
| N 007976004205 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 912004005100 | LOCK WASHER | |
| 654 | A 1143280140 | BRACKET |
| 654 | A 1143280140 | BRACKET |
| 658 | A 1143280240 | BRACKET |
| 660 | A 1149950020 | CLAMP |
| 662 | A 1149950120 | CLAMP |
| 662 | A 1149950120 | CLAMP |
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| 670 | A 1009950820 | CLAMP |
| Repalced by: A 1239950320 | ||
| 670 | A 1239950320 | CLAMP |
| N 000933006026 | SCREW | |
| N 000934006007 | NUT | |
| N 912004006102 | LOCK WASHER | |
| A 1148350014 | BRACKET | |
| Repalced by: A 1148350314 | ||
| 676 | A 1148350314 | BRACKET |
| 678 | A 1159903101 | SCREW |
| Repalced by: A 0049903001 | ||
| 678 | A 0049903001 | SCREW |
| 680 | N 000137010201 | SPRING WASHER |
| A 1539950120 | CLAMP | |
| Repalced by: A 1149950320 | ||
| 683 | A 1149950320 | CLAMP |
| 685 | A 1890940085 | RUBBER BUFFER |
| N 000137008204 | SPRING WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 688 | A 1148350714 | BRACKET |
| EVAPORATOR-TO-COMPRESSOR LINE TO WHEELHOUSE | ||
| N 000933006026 | SCREW | |
| EVAPORATOR-TO-COMPRESSOR LINE TO WHEELHOUSE | ||
| N 912004006102 | LOCK WASHER | |
| EVAPORATOR-TO-COMPRESSOR LINE TO WHEELHOUSE | ||
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| EVAPORATOR-TO-COMPRESSOR LINE TO WHEELHOUSE | ||
| N 000934006007 | NUT | |
| EVAPORATOR-TO-COMPRESSOR LINE TO WHEELHOUSE | ||
| 690 | A 1009950820 | CLAMP |
| Repalced by: A 1239950320 | ||
| 690 | A 1239950320 | CLAMP |
| 25 MM | ||
| 691 | N 007976004205 | SHEET METAL SCREW |
| N 914031004206 | COMBINATION BOLT | |
| 692 | A 1148350614 | BRACKET |
| 694 | A 1879950037 | CLAMP |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
