Transporto priemonė: 280 CE; VIN numerio dalis: 123053
Grupė: 78 SLIDING ROOF - 030 ELECTRIC SLIDING ROOF
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SLIDING ROOF FRAME | ||
| 005 | A 1237800929 | FRAME |
| WITH DRAFT DEFLECTOR | ||
| 008 | A 1107820071 | SCREW |
| BOTTOM FRAME | ||
| 011 | A 0009871840 | RUBBER BUFFER |
| BOTTOM FRAME | ||
| 013 | A 1237800144 | DRAFT DEFLECTOR |
| Repalced by: A 1267800444 | ||
| 013 | A 1267800444 | DRAFT DEFLECTOR |
| Repalced by: A 1267800644 | ||
| 013 | A 1267800644 | DRAFT DEFLECTOR |
| 014 | A 1237840721 | MOUNTING |
| FRONT LEFT | ||
| 014 | A 1237840821 | MOUNTING |
| FRONT RIGHT | ||
| 017 | A 1237840021 | MOUNTING |
| LATERAL | ||
| 020 | A 1237800038 | LEVER |
| Repalced by: A 2017800138 | ||
| 020 | A 2017800138 | LEVER |
| LEFT | ||
| 020 | A 2017800238 | LEVER |
| RIGHT | ||
| 023 | A 1237840135 | SPRING |
| Repalced by: A 1247820535 | ||
| 023 | A 1247820535 | SPRING |
| LEFT | ||
| 023 | A 1237840235 | SPRING |
| Repalced by: A 1247820635 | ||
| 023 | A 1247820635 | SPRING |
| RIGHT | ||
| 024 | A 1247820046 | STAY |
| 026 | A 1237840521 | MOUNTING |
| CENTRAL | ||
| 029 | A 0009833598 | FOAM PLASTICS |
| REAR INSULATION | ||
| 976X231 MM | ||
| 029 | A 0009833598 | FOAM PLASTICS |
| REAR INSULATION | ||
| 976X177 MM | ||
| 029 | A 0009833598 | FOAM PLASTICS |
| LATERAL INSULATION | ||
| 510X85 MM | ||
| 035 | A 1237820498 | SEAL |
| BOTTOM FRAME | ||
| 038 | A 1236820397 | PAD |
| Repalced by: A 1236821197 | ||
| 038 | A 1236821197 | PAD |
| BOTTOM FRAME,CENTRAL REAR | ||
| 041 | A 1237820598 | SEAL |
| BETWEEN TOP AND BOTTOM FRAMES | ||
| 042 | A 0009940645 | LOCK |
| TUBE TO BOTTOM FRAME,REAR | ||
| 044 | A 1159880278 | CLIP |
| 047 | A 1237820124 | RAIL |
| LEFT | ||
| 047 | A 1237820224 | RAIL |
| RIGHT | ||
| 050 | A 1237820338 | STOP |
| LEFT | ||
| 050 | A 1237820438 | STOP |
| RIGHT | ||
| 053 | N 000661003013 | RIVET |
| 056 | A 1087820198 | SEAL |
| LATERAL LEFT AND RIGHT | ||
| "515 MM" | ||
| 059 | A 0009901136 | SCREW |
| MOUNTING RAIL TO REINFORCEMENT FRAME | ||
| 061 | A 1157840497 | PAD |
| BETWEEN REINFORCEMENT FRAME AND ROOF PANELLING | ||
| 062 | N 914128006200 | SHEET METAL SCREW |
| FRAME TO REINFORCEMENT FRAME | ||
| 065 | A 0009943845 | LOCK |
| FRAME TO REINFORCEMENT FRAME | ||
| 068 | N 914126006001 | SCREW |
| Repalced by: N 910105006002 | ||
| 068 | N 910105006002 | SCREW |
| BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS | ||
| 071 | A 0009909491 | NUT RETAINER |
| BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS | ||
| 074 | A 1237820113 | COVER RAIL |
| BOTTOM FRAME,FRONT | ||
| 074 | A 1237820313 | COVER RAIL |
| BOTTOM FRAME,FRONT | ||
| 077 | N 007983002203 | SHEET METAL SCREW |
| COVER RAIL TO BOTTOM FRAME,FRONT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

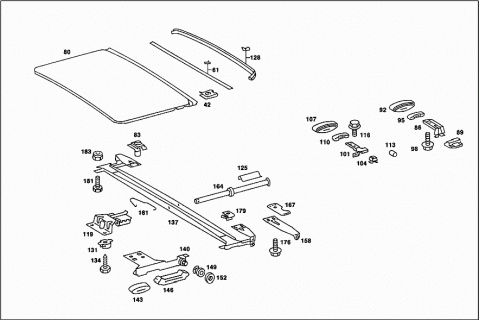

| SLIDING ROOF PLATE | ||
| 080 | A 1237800421 | SLIDING ROOF PLATE |
| Repalced by: A 1237801421 | ||
| 080 | A 1237801421 | SLIDING ROOF PLATE |
| 083 | A 0009905133 | SCREW |
| 086 | A 1237820512 | ANGLE |
| Repalced by: A 1237820712 | ||
| 086 | A 1237820712 | ANGLE |
| FRONT LEFT | ||
| 086 | A 1237821112 | ANGLE |
| FRONT LEFT | ||
| 086 | A 1237820612 | ANGLE |
| Repalced by: A 1237820812 | ||
| 086 | A 1237820812 | ANGLE |
| FRONT RIGHT | ||
| 086 | A 1237821212 | ANGLE |
| FRONT RIGHT | ||
| 089 | A 1237820130 | SLIDING JAW |
| Repalced by: A 1237820530 | ||
| 089 | A 1237820530 | SLIDING JAW |
| LEFT | ||
| 089 | A 1237820630 | SLIDING JAW |
| RIGHT | ||
| 092 | A 1157800083 | SLIDING JAW |
| 095 | A 1237820330 | SLIDING JAW |
| 098 | A 0049908601 | SCREW |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| 101 | A 1237820312 | ANGLE |
| Repalced by: A 1237820912 | ||
| 101 | A 1237820912 | ANGLE |
| REAR LEFT | ||
| 101 | A 1237820412 | ANGLE |
| Repalced by: A 1237821012 | ||
| 101 | A 1237821012 | ANGLE |
| REAR RIGHT | ||
| 104 | A 1079900291 | NUT RETAINER |
| 107 | A 1157800083 | SLIDING JAW |
| 110 | A 1237820330 | SLIDING JAW |
| 113 | A 0079973581 | GROMMET |
| 116 | A 0049908601 | SCREW |
| SLIDING ANGLE TO SLIDING ROOF PLATE | ||
| 119 | A 1237800211 | PLATE |
| 122 | A 1237820728 | SLIDE |
| Repalced by: A 1237820328 | ||
| 122 | A 1237820328 | SLIDE |
| DRAFT DEFLECTOR | ||
| 125 | A 0009833092 | FELT |
| 60X20X2 MM | ||
| 128 | A 1237820398 | SEAL |
| SLIDING ROOF PLATE,REAR | ||
| A 0009899271 | CLEANER | |
| 131 | A 0009945545 | LOCK |
| GUIDE PLATE TO SLIDING ROOF PLATE | ||
| 134 | N 007976004205 | SHEET METAL SCREW |
| GUIDE PLATE TO SLIDING ROOF PLATE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSPORT BRIDGE TO SLIDING ROOF PLATE | ||
| 137 | A 1237800335 | BRIDGE |
| 140 | A 1157800712 | ANGLE |
| LEFT | ||
| 140 | A 1157800812 | ANGLE |
| RIGHT | ||
| 143 | A 1157800083 | SLIDING JAW |
| 146 | A 1087800183 | SLIDING JAW |
| 149 | A 1157820020 | MOUNTING |
| 152 | A 1157820132 | ROLLER |
| LIFTING ANGLE | ||
| 158 | A 1157801512 | ANGLE |
| 161 | A 1157820135 | SPRING |
| 164 | A 1237800277 | TUBE |
| 167 | A 1157820597 | PAD |
| HEIGHT ADJUSTMENT,LEFT | ||
| 167 | A 1157820697 | PAD |
| HEIGHT ADJUSTMENT,RIGHT | ||
| 176 | A 0049908601 | SCREW |
| HEIGHT ADJUSTMENT ANGLE TO SLIDING ROOF PLATE | ||
| 179 | A 0009909191 | NUT RETAINER |
| HEIGHT ADJUSTMENT ANGLE TO SLIDING ROOF PLATE | ||
| 181 | A 0009905133 | SCREW |
| TRANSPORT BRIDGE TO SLIDING ROOF PLATE | ||
| 183 | N 913017005000 | NUT |
| TRANSPORT BRIDGE TO SLIDING ROOF PLATE | ||
| 185 | A 1089900222 | SCREW |
| 188 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 188 | N 000433005304 | WASHER |
| 192 | N 912004005100 | LOCK WASHER |
| 195 | A 2017820526 | SLIDING RAIL |
| LEFT | ||
| 195 | A 2017820626 | SLIDING RAIL |
| RIGHT | ||
| 198 | N 000965004024 | SCREW |
| SLIDING RAIL TO BOTTOM FRAME | ||
| 201 | A 1089900036 | SCREW |
| Repalced by: A 1409900436 | ||
| 201 | A 1409900436 | SCREW |
| SLIDING RAIL TO BOTTOM FRAME | ||
| 204 | A 1107821326 | SLIDING RAIL |
| LEFT | ||
| 204 | A 1107821426 | SLIDING RAIL |
| RIGHT | ||
| 207 | A 1237800577 | TUBE |
| SLIDING ROOF | ||
| 207 | A 1237800877 | TUBE |
| SLIDING ROOF | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CABLE | ||
| 210 | A 1237800789 | CABLE |
| 210 | A 1237801089 | CABLE |
| SLIDING ROOF | ||
| 213 | A 1237820214 | BRACKET |
| TUBE TO REAR ROOF RAIL | ||
| 216 | N 007976004205 | SHEET METAL SCREW |
| TUBE TO REAR ROOF RAIL | ||
| 219 | A 1116370068 | CLAMP |
| TUBE TO REAR PILLAR | ||
| 222 | N 007976004205 | SHEET METAL SCREW |
| TUBE TO REAR PILLAR | ||
| 222 | N 007976004205 | SHEET METAL SCREW |
| TUBE TO REINFORCEMENT FRAME | ||
| 228 | A 0029881578 | CLIP |
| PULL TO SLIDING ROOF PLATE,FRONT | ||
| 231 | A 1237820217 | TUBE |
| IN LUGGAGE COMPARTMENT | ||
| 231 | A 1237820817 | TUBE |
| IN LUGGAGE COMPARTMENT | ||
| 234 | A 0009881878 | CLIP |
| 237 | A 1247820091 | INSULATION |
| OUTLET PIPE | ||
| 150 MM | ||
| 240 | A 0039976382 | HOSE |
| WATER DRAIN REAR WINDOW, RIGHT | ||
| 990 MM | ||
| 240 | A 0039976382 | HOSE |
| REAR | ||
| "250 MM" | ||
