Transporto priemonė: 280 C; VIN numerio dalis: 114073

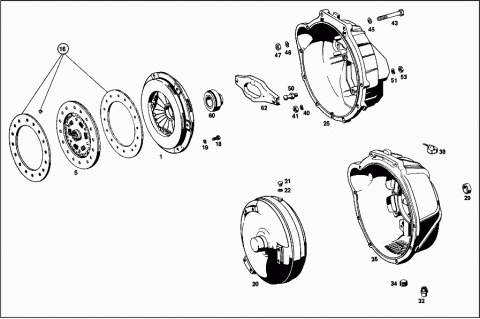

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0012504104 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0012504204 | ||
| 001 | A 0012504204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0042502304 | ||
| A 0042502304 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0042501904 | ||
| A 0042501904 | CLUTCH PRESSURE PLATE | |
| 005 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 005 | A 0102502603 | CLUTCH DISC |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002527110 | CLUTCH LINING | |
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002526210 | CLUTCH LINING | |
| A 0002522275 | RIVET | |
| A 1085860025 | REPAIR KIT | |
| A 1085860025 | REPAIR KIT | |
| 016 | A 1145860025 | REPAIR KIT |
| 016 | A 1145860025 | REPAIR KIT |
| 016 | A 1145860025 | REPAIR KIT |
| 018 | N 000912008012 | SCREW |
| 019 | N 912004008102 | LOCK WASHER |
| 020 | A 1152501202 | HYDRAULIC CLUTCH |
| 020 | A 1152501202 | HYDRAULIC CLUTCH |
| 021 | N 000908010004 | SCREW PLUG |
| Repalced by: N 000000000648 | ||
| 021 | N 000000000648 | SCREW PLUG |
| 021 | N 000000000648 | SCREW PLUG |
| 022 | N 007603010100 | SEAL RING |
| 022 | N 007603010100 | SEAL RING |
| 025 | A 1152512601 | BELL HOUSING |
| 026 | A 1152501905 | HOUSING |
| 026 | A 1152501905 | HOUSING |
| 029 | A 1092570150 | BUSHING |
| 029 | A 1092570150 | BUSHING |
| 030 | A 1152500357 | BREATHER |
| Repalced by: A 1152500066 | ||
| 030 | A 1152500066 | OIL PIPE |
| 030 | A 1152500066 | OIL PIPE |
| 032 | A 1152571057 | SCREW COLLAR |
| 032 | A 1152571057 | SCREW COLLAR |
| A 1159970001 | PLUG | |
| Repalced by: N 915048022000 | ||
| 034 | N 000908022010 | SCREW PLUG |
| 034 | N 000908022010 | SCREW PLUG |
| N 000908022010 | SCREW PLUG | |
| N 000908022010 | SCREW PLUG | |
| 040 | N 000137010201 | SPRING WASHER |
| 041 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 041 | N 304032010002 | NUT |
| 043 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 043 | N 304017010050 | SCREW |
| 045 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 045 | N 000125010532 | WASHER |
| 046 | N 000137010201 | SPRING WASHER |
| 047 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 047 | N 304032010002 | NUT |
| 050 | A 1159910115 | BALL PIVOT |
| 051 | N 000137010201 | SPRING WASHER |
| 053 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 053 | N 304035010001 | NUT |
| 060 | A 0002505515 | RELEASE BEARING |
| 060 | A 0002506815 | RELEASE BEARING |
| 062 | A 1152900029 | RELEASE YOKE |
