Transporto priemonė: 280 C; VIN numerio dalis: 114073

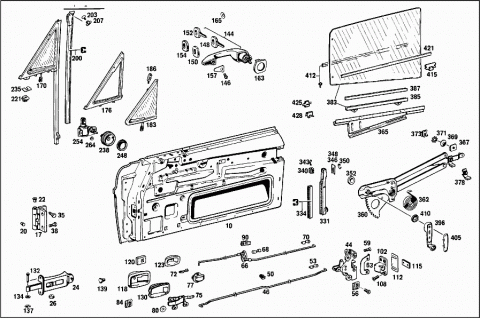

Grupė: 72 FRONT DOORS - 001 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1147200105 | DOOR SHELL | |
| Repalced by: A 1147200305 | ||
| A 1147200305 | DOOR SHELL | |
| LEFT | ||
| A 1147200205 | DOOR SHELL | |
| Repalced by: A 1147200405 | ||
| 010 | A 1147200405 | DOOR SHELL |
| RIGHT | ||
| A 1145860072 | REPAIR KIT | |
| Repalced by: A 1237200014 | ||
| A 1237200014 | BRACKET | |
| Repalced by: A 1147201114 | ||
| A 1147201114 | REPAIR KIT | |
| CONVERSION OF FRONT DOOR | ||
| A 1157200137 | HINGE | |
| Repalced by: A 1157200537 | ||
| A 1157200137 | HINGE | |
| A 1157200537 | HINGE | |
| A 1157200237 | HINGE | |
| Repalced by: A 1157200637 | ||
| A 1157200237 | HINGE | |
| 017 | A 1157200637 | HINGE |
| Repalced by: A 1157200537 | ||
| 017 | A 1157200537 | HINGE |
| RIGHT | ||
| A 1157230015 | HINGE PIN | |
| 020 | A 0009970488 | GREASE NIPPLE |
| 022 | A 1087330017 | BUSHING |
| 024 | A 1087200016 | DOOR CHECK |
| 026 | A 0009840758 | ROLLER |
| Repalced by: A 3147230068 | ||
| 026 | A 3147230068 | ROLLER |
| N 000933006102 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 006797006145 | TOOTHED WASHER | |
| A 1089900122 | SCREW | |
| A 1089900122 | SCREW | |
| N 914004008008 | COMBINATION BOLT | |
| Repalced by: A 1239900317 | ||
| 035 | A 1239900317 | SCREW |
| 035 | A 1239900317 | SCREW |
| 035 | A 1239900317 | SCREW |
| 038 | A 0009900517 | SCREW |
| Repalced by: A 1239900217 | ||
| 038 | A 1239900217 | SCREW |
| A 1157200135 | LOCK | |
| LEFT,WITH INTERIOR LOCKING MECHANISM | ||
| A 1157200235 | LOCK | |
| LESS INTERIOR LOCKING MECHANISM, RIGHT | ||
| A 1157200335 | LOCK | |
| LEFT,LESS INTERIOR LOCKING MECHANISM | ||
| 044 | A 1157200435 | LOCK |
| RIGHT,LESS INTERIOR LOCKING MECHANISM | ||
| 046 | A 1157230069 | PULL ROD |
| 046 | A 1157230069 | PULL ROD |
| LEFT | ||
| A 1157230169 | PULL ROD | |
| RIGHT | ||
| 050 | A 0029888378 | CLIP |
| Repalced by: A 0069886378 | ||
| 050 | A 0069886378 | CLIP |
| 050 | A 0069886378 | CLIP |
| 050 | A 0069886378 | CLIP |
| 053 | A 1009940160 | LOCK |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 056 | A 0009907191 | NUT RETAINER |
| 059 | A 0009903631 | SCREW |
| Repalced by: A 1409843029 | ||
| 059 | A 1409843029 | SCREW |
| A 0009903330 | SCREW | |
| A 1087230124 | EDGING | |
| LEFT | ||
| 063 | A 1087230224 | EDGING |
| RIGHT | ||
| N 000966004005 | SCREW | |
| A 1157200193 | DOOR LOCKING DEVICE | |
| LEFT | ||
| 066 | A 1157200293 | DOOR LOCKING DEVICE |
| RIGHT | ||
| 068 | A 1009940160 | LOCK |
| 070 | A 1009940160 | LOCK |
| 072 | A 1139940160 | LOCK |
| A 1087600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT | ||
| 075 | A 1087600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT | ||
| 077 | A 1137200693 | DOOR LOCKING DEVICE |
| N 007985006132 | SCREW | |
| 080 | A 0009940510 | LOCK |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009903391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 084 | A 0009907191 | NUT RETAINER |
| N 007981003246 | SHEET METAL SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| 090 | A 0009903991 | NUT RETAINER |
| A 1157200104 | LOCKING EYE | |
| Repalced by: A 1157200504 | ||
| A 1157200104 | LOCKING EYE | |
| A 1157200104 | LOCKING EYE | |
| A 1157200104 | LOCKING EYE | |
| A 1157200204 | LOCKING EYE | |
| Repalced by: A 1157200604 | ||
| A 1157200204 | LOCKING EYE | |
| A 1157200204 | LOCKING EYE | |
| A 1157200204 | LOCKING EYE | |
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| A 1157200504 | LOCKING EYE | |
| LEFT | ||
| 102 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 102 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 102 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 102 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 102 | A 1157200604 | LOCKING EYE |
| RIGHT | ||
| 108 | A 0009903330 | SCREW |
| A 1157230211 | PLATE | |
| Repalced by: A 1157230511 | ||
| A 1157230311 | PLATE | |
| Repalced by: A 1157230611 | ||
| 112 | A 1157230511 | PLATE |
| A 1157230611 | PLATE | |
| 115 | A 1156370011 | PLATE |
| A 1087660511 | ESCUTCHEON | |
| LEFT | ||
| 118 | A 1087660611 | ESCUTCHEON |
| RIGHT | ||
| 120 | A 1157660098 | SEAL |
| 120 | A 1157660098 | SEAL |
| 120 | A 1157660098 | SEAL |
| 123 | A 1137660011 | ESCUTCHEON |
| N 007987004119 | SCREW | |
| N 007987003107 | SCREW | |
| N 006797004333 | TOOTHED WASHER | |
| A 1087660390 | INSERT | |
| LEFT | ||
| 130 | A 1087660490 | INSERT |
| RIGHT | ||
| 132 | A 1089910007 | PIN |
| 134 | A 1089900140 | WASHER |
| A 1089900240 | WASHER | |
| 137 | N 912001006002 | LOCK |
| 139 | A 1159870740 | RUBBER BUFFER |
| 139 | A 1159870740 | RUBBER BUFFER |
| A 1157601559 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1157601659 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1157600359 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| 144 | A 1157600459 | DOOR HANDLE |
| LESS KEY,RIGHT | ||
| 146 | A 1207660015 | PIN |
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| 148 | A 0007600406 | KEY |
| MASTER KEY | ||
| HUF | ||
| A 0007665106 | KEY | |
| BLANK (MASTER KEY) | ||
| HUF | ||
| 150 | A 0007664406 | KEY HEAD |
| MASTER KEY | ||
| A 0007663606 | KEY | |
| Repalced by: A 0007600506 | ||
| 152 | A 0007600506 | KEY |
| SECONDARY KEY | ||
| HUF | ||
| A 0007665206 | KEY | |
| BLANK (SECONDARY KEY) | ||
| HUF | ||
| 154 | A 0007664506 | KEY HEAD |
| SECONDARY KEY | ||
| A 1157660105 | PAD | |
| Repalced by: A 1157660205 | ||
| 157 | A 1157660205 | PAD |
| RIGHT | ||
| A 1157660505 | PAD | |
| Repalced by: A 1157660305 | ||
| A 1157660305 | PAD | |
| LEFT | ||
| 163 | A 1157660605 | PAD |
| Repalced by: A 1157660405 | ||
| 163 | A 1157660405 | PAD |
| RIGHT | ||
| 165 | A 1119930026 | DISC SPRING |
| N 007985006149 | SCREW | |
| Repalced by: N 007985006580 | ||
| N 007985006580 | SCREW | |
| A 1157200355 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1157200355 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1157200355 | VENTILATOR WINDOW | |
| LEFT | ||
| 170 | A 1157200455 | VENTILATOR WINDOW |
| RIGHT | ||
| 170 | A 1157200455 | VENTILATOR WINDOW |
| RIGHT | ||
| 170 | A 1157200455 | VENTILATOR WINDOW |
| RIGHT | ||
| A 1157250324 | SEAL | |
| LEFT | ||
| A 1157250324 | SEAL | |
| LEFT | ||
| A 1157250324 | SEAL | |
| LEFT | ||
| 176 | A 1157250424 | SEAL |
| RIGHT | ||
| 176 | A 1157250424 | SEAL |
| RIGHT | ||
| 176 | A 1157250424 | SEAL |
| RIGHT | ||
| A 1157200755 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1157200755 | VENTILATOR WINDOW | |
| LEFT | ||
| A 1157200755 | VENTILATOR WINDOW | |
| LEFT | ||
| 183 | A 1157200855 | VENTILATOR WINDOW |
| RIGHT | ||
| 183 | A 1157200855 | VENTILATOR WINDOW |
| RIGHT | ||
| 183 | A 1157200855 | VENTILATOR WINDOW |
| RIGHT | ||
| 186 | A 1157201327 | MOUNTING |
| N 000091005106 | SCREW | |
| A 1157200117 | WINDOW RUN | |
| Repalced by: A 1157200317 | ||
| A 0009852930 | SEALING SECTION | |
| Repalced by: A 1157200317 | ||
| A 1157250525 | WINDOW RUN | |
| Repalced by: A 1157200317 | ||
| A 1157250525 | WINDOW RUN | |
| A 1157200317 | WINDOW RUN | |
| A 1157200317 | WINDOW RUN | |
| A 1157200317 | WINDOW RUN | |
| A 1157200217 | WINDOW RUN | |
| Repalced by: A 1157200417 | ||
| A 1157250615 | PIN | |
| Repalced by: A 1157200417 | ||
| A 1157250615 | PIN | |
| 200 | A 1157200417 | WINDOW RUN |
| 200 | A 1157200417 | WINDOW RUN |
| 200 | A 1157200417 | WINDOW RUN |
| 203 | A 0009887381 | FASTENER BUTTON |
| 203 | A 0009887381 | FASTENER BUTTON |
| 203 | A 0009887381 | FASTENER BUTTON |
| 203 | A 0009887381 | FASTENER BUTTON |
| 207 | A 0009887481 | FASTENER BUTTON |
| 207 | A 0009887481 | FASTENER BUTTON |
| 207 | A 0009887481 | FASTENER BUTTON |
| 207 | A 0009887481 | FASTENER BUTTON |
| N 000933006102 | SCREW | |
| N 000933006102 | SCREW | |
| N 000933006102 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 009021006208 | WASHER | |
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 221 | A 0009907191 | NUT RETAINER |
| 221 | A 0009907191 | NUT RETAINER |
| 221 | A 0009907191 | NUT RETAINER |
| N 000933006147 | SCREW | |
| N 000933006147 | SCREW | |
| N 000933006147 | SCREW | |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| N 000440006162 | WASHER | |
| N 000440006162 | WASHER | |
| N 000440006162 | WASHER | |
| 235 | A 1007250247 | ADAPTER |
| 235 | A 1007250247 | ADAPTER |
| 235 | A 1007250247 | ADAPTER |
| 238 | A 1117605266 | KNOB |
| 238 | A 1117605266 | KNOB |
| 238 | A 1117605266 | KNOB |
| N 007985004129 | SCREW | |
| N 007985004129 | SCREW | |
| N 007985004129 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| N 000137004202 | SPRING WASHER | |
| N 000137004202 | SPRING WASHER | |
| 248 | A 1107600567 | CAP |
| 248 | A 1107600567 | CAP |
| 248 | A 1107600567 | CAP |
| A 1157200366 | FASTENER | |
| LEFT | ||
| A 1157200366 | FASTENER | |
| LEFT | ||
| A 1157200366 | FASTENER | |
| LEFT | ||
| 254 | A 1157200466 | FASTENER |
| RIGHT | ||
| 254 | A 1157200466 | FASTENER |
| RIGHT | ||
| 254 | A 1157200466 | FASTENER |
| RIGHT | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 304017006018 | SCREW | |
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| 264 | A 0009940510 | LOCK |
| 264 | A 0009940510 | LOCK |
| 264 | A 0009940510 | LOCK |
| N 000933006130 | SCREW | |
| N 000933006130 | SCREW | |
| N 000933006130 | SCREW | |
| A 1147200314 | BRACKET | |
| (RETAINING FRAME);WITH FIXED WINDOW; LEFT | ||
| A 1147200314 | BRACKET | |
| (RETAINING FRAME);WITH FIXED WINDOW; LEFT | ||
| A 1147200414 | BRACKET | |
| (RETAINING FRAME);WITH FIXED WINDOW; RIGHT | ||
| A 1147200414 | BRACKET | |
| (RETAINING FRAME);WITH FIXED WINDOW; RIGHT | ||
| A 1147200514 | BRACKET | |
| (RETAINING FRAME);WITH FIXED WINDOW; LEFT | ||
| A 1147200514 | BRACKET | |
| (RETAINING FRAME);WITH FIXED WINDOW; LEFT | ||
| 276 | A 1147200614 | BRACKET |
| (RETAINING FRAME);WITH FIXED WINDOW; RIGHT | ||

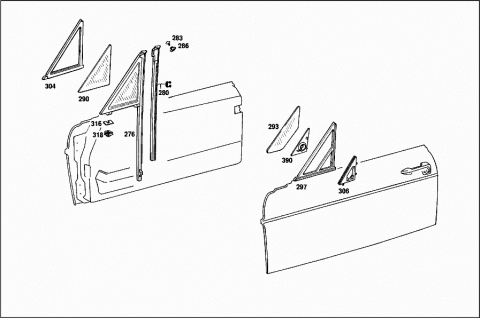

| 276 | A 1147200614 | BRACKET |
| (RETAINING FRAME);WITH FIXED WINDOW; RIGHT | ||
| A 1157200317 | WINDOW RUN | |
| LEFT | ||
| A 1157200317 | WINDOW RUN | |
| LEFT | ||
| 280 | A 1157200417 | WINDOW RUN |
| RIGHT | ||
| 280 | A 1157200417 | WINDOW RUN |
| RIGHT | ||
| 283 | A 0009887381 | FASTENER BUTTON |
| 283 | A 0009887381 | FASTENER BUTTON |
| 286 | A 0009887481 | FASTENER BUTTON |
| 286 | A 0009887481 | FASTENER BUTTON |
| A 1147250109 | GLASS PANE | |
| LEFT | ||
| A 1147250109 | GLASS PANE | |
| LEFT | ||
| 290 | A 1147250209 | GLASS PANE |
| RIGHT | ||
| 290 | A 1147250209 | GLASS PANE |
| RIGHT | ||
| 293 | A 1147250509 | GLASS PANE |
| LEFT | ||
| 293 | A 1147250509 | GLASS PANE |
| LEFT | ||
| A 1147250609 | GLASS PANE | |
| RIGHT | ||
| A 1147250609 | GLASS PANE | |
| RIGHT | ||
| 297 | A 1147250124 | SEAL |
| LEFT | ||
| 297 | A 1147250124 | SEAL |
| LEFT | ||
| A 1147250224 | SEAL | |
| RIGHT | ||
| A 1147250224 | SEAL | |
| RIGHT | ||
| A 1147250324 | SEAL | |
| LEFT | ||
| A 1147250324 | SEAL | |
| LEFT | ||
| 304 | A 1147250424 | SEAL |
| RIGHT | ||
| 304 | A 1147250424 | SEAL |
| RIGHT | ||
| 306 | A 1147250141 | BRACKET |
| LEFT | ||
| 306 | A 1147250141 | BRACKET |
| LEFT | ||
| A 1147250241 | BRACKET | |
| RIGHT | ||
| A 1147250241 | BRACKET | |
| RIGHT | ||
| N 000966005017 | SCREW | |
| N 000966005017 | SCREW | |
| N 000933006102 | SCREW | |
| N 000933006102 | SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 009021006208 | WASHER | |
| 316 | A 1007250247 | ADAPTER |
| 1 MM | ||
| 316 | A 1007250247 | ADAPTER |
| 1 MM | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 318 | A 0009907191 | NUT RETAINER |
| 318 | A 0009907191 | NUT RETAINER |
| N 000933006147 | SCREW | |
| N 000933006147 | SCREW | |
| N 000934006007 | NUT | |
| N 000934006007 | NUT | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000440006162 | WASHER | |
| N 000440006162 | WASHER | |

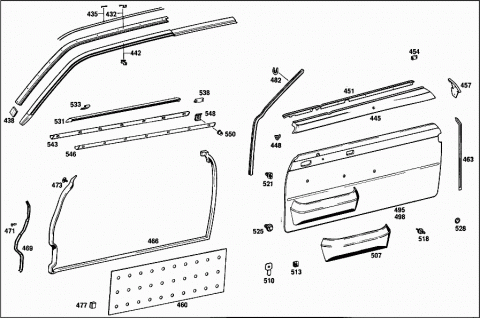

| A 1157200315 | GUIDE RAIL | |
| Repalced by: A 0009852930 | ||
| A 0009852930 | SEALING SECTION | |
| LEFT | ||
| 331 | A 1157200415 | GUIDE RAIL |
| Repalced by: A 0009852930 | ||
| 331 | A 0009852930 | SEALING SECTION |
| RIGHT | ||
| A 0009852930 | SEALING SECTION | |
| Repalced by: A 1157250025 | ||
| 334 | A 0009854830 | SEALING SECTION |
| Repalced by: A 1157250025 | ||
| A 1157250025 | WINDOW RUN | |
| Repalced by: A 1157250925 | ||
| A 1157250925 | WINDOW RUN | |
| ORDER BY THE METER,2275 MM | ||
| A 1157250032 | GUIDE JAW | |
| Repalced by: A 1157250132 | ||
| A 1157250132 | GUIDE JAW | |
| A 1157250132 | GUIDE JAW | |
| 340 | A 1157250232 | GUIDE JAW |
| 340 | A 1157250232 | GUIDE JAW |
| 340 | A 1157250232 | GUIDE JAW |
| 343 | A 1157250064 | SPRING |
| 343 | A 1157250064 | SPRING |
| 343 | A 1157250064 | SPRING |
| 346 | A 1159840756 | WASHER |
| 1 MM | ||
| 348 | A 1007250247 | ADAPTER |
| N 000912006002 | SCREW | |
| 350 | A 1119930026 | DISC SPRING |
| 352 | A 1159870044 | EXPANSION PLUG |
| A 1157250302 | WINDOW REGULATOR | |
| Repalced by: A 1157250702 | ||
| A 1157250302 | WINDOW REGULATOR | |
| A 1157250702 | WINDOW REGULATOR | |
| LEFT | ||
| A 1157250402 | WINDOW REGULATOR | |
| Repalced by: A 1157250802 | ||
| A 1157250402 | WINDOW REGULATOR | |
| 360 | A 1157250802 | WINDOW REGULATOR |
| RIGHT | ||
| 362 | A 0007680705 | SPRING |
| A 1157200345 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 365 | A 1157200445 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| 367 | A 1139840037 | SLIDE |
| Repalced by: A 1155860072 | ||
| 367 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 367 | A 1237200114 | REPAIR KIT |
| 369 | A 0009842456 | WASHER |
| 371 | A 0009900548 | WASHER |
| 373 | N 912002010001 | LOCK |
| A 1155860072 | REPAIR KIT | |
| Repalced by: A 1237200114 | ||
| A 1237200114 | REPAIR KIT | |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| 378 | A 1147200023 | ANGLE |
| 378 | A 1147200023 | ANGLE |
| A 1157250310 | GLASS PANE | |
| Repalced by: A 1157201718 | ||
| A 1157201718 | CRANK OPERATED WINDOW | |
| LEFT | ||
| A 1157250410 | GLASS PANE | |
| Repalced by: A 1157201818 | ||
| 383 | A 1157201818 | CRANK OPERATED WINDOW |
| RIGHT | ||
| 385 | A 1157200047 | RETAINING RAIL |
| 387 | A 0019874257 | RUBBER MOULDING |
| ORDER BY THE METER 440 MM | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| 390 | A 1147250111 | PLATE |
| LEFT | ||
| 390 | A 1147250111 | PLATE |
| LEFT | ||
| A 1147250211 | PLATE | |
| RIGHT | ||
| A 1147250211 | PLATE | |
| RIGHT | ||
| A 1087600102 | CRANK | |
| Repalced by: A 1237600102 | ||
| A 1087600202 | CRANK | |
| Repalced by: A 1237600102 | ||
| 396 | A 1237600102 | CRANK |
| N 007987004135 | SCREW | |
| N 007987004135 | SCREW | |
| N 006797004333 | TOOTHED WASHER | |
| N 006797004333 | TOOTHED WASHER | |
| A 1107680195 | PAD | |
| Repalced by: A 1087680095 | ||
| 405 | A 1087680095 | PAD |
| Repalced by: A 1237600020 | ||
| 405 | A 1237600020 | COVERING |
| Repalced by: A 1237600120 | ||
| 405 | A 1237600120 | COVERING |
| A 1107680013 | WASHER | |
| Repalced by: A 1087680113 | ||
| 410 | A 1087680113 | WASHER |
| A 1217250166 | SEAL | |
| Repalced by: A 1157250965 | ||
| 412 | A 1157250965 | SEALING RAIL |
| OUTSIDE | ||
| 2200 MM | ||
| A 0019881778 | CLIP | |
| A 0019881778 | CLIP | |
| 415 | A 1159880078 | CLIP |
| 415 | A 1159880078 | CLIP |
| 415 | A 1159880078 | CLIP |
| A 1157250465 | SEALING RAIL | |
| Repalced by: A 1157250565 | ||
| A 1157250465 | SEALING RAIL | |
| A 1157250465 | SEALING RAIL | |
| Repalced by: A 1157250665 | ||
| A 1157250465 | SEALING RAIL | |
| A 1157250565 | SEALING RAIL | |
| Repalced by: A 1077250065 | ||
| 421 | A 1157250665 | SEALING RAIL |
| Repalced by: A 1077250065 | ||
| 421 | A 1077250065 | SEALING RAIL |
| Repalced by: A 1237250265 | ||
| 421 | A 1237250265 | SEALING RAIL |
| INSIDE LEFT AND RIGHT | ||
| A 0029889178 | CLIP | |
| A 0029889178 | CLIP | |
| 425 | A 0029889878 | CLIP |
| 425 | A 0029889878 | CLIP |
| 425 | A 0029889878 | CLIP |
| 428 | A 0039880778 | CLIP |
| 428 | A 0039880778 | CLIP |
| 428 | A 0039880778 | CLIP |
| A 1157250165 | SEALING RAIL | |
| Repalced by: A 1157251165 | ||
| A 1157251165 | SEALING RAIL | |
| LEFT | ||
| 432 | A 1157250265 | SEALING RAIL |
| Repalced by: A 1157251265 | ||
| A 1157251265 | SEALING RAIL | |
| RIGHT | ||
| A 0019874251 | RUBBER SEAL | |
| Repalced by: A 1157250397 | ||
| 435 | A 1157250397 | PAD |
| 1500 MM | ||
| A 0009873560 | RUBBER PAD | |
| Repalced by: A 0009875460 | ||
| A 0009875460 | RUBBER PAD | |
| 1500 MM | ||
| N 007982003228 | SHEET METAL SCREW | |
| Repalced by: N 007982003203 | ||
| N 007982003203 | SHEET METAL SCREW | |
| Repalced by: N 007982003238 | ||
| N 007982003238 | SHEET METAL SCREW | |
| 438 | A 1157280280 | SEAL |
| 438 | A 1157280280 | SEAL |
| 438 | A 1157280280 | SEAL |
| A 1157200154 | SEAL | |
| LEFT | ||
| 442 | A 1157200254 | SEAL |
| RIGHT | ||
| A 1157200351 | PANELLING | |
| LEFT | ||
| 445 | A 1157200451 | PANELLING |
| RIGHT | ||
| A 0019883178 | CLIP | |
| Repalced by: A 0029884578 | ||
| 448 | A 0029884578 | CLIP |
| A 1157250182 | GARNISH MOULDING | |
| LEFT | ||
| 451 | A 1157250282 | GARNISH MOULDING |
| RIGHT | ||
| 454 | A 0019887678 | CLIP |
| A 1157250130 | COVERING | |
| LEFT | ||
| 457 | A 1157250230 | COVERING |
| RIGHT | ||
| A 0009897085 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| N 007983002203 | SHEET METAL SCREW | |
| 460 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 460 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 460 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 460 | A 2106820008 | INSULATION |
| Repalced by: A 1686820308 | ||
| 460 | A 1686820308 | INSULATION |
| A 1157270331 | SEAL | |
| LEFT | ||
| 463 | A 1157270431 | SEAL |
| RIGHT | ||
| A 1157200578 | WEATHERSTRIP | |
| LEFT | ||
| 466 | A 1157200678 | WEATHERSTRIP |
| RIGHT | ||
| A 1157270136 | RAIL | |
| LEFT | ||
| 469 | A 1157270236 | RAIL |
| RIGHT | ||
| 471 | A 0009871015 | PLUG |
| 473 | A 0009971386 | PLUG |
| 473 | A 0009971386 | PLUG |
| 473 | A 0009971386 | PLUG |
| 477 | A 0009831298 | FOAM PLASTICS |
| ORDER BY THE METER,20X30 MM | ||
| A 1157200397 | EDGE GUARD SECTION | |
| Repalced by: A 1157201197 | ||
| A 1157201197 | EDGE GUARD SECTION | |
| LEFT | ||
| A 1157200497 | EDGE GUARD SECTION | |
| Repalced by: A 1157201297 | ||
| 482 | A 1157201297 | EDGE GUARD SECTION |
| Repalced by: A 1157201197 | ||
| 482 | A 1157201197 | EDGE GUARD SECTION |
| RIGHT | ||
| A 1157200970 | PANELLING | |
| LEFT | ||
| A 1157200970 | PANELLING | |
| LEFT | ||
| A 1147202570 | PANELLING | |
| LEFT | ||
| A 1147202570 | PANELLING | |
| LEFT | ||
| A 1147203370 | PANELLING | |
| LEFT | ||
| A 1157201170 | PANELLING | |
| LEFT | ||
| A 1157201170 | PANELLING | |
| LEFT | ||
| A 1147202770 | PANELLING | |
| LEFT | ||
| A 1147202770 | PANELLING | |
| LEFT | ||
| A 1147203770 | PANELLING | |
| LEFT | ||
| A 1157201070 | PANELLING | |
| RIGHT | ||
| A 1157201070 | PANELLING | |
| RIGHT | ||
| 495 | A 1147202670 | PANELLING |
| RIGHT | ||
| 495 | A 1147202670 | PANELLING |
| RIGHT | ||
| 498 | A 1147203470 | PANELLING |
| RIGHT | ||
| A 1157201270 | PANELLING | |
| RIGHT | ||
| A 1157201270 | PANELLING | |
| RIGHT | ||
| A 1147202870 | PANELLING | |
| RIGHT | ||
| A 1147202870 | PANELLING | |
| RIGHT | ||
| A 1147203870 | PANELLING | |
| RIGHT | ||
| A 1147200074 | ||
| Repalced by: A 1147200174 | ||
| 507 | A 1147200174 | |
| Repalced by: A 1147270077 | ||
| 507 | A 1147270077 | DOOR POCKET |
| 510 | A 1087270014 | BRACKET |
| POCKET TO DOOR | ||
| 510 | A 1087270014 | BRACKET |
| POCKET TO DOOR | ||
| 513 | A 0009942545 | LOCK |
| POCKET TO DOOR | ||
| A 1129900042 | WASHER | |
| Repalced by: A 3019900042 | ||
| A 3019900042 | WASHER | |
| POCKET TO DOOR | ||
| A 3019900042 | WASHER | |
| POCKET TO DOOR | ||
| N 007983004331 | SHEET METAL SCREW | |
| POCKET TO DOOR | ||
| N 007983004331 | SHEET METAL SCREW | |
| POCKET TO DOOR | ||
| 518 | A 0009900692 | RIVET |
| POCKET TO DOOR | ||
| 518 | A 0009900692 | RIVET |
| POCKET TO DOOR | ||
| 518 | A 0009900692 | RIVET |
| POCKET TO DOOR | ||
| 521 | A 0029884578 | CLIP |
| DOOR PANELLING TO FRONT DOOR | ||
| A 0029885978 | CLIP | |
| Repalced by: A 0039884178 | ||
| 525 | A 0039884178 | CLIP |
| Repalced by: A 0089885778 | ||
| 525 | A 0089885778 | CLIP |
| Repalced by: A 0109886178 | ||
| 525 | A 0109886178 | CLIP |
| DOOR PANELLING TO FRONT DOOR | ||
| N 007982002213 | SHEET METAL SCREW | |
| DOOR PANELLING TO FRONT DOOR | ||
| N 007982002213 | SHEET METAL SCREW | |
| DOOR PANELLING TO FRONT DOOR | ||
| 528 | A 0009850562 | WASHER |
| DOOR PANELLING TO FRONT DOOR | ||
| 528 | A 0009850562 | WASHER |
| DOOR PANELLING TO FRONT DOOR | ||
| A 1157280130 | GARNISH MOULDING | |
| LEFT | ||
| 531 | A 1157280230 | GARNISH MOULDING |
| RIGHT | ||
| 533 | A 1157280097 | PAD |
| A 1159880078 | CLIP | |
| A 1159880078 | CLIP | |
| A 1159880678 | CLIP | |
| Repalced by: A 1159881078 | ||
| 538 | A 1159881078 | CLIP |
| 538 | A 1159881078 | CLIP |
| 538 | A 1159881078 | CLIP |
| A 1157200180 | GARNISH MOULDING | |
| LEFT | ||
| 543 | A 1157200280 | GARNISH MOULDING |
| RIGHT | ||
| A 1157200185 | WELT | |
| LEFT | ||
| 546 | A 1157200285 | WELT |
| RIGHT | ||
| 548 | A 0009886081 | FASTENER BUTTON |
| 550 | A 0009881581 | FASTENER BUTTON |
| Repalced by: A 0019882081 | ||
| 550 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 550 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 550 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 550 | A 0019887681 | FASTENER BUTTON |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
