Transporto priemonė: 280 C; VIN numerio dalis: 114073

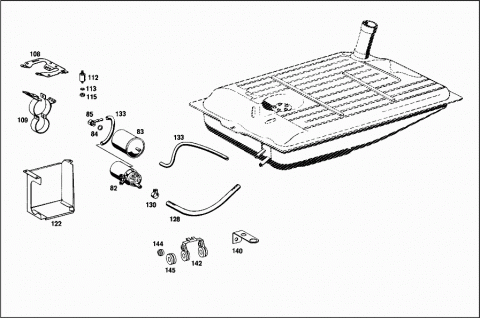

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1144700101 | FUEL TANK |
| A 1144700901 | FUEL TANK | |
| 006 | A 1104710180 | GASKET |
| 007 | N 000137005203 | SPRING WASHER |
| 008 | N 000934005008 | NUT |
| 012 | A 1304710122 | REINFORCEMENT |
| 013 | A 1304710222 | REINFORCEMENT |
| 014 | A 0009873272 | EDGE GUARD SECTION |
| Repalced by: A 0029873572 | ||
| 014 | A 0029873572 | EDGE GUARD SECTION |
| 015 | A 1114761526 | HOSE |
| N 916002018100 | CLAMP | |
| 018 | A 1105421204 | GAUGE SENDER UNIT |
| A 1145420004 | GAUGE SENDER UNIT | |
| 020 | A 1114700686 | FUEL STRAINER |
| 021 | A 1109970145 | SEAL RING |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 023 | A 1149971882 | HOSE |
| 250 MM | ||
| N 916033012100 | CLAMP | |
| A 0019976990 | LOOM TIE | |
| 025 | A 1089900340 | WASHER |
| 027 | N 913002008004 | NUT |
| 030 | A 1109870145 | LOCKING CAP |
| A 1244700005 | FILLER CAP | |
| 032 | A 0004716130 | FILLER CAP |
| MAKE HUF | ||
| A 0004716230 | FILLER CAP | |
| MAKE YMOS | ||
| A 1234710230 | FILLER CAP | |
| 033 | A 1154710079 | SEAL RING |
| A 1144761001 | LINE | |
| FEED, FRONT | ||
| A 1154760101 | LINE | |
| FEED,REAR | ||
| A 1144760701 | LINE | |
| Repalced by: A 1144760301 | ||
| A 1144760301 | LINE | |
| FEED,REAR | ||
| 040 | A 1144762001 | LINE |
| FEED | ||
| A 1144761901 | LINE | |
| FEED | ||
| A 1144761201 | LINE | |
| FEED | ||
| A 1144761401 | LINE | |
| FEED | ||
| 044 | A 1154761601 | LINE |
| RETURN; FRONT | ||
| A 1144761101 | LINE | |
| RETURN; FRONT | ||
| 046 | A 1144760301 | LINE |
| RETURN; REAR | ||
| A 1154761101 | LINE | |
| Repalced by: A 1154760501 | ||
| A 1154760501 | LINE | |
| A 1144761801 | LINE | |
| RETURN | ||
| A 1144761501 | LINE | |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 050 | A 1149971882 | HOSE |
| 050 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE | ||
| 300 MM | ||
| 050 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE | ||
| 300 MM | ||
| 050 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE | ||
| 355 MM | ||
| 050 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE | ||
| 250 MM | ||
| 050 | A 1149971882 | HOSE |
| FOR RETURN LINE | ||
| 160 MM | ||
| A 0019976990 | LOOM TIE | |
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| 053 | A 1204200227 | SCREW |
| 054 | A 1104760084 | DAMPING STRIP |
| 055 | A 0009877770 | RUBBER SECTION |
| 20 MM | ||
| 20 MM | ||
| 057 | A 0009873841 | RUBBER RING |
| 058 | A 1109950022 | CLAMP |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| A 1159950122 | CLAMP | |
| A 1159950122 | CLAMP | |
| A 1159950122 | CLAMP | |
| N 007976006203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| A 0009877770 | RUBBER SECTION | |
| 20 MM | ||
| 20 MM | ||
| A 1109950022 | CLAMP | |
| N 007976006203 | SHEET METAL SCREW | |
| N 007976005203 | SHEET METAL SCREW | |
| A 0009878670 | RUBBER SECTION | |
| 15 MM | ||
| A 0029887378 | CLIP | |
| 062 | A 1089950520 | CLAMP |
| 064 | N 007976005203 | SHEET METAL SCREW |
| A 0009877770 | RUBBER SECTION | |
| 20 MM | ||
| 20 MM | ||
| A 1159950022 | CLAMP | |
| N 007976006203 | SHEET METAL SCREW | |
| 070 | A 1154710268 | TANK |
| A 1119972281 | GROMMET | |
| 072 | A 2014761126 | HOSE |
| 80 MM | ||
| N 916002010100 | CLAMP | |
| N 916002008100 | CLAMP | |
| 073 | A 0039888178 | CLIP |
| 075 | A 1084710081 | BOOT |
| 076 | A 1149880178 | CLIP |
| 080 | A 0010917401 | FUEL PUMP |
| 082 | A 0010917101 | FUEL PUMP |
| 082 | A 0010917101 | FUEL PUMP |
| 083 | A 0000927601 | FILTER |
| 083 | A 0000927601 | FILTER |
| 084 | N 007603014100 | SEAL RING |
| 084 | N 007603014100 | SEAL RING |
| 085 | A 1074700279 | INTERMEDIATE PIECE |
| 085 | A 1074700279 | INTERMEDIATE PIECE |
| 088 | A 0009972881 | GROMMET |
| 089 | A 0009972281 | GROMMET |
| 092 | A 1144700216 | DAMPER CAGE |
| A 1144700033 | REINFORCEMENT | |
| 093 | A 1304710122 | REINFORCEMENT |
| 094 | A 1144760053 | SPACER TUBE |
| 095 | A 1144760225 | PIPE BEND |
| 096 | A 0009972881 | GROMMET |
| 098 | N 000933006102 | SCREW |
| 099 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 099 | N 009021006208 | WASHER |
| 100 | N 912004006102 | LOCK WASHER |
| 105 | A 1144780040 | BRACKET |
| A 1164780040 | BRACKET | |
| Repalced by: A 1264780340 | ||
| 108 | A 1264780340 | BRACKET |
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| A 1164700481 | BRACKET | |
| Repalced by: A 1234700381 | ||
| 109 | A 1234700381 | BRACKET |
| 112 | A 1269880011 | BUFFER |
| 112 | A 1269880011 | BUFFER |
| 112 | A 1269880011 | BUFFER |
| 113 | N 000127005203 | LOCK WASHER |
| N 912004005100 | LOCK WASHER | |
| 114 | N 000125005306 | WASHER |
| 115 | N 000934005008 | NUT |
| 115 | N 000934005008 | NUT |
| N 007985005165 | SCREW | |
| N 912004005100 | LOCK WASHER | |
| N 000934005008 | NUT | |
| N 007976006303 | SHEET METAL SCREW | |
| 120 | A 1144700048 | PROTECTOR |
| 122 | A 1264780137 | PROTECTIVE COVER |
| N 007976006303 | SHEET METAL SCREW | |
| 124 | A 1239971681 | GROMMET |
| N 006797004132 | TOOTHED WASHER | |
| N 006797005132 | TOOTHED WASHER | |
| N 000934004006 | NUT | |
| N 000934005008 | NUT | |
| 128 | A 1124761226 | HOSE |
| 128 | A 1124761226 | HOSE |
| 130 | N 916002017100 | CLAMP |
| 130 | N 916002017100 | CLAMP |
| 130 | N 916002017100 | CLAMP |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 133 | A 1149971882 | HOSE |
| 133 | A 1149971882 | HOSE |
| 133 | A 1149971882 | HOSE |
| FROM RETURN HOSE T-FITTING TO PUMP | ||
| 133 | A 1149971882 | HOSE |
| 133 | A 1149971882 | HOSE |
| AT DASHPOT LEFT FITTING | ||
| 133 | A 1149971882 | HOSE |
| 133 | A 1149971882 | HOSE |
| 133 | A 1149971882 | HOSE |
| 140 | A 1144760236 | BRACKET |
| 142 | A 1149880678 | CLIP |
| 144 | A 0009972881 | GROMMET |
| 144 | A 0009972881 | GROMMET |
| 145 | A 0009972981 | GROMMET |
| 145 | A 0009972981 | GROMMET |
| N 007976006203 | SHEET METAL SCREW | |
| N 007976006203 | SHEET METAL SCREW | |
| A 1144760125 | INTERMEDIATE PIECE | |
| N 916033012100 | CLAMP | |
| N 916002017100 | CLAMP | |
| A 0019976990 | LOOM TIE | |
| A 0009881878 | CLIP | |
| A 0039883078 | CLIP | |
| A 1204110060 | RUBBER RING | |
