Transporto priemonė: 280 C; VIN numerio dalis: 114073

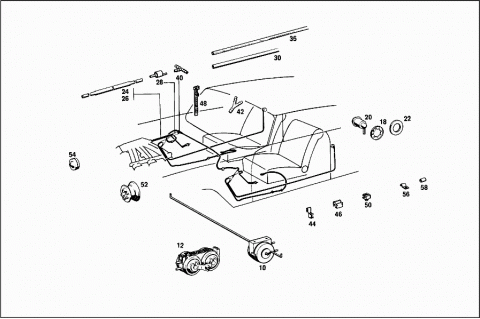

Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1158000975 | ELEMENT |
| 010 | A 1158000975 | ELEMENT |
| A 1148000075 | ELEMENT | |
| Repalced by: A 0008000775 | ||
| 012 | A 0008000775 | ELEMENT |
| 012 | A 0008000775 | ELEMENT |
| 012 | A 0008000775 | ELEMENT |
| A 1148050011 | PLATE | |
| A 1118055073 | SWITCH | |
| Repalced by: A 1148050073 | ||
| A 1148050073 | SWITCH | |
| 018 | A 1148050036 | SPRING |
| 018 | A 1148050036 | SPRING |
| 018 | A 1148050036 | SPRING |
| 020 | A 1148050073 | SWITCH |
| 022 | N 000433021002 | WASHER |
| 022 | N 000433021002 | WASHER |
| 024 | A 1118005162 | THROTTLE |
| Repalced by: A 1118005462 | ||
| 024 | A 1118005462 | THROTTLE |
| 026 | A 1118005462 | THROTTLE |
| A 1128000178 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1078000778 | VALVE | |
| Repalced by: A 1168000378 | ||
| 028 | A 1168000378 | VALVE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| 030 | A 0079976182 | HOSE |
| A 1128050303 | CONNECTOR | |
| Repalced by: A 1128050203 | ||
| A 1128050203 | CONNECTOR | |
| A 0059975982 | HOSE | |
| Repalced by: A 0089978682 | ||
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| 035 | A 0089978682 | HOSE |
| A 0119979782 | HOSE | |
| Repalced by: A 0001581435 | ||
| A 0001581435 | PIPE LINE | |
| FROM DISTRIBUTOR IN LEG ROOM TO FRONT SEAT ELEMENT 1100 MM,1300 MM | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 040 | A 1170780145 | BRANCH-OFF FITTING |
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 042 | A 1170780145 | BRANCH-OFF FITTING |
| 044 | A 0029884678 | CLIP |
| 046 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 046 | A 1149880178 | CLIP |
| 048 | A 1149970190 | LOOM TIE |
| 050 | A 0029880178 | CLIP |
| 050 | A 0029880178 | CLIP |
| 052 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 052 | A 0089971781 | GROMMET |
| 054 | A 1869970681 | GROMMET |
| 056 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 056 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 056 | A 1279950020 | CLAMP |
| 058 | A 1085460253 | SPACER TUBE |
| N 007976004211 | SHEET METAL SCREW | |
