Transporto priemonė: 280 C; VIN numerio dalis: 114073
Grupė: 26 TRANSMISSION

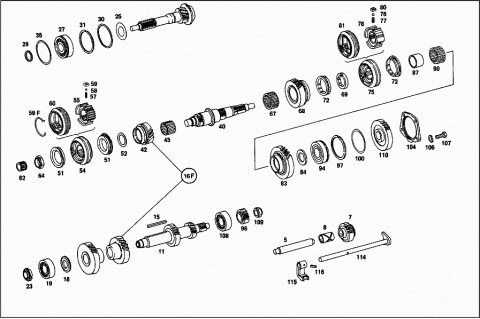

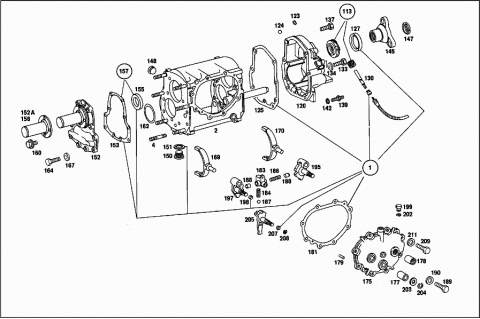

| # | Kodas | Pavadinimas |
|---|---|---|
| A 1152604201 | TRANSMISSION | |
| LESS BELL HOUSING | ||
| A 1152604201 | TRANSMISSION | |
| LESS BELL HOUSING | ||
| A 1152602901 | TRANSMISSION | |
| Repalced by: A 1152603201 | ||
| A 1152603201 | TRANSMISSION | |
| A 1152603201 | TRANSMISSION | |
| 001 | A 1152600168 | GASKET KIT |
| 001 | A 1152600168 | GASKET KIT |
| 002 | A 1152600911 | TRANSMISSION CASE |
| 002 | A 1152600911 | TRANSMISSION CASE |
| A 1152601011 | TRANSMISSION CASE | |
| A 1152601011 | TRANSMISSION CASE | |
| 004 | N 000939010012 | STUD BOLT |
| 004 | N 000939010012 | STUD BOLT |
| 005 | A 1152630530 | REVERSE IDLER SHAFT |
| A 1152631330 | REVERSE IDLER SHAFT | |
| A 1152631330 | REVERSE IDLER SHAFT | |
| 007 | A 1152601025 | GEAR |
| 007 | A 1152601025 | GEAR |
| 008 | A 1172630150 | BUSHING |
| 008 | A 1172630150 | BUSHING |
| 011 | A 1152631002 | COUNTERSHAFT |
| A 1152631802 | COUNTERSHAFT | |
| A 1152631802 | COUNTERSHAFT | |
| 015 | A 1159910668 | KEY |
| 015 | A 1159910668 | KEY |
| 016F | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| A 1152600608 | GEAR | |
| (GEAR SET),CONSTANT | ||
| A 1152600608 | GEAR | |
| (GEAR SET),CONSTANT | ||
| 018 | A 1152630752 | SPACER WASHER |
| 018 | A 1152630752 | SPACER WASHER |
| 019 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 019 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 019 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 019 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 023 | A 1159900851 | NUT |
| 023 | A 1159900851 | NUT |
| 023 | A 1159900851 | NUT |
| 025 | A 1862620066 | OIL RING |
| 025 | A 1862620066 | OIL RING |
| 027 | A 0029810625 | BALL BEARING |
| 027 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| A 0029810725 | BALL BEARING | |
| 029 | A 1232620494 | SNAP RING |
| 029 | A 1232620494 | SNAP RING |
| 030 | A 1862620451 | SPACER RING |
| 030 | A 1862620451 | SPACER RING |
| 031 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| 031 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| 035 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 035 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 040 | A 1152621505 | MAIN SHAFT |
| 040 | A 1152621505 | MAIN SHAFT |
| 042 | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 042 | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 045 | A 0059815510 | NEEDLE BEARING |
| 045 | A 0059815510 | NEEDLE BEARING |
| A 0039810810 | NEEDLE BEARING | |
| A 0039810810 | NEEDLE BEARING | |
| A 0039810910 | NEEDLE BEARING | |
| A 0039810910 | NEEDLE BEARING | |
| A 0039810310 | NEEDLE BEARING | |
| A 0039810310 | NEEDLE BEARING | |
| 051 | A 1152621634 | SYNCHRONIZER RING |
| 051 | A 1152621634 | SYNCHRONIZER RING |
| A 1152623234 | SYNCHRONIZER RING | |
| A 1152623234 | SYNCHRONIZER RING | |
| 052 | A 1202622362 | THRUST WASHER |
| 052 | A 1202622362 | THRUST WASHER |
| A 1152601845 | SYNCHRONIZER BODY | |
| Repalced by: A 1152604445 | ||
| A 1152601845 | SYNCHRONIZER BODY | |
| 054 | A 1152604945 | SYNCHRONIZER BODY |
| 054 | A 1152604945 | SYNCHRONIZER BODY |
| 055 | A 1152621235 | SYNCHRONIZER BODY |
| 055 | A 1152621235 | SYNCHRONIZER BODY |
| 057 | A 1809934101 | SPRING |
| 057 | A 1809934101 | SPRING |
| 058 | N 005401306500 | BALL |
| 058 | N 005401306500 | BALL |
| 059 | A 1152620140 | FOLLOWER |
| 059 | A 1152620140 | FOLLOWER |
| 059F | A 1159931620 | SPRING |
| 059F | A 1159931620 | SPRING |
| 060 | A 1152621823 | SLIDING COLLAR |
| 060 | A 1152621823 | SLIDING COLLAR |
| 062 | A 0059815410 | NEEDLE BEARING |
| 062 | A 0059815410 | NEEDLE BEARING |
| A 0029818110 | NEEDLE BEARING | |
| A 0029818110 | NEEDLE BEARING | |
| 064 | A 1159901051 | NUT |
| 064 | A 1159901051 | NUT |
| 067 | A 0059815610 | NEEDLE BEARING |
| 067 | A 0059815610 | NEEDLE BEARING |
| A 0039811010 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0039811110 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| 068 | A 1152603144 | GEAR |
| 068 | A 1152603144 | GEAR |
| 069 | A 1152620962 | THRUST WASHER |
| 069 | A 1152620962 | THRUST WASHER |
| 072 | A 1152621534 | SYNCHRONIZER RING |
| 072 | A 1152621534 | SYNCHRONIZER RING |
| A 1152623134 | SYNCHRONIZER RING | |
| A 1152623134 | SYNCHRONIZER RING | |
| A 1152602145 | SYNCHRONIZER BODY | |
| Repalced by: A 1152604845 | ||
| A 1152602145 | SYNCHRONIZER BODY | |
| 075 | A 1152604845 | SYNCHRONIZER BODY |
| 075 | A 1152604845 | SYNCHRONIZER BODY |
| 076 | A 1152621335 | SYNCHRONIZER BODY |
| 076 | A 1152621335 | SYNCHRONIZER BODY |
| 077 | A 1809934101 | SPRING |
| 077 | A 1809934101 | SPRING |
| 078 | N 005401306500 | BALL |
| 078 | N 005401306500 | BALL |
| 080 | A 1152620240 | FOLLOWER |
| 080 | A 1152620240 | FOLLOWER |
| 081 | A 1152621423 | SLIDING COLLAR |
| 081 | A 1152621423 | SLIDING COLLAR |
| A 1152620962 | THRUST WASHER | |
| A 1152620962 | THRUST WASHER | |
| 083 | A 1152620711 | GEAR |
| A 1152621311 | GEAR | |
| Repalced by: A 1152621611 | ||
| A 1152621611 | GEAR | |
| A 1152621611 | GEAR | |
| 084 | A 1152622562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.8 MM | ||
| 084 | A 1152622562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.8 MM | ||
| A 1152622662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.9 MM | ||
| A 1152622662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.9 MM | ||
| A 1152622762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.0 MM | ||
| A 1152622762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.0 MM | ||
| A 1152622862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.1 MM | ||
| A 1152622862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.1 MM | ||
| A 1152622962 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.2 MM | ||
| A 1152622962 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.2 MM | ||
| 087 | A 1152620251 | SPACER RING |
| 087 | A 1152620251 | SPACER RING |
| 087 | A 1152620251 | SPACER RING |
| 090 | A 0059815610 | NEEDLE BEARING |
| 090 | A 0059815610 | NEEDLE BEARING |
| A 0039811010 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0039811110 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| 094 | A 0029810625 | BALL BEARING |
| 094 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| A 0029810725 | BALL BEARING | |
| 096 | A 1152630932 | REVERSE IDLER GEAR |
| A 1152632232 | REVERSE IDLER GEAR | |
| A 1152632232 | REVERSE IDLER GEAR | |
| 097 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| 097 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| 100 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 100 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 104 | A 1152622639 | RETAINING RING |
| 104 | A 1152622639 | RETAINING RING |
| 106 | N 000137007201 | SPRING WASHER |
| 106 | N 000137007201 | SPRING WASHER |
| 107 | A 1159900601 | SCREW |
| 107 | A 1159900601 | SCREW |
| 108 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 108 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 108 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 109 | A 1159900951 | NUT |
| 109 | A 1159900951 | NUT |
| 110 | A 1172620721 | GEAR |
| 110 | A 1172620721 | GEAR |
| 110 | A 1172620721 | GEAR |
| 113 | A 1152600648 | DRIVE GEAR |
| 113 | A 1152600648 | DRIVE GEAR |
| 114 | A 1152600631 | SHIFTING ROD |
| 114 | A 1152600631 | SHIFTING ROD |
| 115 | A 1152650219 | FOLLOWER |
| 115 | A 1152650219 | FOLLOWER |
| 116 | N 001481006005 | CLAMPING SLEEVE |
| 116 | N 001481006005 | CLAMPING SLEEVE |
| 120 | A 1152602216 | TRANSMISSION CASE COVER |
| A 1152603916 | TRANSMISSION CASE COVER | |
| A 1152603916 | TRANSMISSION CASE COVER | |
| A 1152602316 | TRANSMISSION CASE COVER | |
| A 1152602516 | TRANSMISSION CASE COVER | |
| A 1152602516 | TRANSMISSION CASE COVER | |
| 123 | A 1532640055 | PLUG |
| 123 | A 1532640055 | PLUG |
| 124 | A 0019813385 | BALL |
| 124 | A 0019813385 | BALL |
| 124 | A 0019813385 | BALL |
| 125 | A 1152610279 | GASKET |
| 127 | A 0059978747 | SEAL RING |
| MAIN SHAFT | ||
| A 1152740060 | SEAL RING | |
| 130 | A 1152640132 | SHAFT |
| 130 | A 1152640132 | SHAFT |
| 133 | N 000931006083 | SCREW |
| 133 | N 000931006083 | SCREW |
| 134 | N 000137006204 | SPRING WASHER |
| 134 | N 000137006204 | SPRING WASHER |
| 137 | N 000931010258 | SCREW |
| 137 | N 000931010258 | SCREW |
| N 000931010300 | SCREW | |
| N 000931010300 | SCREW | |
| 139 | A 1159901310 | SCREW |
| 139 | A 1159901310 | SCREW |
| N 000931007019 | SCREW | |
| N 000931007019 | SCREW | |
| 142 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 142 | N 000125010532 | WASHER |
| 142 | N 000125010532 | WASHER |
| N 000125007408 | WASHER | |
| N 000125007408 | WASHER | |
| 145 | A 1152621145 | FLANGE |
| 145 | A 1152621145 | FLANGE |
| 147 | A 1153531126 | NUT |
| 147 | A 1153531126 | NUT |
| A 1239900060 | NUT | |
| A 1239900060 | NUT | |
| A 1239900060 | NUT | |
| 148 | A 1869970032 | SCREW PLUG |
| 148 | A 1869970032 | SCREW PLUG |
| 148 | A 1869970032 | SCREW PLUG |
| 150 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 150 | A 2109970132 | SCREW PLUG |
| 150 | A 2109970132 | SCREW PLUG |
| 151 | N 007603024105 | SEAL RING |
| 151 | N 007603024105 | SEAL RING |
| 152 | A 1152601121 | TRANSMISSION CASE COVER |
| Repalced by: A 1152611618 | ||
| 152 | A 1152611618 | TRANSMISSION CASE COVER |
| Repalced by: A 6022610218 | ||
| 152 | A 6022610218 | TRANSMISSION CASE COVER |
| 152A | A 1152610243 | GUIDE TUBE |
| 153 | A 1152610079 | GASKET |
| 155 | A 0059978647 | SEAL RING |
| 157 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 157 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 158 | A 1152610243 | GUIDE TUBE |
| SEE FIG. NO.: | ||
| 152A | ||
| 160 | N 914005006002 | COMBINATION BOLT |
| Repalced by: N 000933006103 | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 304017006018 | SCREW | |
| 162 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 162 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 164 | N 000931007006 | SCREW |
| 164 | N 000931007006 | SCREW |
| 167 | N 000125007408 | WASHER |
| 167 | N 000125007408 | WASHER |
| 169 | A 6022650102 | SHIFTING FORK |
| Repalced by: A 6022650302 | ||
| 169 | A 6022650302 | SHIFTING FORK |
| 169 | A 6022650302 | SHIFTING FORK |
| 170 | A 3092650201 | SHIFTING FORK |
| Repalced by: A 6022650501 | ||
| 170 | A 6022650501 | SHIFTING FORK |
| 170 | A 6022650501 | SHIFTING FORK |
| A 1152601113 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| A 1152602613 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| 175 | A 1152603713 | TRANSMISSION CASE COVER |
| Repalced by: A 1152604713 | ||
| 175 | A 1152604713 | TRANSMISSION CASE COVER |
| 175 | A 1152604713 | TRANSMISSION CASE COVER |
| A 1152601213 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152605513 | ||
| A 1152605513 | TRANSMISSION CASE COVER | |
| A 1152605513 | TRANSMISSION CASE COVER | |
| 177 | A 1152620550 | BUSHING |
| 177 | A 1152620550 | BUSHING |
| 178 | A 0149816710 | NEEDLE BEARING |
| Repalced by: A 0109816010 | ||
| 178 | A 0109816010 | NEEDLE BEARING |
| 178 | A 0109816010 | NEEDLE BEARING |
| A 0099978248 | SEAL RING | |
| 179 | N 000007006203 | CYLINDRICAL PIN |
| 179 | N 000007006203 | CYLINDRICAL PIN |
| 181 | A 1172610079 | GASKET |
| A 1152610080 | GASKET | |
| 183 | A 1152604273 | DETENT |
| 183 | A 1152604273 | DETENT |
| 184 | A 1159936102 | SPRING |
| 184 | A 1159936102 | SPRING |
| 186 | A 1159933304 | SPRING |
| 186 | A 1159933304 | SPRING |
| 187 | N 005401999008 | BALL |
| 187 | N 005401999008 | BALL |
| 188 | A 1152650574 | PIN |
| 188 | A 1152650574 | PIN |
| 189 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 189 | N 304017008021 | SCREW |
| 189 | N 304017008021 | SCREW |
| 190 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 190 | N 000125008443 | WASHER |
| 190 | N 000125008443 | WASHER |
| 195 | A 1152601973 | DETENT |
| 195 | A 1152601973 | DETENT |
| A 1152602173 | DETENT | |
| A 1152602173 | DETENT | |
| A 1152602073 | DETENT | |
| Repalced by: A 1152603873 | ||
| 197 | A 1152603873 | DETENT |
| 197 | A 1152603873 | DETENT |
| A 1152602273 | DETENT | |
| A 1152602273 | DETENT | |
| 198 | A 0079970348 | SEAL RING |
| 199 | A 1152610066 | BREATHER |
| 199 | A 1152610066 | BREATHER |
| A 1152610053 | SPACER TUBE | |
| 202 | N 009045012000 | SNAP RING |
| 202 | N 009045012000 | SNAP RING |
| 203 | A 1159901640 | WASHER |
| Repalced by: A 0039906840 | ||
| 203 | A 0039906840 | WASHER |
| 203 | A 0039906840 | WASHER |
| 204 | N 006799010001 | LOCK PLATE |
| 204 | N 006799010001 | LOCK PLATE |
| 205 | A 1152601238 | SHAFT |
| 205 | A 1152601238 | SHAFT |
| 207 | A 0079970348 | SEAL RING |
| 208 | N 006799010001 | LOCK PLATE |
| 208 | N 006799010001 | LOCK PLATE |
| 209 | N 000933007027 | SCREW |
| 209 | N 000933007027 | SCREW |
| 211 | N 000125007408 | WASHER |
| 211 | N 000125007408 | WASHER |
| 220 | A 1152603280 | SUPPORT |
| A 1152604180 | SUPPORT | |
| A 1152604180 | SUPPORT | |
| 223 | A 0019818410 | NEEDLE BEARING |
| 223 | A 0019818410 | NEEDLE BEARING |
| 225 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 225 | N 304017008028 | SCREW |
| 225 | N 304017008028 | SCREW |
| 226 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 226 | N 000137008212 | SPRING WASHER |
| 226 | N 000137008212 | SPRING WASHER |
| 227 | N 000934008013 | NUT |
| 227 | N 000934008013 | NUT |
| 228 | N 000561006105 | SCREW |
| 228 | N 000561006105 | SCREW |
| 229 | N 000137006204 | SPRING WASHER |
| 229 | N 000137006204 | SPRING WASHER |
| 235 | A 1152602980 | SUPPORT |
| A 1152603580 | SUPPORT | |
| A 1152602580 | SUPPORT | |
| A 1152602780 | SUPPORT | |
| 237 | A 1152604737 | LEVER |
| A 1152601581 | LEVER | |
| 239 | A 1152604837 | LEVER |
| A 1152601381 | LEVER | |
| 242 | A 1152606237 | LEVER |
| 243 | A 0029810210 | NEEDLE BEARING |
| 243 | A 0029810210 | NEEDLE BEARING |
| 243 | A 0029810210 | NEEDLE BEARING |
| 245 | A 1152608237 | LEVER |
| 246 | A 1122680039 | GUIDE PIVOT |
| 247 | N 000933006130 | SCREW |
| 248 | N 912004006102 | LOCK WASHER |
| 249 | A 1152680347 | SLOTTED GATE |
| A 1152680247 | SLOTTED GATE | |
| 252 | N 000933006102 | SCREW |
| 253 | N 912004006102 | LOCK WASHER |
| 254 | N 000125006421 | WASHER |
| 257 | N 900055012001 | SPRING WASHER |
| 257 | N 900055012001 | SPRING WASHER |
| 259 | A 3129900340 | WASHER |
| 259 | A 3129900340 | WASHER |
| 260 | N 006799010001 | LOCK PLATE |
| 260 | N 006799010001 | LOCK PLATE |
| 262 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 262 | N 000137008212 | SPRING WASHER |
| 262 | N 000137008212 | SPRING WASHER |
| 265 | N 000934008013 | NUT |
| 265 | N 000934008013 | NUT |
| 266 | A 1152605382 | SHIFTING TUBE |
| A 1152605482 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152605482 | SHIFTING TUBE | |
| A 1152606682 | SHIFTING TUBE | |
| A 1152606682 | SHIFTING TUBE | |
| A 1152606682 | SHIFTING TUBE | |
| A 1152605782 | SHIFTING TUBE | |
| A 1152606082 | SHIFTING TUBE | |
| Repalced by: A 1152606882 | ||
| A 1152606082 | SHIFTING TUBE | |
| A 1152606882 | SHIFTING TUBE | |
| A 1152606882 | SHIFTING TUBE | |
| A 1152606882 | SHIFTING TUBE | |
| 270 | A 1159900338 | SCREW |
| 270 | A 1159900338 | SCREW |
| A 1099900238 | SCREW | |
| A 1099900238 | SCREW | |
| A 1099900238 | SCREW | |
| A 1129900138 | SCREW | |
| A 1129900138 | SCREW | |
| A 1159900438 | SCREW | |
| A 1159900438 | SCREW | |
| A 1159900438 | SCREW | |
| 274 | N 000934006007 | NUT |
| 274 | N 000934006007 | NUT |
| N 000934005008 | NUT | |
| N 000934005008 | NUT | |
| N 000934005008 | NUT | |
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152600639 | ||
| A 1152681424 | SHIFT LEVER | |
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152600639 | ||
| A 1082680424 | SHIFT LEVER | |
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152601139 | ||
| A 1152600639 | SHIFT LEVER | |
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152601239 | ||
| A 1152600639 | SHIFT LEVER | |
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152602639 | ||
| A 1152601139 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152602639 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| 280 | A 1152604439 | SHIFT LEVER |
| 280 | A 1152604439 | SHIFT LEVER |
| 280 | A 1152604439 | SHIFT LEVER |
| A 1152601239 | SHIFT LEVER | |
| Repalced by: A 1152602739 | ||
| A 1152601239 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152602739 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| 285 | A 1159910301 | PIN |
| 286 | A 1152680550 | BUSHING |
| 286 | A 1152680550 | BUSHING |
| 286 | A 1152680550 | BUSHING |
| 286 | A 1152680550 | BUSHING |
| A 1152680950 | BUSHING | |
| A 1152680950 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| 290 | A 1152670114 | CAP |
| 290 | A 1152670114 | CAP |
| 291 | A 1159939902 | SPRING |
| 291 | A 1159939902 | SPRING |
| 292 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 292 | N 001481005017 | CLAMPING SLEEVE |
| 292 | N 001481005017 | CLAMPING SLEEVE |
| 292 | N 001481005017 | CLAMPING SLEEVE |
| 292 | N 001481005017 | CLAMPING SLEEVE |
| A 1159920225 | SLEEVE | |
| A 1159920225 | SLEEVE | |
| 295 | A 1209932101 | SPRING |
| 295 | A 1209932101 | SPRING |
| 296 | A 1152680439 | GUIDE PIVOT |
| 296 | A 1152680439 | GUIDE PIVOT |
| A 1119971240 | SEAL RING | |
| A 1119971240 | SEAL RING | |
| 297 | A 1159971440 | SEAL RING |
| 297 | A 1159971440 | SEAL RING |
| 298 | A 1869906940 | WASHER |
| 298 | A 1869906940 | WASHER |
| 299 | A 1862680273 | LOCK |
| 299 | A 1862680273 | LOCK |
| 299 | A 1862680273 | LOCK |
| 301 | A 1162680497 | BOOT |
| 301 | A 1162680497 | BOOT |
| A 1162680497 | BOOT | |
| A 1162680497 | BOOT | |
| A 1152608937 | LEVER | |
| 304 | A 1152607837 | LEVER |
| 305 | A 1152608037 | LEVER |
| 305 | A 1152608037 | LEVER |
| 306 | A 1152609437 | LEVER |
| 306 | A 1152609437 | LEVER |
| 310 | A 1152680032 | SHAFT |
| 311 | A 1152680401 | HOUSING |
| 312 | A 1112680086 | RUBBER RING |
| 313 | A 1119910029 | BALL |
| 315 | A 1802680076 | WASHER |
| 317 | A 1119971040 | SEAL RING |
| 318 | N 000988010000 | FITTED WASHER |
| 319 | N 000471010000 | LOCK RING |
| 320 | A 0009811810 | NEEDLE BEARING |
| 323 | A 1129910340 | SPACER TUBE |
| 324 | A 1152600081 | LEVER |
| 326 | A 1142600081 | LEVER |
| 327 | N 000934007005 | NUT |

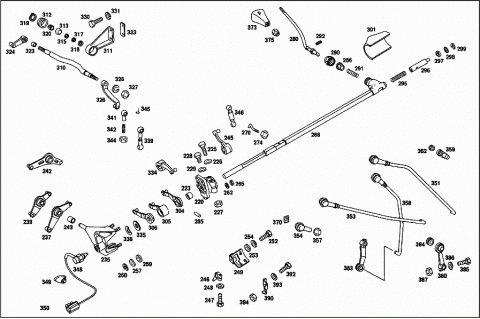

| 328 | N 912004007100 | LOCK WASHER |
| 330 | N 000933006130 | SCREW |
| 331 | N 000137006204 | SPRING WASHER |
| 333 | A 1154622739 | BRACKET |
| 334 | A 1152606837 | LEVER |
| 335 | A 1152680276 | WASHER |
| 335 | A 1152680276 | WASHER |
| 338 | A 1159900248 | WASHER |
| 338 | A 1159900248 | WASHER |
| 339 | A 1152600389 | PULL ROD |
| Repalced by: A 1112600066 | ||
| 339 | A 1112600066 | BALL SOCKET |
| A 1152600289 | PULL ROD | |
| 341 | N 071805010204 | BALL SOCKET |
| 341 | N 071805010204 | BALL SOCKET |
| 342 | N 000939006011 | STUD BOLT |
| N 000939006021 | STUD BOLT | |
| 344 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 344 | N 304035006001 | NUT |
| 344 | N 304035006001 | NUT |
| 345 | N 071805010400 | SECURING CLIP |
| 345 | N 071805010400 | SECURING CLIP |
| 345 | N 071805010400 | SECURING CLIP |
| 346 | A 0002681066 | BALL SOCKET |
| Repalced by: A 0002681266 | ||
| 346 | A 0002681266 | BALL SOCKET |
| A 0005452106 | SWITCH | |
| Repalced by: A 0005453406 | ||
| A 0005452106 | SWITCH | |
| 348 | A 0005453406 | SWITCH |
| A 0005454006 | SWITCH | |
| Repalced by: A 0005453506 | ||
| A 0005453506 | SWITCH | |
| A 0005453506 | SWITCH | |
| A 0005452506 | SWITCH | |
| Repalced by: A 0005453506 | ||
| A 0005452506 | SWITCH | |
| A 0005453506 | SWITCH | |
| A 0005454406 | SWITCH | |
| N 007603018104 | SEAL RING | |
| N 007603018104 | SEAL RING | |
| N 007603018104 | SEAL RING | |
| 349 | A 1159971181 | GROMMET |
| Repalced by: A 1269972581 | ||
| 349 | A 1269972581 | GROMMET |
| 350 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 350 | A 0065457828 | PLUG HOUSING |
| QUADRUPLE | ||
| 351 | A 1142600033 | SHIFTING ROD |
| A 1142600533 | SHIFTING ROD | |
| 353 | A 1142600133 | SHIFTING ROD |
| A 1142600633 | SHIFTING ROD | |
| 354 | A 0009913822 | BALL SOCKET |
| 354 | A 0009913822 | BALL SOCKET |
| 357 | N 070616010004 | NUT |
| 357 | N 070616010004 | NUT |
| 358 | A 1142600233 | SHIFTING ROD |
| A 1142600733 | SHIFTING ROD | |
| 359 | A 1152600353 | END PIECE |
| 362 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 362 | A 2109920010 | BUSHING |
| N 070616010004 | NUT | |
| A 0009913822 | BALL SOCKET | |
| A 1142601233 | SHIFTING ROD | |
| A 1142602433 | SHIFTING ROD | |
| A 1142601133 | SHIFTING ROD | |
| A 1142601133 | SHIFTING ROD | |
| A 1142601833 | SHIFTING ROD | |
| A 1142601833 | SHIFTING ROD | |
| A 1142601833 | SHIFTING ROD | |
| A 1142602533 | SHIFTING ROD | |
| A 0009913822 | BALL SOCKET | |
| N 070616010004 | NUT | |
| 370 | A 0009942960 | LOCK |
| 370 | A 0009942960 | LOCK |
| 370 | A 0009942960 | LOCK |
| A 1159920210 | BUSHING | |
| AUTOMATIC TRANSMISSION SHIFT LEVER | ||
| A 1159920210 | BUSHING | |
| AUTOMATIC TRANSMISSION SHIFT LEVER | ||
| A 1159920310 | BUSHING | |
| A 1159920310 | BUSHING | |
| A 1159920310 | BUSHING | |
| A 1152680942 | KNOB | |
| Repalced by: A 1082680042 | ||
| A 1082680042 | KNOB | |
| 373 | A 1152681242 | KNOB |
| 373 | A 1152681242 | KNOB |
| 373 | A 1152681242 | KNOB |
| 373 | A 1152681242 | KNOB |
| 373 | A 1152681242 | KNOB |
| 375 | A 1152680172 | NUT |
| A 1152680842 | KNOB | |
| A 1152680842 | KNOB | |
| A 1152681442 | KNOB | |
| A 1152681442 | KNOB | |
| A 1152681442 | KNOB | |
| A 1152680072 | NUT | |
| A 1152680072 | NUT | |
| A 1152680072 | NUT | |
| A 1152681042 | KNOB | |
| A 1152681342 | KNOB | |
| A 1152681342 | KNOB | |
| A 1152680072 | NUT | |
| A 1152680072 | NUT | |
| 380 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 380 | A 1152682530 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| 380 | A 1152682530 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 380 | A 1152682530 | SHIFT LEVER |
| A 1152607637 | LEVER | |
| 1ST AND 2ND SPEED | ||
| 383 | A 1152607737 | LEVER |
| REVERSE SPEED | ||
| 383 | A 1152607737 | LEVER |
| REVERSE SPEED | ||
| 384 | A 0009920510 | BUSHING |
| 384 | A 0009920510 | BUSHING |
| 385 | N 000933006127 | SCREW |
| 385 | N 000933006127 | SCREW |
| 386 | N 912004006102 | LOCK WASHER |
| 386 | N 912004006102 | LOCK WASHER |
| 387 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 387 | N 304032006008 | NUT |
| 387 | N 304032006008 | NUT |
| 390 | A 1152600562 | BRACKET |
| A 1152600662 | BRACKET | |
| 392 | N 000931006094 | SCREW |
| 393 | N 912004006102 | LOCK WASHER |
| 394 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 394 | N 304032006008 | NUT |

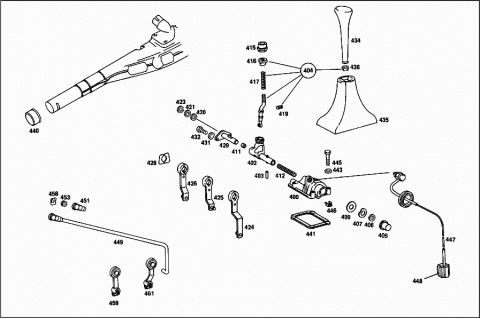

| 400 | A 1152671405 | BEARING |
| Repalced by: A 1152673605 | ||
| 400 | A 1152673605 | BEARING |
| 402 | A 1152607282 | SHIFTING TUBE |
| 403 | A 1159910301 | PIN |
| 404 | A 1232602239 | SHIFT LEVER |
| RANGE OF DELIVERY | ||
| 405 | A 1152670750 | BUSHING |
| 406 | A 1159902640 | WASHER |
| 407 | N 900055018001 | SPRING WASHER |
| 409 | A 1232670252 | SPACER WASHER |
| 411 | A 1152672250 | BUSHING |
| 412 | A 1159939303 | SPRING |
| 415 | A 1152670114 | CAP |
| 416 | A 1152680550 | BUSHING |
| 417 | A 1159939902 | SPRING |
| 419 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 419 | N 001481005017 | CLAMPING SLEEVE |
| 420 | A 1119971240 | SEAL RING |
| 421 | A 1869906940 | WASHER |
| 423 | A 1862680273 | LOCK |
| A 1152601939 | SHIFT LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152603839 | SHIFT LEVER | |
| Repalced by: A 1152604139 | ||
| 424 | A 1152604139 | SHIFT LEVER |
| REVERSE SPEED | ||
| A 1152601739 | SHIFT LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152603639 | SHIFT LEVER | |
| Repalced by: A 1152604339 | ||
| 425 | A 1152604339 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| A 1152601839 | SHIFT LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152603739 | SHIFT LEVER | |
| Repalced by: A 1152604239 | ||
| 426 | A 1152604239 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 428 | A 1152670676 | WASHER |
| 429 | A 1152600376 | GUIDE |
| 431 | N 000137006204 | SPRING WASHER |
| 432 | N 000933006130 | SCREW |
| 434 | A 1262670410 | HANDLE |
| 435 | A 1232670097 | BOOT |
| 436 | N 070616010003 | NUT |
| 440 | A 1154620323 | COVER |
| 441 | A 1152670380 | GASKET |
| 443 | N 000125006421 | WASHER |
| N 000931006114 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| 445 | N 000931006137 | SCREW |
| 446 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 446 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 446 | A 0019906791 | NUT RETAINER |
| 447 | A 0005452406 | SWITCH |
| 448 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 448 | A 0065457828 | PLUG HOUSING |
| QUADRUPLE | ||
| 449 | A 1142600833 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| A 1142600933 | SHIFTING ROD | |
| 3RD AND 4TH SPEED | ||
| 451 | A 1152600353 | END PIECE |
| 453 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 453 | A 2109920010 | BUSHING |
| A 1142601033 | SHIFTING ROD | |
| REVERSE SPEED | ||
| A 1152600353 | END PIECE | |
| A 1159920110 | BUSHING | |
| Repalced by: A 2109920010 | ||
| A 2109920010 | BUSHING | |
| 458 | A 0009942960 | LOCK |
| 459 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 459 | A 1152682530 | SHIFT LEVER |
| 461 | A 1152607737 | LEVER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
