Transporto priemonė: 280 C; VIN numerio dalis: 114073

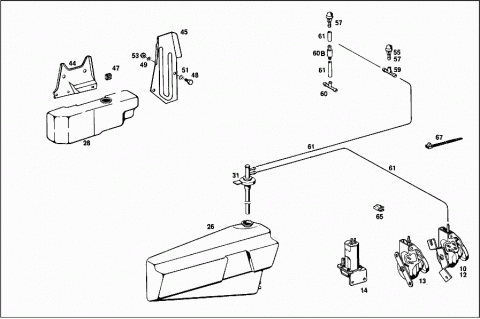

Grupė: 86 WINDSHIELD WASHER - 001 PANE WASHER,EMERGENCY EQUIPMENT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1158690121 | PUMP |
| 012 | A 1158690321 | PUMP |
| 013 | A 1158690421 | PUMP |
| 014 | A 1088690121 | PUMP |
| A 1158690221 | PUMP | |
| Repalced by: A 0008693021 | ||
| A 0008693021 | PUMP | |
| N 007976004205 | SHEET METAL SCREW | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| N 000433005304 | WASHER | |
| N 007976004205 | SHEET METAL SCREW | |
| A 1158690320 | RESERVOIR | |
| Repalced by: A 1158690520 | ||
| A 1158690420 | RESERVOIR | |
| Repalced by: A 1158690520 | ||
| A 1158690320 | RESERVOIR | |
| Repalced by: A 1158690520 | ||
| A 1158690420 | RESERVOIR | |
| Repalced by: A 1158690520 | ||
| A 1158690520 | RESERVOIR | |
| Repalced by: A 1158690720 | ||
| 026 | A 1158690720 | RESERVOIR |
| 028 | A 1148690420 | RESERVOIR |
| A 1148690320 | RESERVOIR | |
| A 1158690419 | VALVE | |
| Repalced by: A 1158600169 | ||
| 031 | A 1158600169 | FASTENER |
| 031 | A 1158600169 | FASTENER |
| A 0008690419 | VALVE | |
| Repalced by: A 0008691119 | ||
| A 0008691019 | VALVE | |
| Repalced by: A 0008691119 | ||
| A 0008691119 | FILLER CAP | |
| A 0008691119 | FILLER CAP | |
| A 0008690224 | CONNECTOR | |
| A 0008690224 | CONNECTOR | |
| A 1078690019 | VALVE | |
| A 0039882678 | CLIP | |
| 044 | A 1148690214 | HOLDER |
| LEFT | ||
| 045 | A 1148690114 | HOLDER |
| RIGHT | ||
| 047 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 047 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 047 | A 0019906791 | NUT RETAINER |
| N 007976005203 | SHEET METAL SCREW | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| 048 | N 000933006102 | SCREW |
| 049 | N 000137006204 | SPRING WASHER |
| 051 | N 000125006421 | WASHER |
| 053 | N 000934006007 | NUT |
| 055 | A 1158690047 | NOZZLE |
| Repalced by: A 1078690247 | ||
| A 1158690147 | NOZZLE | |
| Repalced by: A 1078690247 | ||
| 057 | A 1078690247 | NOZZLE |
| Repalced by: A 1078600047 | ||
| 057 | A 1078600047 | NOZZLE |
| Repalced by: A 1078600147 | ||
| 057 | A 1078600147 | NOZZLE |
| 059 | A 1158690024 | CONNECTOR |
| 059 | A 1158690024 | CONNECTOR |
| 060 | A 1078690024 | CONNECTOR |
| 060B | A 1078690119 | VALVE |
| 061 | A 0029975982 | HOSE |
| A 0109978982 | HOSE | |
| 065 | A 0009888978 | CLIP |
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| 067 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 067 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| A 0029887778 | CLIP | |
