Transporto priemonė: 280 E; VIN numerio dalis: 114062
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

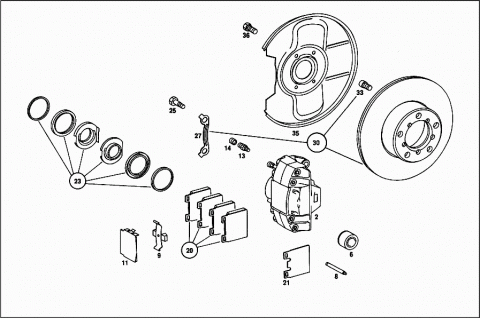

| A 0014210298 | CALIPER | |
| Repalced by: A 0014218198 | ||
| A 0014210298 | CALIPER | |
| 002 | A 0014218198 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| 002 | A 0014218198 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| A 0014217998 | CALIPER | |
| LEFT;TEVES;LESS LINING | ||
| A 0014210398 | CALIPER | |
| Repalced by: A 0014218298 | ||
| A 0014210398 | CALIPER | |
| A 0014218298 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0014218298 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0014218098 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| 006 | A 0004213583 | PISTON |
| A 0004214383 | PISTON | |
| 008 | A 0009910360 | DOWEL PIN |
| 009 | A 0004210291 | SPRING |
| A 0004211091 | SPRING | |
| 011 | A 0004210220 | PROTECTIVE PLATE |
| 013 | A 0004201755 | BLEEDER VALVE |
| 014 | A 0004210887 | PROTECTIVE CAP |
| A 0014217398 | CALIPER | |
| LEFT;BENDIX;LESS LINING | ||
| A 0014217498 | CALIPER | |
| RIGHT;BENDIX;LESS LINING | ||
| A 0004214483 | PISTON | |
| A 0009912660 | DOWEL PIN | |
| A 0004211291 | SPRING | |
| A 0004210573 | LOCK | |
| TO 000 991 18 60 | ||
| A 0004210573 | LOCK | |
| TO 000 991 18 60 | ||
| A 0004210573 | LOCK | |
| TO 000 991 26 60 | ||
| A 0004210520 | PROTECTIVE PLATE | |
| A 0004204655 | BLEEDER VALVE | |
| A 0004204655 | BLEEDER VALVE | |

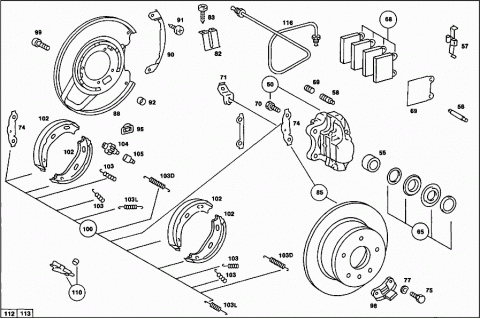

| 020 | A 0014207720 | BRAKE PAD |
| PARTS KIT | ||
| 020 | A 0014207820 | BRAKE PAD |
| PARTS KIT | ||
| A 0004210096 | SHIM | |
| 021 | A 0004210196 | SHIM |
| 023 | A 0005866442 | REPAIR KIT |
| TEVES | ||
| 023 | A 0005867442 | REPAIR KIT |
| TEVES | ||
| 023 | A 0015860042 | REPAIR KIT |
| BENDIX | ||
| 025 | A 1154210471 | SCREW |
| 027 | A 1159940732 | LOCK |
| 030 | A 1154211112 | BRAKE DISC |
| 030 | A 1154211112 | BRAKE DISC |
| 030 | A 1154211312 | BRAKE DISC |
| 030 | A 1154211312 | BRAKE DISC |
| 030 | A 1234210012 | BRAKE DISC |
| 033 | A 0009907212 | SCREW |
| 035 | A 1144210020 | PROTECTIVE PLATE |
| 036 | N 914004006002 | COMBINATION BOLT |
| A 0004231698 | CALIPER | |
| Repalced by: A 1234200583 | ||
| A 0004232398 | CALIPER | |
| Repalced by: A 1234200583 | ||
| A 0004233198 | CALIPER | |
| Repalced by: A 1234200583 | ||
| A 0004233398 | CALIPER | |
| Repalced by: A 1234200583 | ||
| A 0004235898 | CALIPER | |
| Repalced by: A 1234200583 | ||
| A 0004235898 | CALIPER | |
| 050 | A 1234200583 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| A 0004231598 | CALIPER | |
| Repalced by: A 1234200683 | ||
| A 0004232498 | CALIPER | |
| Repalced by: A 1234200683 | ||
| A 0004233298 | CALIPER | |
| Repalced by: A 1234200683 | ||
| A 0004233498 | CALIPER | |
| Repalced by: A 1234200683 | ||
| A 0004235998 | CALIPER | |
| Repalced by: A 1234200683 | ||
| A 0004235998 | CALIPER | |
| A 1234200683 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| 055 | A 0004233683 | PISTON |
| TEVES | ||
| 056 | A 0009910360 | DOWEL PIN |
| 057 | A 0004211791 | SPRING |
| TEVES | ||
| 058 | A 0004201955 | BLEEDER VALVE |
| 7-MM THREAD | ||
| A 0004204655 | BLEEDER VALVE | |
| 8-MM THREAD | ||
| 059 | A 0004210887 | PROTECTIVE CAP |
| A 1234200783 | CALIPER | |
| Repalced by: A 1264201483 | ||
| A 1264201483 | CALIPER | |
| LEFT;BENDIX;LESS LINING | ||
| A 1234200883 | CALIPER | |
| Repalced by: A 1264201583 | ||
| A 1264201583 | CALIPER | |
| RIGHT;BENDIX;LESS LINING | ||
| A 0004233583 | PISTON | |
| BENDIX | ||
| A 0004211391 | SPRING | |
| BENDIX | ||
| A 0009912660 | DOWEL PIN | |
| BENDIX | ||
| A 0004210573 | LOCK | |
| BENDIX TO 000 991 19 60 | ||
| A 0004210573 | LOCK | |
| BENDIX TO 000 991 26 60 | ||
| 065 | A 0015867343 | REPAIR KIT |
| TEVES | ||
| A 0015860142 | REPAIR KIT | |
| BENDIX | ||
| 068 | A 0014200620 | BRAKE PAD |
| PARTS KIT | ||
| 069 | A 0004230061 | SHIM |
| 070 | A 1234230071 | SCREW |
| 071 | A 1154281740 | BRACKET |
| LEFT | ||
| 071 | A 1154281740 | BRACKET |
| LEFT | ||
| 071 | A 1154281740 | BRACKET |
| LEFT | ||
| 071 | A 1154281740 | BRACKET |
| LEFT | ||
| A 1154281840 | BRACKET | |
| RIGHT | ||
| A 1154281840 | BRACKET | |
| RIGHT | ||
| A 1154281840 | BRACKET | |
| RIGHT | ||
| A 1154281840 | BRACKET | |
| RIGHT | ||
| 074 | A 1154230273 | LOCK |
| 075 | N 304017006034 | SCREW |
| 075 | N 304017006034 | SCREW |
| 075 | N 304017006034 | SCREW |
| 075 | N 304017006034 | SCREW |
| 077 | N 000137006204 | SPRING WASHER |
| 077 | N 000137006204 | SPRING WASHER |
| 077 | N 000137006204 | SPRING WASHER |
| 077 | N 000137006204 | SPRING WASHER |
| 082 | A 1154232920 | PROTECTIVE PLATE |
| 083 | N 007516004106 | TAPPING SCREW |
| 085 | A 1264230012 | BRAKE DISC |
| A 1154201244 | PROTECTIVE PLATE | |
| Repalced by: A 1154203544 | ||
| A 1154201244 | PROTECTIVE PLATE | |
| 088 | A 1154203544 | PROTECTIVE PLATE |
| REAR WHEEL BRAKE,LEFT | ||
| 088 | A 1154203544 | PROTECTIVE PLATE |
| REAR WHEEL BRAKE,LEFT | ||
| 088 | A 1154203544 | PROTECTIVE PLATE |
| REAR WHEEL BRAKE,LEFT | ||
| A 1154201344 | PROTECTIVE PLATE | |
| Repalced by: A 1154203644 | ||
| A 1154201344 | PROTECTIVE PLATE | |
| A 1154203644 | PROTECTIVE PLATE | |
| REAR WHEEL BRAKE,RIGHT | ||
| A 1154203644 | PROTECTIVE PLATE | |
| REAR WHEEL BRAKE,RIGHT | ||
| A 1154203644 | PROTECTIVE PLATE | |
| REAR WHEEL BRAKE,RIGHT | ||
| 090 | A 1154233220 | PROTECTIVE PLATE |
| 091 | N 000000000460 | SHEET METAL SCREW |
| 092 | A 1154270060 | SEAL RING |
| 092 | A 1154270060 | SEAL RING |
| 095 | A 1154270396 | CUP |
| COVER PLATE TO TRANSVERSE CONTROL ARM | ||
| 095 | A 1154270396 | CUP |
| COVER PLATE TO TRANSVERSE CONTROL ARM | ||
| 095 | A 1154270396 | CUP |
| COVER PLATE TO TRANSVERSE CONTROL ARM | ||
| 098 | A 1234230006 | BRAKE ANCHOR |
| BRAKE SHOE | ||
| 098 | A 1234230106 | BRAKE ANCHOR |
| BRAKE SHOE | ||
| 098 | A 1234230206 | BRAKE ANCHOR |
| BRAKE SHOE | ||
| N 914004006002 | COMBINATION BOLT | |
| 099 | A 1239900312 | SCREW |
| BRAKE SHOE SUPPORT TO TRANSVERSE CONTROL ARM | ||
| 100 | A 1264200120 | BRAKE SHOE |
| 102 | A 1084200120 | BRAKE SHOE |
| A 1164200020 | BRAKE SHOE | |
| 103 | A 1084230092 | SPRING |
| 103D | A 9109931310 | SPRING |
| 103L | A 1084230692 | SPRING |
| 104 | A 1234200073 | SCREW |
| 105 | A 1164230050 | BUSHING |
| A 1084200081 | LEVER | |
| Repalced by: A 1145860142 | ||
| A 1084270089 | CONNECTOR | |
| Repalced by: A 1145860142 | ||
| A 1084270174 | PIN | |
| Repalced by: A 1145860142 | ||
| A 1145860042 | REPAIR KIT | |
| Repalced by: A 1145860142 | ||
| 110 | A 1145860142 | REPAIR KIT |
| TURNBUCKLE | ||
| A 1154201189 | SHACKLE | |
| A 1084270074 | PIN | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.103D | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.103L | ||
| A 1234206328 | LINE | |
| LEFT | ||
| A 1234206328 | LINE | |
| LEFT | ||
| 116 | A 1234206328 | LINE |
| LEFT | ||
| 116 | A 1234206328 | LINE |
| LEFT | ||
| 116 | A 1234206328 | LINE |
| LEFT | ||
| A 1234205028 | LINE | |
| LEFT | ||
| 180 MM | ||
| A 1234205028 | LINE | |
| LEFT | ||
| 180 MM | ||
| A 1234205028 | LINE | |
| LEFT | ||
| 180 MM | ||
| A 1234205028 | LINE | |
| LEFT | ||
| 180 MM | ||
| A 1234206328 | LINE | |
| RIGHT | ||
| A 1234206328 | LINE | |
| RIGHT | ||
| A 1234206328 | LINE | |
| RIGHT | ||
| A 1234206328 | LINE | |
| RIGHT | ||
| A 1234206328 | LINE | |
| RIGHT | ||
| A 1234205028 | LINE | |
| RIGHT | ||
| 180 MM | ||
| A 1234205028 | LINE | |
| RIGHT | ||
| 180 MM | ||
| A 1234205028 | LINE | |
| RIGHT | ||
| 180 MM | ||
| A 1234205028 | LINE | |
| RIGHT | ||
| 180 MM | ||

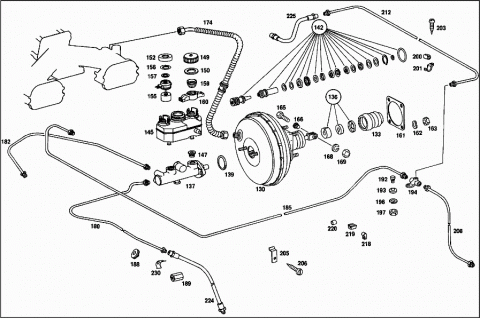

| 130 | A 0014306630 | BRAKE BOOSTER ASSEMBLY |
| TEVES | ||
| A 0014303630 | BRAKE BOOSTER ASSEMBLY | |
| BENDIX | ||
| A 0004312987 | PROTECTIVE CAP | |
| A 0004312987 | PROTECTIVE CAP | |
| 133 | A 0004317187 | PROTECTIVE CAP |
| TEVES | ||
| 136 | A 0015864143 | REPAIR KIT |
| 136 | A 0015864143 | REPAIR KIT |
| A 0025861243 | REPAIR KIT | |
| TEVES | ||
| 137 | A 0024302801 | BRAKE MASTER CYLINDER |
| 137 | A 0024302801 | BRAKE MASTER CYLINDER |
| A 0034302201 | BRAKE MASTER CYLINDER | |
| BENDIX | ||
| A 0034302201 | BRAKE MASTER CYLINDER | |
| BENDIX | ||
| A 0024309301 | BRAKE MASTER CYLINDER | |
| TEVES | ||
| 139 | A 0049973245 | SEAL RING |
| 142 | A 0015869343 | REPAIR KIT |
| TEVES | ||
| A 0015865543 | REPAIR KIT | |
| BENDIX | ||
| A 0015865543 | REPAIR KIT | |
| BENDIX | ||
| A 0014314202 | RESERVOIR | |
| BENDIX | ||
| A 0014314202 | RESERVOIR | |
| BENDIX | ||
| A 0004315702 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| A 0004316402 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| A 0004316402 | RESERVOIR | |
| A 0004318402 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| 145 | A 0014314202 | RESERVOIR |
| TEVES, THREE-CHAMBER | ||
| 147 | A 0004310935 | CONNECTOR |
| 149 | A 0004315433 | FILLER CAP |
| 150 | A 0009972940 | SEAL RING |
| A 0004319760 | SEAL RING | |
| 152 | A 0004311633 | FILLER CAP |
| TEVES | ||
| A 0025420617 | SENDER UNIT | |
| Repalced by: A 0015426317 | ||
| 155 | A 0015426317 | SENDER UNIT |
| TEVES, FRONT | ||
| 155 | A 0015426317 | SENDER UNIT |
| THREE-CHAMBER RESERVOIR,REAR | ||
| A 0025429917 | SENDER UNIT | |
| TEVES, REAR | ||
| 156 | A 0004317560 | SEAL RING |
| 157 | A 0004318260 | SEAL RING |
| A 0004317560 | SEAL RING | |
| 159 | A 0004314334 | STRAINER |
| A 0004314234 | STRAINER | |
| 160 | A 0004310062 | COVERING |
| TEVES | ||
| 161 | A 1154310180 | GASKET |
| 162 | N 000137008212 | SPRING WASHER |
| 163 | N 304032008006 | NUT |
| A 1102950571 | SCREW | |
| Repalced by: A 1152950172 | ||
| A 1152950172 | NUT | |
| A 1152950172 | NUT | |
| 165 | N 304017008034 | SCREW |
| 165 | N 304017008034 | SCREW |
| 165 | N 304017008034 | SCREW |
| 166 | A 1152910350 | BUSHING |
| 166 | A 1152910350 | BUSHING |
| 166 | A 1152910350 | BUSHING |
| 168 | N 000127008203 | LOCK WASHER |
| 169 | N 304032008006 | NUT |
| 174 | A 1084301529 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1144301129 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1234300329 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1144301329 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1169870941 | RUBBER RING | |
| A 1144301029 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1144301229 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| A 1154302229 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER | ||
| 180 | A 1234205428 | LINE |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| A 1234205428 | LINE | |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| A 1234207128 | LINE | |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| A 1234207128 | LINE | |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| 182 | A 1234206828 | LINE |
| FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE | ||
| A 1234207328 | LINE | |
| FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE | ||
| A 1234205428 | LINE | |
| FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE | ||
| A 1234207828 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234207828 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 185 | A 1234208728 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 185 | A 1234208728 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 185 | A 1234208728 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234208428 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234209028 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234208828 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| A 1234206628 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| A 1234206528 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| 188 | A 0019971481 | GROMMET |
| 189 | A 1214290134 | ADAPTER FITTING |
| A 1234207428 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234207428 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208328 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208328 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208328 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208028 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208828 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| 192 | A 1204200227 | SCREW |
| 193 | A 0009873841 | RUBBER RING |
| A 0004284124 | DISTRIBUTOR | |
| A 0004284124 | DISTRIBUTOR | |
| A 0004284124 | DISTRIBUTOR | |
| 194 | A 0004284224 | DISTRIBUTOR |
| 196 | N 912004006102 | LOCK WASHER |
| 197 | N 304032006008 | NUT |
| 200 | A 1263280181 | BUFFER |
| 201 | A 1089950520 | CLAMP |
| N 007976006203 | SHEET METAL SCREW | |
| 203 | N 007976006303 | SHEET METAL SCREW |
| 203 | N 007976006303 | SHEET METAL SCREW |
| 203 | N 007976006303 | SHEET METAL SCREW |
| 203 | N 007976006303 | SHEET METAL SCREW |
| 205 | A 1154280041 | CLAMP |
| 205 | A 1154280041 | CLAMP |
| 205 | A 1154280041 | CLAMP |
| 205 | A 1154280041 | CLAMP |
| 206 | N 007976006203 | SHEET METAL SCREW |
| 206 | N 007976006203 | SHEET METAL SCREW |
| 206 | N 007976006203 | SHEET METAL SCREW |
| 206 | N 007976006203 | SHEET METAL SCREW |
| A 1234205528 | LINE | |
| FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE | ||
| A 1234205528 | LINE | |
| FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE | ||
| A 1234205528 | LINE | |
| FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE | ||
| A 1154202428 | LINE | |
| Repalced by: A 1234205328 | ||
| A 1154202428 | LINE | |
| A 1154202428 | LINE | |
| A 1154202428 | LINE | |
| 208 | A 1234205328 | LINE |
| FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE | ||
| A 1234206628 | LINE | |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 1234206628 | LINE | |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 1234206628 | LINE | |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 1234206628 | LINE | |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 1234206628 | LINE | |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 1154202528 | LINE | |
| Repalced by: A 1234206428 | ||
| A 1154202528 | LINE | |
| A 1154202528 | LINE | |
| A 1154202528 | LINE | |
| 212 | A 1234206428 | LINE |
| FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE | ||
| A 1204200227 | SCREW | |
| A 1263280181 | BUFFER | |
| A 0009873841 | RUBBER RING | |
| A 1089950520 | CLAMP | |
| 218 | A 1159950101 | CLAMP |
| A 1409950222 | CLAMP | |
| 219 | A 1114760081 | RUBBER PAD |
| 220 | A 1085460253 | SPACER TUBE |
| 220 | A 1085460253 | SPACER TUBE |
| N 007976005205 | SHEET METAL SCREW | |
| N 000125006421 | WASHER | |
| N 304017006034 | SCREW | |
| N 007976006303 | SHEET METAL SCREW | |
| N 007976005203 | SHEET METAL SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 304032006008 | NUT | |
| 224 | A 1234280535 | BRAKE HOSE |
| FRONT | ||
| 225 | A 0004282635 | BRAKE HOSE |
| REAR | ||
| 225 | A 0004282635 | BRAKE HOSE |
| REAR | ||
| 225 | A 0004282635 | BRAKE HOSE |
| REAR | ||
| 225 | A 1264280135 | BRAKE HOSE |
| REAR | ||
| 225 | A 1264280135 | BRAKE HOSE |
| 225 | A 1264280135 | BRAKE HOSE |
| 225 | A 1264280135 | BRAKE HOSE |
| 225 | A 1264280335 | BRAKE HOSE |
| REAR | ||
| 230 | A 0004280673 | RETAINING SPRING |

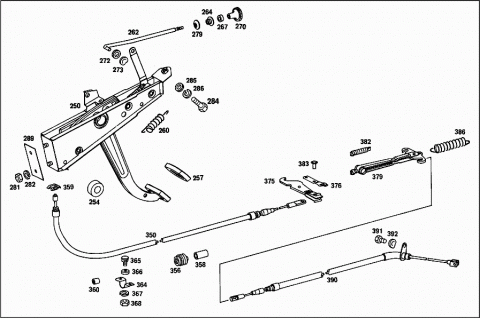

| 250 | A 1154200784 | PARKING BRAKE |
| Repalced by: A 1164200384 | ||
| 250 | A 1164200384 | PARKING BRAKE |
| 250 | A 1164200384 | PARKING BRAKE |
| 250 | A 1164200384 | PARKING BRAKE |
| 250 | A 1164200384 | PARKING BRAKE |
| 254 | A 1154270786 | DAMPING RING |
| A 1154270082 | PAD | |
| A 1154270082 | PAD | |
| A 1154270082 | PAD | |
| A 1154270082 | PAD | |
| A 1154270082 | PAD | |
| 257 | A 1074270082 | PAD |
| 257 | A 1074270082 | PAD |
| 257 | A 1074270082 | PAD |
| 257 | A 1074270082 | PAD |
| 260 | A 1164300093 | SPRING |
| A 1154270631 | ROD | |
| A 1154270631 | ROD | |
| A 1154270631 | ROD | |
| A 1154270631 | ROD | |
| A 1154270631 | ROD | |
| 262 | A 1154270731 | ROD |
| 262 | A 1154270731 | ROD |
| 262 | A 1154270731 | ROD |
| 262 | A 1154270731 | ROD |
| 264 | A 1164270012 | GUIDE |
| 264 | A 1164270012 | GUIDE |
| 264 | A 1164270012 | GUIDE |
| 264 | A 1164270012 | GUIDE |
| A 1164270073 | LOCK | |
| A 1164270073 | LOCK | |
| A 1164270073 | LOCK | |
| A 1164270073 | LOCK | |
| 267 | A 1154270886 | DAMPING RING |
| N 006799004001 | LOCK PLATE | |
| N 006799004001 | LOCK PLATE | |
| N 006799004001 | LOCK PLATE | |
| N 006799004001 | LOCK PLATE | |
| N 006799004001 | LOCK PLATE | |
| A 1108200892 | KNOB | |
| A 1108200892 | KNOB | |
| A 1108200892 | KNOB | |
| A 1108200892 | KNOB | |
| A 1108200892 | KNOB | |
| 270 | A 1155400028 | KNOB |
| 270 | A 1155400028 | KNOB |
| 270 | A 1155400028 | KNOB |
| 270 | A 1155400028 | KNOB |
| 272 | N 000125006421 | WASHER |
| 273 | N 000137006204 | SPRING WASHER |
| N 000094001503 | COTTER PIN | |
| N 006797012250 | TOOTHED WASHER | |
| A 0009900751 | NUT | |
| 279 | A 1164270073 | LOCK |
| 279 | A 1164270073 | LOCK |
| 279 | A 1164270073 | LOCK |
| 279 | A 1164270073 | LOCK |
| 281 | N 304032006008 | NUT |
| 282 | N 912004006102 | LOCK WASHER |
| 284 | N 304017006027 | SCREW |
| 285 | N 009021007200 | WASHER |
| 286 | N 912004006102 | LOCK WASHER |
| 289 | A 1154270079 | GASKET |
| 294 | A 1154200768 | SUPPORT |

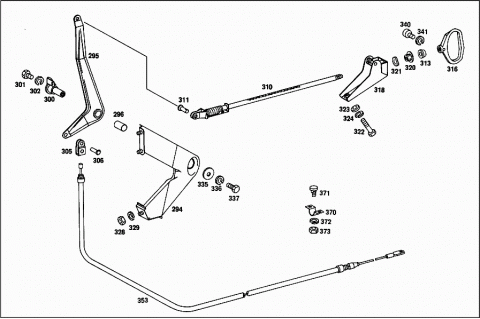

| 295 | A 1154201212 | BRAKE LEVER |
| 296 | A 1104270050 | BUSHING |
| 300 | A 1154200382 | PIN |
| 301 | N 304017008016 | SCREW |
| 302 | N 912004008102 | LOCK WASHER |
| 305 | A 1154271889 | CONNECTOR |
| 306 | N 001434008070 | PIN |
| N 000094002059 | COTTER PIN | |
| 310 | A 1154201088 | RATCHET ROD |
| 311 | N 001434008070 | PIN |
| N 000094002059 | COTTER PIN | |
| 313 | A 1154270686 | DAMPING RING |
| 313 | A 1154270686 | DAMPING RING |
| 313 | A 1154270686 | DAMPING RING |
| 313 | A 1154270686 | DAMPING RING |
| 313 | A 1154270686 | DAMPING RING |
| 316 | A 1234200395 | HANDLE |
| 318 | A 1154200786 | BRACKET |
| 320 | A 1154270640 | SCREW |
| 321 | N 900055016001 | SPRING WASHER |
| 322 | N 304017006027 | SCREW |
| 323 | N 009021007200 | WASHER |
| 324 | N 912004006102 | LOCK WASHER |
| 328 | N 304032006008 | NUT |
| 329 | N 912004006102 | LOCK WASHER |
| 335 | A 6312670276 | WASHER |
| 336 | N 912004008102 | LOCK WASHER |
| 337 | N 304017008016 | SCREW |
| 340 | N 000912005002 | SCREW |
| 341 | N 007980005001 | LOCK WASHER |
| 350 | A 1154201685 | BRAKE CABLE |
| A 1154202185 | BRAKE CABLE | |
| 353 | A 1154201985 | BRAKE CABLE |
| A 1154202285 | BRAKE CABLE | |
| 356 | A 1164270096 | CUP |
| 358 | A 1154270095 | PROTECTIVE CAP |
| 359 | A 1159930325 | SPRING |
| 360 | N 073379006101 | HOSE |
| 364 | A 1159950210 | CLAMP |
| A 3609950601 | CLAMP | |
| 365 | A 1204200227 | SCREW |
| 366 | A 0009873841 | RUBBER RING |
| 367 | N 912004006102 | LOCK WASHER |
| 368 | N 304032006008 | NUT |
| A 1159930325 | SPRING | |
| A 1159950210 | CLAMP | |
| N 007976006203 | SHEET METAL SCREW | |
| 370 | A 3159955010 | CLAMP |
| 371 | A 1204200227 | SCREW |
| 372 | N 912004006102 | LOCK WASHER |
| 373 | N 304032006008 | NUT |
| 375 | A 1154201242 | BRAKE LEVER |
| 376 | A 1159930330 | SPRING |
| N 910006004043 | RIVET | |
| 379 | A 1154201089 | SHACKLE |
| 382 | A 1154270671 | SCREW |
| 383 | A 1154270974 | PIN |
| N 000094001503 | COTTER PIN | |
| N 000094003227 | COTTER PIN | |
| 386 | A 1159932710 | SPRING |
| A 1159930325 | SPRING | |
| 390 | A 1154202785 | BRAKE CABLE |
| 391 | N 000933010162 | SCREW |
| 392 | N 000137010205 | SPRING WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
