Transporto priemonė: 280 E; VIN numerio dalis: 114062
Grupė: 27 DB AUTOMATIC TRANSMISSION - 001 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DB AUTOMATIC TRANSMISSION | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM TRANSMISSION 028230 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM TRANSMISSION 001711 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SEE SPARE PARTSLIST 406 | ||
| A 1142702301 | AUTOMATIC TRANSMISSION | |
| A 1142701101 | AUTOMATIC TRANSMISSION | |
| A 1142702401 | AUTOMATIC TRANSMISSION | |

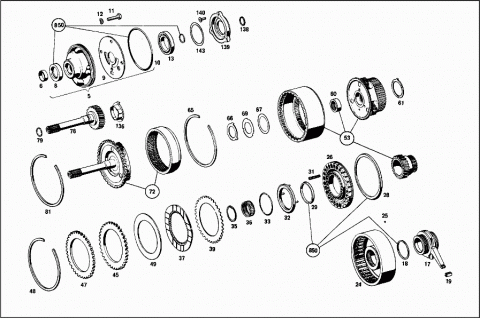

| 005 | A 1152700890 | HOUSING |
| 006 | A 1122774350 | BUSHING |
| 008 | A 0089979146 | SEAL RING |
| 009 | A 1152770314 | INTERMEDIATE PLATE |
| 010 | A 0049970548 | SEAL RING |
| 010 | A 0049970548 | SEAL RING |
| 011 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 011 | N 304017008018 | SCREW |
| 012 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 012 | N 000137008212 | SPRING WASHER |
| 013 | N 000625016008 | GROOVED BALL BEARING |
| 017 | A 1152701150 | BUSHING |
| Repalced by: A 1152702150 | ||
| 017 | A 1152701650 | BUSHING |
| Repalced by: A 1152702150 | ||
| 017 | A 1152702150 | BUSHING |
| 018 | A 1152720655 | SEAL RING |
| Repalced by: A 3162720455 | ||
| 018 | A 3162720455 | SEAL RING |
| 019 | A 1152720792 | BOOT |
| A 1152701520 | FLANGE | |
| Repalced by: A 1152704120 | ||
| A 1152703320 | FLANGE | |
| Repalced by: A 1152704120 | ||
| A 1152703320 | FLANGE | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| A 1152704120 | FLANGE | |
| A 1152704120 | FLANGE | |
| A 1152704120 | FLANGE | |
| A 1152704120 | FLANGE | |
| A 1152704120 | FLANGE | |
| 024 | A 1152708620 | FLANGE |
| 025 | N 005401303000 | BALL |
| 026 | A 1152720231 | PISTON |
| 028 | A 1152721292 | BOOT |
| Repalced by: A 3162720792 | ||
| 028 | A 3162720792 | BOOT |
| 029 | A 1152721492 | BOOT |
| 031 | A 1159935201 | SPRING |
| 032 | A 1152700441 | BRACKET |
| 033 | A 1159940835 | SNAP RING |
| A 1152721407 | SUN GEAR | |
| 035 | A 0009941440 | SNAP RING |
| 036 | A 0069814210 | NEEDLE BEARING |
| 037 | A 1122720225 | INNER DISC |
| 2.4 MM | ||
| 039 | A 1092721526 | OUTER DISC |
| 2.0MM | ||
| A 1092720826 | OUTER DISC | |
| A 1092720826 | OUTER DISC | |
| 3.5MM | ||
| A 1092720826 | OUTER DISC | |
| 3.5MM | ||
| 045 | A 1092722326 | OUTER DISC |
| 5.0MM AS REQUIRED | ||
| 045 | A 1092722326 | OUTER DISC |
| 5.0MM AS REQUIRED | ||
| A 1092720526 | OUTER DISC | |
| 5,5 MM AS REQUIRED | ||
| A 1002720026 | OUTER DISC | |
| Repalced by: A 1092721826 | ||
| A 1092721826 | OUTER DISC | |
| A 1092721826 | OUTER DISC | |
| 047 | A 1092721926 | OUTER DISC |
| 5.0 MM | ||
| 047 | A 1092721926 | OUTER DISC |
| 5.0 MM | ||
| 048 | A 1152721273 | LOCK |
| 049 | A 1122721462 | GUARD PLATE |
| 0.6 MM | ||
| 049 | A 1122721462 | GUARD PLATE |
| 0.6 MM | ||
| 049 | A 1122721462 | GUARD PLATE |
| 0.6 MM | ||
| A 1152705943 | PLANETARY CARRIER | |
| A 1152705943 | PLANETARY CARRIER | |
| 053 | A 1152706043 | PLANETARY CARRIER |
| 053 | A 1152706043 | PLANETARY CARRIER |
| 053 | A 1152706043 | PLANETARY CARRIER |
| A 1152720406 | PLANET GEAR | |
| A 0009814787 | NEEDLE | |
| A 1152723962 | GUARD PLATE | |
| A 1152723862 | GUARD PLATE | |
| A 1152721074 | PIN | |
| 060 | A 0049812110 | NEEDLE BEARING |
| 061 | A 1152723362 | GUARD PLATE |
| A 1152721008 | ANNULUS | |
| A 1152720008 | ANNULUS | |
| 065 | A 1152720273 | LOCK |
| 066 | A 1152723462 | GUARD PLATE |
| 067 | A 1152711752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1152711852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1152711952 | SPACER WASHER | |
| AS REQUIRED | ||
| 05 MM | ||
| 069 | A 1152712152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1152712252 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1152712352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 072 | A 1152702443 | PLANETARY CARRIER |
| Repalced by: A 1152705643 | ||
| 072 | A 1152702443 | PLANETARY CARRIER |
| 072 | A 1152703143 | PLANETARY CARRIER |
| Repalced by: A 1152705643 | ||
| 072 | A 1152703143 | PLANETARY CARRIER |
| 072 | A 1152703143 | PLANETARY CARRIER |
| 072 | A 1152704943 | PLANETARY CARRIER |
| Repalced by: A 1152705643 | ||
| 072 | A 1152704943 | PLANETARY CARRIER |
| 072 | A 1152704943 | PLANETARY CARRIER |
| 072 | A 1152705643 | PLANETARY CARRIER |
| A 1152720406 | PLANET GEAR | |
| A 0009814787 | NEEDLE | |
| A 1152723962 | GUARD PLATE | |
| A 1152723862 | GUARD PLATE | |
| A 1152701074 | PIN | |
| 078 | A 1152704125 | DRIVE SHAFT |
| Repalced by: A 1152705925 | ||
| 078 | A 1152704125 | DRIVE SHAFT |
| 078 | A 1152704125 | DRIVE SHAFT |
| 078 | A 1152705925 | DRIVE SHAFT |
| 079 | A 1152721155 | SEAL RING |
| 079 | A 1152721155 | SEAL RING |
| 079 | A 1152721155 | SEAL RING |
| 081 | A 1152720473 | LOCK |
| A 1152722945 | FLANGE | |
| A 1152722945 | FLANGE | |
| 084 | A 1152723345 | FLANGE |
| A 1152720931 | PISTON | |
| A 1152720931 | PISTON | |
| 086 | A 1152721231 | PISTON |
| A 1092720392 | BOOT | |
| A 1152721392 | BOOT | |
| A 1152721692 | BOOT | |
| 087 | A 1152720692 | BOOT |
| A 1152721492 | BOOT | |
| A 1092720492 | BOOT | |
| A 1159935301 | SPRING | |
| A 1159935301 | SPRING | |
| 090 | A 1159934303 | SPRING |
| 090 | A 1159934303 | SPRING |
| 090 | A 1159934303 | SPRING |
| 090 | A 1159934303 | SPRING |
| 091 | A 1152700441 | BRACKET |
| 091 | A 1152700441 | BRACKET |
| 093 | A 1092720267 | RING |
| 095 | A 1092720062 | GUARD PLATE |
| A 1152723724 | DISC SUPPORT | |
| A 1152723724 | DISC SUPPORT | |
| 098 | A 1152724424 | DISC SUPPORT |
| 099 | A 1152720473 | LOCK |
| 100 | A 1122720225 | INNER DISC |
| 2.4 MM | ||
| 102 | A 1092721526 | OUTER DISC |
| 2.0 MM | ||
| A 1002720026 | OUTER DISC | |
| Repalced by: A 1092721826 | ||
| A 1092721826 | OUTER DISC | |
| 5.0 MM | ||
| A 1152720626 | OUTER DISC | |
| Repalced by: A 1092722026 | ||
| A 1092722026 | OUTER DISC | |
| 5.0 MM | ||
| 105 | A 1092722326 | OUTER DISC |
| 5.0 MM AS REQUIRED | ||
| A 1092720526 | OUTER DISC | |
| 5.5 MM AS REQUIRED | ||
| A 1092720826 | OUTER DISC | |
| A 1002720173 | LOCK | |
| A 1002720173 | LOCK | |
| 108 | A 1152721373 | LOCK |
| 109 | A 0029813110 | NEEDLE BEARING |
| A 1152704925 | DRIVE SHAFT | |
| A 1152704925 | DRIVE SHAFT | |
| 110 | A 1152705625 | DRIVE SHAFT |
| 110 | A 1152705625 | DRIVE SHAFT |
| 110 | A 1152705625 | DRIVE SHAFT |
| 112 | A 0029813210 | NEEDLE BEARING |
| 113 | A 1152723462 | GUARD PLATE |
| 114 | A 1152720273 | LOCK |
| 116 | A 1129940735 | SNAP RING |
| 116 | A 1129940735 | SNAP RING |
| 116 | A 1129940735 | SNAP RING |
| 117 | N 000471030000 | LOCK RING |
| 117 | N 000471030000 | LOCK RING |
| A 0029942641 | LOCK | |
| A 0029942641 | LOCK | |
| A 0029942641 | LOCK | |
| A 0029811210 | NEEDLE BEARING | |
| 120 | A 0049814110 | NEEDLE BEARING |
| Repalced by: A 0059818110 | ||
| 120 | A 0059818110 | NEEDLE BEARING |
| 120 | A 0059818110 | NEEDLE BEARING |
| A 0049814210 | NEEDLE BEARING | |
| Repalced by: A 0059818110 | ||
| A 0059818110 | NEEDLE BEARING | |
| A 0059818110 | NEEDLE BEARING | |
| A 0059818110 | NEEDLE BEARING | |
| A 0059818110 | NEEDLE BEARING | |
| 122 | A 0029813010 | NEEDLE BEARING |
| A 1152703725 | DRIVE SHAFT | |
| 124 | A 1152704025 | DRIVE SHAFT |
| Repalced by: A 1152705425 | ||
| 124 | A 1152704025 | DRIVE SHAFT |
| 124 | A 1152705425 | DRIVE SHAFT |
| 124 | A 1152705425 | DRIVE SHAFT |
| A 1152705525 | DRIVE SHAFT | |
| A 1152705525 | DRIVE SHAFT | |
| A 1152705525 | DRIVE SHAFT | |
| A 1152704425 | DRIVE SHAFT | |
| Repalced by: A 1152705425 | ||
| A 1152705425 | DRIVE SHAFT | |
| 128 | A 1092701043 | PLANETARY CARRIER |
| Repalced by: A 1152702643 | ||
| 128 | A 1092701043 | PLANETARY CARRIER |
| 128 | A 1152702643 | PLANETARY CARRIER |
| 128 | A 1152702643 | PLANETARY CARRIER |
| A 1152704743 | PLANETARY CARRIER | |
| A 1152720506 | PLANET GEAR | |
| A 0009814787 | NEEDLE | |
| A 1152723862 | GUARD PLATE | |
| A 1152723962 | GUARD PLATE | |
| A 1152721074 | PIN | |
| A 1152720008 | ANNULUS | |
| 132 | A 0079813910 | NEEDLE BEARING |
| 133 | A 0049814010 | NEEDLE BEARING |
| 134 | A 1152723762 | GUARD PLATE |
| 135 | A 0019811825 | BALL BEARING |
| A 1152723362 | GUARD PLATE | |
| A 1152723362 | GUARD PLATE | |
| 136 | A 1152724962 | GUARD PLATE |
| 136 | A 1152724962 | GUARD PLATE |
| 136 | A 1152724962 | GUARD PLATE |
| 138 | A 3072720555 | SEAL RING |
| 139 | A 1152722445 | FLANGE |
| 140 | N 007987006108 | SCREW |
| N 006797006340 | TOOTHED WASHER | |
| N 006797006340 | TOOTHED WASHER | |
| 143 | A 1152711352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1152711452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1152711552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 0003040590 | SOLENOID | |
| 146 | A 0003040690 | SOLENOID |
| Repalced by: A 0003040590 | ||
| 146 | A 0003040590 | SOLENOID |
| 147 | A 0003040790 | SOLENOID |
| 148 | A 0109977745 | SEAL RING |
| 149 | A 0079979645 | SEAL RING |
| 151 | A 0079978045 | SEAL RING |
| 152 | N 007603014104 | SEAL RING |

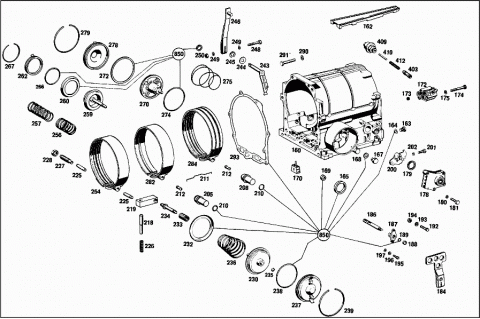

| 160 | A 1152700511 | TRANSMISSION CASE |
| Repalced by: A 1152707711 | ||
| 160 | A 1152700511 | TRANSMISSION CASE |
| 160 | A 1152703211 | TRANSMISSION CASE |
| Repalced by: A 1152707711 | ||
| 160 | A 1152703211 | TRANSMISSION CASE |
| 160 | A 1152703811 | TRANSMISSION CASE |
| Repalced by: A 1152707711 | ||
| 160 | A 1152703811 | TRANSMISSION CASE |
| 160 | A 1152706011 | TRANSMISSION CASE |
| Repalced by: A 1152707711 | ||
| 160 | A 1152706011 | TRANSMISSION CASE |
| 160 | A 1152705911 | TRANSMISSION CASE |
| Repalced by: A 1152707711 | ||
| 160 | A 1152705911 | TRANSMISSION CASE |
| 160 | A 1152705911 | TRANSMISSION CASE |
| 160 | A 1152707711 | TRANSMISSION CASE |
| 162 | A 1152771540 | BRACKET |
| 162 | A 1152771540 | BRACKET |
| 162 | A 1152771540 | BRACKET |
| 163 | A 1159970630 | SCREW PLUG |
| 164 | N 007603008105 | SEAL RING |
| 165 | A 1152721192 | BOOT |
| 167 | A 1109970330 | SCREW PLUG |
| 168 | N 007603012104 | SEAL RING |
| 169 | A 0069976146 | SEAL RING |
| 170 | A 1152700868 | GUIDE TUBE |
| 172 | A 1152770705 | HOUSING |
| 172 | A 1152772005 | HOUSING |
| A 1142770105 | HOUSING | |
| 173 | A 1159932010 | SPRING |
| 174 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 174 | N 000933006151 | SCREW |
| 175 | N 000137006204 | SPRING WASHER |
| 178 | A 0005453306 | SWITCH |
| 179 | A 1159970740 | SEAL RING |
| 180 | N 000137005203 | SPRING WASHER |
| 181 | N 000084005174 | SCREW |
| 184 | A 1152700656 | LEVER |
| Repalced by: A 1152781620 | ||
| 184 | A 1152700656 | LEVER |
| 184 | A 1152781620 | LEVER |
| 184 | A 1152781620 | LEVER |
| 184 | A 1152781620 | LEVER |
| 186 | A 1152780910 | CONTROL SHAFT |
| 186 | A 1152780910 | CONTROL SHAFT |
| 186 | A 1152780910 | CONTROL SHAFT |
| 187 | A 1152780950 | BUSHING |
| 187 | A 1152780950 | BUSHING |
| 187 | A 1152780950 | BUSHING |
| 188 | A 1152780153 | SPACER TUBE |
| 188 | A 1152780153 | SPACER TUBE |
| 188 | A 1152780153 | SPACER TUBE |
| 189 | A 0049973745 | SEAL RING |
| 189 | A 0049973745 | SEAL RING |
| 189 | A 0049973745 | SEAL RING |
| 192 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 192 | N 304017006012 | SCREW |
| 192 | N 304017006012 | SCREW |
| 192 | N 304017006012 | SCREW |
| 193 | N 000125006407 | WASHER |
| 193 | N 000125006407 | WASHER |
| 193 | N 000125006407 | WASHER |
| 194 | N 000934006007 | NUT |
| 194 | N 000934006007 | NUT |
| 194 | N 000934006007 | NUT |
| 195 | N 000084004139 | SCREW |
| 195 | N 000084004139 | SCREW |
| 195 | N 000084004139 | SCREW |
| 196 | N 009021004202 | WASHER |
| Repalced by: N 009021004207 | ||
| 196 | N 009021004207 | WASHER |
| 196 | N 009021004207 | WASHER |
| 196 | N 009021004207 | WASHER |
| 197 | N 000137004202 | SPRING WASHER |
| 197 | N 000137004202 | SPRING WASHER |
| 197 | N 000137004202 | SPRING WASHER |
| 200 | A 1152700157 | DETENT |
| 201 | N 006912006006 | SCREW |
| 202 | N 000137006204 | SPRING WASHER |
| A 1152700989 | VALVE | |
| A 1152700989 | VALVE | |
| A 1152701289 | VALVE | |
| A 1152701289 | VALVE | |
| 205 | A 1092700689 | VALVE |
| Repalced by: A 1092701089 | ||
| 205 | A 1092701089 | VALVE |
| 205 | A 1092701089 | VALVE |
| 205 | A 1092701089 | VALVE |
| A 1152701389 | VALVE | |
| A 1152701389 | VALVE | |
| 208 | A 1092700789 | VALVE |
| Repalced by: A 1092701189 | ||
| 208 | A 1092701189 | VALVE |
| 208 | A 1092701189 | VALVE |
| 208 | A 1092701189 | VALVE |
| A 0059971645 | SEAL RING | |
| A 0059971645 | SEAL RING | |
| 210 | A 0109970845 | SEAL RING |
| Repalced by: A 0169973448 | ||
| 210 | A 0169973448 | SEAL RING |
| 210 | A 0169973448 | SEAL RING |
| 210 | A 0169973448 | SEAL RING |
| 211 | A 1159930022 | SPRING |
| 212 | A 1092770175 | PIN |
| AS REQUIRED | ||
| 22 MM | ||
| A 1092770275 | PIN | |
| AS REQUIRED | ||
| 23 MM | ||
| A 1092770375 | PIN | |
| AS REQUIRED | ||
| 24 MM | ||
| A 1092770475 | PIN | |
| 25 MM AS REQUIRED | ||
| A 1092770575 | PIN | |
| 26 MM AS REQUIRED | ||
| 218 | A 1152770274 | PIN |
| 219 | A 1152770424 | LEVER |
| 225 | A 1152775375 | PIN |
| 226 | A 1159930225 | SPRING |
| 227 | A 1152771771 | SCREW |
| 228 | A 1159900451 | NUT |
| 230 | A 1152706132 | PISTON |
| 232 | A 1152720892 | BOOT |
| 233 | A 1159930902 | SPRING |
| 234 | A 1152774875 | PIN |
| 235 | A 1159941735 | SNAP RING |
| 236 | A 1159931805 | SPRING |
| 237 | A 1152771603 | COVER |
| 238 | A 0089973545 | SEAL RING |
| 239 | A 1159940435 | SNAP RING |
| 243 | A 1152700659 | LEVER |
| 244 | A 1159901740 | WASHER |
| 245 | N 006799009002 | LOCK PLATE |
| 246 | A 1152700859 | LEVER |
| 248 | N 000933006123 | SCREW |
| 249 | N 000137006204 | SPRING WASHER |
| 250 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 250 | N 304032006008 | NUT |
| 254 | A 1162700362 | BRAKE BAND |
| Repalced by: A 1162701762 | ||
| 254 | A 1162701762 | BRAKE BAND |
| A 1159939501 | SPRING | |
| A 1159939501 | SPRING | |
| 256 | A 1159935503 | SPRING |
| 256 | A 1159935503 | SPRING |
| 256 | A 1159935503 | SPRING |
| 257 | A 1159935403 | SPRING |
| 257 | A 1159935403 | SPRING |
| 257 | A 1159935403 | SPRING |
| A 1152705232 | PISTON | |
| A 1152705232 | PISTON | |
| 259 | A 1152705932 | PISTON |
| 259 | A 1152705932 | PISTON |
| 259 | A 1152705932 | PISTON |
| 260 | A 1152720392 | BOOT |
| 262 | A 1152771903 | COVER |
| 266 | A 0109975945 | SEAL RING |
| 267 | A 1159941435 | SNAP RING |
| 270 | A 1152705532 | PISTON |
| 272 | A 1152770255 | SEAL RING |
| 274 | A 0089973545 | SEAL RING |
| 275 | A 1159932205 | SPRING |
| Repalced by: A 1159932305 | ||
| 275 | A 1159932305 | SPRING |
| 275 | A 1159932305 | SPRING |
| 278 | A 1152771603 | COVER |
| 279 | A 1159940435 | SNAP RING |
| 282 | A 1152705862 | BRAKE BAND |
| Repalced by: A 1152707062 | ||
| 282 | A 1152707062 | BRAKE BAND |
| 284 | A 1152705962 | BRAKE BAND |
| Repalced by: A 1152707362 | ||
| 284 | A 1152707362 | BRAKE BAND |
| 290 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 290 | N 000137008212 | SPRING WASHER |
| 291 | N 000931008244 | SCREW |
| 293 | A 1152772680 | GASKET |
| Repalced by: A 1152773380 | ||
| 293 | A 1152773380 | GASKET |
| 294 | A 1152720117 | GEAR |
| Repalced by: A 7222720017 | ||
| 294 | A 7222720017 | GEAR |
| 295 | A 1152780774 | PIN |
| 297 | A 0009944241 | LOCK |
| 298 | A 1159930222 | SPRING |
| 299 | A 1152780221 | PAWL |
| 305 | A 1152701065 | LINKAGE |
| Repalced by: A 1152700665 | ||
| 305 | A 1152700665 | LINKAGE |
| 306 | A 1152780517 | ROLLER |
| 307 | A 1152780874 | PIN |
| 308 | A 1152780062 | THRUST WASHER |
| 309 | A 0009815187 | NEEDLE |
| 310 | A 1152780417 | ROLLER |
| 311 | N 006799008005 | LOCK PLATE |
| 312 | A 1159902140 | WASHER |
| 313 | A 1152700478 | SPRING |
| 318 | A 1152780440 | BRACKET |
| 319 | N 000137006204 | SPRING WASHER |
| 320 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 320 | N 304017006016 | SCREW |
| A 1152701574 | GOVERNOR | |
| A 1152701574 | GOVERNOR | |
| 325 | A 1152701974 | GOVERNOR |
| 325 | A 1152701974 | GOVERNOR |
| 325 | A 1152701974 | GOVERNOR |
| 327 | A 1152700098 | FILTER |
| 328 | A 1152720355 | SEAL RING |
| 328 | A 1152721355 | SEAL RING |
| A 1152740330 | DRIVE GEAR | |
| Repalced by: A 1152741030 | ||
| A 1152740330 | DRIVE GEAR | |
| A 1152740530 | DRIVE GEAR | |
| Repalced by: A 1152741030 | ||
| A 1152740530 | DRIVE GEAR | |
| 330 | A 1152700342 | GEAR |
| 330 | A 1152700342 | GEAR |
| 330 | A 1152700342 | GEAR |
| 331 | A 1159930426 | DISC SPRING |
| 331 | A 1159930426 | DISC SPRING |
| 331 | A 1159930426 | DISC SPRING |
| 335 | A 1152701211 | TRANSMISSION CASE |
| Repalced by: A 1152704911 | ||
| 335 | A 1152701211 | TRANSMISSION CASE |
| 335 | A 1152701711 | TRANSMISSION CASE |
| Repalced by: A 1152704911 | ||
| 335 | A 1152701711 | TRANSMISSION CASE |
| 335 | A 1152702711 | TRANSMISSION CASE |
| Repalced by: A 1152704911 | ||
| 335 | A 1152702711 | TRANSMISSION CASE |
| 335 | A 1152703011 | TRANSMISSION CASE |
| Repalced by: A 1152704911 | ||
| 335 | A 1152703011 | TRANSMISSION CASE |
| 335 | A 1152703911 | TRANSMISSION CASE |
| Repalced by: A 1152704911 | ||
| 335 | A 1152703911 | TRANSMISSION CASE |
| 335 | A 1152704911 | TRANSMISSION CASE |
| 335 | A 1152704911 | TRANSMISSION CASE |
| A 1232701711 | TRANSMISSION CASE | |
| 338 | N 005401306000 | BALL |
| 6 MM | ||
| 339 | N 005401308000 | BALL |
| 8 MM | ||
| 340 | A 1159910241 | FITTING SLEEVE |
| 341 | N 000007012219 | CYLINDRICAL PIN |
| N 005401310000 | BALL | |
| 344 | A 1159970103 | PLUG |
| 344 | A 1159970103 | PLUG |
| 346 | A 1159970303 | PLUG |
| 346 | A 1159970303 | PLUG |
| 348 | N 007603010100 | SEAL RING |
| 349 | A 1159970130 | SCREW PLUG |
| 350 | A 0009818185 | BALL |
| 351 | A 1159933803 | SPRING |
| 351 | A 1159933803 | SPRING |
| 353 | A 1152776275 | PIN |
| 353 | A 1152776275 | PIN |
| 355 | N 007603012102 | SEAL RING |
| 356 | N 007604012102 | SCREW PLUG |
| 357 | N 007603008105 | SEAL RING |
| 358 | A 1159970630 | SCREW PLUG |
| 362 | A 1152700427 | SPEEDOMETER DRIVE |
| Repalced by: A 1152700327 | ||
| 362 | A 1152700427 | SPEEDOMETER DRIVE |
| 362 | A 1152700327 | SPEEDOMETER DRIVE |
| A 1152740228 | CASE | |
| A 1152740228 | CASE | |
| 365 | A 1152740628 | CASE |
| 365 | A 1152740628 | CASE |
| 365 | A 1152740628 | CASE |
| 368 | A 0059975245 | SEAL RING |
| A 1152740060 | SEAL RING | |
| 369 | A 1149910129 | BALL |
| 370 | A 1159931302 | SPRING |
| 371 | N 007603018100 | SEAL RING |
| 372 | A 1159970330 | SCREW PLUG |
| 373 | A 1152705132 | PISTON |
| A 0099970945 | SEAL RING | |
| 375 | N 000137006204 | SPRING WASHER |
| 377 | A 1152771671 | SCREW |
| A 1152770871 | SCREW | |
| A 1152771071 | SCREW | |
| 378 | N 000933006130 | SCREW |
| 378 | N 000933006130 | SCREW |
| 378 | N 000933006130 | SCREW |
| 380 | N 000625900201 | GROOVED BALL BEARING |
| 381 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 381 | A 0039945241 | LOCK |
| 382 | A 0089979246 | SEAL RING |
| 383 | A 1159933404 | SPRING |
| 384 | A 1152774131 | PISTON |
| 387 | A 1152772740 | BRACKET |
| 388 | N 000137005203 | SPRING WASHER |
| N 007985005105 | SCREW | |
| 389 | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 389 | N 000000001181 | SCREW |
| 389 | N 000000001181 | SCREW |
| 392 | A 1092710080 | GASKET |
| Repalced by: A 1092710180 | ||
| 392 | A 1092710180 | GASKET |
| 393 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 393 | N 000137008212 | SPRING WASHER |
| 394 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 394 | N 304017008018 | SCREW |
| 395 | A 1152772203 | COVER |
| 395 | A 1152772203 | COVER |
| 395 | A 1152772203 | COVER |
| 396 | A 1159930103 | SPRING |
| 396 | A 1159930103 | SPRING |
| 396 | A 1159930103 | SPRING |
| 397 | A 1159930203 | SPRING |
| 397 | A 1159930203 | SPRING |
| 397 | A 1159930203 | SPRING |
| 400 | A 1152774738 | PISTON |
| 400 | A 1152774738 | PISTON |
| 400 | A 1152774738 | PISTON |
| 401 | A 1152775038 | PISTON |
| 401 | A 1152775038 | PISTON |
| 402 | A 1159930504 | SPRING |
| 402 | A 1159930504 | SPRING |
| 403 | A 1152774331 | PISTON |
| A 1142770131 | PISTON | |
| Repalced by: A 1142770431 | ||
| A 1142770431 | PISTON | |
| A 1149931101 | SPRING | |
| 406 | A 1152621145 | FLANGE |
| 408 | A 1239900060 | NUT |
| 408C | A 1162720076 | WASHER |
| 409 | A 0002700179 | VACUUM BOX |
| 410 | A 1152772975 | PIN |
| 39.65 MM AS REQUIRED | ||
| A 1152773075 | PIN | |
| 40.15 MM AS REQUIRED | ||
| A 1232770275 | PIN | |
| 40.65 MM AS REQUIRED | ||
| 412 | A 1159937202 | SPRING |
| 412 | A 1159937202 | SPRING |
| 413 | A 1159938402 | SPRING |
| 415 | A 1152700672 | SCREW |
| 416 | A 0069974145 | SEAL RING |
| Repalced by: A 0079971448 | ||
| 416 | A 0079971448 | SEAL RING |
| Repalced by: A 0189971948 | ||
| 416 | A 0189971948 | SEAL RING |
| 417 | A 1152770858 | ECCENTRIC RING |
| 450 | A 1142701607 | VALVE BODY ASSEMBLY |
| Repalced by: A 1142702207 | ||
| 450 | A 1142702207 | VALVE BODY ASSEMBLY |
| A 1142702207 | VALVE BODY ASSEMBLY | |
| A 1142700007 | VALVE BODY ASSEMBLY | |
| Repalced by: A 1142701707 | ||
| A 1142700207 | VALVE BODY ASSEMBLY | |
| Repalced by: A 1142701707 | ||
| A 1142701707 | VALVE BODY ASSEMBLY | |
| Repalced by: A 1142702307 | ||
| A 1142702307 | VALVE BODY ASSEMBLY | |
| A 1142702307 | VALVE BODY ASSEMBLY | |
| A 1142702407 | VALVE BODY ASSEMBLY | |
| 455 | A 1002770880 | GASKET |
| A 1152771336 | VALVE PART | |
| A 1159931501 | SPRING | |
| A 1152772636 | VALVE PART | |
| A 1159932803 | SPRING | |
| A 1152771580 | GASKET | |
| Repalced by: A 1152772980 | ||
| A 1152772980 | GASKET | |
| A 1002770880 | GASKET | |
| A 1152770814 | INTERMEDIATE PLATE | |
| A 1152770814 | INTERMEDIATE PLATE | |

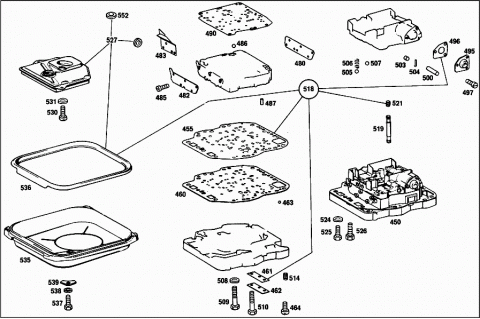

| 460 | A 1152771114 | INTERMEDIATE PLATE |
| 460 | A 1152771114 | INTERMEDIATE PLATE |
| 460 | A 1152771114 | INTERMEDIATE PLATE |
| A 1152771614 | INTERMEDIATE PLATE | |
| A 1152771614 | INTERMEDIATE PLATE | |
| 461 | A 1152771280 | GASKET |
| Repalced by: A 1152773280 | ||
| 461 | A 1152773280 | GASKET |
| 462 | A 1152770883 | LOCKING SHEET |
| 463 | N 005401305500 | BALL |
| A 1152771036 | VALVE PART | |
| 464 | N 000084005131 | SCREW |
| A 1142700907 | VALVE BODY ASSEMBLY | |
| A 1142702507 | VALVE BODY ASSEMBLY | |
| A 1142701907 | VALVE BODY ASSEMBLY | |
| A 1142700307 | VALVE BODY ASSEMBLY | |
| A 1142702607 | VALVE BODY ASSEMBLY | |
| A 1142702007 | VALVE BODY ASSEMBLY | |
| A 1142702707 | VALVE BODY ASSEMBLY | |
| A 1152775331 | PISTON | |
| A 1152776331 | PISTON | |
| A 1152776531 | PISTON | |
| A 1152776831 | PISTON | |
| A 1152777131 | PISTON | |
| A 1152775431 | PISTON | |
| A 1152777431 | PISTON | |
| A 1159933902 | SPRING | |
| A 1159933402 | SPRING | |
| A 1159932803 | SPRING | |
| A 1152772029 | SHIFT VALVE | |
| A 1152773129 | SHIFT VALVE | |
| A 1152772729 | SHIFT VALVE | |
| A 1152773029 | SHIFT VALVE | |
| A 1152772929 | SHIFT VALVE | |
| A 1159938202 | SPRING | |
| A 1152771330 | SHIFT VALVE | |
| A 1152775831 | PISTON | |
| A 1159933102 | SPRING | |
| A 1152700477 | THRUST PIN | |
| A 1152700077 | THRUST PIN | |
| A 1152770930 | SHIFT VALVE | |
| A 1159933202 | SPRING | |
| A 1152774931 | PISTON | |
| A 1159933302 | SPRING | |
| A 1152771130 | SHIFT VALVE | |
| A 1159934802 | SPRING | |
| A 1152774431 | PISTON | |
| A 1159931602 | SPRING | |
| A 1152771729 | SHIFT VALVE | |
| A 1159937901 | SPRING | |
| A 1152775731 | PISTON | |
| A 1152776631 | PISTON | |
| A 1152775931 | PISTON | |
| A 1152776731 | PISTON | |
| A 1152770377 | GUIDE | |
| A 1152700377 | THRUST PIN | |
| A 1159936902 | SPRING | |
| A 1159930003 | SPRING | |
| A 1159930102 | SPRING | |
| A 1159932003 | SPRING | |
| A 1152775131 | PISTON | |
| 480 | A 1162770183 | LOCKING SHEET |
| A 1152770783 | LOCKING SHEET | |
| A 1152770783 | LOCKING SHEET | |
| 482 | A 1162770083 | LOCKING SHEET |
| 482 | A 1162770083 | LOCKING SHEET |
| 482 | A 1162770083 | LOCKING SHEET |
| 483 | A 1152771240 | BRACKET |
| 483 | A 1152771240 | BRACKET |
| 483 | A 1152771240 | BRACKET |
| N 000084005131 | SCREW | |
| N 000084005131 | SCREW | |
| N 000084005131 | SCREW | |
| N 000084005131 | SCREW | |
| N 000084005131 | SCREW | |
| 485 | N 000084005108 | SCREW |
| 485 | N 000084005108 | SCREW |
| 485 | N 000084005108 | SCREW |
| 486 | N 005401305500 | BALL |
| 487 | A 1159910160 | DOWEL PIN |
| A 1152700370 | REGULATOR VALVE | |
| A 1152770776 | DETENT | |
| A 1159932802 | SPRING | |
| A 1152770714 | INTERMEDIATE PLATE | |
| A 1152770714 | INTERMEDIATE PLATE | |
| 490 | A 1152771214 | INTERMEDIATE PLATE |
| Repalced by: A 1152771714 | ||
| 490 | A 1152771214 | INTERMEDIATE PLATE |
| 490 | A 1152771714 | INTERMEDIATE PLATE |
| A 1152701907 | VALVE BODY ASSEMBLY | |
| A 1152704107 | VALVE BODY ASSEMBLY | |
| A 1152703407 | VALVE BODY ASSEMBLY | |
| A 1152700807 | VALVE BODY ASSEMBLY | |
| Repalced by: A 1152701607 | ||
| A 1152701607 | VALVE BODY ASSEMBLY | |
| A 1152774731 | PISTON | |
| A 1159932002 | SPRING | |
| A 1159932102 | SPRING | |
| 495 | A 1152770983 | LOCKING SHEET |
| Repalced by: A 1152771183 | ||
| 495 | A 1152770983 | LOCKING SHEET |
| 495 | A 1152771183 | LOCKING SHEET |
| 496 | A 1152771880 | GASKET |
| Repalced by: A 1152772880 | ||
| 496 | A 1152772880 | GASKET |
| 496 | A 1152772880 | GASKET |
| 496 | A 1152772880 | GASKET |
| 497 | N 000084005131 | SCREW |
| A 1152771629 | SHIFT VALVE | |
| A 1159932602 | SPRING | |
| A 1159932103 | SPRING | |
| A 1152772531 | PISTON | |
| A 1159931703 | SPRING | |
| A 1152770652 | SPACER WASHER | |
| A 1152772931 | PISTON | |
| 500 | A 1152771174 | PIN |
| A 1159931803 | SPRING | |
| A 1152775531 | PISTON | |
| A 1159933002 | SPRING | |
| A 1152772129 | SHIFT VALVE | |
| A 1159938102 | SPRING | |
| A 1152772831 | PISTON | |
| A 1159931303 | SPRING | |
| 503 | A 1152770674 | PIN |
| 504 | A 1152770673 | LOCK |
| 505 | N 005401305500 | BALL |
| 506 | A 1159939703 | SPRING |
| N 005401307000 | BALL | |
| N 005401307000 | BALL | |
| 507 | A 1149910229 | BALL |
| 507 | A 1149910229 | BALL |
| 507 | A 1149910229 | BALL |
| 508 | N 000137006204 | SPRING WASHER |
| 509 | N 000931006911 | SCREW |
| 510 | N 000931006055 | SCREW |
| 514 | N 900421006001 | THREADED INSERT |
| N 900421005000 | THREADED INSERT | |
| A 1152700080 | GASKET KIT | |
| Repalced by: A 1152702001 | ||
| A 1152702001 | GASKET KIT | |
| A 1152702001 | GASKET KIT | |
| 518 | A 1152700180 | GASKET KIT |
| Repalced by: A 1152702101 | ||
| 518 | A 1152702101 | GASKET KIT |
| 518 | A 1152702101 | GASKET KIT |
| 518 | A 1152702101 | GASKET KIT |
| A 1152770147 | TUBE | |
| 519 | A 1152701068 | GUIDE TUBE |
| 519 | A 1152701068 | GUIDE TUBE |
| 521 | A 1152773350 | BUSHING |
| A 0009976345 | SEAL RING | |
| 524 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 524 | N 000137008212 | SPRING WASHER |
| 525 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 525 | N 304017008034 | SCREW |
| 526 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 526 | N 304017008027 | SCREW |
| 527 | A 1152700398 | FILTER |
| RANGE OF DELIVERY COMPRISES: | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 GASKET 115 271 15 80 OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 2 SEAL 007603 014104 OIL FILLER TO OIL PAN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 1 SEAL 007603 010100 OIL DRAN CONVERTER HOUSING | ||
| 530 | N 000084005108 | SCREW |
| 531 | N 000137005203 | SPRING WASHER |
| 535 | A 1152700012 | OIL PAN |
| 536 | A 1152711580 | GASKET |
| 537 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 537 | N 304017008034 | SCREW |
| 538 | N 000125008407 | WASHER |
| 539 | A 1152710194 | SHIM |
| 542 | N 000933008325 | SCREW |
| Repalced by: A 1249902101 | ||
| 542 | A 1249902101 | SCREW |
| 543 | N 000137008200 | SPRING WASHER |
| 544 | A 1109902040 | WASHER |

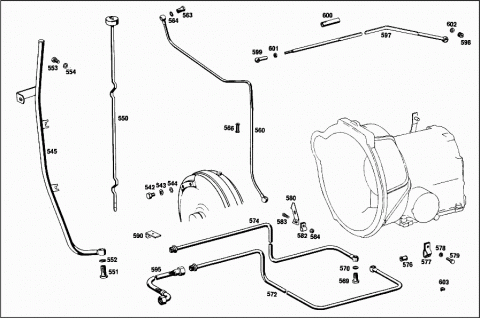

| 545 | A 1142700384 | OIL FILLER PIPE |
| A 1142700284 | OIL FILLER PIPE | |
| A 1142700284 | OIL FILLER PIPE | |
| 550 | A 1162700083 | OIL DIPSTICK |
| 551 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 551 | N 915036010108 | HOLLOW SCREW |
| 552 | N 007603014104 | SEAL RING |
| 553 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 553 | N 304017008016 | SCREW |
| 554 | N 912004008102 | LOCK WASHER |
| A 1142700347 | LINE | |
| A 1142700347 | LINE | |
| 560 | A 1082700947 | LINE |
| Repalced by: A 1232701347 | ||
| 560 | A 1082700947 | LINE |
| 560 | A 1082700947 | LINE |
| 560 | A 1142700147 | LINE |
| Repalced by: A 1232701347 | ||
| 560 | A 1142700247 | LINE |
| Repalced by: A 1232701347 | ||
| 560 | A 1082700647 | LINE |
| Repalced by: A 1232701347 | ||
| 560 | A 1232701347 | LINE |
| 560 | A 1232701347 | LINE |
| 560 | A 1232701347 | LINE |
| 560 | A 1232701347 | LINE |
| 563 | N 915036006102 | HOLLOW SCREW |
| 564 | N 007603010100 | SEAL RING |
| N 915036006101 | HOLLOW SCREW | |
| N 007603010100 | SEAL RING | |
| 566 | A 1129970381 | GROMMET |
| 569 | N 915036008104 | HOLLOW SCREW |
| 570 | N 007603012104 | SEAL RING |
| 572 | A 1142700796 | LINE |
| 574 | A 1142700996 | LINE |
| Repalced by: A 1232700396 | ||
| 574 | A 1232700396 | LINE |
| 576 | A 1129970281 | GROMMET |
| 577 | A 1209950005 | CLAMP |
| 578 | N 912004006102 | LOCK WASHER |
| 579 | N 000933006102 | SCREW |
| 580 | A 1152760440 | BRACKET |
| 582 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 582 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 582 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 582 | N 000000000319 | CLAMP |
| 583 | N 914020006001 | COMBINATION BOLT |
| 584 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 584 | N 304032006008 | NUT |
| A 1129970381 | GROMMET | |
| 590 | A 1132770540 | BRACKET |
| A 1129970281 | GROMMET | |
| A 1139950132 | CLAMP | |
| N 000912006066 | SCREW | |
| A 0159977082 | HOSE | |
| Repalced by: A 0199978082 | ||
| A 0199978082 | HOSE | |
| A 0089970482 | HOSE | |
| A 0089970482 | HOSE | |
| 595 | A 1159973182 | HOSE |
| 595 | A 1159973182 | HOSE |
| 595 | A 1159973182 | HOSE |
| 597 | A 1142770044 | ROD |
| Repalced by: A 1140700975 | ||
| 597 | A 1140700975 | ROD |
| 598 | A 1102770550 | BUSHING |
| 599 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 599 | A 0009918922 | BALL SOCKET |
| 600 | N 073379006101 | HOSE |
| 601 | N 000934005008 | NUT |
| 602 | N 000125006421 | WASHER |
| N 000094002018 | COTTER PIN | |
| 603 | A 0003040040 | BRACKET |
| N 000085004119 | SCREW | |
| N 000931006083 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| 850 | A 1152700280 | GASKET KIT |
| Repalced by: A 1152702201 | ||
| 850 | A 1152702201 | GASKET KIT |
| TRANSMISSION | ||
| A 1142700180 | GASKET KIT | |
| Repalced by: A 1142703301 | ||
| A 1142703301 | GASKET KIT | |
| TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
