Transporto priemonė: 280 E; VIN numerio dalis: 114062

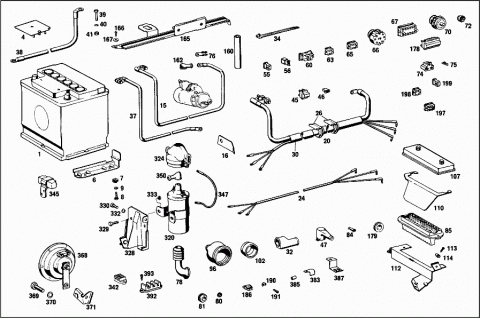

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0035413101 | BATTERY | |
| 12V/55 AH | ||
| A 0009890515 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891315 | ||
| A 0009891315 | BATTERY ACID BOTTLE SET | |
| A 1245400001 | BATTERY | |
| Repalced by: A 1245400101 | ||
| A 1245400101 | BATTERY | |
| Repalced by: A 0035416601 | ||
| A 0035416601 | BATTERY | |
| PARTS KIT | ||
| 001 | A 0025417301 | BATTERY |
| Repalced by: A 0035416601 | ||
| 001 | A 0035416601 | BATTERY |
| 12V/55 AH | ||
| A 0009890715 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891215 | ||
| A 0009891215 | BATTERY ACID BOTTLE SET | |
| A 0005461835 | BOOT | |
| Repalced by: A 0005462335 | ||
| A 0005462335 | BOOT | |
| Repalced by: A 0015460835 | ||
| A 0015460835 | BOOT | |
| 004 | A 0005462335 | BOOT |
| Repalced by: A 0015460835 | ||
| 004 | A 0015460835 | BOOT |
| 006 | A 1145400173 | BRACKET |
| 007 | A 0009909491 | NUT RETAINER |
| BATTERY TO BATTERY CASE | ||
| 008 | N 000933006130 | SCREW |
| BATTERY TO BATTERY CASE | ||
| 009 | N 912004006102 | LOCK WASHER |
| BATTERY TO BATTERY CASE | ||
| 015 | A 1145400030 | POSITIVE CABLE |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 016 | A 1145460343 | BRACKET |
| 020 | A 1145400930 | POSITIVE CABLE |
| A 1145401030 | POSITIVE CABLE | |
| 024 | A 1145404909 | CABLE HARNESS |
| ENGINE CABLE HARNESS | ||
| A 1145405009 | CABLE HARNESS | |
| ENGINE CABLE HARNESS | ||
| 026 | A 0005460937 | GROMMET |
| 026 | A 0005460937 | GROMMET |
| A 0005461937 | GROMMET | |
| 030 | A 0005462930 | INSULATING HOSE |
| 032 | A 1115460235 | BOOT |
| A 1149970190 | LOOM TIE | |
| 80 MM | ||
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 160 MM | ||
| 034 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 034 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| N 912004008102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 000934008013 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 007985005152 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| N 912004005100 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| N 007985004123 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| A 0001510011 | MOUNTING BOW | |
| CABLE TO STARTING MOTOR,TERMINALS 50 AND 15A | ||
| 037 | A 1145400231 | NEG. CABLE |
| FROM BATTERY NEG. POLE TO FRAME | ||
| A 1145400231 | NEG. CABLE | |
| FROM BATTERY NEG. POLE TO FRAME | ||
| 038 | A 1155400031 | NEG. CABLE |
| ENGINE GROUND CABLE TO CONSOLE | ||
| 039 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 039 | N 304017008016 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 040 | N 912004008102 | LOCK WASHER |
| GROUND CABLE TO SIDE MEMBER | ||
| 041 | N 000934008013 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| N 000084005129 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 16 | ||
| N 912004005100 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 16 | ||
| A 1145402109 | CABLE HARNESS | |
| INJECTION VALVE | ||
| 045 | A 0065455728 | PLUG |
| Repalced by: A 0095455228 | ||
| 045 | A 0095455228 | PLUG HOUSING |
| 4-POLE | ||
| 046 | A 0045454828 | PLUG |
| INJECTION VALVE | ||
| 047 | A 0005462035 | BOOT |
| INJECTION VALVE | ||
| A 0005466940 | CABLE SHOE | |
| A 1145400605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145400605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145401105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145401105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145400705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145400705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145401205 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145401205 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| 050 | A 1145401505 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 050 | A 1145401505 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| A 1145402605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145401705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145401705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402705 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403505 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402405 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145404505 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403205 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145404605 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145402505 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403105 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403805 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 1145403905 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SENSOR | ||
| A 0008210725 | PLUG | |
| Repalced by: A 0008212026 | ||
| A 0008212026 | CONNECTOR | |
| DOOR CONTACT | ||
| 055 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 055 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 056 | A 0035454728 | PLUG |
| Repalced by: A 0085450828 | ||
| 056 | A 0085450828 | PIN BUSHING HOUSING |
| 2-POLE CABLE CONNECTOR | ||
| A 0055455628 | PLUG | |
| Repalced by: A 0095454428 | ||
| A 0095454428 | PIN BUSHING HOUSING | |
| 2-POLE CABLE CONNECTOR | ||
| A 0045459228 | PLUG | |
| ALTERNATOR,3-POLE | ||
| A 0045459228 | PLUG | |
| ALTERNATOR,3-POLE | ||
| 060 | A 0055450228 | PIN BUSHING HOUSING |
| ALTERNATOR,3-POLE | ||
| 060 | A 0055450228 | PIN BUSHING HOUSING |
| ALTERNATOR,3-POLE | ||
| 060 | A 0055450228 | PIN BUSHING HOUSING |
| ALTERNATOR,3-POLE | ||
| A 0005467840 | PIN BUSHING | |
| ALTERNATOR | ||
| A 0005467840 | PIN BUSHING | |
| ALTERNATOR | ||
| A 0005467840 | PIN BUSHING | |
| ALTERNATOR | ||
| A 0005467940 | PIN BUSHING | |
| ALTERNATOR | ||
| A 0005467940 | PIN BUSHING | |
| ALTERNATOR | ||
| A 0005467940 | PIN BUSHING | |
| ALTERNATOR | ||
| 063 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 063 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 063 | A 0155454928 | PLUG |
| CABLE CONNECTOR, 4-POLE | ||
| 065 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 065 | A 0065458028 | PIN BUSHING HOUSING |
| CABLE CONNECTOR, 6-POLE | ||
| 066 | A 0045452628 | PLUG |
| IGNITION LOCK,8-POLE | ||
| 067 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 067 | A 0095452628 | PIN BUSHING HOUSING |
| TAIL LAMP CABLE HARNESS,12-POLE | ||
| A 0035453828 | PLUG | |
| Repalced by: A 0095452328 | ||
| A 0095452328 | PIN BUSHING HOUSING | |
| STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE | ||
| 070 | A 0035454628 | PLUG |
| Repalced by: A 0105450428 | ||
| 070 | A 0105450428 | PIN BUSHING HOUSING |
| INSTRUMENT CLUSTER;15-POLE | ||
| 072 | A 0005440486 | PLUG |
| BEAM UNIT | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| A 0065458128 | PIN BUSHING HOUSING | |
| INTERMITTENT ACTION SWITCH,BLOWER; 8-POLE | ||
| 074 | A 0025459528 | PIN BUSHING HOUSING |
| GENERATOR REGULATOR AND CUT-OUT | ||
| 075 | A 0005464640 | CABLE SHOE |
| GENERATOR REGULATOR AND CUT-OUT | ||
| A 0005464340 | PIN BUSHING | |
| 076 | A 0005463540 | CABLE SHOE |
| 078 | A 1155460085 | PROTECTIVE TUBE |
| LEFT | ||
| A 1085460085 | PROTECTIVE TUBE | |
| LEFT | ||
| A 1155460185 | PROTECTIVE TUBE | |
| RIGHT | ||
| 080 | A 1159970781 | GROMMET |
| 081 | A 0009972881 | GROMMET |
| 084 | A 0005460845 | INSULATING SLEEVE |
| 085 | A 0005455901 | FUSE BOX |
| 085 | A 0005455901 | FUSE BOX |
| A 0005458701 | FUSE BOX | |
| A 0005458701 | FUSE BOX | |
| A 0005458701 | FUSE BOX | |
| A 0005458234 | FUSE | |
| Repalced by: N 072581008101 | ||
| N 072581008101 | FUSE | |
| 8 A | ||
| N 072581025100 | FUSE | |
| 25 A | ||
| N 072581025100 | FUSE | |
| 25 A | ||
| A 0005458434 | FUSE | |
| Repalced by: A 0015457534 | ||
| A 0015457534 | FUSE | |
| 25 A | ||
| 25 A | ||
| A 0015457534 | FUSE | |
| 25 A | ||
| 25 A | ||
| A 0005458334 | FUSE | |
| 16A | ||
| A 0005458334 | FUSE | |
| 16A | ||
| A 0005458334 | FUSE | |
| 16A | ||
| 096 | A 0005452245 | BOOT |
| 096 | A 0005452245 | BOOT |
| 096 | A 0005452245 | BOOT |
| 100 | A 0005452004 | SWITCH |
| LIGHT ROTARY SWITCH | ||
| 100 | A 0005452004 | SWITCH |
| LIGHT ROTARY SWITCH | ||
| A 0005452604 | SWITCH | |
| LIGHT ROTARY SWITCH | ||
| A 0005452604 | SWITCH | |
| LIGHT ROTARY SWITCH | ||
| A 0005453704 | LIGHT SWITCH | |
| LIGHT ROTARY SWITCH | ||
| A 0005453704 | LIGHT SWITCH | |
| LIGHT ROTARY SWITCH | ||
| 102 | A 0005452345 | BOOT |
| 102 | A 0005452345 | BOOT |
| 102C | A 1145405409 | CABLE HARNESS |
| Repalced by: A 1145405509 | ||
| 102C | A 1145405509 | CABLE HARNESS |
| COLD START | ||
| A 1145405509 | CABLE HARNESS | |
| COLD START | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| 2-POLE CABLE CONNECTOR | ||
| 102I | A 0015403597 | VALVE |
| Repalced by: A 0015407097 | ||
| 102I | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 102I | A 0015408697 | VALVE |
| COLD START | ||
| 102I | A 0015408697 | VALVE |
| COLD START | ||
| 102J | N 007976005203 | SHEET METAL SCREW |
| A 1105451137 | BUTTON | |
| LIGHT ROTARY SWITCH | ||
| A 1105451137 | BUTTON | |
| LIGHT ROTARY SWITCH | ||
| 103 | A 1155400583 | HANDLE |
| LIGHT ROTARY SWITCH | ||
| 103 | A 1155400583 | HANDLE |
| LIGHT ROTARY SWITCH | ||
| 104 | A 1155450372 | NUT |
| 104 | A 1155450372 | NUT |
| A 1145450172 | NUT | |
| A 1145450172 | NUT | |
| A 1145450076 | WASHER | |
| A 0005451403 | CAP | |
| A 0005451403 | CAP | |
| 107 | A 0005451903 | CAP |
| 107 | A 0005451903 | CAP |
| A 0005451545 | BOOT | |
| A 0005451545 | BOOT | |
| 110 | A 0005452445 | BOOT |
| 110 | A 0005452445 | BOOT |
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| FUSE BOX TO BRACKET | ||
| 112 | A 1155451740 | BRACKET |
| 113 | N 007976005203 | SHEET METAL SCREW |
| BRACKET TO WHEEL ARCH PANEL | ||
| 114 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 114 | N 009021006208 | WASHER |
| BRACKET TO WHEEL ARCH PANEL | ||
| A 0005459611 | SWITCH | |
| Repalced by: A 0015450211 | ||
| A 0005456611 | SWITCH | |
| Repalced by: A 0015450211 | ||
| 121 | A 0019906751 | NUT |
| Repalced by: A 0002520372 | ||
| 121 | A 0002520372 | NUT |
| 121 | A 0002520372 | NUT |
| 121 | A 0002520372 | NUT |
| 122 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 122 | N 000137008212 | SPRING WASHER |
| 122 | N 000137008212 | SPRING WASHER |
| 122 | N 000137008212 | SPRING WASHER |
| 123 | N 912006008000 | LOCK WASHER |
| 123 | N 912006008000 | LOCK WASHER |
| 123 | N 912006008000 | LOCK WASHER |
| 124 | A 0015450211 | SWITCH |
| FOOT OPERATED PARKING BRAKE | ||
| 124 | A 0015450211 | SWITCH |
| FOOT OPERATED PARKING BRAKE | ||
| 124 | A 0015450211 | SWITCH |
| FOOT OPERATED PARKING BRAKE | ||

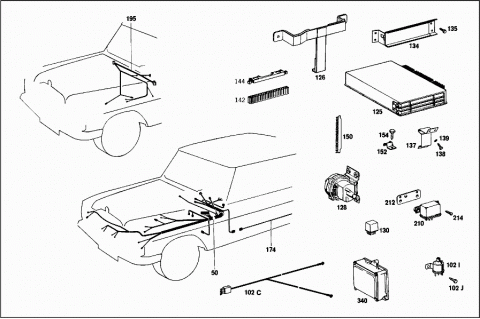

| 125 | A 0005452932 | CONTROL UNIT |
| ELECTRONIC CONTROL BOX | ||
| 126 | A 1145402073 | BRACKET |
| 128 | A 0025423317 | SENDER UNIT |
| 130 | A 0015420219 | RELAY |
| N 000934006024 | NUT | |
| ELECTRONIC CABLE TO STARTING CABLE | ||
| N 000125006421 | WASHER | |
| ELECTRONIC CABLE TO STARTING CABLE | ||
| N 912004006102 | LOCK WASHER | |
| ELECTRONIC CABLE TO STARTING CABLE | ||
| 134 | A 1145400273 | BRACKET |
| 135 | N 007976004205 | SHEET METAL SCREW |
| 137 | A 0029889978 | CLIP |
| Repalced by: A 0009941360 | ||
| 137 | A 0009941360 | LOCK |
| 138 | N 007976004205 | SHEET METAL SCREW |
| 139 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 139 | N 009021005205 | WASHER |
| A 1145402009 | CABLE HARNESS | |
| ELECTRONIC FUEL INJECTION | ||
| A 1145402209 | CABLE HARNESS | |
| ELECTRONIC FUEL INJECTION | ||
| 142 | A 0135459228 | PLUG |
| 25-POLE | ||
| A 0005467040 | CABLE SHOE | |
| 144 | A 0005460643 | BRACKET |
| N 007981002222 | SHEET METAL SCREW | |
| A 0005466940 | CABLE SHOE | |
| A 0045454828 | PLUG | |
| BIPOLAR | ||
| A 0045457628 | PLUG | |
| CABLE HARNESS TO CONTACTOR | ||
| A 0045455028 | PLUG | |
| PRESSURE SENSOR | ||
| A 0065458728 | PLUG | |
| ELECTRIC CABLE TO THROTTLE HOUSING | ||
| A 0005461435 | BOOT | |
| CABLE HARNESS TO CONTACTOR | ||
| A 0005461335 | BOOT | |
| PRESSURE SENSOR | ||
| A 0005461735 | BOOT | |
| ELECTRIC CABLE TO THROTTLE HOUSING | ||
| A 0055455628 | PLUG | |
| Repalced by: A 0095454428 | ||
| A 0095454428 | PIN BUSHING HOUSING | |
| THERMO-TIME SWITCH; BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| A 0065457828 | PLUG HOUSING | |
| ADDITIONAL CABLE HARNESS TO MAIN CABLE HARNESS | ||
| A 0005462035 | BOOT | |
| BIPOLAR | ||
| 150 | A 0005460173 | RAIL |
| 152 | A 1129950120 | CLAMP |
| ELECTRONIC CABLE HARNESS | ||
| 154 | N 007976004205 | SHEET METAL SCREW |
| ELECTRONIC CABLE HARNESS | ||
| N 000933004028 | SCREW | |
| HEADLAMP GROUND TO RADIATOR BAFFLE PLATE | ||
| N 912004004102 | LOCK WASHER | |
| HEADLAMP GROUND TO RADIATOR BAFFLE PLATE | ||
| N 000934004006 | NUT | |
| HEADLAMP GROUND TO RADIATOR BAFFLE PLATE | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS TO CROSS MEMBER AND TO LEFT WHEEL ARCH PANEL | ||
| 160 | A 0005460830 | INSULATING HOSE |
| OVER STARTING CABLE AND MAIN CABLE HARNESS | ||
| 162 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 162 | A 1165460135 | BOOT |
| STARTING CABLE TO STARTING MOTOR | ||
| N 000933006102 | SCREW | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL | ||
| A 0005463335 | BOOT | |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| N 000137006204 | SPRING WASHER | |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 165 | A 1155402273 | BRACKET |
| A 1155401973 | BRACKET | |
| 166 | N 007976004205 | SHEET METAL SCREW |
| 167 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 167 | N 009021005205 | WASHER |
| A 1155400007 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155400007 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155400207 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155400607 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155400607 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155400607 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| 174 | A 1155401007 | CABLE HARNESS |
| TAIL LAMP CABLE HARNESS | ||
| 174 | A 1155401007 | CABLE HARNESS |
| TAIL LAMP CABLE HARNESS | ||
| A 1145400107 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1145400207 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155400707 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 1155401107 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| LUGGAGE COMPARTMENT LIGHTING | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| FUEL GAUGE SENDER UNIT; 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| TAIL LAMPS | ||
| 178 | A 0025452628 | PLUG |
| Repalced by: A 0095455428 | ||
| 178 | A 0095455428 | PLUG HOUSING |
| TAIL LAMP CABLE HARNESS,12-POLE | ||
| 179 | A 1119971581 | GROMMET |
| A 1239971681 | GROMMET | |
| ELECTRIC CABLES TO FUEL PUMP | ||
| 182 | A 1235454940 | BRACKET |
| PLUG CONNECTION TO TAIL LAMP CABLE HARNESS | ||
| 183 | N 007976004205 | SHEET METAL SCREW |
| BRACKET TO FIRE WALL | ||
| N 000933004028 | SCREW | |
| TAIL LAMP CABLE HARNESS GROUND CONNECTION TO REAR PANEL | ||
| N 912004004102 | LOCK WASHER | |
| TAIL LAMP CABLE HARNESS GROUND CONNECTION TO REAR PANEL | ||
| N 000934004006 | NUT | |
| TAIL LAMP CABLE HARNESS GROUND CONNECTION TO REAR PANEL | ||
| 186 | A 0009883378 | CLIP |
| BRANCH-OFF FOR LUGGAGE COMPARTMENT LAMP TO BODY | ||
| A 0039887978 | CLIP | |
| Repalced by: A 0059888178 | ||
| A 0059888178 | CLIP | |
| BRANCH-OFF TO LUGGAGE COMPARTMENT TO HINGE | ||
| A 0009881778 | CLIP | |
| BRANCH-OFF TO LUGGAGE COMPARTMENT TO REAR LID | ||
| A 1155400209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1155400209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1155400209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145406209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145406209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145406209 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| A 1155400909 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1155400909 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1155400909 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145404409 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145404409 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| A 1145404409 | CABLE HARNESS | |
| KICK-DOWN SWITCH | ||
| 190 | A 0003040040 | BRACKET |
| CABLE TO TRANSMISSION | ||
| 191 | N 007985004123 | SCREW |
| CABLE TO TRANSMISSION | ||
| A 1155400409 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1155400409 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1155400409 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1145403909 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1145403909 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1145403909 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1165400308 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1155400809 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1155400809 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1155400809 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| A 1075400609 | CABLE HARNESS | |
| DECLUTCHING START SWITCH | ||
| 195 | A 1165400308 | CABLE HARNESS |
| DECLUTCHING START SWITCH | ||
| 195 | A 1165400308 | CABLE HARNESS |
| DECLUTCHING START SWITCH | ||
| 197 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 197 | A 0065457828 | PLUG HOUSING |
| 6-POLE | ||
| 198 | A 0065459328 | PLUG |
| Repalced by: A 0095454228 | ||
| 198 | A 0095454228 | PLUG |
| CABLE CONNECTOR, 4-POLE | ||
| 199 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 199 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE CABLE CONNECTOR | ||
| 199 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE CABLE CONNECTOR | ||
| 199 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE CABLE CONNECTOR | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| 2-POLE CABLE CONNECTOR | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| 2-POLE CABLE CONNECTOR | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| 2-POLE CABLE CONNECTOR | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| 2-POLE CABLE CONNECTOR | ||
| A 1079971181 | GROMMET | |
| A 1145401309 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 1145401309 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 1145401309 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 1145401309 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 1145401309 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 1145401309 | CABLE HARNESS | |
| AIR POLLUTION CONTROL | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| TEMPERATURE SWITCH | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| A 0155454928 | PLUG | |
| CABLE CONNECTOR, 4-POLE | ||
| A 0005464340 | PIN BUSHING | |
| CARBURETOR PREHEATER BOX | ||
| A 0005464340 | PIN BUSHING | |
| CARBURETOR PREHEATER BOX | ||
| A 0005464340 | PIN BUSHING | |
| CARBURETOR PREHEATER BOX | ||
| A 0005464340 | PIN BUSHING | |
| CARBURETOR PREHEATER BOX | ||
| A 0005464340 | PIN BUSHING | |
| CARBURETOR PREHEATER BOX | ||
| A 0005464340 | PIN BUSHING | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| A 0005460845 | INSULATING SLEEVE | |
| CARBURETOR PREHEATER BOX | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 210 | A 0005425819 | RELAY |
| AIR POLLUTION CONTROL | ||
| 212 | A 1145420240 | BRACKET |
| 212 | A 1145420240 | BRACKET |
| 212 | A 1145420240 | BRACKET |
| 212 | A 1145420240 | BRACKET |
| 212 | A 1145420240 | BRACKET |
| 212 | A 1145420240 | BRACKET |
| 212 | A 1145420240 | BRACKET |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 214 | N 007981004326 | SHEET METAL SCREW |
| 225 | A 0005421756 | HOUSING |
| A 0075425406 | SPEEDOMETER | |
| A 0075425406 | SPEEDOMETER | |
| 230 | A 0075425206 | SPEEDOMETER |
| 1:3.69 | ||
| 230 | A 0075425206 | SPEEDOMETER |
| 1:3.69 | ||
| 230 | A 0075425206 | SPEEDOMETER |
| 1:3.69 | ||
| A 0005421478 | CONNECTION PLATE | |
| A 0005421478 | CONNECTION PLATE | |
| 234 | A 0005422078 | CONNECTION PLATE |
| 234 | A 0005422078 | CONNECTION PLATE |
| 236 | A 0015427402 | OIL PRESSURE GAUGE |
| 237 | N 000084003104 | SCREW |
| A 0035421605 | TEMPERATURE GAUGE | |
| A 0035421605 | TEMPERATURE GAUGE | |
| 240 | A 0035424005 | TEMPERATURE GAUGE |
| 240 | A 0035424005 | TEMPERATURE GAUGE |
| N 000084003101 | SCREW | |
| 242 | A 0015420503 | FUEL GAUGE DASH UNIT |
| A 1142700052 | GEAR INDICATOR | |
| Repalced by: A 1142700352 | ||
| A 1142700052 | GEAR INDICATOR | |
| 250 | A 1142700352 | GEAR INDICATOR |
| 250 | A 1142700352 | GEAR INDICATOR |
| 250 | A 1142700352 | GEAR INDICATOR |
| A 1142700452 | GEAR INDICATOR | |
| 251 | N 000934004007 | NUT |
| 252 | N 000433004300 | WASHER |
| 253 | N 006797004231 | TOOTHED WASHER |
| 270 | A 0005421525 | POTENTIOMETER |
| 275 | A 0005420711 | CLOCK |
| 276 | A 0005421458 | DIAL FACING |
| 280 | A 1145420280 | GASKET |
| 280 | A 1145420280 | GASKET |
| A 1145420080 | GASKET | |
| A 1145420080 | GASKET | |
| N 007981004254 | SHEET METAL SCREW | |
| 281 | A 0005454019 | SOCKET |
| A 0005446794 | BULB | |
| Repalced by: N 072601012240 | ||
| N 072601012240 | BULB | |
| 282 | A 1145420044 | PIPE LINE |
| A 1145420644 | PIPE LINE | |
| A 1145420144 | PIPE LINE | |
| A 1145420544 | PIPE LINE | |
| 300 | A 1119972381 | GROMMET |
| Repalced by: A 0089971781 | ||
| 300 | A 0089971781 | GROMMET |
| 302 | A 1145420707 | FLEXIBLE SHAFT |
| 1210 MM | ||
| A 1145420207 | FLEXIBLE SHAFT | |
| 1750 MM | ||
| A 1145420107 | FLEXIBLE SHAFT | |
| 1280 MM | ||
| A 1145420107 | FLEXIBLE SHAFT | |
| 1280 MM | ||
| A 1145420107 | FLEXIBLE SHAFT | |
| 1280 MM | ||
| A 1145420807 | FLEXIBLE SHAFT | |
| 1320 MM | ||
| A 1145420307 | FLEXIBLE SHAFT | |
| 1860 MM | ||
| A 1145420307 | FLEXIBLE SHAFT | |
| 1860 MM | ||
| A 1145420307 | FLEXIBLE SHAFT | |
| 1860 MM | ||
| A 1145421107 | FLEXIBLE SHAFT | |
| 1320 MM | ||
| A 1145421107 | FLEXIBLE SHAFT | |
| 1320 MM | ||
| A 1145421007 | FLEXIBLE SHAFT | |
| 1360 MM | ||
| A 1145421007 | FLEXIBLE SHAFT | |
| 1360 MM | ||
| A 1145421207 | FLEXIBLE SHAFT | |
| A 1145421207 | FLEXIBLE SHAFT | |
| 310 | A 0079975881 | GROMMET |
| 310 | A 0079975881 | GROMMET |
| 313 | A 1075420340 | BRACKET |
| 313 | A 1075420340 | BRACKET |
| 318 | A 1145421340 | BRACKET |
| 318 | A 1145421340 | BRACKET |
| A 0039888178 | CLIP | |
| SPEEDOMETER CABLE TO FIRE WALL | ||
| A 0039888178 | CLIP | |
| SPEEDOMETER CABLE TO FIRE WALL | ||
| A 0009883378 | CLIP | |
| A 0001580603 | IGNITION COIL | |
| Repalced by: A 0001584903 | ||
| A 0001580603 | IGNITION COIL | |
| A 0001582703 | IGNITION COIL | |
| Repalced by: A 0001584903 | ||
| 320 | A 0001584903 | IGNITION COIL |
| 320 | A 0001584903 | IGNITION COIL |
| 320 | A 0001584903 | IGNITION COIL |
| A 0001582803 | IGNITION COIL | |
| A 0001581185 | SUPPRESSOR HOUSING | |
| A 0001581285 | SUPPRESSOR HOUSING | |
| A 0001581285 | SUPPRESSOR HOUSING | |
| A 0001581285 | SUPPRESSOR HOUSING | |
| A 0001581285 | SUPPRESSOR HOUSING | |
| 324 | A 0001581485 | SUPPRESSOR HOUSING |
| 324 | A 0001581485 | SUPPRESSOR HOUSING |
| 324 | A 0001581485 | SUPPRESSOR HOUSING |
| 324 | A 0001581485 | SUPPRESSOR HOUSING |
| 328 | A 1155400373 | BRACKET |
| A 1145401473 | BRACKET | |
| 329 | A 2019902201 | SCREW |
| IGNITION COIL TO BRACKET | ||
| 330 | N 000933006130 | SCREW |
| IGNITION COIL TO BRACKET | ||
| 332 | A 0009900848 | WASHER |
| IGNITION COIL TO BRACKET | ||
| 333 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 333 | N 304032006008 | NUT |
| IGNITION COIL TO BRACKET | ||
| 340 | A 0005458432 | CONTROL UNIT |
| TRANSISTORIZED IGNITION | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| N 912004004102 | LOCK WASHER | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| 342 | A 0005467041 | CABLE CONNECTOR |
| BIPOLAR | ||
| N 007981004325 | SHEET METAL SCREW | |
| A 1165408309 | CABLE HARNESS | |
| TRANSISTORIZED IGNITION | ||
| A 0001580845 | SERIES RESISTOR | |
| A 0001580845 | SERIES RESISTOR | |
| 345 | A 0001581745 | SERIES RESISTOR |
| 1,8 OHM | ||
| 345 | A 0001581745 | SERIES RESISTOR |
| 1,8 OHM | ||
| 345 | A 0001581745 | SERIES RESISTOR |
| 1,8 OHM | ||
| A 0001581845 | SERIES RESISTOR | |
| 1,8 OHM | ||
| A 0001581845 | SERIES RESISTOR | |
| 1,8 OHM | ||
| A 0001581845 | SERIES RESISTOR | |
| 1,8 OHM | ||
| A 0001581945 | SERIES RESISTOR | |
| 0,4 OHM | ||
| A 0001582045 | SERIES RESISTOR | |
| 0,4 OHM | ||
| A 0001581345 | SERIES RESISTOR | |
| 0,6 OHM | ||
| A 0001582145 | SERIES RESISTOR | |
| Repalced by: A 0001581345 | ||
| A 0001581345 | SERIES RESISTOR | |
| 0,6 OHM | ||
| N 007981004325 | SHEET METAL SCREW | |
| SERIES RESISTOR TO WHEELHOUSE PANEL | ||
| 347 | A 1145460003 | ELECTRIC CABLE |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| A 1095400238 | ELECTRIC CABLE | |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| A 1085460003 | ELECTRIC CABLE | |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| N 007985004123 | SCREW | |
| CABLE TO SERIES RESISTOR | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO SERIES RESISTOR | ||
| 350 | A 0005463335 | BOOT |
| CABLE TO IGNITION COIL | ||
| N 000934005008 | NUT | |
| CABLE TO IGNITION COIL | ||
| N 912004005100 | LOCK WASHER | |
| CABLE TO IGNITION COIL | ||
| 352 | A 1155400273 | BRACKET |
| DECLUTCHING-START/BACK-UP-LIGHT SWITCH PLUG CONNECTION | ||
| 353 | N 000933006102 | SCREW |
| BRACKET TO WHEEL ARCH PANEL | ||
| 354 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 354 | N 009021006208 | WASHER |
| BRACKET TO WHEEL ARCH PANEL | ||
| 355 | N 912004006102 | LOCK WASHER |
| BRACKET TO WHEEL ARCH PANEL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| BRACKET TO WHEEL ARCH PANEL | ||
| 360 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 360 | A 0021547406 | REGULATOR AND CUT-OUT |
| 360 | A 0021547406 | REGULATOR AND CUT-OUT |
| 361 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 361 | N 304017006018 | SCREW |
| 361 | N 304017006018 | SCREW |
| 362 | N 912004006102 | LOCK WASHER |
| 362 | N 912004006102 | LOCK WASHER |
| 363 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 363 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 363 | A 0019906791 | NUT RETAINER |
| 363 | A 0019906791 | NUT RETAINER |
| A 1155405709 | CABLE HARNESS | |
| FROM ALTERNATOR TO REGULATOR | ||
| 368 | A 0035421020 | HORN |
| 335 HZ | ||
| 368 | A 0035421620 | HORN |
| 335 HZ | ||
| A 0035420720 | HORN | |
| 400 HZ | ||
| A 0035421720 | HORN | |
| 400 HZ | ||
| 369 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 369 | N 304017008016 | SCREW |
| HORN TO BRACKET | ||
| 370 | N 912004008102 | LOCK WASHER |
| HORN TO BRACKET | ||
| N 000084004156 | SCREW | |
| CABLE TO SIGNAL HORN | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO SIGNAL HORN | ||
| A 1145402373 | BRACKET | |
| RIGHT | ||
| 371 | A 1145402573 | BRACKET |
| LEFT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BRACKET TO CONSOLE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO CONSOLE | ||
| N 000934008013 | NUT | |
| BRACKET TO CONSOLE | ||
| 372 | A 1145450140 | BRACKET |
| COMBINATION SWITCH PLUG-CONNECTION | ||
| 372 | A 1145450140 | BRACKET |
| COMBINATION SWITCH PLUG-CONNECTION | ||
| A 1145450240 | BRACKET | |
| COMBINATION SWITCH PLUG-CONNECTION | ||
| 373 | N 007976004205 | SHEET METAL SCREW |
| N 000933006130 | SCREW | |
| PRESSURE SENSOR TO RIGHT WHEEL ARCH PANEL | ||
| N 000125006421 | WASHER | |
| PRESSURE SENSOR TO RIGHT WHEEL ARCH PANEL | ||
| N 912004006102 | LOCK WASHER | |
| PRESSURE SENSOR TO RIGHT WHEEL ARCH PANEL | ||
| N 913002006005 | NUT | |
| Repalced by: N 913002006009 | ||
| N 913002006009 | NUT | |
| PRESSURE SENSOR TO RIGHT WHEEL ARCH PANEL | ||
| A 1155402273 | BRACKET | |
| ELECTRONIC CABLE HARNESS | ||
| N 007976004205 | SHEET METAL SCREW | |
| ELECTRONIC CABLE HARNESS | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| ELECTRONIC CABLE HARNESS | ||
| A 0029886778 | CLIP | |
| TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL | ||
| N 007976005205 | SHEET METAL SCREW | |
| TRANSISTORIZED IGNITION SWITCHGEAR TO WHEELHOUSE PANEL | ||
| 380 | A 1145450740 | BRACKET |
| ENGINE CABLE HARNESS PLUG-CONNECTION | ||
| N 007976004205 | SHEET METAL SCREW | |
| 383 | A 1145460075 | CLAMP |
| ELECTRIC CABLE TO FIRE WALL | ||
| 383 | A 1145460075 | CLAMP |
| ELECTRIC CABLE TO FIRE WALL | ||
| 385 | A 1085460253 | SPACER TUBE |
| ELECTRIC CABLE TO FIRE WALL | ||
| 385 | A 1085460253 | SPACER TUBE |
| ELECTRIC CABLE TO FIRE WALL | ||
| N 007976004211 | SHEET METAL SCREW | |
| ELECTRIC CABLE TO FIRE WALL | ||
| N 007976004211 | SHEET METAL SCREW | |
| ELECTRIC CABLE TO FIRE WALL | ||
| 387 | A 1145460843 | BRACKET |
| AT FIRE WALL | ||
| A 1265453840 | BRACKET | |
| ENGINE CABLE HARNESS TO SIDE MEMBER | ||
| N 007976004205 | SHEET METAL SCREW | |
| N 007976004205 | SHEET METAL SCREW | |
| 390 | A 1145460443 | BRACKET |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| N 007976004205 | SHEET METAL SCREW | |
| 392 | A 0005469641 | CABLE CONNECTOR |
| 3-POLE | ||
| 393 | N 007981004325 | SHEET METAL SCREW |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| N 912004004102 | LOCK WASHER | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| N 912004005100 | LOCK WASHER | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| N 007985006149 | SCREW | |
| Repalced by: N 007985006580 | ||
| N 007985006580 | SCREW | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| N 912004006102 | LOCK WASHER | |
| CABLE HARNESS TO CABLE CONNECTOR | ||
| A 0039880878 | CLIP | |
| LINE TO BRAKE BOOSTER | ||
| A 0009881878 | CLIP | |
| A 0009888978 | CLIP | |
| A 1145451540 | BRACKET | |
| RELAY TO FIRE WALL | ||
| N 007976004205 | SHEET METAL SCREW | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
