Transporto priemonė: 280 E; VIN numerio dalis: 114062

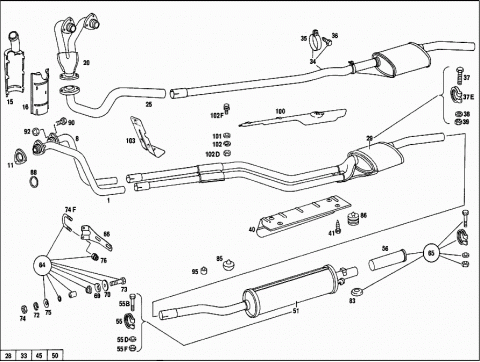

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1144900619 | EXHAUST PIPE | |
| Repalced by: A 1144901619 | ||
| A 1144900619 | EXHAUST PIPE | |
| 001 | A 1144901619 | EXHAUST PIPE |
| CYLINDERS NOS.1-3 | ||
| 001 | A 1144901619 | EXHAUST PIPE |
| CYLINDERS NOS.1-3 | ||
| 001 | A 1144901619 | EXHAUST PIPE |
| CYLINDERS NOS.1-3 | ||
| 005 | A 1144902319 | EXHAUST PIPE |
| CYLINDERS NOS.1-3 | ||
| 005 | A 1144902319 | EXHAUST PIPE |
| CYLINDERS NOS.1-3 | ||
| 008 | A 1144901719 | EXHAUST PIPE |
| CYLINDERS NOS.4-6 | ||
| 008 | A 1144901719 | EXHAUST PIPE |
| CYLINDERS NOS.4-6 | ||
| 008 | A 1144901719 | EXHAUST PIPE |
| CYLINDERS NOS.4-6 | ||
| 010 | A 1144902419 | EXHAUST PIPE |
| CYLINDERS NOS.4-6 | ||
| 011 | A 1814920011 | FLANGE |
| A 1124920011 | FLANGE | |
| 015 | A 1141400070 | AIR PRE-HEATER |
| 016 | A 1141430025 | JACKET |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| A 0009900148 | WASHER | |
| A 1144901219 | EXHAUST PIPE | |
| FRONT | ||
| A 1144901219 | EXHAUST PIPE | |
| FRONT | ||
| 020 | A 1144902219 | EXHAUST PIPE |
| FRONT | ||
| 020 | A 1144902219 | EXHAUST PIPE |
| FRONT | ||
| 020 | A 1144902219 | EXHAUST PIPE |
| FRONT | ||
| 020 | A 1144902219 | EXHAUST PIPE |
| FRONT | ||
| A 1144900924 | COLLECTOR PIPE | |
| A 1144902819 | EXHAUST PIPE | |
| FRONT | ||
| 025 | A 1144901319 | EXHAUST PIPE |
| FRONT | ||
| N 000933008168 | SCREW | |
| FRONT EXHAUST PIPE TO COLLECTOR PIPE | ||
| N 999901008005 | NUT | |
| Repalced by: A 0009903250 | ||
| A 0009903250 | NUT | |
| FRONT EXHAUST PIPE TO COLLECTOR PIPE | ||
| 028 | A 1144900321 | EXHAUST PIPE |
| Repalced by: A 1144900115 | ||
| 028 | A 1144900115 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| 029 | A 1144900115 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1144900621 | EXHAUST PIPE | |
| Repalced by: A 1144900215 | ||
| A 1144900215 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1144900215 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| 030 | A 1144901621 | EXHAUST PIPE |
| Repalced by: A 1144900315 | ||
| 030 | A 1144900315 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| 031 | A 1144900315 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| 033 | A 1154900321 | EXHAUST PIPE |
| Repalced by: A 1154900115 | ||
| 033 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| WELDED VERSION | ||
| 034 | A 1154900115 | EXHAUST MUFFLER WITH PIPE |
| CENTRAL,CLAMP-ON VERSION | ||
| A 1154900921 | EXHAUST PIPE | |
| Repalced by: A 1154900215 | ||
| A 1154900215 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1154900215 | EXHAUST MUFFLER WITH PIPE | |
| CENTRAL,CLAMP-ON VERSION | ||
| 035 | A 1159950435 | CLAMP |
| 036 | N 007981005202 | SHEET METAL SCREW |
| 037 | A 1144920140 | CLAMP |
| Repalced by: A 1144900141 | ||
| 037 | A 1144900141 | CLAMP |
| Repalced by: A 0004900341 | ||
| 037 | A 0004900341 | CLAMP |
| A 1124921140 | CLAMP | |
| Repalced by: A 1124900341 | ||
| A 1124900341 | CLAMP | |
| A 1074900141 | CLAMP | |
| Repalced by: A 1074900041 | ||
| A 1074900041 | CLAMP | |
| 037E | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 037E | N 304017008043 | SCREW |
| 038 | N 000433008406 | WASHER |
| 039 | N 000934008013 | NUT |
| 040 | A 1144920630 | PROTECTIVE PLATE |
| 041 | A 0009902036 | SCREW |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 045 | A 1144900421 | EXHAUST PIPE |
| WELDED VERSION | ||
| 045 | A 1144900421 | EXHAUST PIPE |
| WELDED VERSION | ||
| 047 | A 1144901121 | EXHAUST PIPE |
| WELDED VERSION | ||
| 050 | A 1144911501 | MUFFLER |
| WELDED VERSION | ||
| 050 | A 1144911501 | MUFFLER |
| WELDED VERSION | ||
| A 1144911701 | MUFFLER | |
| WELDED VERSION | ||
| A 1144911701 | MUFFLER | |
| WELDED VERSION | ||
| 051 | A 1144900515 | EXHAUST MUFFLER WITH PIPE |
| REAR;CLAMP-ON VERSION | ||
| 051 | A 1144900515 | EXHAUST MUFFLER WITH PIPE |
| REAR;CLAMP-ON VERSION | ||
| A 1144912101 | MUFFLER | |
| Repalced by: A 1144900615 | ||
| A 1144900615 | EXHAUST MUFFLER WITH PIPE | |
| WELDED VERSION | ||
| A 1144912401 | MUFFLER | |
| WELDED VERSION | ||
| 054 | A 1144900615 | EXHAUST MUFFLER WITH PIPE |
| REAR;CLAMP-ON VERSION | ||
| 055 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 055 | A 1074900041 | CLAMP |
| 055 | A 1074900041 | CLAMP |
| A 1144920140 | CLAMP | |
| Repalced by: A 1144900141 | ||
| A 1144900141 | CLAMP | |
| Repalced by: A 0004900341 | ||
| A 0004900341 | CLAMP | |
| 055B | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 055B | N 304017008043 | SCREW |
| 055D | N 000433008406 | WASHER |
| 055F | N 000934008013 | NUT |
| 055F | N 000934008013 | NUT |
| 056 | A 1234920714 | END PIECE |
| 056 | A 1234920714 | END PIECE |
| A 1154920214 | END PIECE | |
| 059 | A 1234920614 | END PIECE |
| A 1164920514 | END PIECE | |
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| END PIECE TO EXHAUST PIPE | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| END PIECE TO EXHAUST PIPE | ||
| 064 | A 1264900337 | REPAIR KIT |
| FRONT EXHAUST PIPE SUSPENSION | ||
| 065 | A 1145860449 | REPAIR KIT |
| Repalced by: A 1145860649 | ||
| 065 | A 1145860649 | REPAIR KIT |
| FROM PLUG CONNECTION | ||
| A 1145860649 | REPAIR KIT | |
| FROM PLUG CONNECTION | ||
| A 1145860749 | REPAIR KIT | |
| FROM PLUG CONNECTION | ||
| A 1145860749 | REPAIR KIT | |
| FROM PLUG CONNECTION | ||
| 066 | A 1144920641 | BRACKET |
| 066 | A 1144920641 | BRACKET |
| 068 | A 1144920441 | BRACKET |
| A 1154920141 | BRACKET | |
| 069 | N 000440009103 | WASHER |
| 070 | A 1089900340 | WASHER |
| 072 | N 912004008102 | LOCK WASHER |
| 073 | N 000931008244 | SCREW |
| 074 | N 000934008013 | NUT |
| 074F | A 1234920027 | CLAMPING BRACKET |
| 075 | N 002093016100 | DISC SPRING |
| 076 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 076 | A 0009903250 | NUT |
| 077 | A 1144900043 | BRACKET |
| MAIN MUFFLER SUSPENSION | ||
| 078 | A 0004920153 | SPACER TUBE |
| IN FRONT OF POSTERIOR MUFFLER | ||
| 079 | A 1144920341 | BRACKET |
| MAIN MUFFLER SUSPENSION | ||
| 080 | A 0004920053 | SPACER TUBE |
| BEHIND POSTERIOR MUFFLER | ||
| 080B | A 0004920383 | INSULATION |
| Repalced by: A 0004921083 | ||
| 080B | A 0004921083 | INSULATION |
| MAIN MUFFLER SUSPENSION | ||
| 081 | N 912004008102 | LOCK WASHER |
| MAIN MUFFLER SUSPENSION | ||
| 082 | N 000934008013 | NUT |
| MAIN MUFFLER SUSPENSION | ||
| 083 | A 1074920082 | DAMPING PAD |
| EXHAUST PIPE SUSPENSION | ||
| 085 | A 1149870139 | RUBBER BUFFER |
| Repalced by: A 1079870840 | ||
| 085 | A 1079870840 | RUBBER BUFFER |
| Repalced by: A 1079871140 | ||
| 085 | A 1079871140 | RUBBER BUFFER |
| IN FRONT OF POSTERIOR MUFFLER | ||
| 086 | A 1239870940 | RUBBER BUFFER |
| BEHIND POSTERIOR MUFFLER | ||
| 088 | N 915035000023 | SEAL RING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 915035000008 | SEAL RING | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 090 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 090 | N 304017008028 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 090 | N 304017008028 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931008244 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 092 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 092 | A 0009903250 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 092 | A 0009903250 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 092 | A 0009903250 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 1159870440 | RUBBER BUFFER | |
| 095 | A 1159870540 | RUBBER BUFFER |
| 095 | A 1159870540 | RUBBER BUFFER |
| 100 | A 1144920430 | PROTECTIVE PLATE |
| 100 | A 1144920430 | PROTECTIVE PLATE |
| A 1144920930 | PROTECTIVE PLATE | |
| N 007976006203 | SHEET METAL SCREW | |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| N 000125006421 | WASHER | |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 101 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 101 | N 009021006208 | WASHER |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 102 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 102D | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 102D | N 304032006008 | NUT |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 102F | A 1204200227 | SCREW |
| PROTECTIVE PLATE TO SUBSTRUCTURE | ||
| 103 | A 1144920830 | PROTECTIVE PLATE |
| A 0009902036 | SCREW | |
