Transporto priemonė: 280 E; VIN numerio dalis: 114062

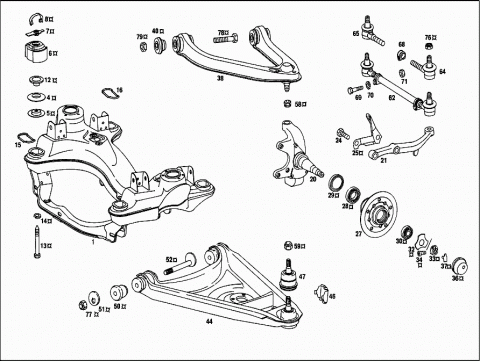

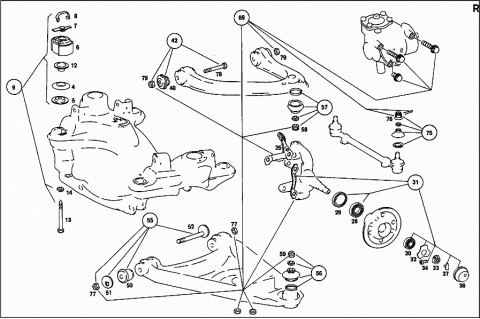

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1153301042 | FRONT SUBFRAME |
| Repalced by: A 1073301242 | ||
| 001 | A 1073301242 | FRONT SUBFRAME |
| 001 | A 1073300942 | FRONT SUBFRAME |
| 001 | A 1073300942 | FRONT SUBFRAME |
| 004 | A 1153330265 | RUBBER BUFFER |
| 005 | A 1153330767 | RETAINER |
| 006 | A 1073300275 | RUBBER MOUNTING |
| 007 | A 1153300688 | NUT |
| 008 | A 1153310225 | U-BOLT |
| 009 | A 1153301875 | REPAIR KIT |
| FRONT AXLE MOUNTING PARTS | ||
| 012 | A 1153310346 | STOP |
| 013 | A 1159902701 | SCREW |
| 014 | N 912004010102 | LOCK WASHER |
| 015 | A 1153310393 | SHIM |
| 016 | A 1153310493 | SHIM |
| A 1153300098 | HALF FRONT AXLE | |
| Repalced by: A 1153300698 | ||
| A 1153300098 | HALF FRONT AXLE | |
| A 1153300698 | HALF FRONT AXLE | |
| Repalced by: A 1153301498 | ||
| A 1153301498 | HALF FRONT AXLE | |
| LEFT | ||
| A 1153301498 | HALF FRONT AXLE | |
| LEFT | ||
| A 1153301298 | HALF FRONT AXLE | |
| LEFT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| A 1153300198 | HALF FRONT AXLE | |
| Repalced by: A 1153300798 | ||
| A 1153300198 | HALF FRONT AXLE | |
| A 1153300798 | HALF FRONT AXLE | |
| Repalced by: A 1153301598 | ||
| A 1153300798 | HALF FRONT AXLE | |
| A 1153301598 | HALF FRONT AXLE | |
| RIGHT | ||
| A 1153301598 | HALF FRONT AXLE | |
| RIGHT | ||
| A 1153301398 | HALF FRONT AXLE | |
| RIGHT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 020 | A 1073320001 | STEERING KNUCKLE |
| LEFT | ||
| A 1073320002 | STEERING KNUCKLE | |
| RIGHT | ||
| A 1153322220 | STEERING ARM | |
| Repalced by: A 1153322420 | ||
| A 1153322220 | STEERING ARM | |
| 021 | A 1153322420 | STEERING ARM |
| LEFT | ||
| 021 | A 1153322420 | STEERING ARM |
| LEFT | ||
| 021 | A 1153322420 | STEERING ARM |
| LEFT | ||
| A 1153322320 | STEERING ARM | |
| Repalced by: A 1153322520 | ||
| A 1153322320 | STEERING ARM | |
| A 1153322520 | STEERING ARM | |
| RIGHT | ||
| A 1153322520 | STEERING ARM | |
| RIGHT | ||
| A 1153322520 | STEERING ARM | |
| RIGHT | ||
| 024 | N 000961012122 | SCREW |
| 025 | A 1074201186 | BRACKET |
| LEFT | ||
| A 1074201286 | BRACKET | |
| RIGHT | ||
| A 1153340901 | WHEEL HUB | |
| Repalced by: A 1153341601 | ||
| A 1153340901 | WHEEL HUB | |
| 027 | A 1153341601 | WHEEL HUB |
| 027 | A 1153341601 | WHEEL HUB |
| 027 | A 1153341601 | WHEEL HUB |
| 028 | A 0009815805 | TAPERED ROLLER BEARING |
| 029 | A 0059975046 | SEAL RING |
| 030 | A 0009815905 | TAPERED ROLLER BEARING |
| 031 | A 1153300051 | REPAIR KIT |
| FRONT WHEEL BEARING | ||
| 032 | A 1153340315 | RING |
| 033 | A 1203340772 | NUT |
| 034 | A 1209901320 | SCREW |
| A 1123300057 | HUB CAP | |
| Repalced by: A 1083340025 | ||
| 036 | A 1083340025 | HUB CAP |
| 037 | A 2015470085 | CONTACT SPRING |
| 038 | A 1153303807 | TRANSVERSE CONTROL ARM |
| TOP LEFT | ||
| A 1153303907 | TRANSVERSE CONTROL ARM | |
| TOP RIGHT | ||
| 040 | A 1153333014 | BEARING |
| 042 | A 1153301775 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 044 | A 1073301207 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| A 1073301307 | TRANSVERSE CONTROL ARM | |
| BOTTOM RIGHT | ||
| 046 | A 1153320360 | DUST CAP |
| 14" | ||
| A 1153300177 | STOP | |
| 15" | ||
| 047 | A 1153331127 | JOINT |
| A 1159942035 | SNAP RING | |
| A 1159942035 | SNAP RING | |
| 050 | A 1153332814 | BEARING |
| 051 | A 1153330477 | INDEXING PLATE |
| 052 | A 1153330574 | PIN |
| 055 | A 1153301675 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 056 | A 1143300185 | REPAIR KIT |
| Repalced by: A 0003330260 | ||
| 056 | A 0003330260 | DUST COLLAR |
| LOWER CONTROL ARM JOINT BOOT | ||
| 057 | A 1145860333 | REPAIR KIT |
| UPPER CONTROL ARM JOINT | ||
| 058 | N 913002012002 | NUT |
| 059 | N 913002014002 | NUT |
| 062 | A 1153300703 | TIE ROD |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 062 | A 1073300103 | TIE ROD |
| 064 | A 0003381910 | BALL JOINT |
| Repalced by: A 0003385210 | ||
| 064 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| 064 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| 065 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 065 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| 065 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| A 0003381063 | CLAMPING RING | |
| 068 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 068 | A 0003384245 | CLAMP |
| 069 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 069 | N 304017008027 | SCREW |
| 070 | N 912004008102 | LOCK WASHER |
| 071 | N 000934008013 | NUT |
| 075 | A 0003300485 | REPAIR KIT |
| TIE ROD BOOT | ||
| 076 | A 1209900155 | NUT |
| TO 115 330 07 03,08 03 | ||
| N 913002010010 | NUT | |
| TO 107 330 01 03 | ||
| N 000094002077 | COTTER PIN | |
| 077 | N 913001014001 | NUT |
| 078 | N 000960012224 | SCREW |
| 079 | N 913004012008 | NUT |
| A 1155860733 | REPAIR KIT | |
| Repalced by: A 1159940732 | ||
| A 1159940732 | LOCK | |
| FRONT AXLE MOUNTING PARTS,RIGHT | ||
| 089 | A 1155860633 | REPAIR KIT |
| Repalced by: A 1159901901 | ||
| 089 | A 1159901901 | SCREW |
| FRONT AXLE MOUNTING PARTS,LEFT | ||
