Transporto priemonė: 280 E; VIN numerio dalis: 114062

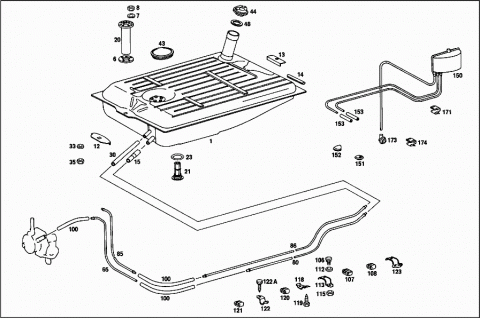

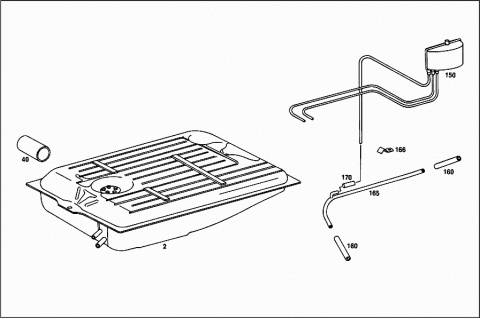

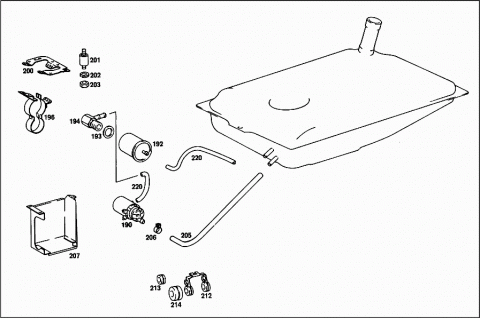

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 1144700101 | FUEL TANK |
| 65 L | ||
| 002 | A 1154701501 | FUEL TANK |
| 65 L | ||
| A 1144700901 | FUEL TANK | |
| 78 L | ||
| 006 | A 1104710180 | GASKET |
| 007 | N 000137005203 | SPRING WASHER |
| 008 | N 000934005008 | NUT |
| 012 | A 1304710122 | REINFORCEMENT |
| 013 | A 1304710222 | REINFORCEMENT |
| 014 | A 0009873272 | EDGE GUARD SECTION |
| Repalced by: A 0029873572 | ||
| 014 | A 0029873572 | EDGE GUARD SECTION |
| 015 | A 1114761526 | HOSE |
| N 916002018100 | CLAMP | |
| 020 | A 1105421204 | GAUGE SENDER UNIT |
| A 1145420004 | GAUGE SENDER UNIT | |
| 021 | A 1114700686 | FUEL STRAINER |
| 023 | A 1109970145 | SEAL RING |
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 030 | A 1149971882 | HOSE |
| A 0019976990 | LOOM TIE | |
| 033 | A 1089900340 | WASHER |
| 035 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 035 | N 913004008001 | NUT |
| 040 | A 1159970782 | HOSE |
| N 916026050000 | CLAMP | |
| Repalced by: A 0069972690 | ||
| A 0069972690 | LOOM TIE | |
| 043 | A 1109870145 | LOCKING CAP |
| A 1154700820 | FILLER NECK | |
| N 007976004217 | SHEET METAL SCREW | |
| Repalced by: N 914128004303 | ||
| N 914128004303 | SHEET METAL SCREW | |
| A 1244700005 | FILLER CAP | |
| 044 | A 0004716130 | FILLER CAP |
| MAKE HUF | ||
| 044 | A 0004716230 | FILLER CAP |
| MAKE YMOS | ||
| A 1234710230 | FILLER CAP | |
| 048 | A 1154710079 | SEAL RING |
| 065 | A 1144761001 | LINE |
| FEED, FRONT | ||
| A 1144762001 | LINE | |
| FEED | ||
| A 1144762101 | LINE | |
| FEED | ||
| A 1144761901 | LINE | |
| FEED | ||
| A 1144761201 | LINE | |
| FEED | ||
| A 1144761301 | LINE | |
| FEED | ||
| A 1144761401 | LINE | |
| FEED | ||
| 080 | A 1154760101 | LINE |
| FEED,REAR | ||
| 080 | A 1154760101 | LINE |
| FEED,REAR | ||
| A 1154760601 | LINE | |
| FEED,REAR | ||
| A 1144760701 | LINE | |
| Repalced by: A 1144760301 | ||
| A 1144760301 | LINE | |
| FEED,REAR | ||
| 085 | A 1154761601 | LINE |
| RETURN; FRONT | ||
| A 1144761601 | LINE | |
| RETURN | ||
| A 1144761801 | LINE | |
| RETURN | ||
| A 1144761501 | LINE | |
| 086 | A 1144760301 | LINE |
| RETURN; REAR | ||
| A 1144761701 | LINE | |
| RETURN; REAR | ||
| A 1104760326 | HOSE | |
| Repalced by: A 1149971882 | ||
| 100 | A 1149971882 | HOSE |
| 100 | A 1149971882 | HOSE |
| 100 | A 1149971882 | HOSE |
| N 916033012100 | CLAMP | |
| A 0019976990 | LOOM TIE | |
| A 0019976990 | LOOM TIE | |
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| 106 | A 1204200227 | SCREW |
| 107 | A 1104760084 | DAMPING STRIP |
| 108 | A 0009877770 | RUBBER SECTION |
| 20 MM | ||
| 20 MM | ||
| 112 | A 0009873841 | RUBBER RING |
| 113 | A 1109950022 | CLAMP |
| 115 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 115 | N 304032006008 | NUT |
| 118 | A 1159950122 | CLAMP |
| 118 | A 1159950122 | CLAMP |
| 118 | A 1159950122 | CLAMP |
| 118 | A 1159950122 | CLAMP |
| 119 | N 007976006203 | SHEET METAL SCREW |
| 119 | N 007976006203 | SHEET METAL SCREW |
| 119 | N 007976006203 | SHEET METAL SCREW |
| 119 | N 007976006203 | SHEET METAL SCREW |
| N 007976006203 | SHEET METAL SCREW | |
| FUEL LINES UNDER REAR SEAT | ||
| A 1104760084 | DAMPING STRIP | |
| FUEL LINES UNDER REAR SEAT | ||
| A 1109950022 | CLAMP | |
| FUEL LINES UNDER REAR SEAT | ||
| 120 | A 0009877770 | RUBBER SECTION |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| 20 MM | ||
| A 1109950022 | CLAMP | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| N 007976006203 | SHEET METAL SCREW | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| 121 | A 0009878670 | RUBBER SECTION |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| 15 MM | ||
| A 0029887378 | CLIP | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| 122 | A 1089950520 | CLAMP |
| 122A | N 007976005203 | SHEET METAL SCREW |
| A 0009877770 | RUBBER SECTION | |
| FUEL LINE TO OUTSIDE LEFT SIDE MEMBER | ||
| 20 MM | ||
| 123 | A 1159950022 | CLAMP |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| N 007976006203 | SHEET METAL SCREW | |
| FUEL LINE TO LEFT FRONT FORKED MEMBER | ||
| 150 | A 1154710268 | TANK |
| 151 | A 1119972281 | GROMMET |
| 152 | A 1159971481 | GROMMET |
| 153 | A 2014761126 | HOSE |
| 80 MM | ||
| N 916002010100 | CLAMP | |
| 160 | A 1124761226 | HOSE |
| 100 MM | ||
| 165 | A 1154701025 | LINE |
| 166 | A 1159950320 | CLAMP |
| N 007976004203 | SHEET METAL SCREW | |
| 170 | A 2014761126 | HOSE |
| 45 MM | ||
| N 916002008100 | CLAMP | |
| 171 | A 0039888178 | CLIP |
| 173 | A 1084710081 | BOOT |
| 174 | A 1149880178 | CLIP |
| 190 | A 0010917101 | FUEL PUMP |
| 192 | A 0000927601 | FILTER |
| 193 | N 007603014100 | SEAL RING |
| 194 | A 1074700279 | INTERMEDIATE PIECE |
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| A 1164700481 | BRACKET | |
| Repalced by: A 1234700381 | ||
| 196 | A 1234700381 | BRACKET |
| N 007985005165 | SCREW | |
| N 912004005100 | LOCK WASHER | |
| N 000934005008 | NUT | |
| A 1164780040 | BRACKET | |
| Repalced by: A 1264780340 | ||
| 200 | A 1264780340 | BRACKET |
| 201 | A 1269880011 | BUFFER |
| 201 | A 1269880011 | BUFFER |
| 202 | N 912004005100 | LOCK WASHER |
| 203 | N 000934005008 | NUT |
| 205 | A 1124761226 | HOSE |
| 420 MM | ||
| 206 | N 916002017100 | CLAMP |
| 207 | A 1264780137 | PROTECTIVE COVER |
| N 007976006203 | SHEET METAL SCREW | |
| N 916002017100 | CLAMP | |
| N 007976006203 | SHEET METAL SCREW | |
| 212 | A 1149880678 | CLIP |
| 213 | A 0009972881 | GROMMET |
| 214 | A 0009972981 | GROMMET |
| A 0009881878 | CLIP | |
| N 006797004132 | TOOTHED WASHER | |
| N 006797005132 | TOOTHED WASHER | |
| N 000934004006 | NUT | |
| N 000934005008 | NUT | |
| 220 | A 1149971882 | HOSE |
| 220 | A 1149971882 | HOSE |
| 220 | A 1149971882 | HOSE |
| A 0019976990 | LOOM TIE | |
