Transporto priemonė: 280 E; VIN numerio dalis: 114062

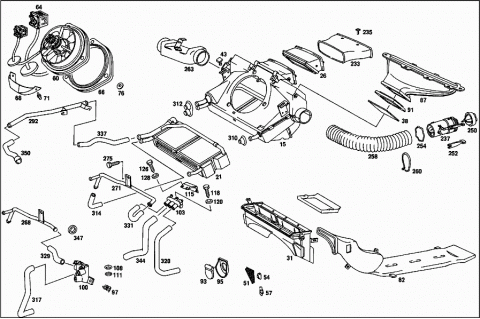

Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1158300862 | HEATER CASE | |
| Repalced by: A 1158303962 | ||
| A 1158301876 | CAP | |
| Repalced by: A 1158303962 | ||
| A 1158301062 | HEATER CASE | |
| Repalced by: A 1158303962 | ||
| A 1158301062 | HEATER CASE | |
| A 1158303962 | HEATER CASE | |
| Repalced by: A 1148300462 | ||
| 015 | A 1148300462 | HEATER CASE |
| 015 | A 1148300462 | HEATER CASE |
| 015 | A 1148300462 | HEATER CASE |
| A 0008357101 | HEAT EXCHANGER | |
| Repalced by: A 0018353001 | ||
| 021 | A 0018353001 | HEAT EXCHANGER |
| A 1158300024 | INTERMEDIATE PIECE | |
| Repalced by: A 1148300024 | ||
| 026 | A 1148300024 | INTERMEDIATE PIECE |
| A 1158300124 | INTERMEDIATE PIECE | |
| A 1158300224 | INTERMEDIATE PIECE | |
| 031 | A 1158300424 | INTERMEDIATE PIECE |
| 031 | A 1158300424 | INTERMEDIATE PIECE |
| 031 | A 1158300424 | INTERMEDIATE PIECE |
| A 1158310198 | SEAL | |
| LEFT | ||
| A 1158310298 | SEAL | |
| RIGHT | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| 038 | A 1158350198 | SEAL |
| 038 | A 1158350198 | SEAL |
| N 007976006303 | SHEET METAL SCREW | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 043 | A 0009900233 | SCREW |
| Repalced by: A 0009905233 | ||
| 043 | A 0009905233 | SCREW |
| N 000934006007 | NUT | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 006797006145 | TOOTHED WASHER | |
| 048 | A 0019874651 | RUBBER SEAL |
| ORDER BY THE METER | ||
| A 1156870110 | COVERING | |
| Repalced by: A 1156870710 | ||
| 051 | A 1156870710 | COVERING |
| 051 | A 1156870710 | COVERING |
| 054 | A 0019882378 | CLIP |
| 054 | A 0019882378 | CLIP |
| A 0019882378 | CLIP | |
| 057 | A 0019889378 | CLIP |
| A 1158350007 | BLOWER | |
| Repalced by: A 1158350407 | ||
| A 1158350107 | BLOWER | |
| Repalced by: A 1158350407 | ||
| A 1158350407 | BLOWER | |
| Repalced by: A 1158350207 | ||
| 060 | A 1158350207 | BLOWER |
| A 0008352575 | CARBON BRUSH SET | |
| A 1158210451 | SWITCH | |
| Repalced by: A 1158211651 | ||
| A 1158211651 | PLUG | |
| Repalced by: A 1158211951 | ||
| 064 | A 1158211951 | SWITCH |
| 066 | A 1158350098 | SEAL |
| 068 | A 1158360133 | SCREENING |
| 068 | A 1158360133 | SCREENING |
| 071 | A 0009900492 | RIVET |
| 071 | A 0009900492 | RIVET |
| A 1109970441 | SEAL RING | |
| Repalced by: A 1159971040 | ||
| A 1119971140 | SEAL RING | |
| Repalced by: A 1159971040 | ||
| 076 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 076 | A 2019870241 | RUBBER RING |
| N 007976004207 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| N 000137004202 | SPRING WASHER | |
| 082 | A 1158310145 | DUCT |
| A 1158310245 | DUCT | |
| RIGHT | ||
| A 1158310545 | DUCT | |
| N 007981004331 | SHEET METAL SCREW | |
| A 1158300119 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300719 | ||
| 087 | A 1158300719 | DEFROSTER NOZZLE |
| Repalced by: A 1158300119 | ||
| 087 | A 1158300119 | DEFROSTER NOZZLE |
| LEFT | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300819 | ||
| A 1158300819 | DEFROSTER NOZZLE | |
| Repalced by: A 1158300219 | ||
| A 1158300219 | DEFROSTER NOZZLE | |
| RIGHT | ||
| 091 | A 1158310098 | SEAL |
| 093 | A 1158310046 | VALVE |
| 095 | A 1158313751 | WATER PASSAGE |
| 097 | A 0019886878 | CLIP |
| A 1158350020 | CONTROL VALVE | |
| 100 | A 1158350120 | CONTROL VALVE |
| 100 | A 1158350120 | CONTROL VALVE |
| 103 | A 1158350220 | CONTROL VALVE |
| 103 | A 1158350220 | CONTROL VALVE |
| 103 | A 1158350220 | CONTROL VALVE |
| A 0008350098 | SEAL | |
| Repalced by: A 0008351298 | ||
| A 0008351298 | SEAL | |
| Repalced by: A 0008354198 | ||
| 108 | A 0008354198 | SEAL |
| Repalced by: A 0008355898 | ||
| 108 | A 0008355898 | SEAL |
| OUTSIDE | ||
| A 0008350898 | SEAL | |
| Repalced by: A 0008351398 | ||
| 111 | A 0008351398 | SEAL |
| Repalced by: A 0008354898 | ||
| 111 | A 0008354898 | SEAL |
| INSIDE | ||
| A 0008351520 | CONTROL VALVE | |
| A 1158351514 | BRACKET | |
| 115 | A 1158351814 | BRACKET |
| 115 | A 1158351814 | BRACKET |
| 115 | A 1158351814 | BRACKET |
| 118 | N 007976004205 | SHEET METAL SCREW |
| 118 | N 007976004205 | SHEET METAL SCREW |
| 120 | N 000125005306 | WASHER |
| 120 | N 000125005306 | WASHER |
| N 007976005208 | SHEET METAL SCREW | |
| N 000125006407 | WASHER | |
| 126 | N 007976004215 | SHEET METAL SCREW |
| 126 | N 007976004215 | SHEET METAL SCREW |
| 128 | N 000125005306 | WASHER |
| 128 | N 000125005306 | WASHER |
| A 1158300085 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| A 1158300485 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| A 1158300585 | OPERATING UNIT | |
| Repalced by: A 1158300785 | ||
| 130 | A 1158300785 | OPERATING UNIT |
| 134 | A 0008353706 | SWITCH |
| A 0018351906 | SWITCH | |
| Repalced by: A 0008353706 | ||
| A 0008353706 | SWITCH | |
| A 1155860083 | REPAIR KIT | |
| Repalced by: A 1238300133 | ||
| A 1238300133 | REPAIR KIT | |
| Repalced by: A 1158300033 | ||
| A 1158300033 | REPAIR KIT | |
| LEFT | ||
| A 0008351943 | LEVER | |
| Repalced by: A 0008352743 | ||
| 137 | A 0008352743 | LEVER |
| Repalced by: A 1155860083 | ||
| A 0008352443 | LEVER | |
| LEFT | ||
| A 1155860183 | REPAIR KIT | |
| Repalced by: A 1238300233 | ||
| A 1238300233 | REPAIR KIT | |
| Repalced by: A 1158300133 | ||
| A 1158300133 | REPAIR KIT | |
| RIGHT | ||
| A 0008352043 | LEVER | |
| Repalced by: A 0008352843 | ||
| 140 | A 0008352843 | LEVER |
| Repalced by: A 1155860183 | ||
| A 0008352543 | LEVER | |
| RIGHT | ||
| N 912003005000 | DUO CLIP | |
| Repalced by: N 912010005001 | ||
| N 912010005001 | LOCK PLATE | |
| 144 | A 0009902248 | WASHER |
| 146 | A 0008330081 | CLIP |
| 148 | A 0009949941 | LOCK |
| 149 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 149 | N 304017006018 | SCREW |
| 150 | N 006797006145 | TOOTHED WASHER |
| 152 | A 1158330240 | OPERATING HANDLE |
| 154 | A 1158330540 | OPERATING HANDLE |
| 156 | A 1158330340 | OPERATING HANDLE |
| LEFT | ||
| 158 | A 1158330440 | OPERATING HANDLE |
| RIGHT | ||
| A 1158330131 | WIRE CABLE | |
| Repalced by: A 1158300331 | ||
| A 1158330231 | WIRE CABLE | |
| Repalced by: A 1158300331 | ||
| A 1158300231 | WIRE CABLE | |
| 830 MM | ||
| A 1158300331 | WIRE CABLE | |
| 930 MM | ||
| A 0029884978 | CLIP | |
| 165 | A 1158300731 | WIRE CABLE |
| LEFT | ||
| 165 | A 1158300731 | WIRE CABLE |
| LEFT | ||
| A 1158300431 | WIRE CABLE | |
| RIGHT | ||
| A 1158300431 | WIRE CABLE | |
| RIGHT | ||
| A 0029975982 | HOSE | |
| 170 | A 1159971581 | GROMMET |
| 170 | A 1159971581 | GROMMET |
| A 1158330030 | SPIRAL | |
| Repalced by: A 1158330330 | ||
| 174 | A 1158330330 | SPIRAL |
| Repalced by: A 1158301331 | ||
| 174 | A 1158301331 | WIRE CABLE |
| 174 | A 1158301331 | WIRE CABLE |
| 178 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| 178 | A 1108330331 | WIRE CABLE |
| 610 MM | ||
| A 1158301231 | WIRE CABLE | |
| 300 MM | ||
| A 1158301231 | WIRE CABLE | |
| 300 MM | ||
| A 1158300631 | WIRE CABLE | |
| Repalced by: A 1158301431 | ||
| A 1158300631 | WIRE CABLE | |
| 185 | A 1158301431 | WIRE CABLE |
| 280 MM | ||
| 185 | A 1158301431 | WIRE CABLE |
| 280 MM | ||
| 185 | A 1158301431 | WIRE CABLE |
| 280 MM | ||
| 189 | A 1158301331 | WIRE CABLE |
| 490 MM | ||
| 189 | A 1158301331 | WIRE CABLE |
| 490 MM | ||
| 189 | A 1158301331 | WIRE CABLE |
| 490 MM | ||
| 193 | A 1159971681 | GROMMET |
| 193 | A 1159971681 | GROMMET |
| 195 | A 1159840556 | WASHER |
| 195 | A 1159840556 | WASHER |
| 197 | N 000471012001 | LOCK RING |
| 197 | N 000471012001 | LOCK RING |
| 199 | A 0019886878 | CLIP |
| 201 | A 0009840429 | SCREW |
| 201 | A 0009840429 | SCREW |
| 204 | A 0019903840 | WASHER |
| 204 | A 0019903840 | WASHER |
| 207 | N 000127004203 | LOCK WASHER |
| Repalced by: N 912004004102 | ||
| 207 | N 912004004102 | LOCK WASHER |
| 207 | N 912004004102 | LOCK WASHER |
| 210 | N 000934004006 | NUT |
| 210 | N 000934004006 | NUT |
| A 1158300289 | ESCUTCHEON | |
| Repalced by: A 1158301189 | ||
| A 1158301189 | ESCUTCHEON | |
| A 1158301189 | ESCUTCHEON | |
| A 1158300389 | ESCUTCHEON | |
| Repalced by: A 1158300789 | ||
| 215 | A 1158300789 | ESCUTCHEON |
| Repalced by: A 1158301189 | ||
| 215 | A 1158301189 | ESCUTCHEON |
| 215 | A 1158301189 | ESCUTCHEON |
| 215 | A 1158301189 | ESCUTCHEON |
| 219 | A 0009912022 | BALL SOCKET |
| 221 | A 0009970381 | GROMMET |
| 223 | A 1158330083 | GARNISH MOULDING |
| 225 | A 1158330183 | GARNISH MOULDING |
| CENTRAL | ||
| A 1158300088 | CONSOLE | |
| Repalced by: A 1158300188 | ||
| 228 | A 1158300188 | LOUVRE |
| 230 | A 1108210159 | ESCUTCHEON |
| 231 | N 007981003341 | SHEET METAL SCREW |
| 233 | A 1158313851 | HOSE |
| Repalced by: A 1158300096 | ||
| A 1158300096 | HOSE | |
| BETWEEN THE HEATERS | ||
| 235 | A 0009900292 | RIVET |
| 237 | A 1158300154 | NOZZLE |
| LEFT | ||
| 237 | A 1158300154 | NOZZLE |
| LEFT | ||
| A 1158300254 | NOZZLE | |
| Repalced by: A 1158300054 | ||
| A 1158300054 | NOZZLE | |
| RIGHT | ||
| A 1158300054 | NOZZLE | |
| RIGHT | ||
| A 1158300354 | NOZZLE | |
| LEFT | ||
| A 1158300354 | NOZZLE | |
| LEFT | ||
| A 1158300454 | NOZZLE | |
| RIGHT | ||
| A 1158300454 | NOZZLE | |
| RIGHT | ||
| A 1158300554 | NOZZLE | |
| RIGHT | ||
| A 1158300554 | NOZZLE | |
| RIGHT | ||
| 250 | A 1158314351 | BALL INSERT |
| 252 | A 1158310001 | HANDLE |
| 254 | A 1158311351 | WAVE RING |
| A 0089970082 | HOSE | |
| Repalced by: A 1158310497 | ||
| A 0079973682 | HOSE | |
| Repalced by: A 1158310497 | ||
| 258 | A 1158310497 | HOSE |
| 485 MM | ||
| 260 | A 1158310114 | BRACKET |
| 260 | A 1158310114 | BRACKET |
| 263 | A 1158302251 | DUCT |
| N 000931006083 | SCREW | |
| N 000127006101 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 268 | A 1158300015 | PIPE LINE |
| 268 | A 1158300015 | PIPE LINE |
| 271 | A 1158300715 | PIPE LINE |
| 271 | A 1158300715 | PIPE LINE |
| 271 | A 1158300715 | PIPE LINE |
| 274 | A 1148300515 | PIPE LINE |
| 275 | N 007976005203 | SHEET METAL SCREW |
| 277 | A 1085460253 | SPACER TUBE |
| 279 | N 007976004211 | SHEET METAL SCREW |
| A 1148300115 | PIPE LINE | |
| Repalced by: A 1148301715 | ||
| A 1148300115 | PIPE LINE | |
| A 1148300015 | PIPE LINE | |
| Repalced by: A 1148301715 | ||
| 292 | A 1148301715 | PIPE LINE |
| 295 | A 1148300615 | PIPE LINE |
| N 007976004205 | SHEET METAL SCREW | |
| N 007976004205 | SHEET METAL SCREW | |
| A 0009900851 | NUT | |
| A 0009900851 | NUT | |
| A 0009900851 | NUT | |
| N 006797008120 | TOOTHED WASHER | |
| N 006797008120 | TOOTHED WASHER | |
| N 006797008120 | TOOTHED WASHER | |
| 304 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 304 | N 304017008039 | SCREW |
| 306 | N 000127008203 | LOCK WASHER |
| 308 | N 912004008102 | LOCK WASHER |
| 310 | A 1139970081 | GROMMET |
| 312 | A 1159970481 | GROMMET |
| A 1158310194 | HOSE | |
| Repalced by: A 1148312394 | ||
| A 1158313894 | HOSE | |
| Repalced by: A 1148312394 | ||
| 314 | A 1148312394 | HOSE |
| BETWEEN FEED LINE AND HEATING DUCT | ||
| A 1158310294 | HOSE | |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 317 | A 1158312894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 317 | A 1158312894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 320 | A 1158313894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 320 | A 1158313894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 320 | A 1158313894 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| 324 | A 1148311094 | HOSE |
| BETWEEN ENGINE AND WATER FAUCET | ||
| 326 | A 1148311194 | HOSE |
| BETWEEN WATER FAUCET AND HEATER CASE | ||
| N 900271015069 | HOSE | |
| Repalced by: N 900271015037 | ||
| N 900271015037 | HOSE | |
| 15 X 22 X 1000 MM | ||
| 329 | A 1158312994 | HOSE |
| 15 X 22 X 1000 MM | ||
| 329 | A 1158312994 | HOSE |
| 15 X 22 X 1000 MM | ||
| 331 | A 1158313694 | HOSE |
| 15 X 22 X 1000 MM | ||
| 331 | A 1158313694 | HOSE |
| 15 X 22 X 1000 MM | ||
| 331 | A 1158313694 | HOSE |
| 15 X 22 X 1000 MM | ||
| N 900271018036 | HOSE | |
| 18 X 25 X 1000 MM | ||
| N 900271018036 | HOSE | |
| 18 X 25 X 1000 MM | ||
| A 1148310594 | HOSE | |
| 18 X 25 X 1000 MM | ||
| 337 | A 1148312294 | HOSE |
| 340 | A 1148311294 | HOSE |
| 18 X 25 X 1000 MM | ||
| A 1148310094 | HOSE | |
| A 1158312794 | HOSE | |
| Repalced by: A 1158313794 | ||
| 344 | A 1158313794 | HOSE |
| 344 | A 1158313794 | HOSE |
| 347 | A 1109870541 | RUBBER RING |
| A 1118310094 | HOSE | |
| A 1118310094 | HOSE | |
| 350 | A 1088310394 | HOSE |
| 350 | A 1088310394 | HOSE |
| 350 | A 1088310394 | HOSE |
| N 900271018036 | HOSE | |
| 18 X 25 X 1000 MM | ||
| N 916026016001 | CLAMP | |
| Repalced by: A 0059970190 | ||
| A 0059970190 | LOOM TIE | |
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| N 916026023001 | CLAMP | |
| 359 | A 1158360465 | GRILLE |
| A 1158360365 | GRILLE | |
| 361 | A 1158360018 | SCREEN |
| 362 | A 0019872451 | RUBBER SEAL |
| ORDER BY THE METER | ||
| 364 | A 0019872651 | RUBBER SEAL |
| 366 | A 0009900392 | RIVET |
| Repalced by: A 0009902292 | ||
| 366 | A 0009902292 | RIVET |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
