Transporto priemonė: 280 E; VIN numerio dalis: 114062

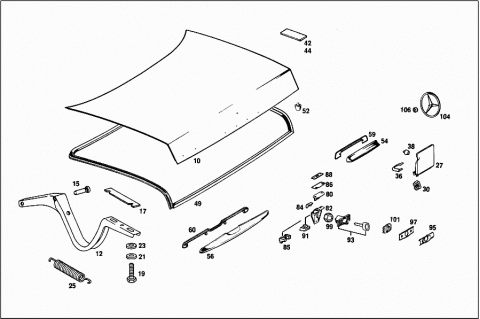

Grupė: 75 OUTSIDE FLAPS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1157500075 | REAR LID | |
| Repalced by: A 1157500675 | ||
| 010 | A 1157500675 | REAR LID |
| 012 | A 1157500187 | HINGE |
| LEFT | ||
| A 1157500287 | HINGE | |
| RIGHT | ||
| 015 | A 1157580015 | PIN |
| 017 | A 1087580010 | BASE PLATE |
| 019 | N 000933006102 | SCREW |
| 019 | N 000933006102 | SCREW |
| 021 | N 912004006102 | LOCK WASHER |
| 023 | N 000125006421 | WASHER |
| A 1157580034 | SPRING | |
| Repalced by: A 1237580336 | ||
| 025 | A 1237580336 | SPRING |
| A 1157500006 | FLAP | |
| Repalced by: A 1157500106 | ||
| 027 | A 1157500106 | FLAP |
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009940545 | ||
| 030 | A 0009940545 | LOCK |
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 000137005203 | SPRING WASHER | |
| A 1157580234 | SPACER TUBE | |
| Repalced by: A 1157580334 | ||
| 036 | A 1157580334 | SPRING |
| Repalced by: A 3057580036 | ||
| 036 | A 3057580036 | SPRING |
| 038 | A 1159870040 | RUBBER BUFFER |
| A 1157580059 | STRUT | |
| Repalced by: A 1157580897 | ||
| 042 | A 1157580897 | INTERMEDIATE LAYER |
| 11 MM | ||
| 042 | A 1157580897 | INTERMEDIATE LAYER |
| 11 MM | ||
| 044 | A 1157580997 | INTERMEDIATE LAYER |
| Repalced by: A 1237580397 | ||
| 044 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 044 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 044 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 044 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 044 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 049 | A 1157580098 | SEAL |
| A 1139870240 | RUBBER BUFFER | |
| Repalced by: A 1119871540 | ||
| 052 | A 1119871540 | RUBBER BUFFER |
| 054 | A 1157580002 | HANDLE |
| 054 | A 1157580002 | HANDLE |
| 054 | A 1157580002 | HANDLE |
| 054 | A 1157580002 | HANDLE |
| A 1077580102 | HANDLE | |
| Repalced by: A 1077580202 | ||
| A 1077580102 | HANDLE | |
| A 1077580102 | HANDLE | |
| 056 | A 1077580202 | HANDLE |
| 059 | A 1157580005 | PAD |
| 059 | A 1157580005 | PAD |
| 059 | A 1157580005 | PAD |
| 059 | A 1157580005 | PAD |
| A 1077580105 | PAD | |
| Repalced by: A 1077580205 | ||
| 060 | A 1077580205 | PAD |
| 060 | A 1077580205 | PAD |
| 060 | A 1077580205 | PAD |
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| N 007985005157 | SCREW | |
| N 007985005157 | SCREW | |
| N 007985005157 | SCREW | |
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| N 000000001933 | SCREW | |
| N 000000001933 | SCREW | |
| N 000137005203 | SPRING WASHER | |
| N 000137005203 | SPRING WASHER | |
| N 000137005203 | SPRING WASHER | |
| N 000137005203 | SPRING WASHER | |
| N 000137004202 | SPRING WASHER | |
| N 000137004202 | SPRING WASHER | |
| N 000137004202 | SPRING WASHER | |
| 080 | A 1137500185 | LOCK |
| 082 | A 1137500285 | LOCK |
| 084 | A 1137580072 | BUFFER |
| Repalced by: A 1169870539 | ||
| 084 | A 1169870539 | RUBBER BUFFER |
| 085 | A 1169870539 | RUBBER BUFFER |
| 086 | A 1117585010 | BASE PLATE |
| A 1117585111 | PLATE | |
| Repalced by: A 1167500011 | ||
| 088 | A 1167500011 | PLATE |
| A 0009903330 | SCREW | |
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| M 6X16 | ||
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| 091 | A 0009909991 | NUT RETAINER |
| A 1157500285 | LOCK | |
| WORKSHOP VERSION, WITH KEY; USED WITHOUT CODE 466 (CENTRAL LOCKG.MECHANISM) | ||
| 093 | A 1157500085 | LOCK |
| LESS KEY | ||
| 095 | A 1157580030 | LINING |
| 097 | A 1157580105 | PAD |
| A 0019904851 | NUT | |
| Repalced by: N 913004005001 | ||
| 099 | N 913004005001 | NUT |
| 101 | A 1157580891 | FILLER |
| 101 | A 1157580891 | FILLER |
| 101 | A 1157580891 | FILLER |
| 104 | A 1157580058 | MERCEDES STAR |
| 106 | A 1109870741 | RUBBER RING |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
