Transporto priemonė: 280 E; VIN numerio dalis: 114062

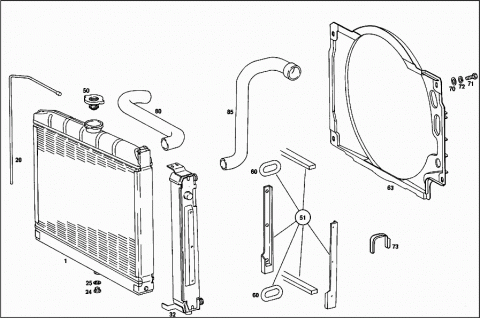

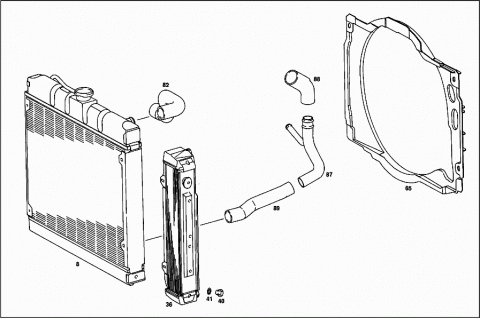

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1145010501 | RADIATOR | |
| A 1145010501 | RADIATOR | |
| 001 | A 1145010301 | RADIATOR |
| 001 | A 1145010301 | RADIATOR |
| A 1145011301 | RADIATOR | |
| A 1145011301 | RADIATOR | |
| A 1145010701 | RADIATOR | |
| 008 | A 1145011101 | RADIATOR |
| 008 | A 1145011101 | RADIATOR |
| 020 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 020 | A 0219977682 | HOSE |
| A 0005010010 | DRAIN PIPE | |
| CONNECTOR | ||
| 024 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 024 | N 007604014110 | SCREW PLUG |
| 025 | N 007603014405 | SEAL RING |
| A 0039880678 | CLIP | |
| 032 | A 1141800165 | OIL COOLER |
| 032 | A 1141800165 | OIL COOLER |
| 036 | A 1081800265 | OIL COOLER |
| 036 | A 1081800265 | OIL COOLER |
| A 1141800265 | OIL COOLER | |
| 040 | N 007604012102 | SCREW PLUG |
| 040 | N 007604012102 | SCREW PLUG |
| 041 | N 007603012110 | SEAL RING |
| 041 | N 007603012110 | SEAL RING |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 304017006018 | SCREW | |
| N 000603006010 | SCREW | |
| N 000603006010 | SCREW | |
| N 000603006010 | SCREW | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 000125006407 | WASHER | |
| 050 | A 1235010215 | RADIATOR CAP |
| 051 | A 1145000012 | REPAIR KIT |
| 051 | A 1145000012 | REPAIR KIT |
| A 1145000112 | REPAIR KIT | |
| A 1145000112 | REPAIR KIT | |
| A 1145000112 | REPAIR KIT | |
| 060 | A 1155040082 | RUBBER RING |
| A 1145050155 | FAN SHROUD | |
| A 1145050155 | FAN SHROUD | |
| 063 | A 1145050655 | FAN SHROUD |
| A 1145050455 | FAN SHROUD | |
| Repalced by: A 1145050655 | ||
| A 1145050655 | FAN SHROUD | |
| A 1145050755 | FAN SHROUD | |
| 065 | A 1145051055 | FAN SHROUD |
| Repalced by: A 1145050755 | ||
| 065 | A 1145050755 | FAN SHROUD |
| 070 | A 0019901840 | WASHER |
| Repalced by: A 1269901440 | ||
| 070 | A 1269901440 | WASHER |
| 071 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 071 | N 304017005002 | SCREW |
| 072 | N 912004005100 | LOCK WASHER |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.073 | ||
| 073 | A 1145050006 | CLAMP |
| 080 | A 1145010982 | HOSE |
| A 1145011482 | HOSE | |
| 082 | A 1145012582 | HOSE |
| N 916026036000 | CLAMP | |
| Repalced by: A 0069970590 | ||
| A 0069970590 | LOOM TIE | |
| N 916026040000 | CLAMP | |
| Repalced by: A 0069974390 | ||
| A 0069974390 | LOOM TIE | |
| 085 | A 1145010882 | HOSE |
| A 1105000272 | LINE | |
| Repalced by: A 1105000472 | ||
| 087 | A 1105000472 | LINE |
| 088 | A 1105011682 | HOSE |
| 089 | A 1105011882 | HOSE |
| A 1105012482 | HOSE | |
| N 916026036000 | CLAMP | |
| Repalced by: A 0069970590 | ||
| A 0069970590 | LOOM TIE | |
| N 916026040000 | CLAMP | |
| Repalced by: A 0069974390 | ||
| A 0069974390 | LOOM TIE | |
| N 916026045000 | CLAMP | |
| Repalced by: A 0069970690 | ||
| A 0069970690 | LOOM TIE | |
