Transporto priemonė: 280 E; VIN numerio dalis: 114062

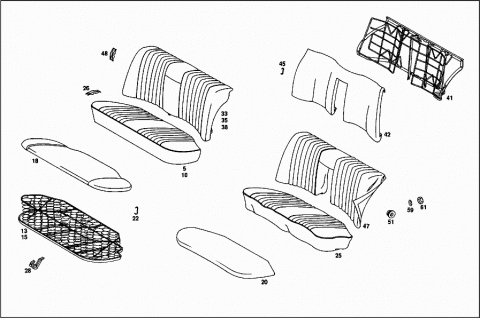

Grupė: 92 REAR SEAT BENCH - 001 REAR SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1159200053 | SEAT CUSHION | |
| A 1159200053 | SEAT CUSHION | |
| A 1159200320 | REAR SEAT CUSHION | |
| Repalced by: A 1159201220 | ||
| 005 | A 1159201220 | REAR SEAT CUSHION |
| A 1159200853 | SEAT CUSHION | |
| A 1159200420 | REAR SEAT CUSHION | |
| Repalced by: A 1159201320 | ||
| A 1159201320 | REAR SEAT CUSHION | |
| A 1149200053 | SEAT CUSHION | |
| 010 | A 1149200320 | REAR SEAT CUSHION |
| 010 | A 1149200320 | REAR SEAT CUSHION |
| A 1159200322 | CUSHION FRAME | |
| Repalced by: A 1159200822 | ||
| A 1159200322 | CUSHION FRAME | |
| A 1159200822 | CUSHION FRAME | |
| Repalced by: A 1159201022 | ||
| 013 | A 1159201022 | CUSHION FRAME |
| A 1159200222 | CUSHION FRAME | |
| Repalced by: A 1159200922 | ||
| 015 | A 1159200922 | CUSHION FRAME |
| A 1159240280 | COVER | |
| Repalced by: A 1159240914 | ||
| A 1159240914 | PAD | |
| A 1159240914 | PAD | |
| A 1159240214 | PAD | |
| Repalced by: A 1159240914 | ||
| A 1159240214 | PAD | |
| A 1159240914 | PAD | |
| A 1159240914 | PAD | |
| A 1159240914 | PAD | |
| 018 | A 1159200250 | PAD |
| A 1159243680 | COVER | |
| A 1159240414 | PAD | |
| Repalced by: A 1159241014 | ||
| 020 | A 1159241014 | PAD |
| 022 | A 0009842061 | CLIP |
| A 1159200068 | COVER | |
| A 1159200068 | COVER | |
| 025 | A 1149200068 | COVER |
| 025 | A 1149200068 | COVER |
| A 1159201668 | COVER | |
| 026 | A 0039880178 | CLIP |
| 026 | A 0039880178 | CLIP |
| 026 | A 0039880178 | CLIP |
| 028 | A 1159220014 | BRACKET |
| A 1159200453 | SEAT CUSHION | |
| Repalced by: A 1159200102 | ||
| A 1159200102 | SEAT CUSHION LESS COVER | |
| Repalced by: A 1159201022 | ||
| A 1159201022 | CUSHION FRAME | |
| A 1159201022 | CUSHION FRAME | |
| A 1159201153 | SEAT CUSHION | |
| A 1159200102 | SEAT CUSHION LESS COVER | |
| Repalced by: A 1159201022 | ||
| A 1159201022 | CUSHION FRAME | |
| A 1159201022 | CUSHION FRAME | |
| A 1159201022 | CUSHION FRAME | |
| A 1159200202 | SEAT CUSHION LESS COVER | |
| A 1159200156 | REAR SEAT BACKREST | |
| Repalced by: A 1159200430 | ||
| 033 | A 1159200430 | BACKREST |
| 033 | A 1159200430 | BACKREST |
| 035 | A 1159201230 | BACKREST |
| A 1149200130 | BACKREST | |
| 038 | A 1149200530 | BACKREST |
| 038 | A 1149200530 | BACKREST |
| A 1159200132 | BACKREST FRAME | |
| Repalced by: A 1159201032 | ||
| A 1159200132 | BACKREST FRAME | |
| 041 | A 1159201032 | BACKREST FRAME |
| 041 | A 1159201032 | BACKREST FRAME |
| 041 | A 1159201032 | BACKREST FRAME |
| A 1159240480 | COVER | |
| Repalced by: A 1159240516 | ||
| 042 | A 1159240516 | PAD |
| Repalced by: A 1159241516 | ||
| 042 | A 1159241516 | PAD |
| 045 | A 0009842061 | CLIP |
| A 1159200174 | COVER | |
| A 1159200174 | COVER | |
| 047 | A 1149200074 | COVER |
| 047 | A 1149200074 | COVER |
| 048 | A 0039880178 | CLIP |
| 048 | A 0039880178 | CLIP |
| 048 | A 0039880178 | CLIP |
| N 006799009002 | LOCK PLATE | |
| 051 | A 1159730820 | SUPPORT |
| A 1159200004 | BACKREST LESS COVER | |
| Repalced by: A 1159200304 | ||
| A 1159200304 | BACKREST LESS COVER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000934006007 | NUT | |
| N 000603006018 | SCREW | |
| 059 | A 0009900148 | WASHER |
| 061 | N 000934006007 | NUT |
