Transporto priemonė: 280 E; VIN numerio dalis: 114062
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

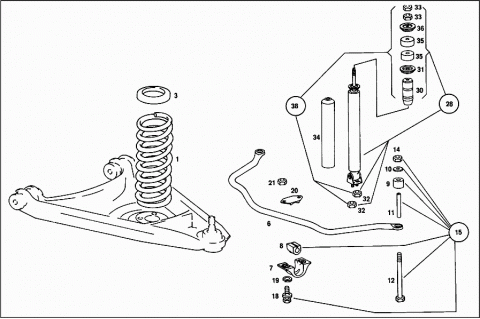

| 001 | A 1153213004 | FRONT SPRING |
| 001 | A 1143210704 | FRONT SPRING |
| 001 | A 1153212904 | FRONT SPRING |
| 001 | A 1143210604 | FRONT SPRING |
| 001 | A 1143210504 | FRONT SPRING |
| 003 | A 1073210284 | SHIM |
| Repalced by: A 1233211384 | ||
| 003 | A 1233211384 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 1 (8 MM) | ||
| 003 | A 1073210384 | SHIM |
| Repalced by: A 1233211484 | ||
| 003 | A 1233211484 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 2 (13 MM) | ||
| 003 | A 1073210484 | SHIM |
| Repalced by: A 1233211584 | ||
| 003 | A 1233211584 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 3 (18 MM) | ||
| 003 | A 1073210584 | SHIM |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 4 (23 MM) | ||
| 006 | A 1073230165 | TORSION BAR |
| FRONT | ||
| 25 MM | ||
| 007 | A 1153200845 | STRAP |
| TORSION BAR TO FRAME | ||
| 008 | A 1143230585 | RUBBER MOUNTING |
| TORSION BAR TO FRAME | ||
| 009 | A 1153230244 | RUBBER BUFFER |
| TORSION BAR TO FRONT AXLE | ||
| 010 | A 1153230367 | RETAINER |
| TORSION BAR TO FRONT AXLE | ||
| 011 | A 1159910140 | SPACER TUBE |
| TORSION BAR TO FRONT AXLE | ||
| 012 | A 1159900801 | SCREW |
| TORSION BAR TO FRONT AXLE | ||
| 014 | N 913002008004 | NUT |
| TORSION BAR TO FRONT AXLE | ||
| 015 | A 1153200047 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 018 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 018 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 018 | A 0099900101 | SCREW |
| TORSION BAR TO FRAME | ||
| 019 | N 912004008102 | LOCK WASHER |
| TORSION BAR TO FRAME | ||
| 020 | A 1153230073 | LOCK |
| TORSION BAR TO FRAME | ||
| 021 | N 913002008004 | NUT |
| TORSION BAR TO FRAME | ||
| A 1153231400 | SHOCK ABSORBER | |
| Repalced by: A 1153200130 | ||
| A 1153231800 | SHOCK ABSORBER | |
| Repalced by: A 1153200130 | ||
| 028 | A 1153200130 | SHOCK ABSORBER |
| A 1153231300 | SHOCK ABSORBER | |
| Repalced by: A 1153200030 | ||
| A 1153231700 | SHOCK ABSORBER | |
| Repalced by: A 1153200030 | ||
| 028 | A 1153200030 | SHOCK ABSORBER |
| FRONT | ||
| A 1153200430 | SHOCK ABSORBER | |
| FRONT | ||
| 030 | A 1153230644 | RUBBER BUFFER |
| 031 | A 1153230767 | RETAINER |
| Repalced by: A 1233230367 | ||
| 031 | A 1233230367 | RETAINER |
| SHOCK ABSORBER TO FRAME | ||
| 032 | N 913002008004 | NUT |
| SHOCK ABSORBER TO LOWER CONTROL ARM | ||
| 033 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 033 | N 308673010000 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 034 | A 1153230438 | DUST CAP |
| 035 | A 1803260168 | RUBBER BUFFER |
| SHOCK ABSORBER TO FRAME | ||
| 036 | A 1153230767 | RETAINER |
| Repalced by: A 1233230367 | ||
| 036 | A 1233230367 | RETAINER |
| SHOCK ABSORBER TO FRAME | ||
| 038 | A 1163200056 | REPAIR KIT |
| Repalced by: A 1169900099 | ||
| 038 | A 1169900099 | ATTACHMENT |
| SHOCK ABSORBER MOUNTING,FRONT | ||

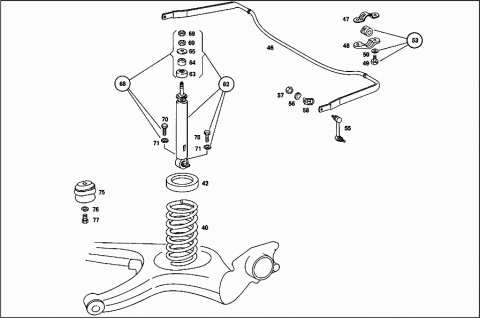

| 040 | A 1153242904 | REAR SPRING |
| 040 | A 1143240504 | REAR SPRING |
| 040 | A 1153242204 | REAR SPRING |
| 042 | A 1153252244 | RUBBER BUFFER |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 1 (9.5 MM) | ||
| 042 | A 1153252344 | RUBBER BUFFER |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 2 (14 MM) | ||
| 042 | A 1153252444 | RUBBER BUFFER |
| AS REQUIRED; NUMBER OF BURLS: | ||
| 3 (19 MM) | ||
| 046 | A 1153261065 | TORSION BAR |
| REAR | ||
| 16 MM | ||
| 047 | A 1153260063 | BEARING BRACKET |
| TORSION BAR TO FRAME | ||
| 048 | A 1153260163 | BEARING BRACKET |
| TORSION BAR TO FRAME | ||
| 049 | N 308676012012 | SCREW |
| TORSION BAR TO FRAME | ||
| 050 | N 912004012100 | LOCK WASHER |
| TORSION BAR TO FRAME | ||
| 053 | A 1153200147 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 055 | A 1153201589 | ROD |
| TORSION BAR TO REAR AXLE | ||
| 056 | N 000137010201 | SPRING WASHER |
| 057 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 057 | N 304035010001 | NUT |
| 058 | A 1153260397 | PROTECTIVE PLATE |
| 062 | A 1153200231 | SHOCK ABSORBER |
| 062 | A 1153200331 | SHOCK ABSORBER |
| A 1153200631 | SHOCK ABSORBER | |
| 063 | A 1153261668 | RUBBER BUFFER |
| SHOCK ABSORBER TO FRAME | ||
| 064 | A 1153261768 | RUBBER BUFFER |
| SHOCK ABSORBER TO FRAME | ||
| 065 | A 1153260176 | WASHER |
| Repalced by: A 2023260076 | ||
| 065 | A 2023260076 | WASHER |
| REAR SHOCK ABSORBERS | ||
| 068 | A 1153200056 | REPAIR KIT |
| Repalced by: A 1159900099 | ||
| 068 | A 1159900099 | ATTACHMENT |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 069 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 069 | N 308673010000 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 070 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 070 | N 304017010019 | SCREW |
| SHOCK ABSORBER TO TRANSVERSE CONTROL ARM | ||
| N 000137010201 | SPRING WASHER | |
| 071 | N 912004010102 | LOCK WASHER |
| SHOCK ABSORBER TO TRANSVERSE CONTROL ARM | ||
| A 1153200056 | REPAIR KIT | |
| Repalced by: A 1159900099 | ||
| A 1159900099 | ATTACHMENT | |
| REAR SHOCK ABSORBERS | ||
| 075 | A 1153200344 | RUBBER BUFFER |
| 076 | N 912004008102 | LOCK WASHER |
| 077 | N 000912008009 | SCREW |
| Repalced by: N 000912008200 | ||
| 077 | N 000912008200 | SCREW |
| Repalced by: N 000912008219 | ||
| 077 | N 000912008219 | SCREW |
| A 1153260567 | RETAINER | |
| FOR SUBSEQUENT INSTALLATION | ||

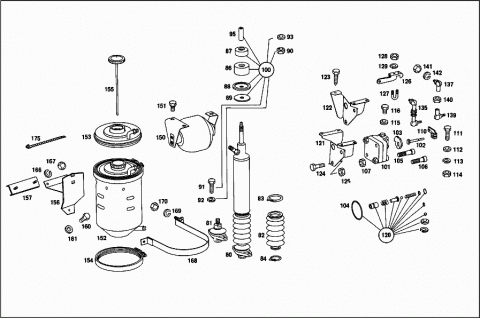

| 080 | A 1233201113 | HYDROPN. SPRING LEG |
| 081 | A 1163201328 | JOINT |
| 082 | A 1153280392 | BOOT |
| 083 | A 1149940039 | WIRE RING |
| 084 | A 1149940139 | WIRE RING |
| 086 | A 1143260068 | RUBBER BUFFER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 087 | A 1153261668 | RUBBER BUFFER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 088 | A 1163260067 | RETAINER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 089 | A 1153260176 | WASHER |
| Repalced by: A 2023260076 | ||
| 089 | A 2023260076 | WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 090 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 090 | N 308673010000 | NUT |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 091 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 091 | N 304017010019 | SCREW |
| HYDROPNEUMATIC SPRING LEG TO REAR AXLE | ||
| N 000137010201 | SPRING WASHER | |
| HYDROPNEUMATIC SPRING LEG TO REAR AXLE | ||
| 092 | N 912004010102 | LOCK WASHER |
| HYDROPNEUMATIC SPRING LEG TO REAR AXLE | ||
| 093 | N 000137010201 | SPRING WASHER |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| 095 | A 1153280053 | SPACER TUBE |
| HYDROPNEUMATIC SPRING LEG TO FRAME | ||
| A 1145860032 | REPAIR KIT | |
| HYDROPNEUMATIC SPRING LEG MOUNTING | ||
| 100 | A 1263200044 | REPAIR KIT |
| HYDROPNEUMATIC SPRING LEG MOUNTING | ||
| 101 | A 1233200158 | VALVE |
| HEIGHT CONTROL VALVE | ||
| 102 | A 1153280014 | SHAFT |
| 103 | A 1153280532 | VALVE PART |
| 104 | A 0069976945 | SEAL RING |
| 105 | N 000912010078 | SCREW |
| 106 | N 000912010077 | SCREW |
| Repalced by: N 000912010220 | ||
| 106 | N 000912010220 | SCREW |
| 107 | N 913004010011 | NUT |
| 110 | A 1073280027 | LEVER |
| 111 | N 000933006084 | SCREW |
| Repalced by: N 304017006026 | ||
| 111 | N 304017006026 | SCREW |
| 112 | N 000433006405 | WASHER |
| 113 | N 912004006102 | LOCK WASHER |
| 114 | N 000934006007 | NUT |
| 115 | N 007603008109 | SEAL RING |
| 116 | A 1239970230 | SCREW PLUG |
| 120 | A 0005860032 | REPAIR KIT |
| HEIGHT CONTROL VALVE | ||
| A 0004200855 | BLEEDER VALVE | |
| OIL DRAIN | ||
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| 121 | A 1153280340 | BRACKET |
| 122 | A 1153280640 | BRACKET |
| 123 | N 007976006203 | SHEET METAL SCREW |
| 124 | N 000931010306 | SCREW |
| 125 | N 913004010011 | NUT |
| 126 | A 1153260369 | LEVER |
| 127 | A 1153260326 | CLAMP |
| 128 | N 000934005008 | NUT |
| 129 | N 912004005100 | LOCK WASHER |
| 135 | A 1153201489 | ROD |
| 137 | A 1143280263 | JOINT |
| Repalced by: A 1233280063 | ||
| 137 | A 1233280063 | JOINT |
| 139 | A 1143280163 | JOINT |
| Repalced by: A 1233280163 | ||
| 139 | A 1233280163 | JOINT |
| 140 | N 000934006007 | NUT |
| N 000934006012 | NUT | |
| L.H. THREAD | ||
| 141 | N 000934006007 | NUT |
| 142 | N 912004006102 | LOCK WASHER |
| 150 | A 1153200215 | AIR CELL |
| 151 | N 914005008000 | COMBINATION BOLT |
| 152 | A 1143200114 | RESERVOIR |
| (OIL RESERVOIR) | ||
| 153 | A 0003280091 | CLEANER |
| 154 | A 0003280068 | STRAP |
| 155 | A 0003280021 | COVER |
| 156 | A 1153200378 | CONSOLE |
| A 1153270141 | SUPPORT | |
| 157 | A 1153200290 | STIFFENING |
| A 1153200190 | STIFFENING | |
| 160 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 160 | N 304017006018 | SCREW |
| 161 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 161 | N 009021006208 | WASHER |
| A 1005450053 | SPACER TUBE | |
| A 1153270084 | SHIM | |
| 166 | N 912004006102 | LOCK WASHER |
| 166 | N 912004006102 | LOCK WASHER |
| 167 | N 000934006007 | NUT |
| 167 | N 000934006007 | NUT |
| 168 | A 1153200343 | BRACKET |
| 169 | N 912004006102 | LOCK WASHER |
| 170 | N 000934006007 | NUT |
| 175 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 175 | A 0019974390 | LOOM TIE |
| 140 MM | ||

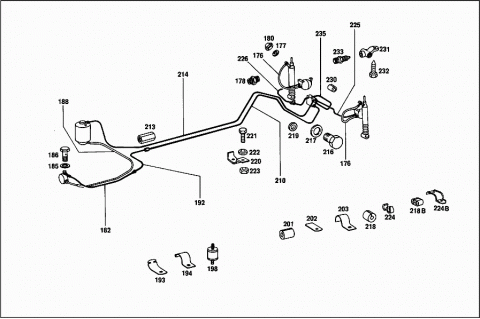

| 176 | A 2019970882 | HOSE |
| N 007603012102 | SEAL RING | |
| 177 | N 007603012102 | SEAL RING |
| 178 | N 915013006002 | SCREW FITTING |
| 180 | A 1239900053 | NUT |
| 182 | A 1159970582 | HOSE |
| FROM PUMP TO SELF-LEVELLING UNIT | ||
| A 1159972682 | HOSE | |
| FROM PUMP TO SELF-LEVELLING UNIT | ||
| 185 | N 007603012102 | SEAL RING |
| 186 | N 915036008202 | HOLLOW SCREW |
| 188 | A 1149970482 | HOSE |
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| A 1089950520 | CLAMP | |
| N 007976005203 | SHEET METAL SCREW | |
| 192 | A 1143200172 | LINE |
| Repalced by: A 1243207872 | ||
| 192 | A 1243207872 | LINE |
| FROM PUMP TO SELF-LEVELLING UNIT | ||
| A 1809900066 | UNION SCREW | |
| A 1143201272 | LINE | |
| Repalced by: A 1243207872 | ||
| A 1243207872 | LINE | |
| FROM PUMP TO SELF-LEVELLING UNIT | ||
| A 1809900066 | UNION SCREW | |
| 193 | A 1143280140 | BRACKET |
| 194 | A 1149950120 | CLAMP |
| 198 | A 1143280281 | BUFFER |
| N 912004006102 | LOCK WASHER | |
| A 1149900053 | NUT | |
| 201 | A 1149970982 | HOSE |
| 202 | A 1143280240 | BRACKET |
| 203 | A 1149950020 | CLAMP |
| 210 | A 1143201672 | LINE |
| FROM PUMP TO SELF-LEVELLING UNIT | ||
| A 1143201772 | LINE | |
| Repalced by: A 1243209672 | ||
| A 1243209672 | LINE | |
| FROM PUMP TO SELF-LEVELLING UNIT | ||
| A 1809900066 | UNION SCREW | |
| 213 | A 1104760025 | INTERMEDIATE PIECE |
| 214 | A 1143280844 | LINE |
| Repalced by: A 1143282144 | ||
| 214 | A 1143282144 | LINE |
| A 1143281044 | LINE | |
| Repalced by: A 1143282144 | ||
| A 1143282144 | LINE | |
| A 1143280944 | LINE | |
| Repalced by: A 1143282144 | ||
| A 1143282144 | LINE | |
| A 1143281144 | LINE | |
| Repalced by: A 1143282144 | ||
| A 1143282144 | LINE | |
| 216 | N 915036006101 | HOLLOW SCREW |
| 217 | N 007603010404 | SEAL RING |
| 218 | A 1149970982 | HOSE |
| 218B | A 0009877770 | RUBBER SECTION |
| 219 | A 0009873841 | RUBBER RING |
| 220 | A 1149950020 | CLAMP |
| 221 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 221 | N 304017006018 | SCREW |
| 222 | N 912004006102 | LOCK WASHER |
| 223 | N 000934006007 | NUT |
| 224 | A 0009950068 | CLAMP |
| 224B | A 1159950122 | CLAMP |
| N 007976006203 | SHEET METAL SCREW | |
| 225 | A 1143200572 | LINE |
| Repalced by: A 1234206228 | ||
| 225 | A 1234206228 | LINE |
| A 1234205828 | LINE | |
| 226 | A 1234205728 | LINE |
| FROM RIGHT SPRING LOAD ACCUMULATOR TO SELF-LEVELLING UNIT | ||
| 230 | A 1263280181 | BUFFER |
| 231 | A 0004284124 | DISTRIBUTOR |
| 232 | N 007976006204 | SHEET METAL SCREW |
| 233 | A 0004200855 | BLEEDER VALVE |
| OIL DRAIN | ||
| A 1204200227 | SCREW | |
| 235 | A 1234209328 | LINE |
| A 1234206328 | LINE | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
