Transporto priemonė: 280 E; VIN numerio dalis: 114062
Grupė: 26 TRANSMISSION

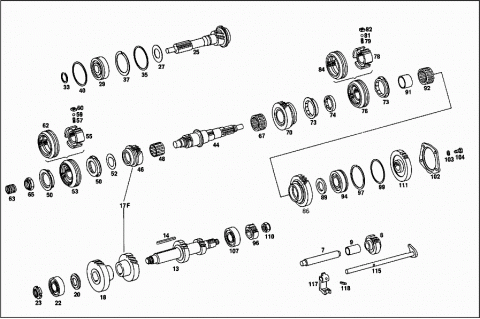

| # | Kodas | Pavadinimas |
|---|---|---|
| A 1152602801 | TRANSMISSION | |
| A 1152602801 | TRANSMISSION | |
| A 1152602801 | TRANSMISSION | |
| A 1152602901 | TRANSMISSION | |
| Repalced by: A 1152603201 | ||
| A 1152603201 | TRANSMISSION | |
| A 1152603201 | TRANSMISSION | |
| A 1152603201 | TRANSMISSION | |
| 002 | A 1152600168 | GASKET KIT |
| 002 | A 1152600168 | GASKET KIT |
| 002 | A 1152600168 | GASKET KIT |
| 003 | A 1152600911 | TRANSMISSION CASE |
| 003 | A 1152600911 | TRANSMISSION CASE |
| 003 | A 1152600911 | TRANSMISSION CASE |
| A 1152601011 | TRANSMISSION CASE | |
| A 1152601011 | TRANSMISSION CASE | |
| A 1152601011 | TRANSMISSION CASE | |
| 005 | N 000939010012 | STUD BOLT |
| 005 | N 000939010012 | STUD BOLT |
| 005 | N 000939010012 | STUD BOLT |
| 007 | A 1152630530 | REVERSE IDLER SHAFT |
| A 1152631330 | REVERSE IDLER SHAFT | |
| 008 | A 1152601025 | GEAR |
| 008 | A 1152601025 | GEAR |
| 008 | A 1152601025 | GEAR |
| 009 | A 1172630150 | BUSHING |
| 009 | A 1172630150 | BUSHING |
| 009 | A 1172630150 | BUSHING |
| 013 | A 1152631002 | COUNTERSHAFT |
| A 1152631802 | COUNTERSHAFT | |
| 014 | A 1159910668 | KEY |
| 014 | A 1159910668 | KEY |
| 014 | A 1159910668 | KEY |
| 017F | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 017F | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 017F | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 018 | A 1152600608 | GEAR |
| (GEAR SET),CONSTANT | ||
| 018 | A 1152600608 | GEAR |
| (GEAR SET),CONSTANT | ||
| 018 | A 1152600608 | GEAR |
| (GEAR SET),CONSTANT | ||
| 020 | A 1152630752 | SPACER WASHER |
| 020 | A 1152630752 | SPACER WASHER |
| 020 | A 1152630752 | SPACER WASHER |
| 020 | A 1152630752 | SPACER WASHER |
| 020 | A 1152630752 | SPACER WASHER |
| 020 | A 1152630752 | SPACER WASHER |
| 020 | A 1152630752 | SPACER WASHER |
| 022 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 022 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 022 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 022 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 023 | A 1159900851 | NUT |
| 023 | A 1159900851 | NUT |
| 023 | A 1159900851 | NUT |
| 025 | A 1152602720 | DRIVE SHAFT |
| 025 | A 1152602720 | DRIVE SHAFT |
| 027 | A 1862620066 | OIL RING |
| 027 | A 1862620066 | OIL RING |
| 027 | A 1862620066 | OIL RING |
| 029 | A 0029810625 | BALL BEARING |
| 029 | A 0029810625 | BALL BEARING |
| 029 | A 0029810625 | BALL BEARING |
| 029 | A 0029810725 | BALL BEARING |
| 029 | A 0029810725 | BALL BEARING |
| 029 | A 0029810725 | BALL BEARING |
| 033 | A 1232620494 | SNAP RING |
| 033 | A 1232620494 | SNAP RING |
| 033 | A 1232620494 | SNAP RING |
| 035 | A 1862620451 | SPACER RING |
| 035 | A 1862620451 | SPACER RING |
| 035 | A 1862620451 | SPACER RING |
| 037 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| 037 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| 037 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159942235 | SNAP RING | |
| AS REQUIRED | ||
| 2.1 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| 040 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 040 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 040 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1152621105 | MAIN SHAFT | |
| Repalced by: A 1152621505 | ||
| A 1152621205 | MAIN SHAFT | |
| Repalced by: A 1152621505 | ||
| A 1152621305 | MAIN SHAFT | |
| Repalced by: A 1152621505 | ||
| 044 | A 1152621505 | MAIN SHAFT |
| 044 | A 1152621505 | MAIN SHAFT |
| 044 | A 1152621505 | MAIN SHAFT |
| 046 | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 046 | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 046 | A 1152600508 | GEAR |
| (GEAR SET),3RD SPEED | ||
| 048 | A 0059815510 | NEEDLE BEARING |
| 048 | A 0059815510 | NEEDLE BEARING |
| 048 | A 0059815510 | NEEDLE BEARING |
| A 0039810310 | NEEDLE BEARING | |
| A 0039810310 | NEEDLE BEARING | |
| A 0039810310 | NEEDLE BEARING | |
| A 0039810810 | NEEDLE BEARING | |
| A 0039810810 | NEEDLE BEARING | |
| A 0039810810 | NEEDLE BEARING | |
| A 0039810910 | NEEDLE BEARING | |
| A 0039810910 | NEEDLE BEARING | |
| A 0039810910 | NEEDLE BEARING | |
| 050 | A 1152621634 | SYNCHRONIZER RING |
| 050 | A 1152621634 | SYNCHRONIZER RING |
| 050 | A 1152621634 | SYNCHRONIZER RING |
| A 1152623234 | SYNCHRONIZER RING | |
| A 1152623234 | SYNCHRONIZER RING | |
| A 1152623234 | SYNCHRONIZER RING | |
| 052 | A 1202622362 | THRUST WASHER |
| 052 | A 1202622362 | THRUST WASHER |
| 052 | A 1202622362 | THRUST WASHER |
| A 1152601845 | SYNCHRONIZER BODY | |
| Repalced by: A 1152604945 | ||
| A 1152601845 | SYNCHRONIZER BODY | |
| A 1152601845 | SYNCHRONIZER BODY | |
| 053 | A 1152604945 | SYNCHRONIZER BODY |
| 053 | A 1152604945 | SYNCHRONIZER BODY |
| 053 | A 1152604945 | SYNCHRONIZER BODY |
| 055 | A 1152621235 | SYNCHRONIZER BODY |
| 055 | A 1152621235 | SYNCHRONIZER BODY |
| 055 | A 1152621235 | SYNCHRONIZER BODY |
| 057 | A 1809934101 | SPRING |
| 057 | A 1809934101 | SPRING |
| 057 | A 1809934101 | SPRING |
| 059 | N 005401306500 | BALL |
| 059 | N 005401306500 | BALL |
| 059 | N 005401306500 | BALL |
| 060 | A 1152620140 | FOLLOWER |
| 060 | A 1152620140 | FOLLOWER |
| 060 | A 1152620140 | FOLLOWER |
| 062 | A 1152621823 | SLIDING COLLAR |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 062 | A 1152621823 | SLIDING COLLAR |
| 063 | A 0059815410 | NEEDLE BEARING |
| 063 | A 0059815410 | NEEDLE BEARING |
| 063 | A 0059815410 | NEEDLE BEARING |
| A 0029818110 | NEEDLE BEARING | |
| A 0029818110 | NEEDLE BEARING | |
| A 0029818110 | NEEDLE BEARING | |
| 065 | A 1159901051 | NUT |
| 065 | A 1159901051 | NUT |
| 065 | A 1159901051 | NUT |
| 067 | A 0059815610 | NEEDLE BEARING |
| 067 | A 0059815610 | NEEDLE BEARING |
| 067 | A 0059815610 | NEEDLE BEARING |
| A 0039811010 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0039811110 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| 070 | A 1152603144 | GEAR |
| 070 | A 1152603144 | GEAR |
| 070 | A 1152603144 | GEAR |
| 073 | A 1152621534 | SYNCHRONIZER RING |
| 073 | A 1152621534 | SYNCHRONIZER RING |
| 073 | A 1152621534 | SYNCHRONIZER RING |
| A 1152623134 | SYNCHRONIZER RING | |
| A 1152623134 | SYNCHRONIZER RING | |
| A 1152623134 | SYNCHRONIZER RING | |
| 074 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| 074 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| 074 | A 1152620962 | THRUST WASHER |
| 4.0 MM | ||
| A 1152602145 | SYNCHRONIZER BODY | |
| Repalced by: A 1152604845 | ||
| A 1152602145 | SYNCHRONIZER BODY | |
| A 1152602145 | SYNCHRONIZER BODY | |
| 076 | A 1152604845 | SYNCHRONIZER BODY |
| 076 | A 1152604845 | SYNCHRONIZER BODY |
| 076 | A 1152604845 | SYNCHRONIZER BODY |
| 078 | A 1152621335 | SYNCHRONIZER BODY |
| 078 | A 1152621335 | SYNCHRONIZER BODY |
| 078 | A 1152621335 | SYNCHRONIZER BODY |
| 079 | A 1809934101 | SPRING |
| 079 | A 1809934101 | SPRING |
| 079 | A 1809934101 | SPRING |
| 081 | N 005401306500 | BALL |
| 081 | N 005401306500 | BALL |
| 081 | N 005401306500 | BALL |
| 082 | A 1152620240 | FOLLOWER |
| 082 | A 1152620240 | FOLLOWER |
| 082 | A 1152620240 | FOLLOWER |
| 084 | A 1152621423 | SLIDING COLLAR |
| 084 | A 1152621423 | SLIDING COLLAR |
| 084 | A 1152621423 | SLIDING COLLAR |
| A 1152620962 | THRUST WASHER | |
| 4.0 MM | ||
| A 1152620962 | THRUST WASHER | |
| 4.0 MM | ||
| A 1152620962 | THRUST WASHER | |
| 4.0 MM | ||
| 086 | A 1152620711 | GEAR |
| A 1152621311 | GEAR | |
| Repalced by: A 1152621611 | ||
| A 1152621611 | GEAR | |
| A 1152620162 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.8 MM | ||
| A 1152620262 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.9 MM | ||
| A 1152620362 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.0 MM | ||
| A 1152620462 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.1 MM | ||
| A 1152620562 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.2 MM | ||
| 089 | A 1152622562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.8 MM | ||
| 089 | A 1152622562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.8 MM | ||
| A 1152622662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.9 MM | ||
| A 1152622662 | THRUST WASHER | |
| AS REQUIRED | ||
| 3.9 MM | ||
| A 1152622762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.0 MM | ||
| A 1152622762 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.0 MM | ||
| A 1152622862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.1 MM | ||
| A 1152622862 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.1 MM | ||
| A 1152622962 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.2 MM | ||
| A 1152622962 | THRUST WASHER | |
| AS REQUIRED | ||
| 4.2 MM | ||
| 091 | A 1152620251 | SPACER RING |
| 091 | A 1152620251 | SPACER RING |
| 091 | A 1152620251 | SPACER RING |
| 092 | A 0059815610 | NEEDLE BEARING |
| 092 | A 0059815610 | NEEDLE BEARING |
| 092 | A 0059815610 | NEEDLE BEARING |
| A 0039811010 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0039811110 | NEEDLE BEARING | |
| Repalced by: A 0059815610 | ||
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| A 0059815610 | NEEDLE BEARING | |
| 094 | A 0029810625 | BALL BEARING |
| 094 | A 0029810625 | BALL BEARING |
| 094 | A 0029810625 | BALL BEARING |
| A 0029810725 | BALL BEARING | |
| A 0029810725 | BALL BEARING | |
| A 0029810725 | BALL BEARING | |
| 096 | A 1152630932 | REVERSE IDLER GEAR |
| A 1152632232 | REVERSE IDLER GEAR | |
| 097 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| 097 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| 097 | A 1369940635 | SNAP RING |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 1369940735 | SNAP RING | |
| Repalced by: A 1369940935 | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1369940935 | SNAP RING | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| A 1159941035 | SNAP RING | |
| AS REQUIRED | ||
| 2.18 MM | ||
| 099 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 099 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 099 | A 1362620652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.2 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| A 1362620852 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.3 MM | ||
| 102 | A 1152622639 | RETAINING RING |
| 102 | A 1152622639 | RETAINING RING |
| 102 | A 1152622639 | RETAINING RING |
| 103 | N 000137007201 | SPRING WASHER |
| 103 | N 000137007201 | SPRING WASHER |
| 103 | N 000137007201 | SPRING WASHER |
| 104 | A 1159900601 | SCREW |
| 104 | A 1159900601 | SCREW |
| 104 | A 1159900601 | SCREW |
| 104 | A 1159900601 | SCREW |
| 104 | A 1159900601 | SCREW |
| 104 | A 1159900601 | SCREW |
| 104 | A 1159900601 | SCREW |
| 107 | A 0019817125 | BALL BEARING |
| Repalced by: A 0049814201 | ||
| 107 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 107 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 107 | A 0049814201 | CYLINDR. ROLLER BEARING |
| 110 | A 1159900951 | NUT |
| 110 | A 1159900951 | NUT |
| 110 | A 1159900951 | NUT |
| 111 | A 1172620721 | GEAR |
| 111 | A 1172620721 | GEAR |
| 111 | A 1172620721 | GEAR |
| 111 | A 1172620721 | GEAR |
| 111 | A 1172620721 | GEAR |
| 114 | A 1152600648 | DRIVE GEAR |
| 114 | A 1152600648 | DRIVE GEAR |
| 114 | A 1152600648 | DRIVE GEAR |
| 115 | A 1152600631 | SHIFTING ROD |
| 115 | A 1152600631 | SHIFTING ROD |
| 115 | A 1152600631 | SHIFTING ROD |
| 117 | A 1152650219 | FOLLOWER |
| 117 | A 1152650219 | FOLLOWER |
| 117 | A 1152650219 | FOLLOWER |
| 118 | N 001481006005 | CLAMPING SLEEVE |
| 118 | N 001481006005 | CLAMPING SLEEVE |
| 118 | N 001481006005 | CLAMPING SLEEVE |
| 120 | A 1152602216 | TRANSMISSION CASE COVER |
| A 1152603916 | TRANSMISSION CASE COVER | |
| REAR | ||
| A 1152602316 | TRANSMISSION CASE COVER | |
| A 1152602516 | TRANSMISSION CASE COVER | |
| 121 | A 1532640055 | PLUG |
| 121 | A 1532640055 | PLUG |
| 123 | A 0019813385 | BALL |
| 123 | A 0019813385 | BALL |
| 123 | A 0019813385 | BALL |
| 125 | A 1152610279 | GASKET |
| 126 | A 0059978747 | SEAL RING |
| 128 | A 1152740060 | SEAL RING |
| 140 | A 1152640132 | SHAFT |
| 140 | A 1152640132 | SHAFT |
| 140 | A 1152640132 | SHAFT |
| 143 | N 000931006083 | SCREW |
| 143 | N 000931006083 | SCREW |
| 143 | N 000931006083 | SCREW |
| 144 | N 000137006204 | SPRING WASHER |
| 144 | N 000137006204 | SPRING WASHER |
| 144 | N 000137006204 | SPRING WASHER |
| 145 | N 000931010258 | SCREW |
| 145 | N 000931010258 | SCREW |
| 145 | N 000931010258 | SCREW |
| 146 | N 000931010300 | SCREW |
| 146 | N 000931010300 | SCREW |
| 146 | N 000931010300 | SCREW |
| 147 | A 1159901310 | SCREW |
| 147 | A 1159901310 | SCREW |
| 147 | A 1159901310 | SCREW |
| 148 | N 000933007019 | SCREW |
| 148 | N 000933007019 | SCREW |
| 148 | N 000933007019 | SCREW |
| 149 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 149 | N 000125010532 | WASHER |
| 149 | N 000125010532 | WASHER |
| 149 | N 000125010532 | WASHER |
| 153 | N 000125007408 | WASHER |
| 153 | N 000125007408 | WASHER |
| 153 | N 000125007408 | WASHER |
| 158 | A 1152621145 | FLANGE |
| 158 | A 1152621145 | FLANGE |
| 158 | A 1152621145 | FLANGE |
| A 1153531126 | NUT | |
| A 1153531126 | NUT | |
| A 1153531126 | NUT | |
| 162 | A 1239900060 | NUT |
| 162 | A 1239900060 | NUT |
| 162 | A 1239900060 | NUT |
| 163 | A 1869970032 | SCREW PLUG |
| 163 | A 1869970032 | SCREW PLUG |
| 163 | A 1869970032 | SCREW PLUG |
| 163 | A 1869970032 | SCREW PLUG |
| 163 | A 1869970032 | SCREW PLUG |
| 166 | A 1159970032 | SCREW PLUG |
| Repalced by: A 2109970132 | ||
| 166 | A 2109970132 | SCREW PLUG |
| 166 | A 2109970132 | SCREW PLUG |
| 166 | A 2109970132 | SCREW PLUG |
| 167 | N 007603024105 | SEAL RING |
| 167 | N 007603024105 | SEAL RING |
| 167 | N 007603024105 | SEAL RING |
| 168 | A 1152601121 | TRANSMISSION CASE COVER |
| Repalced by: A 1152611618 | ||
| 168 | A 1152611618 | TRANSMISSION CASE COVER |
| Repalced by: A 6022610218 | ||
| 168 | A 6022610218 | TRANSMISSION CASE COVER |
| 169 | A 1152610243 | GUIDE TUBE |
| 169 | A 1152610243 | GUIDE TUBE |
| 169 | A 1152610243 | GUIDE TUBE |
| 170 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 170 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 170 | A 1152600068 | GASKET KIT |
| TRANSMISSION CASE FRONT COVER | ||
| 173 | A 1152610243 | GUIDE TUBE |
| SEE FIG. NO.: | ||
| 169 | ||
| 173 | A 1152610243 | GUIDE TUBE |
| SEE FIG. NO.: | ||
| 169 | ||
| 173 | A 1152610243 | GUIDE TUBE |
| SEE FIG. NO.: | ||
| 169 | ||
| 175 | N 914005006002 | COMBINATION BOLT |
| Repalced by: N 000933006103 | ||
| 175 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 175 | N 304017006018 | SCREW |
| 175 | N 304017006018 | SCREW |
| 175 | N 304017006018 | SCREW |
| 176 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 176 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| 176 | A 6022630252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.1 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630352 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.25 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| A 6022630452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.5 MM | ||
| 180 | N 000933007022 | SCREW |
| 180 | N 000933007022 | SCREW |
| 180 | N 000933007022 | SCREW |
| 181 | N 000125007408 | WASHER |
| 181 | N 000125007408 | WASHER |
| 181 | N 000125007408 | WASHER |
| 182 | A 6022650102 | SHIFTING FORK |
| Repalced by: A 6022650302 | ||
| 182 | A 6022650302 | SHIFTING FORK |
| 182 | A 6022650302 | SHIFTING FORK |
| 182 | A 6022650302 | SHIFTING FORK |
| 184 | A 3092650201 | SHIFTING FORK |
| Repalced by: A 6022650501 | ||
| 184 | A 6022650501 | SHIFTING FORK |
| 184 | A 6022650501 | SHIFTING FORK |
| 184 | A 6022650501 | SHIFTING FORK |
| A 1152601613 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| A 1152601113 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| A 1152602613 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152603713 | ||
| 188 | A 1152603713 | TRANSMISSION CASE COVER |
| Repalced by: A 1152604713 | ||
| 188 | A 1152604713 | TRANSMISSION CASE COVER |
| 188 | A 1152604713 | TRANSMISSION CASE COVER |
| 188 | A 1152604713 | TRANSMISSION CASE COVER |
| A 1152601213 | TRANSMISSION CASE COVER | |
| Repalced by: A 1152605513 | ||
| A 1152605513 | TRANSMISSION CASE COVER | |
| A 1152605513 | TRANSMISSION CASE COVER | |
| A 1152605513 | TRANSMISSION CASE COVER | |
| 190 | A 1152620550 | BUSHING |
| 190 | A 1152620550 | BUSHING |
| 190 | A 1152620550 | BUSHING |
| 192 | A 0149816710 | NEEDLE BEARING |
| Repalced by: A 0109816010 | ||
| 192 | A 0109816010 | NEEDLE BEARING |
| 192 | A 0109816010 | NEEDLE BEARING |
| 192 | A 0109816010 | NEEDLE BEARING |
| A 0099978248 | SEAL RING | |
| 193 | N 000007006203 | CYLINDRICAL PIN |
| 193 | N 000007006203 | CYLINDRICAL PIN |
| 193 | N 000007006203 | CYLINDRICAL PIN |
| 194 | A 1152610080 | GASKET |
| 196 | A 1152604273 | DETENT |
| 196 | A 1152604273 | DETENT |
| 196 | A 1152604273 | DETENT |
| 197 | A 1152650574 | PIN |
| 197 | A 1152650574 | PIN |
| 197 | A 1152650574 | PIN |
| 198 | A 1159936102 | SPRING |
| 198 | A 1159936102 | SPRING |
| 198 | A 1159936102 | SPRING |
| 199 | A 1159933304 | SPRING |
| 199 | A 1159933304 | SPRING |
| 199 | A 1159933304 | SPRING |
| 200 | N 005401999008 | BALL |
| 200 | N 005401999008 | BALL |
| 200 | N 005401999008 | BALL |
| 203 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 203 | N 304017008021 | SCREW |
| 203 | N 304017008021 | SCREW |
| 203 | N 304017008021 | SCREW |
| 204 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 204 | N 000125008443 | WASHER |
| 204 | N 000125008443 | WASHER |
| 204 | N 000125008443 | WASHER |
| 209 | A 1152601973 | DETENT |
| 209 | A 1152601973 | DETENT |
| 209 | A 1152601973 | DETENT |
| A 1152602173 | DETENT | |
| A 1152602173 | DETENT | |
| A 1152602173 | DETENT | |
| A 1152602073 | DETENT | |
| Repalced by: A 1152603873 | ||
| 210 | A 1152603873 | DETENT |
| 210 | A 1152603873 | DETENT |
| 210 | A 1152603873 | DETENT |
| A 1152602273 | DETENT | |
| A 1152602273 | DETENT | |
| A 1152602273 | DETENT | |
| 213 | A 0079970348 | SEAL RING |
| 214 | A 1152610066 | BREATHER |
| 214 | A 1152610066 | BREATHER |
| 214 | A 1152610066 | BREATHER |
| 215 | A 1152610053 | SPACER TUBE |
| 216 | N 009045012000 | SNAP RING |
| 216 | N 009045012000 | SNAP RING |
| 216 | N 009045012000 | SNAP RING |
| 217 | A 1159901640 | WASHER |
| Repalced by: A 0039906840 | ||
| 217 | A 0039906840 | WASHER |
| 217 | A 0039906840 | WASHER |
| 217 | A 0039906840 | WASHER |
| 218 | N 006799010001 | LOCK PLATE |
| 218 | N 006799010001 | LOCK PLATE |
| 218 | N 006799010001 | LOCK PLATE |
| 225 | A 1152601238 | SHAFT |
| 225 | A 1152601238 | SHAFT |
| 225 | A 1152601238 | SHAFT |
| 226 | A 0079970348 | SEAL RING |
| 227 | N 006799010001 | LOCK PLATE |
| 227 | N 006799010001 | LOCK PLATE |
| 227 | N 006799010001 | LOCK PLATE |
| 228 | N 000933007027 | SCREW |
| 228 | N 000933007027 | SCREW |

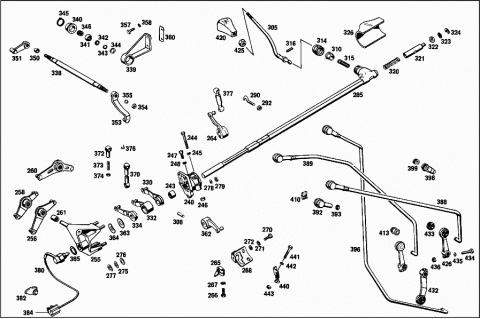

| 228 | N 000933007027 | SCREW |
| 229 | N 000125007408 | WASHER |
| 229 | N 000125007408 | WASHER |
| 229 | N 000125007408 | WASHER |
| 240 | A 1152603280 | SUPPORT |
| A 1152604180 | SUPPORT | |
| A 1152604180 | SUPPORT | |
| 243 | A 0019818410 | NEEDLE BEARING |
| 243 | A 0019818410 | NEEDLE BEARING |
| 244 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 244 | N 304017008028 | SCREW |
| 244 | N 304017008028 | SCREW |
| 245 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 245 | N 000137008212 | SPRING WASHER |
| 245 | N 000137008212 | SPRING WASHER |
| 246 | N 000934008013 | NUT |
| 246 | N 000934008013 | NUT |
| 247 | N 000561006105 | SCREW |
| 247 | N 000561006105 | SCREW |
| 248 | N 000137006204 | SPRING WASHER |
| 248 | N 000137006204 | SPRING WASHER |
| 255 | A 1152602980 | SUPPORT |
| A 1152603580 | SUPPORT | |
| A 1152602580 | SUPPORT | |
| A 1152602780 | SUPPORT | |
| 256 | A 1152604737 | LEVER |
| A 1152601581 | LEVER | |
| 258 | A 1152604837 | LEVER |
| A 1152601381 | LEVER | |
| 260 | A 1152606237 | LEVER |
| 261 | A 0029810210 | NEEDLE BEARING |
| 261 | A 0029810210 | NEEDLE BEARING |
| 261 | A 0029810210 | NEEDLE BEARING |
| 264 | A 1152608237 | LEVER |
| 265 | A 1122680039 | GUIDE PIVOT |
| 266 | N 000933006130 | SCREW |
| 267 | N 912004006102 | LOCK WASHER |
| 268 | A 1152680347 | SLOTTED GATE |
| A 1152680247 | SLOTTED GATE | |
| 270 | N 000933006102 | SCREW |
| 271 | N 912004006102 | LOCK WASHER |
| 272 | N 000125006421 | WASHER |
| 275 | N 900055012001 | SPRING WASHER |
| 275 | N 900055012001 | SPRING WASHER |
| 276 | A 3129900340 | WASHER |
| 276 | A 3129900340 | WASHER |
| 277 | N 006799010001 | LOCK PLATE |
| 277 | N 006799010001 | LOCK PLATE |
| 278 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 278 | N 000137008212 | SPRING WASHER |
| 278 | N 000137008212 | SPRING WASHER |
| 279 | N 000934008013 | NUT |
| 279 | N 000934008013 | NUT |
| 285 | A 1152605382 | SHIFTING TUBE |
| A 1152603882 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152605282 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152605482 | SHIFTING TUBE | |
| Repalced by: A 1152606682 | ||
| A 1152606682 | SHIFTING TUBE | |
| A 1152606682 | SHIFTING TUBE | |
| A 1152606682 | SHIFTING TUBE | |
| A 1152605782 | SHIFTING TUBE | |
| A 1152603682 | SHIFTING TUBE | |
| Repalced by: A 1152606882 | ||
| A 1152606082 | SHIFTING TUBE | |
| Repalced by: A 1152606882 | ||
| A 1152606882 | SHIFTING TUBE | |
| A 1152606882 | SHIFTING TUBE | |
| A 1152606882 | SHIFTING TUBE | |
| A 1159900238 | SCREW | |
| A 1159900238 | SCREW | |
| A 1159900338 | SCREW | |
| Repalced by: A 1099900238 | ||
| 290 | A 1099900238 | SCREW |
| 290 | A 1099900238 | SCREW |
| 290 | A 1099900238 | SCREW |
| A 1159900438 | SCREW | |
| A 1159900438 | SCREW | |
| A 1159900438 | SCREW | |
| 292 | N 000934006007 | NUT |
| 292 | N 000934006007 | NUT |
| N 000934005008 | NUT | |
| N 000934005008 | NUT | |
| N 000934005008 | NUT | |
| A 1152681224 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681324 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681224 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681324 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152600639 | SHIFT LEVER | |
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152600639 | SHIFT LEVER | |
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152601139 | SHIFT LEVER | |
| A 1152601139 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152601139 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| Repalced by: A 1152604439 | ||
| A 1152602639 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| A 1152602639 | SHIFT LEVER | |
| 305 | A 1152604439 | SHIFT LEVER |
| 305 | A 1152604439 | SHIFT LEVER |
| 305 | A 1152604439 | SHIFT LEVER |
| 305 | A 1152604439 | SHIFT LEVER |
| 305 | A 1152604439 | SHIFT LEVER |
| A 1152681224 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152681224 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152681324 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152681324 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152681424 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1082680424 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152600639 | SHIFT LEVER | |
| A 1152600639 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152600639 | SHIFT LEVER | |
| A 1152601239 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152601239 | SHIFT LEVER | |
| A 1152601239 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152601239 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| Repalced by: A 1152604539 | ||
| A 1152602739 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| A 1152602739 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| A 1152604539 | SHIFT LEVER | |
| 308 | A 1159910301 | PIN |
| 308 | A 1159910301 | PIN |
| A 1152680550 | BUSHING | |
| A 1152680550 | BUSHING | |
| A 1152680550 | BUSHING | |
| A 1152680550 | BUSHING | |
| 310 | A 1152680950 | BUSHING |
| 310 | A 1152680950 | BUSHING |
| 310 | A 1152680950 | BUSHING |
| A 1152680750 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152680750 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| A 1152681050 | BUSHING | |
| 314 | A 1152670114 | CAP |
| 314 | A 1152670114 | CAP |
| 315 | A 1159939902 | SPRING |
| 315 | A 1159939902 | SPRING |
| 316 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 316 | N 001481005017 | CLAMPING SLEEVE |
| 316 | N 001481005017 | CLAMPING SLEEVE |
| 316 | N 001481005017 | CLAMPING SLEEVE |
| 316 | N 001481005017 | CLAMPING SLEEVE |
| A 1159920225 | SLEEVE | |
| A 1159920225 | SLEEVE | |
| A 1159920225 | SLEEVE | |
| 320 | A 1209932101 | SPRING |
| 320 | A 1209932101 | SPRING |
| 321 | A 1152680439 | GUIDE PIVOT |
| 321 | A 1152680439 | GUIDE PIVOT |
| A 1119971240 | SEAL RING | |
| A 1119971240 | SEAL RING | |
| 322 | A 1159971440 | SEAL RING |
| 322 | A 1159971440 | SEAL RING |
| 323 | A 1869906940 | WASHER |
| 323 | A 1869906940 | WASHER |
| 324 | A 1862680273 | LOCK |
| 324 | A 1862680273 | LOCK |
| A 1162680397 | BOOT | |
| A 1162680397 | BOOT | |
| 326 | A 1162680497 | BOOT |
| 326 | A 1162680497 | BOOT |
| A 1152608937 | LEVER | |
| 330 | A 1152607837 | LEVER |
| 332 | A 1152608037 | LEVER |
| 332 | A 1152608037 | LEVER |
| 334 | A 1152609437 | LEVER |
| 334 | A 1152609437 | LEVER |
| 338 | A 1152680032 | SHAFT |
| 339 | A 1152680401 | HOUSING |
| 340 | A 1112680086 | RUBBER RING |
| 341 | A 1119910029 | BALL |
| 342 | A 1802680076 | WASHER |
| 343 | A 1119971040 | SEAL RING |
| 344 | N 000988010000 | FITTED WASHER |
| 345 | N 000471010000 | LOCK RING |
| 346 | A 0009811810 | NEEDLE BEARING |
| 350 | A 1129910340 | SPACER TUBE |
| 351 | A 1152600081 | LEVER |
| 353 | A 1142600081 | LEVER |
| A 1142600081 | LEVER | |
| 354 | N 000934007005 | NUT |
| 355 | N 912004007100 | LOCK WASHER |
| 357 | N 000933006130 | SCREW |
| 358 | N 000137006204 | SPRING WASHER |
| 360 | A 1154622739 | BRACKET |
| 362 | A 1152606837 | LEVER |
| 363 | A 1152680276 | WASHER |
| 363 | A 1152680276 | WASHER |
| 364 | N 900055016001 | SPRING WASHER |
| A 1159900248 | WASHER | |
| A 1159900248 | WASHER | |
| 370 | A 1152600389 | PULL ROD |
| Repalced by: A 1112600066 | ||
| 370 | A 1112600066 | BALL SOCKET |
| A 1152600289 | PULL ROD | |
| 372 | N 071805010204 | BALL SOCKET |
| 373 | N 000939006011 | STUD BOLT |
| N 000939006021 | STUD BOLT | |
| 374 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 374 | N 304035006001 | NUT |
| 376 | N 071805010400 | SECURING CLIP |
| 377 | A 0002681066 | BALL SOCKET |
| Repalced by: A 0002681266 | ||
| 377 | A 0002681266 | BALL SOCKET |
| A 0005452106 | SWITCH | |
| Repalced by: A 0005453406 | ||
| A 0005452106 | SWITCH | |
| 380 | A 0005453406 | SWITCH |
| A 0005454006 | SWITCH | |
| Repalced by: A 0005453506 | ||
| A 0005453506 | SWITCH | |
| A 0005452506 | SWITCH | |
| Repalced by: A 0005453506 | ||
| A 0005452506 | SWITCH | |
| A 0005453506 | SWITCH | |
| A 0005454406 | SWITCH | |
| 382 | A 1159971181 | GROMMET |
| Repalced by: A 1269972581 | ||
| 382 | A 1269972581 | GROMMET |
| 384 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 384 | A 0065457828 | PLUG HOUSING |
| 385 | N 007603018104 | SEAL RING |
| 388 | A 1142600033 | SHIFTING ROD |
| A 1142600533 | SHIFTING ROD | |
| 389 | A 1142600133 | SHIFTING ROD |
| A 1142600633 | SHIFTING ROD | |
| 392 | A 0009913822 | BALL SOCKET |
| 392 | A 0009913822 | BALL SOCKET |
| 393 | N 070616010004 | NUT |
| 393 | N 070616010004 | NUT |
| 396 | A 1142600233 | SHIFTING ROD |
| A 1142600733 | SHIFTING ROD | |
| 398 | A 1152600353 | END PIECE |
| 399 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 399 | A 2109920010 | BUSHING |
| N 070616010004 | NUT | |
| N 070616010004 | NUT | |
| A 0009913822 | BALL SOCKET | |
| A 1142601233 | SHIFTING ROD | |
| A 1142601233 | SHIFTING ROD | |
| A 1142601233 | SHIFTING ROD | |
| A 1142602433 | SHIFTING ROD | |
| A 1142602433 | SHIFTING ROD | |
| A 1142601133 | SHIFTING ROD | |
| A 1142601833 | SHIFTING ROD | |
| A 1142601833 | SHIFTING ROD | |
| A 1142601833 | SHIFTING ROD | |
| A 1142602533 | SHIFTING ROD | |
| A 1142602533 | SHIFTING ROD | |
| A 0009913822 | BALL SOCKET | |
| N 070616010004 | NUT | |
| 410 | A 0009942960 | LOCK |
| 410 | A 0009942960 | LOCK |
| 410 | A 0009942960 | LOCK |
| 413 | A 1159920210 | BUSHING |

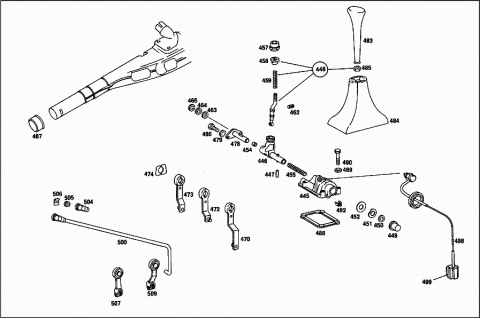

| AUTOMATIC TRANSMISSION SHIFT LEVER | ||
| A 1082680042 | KNOB | |
| A 1082680042 | KNOB | |
| A 1152680942 | KNOB | |
| Repalced by: A 1082680042 | ||
| A 1082680042 | KNOB | |
| A 1082680042 | KNOB | |
| A 1082680042 | KNOB | |
| 420 | A 1152681242 | KNOB |
| A 1082680242 | KNOB | |
| A 1082680242 | KNOB | |
| A 1152680842 | KNOB | |
| A 1152680842 | KNOB | |
| A 1152680842 | KNOB | |
| A 1152681442 | KNOB | |
| A 1082680142 | KNOB | |
| A 1082680142 | KNOB | |
| A 1152681042 | KNOB | |
| A 1152681042 | KNOB | |
| A 1152681042 | KNOB | |
| A 1152681342 | KNOB | |
| 425 | A 1152680172 | NUT |
| 426 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 426 | A 1152682530 | SHIFT LEVER |
| 426 | A 1152682530 | SHIFT LEVER |
| A 1152607637 | LEVER | |
| 432 | A 1152607737 | LEVER |
| 432 | A 1152607737 | LEVER |
| 433 | A 0009920510 | BUSHING |
| 433 | A 0009920510 | BUSHING |
| 434 | N 000933006127 | SCREW |
| 434 | N 000933006127 | SCREW |
| 435 | N 912004006102 | LOCK WASHER |
| 435 | N 912004006102 | LOCK WASHER |
| 436 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 436 | N 304032006008 | NUT |
| 436 | N 304032006008 | NUT |
| 440 | A 1152600562 | BRACKET |
| A 1152600662 | BRACKET | |
| 441 | N 000931006094 | SCREW |
| 442 | N 912004006102 | LOCK WASHER |
| 443 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 443 | N 304032006008 | NUT |
| 445 | A 1152671405 | BEARING |
| Repalced by: A 1152673605 | ||
| 445 | A 1152673605 | BEARING |
| 446 | A 1152607282 | SHIFTING TUBE |
| 447 | A 1159910301 | PIN |
| 448 | A 1232602239 | SHIFT LEVER |
| RANGE OF DELIVERY | ||
| 449 | A 1152670750 | BUSHING |
| 450 | A 1159902640 | WASHER |
| 451 | N 900055018001 | SPRING WASHER |
| 452 | A 1232670252 | SPACER WASHER |
| 454 | A 1152672250 | BUSHING |
| 455 | A 1159939303 | SPRING |
| 457 | A 1152670114 | CAP |
| 458 | A 1152680550 | BUSHING |
| 459 | A 1159939902 | SPRING |
| 462 | N 007346005000 | CLAMPING SLEEVE |
| Repalced by: N 001481005017 | ||
| 462 | N 001481005017 | CLAMPING SLEEVE |
| 463 | A 1119971240 | SEAL RING |
| 464 | A 1869906940 | WASHER |
| 465 | A 1862680273 | LOCK |
| A 1152601939 | SHIFT LEVER | |
| Repalced by: A 1152603839 | ||
| A 1152603839 | SHIFT LEVER | |
| Repalced by: A 1152604139 | ||
| 470 | A 1152604139 | SHIFT LEVER |
| REVERSE SPEED | ||
| A 1152601739 | SHIFT LEVER | |
| Repalced by: A 1152603639 | ||
| A 1152603839 | SHIFT LEVER | |
| Repalced by: A 1152604339 | ||
| 472 | A 1152604339 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| A 1152601839 | SHIFT LEVER | |
| Repalced by: A 1152603739 | ||
| A 1152603739 | SHIFT LEVER | |
| Repalced by: A 1152604239 | ||
| 473 | A 1152604239 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 474 | A 1152670676 | WASHER |
| 478 | A 1152600376 | GUIDE |
| 479 | N 000137006204 | SPRING WASHER |
| 480 | N 000933006130 | SCREW |
| 483 | A 1262670410 | HANDLE |
| 484 | A 1232670097 | BOOT |
| 485 | N 070616010003 | NUT |
| 487 | A 1154620323 | COVER |
| 488 | A 1152670380 | GASKET |
| 489 | N 000125006421 | WASHER |
| N 000931006114 | SCREW | |
| Repalced by: N 304017006012 | ||
| N 304017006012 | SCREW | |
| 490 | N 000931006137 | SCREW |
| 492 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 492 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 492 | A 0019906791 | NUT RETAINER |
| 498 | A 0005452406 | SWITCH |
| 499 | A 0035457128 | PLUG |
| Repalced by: A 0065457828 | ||
| 499 | A 0065457828 | PLUG HOUSING |
| 500 | A 1142600833 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| A 1142600933 | SHIFTING ROD | |
| 3RD AND 4TH SPEED | ||
| A 1142601033 | SHIFTING ROD | |
| REVERSE SPEED | ||
| 504 | A 1152600353 | END PIECE |
| 505 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 505 | A 2109920010 | BUSHING |
| 506 | A 0009942960 | LOCK |
| 507 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 507 | A 1152682530 | SHIFT LEVER |
| 509 | A 1152607737 | LEVER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
