Transporto priemonė: 280 SEL; VIN numerio dalis: 108019

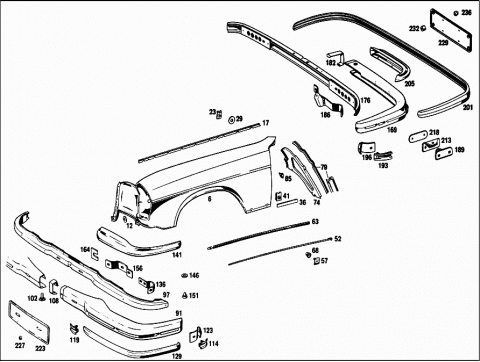

Grupė: 88 FRONT AND REAR END SHEET METAL - 001 ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1088800518 | FRONT FENDER |
| LEFT | ||
| A 1088800618 | FRONT FENDER | |
| RIGHT | ||
| A 1088800018 | FRONT FENDER | |
| Repalced by: A 1115860188 | ||
| A 1088800218 | FRONT FENDER | |
| Repalced by: A 1115860188 | ||
| A 1115860188 | REPAIR KIT | |
| Repalced by: A 1268800497 | ||
| A 1268800497 | REPAIR KIT | |
| Repalced by: A 1118800097 | ||
| A 1118800097 | SEAL | |
| FRONT FENDER MOUNTING MATERIAL | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| FRONT FENDER TO FRONT PANEL PILLAR | ||
| A 0009900848 | WASHER | |
| Repalced by: A 1119903640 | ||
| 012 | A 1119903640 | WASHER |
| FRONT FENDER TO FRONT PANEL PILLAR | ||
| A 1088810095 | INTERMEDIATE LAYER | |
| Repalced by: A 0039895485 | ||
| 017 | A 0039895485 | ADHESIVE TAPE |
| NOT INCLUDED IN RANGE OF DELIVERY | ||
| 023 | A 0009943845 | LOCK |
| FRONT FENDER TO WHEELHOUSE | ||
| N 007976006205 | SHEET METAL SCREW | |
| FRONT FENDER TO WHEELHOUSE | ||
| N 007976006208 | SHEET METAL SCREW | |
| FRONT FENDER TO WHEELHOUSE | ||
| 029 | A 1119903640 | WASHER |
| FRONT FENDER TO WHEELHOUSE | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| FRONT FENDER TO CROSS MEMBER | ||
| A 0009900848 | WASHER | |
| Repalced by: A 1119903640 | ||
| A 1119903640 | WASHER | |
| FRONT FENDER TO CROSS MEMBER | ||
| A 1108810395 | INTERMEDIATE LAYER | |
| Repalced by: A 1158810997 | ||
| 036 | A 1158810997 | PAD |
| FRONT FENDER TO SIDE MEMBER | ||
| N 007981005212 | SHEET METAL SCREW | |
| FRONT FENDER TO SIDE MEMBER | ||
| 041 | A 0009944745 | LOCK |
| FRONT FENDER TO SIDE MEMBER | ||
| N 007982005211 | SHEET METAL SCREW | |
| FRONT FENDER TO FRONT STIFFENING | ||
| A 0009944745 | LOCK | |
| FRONT FENDER TO FRONT STIFFENING | ||
| A 1088800182 | GARNISH MOULDING | |
| Repalced by: A 1088801182 | ||
| A 1088800582 | GARNISH MOULDING | |
| Repalced by: A 1088801182 | ||
| A 1088800782 | GARNISH MOULDING | |
| Repalced by: A 1088800982 | ||
| A 1088800982 | GARNISH MOULDING | |
| Repalced by: A 1088801182 | ||
| A 1088800282 | GARNISH MOULDING | |
| Repalced by: A 1088801282 | ||
| A 1088800682 | GARNISH MOULDING | |
| Repalced by: A 1088801282 | ||
| A 1088800882 | GARNISH MOULDING | |
| Repalced by: A 1088801282 | ||
| A 1088801082 | GARNISH MOULDING | |
| Repalced by: A 1088801282 | ||
| A 1088800191 | WELT | |
| Repalced by: A 1088800591 | ||
| A 1088800391 | WELT | |
| Repalced by: A 1088800591 | ||
| A 1088800291 | WELT | |
| Repalced by: A 1088800691 | ||
| A 1088800491 | WELT | |
| Repalced by: A 1088800691 | ||
| 052 | A 1088800591 | WELT |
| LEFT | ||
| A 1088800691 | WELT | |
| RIGHT | ||
| 057 | A 0009884381 | FASTENER BUTTON |
| UPPER PART | ||
| 063 | A 1088800197 | SEAL |
| Repalced by: A 1088800397 | ||
| A 1088800397 | SEAL | |
| LEFT | ||
| A 1088800297 | SEAL | |
| Repalced by: A 1088800497 | ||
| A 1088800497 | SEAL | |
| RIGHT | ||
| A 1088801182 | GARNISH MOULDING | |
| LEFT | ||
| A 1088801282 | GARNISH MOULDING | |
| RIGHT | ||
| A 1088800597 | SEAL | |
| LEFT | ||
| A 1088800697 | SEAL | |
| RIGHT | ||
| A 0009886081 | FASTENER BUTTON | |
| UPPER PART | ||
| 068 | A 0009881581 | FASTENER BUTTON |
| Repalced by: A 0019882081 | ||
| 068 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 068 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 068 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 068 | A 0019887681 | FASTENER BUTTON |
| LOWER PART | ||
| 074 | A 1088840135 | PARTITION PANEL |
| LEFT | ||
| A 1088840235 | PARTITION PANEL | |
| RIGHT | ||
| 079 | A 0009871651 | RUBBER SEAL |
| Repalced by: A 1108840098 | ||
| A 1108840098 | SEAL | |
| 770 MM | ||
| N 007976005202 | SHEET METAL SCREW | |
| FRONT FENDER TO CROSS MEMBER | ||
| N 007976005202 | SHEET METAL SCREW | |
| FRONT FENDER TO CROSS MEMBER | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| N 009021006208 | WASHER | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| N 007976004203 | SHEET METAL SCREW | |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| 085 | A 0009941345 | LOCK |
| FRONT FENDER PARTITION PANEL TO WHEELHOUSE | ||
| A 0009894585 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0029894185 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| 600 MM | ||
| A 1088800370 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1088800770 | ||
| 091 | A 1088800770 | FRONT BUMPER FACE BAR |
| LEFT | ||
| A 1088800470 | FRONT BUMPER FACE BAR | |
| Repalced by: A 1088800870 | ||
| A 1088800870 | FRONT BUMPER FACE BAR | |
| RIGHT | ||
| 097 | A 1088800019 | STIFFENING |
| STIFFENING TO FRONT BUMPER | ||
| 102 | A 1119900029 | SCREW |
| STIFFENING TO FRONT BUMPER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| STIFFENING TO FRONT BUMPER | ||
| N 912004008102 | LOCK WASHER | |
| STIFFENING TO FRONT BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| STIFFENING TO FRONT BUMPER | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| STIFFENING TO FRONT BUMPER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| STIFFENING TO FRONT BUMPER | ||
| 108 | A 1088850023 | BUMPER JOINT COVER |
| A 1119900029 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 114 | A 1088850114 | BRACKET |
| LEFT | ||
| A 1088850214 | BRACKET | |
| Repalced by: A 1088850114 | ||
| A 1088850114 | BRACKET | |
| RIGHT | ||
| 119 | A 1088850314 | BRACKET |
| 123 | A 1088850333 | CAP |
| LEFT | ||
| A 1088850433 | CAP | |
| RIGHT | ||
| A 1088850321 | RAIL | |
| Repalced by: A 1088850921 | ||
| 129 | A 1088850921 | RAIL |
| LEFT | ||
| A 1088850421 | RAIL | |
| Repalced by: A 1088851021 | ||
| A 1088851021 | RAIL | |
| RIGHT | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PROTECTIVE RAIL AND END CAP TO BUMPER | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE RAIL AND END CAP TO BUMPER | ||
| N 000934006007 | NUT | |
| PROTECTIVE RAIL AND END CAP TO BUMPER | ||
| 136 | A 1088850140 | BRACKET |
| LEFT | ||
| A 1088850240 | BRACKET | |
| RIGHT | ||
| N 000933010105 | SCREW | |
| OUTSIDE BRACKET TO FRONT BUMPER | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| OUTSIDE BRACKET TO FRONT BUMPER | ||
| N 912004010102 | LOCK WASHER | |
| OUTSIDE BRACKET TO FRONT BUMPER | ||
| 141 | A 1088850101 | FRONT BUMPER FACE BAR |
| UPPER PART, LEFT | ||
| A 1088850201 | FRONT BUMPER FACE BAR | |
| UPPER PART,RIGHT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BAUMPER FACE BAR UPPER PART TO BUMPER FACE BAR LOWER PART | ||
| 146 | A 1129900640 | WASHER |
| BAUMPER FACE BAR UPPER PART TO BUMPER FACE BAR LOWER PART | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BAUMPER FACE BAR UPPER PART TO BUMPER FACE BAR LOWER PART | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BAUMPER FACE BAR UPPER PART TO BUMPER FACE BAR LOWER PART | ||
| 151 | A 0009871840 | RUBBER BUFFER |
| BAUMPER FACE BAR UPPER PART TO BUMPER FACE BAR LOWER PART | ||
| 156 | A 1088850340 | BRACKET |
| INSIDE LEFT | ||
| A 1088850440 | BRACKET | |
| INSIDE RIGHT | ||
| N 000933010105 | SCREW | |
| BRACKET TO BUMPER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKET TO BUMPER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO BUMPER | ||
| 164 | A 1109840156 | WASHER |
| A 1109840356 | WASHER | |
| N 000933010105 | SCREW | |
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| N 912004010102 | LOCK WASHER | |
| A 1088800371 | REAR BUMPER FACE BAR | |
| Repalced by: A 1088801771 | ||
| 169 | A 1088801771 | REAR BUMPER FACE BAR |
| LEFT | ||
| A 1088800471 | REAR BUMPER FACE BAR | |
| Repalced by: A 1088801871 | ||
| A 1088801871 | REAR BUMPER FACE BAR | |
| RIGHT | ||
| 176 | A 1088800119 | STIFFENING |
| A 1119900029 | SCREW | |
| STIFFENING TO REAR BUMPER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| STIFFENING TO REAR BUMPER | ||
| N 912004008102 | LOCK WASHER | |
| STIFFENING TO REAR BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 182 | A 1088850022 | BUMPER JOINT COVER |
| N 007988008128 | SCREW | |
| A 1119900029 | SCREW | |
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| N 912004008102 | LOCK WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 186 | A 1088800114 | BRACKET |
| LEFT | ||
| A 1088800214 | BRACKET | |
| RIGHT | ||
| N 000933010105 | SCREW | |
| BRACKET TO BUMPER | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BRACKET TO BUMPER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO BUMPER | ||
| 189 | A 1088800014 | BRACKET |
| A 1119900029 | SCREW | |
| RETAINING ANGLE TO REAR BUMPER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| RETAINING ANGLE TO REAR BUMPER | ||
| N 912004008102 | LOCK WASHER | |
| RETAINING ANGLE TO REAR BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| RETAINING ANGLE TO REAR BUMPER | ||
| 193 | A 1088850014 | BRACKET |
| 196 | A 1088850133 | CAP |
| LEFT | ||
| A 1088850233 | CAP | |
| RIGHT | ||
| A 1088850521 | RAIL | |
| Repalced by: A 1088851121 | ||
| 201 | A 1088851121 | RAIL |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PROTECTIVE RAIL AND END CAP TO REAR BUMPER | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE RAIL AND END CAP TO REAR BUMPER | ||
| N 000934006007 | NUT | |
| PROTECTIVE RAIL AND END CAP TO REAR BUMPER | ||
| 205 | A 1088850305 | REAR BUMPER FACE BAR |
| UPPER PART, LEFT | ||
| A 1088850405 | REAR BUMPER FACE BAR | |
| UPPER PART,RIGHT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BUMPER FACE BAR UPPER PART TO REAR BUMPER | ||
| A 1129900640 | WASHER | |
| BUMPER FACE BAR UPPER PART TO REAR BUMPER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BUMPER FACE BAR UPPER PART TO REAR BUMPER | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| BUMPER FACE BAR UPPER PART TO REAR BUMPER | ||
| A 0019885278 | CLIP | |
| SEE GROUP: | ||
| 82 | ||
| N 000933010105 | SCREW | |
| BUMPER TO FRAME FLOOR UNIT SIDE MEMBER | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| BUMPER TO FRAME FLOOR UNIT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BUMPER TO FRAME FLOOR UNIT SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| BUMPER TO TAIL CENTRAL PIECE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BUMPER TO TAIL CENTRAL PIECE | ||
| N 912004010102 | LOCK WASHER | |
| BUMPER TO TAIL CENTRAL PIECE | ||
| A 1159970940 | SEAL RING | |
| BUMPER TO TAIL CENTRAL PIECE | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| 213 | A 1088850640 | BRACKET |
| 218 | A 1088850095 | INTERMEDIATE LAYER |
| BRACKET TO REAR FENDER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO REAR FENDER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BRACKET TO REAR FENDER | ||
| N 000127008203 | LOCK WASHER | |
| BRACKET TO REAR FENDER | ||
| A 1089870241 | RUBBER RING | |
| Repalced by: A 1109870741 | ||
| A 1109870741 | RUBBER RING | |
| BRACKET TO REAR FENDER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO BUMPER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BRACKET TO BUMPER | ||
| N 000127008203 | LOCK WASHER | |
| BRACKET TO BUMPER | ||
| 223 | A 1108850081 | LICENSE PLATE MOULDING |
| FRONT | ||
| N 000085005131 | SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| 227 | A 1089910035 | SPACER RING |
| N 000934005008 | NUT | |
| 229 | A 1108850080 | LICENSE PLATE MOULDING |
| Repalced by: A 1158170378 | ||
| A 1158170078 | LICENSE PLATE MOULDING | |
| Repalced by: A 1158170378 | ||
| A 1158170378 | LICENSE PLATE MOULDING | |
| REAR | ||
| 232 | A 1089870042 | SPACER |
| 236 | A 1089870040 | RUBBER BUFFER |
| Repalced by: A 1089870540 | ||
| A 1089870540 | RUBBER BUFFER | |
| N 000085005151 | SCREW | |
| N 000934005008 | NUT | |
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| A 1088800157 | ENGINE HOOD | |
| Repalced by: A 1088800357 | ||
| 242 | A 1088800357 | ENGINE HOOD |
| 247 | A 1088870174 | LEVER |
| Repalced by: A 1078870174 | ||
| 247 | A 1078870174 | LEVER |
| Repalced by: A 1088870174 | ||
| 247 | A 1088870174 | LEVER |
| LEFT | ||
| A 1078870274 | LEVER | |
| Repalced by: A 1088870274 | ||
| A 1088870274 | LEVER | |
| RIGHT | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 912004006102 | LOCK WASHER | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| HINGE LEVER TO ENGINE HOOD | ||
| N 000934006007 | NUT | |
| HINGE LEVER TO ENGINE HOOD | ||
| A 1108800560 | ENGINE HOOD CATCH | |
| Repalced by: A 1158870006 | ||
| 253 | A 1158870006 | ENGINE HOOD CATCH |
| Repalced by: A 1078800060 | ||
| 253 | A 1078800060 | ENGINE HOOD CATCH |
| UPPER PART | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| ENGINE HOOD CATCH | ||
| N 912004006102 | LOCK WASHER | |
| ENGINE HOOD CATCH | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| ENGINE HOOD CATCH | ||
| 260 | A 1108870149 | BUSHING |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| N 900055012001 | SPRING WASHER | |
| A 1159905140 | WASHER | |
| Repalced by: N 000125008417 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| 266 | A 1108800017 | STOP SCREW |
| Repalced by: A 1269900015 | ||
| 266 | A 1269900015 | SCREW |
| Repalced by: A 2019880211 | ||
| 266 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 266 | A 2019880511 | BUFFER |
| N 000934006007 | NUT | |
| A 1108800860 | ENGINE HOOD CATCH | |
| Repalced by: A 1158800160 | ||
| 271 | A 1158800160 | ENGINE HOOD CATCH |
| LOWER PART | ||
| N 007987006127 | SCREW | |
| ENGINE HOOD CATCH | ||
| A 1118800159 | ENGINE HOOD RELEASE CABLE | |
| Repalced by: A 1088800159 | ||
| 276 | A 1088800159 | ENGINE HOOD RELEASE CABLE |
| 281 | A 1109971181 | GROMMET |
| 287 | A 1108800020 | HANDLE |
| Repalced by: A 9703100173 | ||
| 287 | A 9703100173 | LEVER |
| 293 | N 918001005001 | PIN |
| N 007976004207 | SHEET METAL SCREW | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM | ||
| N 006797005132 | TOOTHED WASHER | |
| ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM | ||
| A 0019989878 | PART NAME MISSING | |
| Repalced by: A 0009881878 | ||
| 298 | A 0009881878 | CLIP |
| INSIDE LEFT CONSOLE | ||
| A 0009883378 | CLIP | |
| ENGINE HOOD RELEASE CABLE TO WHEEL ARCH PANEL | ||
| 304 | A 1108800177 | SUPPORT |
| LEFT | ||
| A 1108800277 | SUPPORT | |
| RIGHT | ||
| 309 | A 1209840033 | SCREW |
| 313 | A 0009900048 | WASHER |
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| A 0009900448 | WASHER | |
| 319 | A 1118870079 | SPRING |
| A 1109870541 | RUBBER RING | |
| 324 | A 1088870060 | STRUT |
| A 1108800064 | SAFETY HOOK | |
| Repalced by: A 1108800264 | ||
| 329 | A 1108800264 | SAFETY HOOK |
| LEFT | ||
| N 000933006130 | SCREW | |
| SAFETY HOOK | ||
| N 912004006102 | LOCK WASHER | |
| SAFETY HOOK | ||
| 334 | A 1119870340 | RUBBER BUFFER |
| N 007981003327 | SHEET METAL SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| A 0019875252 | RUBBER SEAL | |
| Repalced by: A 1158870298 | ||
| A 1088870098 | SEAL | |
| Repalced by: A 1158870298 | ||
| 339 | A 1158870298 | SEAL |
| 1260 MM | ||
| 344 | A 1088880015 | RADIATOR GRILLE SHELL |
| A 1088880009 | MERCEDES STAR | |
| Repalced by: A 1085860388 | ||
| 350 | A 1085860388 | REPAIR KIT |
| WITH MERCEDES STAR | ||
| 355 | A 1088880117 | ESCUTCHEON |
| 361 | A 1088880034 | SPRING |
| Repalced by: A 1155860288 | ||
| A 1088880026 | SLEEVE | |
| Repalced by: A 1155860288 | ||
| 364 | A 1088880126 | SLEEVE |
| Repalced by: A 1155860288 | ||
| A 1088880074 | PIN | |
| Repalced by: A 1155860288 | ||
| A 1088880046 | HOOK | |
| Repalced by: A 1155860288 | ||
| 369 | A 1088880146 | HOOK |
| Repalced by: A 1155860288 | ||
| A 1088800286 | MERCEDES STAR | |
| Repalced by: A 1155860288 | ||
| A 1085860088 | REPAIR KIT | |
| Repalced by: A 1155860288 | ||
| 371 | A 1155860288 | REPAIR KIT |
| MERCEDES STAR MOUNTING MATERIAL | ||
| 373 | A 0009940121 | LOCK |
| 378 | A 1088800088 | MERCEDES BADGE |
| A 0009902045 | PLATE | |
| Repalced by: A 0009902048 | ||
| A 0009902048 | WASHER | |
| BADGE TO RADIATOR GRILLE SHELL | ||
| N 000934004006 | NUT | |
| BADGE TO RADIATOR GRILLE SHELL | ||
| A 1088800085 | RADIATOR GRILLE | |
| Repalced by: A 1088800185 | ||
| 383 | A 1088800185 | RADIATOR GRILLE |
| 389 | A 1108880134 | SPRING |
| A 1158880034 | SPRING | |
| Repalced by: A 1158880334 | ||
| A 1158880334 | SPRING | |
| N 007985004136 | SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| A 0009902048 | WASHER | |
| N 000934004006 | NUT | |
| 395 | A 1108880021 | GARNISH MOULDING |
| A 1158881585 | GARNISH MOULDING | |
| Repalced by: A 1118885385 | ||
| A 1118885385 | GARNISH MOULDING | |
| 401 | A 1088880122 | GARNISH MOULDING |
| A 1158880785 | GARNISH MOULDING | |
| Repalced by: A 1168880185 | ||
| A 1118885585 | GARNISH MOULDING | |
| Repalced by: A 1168880185 | ||
| A 1168880185 | GARNISH MOULDING | |
| 408 | A 0019886178 | CLIP |
| A 0019885678 | CLIP | |
| 414 | A 0009885078 | CLIP |
| Repalced by: A 0019887578 | ||
| A 0019887578 | CLIP | |
| A 0029888578 | CLIP | |
| 419 | A 0009940545 | LOCK |
| 426 | A 1088880098 | SEAL |
| N 007976004302 | SHEET METAL SCREW | |
| 432 | A 0009900348 | WASHER |
| 440 | A 0009871840 | RUBBER BUFFER |
| A 1089870140 | RUBBER BUFFER | |
| Repalced by: A 1089870240 | ||
| A 1089870240 | RUBBER BUFFER | |
| A 1089870240 | RUBBER BUFFER | |
| A 1148800283 | RADIATOR GRILLE SHELL | |
| Repalced by: A 1085860188 | ||
| A 1088800483 | RADIATOR GRILLE SHELL | |
| Repalced by: A 1085860188 | ||
| A 1085860188 | REPAIR KIT | |
| RADIATOR GRILLE SHELL MOUNTING MATERIAL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
