Transporto priemonė: 280 SEL USA; VIN numerio dalis: 108019

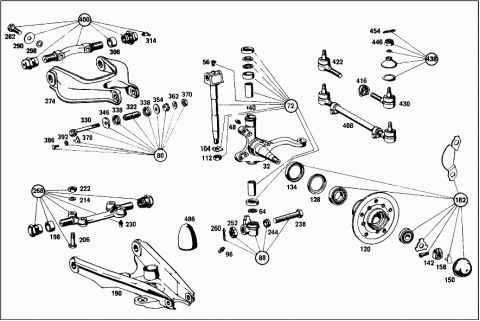

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1113303042 | FRONT SUBFRAME |
| FRONT | ||
| 014 | A 1123330165 | RUBBER BUFFER |
| 022 | A 1083300298 | HALF FRONT AXLE |
| LEFT | ||
| A 1113303298 | HALF FRONT AXLE | |
| Repalced by: A 1083301298 | ||
| A 1083301298 | HALF FRONT AXLE | |
| LEFT | ||
| A 1083300398 | HALF FRONT AXLE | |
| RIGHT | ||
| A 1113303398 | HALF FRONT AXLE | |
| Repalced by: A 1083301398 | ||
| A 1083301398 | HALF FRONT AXLE | |
| RIGHT | ||
| 032 | A 1083300020 | STEERING KNUCKLE |
| LEFT | ||
| A 1083300120 | STEERING KNUCKLE | |
| RIGHT | ||
| A 1803320148 | BUSHING | |
| TOP | ||
| 040 | N 000007002208 | CYLINDRICAL PIN |
| A 1113320148 | BUSHING | |
| BOTTOM | ||
| 048 | N 071412008100 | GREASE NIPPLE |
| A 1203320260 | DUST CAP | |
| A 1203320051 | SPACER RING | |
| A 1113320106 | KINGPIN | |
| 056 | N 071412008200 | GREASE NIPPLE |
| A 1203320162 | THRUST WASHER | |
| BOTTOM | ||
| A 1203320262 | THRUST WASHER | |
| TOP | ||
| 064 | A 1363320852 | SPACER WASHER |
| 1.7 MM AS REQUIRED | ||
| A 1363320952 | SPACER WASHER | |
| 1.9 MM AS REQUIRED | ||
| A 1363321052 | SPACER WASHER | |
| 2.1 MM AS REQUIRED | ||
| A 1363320052 | SPACER WASHER | |
| 2.3 MM AS REQUIRED | ||
| A 1363320152 | SPACER WASHER | |
| 2.5 MM AS REQUIRED | ||
| A 1363320252 | SPACER WASHER | |
| 2.7 MM AS REQUIRED | ||
| 072 | A 1115860033 | REPAIR KIT |
| STEERING KNUCKLE | ||
| A 1803330009 | STEERING KNUCKLE SUPPORT | |
| A 1203300187 | ECCENTRIC BUSHING | |
| A 1105860033 | REPAIR KIT | |
| Repalced by: A 1103300218 | ||
| 080 | A 1103300218 | REPAIR KIT |
| UPPER TRANSVERSE CONTROL ARM | ||
| 088 | A 1103300318 | REPAIR KIT |
| LOWER CONTROL ARM | ||
| 096 | N 071412008100 | GREASE NIPPLE |
| 104 | A 1819940015 | LOCK |
| 112 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 112 | N 308673014001 | NUT |
| 120 | A 1123340501 | WHEEL HUB |
| A 0009815805 | TAPERED ROLLER BEARING | |
| 128 | A 1113340064 | RETAINER |
| 134 | A 0039979346 | SEAL RING |
| A 0009815905 | TAPERED ROLLER BEARING | |
| A 1153340315 | RING | |
| 142 | A 1203340772 | NUT |
| A 1209901320 | SCREW | |
| A 1123300057 | HUB CAP | |
| Repalced by: A 1083340025 | ||
| 150 | A 1083340025 | HUB CAP |
| 158 | A 2015470085 | CONTACT SPRING |
| A 1159940732 | LOCK | |
| A 1159940732 | LOCK | |
| 166 | A 1154211112 | BRAKE DISC |
| A 1094200005 | BRAKE DISC | |
| 174 | A 0009907212 | SCREW |
| 182 | A 1113300051 | REPAIR KIT |
| Repalced by: A 1073300051 | ||
| 182 | A 1073300051 | REPAIR KIT |
| FRONT WHEEL BEARING | ||
| 190 | A 1113302907 | TRANSVERSE CONTROL ARM |
| BOTTOM LEFT | ||
| A 1113303007 | TRANSVERSE CONTROL ARM | |
| BOTTOM RIGHT | ||
| A 1113330330 | PIN | |
| 198 | A 1203330180 | SEAL RING |
| INSIDE | ||
| A 1113330548 | SCREW COLLAR | |
| 29.9 MM | ||
| A 1113330448 | SCREW COLLAR | |
| 30.9 MM | ||
| 206 | A 1089900801 | SCREW |
| LOWER CONTROL ARM AND PIVOT PIN TO SUBFRAME | ||
| 214 | N 912004012100 | LOCK WASHER |
| LOWER CONTROL ARM AND PIVOT PIN TO SUBFRAME | ||
| 222 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 222 | N 308673012002 | NUT |
| LOWER CONTROL ARM AND PIVOT PIN TO SUBFRAME | ||
| A 1089900840 | WASHER | |
| LOWER CONTROL ARM AND PIVOT PIN TO SUBFRAME | ||
| 230 | N 071412008100 | GREASE NIPPLE |
| 238 | A 1203330474 | PIN |
| 244 | A 1813330180 | SEAL RING |
| OUTSIDE | ||
| 252 | A 1819900055 | NUT |
| 260 | N 000094003229 | COTTER PIN |
| 268 | A 1103300118 | REPAIR KIT |
| LOWER CONTROL ARM PIVOT PIN | ||
| 274 | A 1123303107 | TRANSVERSE CONTROL ARM |
| TOP | ||
| A 1113330230 | PIN | |
| 282 | A 1089900801 | SCREW |
| 290 | A 1109940010 | LOCK |
| 298 | N 000433013004 | WASHER |
| 306 | A 1203330180 | SEAL RING |
| A 1203330248 | SCREW COLLAR | |
| 29.9 MM | ||
| A 1203330348 | SCREW COLLAR | |
| 30.9 MM | ||
| 314 | N 071412008200 | GREASE NIPPLE |
| 322 | A 1203330548 | SCREW COLLAR |
| 330 | A 1203330374 | PIN |
| 338 | A 1813330180 | SEAL RING |
| 346 | A 1209903240 | WASHER |
| 354 | A 1209901340 | WASHER |
| 362 | N 912004010102 | LOCK WASHER |
| 370 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 370 | N 304032010002 | NUT |
| 378 | A 1203330073 | LOCK |
| 386 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 386 | N 304017006034 | SCREW |
| 392 | N 912004006102 | LOCK WASHER |
| 400 | A 1103300018 | REPAIR KIT |
| UPPER CONTROL ARM PIVOT PIN | ||
| A 1103300003 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| 408 | A 1153300703 | TIE ROD |
| Repalced by: A 1073300103 | ||
| A 1153300803 | TIE ROD | |
| Repalced by: A 1073300103 | ||
| 408 | A 1073300103 | TIE ROD |
| A 0003381515 | TIE ROD | |
| Repalced by: A 1153300703 | ||
| A 1153300703 | TIE ROD | |
| 416 | A 0009951844 | CLAMP |
| Repalced by: A 0003384245 | ||
| 416 | A 0003384245 | CLAMP |
| N 000933008171 | SCREW | |
| CLAMP | ||
| N 000127008200 | LOCK WASHER | |
| CLAMP | ||
| N 000934008013 | NUT | |
| CLAMP | ||
| 422 | A 0003381910 | BALL JOINT |
| Repalced by: A 0003385210 | ||
| 422 | A 0003385210 | BALL JOINT |
| R.H. THREAD | ||
| TO 107 330 01 03 | ||
| 422 | A 0003385510 | BALL JOINT |
| R.H. THREAD | ||
| TO 107 330 01 03 | ||
| 430 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 430 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| TO 107 330 01 03 | ||
| 430 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| TO 107 330 01 03 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 438 | A 0003300485 | REPAIR KIT |
| TIE ROD BOOT | ||
| 446 | A 1209900155 | NUT |
| TO 115 330 07 03,08 03 | ||
| N 913002010010 | NUT | |
| TO 107 330 01 03 | ||
| 454 | N 000094002077 | COTTER PIN |
| A 1113301575 | RUBBER MOUNTING | |
| 462 | N 914004008000 | COMBINATION BOLT |
| A 1113310645 | RETAINER | |
| 470 | N 000960012095 | SCREW |
| 478 | N 912004012100 | LOCK WASHER |
| 486 | A 1113330265 | RUBBER BUFFER |
| 494 | A 1083300275 | REPAIR KIT |
| FRONT SUBFRAME | ||
| 502 | A 1123310012 | STRUT |
| 510 | A 1103221585 | RUBBER MOUNTING |
| A 1123220385 | RUBBER MOUNTING | |
| 518 | A 1103220276 | WASHER |
| 526 | A 1113320053 | SPACER TUBE |
| 534 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 542 | N 912004008102 | LOCK WASHER |
| RUBBER MOUNTING TO LEAF SPRING | ||
| 550 | N 000934008013 | NUT |
| RUBBER MOUNTING TO LEAF SPRING | ||
| N 000960016138 | SCREW | |
| LEAF SPRING TO FRONT SUBFRAME | ||
| N 000137016202 | SPRING WASHER | |
| LEAF SPRING TO FRONT SUBFRAME | ||
| N 000934016007 | NUT | |
| LEAF SPRING TO FRONT SUBFRAME | ||
| 558 | N 000125015013 | WASHER |
| 566 | N 912004014100 | LOCK WASHER |
| 574 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 574 | N 308673014001 | NUT |
| 582 | A 1113300330 | GUIDE ROD |
| 590 | A 0009883310 | RUBBER MOUNTING |
| N 000960012157 | SCREW | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| N 912004012100 | LOCK WASHER | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| GUIDE ROD TO BODY FLOOR AND TO FRONT SUBFRAME | ||
