Transporto priemonė: 280 SEL USA; VIN numerio dalis: 108019

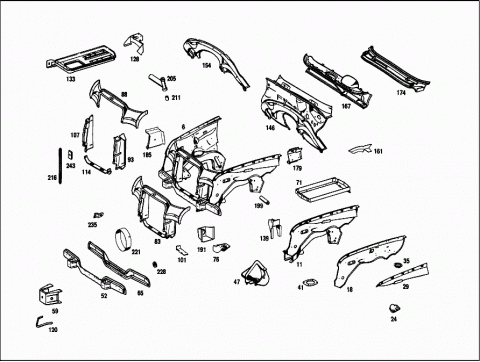

Grupė: 62 FRONT PANEL
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1086200105 | COWL |
| A 1086200505 | COWL | |
| Repalced by: A 1086201105 | ||
| A 1086200705 | COWL | |
| A 1086201105 | COWL | |
| Repalced by: A 1086201305 | ||
| A 1086201305 | COWL | |
| A 1086200905 | COWL | |
| Repalced by: A 1086201105 | ||
| A 1086201105 | COWL | |
| Repalced by: A 1086201305 | ||
| A 1086201305 | COWL | |
| A 1086200361 | WHEELHOUSE | |
| Repalced by: A 1086201161 | ||
| 011 | A 1086201161 | WHEELHOUSE |
| LEFT | ||
| A 1086200461 | WHEELHOUSE | |
| Repalced by: A 1086200661 | ||
| A 1086200661 | WHEELHOUSE | |
| RIGHT | ||
| A 1086200161 | WHEELHOUSE | |
| Repalced by: A 1086201961 | ||
| A 1086200961 | WHEELHOUSE | |
| Repalced by: A 1086201961 | ||
| 018 | A 1086201961 | WHEELHOUSE |
| LEFT | ||
| A 1086260275 | WHEELHOUSE | |
| Repalced by: A 1086201861 | ||
| A 1086201061 | WHEELHOUSE | |
| Repalced by: A 1086201861 | ||
| A 1086201861 | WHEELHOUSE | |
| RIGHT | ||
| 024 | A 1116261514 | BRACKET |
| LEFT | ||
| A 1116261614 | BRACKET | |
| RIGHT | ||
| 029 | A 1086200185 | STRUT |
| FRONT LEFT | ||
| A 1086200285 | STRUT | |
| FRONT RIGHT | ||
| 035 | A 1803260267 | RETAINER |
| 041 | A 1106261111 | PLATE |
| 047 | A 1106201931 | CONSOLE |
| LEFT | ||
| A 1106202031 | CONSOLE | |
| RIGHT | ||
| A 1086200114 | BRACKET | |
| SUPERTONE HORN,LEFT | ||
| A 1086200214 | BRACKET | |
| SUPERTONE HORN,RIGHT | ||
| 052 | A 1106200786 | SUPPORT |
| 059 | A 1106200359 | CONSOLE |
| LEFT | ||
| A 1106200459 | CONSOLE | |
| RIGHT | ||
| 065 | A 1106260855 | CROSS MEMBER |
| FRONT | ||
| A 1116200458 | REST | |
| Repalced by: A 1086200258 | ||
| A 1086200158 | REST | |
| Repalced by: A 1086200258 | ||
| 071 | A 1086200258 | REST |
| 076 | A 1086260312 | ANGLE |
| AT BATTERY SUPPORT | ||
| A 1086200172 | STIFFENING | |
| Repalced by: A 1086200572 | ||
| A 1086200572 | STIFFENING | |
| FRONT | ||
| A 1086200372 | STIFFENING | |
| Repalced by: A 1096200272 | ||
| A 1086200672 | STIFFENING | |
| Repalced by: A 1096200272 | ||
| 083 | A 1096200272 | STIFFENING |
| FRONT | ||
| A 1086200072 | STIFFENING | |
| Repalced by: A 1086200572 | ||
| 088 | A 1086200272 | STIFFENING |
| Repalced by: A 1086200572 | ||
| 088 | A 1086200272 | STIFFENING |
| Repalced by: A 1096200272 | ||
| A 1086260136 | BAFFLE | |
| Repalced by: A 1086260536 | ||
| 093 | A 1086260536 | BAFFLE |
| LEFT | ||
| A 1086260236 | BAFFLE | |
| Repalced by: A 1086260636 | ||
| 101 | A 1086260019 | BRACING |
| BAFFLE PLATE | ||
| 107 | A 1086260636 | BAFFLE |
| RIGHT | ||
| A 1086200136 | BAFFLE | |
| LEFT | ||
| A 1086200236 | BAFFLE | |
| RIGHT | ||
| 114 | A 1086260040 | COVERING |
| A 1086260140 | COVERING | |
| 120 | A 1106260028 | EYE |
| 128 | A 1086201014 | BRACKET |
| BATTERY SUPPORT | ||
| 133 | A 1086200358 | REST |
| Repalced by: A 1156200058 | ||
| 133 | A 1156200058 | REST |
| BATTERY | ||
| N 007987006128 | SCREW | |
| BATTERY SUPPORT TO RIGHT FRONT WHEELHOUSE | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| BATTERY SUPPORT TO RIGHT FRONT WHEELHOUSE | ||
| N 912004008102 | LOCK WASHER | |
| BATTERY SUPPORT TO RIGHT FRONT WHEELHOUSE | ||
| N 009021008204 | WASHER | |
| BATTERY SUPPORT TO RIGHT FRONT WHEELHOUSE | ||
| 139 | A 1096260612 | ANGLE |
| ENGINE SHOCK ABSORBER | ||
| A 1086200308 | FRONT PANEL | |
| Repalced by: A 1086200708 | ||
| 146 | A 1086200708 | FRONT PANEL |
| A 1086202108 | FRONT PANEL | |
| Repalced by: A 1086202508 | ||
| A 1086202508 | FRONT PANEL | |
| A 1096260612 | ANGLE | |
| ENGINE SHOCK ABSORBER,LEFT | ||
| 154 | A 1116250016 | REINFORCEMENT |
| A 1086250116 | REINFORCEMENT | |
| 161 | A 1086250112 | ANGLE |
| LEFT | ||
| A 1086250212 | ANGLE | |
| RIGHT | ||
| A 1086200162 | INSTRUMENT PANEL | |
| Repalced by: A 1086201962 | ||
| A 1086200562 | INSTRUMENT PANEL | |
| Repalced by: A 1086201962 | ||
| A 1086200962 | INSTRUMENT PANEL | |
| Repalced by: A 1086201962 | ||
| A 1086201762 | INSTRUMENT PANEL | |
| Repalced by: A 1086201962 | ||
| 167 | A 1086201962 | INSTRUMENT PANEL |
| SHELL | ||
| A 1086200004 | PANELLING | |
| Repalced by: A 1086200204 | ||
| 174 | A 1086200204 | PANELLING |
| 179 | A 1086260182 | CONNECTION |
| LEFT | ||
| A 1086260282 | CONNECTION | |
| RIGHT | ||
| 185 | A 1096262214 | BRACKET |
| WINDSHIELD WASHER LIQUID TANK | ||
| 191 | A 1096250180 | MOUNTING |
| CONTROL LINKAGE | ||
| 199 | A 1106260021 | TUBE |
| 205 | A 1114600038 | TRUNNION BEARING |
| 211 | A 1204630250 | BUSHING |
| IN JOURNAL BEARING,FOR REPAIR PURPOSES,18-MM-DIA.BORE | ||
| A 1114602638 | TRUNNION BEARING | |
| 216 | A 1106230019 | STRUT |
| A 1086200785 | STRUT | |
| Repalced by: A 1086200885 | ||
| A 1086200885 | STRUT | |
| A 1096201385 | STRUT | |
| 221 | A 1098350008 | SHELL |
| BLOWER | ||
| 228 | A 1099970281 | GROMMET |
| 235 | A 1149950220 | CLAMP |
| BLOWER AND BLOWER SHELL TO STRUT | ||
| N 000933006026 | SCREW | |
| BLOWER AND BLOWER SHELL TO STRUT | ||
| N 912004006102 | LOCK WASHER | |
| BLOWER AND BLOWER SHELL TO STRUT | ||
| N 000125006407 | WASHER | |
| BLOWER AND BLOWER SHELL TO STRUT | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| STRUT TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| N 900161006101 | SCREW | |
| STRUT TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| STRUT TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| A 0009840222 | SHEET METAL NUT | |
| Repalced by: A 1159840022 | ||
| 243 | A 1159840022 | SHEET METAL NUT |
| Repalced by: N 913008006300 | ||
| 243 | N 913008006300 | SHEET METAL NUT |
| STRUT TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| N 000125006407 | WASHER | |
| STRUT TO STIFFENING AND TO FRONT CROSS MEMBER | ||
| N 007976005202 | SHEET METAL SCREW | |
| BLOWER TO STIFFENING | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BLOWER TO STIFFENING | ||
