Transporto priemonė: 280 SEL USA; VIN numerio dalis: 108019

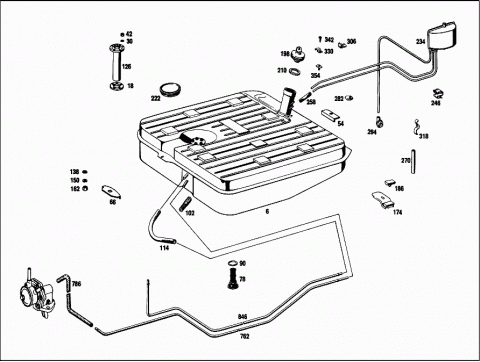

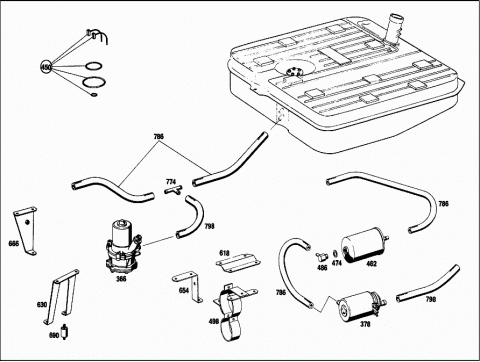

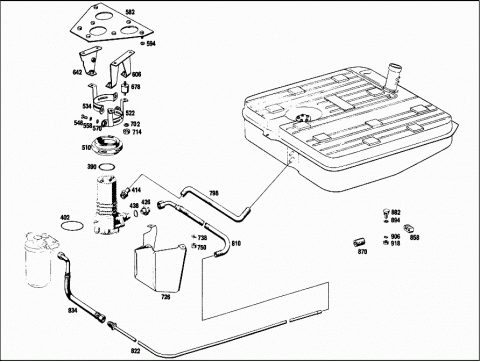

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1094700301 | FUEL TANK |
| 82 L. | ||
| 018 | A 1104710180 | GASKET |
| 030 | N 000137005203 | SPRING WASHER |
| 042 | N 000934005008 | NUT |
| 054 | A 1304710222 | REINFORCEMENT |
| REAR | ||
| 066 | A 1304710122 | REINFORCEMENT |
| FRONT | ||
| 078 | A 1114700686 | FUEL STRAINER |
| 090 | A 1109970145 | SEAL RING |
| 102 | A 1114761526 | HOSE |
| N 900269018101 | CLAMP | |
| 114 | A 1104760326 | HOSE |
| Repalced by: A 1149971882 | ||
| A 1149971882 | HOSE | |
| FROM RETURN PIPE TO FUEL TANK | ||
| A 0019976990 | LOOM TIE | |
| FROM RETURN PIPE TO FUEL TANK | ||
| N 900269012101 | CLAMP | |
| FROM RETURN PIPE TO FUEL TANK | ||
| 126 | A 1105421204 | GAUGE SENDER UNIT |
| 138 | A 1089900340 | WASHER |
| 150 | N 912004008102 | LOCK WASHER |
| 162 | N 000934008013 | NUT |
| 174 | A 1124700781 | BRACKET |
| 186 | A 1249870740 | RUBBER BUFFER |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| TANK REAR BRACING | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| TANK REAR BRACING | ||
| N 912004006102 | LOCK WASHER | |
| TANK REAR BRACING | ||
| A 0009909991 | NUT RETAINER | |
| TANK REAR BRACING | ||
| 198 | A 0004712030 | FILLER CAP |
| MAKE YMOS | ||
| A 0004711830 | FILLER CAP | |
| MAKE HUF | ||
| A 0004716130 | FILLER CAP | |
| MAKE HUF | ||
| 210 | A 1104710280 | GASKET |
| A 1154710079 | SEAL RING | |
| A 1234710230 | FILLER CAP | |
| A 1154710079 | SEAL RING | |
| 210 | A 1104710280 | GASKET |
| 222 | A 1109870145 | LOCKING CAP |
| A 1114710168 | TANK | |
| Repalced by: A 1154710268 | ||
| A 1114710268 | TANK | |
| Repalced by: A 1154710268 | ||
| 234 | A 1154710268 | TANK |
| A 1154711668 | TANK | |
| A 0089979082 | HOSE | |
| Repalced by: A 0009872727 | ||
| A 0009872727 | PLASTIC PIPE | |
| A 1154700293 | VALVE | |
| Repalced by: A 1234700193 | ||
| A 1234700193 | VALVE | |
| A 1234700193 | VALVE | |
| A 1074710042 | FILTER | |
| A 1074710267 | COVER | |
| N 007976004211 | SHEET METAL SCREW | |
| A 0009870044 | EXPANSION PLUG | |
| A 1149971882 | HOSE | |
| 40 MM | ||
| A 1149971882 | HOSE | |
| 40 MM | ||
| A 0019976990 | LOOM TIE | |
| A 1154700293 | VALVE | |
| A 1144710223 | LINE | |
| BREATHER LINE FROM EXPANSION TANK TO ENGINE | ||
| A 1234700193 | VALVE | |
| A 1074710042 | FILTER | |
| A 1074710267 | COVER | |
| N 007981004247 | SHEET METAL SCREW | |
| Repalced by: N 007981004208 | ||
| N 007981004208 | SHEET METAL SCREW | |
| A 0009870044 | EXPANSION PLUG | |
| 246 | A 0039888178 | CLIP |
| 258 | A 2014761126 | HOSE |
| 80 MM | ||
| 258 | A 2014761126 | HOSE |
| 80 MM | ||
| 270 | A 1074763726 | HOSE |
| 110 MM | ||
| N 900269008100 | CLAMP | |
| HOSE & VENT PIPE TO RESERVOIR | ||
| N 900269010100 | CLAMP | |
| HOSE & VENT PIPE TO RESERVOIR | ||
| 282 | A 1119972281 | GROMMET |
| VENT PIPE THRU COVERING | ||
| 294 | A 1084710081 | BOOT |
| N 916033012100 | CLAMP | |
| HOSES TO BREATHER LINES AND TO PLASTIC TUBE | ||
| N 916002008100 | CLAMP | |
| A 0039888178 | CLIP | |
| MOUNTING CLIP EXPANSION TANK TO CARDBOARD WALL | ||
| A 0009881878 | CLIP | |
| LINE TO CARDBOARD WALL | ||
| N 916002010100 | CLAMP | |
| 306 | A 0029884678 | CLIP |
| 318 | A 1109950332 | CLAMP |
| 330 | N 072571002015 | CLAMP |
| 342 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 342 | N 000000002062 | SCREW |
| A 1134710240 | CLIP | |
| 354 | A 0009903533 | SCREW |
| VENT PIPES TO BODY | ||
| A 1109950332 | CLAMP | |
| VENT PIPES TO BODY | ||
| N 000934004004 | NUT | |
| VENT PIPES TO BODY | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| VENT PIPES TO BODY | ||
| A 0089979082 | HOSE | |
| Repalced by: A 0009872727 | ||
| A 0009872727 | PLASTIC PIPE | |
| FRONT 4510 MM FROM EXPANSION TANK TO ENGINE | ||
| A 1144710223 | LINE | |
| FROM EXPANSION TANK TO ENGINE | ||
| A 1149971882 | HOSE | |
| 40 MM FROM EXPANSION TANK TO ENGINE | ||
| N 916033012100 | CLAMP | |
| FROM EXPANSION TANK TO ENGINE | ||
| A 0089979082 | HOSE | |
| Repalced by: A 0009872727 | ||
| A 0009872727 | PLASTIC PIPE | |
| REAR FROM EXPANSION TANK TO ENGINE | ||
| A 1144710223 | LINE | |
| FROM EXPANSION TANK TO ENGINE | ||
| A 1149971882 | HOSE | |
| 40 MM FROM EXPANSION TANK TO ENGINE | ||
| N 916033012100 | CLAMP | |
| FROM EXPANSION TANK TO ENGINE | ||
| A 1080780041 | BRACKET | |
| LEFT CYLINDER HEAD | ||
| A 0029887778 | CLIP | |
| LINE MOUNTING | ||
| A 1004760381 | RUBBER PAD | |
| Repalced by: A 1104760084 | ||
| A 1104760084 | DAMPING STRIP | |
| LINE MOUNTING | ||
| A 1004760381 | RUBBER PAD | |
| Repalced by: A 1104760084 | ||
| A 1104760084 | DAMPING STRIP | |
| LINE MOUNTING | ||
| A 0009877770 | RUBBER SECTION | |
| LINE MOUNTING | ||
| 20 MM | ||
| A 1099950022 | CLAMP | |
| LINE MOUNTING | ||
| A 1109950022 | CLAMP | |
| LINE MOUNTING | ||
| A 1099950015 | CLAMP | |
| LINE MOUNTING | ||
| A 1084760040 | CLAMP | |
| LINE MOUNTING | ||
| A 0009950068 | CLAMP | |
| LINE MOUNTING | ||
| N 072571001025 | CLAMP | |
| LINE MOUNTING | ||
| N 072571002015 | CLAMP | |
| LINE MOUNTING | ||
| N 007976004205 | SHEET METAL SCREW | |
| LINE MOUNTING | ||
| N 007976006203 | SHEET METAL SCREW | |
| LINE MOUNTING | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| LINE MOUNTING | ||
| N 073379008100 | HOSE | |
| 20 MM TO MOUNT PIPE LINE | ||
| A 0079975881 | GROMMET | |
| LINE MOUNTING | ||
| A 0010913301 | FUEL PUMP | |
| Repalced by: A 0010915201 | ||
| A 0010913401 | FUEL PUMP | |
| Repalced by: A 0010915201 | ||
| A 0010914601 | FUEL PUMP | |
| Repalced by: A 0010915201 | ||
| 366 | A 0010915201 | FUEL PUMP |
| 378 | A 0010917101 | FUEL PUMP |
| A 0005480242 | CARBON BRUSH | |
| SET = 2 PIECES | ||
| A 0005450197 | SPRING | |
| 390 | A 0009979145 | SEAL RING |
| 402 | A 0049970445 | SEAL RING |
| 414 | A 0009975972 | FITTING |
| ON SUCTION SIDE | ||
| 426 | A 0000910710 | VALVE |
| 438 | N 007603018101 | SEAL RING |
| 450 | A 0005860147 | REPAIR KIT |
| ELECTRIC FUEL PUMP | ||
| 462 | A 0000927601 | FILTER |
| 474 | N 007603014100 | SEAL RING |
| 486 | A 1074700279 | INTERMEDIATE PIECE |
| A 1074700081 | BRACKET | |
| Repalced by: A 1164700481 | ||
| 498 | A 1164700481 | BRACKET |
| Repalced by: A 1234700381 | ||
| 498 | A 1234700381 | BRACKET |
| N 007985005165 | SCREW | |
| N 912004005100 | LOCK WASHER | |
| N 000934005008 | NUT | |
| A 0019976990 | LOOM TIE | |
| 510 | A 1284780082 | RUBBER RING |
| 522 | A 1084700134 | CLAMP |
| A 1004700434 | CLAMP | |
| 534 | A 1084700034 | CLAMP |
| A 1004700534 | CLAMP | |
| 546 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 546 | N 304017006018 | SCREW |
| 558 | N 000127006200 | LOCK WASHER |
| 570 | N 000125006407 | WASHER |
| 582 | A 1124700033 | REINFORCEMENT |
| 594 | A 0009873841 | RUBBER RING |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 606 | A 1124700481 | BRACKET |
| LEFT | ||
| 618 | A 1084780740 | BRACKET |
| LEFT | ||
| 630 | A 1084780640 | BRACKET |
| REAR | ||
| 642 | A 1124700581 | BRACKET |
| RIGHT | ||
| 654 | A 1084780840 | BRACKET |
| RIGHT | ||
| 666 | A 1084700381 | BRACKET |
| FRONT | ||
| 678 | A 1169880511 | BUFFER |
| 690 | A 1269880011 | BUFFER |
| 702 | N 912004005100 | LOCK WASHER |
| 714 | N 000934005008 | NUT |
| 726 | A 1084700083 | PROTECTIVE PLATE |
| 738 | N 912004006102 | LOCK WASHER |
| 750 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 750 | N 304032006008 | NUT |
| A 1085460185 | PROTECTIVE TUBE | |
| FUEL PUMP CABLE HARNESS THRU REAR CROSS MEMBER | ||
| A 1239971681 | GROMMET | |
| CABLE TO FUEL PUMP | ||
| A 0009941010 | LOCK | |
| CABLE TO FUEL PUMP | ||
| N 006797004132 | TOOTHED WASHER | |
| CABLE TO FUEL PUMP | ||
| N 006797005132 | TOOTHED WASHER | |
| CABLE TO FUEL PUMP | ||
| N 000934004004 | NUT | |
| CABLE TO FUEL PUMP | ||
| N 000934005008 | NUT | |
| 762 | A 1084760001 | LINE |
| 762 | A 1084760001 | LINE |
| A 1084760601 | LINE | |
| N 900269016100 | CLAMP | |
| FEED LINE TO FUEL TANK | ||
| 774 | A 1144760125 | INTERMEDIATE PIECE |
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| 786 | A 1149971882 | HOSE |
| FROM T-FITTING TO RETURN PIPE | ||
| 786 | A 1149971882 | HOSE |
| FROM T-FITTING TO TANK CONNECTION | ||
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| 786 | A 1149971882 | HOSE |
| FROM FEED LINE TO ENGINE, 300 MM | ||
| N 900269012102 | CLAMP | |
| N 900269012101 | CLAMP | |
| A 0019976990 | LOOM TIE | |
| 798 | A 1124761226 | HOSE |
| 290 MM | ||
| 798 | A 1124761226 | HOSE |
| 290 MM | ||
| N 900269017101 | CLAMP | |
| 810 | A 1114760926 | HOSE |
| FROM FUEL PUMP (DELIVERY SIDE) TO FUEL LINE | ||
| A 1369950037 | CLAMP | |
| FROM FUEL PUMP (DELIVERY SIDE) TO FUEL LINE | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| FROM FUEL PUMP (DELIVERY SIDE) TO FUEL LINE | ||
| N 912004006102 | LOCK WASHER | |
| FROM FUEL PUMP (DELIVERY SIDE) TO FUEL LINE | ||
| 822 | A 1084700070 | LINE |
| 822 | A 1084700070 | LINE |
| A 1084700570 | LINE | |
| Repalced by: A 1084761801 | ||
| A 1084700670 | LINE | |
| Repalced by: A 1084761801 | ||
| A 1084761801 | LINE | |
| A 1084761901 | LINE | |
| A 1094700070 | LINE | |
| A 1084762101 | LINE | |
| FROM PUMP TO ENGINE | ||
| A 1094761701 | LINE | |
| FROM PUMP TO ENGINE | ||
| A 1084760026 | HOSE | |
| 834 | A 1114760926 | HOSE |
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| N 900269012102 | CLAMP | |
| 846 | A 1084760201 | LINE |
| 846 | A 1084760201 | LINE |
| A 1084760701 | LINE | |
| A 1084700170 | LINE | |
| A 1084700170 | LINE | |
| A 1084700370 | LINE | |
| Repalced by: A 1084761401 | ||
| A 1084700470 | LINE | |
| Repalced by: A 1084761401 | ||
| A 1084761401 | LINE | |
| A 1084761501 | LINE | |
| N 916033012100 | CLAMP | |
| A 1094700470 | LINE | |
| A 1094761801 | LINE | |
| FRONT | ||
| A 1084762201 | LINE | |
| Repalced by: A 1084762301 | ||
| A 1084762301 | LINE | |
| A 1084762301 | LINE | |
| A 1084762401 | LINE | |
| REAR | ||
| A 1084762501 | LINE | |
| A 0019976990 | LOOM TIE | |
| N 916033012100 | CLAMP | |
| RETURN LINE TO FUEL TANK | ||
| A 1109950022 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1539950120 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1369950037 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1089950520 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1109950015 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1104760084 | DAMPING STRIP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 858 | A 1114760384 | DAMPING STRIP |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1123270084 | SHIM | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1009950042 | CLAMP | |
| Repalced by: A 1119950042 | ||
| A 1119950042 | CLAMP | |
| Repalced by: A 1409950222 | ||
| A 1409950222 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 1124760284 | DAMPING STRIP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 0009877770 | RUBBER SECTION | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 20 MM | ||
| 870 | A 0029979682 | HOSE |
| Repalced by: A 1289970182 | ||
| 870 | A 1289970182 | HOSE |
| 10 MM DIA. FUEL LINE AND BRAKE LINE TO FRAME FLOOR UNIT | ||
| N 073379008100 | HOSE | |
| 8 MM DIA. FUEL LINE AND BRAKE LINE TO FRAME FLOOR UNIT | ||
| N 073379008100 | HOSE | |
| 8 MM DIA. FUEL LINE AND BRAKE LINE TO FRAME FLOOR UNIT | ||
| A 1879950037 | CLAMP | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| N 007976005203 | SHEET METAL SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| N 007976006203 | SHEET METAL SCREW | |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 882 | A 1204200227 | SCREW |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 0009877770 | RUBBER SECTION | |
| 20 MM | ||
| A 0009972881 | GROMMET | |
| A 0029887778 | CLIP | |
| A 1004760381 | RUBBER PAD | |
| Repalced by: A 1104760084 | ||
| A 1104760084 | DAMPING STRIP | |
| A 0029887178 | CLIP | |
| 894 | A 0009873841 | RUBBER RING |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 906 | N 912004006102 | LOCK WASHER |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| 918 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 918 | N 304032006008 | NUT |
| FUEL AND BRAKE LINES TO FRAME FLOOR UNIT | ||
| A 0019881078 | CLIP | |
| N 073379006101 | HOSE | |
| 110 MM | ||
| A 0009877770 | RUBBER SECTION | |
| 20 MM | ||
| 20 MM | ||
| A 2014280040 | BRACKET | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| N 007976004217 | SHEET METAL SCREW | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| N 072571001102 | CLAMP | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| A 0009883378 | CLIP | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| N 000137005203 | SPRING WASHER | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| A 1104280185 | DAMPING STRIP | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
| A 1109970182 | HOSE | |
| Repalced by: A 2014761126 | ||
| A 2014761126 | HOSE | |
| BRAKE LINE, CLUTCH LINE, AND OIL PRESSURE GAUGE LINE TO FIRE WALL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
