Transporto priemonė: 280 SEL USA; VIN numerio dalis: 108019
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

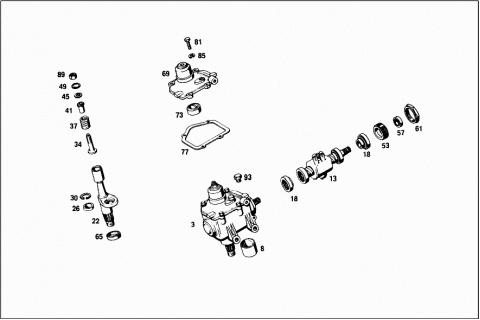

| 003 | A 1114604301 | STEERING BOX ASSEMBLY |
| 008 | A 1114620350 | BUSHING |
| 013 | A 3094600308 | STEERING WORM |
| 018 | A 0009815027 | ANGULAR CONTACT BEARING |
| 022 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 30 MM | ||
| 026 | A 1114620137 | BALL CUP |
| 030 | N 000472030000 | LOCK RING |
| 034 | A 1114620471 | SCREW |
| 037 | A 1119932101 | SPRING |
| 041 | A 1114620485 | THRUST PIECE |
| 045 | A 1114610462 | THRUST WASHER |
| 049 | A 0049949241 | LOCK |
| 053 | A 1114610406 | SET COLLAR |
| 057 | A 0029974746 | SEAL RING |
| AS REQUIRED | ||
| A 0029977046 | SEAL RING | |
| AS REQUIRED | ||
| A 0049971546 | SEAL RING | |
| AS REQUIRED | ||
| 061 | A 1209900551 | NUT |
| 065 | A 0019979346 | SEAL RING |
| AS REQUIRED | ||
| 42 MM | ||
| A 0029977146 | SEAL RING | |
| AS REQUIRED | ||
| A 0029977246 | SEAL RING | |
| AS REQUIRED | ||
| 069 | A 1114600814 | STEERING BOX COVER |
| 30-MM-DIA.BEARING BUSHING REPAIR SIZE | ||
| 073 | A 1114620250 | BUSHING |
| 077 | A 1114610280 | GASKET |
| 081 | N 000933008057 | SCREW |
| Repalced by: N 304017008034 | ||
| 081 | N 304017008034 | SCREW |
| 085 | N 000127008200 | LOCK WASHER |
| 089 | N 000934010014 | NUT |
| 093 | N 007604012102 | SCREW PLUG |
| 097 | A 1094600801 | STEERING BOX ASSEMBLY |
| 101 | A 1094601002 | STEERING BOX |
| 105 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 105 | A 0139973648 | SEAL RING |
| A 0019972545 | SEAL RING | |
| 109 | A 0039811810 | NEEDLE BEARING |
| 113 | A 1129970030 | SCREW PLUG |
| 117 | N 007603008109 | SEAL RING |
| 121 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 121 | N 007604010108 | SCREW PLUG |
| 125 | N 007603010100 | SEAL RING |
| 129 | A 1124602885 | PISTON |
| 133 | A 1124602014 | STEERING BOX COVER |
| A 0019972645 | SEAL RING | |
| Repalced by: A 0149976148 | ||
| A 0149976148 | SEAL RING | |
| 137 | A 1124600061 | GASKET |
| INSIDE | ||
| 141 | A 1124620162 | THRUST WASHER |
| 145 | A 0009942641 | LOCK |
| 149 | A 1124610162 | THRUST WASHER |
| 153 | A 0009810418 | ROLLER BEARING |
| 157 | A 0009816310 | NEEDLE BEARING |
| 161 | A 1124600386 | THREADED INSERT |
| A 0009979745 | SEAL RING | |
| A 0059975846 | SEAL RING | |
| A 0019974040 | SEAL RING | |
| 165 | A 0009942641 | LOCK |
| 169 | A 1209900551 | NUT |
| 173 | A 1209900520 | SCREW |
| 177 | A 1129940005 | LOCK |
| 181 | A 1124603485 | PISTON |
| 185 | A 0009814627 | ANGULAR CONTACT BEARING |
| 189 | A 0019945141 | LOCK |
| 193 | A 1124661905 | COVER |
| 197 | A 1124660134 | SCREW COLLAR |
| A 1124660160 | SEAL RING | |
| A 0049974445 | SEAL RING | |
| 201 | A 1129939501 | SPRING |
| 205 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.10 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.20 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.30 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.70 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.80 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.00 MM | ||
| 209 | A 0009943841 | LOCK |
| 213 | A 1129910141 | CLAMPING PIN |
| 217 | A 1124660275 | WASHER |
| 221 | A 1129931902 | SPRING |
| 225 | A 0009945441 | LOCK |
| 229 | N 000933010035 | SCREW |
| 233 | N 000127010202 | LOCK WASHER |
| 237 | A 0004200855 | BLEEDER VALVE |
| 241 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 241 | A 0004210887 | PROTECTIVE CAP |
| 245 | A 1124661105 | COVER |
| 249 | A 1004600914 | STEERING BOX COVER |
| WITH NOZZLE | ||
| A 1124660380 | GASKET | |
| 253 | A 1009971872 | FITTING |
| DELIVERY | ||
| 257 | N 007603018101 | SEAL RING |
| DELIVERY | ||
| 261 | N 915013010101 | SCREW FITTING |
| RETURN | ||
| 265 | N 007603016401 | SEAL RING |
| RETURN | ||
| 269 | N 915013006002 | SCREW FITTING |
| DELIVERY | ||
| 273 | N 007603012110 | SEAL RING |
| DELIVERY | ||
| 277 | A 1129970030 | SCREW PLUG |
| DELIVERY | ||
| 281 | N 007603008109 | SEAL RING |
| DELIVERY | ||
| 285 | A 1009971972 | FITTING |
| RETURN | ||
| 289 | N 007603016401 | SEAL RING |
| RETURN | ||
| A 0059979845 | SEAL RING | |
| 293 | A 1094600211 | STEERG. WORM SECTOR SHAFT |
| 297 | A 1094620071 | SCREW |
| 301 | A 1119932101 | SPRING |
| 305 | A 1114620485 | THRUST PIECE |
| 309 | A 1114610462 | THRUST WASHER |
| 313 | A 0049949241 | LOCK |
| 317 | A 1094600215 | STEERING BOX COVER |
| A 0019970245 | SEAL RING | |
| Repalced by: A 0139973648 | ||
| A 0139973648 | SEAL RING | |
| 321 | A 0009818110 | NEEDLE BEARING |
| A 0059975946 | SEAL RING | |
| A 0019973940 | SEAL RING | |
| 325 | A 0009945341 | LOCK |
| A 0029974745 | SEAL RING | |
| A 0049974445 | SEAL RING | |
| 329 | A 1129939701 | SPRING |
| 333 | N 000912008014 | SCREW |
| 337 | N 000137008204 | SPRING WASHER |
| 341 | A 1094660072 | NUT |
| A 0019970145 | SEAL RING | |
| 345 | N 007603010100 | SEAL RING |
| 349 | A 1099900051 | NUT |
| 353 | N 000917010002 | NUT |
| A 0099977245 | SEAL RING | |
| N 007603008109 | SEAL RING | |
| N 007603010404 | SEAL RING | |
| N 007603014100 | SEAL RING | |
| 357 | A 1094600261 | GASKET KIT |

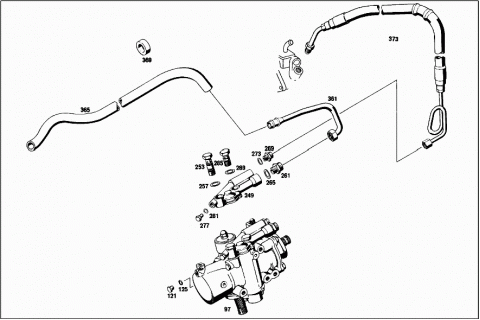

| 361 | A 1094601124 | LINE |
| 365 | A 0069970982 | HOSE |
| 600 MM | ||
| 369 | A 1109870541 | RUBBER RING |
| N 916026020001 | CLAMP | |
| 373 | A 1099974782 | HOSE |

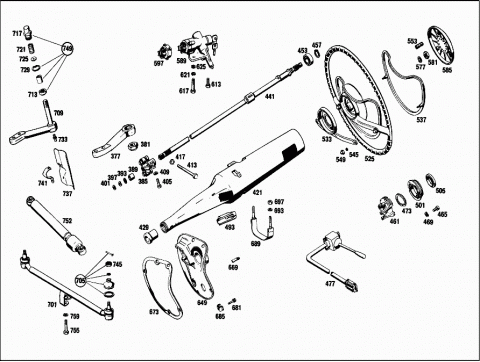

| 377 | A 1114632301 | PITMAN ARM |
| A 1094630701 | PITMAN ARM | |
| 381 | N 000937022000 | NUT |
| N 000094005035 | COTTER PIN | |
| A 1114600310 | STEERING COUPLING | |
| Repalced by: A 3094600210 | ||
| 385 | A 3094600210 | STEERING COUPLING |
| 385 | A 1154600510 | STEERING COUPLING |
| 389 | A 1114620165 | RING |
| 393 | A 1119903040 | WASHER |
| 397 | N 912002010001 | LOCK |
| 401 | A 1369909540 | WASHER |
| 405 | A 1119900420 | SCREW |
| 409 | N 007980008001 | LOCK WASHER |
| 413 | N 000931010253 | SCREW |
| STEERING TO FRAME FLOOR UNIT | ||
| 417 | N 912004010102 | LOCK WASHER |
| STEERING TO FRAME FLOOR UNIT | ||

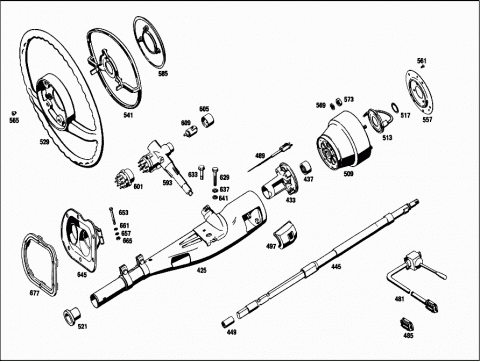

| 421 | A 1084600416 | STEER. COLUMN JACKET TUBE |
| 425 | A 1084604816 | STEER. COLUMN JACKET TUBE |
| A 1084607616 | STEER. COLUMN JACKET TUBE | |
| 429 | A 1164620096 | BOOT |
| 433 | A 1154621835 | BEARING BODY |
| 437 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 437 | A 0189816110 | NEEDLE BEARING |
| N 000912006039 | SCREW | |
| Repalced by: N 000912006064 | ||
| N 000912006064 | SCREW | |
| BEARING BODY TO STEERING COLUMN TUBE | ||
| N 000137006100 | SPRING WASHER | |
| Repalced by: N 000137006204 | ||
| N 000137006204 | SPRING WASHER | |
| BEARING BODY TO STEERING COLUMN TUBE | ||
| 441 | A 1084600409 | STEERING SHAFT |
| 445 | A 1084602609 | STEERING SHAFT |
| 445 | A 1084602609 | STEERING SHAFT |
| 445 | A 1084602609 | STEERING SHAFT |
| 445 | A 1084602609 | STEERING SHAFT |
| A 1084602909 | STEERING SHAFT | |
| A 1084602909 | STEERING SHAFT | |
| A 1084602909 | STEERING SHAFT | |
| A 1084602909 | STEERING SHAFT | |
| 449 | A 1164620060 | SEAL RING |
| 453 | N 000625006004 | GROOVED BALL BEARING |
| 457 | N 000471020000 | LOCK RING |
| 461 | A 1114620628 | BEARING RING |
| 465 | N 000912006014 | SCREW |
| 469 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 469 | N 000137006204 | SPRING WASHER |
| 473 | N 000472042001 | LOCK RING |
| 477 | A 0015458524 | SWITCH,AUTOMATIC |
| 481 | A 0035457924 | SWITCH,AUTOMATIC |
| A 0035452728 | PLUG | |
| 485 | A 0035453728 | PLUG |
| Repalced by: A 0125450328 | ||
| 485 | A 0125450328 | PLUG HOUSING |
| Repalced by: A 0095455628 | ||
| 485 | A 0095455628 | PLUG HOUSING |
| A 0095455728 | COVER | |
| N 914025004103 | COMBINATION BOLT | |
| SWITCH TO BEARING BODY | ||
| 489 | A 1074640143 | CONTACT PIECE |
| 493 | A 1084620196 | BOOT |
| A 1154621396 | BOOT | |
| 497 | A 1154621396 | BOOT |
| A 1084620496 | BOOT | |
| CABLE PASSAGE THRU STEERING COLUMN JACKET TUBE | ||
| 501 | A 0004640928 | CONTACT RING |
| 505 | A 0009811018 | ROLLER BEARING |
| 509 | A 1154600897 | PROTECTIVE SLEEVE |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| 513 | A 1154640017 | CONTACT PLATE |
| 517 | N 900055032200 | LOCK RING |
| 521 | A 1164620096 | BOOT |
| A 1164620096 | BOOT | |
| 525 | A 1124600203 | STEERING WHEEL |
| 529 | A 1164600003 | STEERING WHEEL |
| A 1169900121 | SCREW | |
| TO 116 460 00 03 | ||
| A 1169935501 | SPRING | |
| TO 116 460 00 03 | ||
| A 1169935101 | SPRING | |
| TO 116 460 00 03 | ||
| A 1164640050 | BUSHING | |
| TO 116 460 00 03 | ||
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| TO 116 460 00 03 | ||
| A 1164640077 | PROTECTIVE RING | |
| TO 116 460 00 03 | ||
| A 1169901040 | WASHER | |
| TO 116 460 00 03 | ||
| 533 | A 1114641236 | HUB |
| 537 | A 1004640115 | SIGNAL RING |
| 541 | A 1154640515 | SIGNAL RING |
| 545 | A 1114640073 | LOCK |
| 549 | A 1114640172 | NUT |
| 553 | A 1114640024 | INSULATING PART |
| 557 | A 1154640134 | BRACKET |
| 561 | N 007987003122 | SCREW |
| 565 | A 1154640024 | INSULATING PART |
| 569 | N 000137008204 | SPRING WASHER |
| STEERING WHEEL TO COLLAPSIBLE COLLAR | ||
| 573 | N 000934008013 | NUT |
| STEERING WHEEL TO COLLAPSIBLE COLLAR | ||
| 577 | N 000137014201 | SPRING WASHER |
| 581 | N 000936014010 | NUT |
| 585 | A 1114600642 | COVER PLATE |
| A 1154640342 | PAD | |
| 589 | A 0004622430 | STEERING LOCK |
| 593 | A 0004624930 | STEERING LOCK |
| 593 | A 0004624930 | STEERING LOCK |
| 593 | A 0004624930 | STEERING LOCK |
| 593 | A 0004624930 | STEERING LOCK |
| A 0004625330 | STEERING LOCK | |
| A 0004625330 | STEERING LOCK | |
| A 0004625330 | STEERING LOCK | |
| A 0004625330 | STEERING LOCK | |
| A 0004626830 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 0004628030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620830 | STEERING LOCK | |
| Repalced by: A 1164621030 | ||
| A 1164621030 | STEERING LOCK | |
| 597 | A 0004620693 | IGNITION SWITCH |
| 601 | A 1164620093 | IGNITION SWITCH |
| N 000084004105 | SCREW | |
| 605 | A 0004620923 | COVER |
| 605 | A 0004620923 | COVER |
| 605 | A 0004620923 | COVER |
| 605 | A 0004620923 | COVER |
| 605 | A 0004621023 | COVER |
| 605 | A 0004621323 | COVER |
| 609 | A 0004624830 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| 609 | A 0004624830 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| 609 | A 0004624830 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| 609 | A 0004624830 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| 609 | A 0004626630 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| 609 | A 0004627930 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 1164620079 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004620332 | KEY | |
| BLANK | ||
| A 1114620132 | KEY | |
| N 009046020000 | SPLIT RING | |
| SEE GROUP 72 | ||
| A 1154600322 | CLAMPING PIECE | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 000931006094 | SCREW | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 912004006102 | LOCK WASHER | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000931006096 | SCREW | |
| IN STEERING LOCK BRACKET | ||
| N 000931006096 | SCREW | |
| IN STEERING LOCK BRACKET | ||
| N 000931006096 | SCREW | |
| IN STEERING LOCK BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| IN STEERING LOCK BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| IN STEERING LOCK BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| IN STEERING LOCK BRACKET | ||
| 613 | N 000933008025 | SCREW |
| Repalced by: N 000933008145 | ||
| 613 | N 000933008145 | SCREW |
| 617 | N 000931008244 | SCREW |
| 621 | N 000127008200 | LOCK WASHER |
| 625 | N 000125008407 | WASHER |
| 629 | A 0029907701 | SCREW |
| 629 | A 0029907701 | SCREW |
| 633 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 633 | N 304017008018 | SCREW |
| 633 | N 304017008018 | SCREW |
| 637 | N 000127008203 | LOCK WASHER |
| 641 | N 009021008204 | WASHER |
| 645 | A 1084620095 | COVERING |
| STEERING PASSAGE | ||
| 649 | A 1084600295 | COVERING |
| STEERING PASSAGE | ||
| 653 | N 000931006159 | SCREW |
| 657 | N 000125006421 | WASHER |
| 661 | N 912004006102 | LOCK WASHER |
| 665 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 665 | N 304032006008 | NUT |
| 669 | A 1114620880 | GASKET |
| 673 | A 1114621380 | GASKET |
| 677 | A 1084620280 | GASKET |
| A 1114620175 | WASHER | |
| 681 | N 914007006004 | COMBINATION BOLT |
| 685 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 685 | A 0009902291 | NUT RETAINER |
| 689 | A 1114600765 | STRAP |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| A 1114600665 | STRAP | |
| STEERING COLUMN JACKET TUBE TO CROSS MEMBER | ||
| 693 | N 000125008407 | WASHER |
| 697 | N 000985008001 | NUT |
| 701 | A 1104600205 | DRAG LINK |
| A 1104600405 | DRAG LINK | |
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 705 | A 0003300485 | REPAIR KIT |
| DRAG LINK | ||
| 709 | A 1114601319 | INTERMEDIATE LEVER |
| 709 | A 1114601319 | INTERMEDIATE LEVER |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1084630510 | STEERING INTERMEDIATE ARM | |
| A 1204630250 | BUSHING | |
| 713 | A 1114630060 | SEAL RING |
| 713 | A 1114630060 | SEAL RING |
| 717 | A 1114630133 | CAP |
| 717 | A 1114630133 | CAP |
| 721 | A 1119930401 | SPRING |
| 721 | A 1119930401 | SPRING |
| 725 | A 1114630062 | THRUST WASHER |
| 725 | A 1114630062 | THRUST WASHER |
| 729 | A 1819940010 | LOCK |
| 729 | A 1819940010 | LOCK |
| 733 | N 071412008100 | GREASE NIPPLE |
| 733 | N 071412008100 | GREASE NIPPLE |
| 737 | A 1114630090 | PROTECTIVE PLATE |
| 737 | A 1114630090 | PROTECTIVE PLATE |
| 737 | A 1114630090 | PROTECTIVE PLATE |
| A 1084630090 | PROTECTIVE PLATE | |
| A 1084630090 | PROTECTIVE PLATE | |
| A 1084630090 | PROTECTIVE PLATE | |
| A 1074630090 | PROTECTIVE PLATE | |
| 741 | A 1114631140 | BRACKET |
| N 000933006026 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| 745 | A 1209900155 | NUT |
| N 000094002077 | COTTER PIN | |
| A 1114631056 | DUST CAP | |
| A 1114630052 | SPACER WASHER | |
| Repalced by: A 1244630077 | ||
| A 1244630077 | WASHER | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| 749 | A 1114600050 | REPAIR KIT |
| STEERING INTERMEDIATE ARM | ||
| 749 | A 1114600050 | REPAIR KIT |
| STEERING INTERMEDIATE ARM | ||
| 749 | A 1114600050 | REPAIR KIT |
| STEERING INTERMEDIATE ARM | ||
| A 1244600019 | REPAIR KIT | |
| Repalced by: A 1264600819 | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| 752 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 755 | N 000960010037 | SCREW |
| 759 | N 000137010201 | SPRING WASHER |
| N 000936010010 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
