Transporto priemonė: 280 SE; VIN numerio dalis: 108018
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

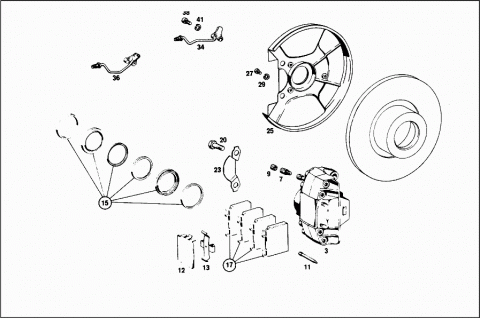

| A 0014210098 | CALIPER | |
| Repalced by: A 0014210298 | ||
| 003 | A 0014210298 | CALIPER |
| Repalced by: A 0014218198 | ||
| A 0014218198 | CALIPER | |
| LEFT;TEVES;LESS LINING | ||
| A 0014212698 | CALIPER | |
| Repalced by: A 0024215498 | ||
| A 0024215498 | CALIPER | |
| LEFT;TEVES;LESS LINING | ||
| A 0014210198 | CALIPER | |
| Repalced by: A 0014210398 | ||
| A 0014210398 | CALIPER | |
| Repalced by: A 0014218298 | ||
| A 0014218298 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0014212798 | CALIPER | |
| Repalced by: A 0024215598 | ||
| A 0024215598 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0004213583 | PISTON | |
| 007 | A 0004201755 | BLEEDER VALVE |
| 009 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 009 | A 0004210887 | PROTECTIVE CAP |
| 011 | A 0009910360 | DOWEL PIN |
| A 0009911260 | DOWEL PIN | |
| 012 | A 0004210220 | PROTECTIVE PLATE |
| A 0004210291 | SPRING | |
| 013 | A 0004210691 | SPRING |
| A 0014217398 | CALIPER | |
| LEFT;BENDIX;LESS LINING | ||
| A 0014217498 | CALIPER | |
| RIGHT;BENDIX;LESS LINING | ||
| A 0004214483 | PISTON | |
| A 0009911860 | DOWEL PIN | |
| Repalced by: A 0009912660 | ||
| A 0009912660 | DOWEL PIN | |
| A 0004211291 | SPRING | |
| A 0004210273 | LOCK | |
| Repalced by: A 0004210573 | ||
| A 0004210573 | LOCK | |
| A 0004210373 | LOCK | |
| Repalced by: A 0004210573 | ||
| A 0004210573 | LOCK | |
| A 0004210520 | PROTECTIVE PLATE | |
| A 0004204655 | BLEEDER VALVE | |
| 015 | A 0005866442 | REPAIR KIT |
| TEVES | ||
| A 0015860042 | REPAIR KIT | |
| BENDIX | ||
| 017 | A 0014207720 | BRAKE PAD |
| PARTS KIT | ||
| A 0014207720 | BRAKE PAD | |
| PARTS KIT | ||
| 020 | A 1114210371 | SCREW |
| A 1094210071 | SCREW | |
| 023 | A 1159940732 | LOCK |
| 025 | A 1084200244 | PROTECTIVE PLATE |
| LEFT | ||
| A 1084200344 | PROTECTIVE PLATE | |
| RIGHT | ||
| A 1094201344 | PROTECTIVE PLATE | |
| LEFT AND RIGHT | ||
| 027 | N 000912006040 | SCREW |
| 029 | N 007980006000 | LOCK WASHER |
| 034 | A 1084200028 | LINE |
| LEFT | ||
| 036 | A 1084200128 | LINE |
| RIGHT | ||
| 038 | N 000912006063 | SCREW |
| Repalced by: N 000912006170 | ||
| 038 | N 000912006170 | SCREW |
| BRAKE LINE TO STEERING KNUCKLE | ||
| N 000912006064 | SCREW | |
| BRAKE LINE TO STEERING KNUCKLE | ||
| 041 | N 007980006000 | LOCK WASHER |
| BRAKE LINE TO STEERING KNUCKLE | ||
| A 0004202983 | CALIPER | |
| Repalced by: A 0004234683 | ||
| A 0004203083 | CALIPER | |
| Repalced by: A 0004234683 | ||
| A 0004203883 | CALIPER | |
| Repalced by: A 0004204683 | ||
| 044 | A 0004204683 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| 044 | A 0004204683 | CALIPER |
| LEFT;TEVES;LESS LINING | ||
| A 0004233698 | CALIPER | |
| Repalced by: A 0004239598 | ||
| A 0004234298 | CALIPER | |
| Repalced by: A 0004239598 | ||
| A 0004239598 | CALIPER | |
| LEFT;TEVES;LESS LINING | ||
| A 0004203983 | CALIPER | |
| Repalced by: A 0004204783 | ||
| A 0004204783 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0004204783 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| A 0004233798 | CALIPER | |
| Repalced by: A 0004239698 | ||
| A 0004234398 | CALIPER | |
| Repalced by: A 0004239698 | ||
| A 0004239698 | CALIPER | |
| RIGHT,TEVES,LESS LINING | ||
| 047 | A 0004201655 | BLEEDER VALVE |
| 047 | A 0004201655 | BLEEDER VALVE |
| A 0004201955 | BLEEDER VALVE | |
| A 0004201955 | BLEEDER VALVE | |
| 049 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 049 | A 0004210887 | PROTECTIVE CAP |
| 053 | A 0004232983 | PISTON |
| 053 | A 0004232983 | PISTON |
| A 0004233483 | PISTON | |
| A 0004233483 | PISTON | |
| 056 | A 0009910360 | DOWEL PIN |
| 058 | A 0004211791 | SPRING |
| 061 | A 0005861543 | REPAIR KIT |
| 061 | A 0005861543 | REPAIR KIT |
| A 0005865343 | REPAIR KIT | |
| A 0005865343 | REPAIR KIT | |
| 063 | A 0004207020 | BRAKE PAD |
| Repalced by: A 0014207920 | ||
| 063 | A 0014207920 | BRAKE PAD |
| PARTS KIT | ||
| A 0014207920 | BRAKE PAD | |
| PARTS KIT | ||
| 066 | A 1084200286 | BRACKET |
| 068 | N 000960012043 | SCREW |
| 070 | A 1154230273 | LOCK |
| 073 | A 1084230020 | PROTECTIVE PLATE |
| A 0004200217 | BRAKE ANCHOR PLATE | |
| Repalced by: A 1084200117 | ||
| 076 | A 1084200117 | BRAKE ANCHOR PLATE |
| 076 | A 1084200117 | BRAKE ANCHOR PLATE |
| 078 | A 0019973446 | SEAL RING |
| 084 | A 0019974746 | SEAL RING |
| 086 | A 1104230079 | GASKET |
| 089 | A 1083570071 | SCREW |
| 091 | N 006797008120 | TOOTHED WASHER |
| 093 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 093 | N 304032008006 | NUT |
| 096 | A 1264200120 | BRAKE SHOE |
| 099 | A 1234200073 | SCREW |
| 100 | A 1164230050 | BUSHING |
| A 1084200081 | LEVER | |
| A 1084270089 | CONNECTOR | |
| A 1084270174 | PIN | |
| 105 | A 1145860142 | REPAIR KIT |
| TURNBUCKLE | ||
| A 1154201189 | SHACKLE | |
| A 1084270074 | PIN | |
| 107 | A 1084230192 | SPRING |
| Repalced by: A 9019931310 | ||
| 107 | A 9019931310 | SPRING |
| A 0004230692 | SPRING | |
| 109 | A 1084230792 | SPRING |
| 109 | A 1084230792 | SPRING |
| 111 | A 0004231188 | THRUST PIN |
| A 0004232193 | SPRING | |
| 113 | A 1084230092 | SPRING |
| 113 | A 1084230092 | SPRING |

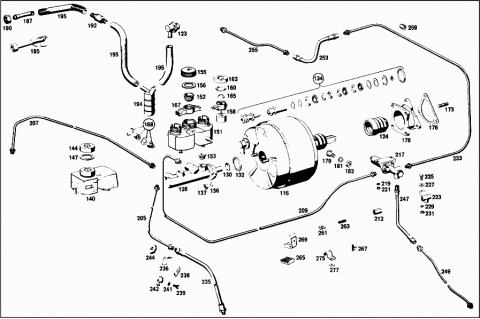

| 116 | A 0004305530 | BRAKE BOOSTER ASSEMBLY |
| 116 | A 0004305530 | BRAKE BOOSTER ASSEMBLY |
| 116 | A 0004305530 | BRAKE BOOSTER ASSEMBLY |
| A 0014308430 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024306830 | ||
| A 0024306830 | BRAKE BOOSTER ASSEMBLY | |
| A 0024306830 | BRAKE BOOSTER ASSEMBLY | |
| A 0024306830 | BRAKE BOOSTER ASSEMBLY | |
| A 0024306830 | BRAKE BOOSTER ASSEMBLY | |
| A 0024306830 | BRAKE BOOSTER ASSEMBLY | |
| A 0004350912 | FILTER | |
| A 0004350912 | FILTER | |
| A 0004350912 | FILTER | |
| A 0015864143 | REPAIR KIT | |
| A 0015864143 | REPAIR KIT | |
| A 0015864143 | REPAIR KIT | |
| 123 | A 0004303681 | CONNECTION HOUSING |
| 123 | A 0004303681 | CONNECTION HOUSING |
| 123 | A 0004303681 | CONNECTION HOUSING |
| 124 | A 0004312987 | PROTECTIVE CAP |
| 124 | A 0004312987 | PROTECTIVE CAP |
| 124 | A 0004312987 | PROTECTIVE CAP |
| A 0004314387 | PROTECTIVE CAP | |
| A 0004314387 | PROTECTIVE CAP | |
| A 0004314387 | PROTECTIVE CAP | |
| A 0014308901 | BRAKE MASTER CYLINDER | |
| TEVES | ||
| 128 | A 0024302801 | BRAKE MASTER CYLINDER |
| 128 | A 0024302801 | BRAKE MASTER CYLINDER |
| A 0034302201 | BRAKE MASTER CYLINDER | |
| BENDIX | ||
| 130 | N 000472028000 | LOCK RING |
| 132 | A 0049973245 | SEAL RING |
| A 0005869143 | REPAIR KIT | |
| TEVES | ||
| 134 | A 0015869343 | REPAIR KIT |
| TEVES | ||
| A 0015865543 | REPAIR KIT | |
| MASTER CYLINDER BENDIX | ||
| 136 | N 000127008203 | LOCK WASHER |
| 137 | N 000934008013 | NUT |
| 140 | A 0004314502 | RESERVOIR |
| TEVES | ||
| A 0004314334 | STRAINER | |
| A 0009870345 | LOCKING CAP | |
| N 900288010001 | CLAMP | |
| 144 | A 0004315433 | FILLER CAP |
| 147 | A 0009972940 | SEAL RING |
| A 0014314202 | RESERVOIR | |
| WITH CONTACT INSERT,BENDIX | ||
| A 0004314334 | STRAINER | |
| A 0004315433 | FILLER CAP | |
| A 0004319760 | SEAL RING | |
| A 0004316402 | RESERVOIR | |
| Repalced by: A 0014314202 | ||
| 151 | A 0014314202 | RESERVOIR |
| TEVES | ||
| 151 | A 0014314202 | RESERVOIR |
| TEVES | ||
| 152 | A 0004314334 | STRAINER |
| TEVES | ||
| 152 | A 0004314334 | STRAINER |
| TEVES | ||
| 153 | A 0004310935 | CONNECTOR |
| TEVES | ||
| 153 | A 0004310935 | CONNECTOR |
| TEVES | ||
| 155 | A 0004315433 | FILLER CAP |
| TEVES | ||
| 155 | A 0004315433 | FILLER CAP |
| TEVES | ||
| 156 | A 0009972940 | SEAL RING |
| 156 | A 0009972940 | SEAL RING |
| 158 | A 0015426317 | SENDER UNIT |
| FRONT SUPPLY CHAMBER | ||
| 158 | A 0015426317 | SENDER UNIT |
| FRONT SUPPLY CHAMBER | ||
| A 0025429917 | SENDER UNIT | |
| REAR SUPPLY CHAMBER | ||
| 160 | A 0004317560 | SEAL RING |
| 160 | A 0004317560 | SEAL RING |
| 163 | A 0004311633 | FILLER CAP |
| 163 | A 0004311633 | FILLER CAP |
| 165 | A 0004318260 | SEAL RING |
| 165 | A 0004318260 | SEAL RING |
| 167 | A 0004310062 | COVERING |
| 167 | A 0004310062 | COVERING |
| 168 | A 0005860143 | REPAIR KIT |
| RESERVOIR TO MASTER CYLINDER | ||
| A 0005860243 | REPAIR KIT | |
| 170 | A 1104300045 | FLANGE |
| Repalced by: A 1084300145 | ||
| A 1084300145 | FLANGE | |
| A 1084300145 | FLANGE | |
| A 1104300145 | FLANGE | |
| A 1104300145 | FLANGE | |
| A 1084300345 | FLANGE | |
| A 1084300345 | FLANGE | |
| 173 | N 000835008064 | STUD |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| N 000934008013 | NUT | |
| 176 | A 1084310080 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 176 | A 1084310080 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| A 1084310180 | GASKET | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| A 1084310180 | GASKET | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 304017008021 | SCREW | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 000137008200 | SPRING WASHER | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| N 000934008013 | NUT | |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL | ||
| 179 | A 1102950571 | SCREW |
| Repalced by: A 1152910350 | ||
| 181 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 183 | N 000936008012 | NUT |
| PISTON ROD TO BRAKE PEDAL | ||
| A 1094300629 | LINE | |
| FROM INTAKE MANIFOLD AT VACUUM LINE TO BRAKE BOOSTER | ||
| A 1094300829 | LINE | |
| FROM INTAKE MANIFOLD AT VACUUM LINE TO BRAKE BOOSTER | ||
| 185 | A 1094301029 | LINE |
| FROM INTAKE MANIFOLD AT VACUUM LINE TO BRAKE BOOSTER | ||
| A 1104300229 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1104300229 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1104300129 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1104300129 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| 187 | A 1114300729 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| 187 | A 1114300729 | LINE |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1124300229 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1084301529 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1084301629 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1084301929 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1084301729 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1094301729 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1094301529 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1084300529 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1084301829 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1094300929 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1094301629 | LINE | |
| FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY | ||
| A 1999900088 | BANJO UNION | |
| N 915036012101 | HOLLOW SCREW | |
| N 007603016403 | SEAL RING | |
| 190 | N 915017012200 | UNION NUT |
| 190 | N 915017012200 | UNION NUT |
| 192 | A 0004313607 | VALVE |
| 192 | A 0004313607 | VALVE |
| 194 | A 1114350227 | TRAP |
| 194 | A 1114350227 | TRAP |
| 195 | A 0004352182 | HOSE |
| 195 | A 0004352182 | HOSE |
| N 900262005100 | LOOM TIE | |
| N 900262005100 | LOOM TIE | |
| N 900263005000 | STRAP | |
| 170 MM | ||
| N 900263005000 | STRAP | |
| 170 MM | ||
| A 0009950065 | CLAMP | |
| A 0009950065 | CLAMP | |
| 205 | A 1234205528 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 205 | A 1234205528 | LINE |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 1234205428 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 1234205428 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 1114208128 | LINE | |
| Repalced by: A 1094201828 | ||
| A 1094201828 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 1094201828 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 1234207228 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| A 1234207128 | LINE | |
| FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL | ||
| 207 | A 1234207028 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| 207 | A 1234207028 | LINE |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234207028 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234207128 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234207128 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234205128 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234205128 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234205428 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| A 1234205428 | LINE | |
| FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL | ||
| 209 | A 1084200228 | LINE |
| Repalced by: A 1084200728 | ||
| 209 | A 1084200728 | LINE |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| A 1234208528 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| A 1234208528 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| A 1234208128 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| A 1234208628 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| A 1234208228 | LINE | |
| FROM MASTER CYLINDER TO BRAKE PRESSURE REGULATOR | ||
| A 1234208628 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR REAR | ||
| A 1234208728 | LINE | |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR REAR | ||
| A 1234206228 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| A 1234206728 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| A 1234206728 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| A 1234207028 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| A 1234207028 | LINE | |
| FROM MASTER CYLINDER TO COUPLING | ||
| 212 | A 1214290134 | ADAPTER FITTING |
| A 1234208828 | LINE | |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| A 1234208828 | LINE | |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| A 1234208828 | LINE | |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| A 1234207828 | LINE | |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| A 1234208928 | LINE | |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| A 1234207328 | LINE | |
| FROM ADAPTER FITTING TO BRAKE PRESSURE REGULATOR | ||
| A 1234208228 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234207928 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208328 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208328 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234207828 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208028 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234207928 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| A 1234208328 | LINE | |
| FROM COUPLING TO REAR DISTRIBUTOR | ||
| 217 | A 0004313512 | BRAKE PRESSURE REGULATOR |
| 217 | A 0004313512 | BRAKE PRESSURE REGULATOR |
| 219 | N 000127008203 | LOCK WASHER |
| 219 | N 000127008203 | LOCK WASHER |
| 221 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 221 | N 304032008006 | NUT |
| 221 | N 304032008006 | NUT |
| 223 | A 0004283724 | DISTRIBUTOR |
| REAR | ||
| A 0004284224 | DISTRIBUTOR | |
| REAR | ||
| 225 | A 1204200227 | SCREW |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 225 | A 1204200227 | SCREW |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 227 | A 0009873841 | RUBBER RING |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 227 | A 0009873841 | RUBBER RING |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 229 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 229 | N 912004006102 | LOCK WASHER |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 231 | N 000934006007 | NUT |
| DISTRIBUTOR TO LUGGAGE COMPARTMENT FLOOR | ||
| 233 | A 1234206528 | LINE |
| 233 | A 1234206528 | LINE |
| A 1234206228 | LINE | |
| A 1234206228 | LINE | |
| 235 | A 1234280535 | BRAKE HOSE |
| 236 | A 0004280673 | RETAINING SPRING |
| 238 | A 1104280073 | LOCK |
| 239 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 239 | N 304017006018 | SCREW |
| 241 | N 000137006204 | SPRING WASHER |
| 242 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 242 | A 0019906791 | NUT RETAINER |
| 244 | A 1109970781 | GROMMET |
| A 0019971481 | GROMMET | |
| 247 | A 0004287935 | BRAKE HOSE |
| LEFT | ||
| 247 | A 0004287935 | BRAKE HOSE |
| LEFT | ||
| A 0004282935 | BRAKE HOSE | |
| LEFT | ||
| A 0004282935 | BRAKE HOSE | |
| LEFT | ||
| A 0004280673 | RETAINING SPRING | |
| 249 | A 1234206028 | LINE |
| 253 | A 0004283135 | BRAKE HOSE |
| Repalced by: A 0004282635 | ||
| 253 | A 0004282635 | BRAKE HOSE |
| RIGHT | ||
| A 1234205928 | LINE | |
| RIGHT | ||
| A 0004280673 | RETAINING SPRING | |
| 255 | A 1234205928 | LINE |
| A 1234206228 | LINE | |
| 259 | A 1263280181 | BUFFER |
| 20 MM | ||
| N 900262009100 | LOOM TIE | |
| BRAKE LINE TO AXLE TUBE | ||
| N 900263009000 | STRAP | |
| BRAKE LINE TO AXLE TUBE | ||
| 261 | A 0009883378 | CLIP |
| BRAKE LINE TO FIRE WALL REINFORCEMENT, WHEEL ARCH PANEL AND FRAME FLOOR UNIT | ||
| 263 | A 0009870932 | HOSE |
| BRAKE LINE TO FIRE WALL REINFORCEMENT, WHEEL ARCH PANEL AND FRAME FLOOR UNIT | ||
| 25 MM | ||
| 265 | A 1104280185 | DAMPING STRIP |
| 267 | A 1159950101 | CLAMP |
| N 072571001035 | CLAMP | |
| Repalced by: A 1279950020 | ||
| A 1279950020 | CLAMP | |
| 269 | A 2014280040 | BRACKET |
| N 007976004217 | SHEET METAL SCREW | |
| Repalced by: N 914128004303 | ||
| N 914128004303 | SHEET METAL SCREW | |
| N 007976005203 | SHEET METAL SCREW | |
| A 1089950520 | CLAMP | |
| 275 | A 1089950620 | CLAMP |
| 277 | A 0009873841 | RUBBER RING |
| A 1204200227 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| A 0009870415 | PLUG | |
| TO LOCK SQUARE HOLES IN TUNNEL | ||
| A 1089900052 | NUT | |
| A 1089900052 | NUT | |

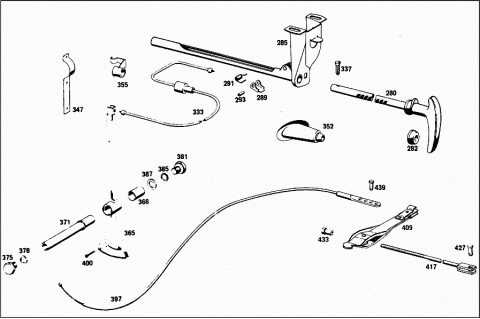

| 280 | A 1084200188 | RATCHET ROD |
| A 1114200888 | RATCHET ROD | |
| 282 | A 1124270086 | DAMPING RING |
| A 1104200477 | GUIDE | |
| A 1104200477 | GUIDE | |
| Repalced by: A 1084200677 | ||
| 285 | A 1084200677 | GUIDE |
| 285 | A 1084200677 | GUIDE |
| 287 | A 1084200277 | GUIDE |
| 289 | A 1204270115 | PAWL |
| 291 | A 1209930020 | SPRING |
| 293 | A 0009910081 | CLINCH-BOLT |
| 295 | A 1084270081 | HOUSING |
| A 1084270181 | HOUSING | |
| N 000931006005 | SCREW | |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| N 000137006204 | SPRING WASHER | |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| A 0009907191 | NUT RETAINER | |
| CABLE PULLEY BEARING TO FIRE WALL | ||

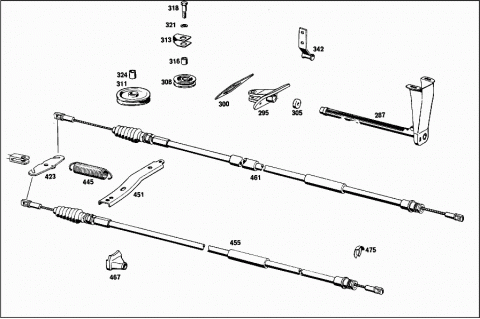

| 300 | A 1084270084 | SHIM |
| CABLE PULLEY BEARING TO FIRE WALL | ||
| 305 | A 1214270059 | SEAL WASHER |
| 308 | A 1084270142 | CABLE PULLEY |
| 311 | A 1104270142 | CABLE PULLEY |
| 313 | A 1104270246 | GUIDE PLATE |
| 316 | A 1874270153 | SPACER TUBE |
| 318 | A 1804270174 | PIN |
| 321 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 321 | N 000137008212 | SPRING WASHER |
| 324 | A 1104270153 | SPACER TUBE |
| N 000931006016 | SCREW | |
| CABLE PULLEY TO LEFT BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CABLE PULLEY TO LEFT BRACKET | ||
| N 000934006007 | NUT | |
| CABLE PULLEY TO LEFT BRACKET | ||
| N 000094003004 | COTTER PIN | |
| BRAKE CABLE TO HAND BRAKE LEVER | ||
| 333 | A 1114203285 | BRAKE CABLE |
| A 1084200585 | BRAKE CABLE | |
| 337 | A 1209910061 | DOWEL PIN |
| 342 | A 1094200586 | BRACKET |
| N 000933006056 | SCREW | |
| BRACKET TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO FIRE WALL | ||
| A 0009905991 | NUT RETAINER | |
| BRACKET TO FIRE WALL | ||
| A 1114270284 | SHIM | |
| 347 | A 1094270141 | BRACKET |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| N 912004006102 | LOCK WASHER | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| N 000934006007 | NUT | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| N 000125006421 | WASHER | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| N 912004006102 | LOCK WASHER | |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| 352 | A 1104270096 | CUP |
| GUIDE TUBE BEARING BRACKET TO PEDAL ASSEMBLY | ||
| 355 | A 1124200490 | GUIDE |
| A 1094200090 | GUIDE | |
| 365 | A 1124200412 | BRAKE LEVER |
| 368 | A 1104270050 | BUSHING |
| 371 | A 1104270712 | GUIDE |
| A 1124270312 | GUIDE | |
| 375 | N 000961010012 | SCREW |
| 378 | N 912004010102 | LOCK WASHER |
| 381 | N 000961010012 | SCREW |
| 385 | N 912004010102 | LOCK WASHER |
| 387 | N 000125010504 | WASHER |
| 397 | A 1084200185 | BRAKE CABLE |
| CENTRAL | ||
| A 1094200185 | BRAKE CABLE | |
| 400 | N 000094003004 | COTTER PIN |
| BRAKE CABLE TO HAND BRAKE LEVER | ||
| N 000094003000 | COTTER PIN | |
| CENTRAL BRAKE CABLE TO CABLE GUIDE | ||
| 409 | A 1104201442 | BRAKE LEVER |
| 417 | A 1084200673 | SCREW |
| BRAKE READJUSTMENT | ||
| 423 | A 1104270113 | LEVER |
| 427 | N 001434008031 | PIN |
| CLAMPING BOLT TO COMPENSATING LEVER | ||
| N 000094002059 | COTTER PIN | |
| CLAMPING BOLT TO COMPENSATING LEVER | ||
| 433 | A 1084270072 | NUT |
| N 000094002059 | COTTER PIN | |
| IN CLAMPING BOLT | ||
| 439 | N 001434006034 | PIN |
| BRAKE CABLE TO INTERMEDIATE LEVER | ||
| N 000094001503 | COTTER PIN | |
| BRAKE CABLE TO INTERMEDIATE LEVER | ||
| N 000094003226 | COTTER PIN | |
| INTERMEDIATE LEVER TO TROUGH-LINE GUIDE | ||
| 445 | A 1109931110 | SPRING |
| 451 | A 1104270941 | BRACKET |
| RELEASE SPRING | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| RELEASE SPRING BRACKET TO TUNNEL | ||
| N 912004006102 | LOCK WASHER | |
| RELEASE SPRING BRACKET TO TUNNEL | ||
| N 000934006007 | NUT | |
| RELEASE SPRING BRACKET TO TUNNEL | ||
| A 1084200385 | BRAKE CABLE | |
| Repalced by: A 1084200785 | ||
| 455 | A 1084200785 | BRAKE CABLE |
| REAR LEFT | ||
| A 1084200485 | BRAKE CABLE | |
| Repalced by: A 1084200885 | ||
| 461 | A 1084200885 | BRAKE CABLE |
| RIGHT | ||
| A 1084270396 | CUP | |
| 467 | A 1084270596 | CUP |
| 467 | A 1084270596 | CUP |
| A 1084270496 | CUP | |
| A 1084270696 | CUP | |
| A 1084270696 | CUP | |
| 475 | N 912001016000 | LOCK |
| N 900262009100 | LOOM TIE | |
| REAR BRAKE CABLE TO AXLE TUBE | ||
| N 900263009000 | STRAP | |
| REAR BRAKE CABLE TO AXLE TUBE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
