Transporto priemonė: 280 SE; VIN numerio dalis: 108018
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

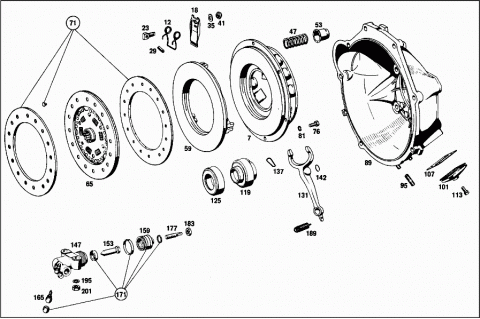

| 007 | A 0002509604 | CLUTCH PRESSURE PLATE |
| 012 | A 0002520427 | SPRING |
| 018 | A 0002524213 | RELEASE LEVER |
| 023 | A 0002520374 | PIN |
| 029 | N 001481006002 | CLAMPING SLEEVE |
| 035 | A 0002520151 | SPACER RING |
| 041 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 041 | A 0002522772 | NUT |
| 047 | A 0002521820 | PRESSURE SPRING |
| 053 | A 0002520335 | SLEEVE |
| 059 | A 0002522106 | CLUTCH PRESSURE PLATE |
| 065 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 065 | A 0102502603 | CLUTCH DISC |
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING TO CLUTCH DISC | ||
| 071 | A 1145860025 | REPAIR KIT |
| 076 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 076 | N 304017008021 | SCREW |
| 081 | N 912004008102 | LOCK WASHER |
| 089 | A 1112502005 | HOUSING |
| 095 | N 000835008062 | STUD |
| 101 | A 1202540097 | BOOT |
| 107 | A 1202540058 | SEAL HOLDER |
| 113 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 113 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 119 | A 1112500115 | RELEASE BEARING |
| A 1112500215 | RELEASE BEARING | |
| 125 | A 0009814325 | BALL BEARING |
| A 0019815225 | BALL BEARING | |
| 131 | A 1112930211 | RELEASE YOKE |
| 137 | A 3199930025 | SPRING |
| 142 | N 071805016300 | SNAP RING |
| 147 | A 0002951907 | SLAVE CYLINDER |
| 153 | A 0002950374 | PIN |
| A 0002950583 | BOOT | |
| A 0002950583 | BOOT | |
| 159 | A 0002951683 | BOOT |
| 159 | A 0002951683 | BOOT |
| 165 | A 0002950120 | VALVE |
| A 0004210878 | BALANCE WEIGHT | |
| A 0005860929 | REPAIR KIT | |
| A 0005860929 | REPAIR KIT | |
| 171 | A 0005861329 | REPAIR KIT |
| 171 | A 0005861329 | REPAIR KIT |
| 177 | A 1112950733 | ROD |
| 183 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 183 | N 304035008001 | NUT |
| 189 | A 1119931110 | SPRING |
| 195 | N 912004008102 | LOCK WASHER |
| 201 | N 000934008013 | NUT |

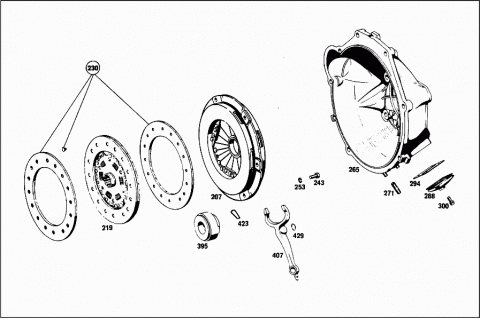

| 207 | A 0012504204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032509104 | ||
| 207 | A 0032509104 | CLUTCH PRESSURE PLATE |
| A 0012507704 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032504704 | ||
| A 0022502204 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032504704 | ||
| 213 | A 0032504704 | CLUTCH PRESSURE PLATE |
| 219 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 219 | A 0102502603 | CLUTCH DISC |

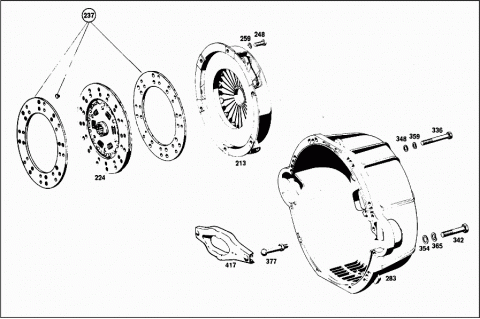

| 224 | A 0052503803 | CLUTCH DISC |
| Repalced by: A 0102503103 | ||
| 224 | A 0102503103 | CLUTCH DISC |
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING TO CLUTCH DISC | ||
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING TO CLUTCH DISC | ||
| 230 | A 1145860025 | REPAIR KIT |
| 230 | A 1145860025 | REPAIR KIT |
| 237 | A 1095860025 | REPAIR KIT |
| 243 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 243 | N 304017008021 | SCREW |
| 248 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 248 | N 304017008021 | SCREW |
| 253 | N 912004008102 | LOCK WASHER |
| 259 | N 912004008102 | LOCK WASHER |
| 265 | A 1112502005 | HOUSING |
| 271 | N 000835008062 | STUD |
| 277 | A 1152512601 | BELL HOUSING |
| 283 | A 1172512501 | BELL HOUSING |
| 288 | A 1202540097 | BOOT |
| 294 | A 1202540058 | SEAL HOLDER |
| 300 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 300 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012071 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 307 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 307 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 314 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 314 | N 304032010002 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 314 | N 304032010002 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 319 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 319 | N 304017010050 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 325 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 325 | N 000125010532 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 331 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 336 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 336 | A 0019909404 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010239 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010271 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 342 | N 000931012149 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012133 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012137 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 348 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 348 | N 000125010532 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 354 | N 000125013008 | WASHER |
| 359 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 365 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 365 | N 000137012206 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 371 | A 1159910115 | BALL PIVOT |
| 377 | A 1179910315 | BALL PIVOT |
| 383 | N 000137010201 | SPRING WASHER |
| 383 | N 000137010201 | SPRING WASHER |
| 389 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 389 | N 304035010001 | NUT |
| 389 | N 304035010001 | NUT |
| 395 | A 0002500515 | RELEASE BEARING |
| 401 | A 0002505515 | RELEASE BEARING |
| 401 | A 0002506815 | RELEASE BEARING |
| 407 | A 1112930211 | RELEASE YOKE |
| 417 | A 1152900029 | RELEASE YOKE |
| 423 | A 3199930025 | SPRING |
| 429 | N 071805016300 | SNAP RING |
| A 0002954207 | SLAVE CYLINDER | |
| A 0002950473 | LOCK | |
| Repalced by: A 0005862029 | ||
| A 0005862029 | REPAIR KIT | |
| A 0002950573 | LOCK | |
| A 0002951683 | BOOT | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| 435 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 435 | A 0012956807 | SLAVE CYLINDER |
| A 0002956307 | SLAVE CYLINDER | |
| A 0002956407 | SLAVE CYLINDER | |
| 441 | A 0002952183 | BOOT |
| A 0002951983 | BOOT | |
| 446 | A 0009945935 | SNAP RING |
| A 0002950373 | LOCK | |
| 452 | A 0004201055 | BLEEDER VALVE |
| 452 | A 0004201055 | BLEEDER VALVE |
| 457 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 457 | A 0004210887 | PROTECTIVE CAP |
| 457 | A 0004210887 | PROTECTIVE CAP |
| A 0005862029 | REPAIR KIT | |
| 463 | A 0002903367 | REPAIR KIT |
| A 0002900611 | REPAIR KIT | |
| A 0005861829 | REPAIR KIT | |
| A 0005861829 | REPAIR KIT | |
| N 912004008102 | LOCK WASHER | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000934008013 | NUT | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 470 | A 1152951340 | BRACKET |
| SLAVE CYLINDER TO BELL HOUSING | ||
| A 1152951140 | BRACKET | |
| 475 | A 1152510080 | GASKET |
| 475 | A 1152510080 | GASKET |
| 481 | N 912004008102 | LOCK WASHER |
| 481 | N 912004008102 | LOCK WASHER |
| 487 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 487 | N 304017008027 | SCREW |
| 487 | N 304017008027 | SCREW |
| A 1152900713 | LINE | |
| Repalced by: A 1082901113 | ||
| 493 | A 1082901113 | LINE |
| Repalced by: A 1093207753 | ||
| 493 | A 1093207753 | LINE |
| A 1152900913 | LINE | |
| Repalced by: A 1082901213 | ||
| A 1082901213 | LINE | |
| A 1092900013 | LINE | |
| Repalced by: A 1072900113 | ||
| A 1072900113 | LINE | |
| A 1092900113 | LINE | |
| Repalced by: A 1003203953 | ||
| A 1003203953 | LINE | |
| 499 | A 1152950740 | BRACKET |
| A 1082950340 | BRACKET | |
| A 1092950040 | BRACKET | |
| A 1072950340 | BRACKET | |
| A 1152951240 | BRACKET | |
| A 1082950440 | BRACKET | |
| A 1092950140 | BRACKET | |
| 505 | N 073379006101 | HOSE |
| 511 | A 1072950173 | LOCK |
| 511 | A 1072950173 | LOCK |
| 516 | N 912004008102 | LOCK WASHER |
| 521 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 521 | N 304017008016 | SCREW |
| 521 | N 304017008016 | SCREW |
| N 073379006101 | HOSE | |
| ORDER BY THE METER | ||

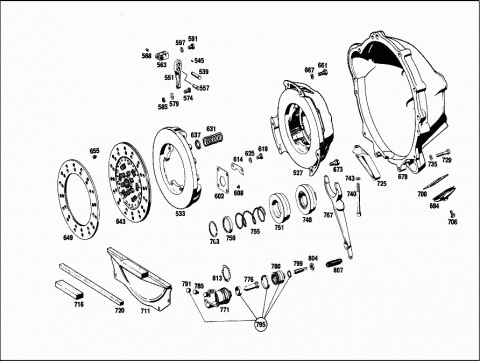

| 527 | A 1892500104 | CLUTCH PRESSURE PLATE |
| 533 | A 0002521706 | CLUTCH PRESSURE PLATE |
| 539 | A 0002520016 | SPINDLE |
| 545 | A 0002520018 | ROLLER |
| 551 | A 0002520813 | RELEASE LEVER |
| 557 | A 0002520216 | SPINDLE |
| N 000094002059 | COTTER PIN | |
| 563 | A 0002520214 | BRACKET |
| 568 | A 0002520017 | ROLLER |
| 574 | A 0002520271 | SCREW |
| 579 | A 0002520073 | LOCK |
| 585 | A 0002520372 | NUT |
| 591 | N 000933008012 | SCREW |
| 597 | N 912004008102 | LOCK WASHER |
| 602 | A 0002520319 | LEAF SPRING |
| 608 | A 0002520975 | RIVET |
| 614 | A 0002520573 | LOCK |
| 619 | N 000933008012 | SCREW |
| 625 | N 912004008102 | LOCK WASHER |
| 631 | A 0002522320 | PRESSURE SPRING |
| 637 | A 0002520024 | INSULATING WASHER |
| 643 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 643 | A 0102502603 | CLUTCH DISC |
| A 0002521810 | CLUTCH LINING | |
| 649 | A 0002524610 | CLUTCH LINING |
| A 0002521275 | RIVET | |
| 655 | A 0002521675 | RIVET |
| 661 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 661 | N 304017008021 | SCREW |
| 667 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 667 | N 000137008212 | SPRING WASHER |
| 673 | A 1862520171 | SCREW |
| 679 | A 1122501805 | HOUSING |
| 684 | A 1202540097 | BOOT |
| 700 | A 1202540058 | SEAL HOLDER |
| 706 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 706 | N 304017006018 | SCREW |
| 711 | A 1122500856 | PROTECTIVE PLATE |
| 716 | A 1122510580 | GASKET |
| 720 | A 1122510680 | GASKET |
| N 000931006082 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| COVER PLATE TO BELL HOUSING | ||
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012071 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000931008180 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| A 1129970012 | PIN | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 12.2 MM | ||
| A 1129970312 | PIN | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 12.4 MM | ||
| A 1129970612 | PIN | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 12.6 MM | ||
| A 1129970112 | PIN | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 12.2 MM | ||
| A 1129970512 | PIN | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 12.4 MM | ||
| A 1129970712 | PIN | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 12.6 MM | ||
| 725 | A 1890140007 | REINFORCEMENT |
| LEFT | ||
| A 1890140207 | REINFORCEMENT | |
| LEFT | ||
| A 1890140107 | REINFORCEMENT | |
| RIGHT | ||
| A 1890140307 | REINFORCEMENT | |
| RIGHT | ||
| 729 | N 000931008266 | SCREW |
| 735 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 735 | N 000137008212 | SPRING WASHER |
| 740 | N 000912008081 | SCREW |
| 743 | N 000433008406 | WASHER |
| 748 | A 1122500115 | RELEASE BEARING |
| 751 | A 0009814825 | BALL BEARING |
| 755 | A 1869936301 | SPRING |
| 759 | A 1862540590 | SPRING RETAINER |
| 763 | A 1869941334 | SNAP RING |
| 767 | A 1122930211 | RELEASE YOKE |
| 771 | A 0002951807 | SLAVE CYLINDER |
| 776 | A 0002950374 | PIN |
| A 0002951183 | BOOT | |
| 780 | A 0002951783 | BOOT |
| 785 | A 0002950120 | VALVE |
| 791 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 791 | A 0004210887 | PROTECTIVE CAP |
| A 0005861029 | REPAIR KIT | |
| 795 | A 0005861229 | REPAIR KIT |
| 799 | A 1112950733 | ROD |
| 804 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 804 | N 304035008001 | NUT |
| 807 | A 1119931110 | SPRING |
| 813 | N 900055040200 | LOCK RING |
| A 1112501602 | HYDRAULIC CLUTCH | |
| A 1112501602 | HYDRAULIC CLUTCH | |

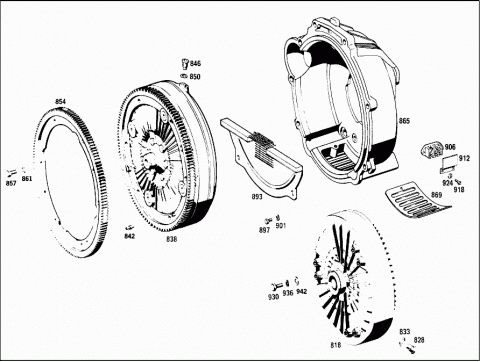

| 818 | A 1112501502 | HYDRAULIC CLUTCH |
| 818 | A 1112501502 | HYDRAULIC CLUTCH |
| A 1302500902 | HYDRAULIC CLUTCH | |

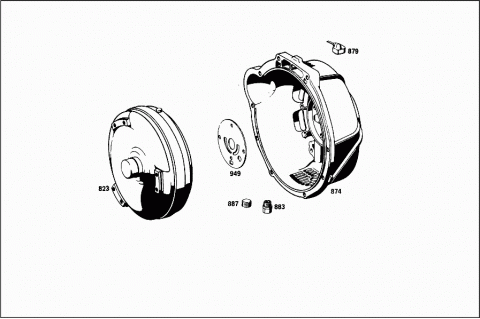

| 823 | A 1152501202 | HYDRAULIC CLUTCH |
| 828 | A 1809970530 | SCREW PLUG |
| N 000908010004 | SCREW PLUG | |
| Repalced by: N 000000000648 | ||
| N 000000000648 | SCREW PLUG | |
| 833 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| A 1129900079 | SCREW | |
| A 1129900079 | SCREW | |
| 838 | A 1122500502 | HYDRAULIC CLUTCH |
| A 1092501502 | HYDRAULIC CLUTCH | |
| 842 | A 1129900079 | SCREW |
| 846 | A 1809970530 | SCREW PLUG |
| N 000908010004 | SCREW PLUG | |
| Repalced by: N 000000000648 | ||
| N 000000000648 | SCREW PLUG | |
| 850 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| 854 | A 1890320005 | RING GEAR |
| A 1160300312 | RING GEAR | |
| 857 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 857 | N 304017008016 | SCREW |
| N 000933008325 | SCREW | |
| Repalced by: A 1249902101 | ||
| A 1249902101 | SCREW | |
| 861 | N 912004008102 | LOCK WASHER |
| N 000127008202 | LOCK WASHER | |
| 865 | A 1112502205 | HOUSING |
| 865 | A 1112502205 | HOUSING |
| A 1122502105 | HOUSING | |
| 869 | A 1122570590 | COVER PLATE |
| 869 | A 1122570590 | COVER PLATE |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| 874 | A 1152501905 | HOUSING |
| A 1092500105 | HOUSING | |
| A 1092570150 | BUSHING | |
| A 1092570150 | BUSHING | |
| 879 | A 1152500357 | BREATHER |
| Repalced by: A 1152500066 | ||
| 879 | A 1152500066 | OIL PIPE |
| A 1152500357 | BREATHER | |
| Repalced by: A 1152500066 | ||
| A 1152500066 | OIL PIPE | |
| 883 | A 1152571057 | SCREW COLLAR |
| 883 | A 1152571057 | SCREW COLLAR |
| A 1159970001 | PLUG | |
| 887 | N 000908022010 | SCREW PLUG |
| N 000908022010 | SCREW PLUG | |
| 893 | A 1122500156 | PROTECTIVE PLATE |
| 897 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 897 | N 304017006018 | SCREW |
| 901 | N 000137006204 | SPRING WASHER |
| 906 | A 0005466541 | CABLE CONNECTOR |
| 906 | A 0005466541 | CABLE CONNECTOR |
| 912 | A 1122570490 | COVER PLATE |
| 912 | A 1122570490 | COVER PLATE |
| 918 | N 000084004164 | SCREW |
| 918 | N 000084004164 | SCREW |
| 924 | N 000137004202 | SPRING WASHER |
| 924 | N 000137004202 | SPRING WASHER |
| N 000912008047 | SCREW | |
| N 000912008047 | SCREW | |
| 930 | N 000933008316 | SCREW |
| Repalced by: A 0089907401 | ||
| 930 | A 0089907401 | SCREW |
| 930 | A 0089907401 | SCREW |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000933008325 | SCREW | |
| Repalced by: A 1249902101 | ||
| A 1249902101 | SCREW | |
| 936 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 936 | N 000137008212 | SPRING WASHER |
| 942 | A 1109902040 | WASHER |
| 949 | A 1152770314 | INTERMEDIATE PLATE |
| 949 | A 1152770314 | INTERMEDIATE PLATE |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
