Transporto priemonė: 280 SE; VIN numerio dalis: 108018
Grupė: 30 CONTROL

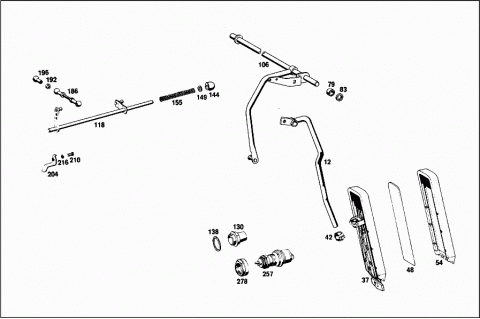

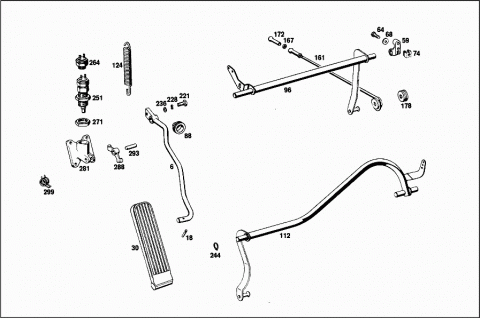

| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1103000304 | ACCELERATOR PEDAL |
| 006 | A 1103000304 | ACCELERATOR PEDAL |
| 012 | A 1083010001 | LEVER |
| 012 | A 1083010001 | LEVER |
| A 1113000204 | ACCELERATOR PEDAL | |
| 018 | A 1109970010 | PIN |
| 030 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 030 | A 1103000002 | PLATE |
| 030 | A 1103000002 | PLATE |
| 030 | A 1103000002 | PLATE |
| 030 | A 1103000002 | PLATE |
| A 1103010102 | PEDAL PLATE | |
| Repalced by: A 1103000002 | ||
| A 1103000002 | PLATE | |
| A 1103000002 | PLATE | |
| A 1103000002 | PLATE | |
| A 1103000002 | PLATE | |
| A 1103010083 | INSERT | |
| A 1103010083 | INSERT | |
| A 1103010083 | INSERT | |
| A 1103010083 | INSERT | |
| A 1103010183 | INSERT | |
| Repalced by: A 1103010083 | ||
| A 1103010083 | INSERT | |
| A 1103010482 | PAD | |
| A 1103010482 | PAD | |
| A 1103010482 | PAD | |
| A 1103010482 | PAD | |
| A 1103010582 | PAD | |
| Repalced by: A 1103000002 | ||
| A 1103000002 | PLATE | |
| A 1153000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1153000304 | ACCELERATOR PEDAL | |
| A 1153000404 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1233000204 | ACCELERATOR PEDAL | |
| 037 | A 1233000204 | ACCELERATOR PEDAL |
| 042 | A 1233010022 | JOINT |
| 042 | A 1233010022 | JOINT |
| 048 | A 1163010182 | PAD |
| Repalced by: A 1233000204 | ||
| 048 | A 1233000204 | ACCELERATOR PEDAL |
| 048 | A 1233000204 | ACCELERATOR PEDAL |
| 054 | A 1163010182 | PAD |
| 054 | A 1163010182 | PAD |
| A 1073010040 | BRACKET | |
| Repalced by: A 1249888678 | ||
| A 1249888678 | CLIP | |
| ACCELERATOR PEDAL TO BRACKET | ||
| 059 | A 1103010018 | BEARING |
| 059 | A 1103010018 | BEARING |
| 059 | A 1103010018 | BEARING |
| 059 | A 1103010018 | BEARING |
| 059 | A 1103010018 | BEARING |
| A 1213010018 | BEARING | |
| 064 | N 000931006082 | SCREW |
| 064 | N 000931006082 | SCREW |
| N 007985006131 | SCREW | |
| 068 | N 000125006407 | WASHER |
| N 000137006204 | SPRING WASHER | |
| 074 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 074 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 074 | A 0019906791 | NUT RETAINER |
| 079 | A 1083010053 | SPACER TUBE |
| 083 | A 1143010051 | SPACER RING |
| 088 | A 1839970081 | GROMMET |
| A 0009870415 | PLUG | |
| A 1083000020 | SHAFT | |
| Repalced by: A 1083000820 | ||
| 096 | A 1083000820 | SHAFT |
| A 1093001620 | SHAFT | |
| 106 | A 1093000020 | SHAFT |
| 112 | A 1083000920 | SHAFT |
| A 1093000220 | SHAFT | |
| A 1093001720 | SHAFT | |
| 118 | A 1093001520 | SHAFT |
| 124 | A 1169930610 | SPRING |
| 124 | A 1169930610 | SPRING |
| 124 | A 1169930610 | SPRING |
| A 1169930610 | SPRING | |
| 130 | A 1153010241 | STOP |
| 130 | A 1153010241 | STOP |
| 138 | A 1159970640 | SEAL RING |
| 138 | A 1159970640 | SEAL RING |
| 144 | A 1163000085 | JOINT BALL |
| Repalced by: A 1263000085 | ||
| 144 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| A 1263010485 | RUBBER BUFFER | |
| A 1163010150 | BUSHING | |
| 149 | A 1093010051 | SPACER RING |
| 155 | A 1169935001 | SPRING |
| 161 | A 1113001315 | ROD |
| A 1113001215 | ROD | |
| A 1123000815 | ROD | |
| A 1093000315 | ROD | |
| 167 | N 000934005008 | NUT |
| 172 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 172 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 172 | A 0009930461 | CONICAL CUP |
| 178 | A 1213010097 | BOOT |
| Repalced by: A 1803010097 | ||
| 178 | A 1803010097 | BOOT |
| A 1093000415 | ROD | |
| 186 | A 1093000615 | ROD |
| 192 | N 000934005008 | NUT |
| 196 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 196 | A 0009918922 | BALL SOCKET |
| Repalced by: A 0009930461 | ||
| 196 | A 0009930461 | CONICAL CUP |
| 204 | A 1093011020 | LEVER |
| 210 | N 000933005036 | SCREW |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 216 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 216 | N 000433005304 | WASHER |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 221 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 221 | N 304017008016 | SCREW |
| 228 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 228 | N 000137008212 | SPRING WASHER |
| 236 | N 000125008407 | WASHER |
| 244 | N 900055012402 | LOCK RING |
| 251 | A 1123000241 | STOP |
| 251 | A 1123000241 | STOP |
| 257 | A 1153000241 | STOP |
| 257 | A 1153000241 | STOP |
| A 1123000341 | STOP | |
| 264 | A 0005451706 | SWITCH |
| KICK-DOWN SWITCH | ||
| 271 | A 1129900151 | NUT |
| 271 | A 1129900151 | NUT |
| 271 | A 1129900151 | NUT |
| 278 | A 1153040151 | NUT |
| N 912004006102 | LOCK WASHER | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| N 912004006102 | LOCK WASHER | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| N 007985006131 | SCREW | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| N 007985006131 | SCREW | |
| SPRING-LOADED STOP TO TOEBOARD | ||
| 281 | A 1123040027 | HOUSING |
| A 1123040127 | HOUSING | |
| 288 | A 1123040120 | LEVER |
| 293 | A 1129970010 | PIN |
| 299 | A 1129930020 | SPRING |
