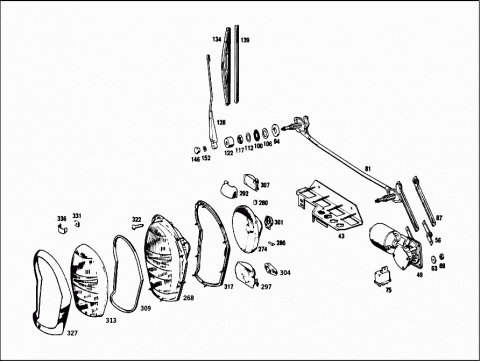

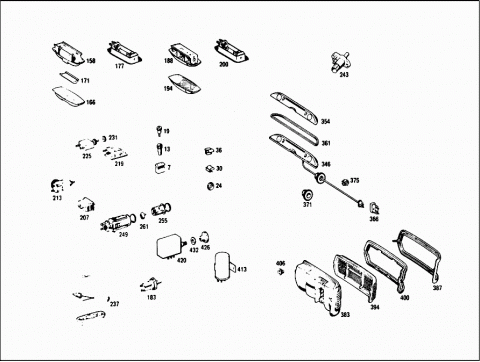

Transporto priemonė: 280 SE; VIN numerio dalis: 108018
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 007 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 007 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 013 | A 0005454728 | PLUG |
| 013 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 013 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 013 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 019 | A 0005454928 | PLUG |
| Repalced by: A 0045458428 | ||
| 019 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 019 | A 1265401081 | PLUG SOCKET |
| UNIPOLAR | ||
| A 0009972381 | GROMMET | |
| Repalced by: A 0009972281 | ||
| 024 | A 0009972281 | GROMMET |
| A 1149970490 | LOOM TIE | |
| Repalced by: A 1149970290 | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| 030 | A 0029883878 | CLIP |
| A 0019887778 | CLIP | |
| Repalced by: A 0009881678 | ||
| 036 | A 0009881678 | CLIP |
| DOME LAMP CABLE TO ROOF FRONT RAIL | ||
| A 0029883878 | CLIP | |
| A 0009881878 | CLIP | |
| DOME LAMP CABLE THRU INSTRUMENT PANEL | ||
| A 0009832991 | CARDBOARD | |
| TAIL LAMP CABLE HARNES TO LUGGAGE COMPARTMENT FLOOR ON THE RIGHT | ||
| 3X120X80 MM | ||
| A 0019887778 | CLIP | |
| Repalced by: A 0009881778 | ||
| A 0009881778 | CLIP | |
| ELECTRIC CABLE TO REAR LID | ||
| A 0009882878 | CLIP | |
| ELECTRIC CABLE UNDER HAT SHELF | ||
| A 1088210051 | SWITCH | |
| Repalced by: A 1088210751 | ||
| A 1088210751 | SWITCH | |
| PANE WASHER SYSTEM | ||
| A 1088210751 | SWITCH | |
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 007981004258 | SHEET METAL SCREW | |
| SWITCH TO FOOTREST | ||
| N 000125005317 | WASHER | |
| Repalced by: N 000433005304 | ||
| N 000433005304 | WASHER | |
| SWITCH TO FOOTREST | ||
| 043 | A 1098201714 | BRACKET |
| 049 | A 1088200042 | ELECTRIC MOTOR |
| A 1088200342 | ELECTRIC MOTOR | |
| Repalced by: A 1158201642 | ||
| A 1158200142 | ELECTRIC MOTOR | |
| Repalced by: A 1158201642 | ||
| A 1158201642 | ELECTRIC MOTOR | |
| A 1088200442 | ELECTRIC MOTOR | |
| A 0008242275 | CARBON BRUSH SET | |
| Repalced by: A 0008243075 | ||
| A 0008243075 | CARBON BRUSH SET | |
| SET = 3 PIECES | ||
| 056 | A 1088240010 | CRANK |
| A 1088240110 | CRANK | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| WIPER MOTOR TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| WIPER MOTOR TO FIRE WALL | ||
| A 1119971140 | SEAL RING | |
| Repalced by: A 0009873841 | ||
| 063 | A 0009873841 | RUBBER RING |
| WIPER MOTOR TO FIRE WALL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| HEATER CASE | ||
| 069 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 069 | N 304032006008 | NUT |
| WIPER MOTOR TO FIRE WALL | ||
| N 006797006145 | TOOTHED WASHER | |
| WIPER MOTOR TO FIRE WALL | ||
| A 0005425319 | RELAY | |
| Repalced by: A 0005426119 | ||
| 075 | A 0005426119 | RELAY |
| A 0005426819 | RELAY | |
| 081 | A 1088200043 | LINKAGE |
| Repalced by: A 1088200243 | ||
| 081 | A 1088200243 | LINKAGE |
| 087 | A 0008240806 | ROD |
| A 0008241106 | ROD | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| DRIVE ROD TO LINKAGE | ||
| N 912004006102 | LOCK WASHER | |
| DRIVE ROD TO LINKAGE | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DRIVE ROD TO LINKAGE | ||
| 094 | A 1088240397 | PAD |
| N 000933006130 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 100 | A 0009870741 | RUBBER RING |
| 106 | A 0019901140 | WASHER |
| 112 | A 0008242282 | WASHER |
| A 0008241472 | NUT | |
| Repalced by: A 0029902651 | ||
| 117 | A 0029902651 | NUT |
| 122 | A 1118240072 | NUT |
| Repalced by: A 1108240472 | ||
| 122 | A 1108240472 | CAPSULE |
| A 1118240172 | NUT | |
| Repalced by: A 1108240472 | ||
| A 1108240472 | CAPSULE | |
| A 1108240472 | CAPSULE | |
| A 1088200144 | WIPER ARM | |
| Repalced by: A 1088200344 | ||
| A 1088200344 | WIPER ARM | |
| Repalced by: A 1088200544 | ||
| A 1088200544 | WIPER ARM | |
| LEFT | ||
| A 1088200244 | WIPER ARM | |
| Repalced by: A 1088200444 | ||
| 128 | A 1088200444 | WIPER ARM |
| Repalced by: A 1088200644 | ||
| 128 | A 1088200644 | WIPER ARM |
| RIGHT | ||
| A 1088200045 | WIPER BLADE | |
| Repalced by: A 1158200045 | ||
| 134 | A 1158200045 | WIPER BLADE |
| 139 | A 0008240727 | WIPER RUBBER |
| A 1088200145 | WIPER BLADE | |
| Repalced by: A 1158200045 | ||
| A 1158200045 | WIPER BLADE | |
| A 0008240727 | WIPER RUBBER | |
| 146 | A 0008241172 | NUT |
| A 0008242572 | NUT | |
| Repalced by: A 0009901253 | ||
| A 0009901253 | NUT | |
| N 000936008006 | NUT | |
| 152 | A 0009901748 | WASHER |
| 158 | A 1088200052 | READING LAMP |
| 166 | H 101868250089 | RIM |
| Repalced by: A 1088200052 | ||
| 166 | A 1088200052 | READING LAMP |
| H 101868250010 | LENS | |
| Repalced by: A 1868250010 | ||
| 171 | A 1868250010 | LENS |
| 177 | A 1088200352 | READING LAMP |
| N 072601012130 | BULB | |
| N 072601012120 | BULB | |
| N 007982003316 | SHEET METAL SCREW | |
| READING LAMP | ||
| N 007981003254 | SHEET METAL SCREW | |
| A 0008210452 | CONTACTOR | |
| Repalced by: A 0008211552 | ||
| 183 | A 0008211552 | CONTACTOR |
| 188 | A 1088200152 | READING LAMP |
| 194 | H 101808250109 | SHELL |
| N 072601012130 | BULB | |
| DOME LAMP | ||
| N 007982003316 | SHEET METAL SCREW | |
| DOME LAMP | ||
| 200 | A 1088200452 | READING LAMP |
| Repalced by: A 1088200352 | ||
| 200 | A 1088200352 | READING LAMP |
| DOME LAMP | ||
| N 072601012120 | BULB | |
| N 007981003254 | SHEET METAL SCREW | |
| 207 | A 0018210251 | SWITCH |
| 213 | A 1128200023 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| 213 | A 1128200023 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| N 072601012800 | BULB | |
| N 072601012800 | BULB | |
| A 1158250143 | LAMP | |
| Repalced by: A 1238200101 | ||
| A 1238200101 | INTERIOR LAMP | |
| Repalced by: A 1268201301 | ||
| A 1268201301 | INTERIOR LAMP | |
| GLOVE COMPARTMENT | ||
| A 1268201301 | INTERIOR LAMP | |
| GLOVE COMPARTMENT | ||
| A 1268201301 | INTERIOR LAMP | |
| GLOVE COMPARTMENT | ||
| 219 | A 1158250043 | LAMP |
| Repalced by: A 1238200101 | ||
| 219 | A 1238200101 | INTERIOR LAMP |
| Repalced by: A 1268201301 | ||
| 219 | A 1268201301 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| 123 820 01 01 | ||
| 219 | A 1268201301 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| 123 820 01 01 | ||
| 219 | A 1268201301 | INTERIOR LAMP |
| GLOVE COMPARTMENT | ||
| 123 820 01 01 | ||
| N 072601012130 | BULB | |
| N 072601012130 | BULB | |
| N 072601012130 | BULB | |
| 225 | A 0008210852 | CONTACTOR |
| 225 | A 0008210852 | CONTACTOR |
| 225 | A 0008210852 | CONTACTOR |
| 231 | A 0009900557 | NUT |
| 231 | A 0009900557 | NUT |
| 231 | A 0009900557 | NUT |
| 237 | A 1088250142 | ENTRANCE LAMP |
| A 0005454928 | PLUG | |
| Repalced by: A 0045458428 | ||
| A 0045458428 | PLUG | |
| Repalced by: A 1265401081 | ||
| A 1265401081 | PLUG SOCKET | |
| N 072601012130 | BULB | |
| N 007981002306 | SHEET METAL SCREW | |
| Repalced by: N 007981002322 | ||
| N 007981002322 | SHEET METAL SCREW | |
| ENTRANCE LAMP | ||
| 243 | A 1108250041 | INTERIOR LAMP |
| N 072601012701 | BULB | |
| N 007981003246 | SHEET METAL SCREW | |
| LUGGAGE COMPARTMENT LAMP | ||
| A 1108250353 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| A 1108250553 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| 249 | A 1158250253 | CIGAR LIGHTER |
| A 1108250251 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| A 1108250351 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| 255 | A 0008250551 | ELEMENT |
| 261 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 261 | A 0008250252 | INCANDESCENT SPIRAL |
| 268 | A 1088200061 | LIGHTING UNIT |
| R.H.TRAFFIC | ||
| A 1088201961 | LIGHTING UNIT | |
| R.H.TRAFFIC | ||
| A 1088204861 | LIGHTING UNIT | |
| Repalced by: A 1088201961 | ||
| A 1088201961 | LIGHTING UNIT | |
| R.H.TRAFFIC | ||
| 274 | A 0008260178 | REFLECTOR |
| 280 | A 0008260094 | BUSHING |
| 286 | A 0008260139 | SHACKLE |
| 292 | A 0008260357 | LENS |
| 297 | A 0008260078 | REFLECTOR |
| A 0008263178 | REFLECTOR | |
| Repalced by: A 0008260078 | ||
| A 0008260078 | REFLECTOR | |
| A 0008260094 | BUSHING | |
| A 0008260139 | SHACKLE | |
| 301 | A 0008262582 | LAMP SOCKET |
| A 1008260182 | LAMP SOCKET | |
| A 0008264482 | LAMP SOCKET | |
| Repalced by: A 0008264582 | ||
| A 0008264582 | LAMP SOCKET | |
| A 0008266282 | LAMP SOCKET | |
| Repalced by: A 1008260182 | ||
| A 1008260182 | LAMP SOCKET | |
| 304 | A 0008261182 | LAMP SOCKET |
| Repalced by: A 1008260182 | ||
| 304 | A 1008260182 | LAMP SOCKET |
| A 0008264682 | LAMP SOCKET | |
| Repalced by: A 0008264782 | ||
| A 0008264782 | LAMP SOCKET | |
| A 0008266482 | LAMP SOCKET | |
| 307 | A 0008261278 | REFLECTOR |
| A 0008262878 | REFLECTOR | |
| A 0008260580 | SEAL | |
| Repalced by: A 0008265780 | ||
| A 0008268180 | SEAL | |
| Repalced by: A 0008265780 | ||
| 309 | A 0008265780 | SEAL |
| 313 | A 1088260190 | LENS |
| A 1088260790 | LENS | |
| A 0008263780 | SEAL | |
| Repalced by: A 0008265580 | ||
| 317 | A 0008265580 | SEAL |
| 322 | A 1119900121 | SCREW |
| 327 | A 1118260089 | RIM |
| 331 | A 1119900052 | NUT |
| 336 | A 1119930125 | SPRING |
| N 072601012100 | BULB | |
| HEADLAMP | ||
| N 072601012900 | BULB | |
| CLEARANCE LIGHT | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT | ||
| N 072601012400 | BULB | |
| FOGLAMP | ||
| N 072601012701 | BULB | |
| CLEARANCE LIGHT | ||
| 346 | A 1118205062 | LICENSE PLATE LAMP |
| 354 | A 1118265552 | RIM |
| 361 | A 1118265097 | PAD |
| A 0005453128 | PLUG | |
| Repalced by: A 0025458628 | ||
| 366 | A 0025458628 | PLUG |
| 371 | A 1119971581 | GROMMET |
| N 007981004245 | SHEET METAL SCREW | |
| Repalced by: N 007981004339 | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| 375 | A 0019885278 | CLIP |
| N 072601012900 | BULB | |
| A 1088200164 | TAIL LAMP | |
| Repalced by: A 1088201564 | ||
| 383 | A 1088201564 | TAIL LAMP |
| LEFT | ||
| A 1088202364 | TAIL LAMP | |
| LEFT | ||
| A 1088202964 | TAIL LAMP | |
| LEFT | ||
| A 1088200264 | TAIL LAMP | |
| Repalced by: A 1088201664 | ||
| A 1088201664 | TAIL LAMP | |
| RIGHT | ||
| A 1088202464 | TAIL LAMP | |
| RIGHT | ||
| A 1088203064 | TAIL LAMP | |
| RIGHT | ||
| 387 | A 1088260159 | RIM |
| LEFT | ||
| A 1088260259 | RIM | |
| RIGHT | ||
| A 1088260756 | LENS | |
| Repalced by: A 1088260156 | ||
| 394 | A 1088260156 | LENS |
| LEFT | ||
| A 1088261556 | LENS | |
| LEFT | ||
| A 1088260856 | LENS | |
| Repalced by: A 1088260256 | ||
| A 1088260256 | LENS | |
| RIGHT | ||
| A 1088261656 | LENS | |
| RIGHT | ||
| 400 | A 1088260158 | SEAL |
| LEFT | ||
| A 1088260258 | SEAL | |
| RIGHT | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT | ||
| N 072601012160 | BULB | |
| STOP LIGHT | ||
| N 072601012190 | BULB | |
| STOP LIGHT | ||
| N 072601012600 | BULB | |
| N 072601012160 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012701 | BULB | |
| CLEARANCE AND TAIL LIGHTS | ||
| N 072601012900 | BULB | |
| CLEARANCE LIGHT | ||
| 406 | A 1119900057 | NUT |
| N 000125006421 | WASHER | |
| LIGHTING UNIT TO TAIL | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| LIGHTING UNIT TO TAIL | ||
| N 000934006007 | NUT | |
| LIGHTING UNIT TO TAIL | ||
| 413 | A 0005448332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 413 | A 0005445332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 413 | A 0005446132 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 413 | A 0015444232 | SENDER UNIT |
| Repalced by: A 0005445832 | ||
| 413 | A 0015442832 | SENDER UNIT |
| Repalced by: A 0008211063 | ||
| 413 | A 0015443932 | SENDER UNIT |
| Repalced by: A 0008211063 | ||
| 413 | A 0015443032 | SENDER UNIT |
| Repalced by: A 0008211063 | ||
| 413 | A 0005445832 | SENDER UNIT |
| N 000933004016 | SCREW | |
| BLINKER SENDER UNIT TO FIRE WALL | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| BLINKER SENDER UNIT TO FIRE WALL | ||
| N 000934004006 | NUT | |
| BLINKER SENDER UNIT TO FIRE WALL | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| BLINKER SENDER UNIT TO FIRE WALL | ||
| 420 | A 0015447032 | SENDER UNIT |
| MAKE | ||
| A 0015449532 | SENDER UNIT | |
| MAKE | ||
| N 072601012230 | BULB | |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| A 1158200592 | KNOB | |
| Repalced by: A 1158201792 | ||
| 426 | A 1158201792 | KNOB |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| 432 | A 1158210403 | ESCUTCHEON |
| HAZARD WARNING LIGHT SENDER UNIT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
