Transporto priemonė: 280 SE; VIN numerio dalis: 108018

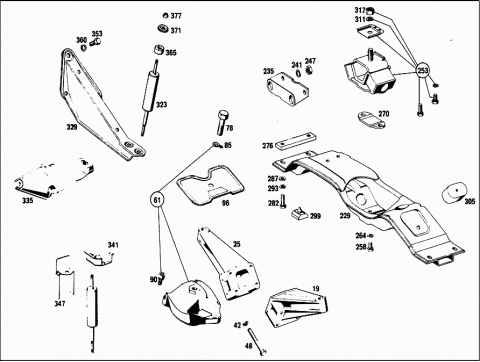

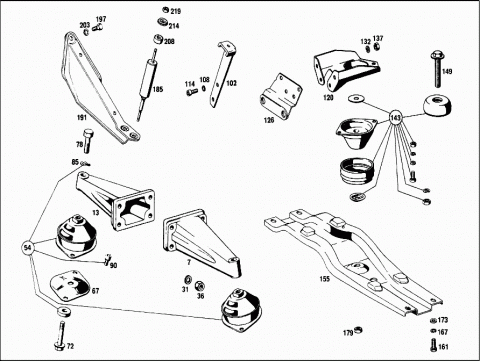

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 1802232404 | ENGINE SUPPORT |
| LEFT | ||
| A 1272230204 | ENGINE SUPPORT | |
| A 1892232104 | ENGINE SUPPORT | |
| LEFT | ||
| A 1892232304 | ENGINE SUPPORT | |
| LEFT | ||
| 013 | A 1802232504 | ENGINE SUPPORT |
| RIGHT | ||
| A 1892232004 | ENGINE SUPPORT | |
| RIGHT | ||
| A 1892232204 | ENGINE SUPPORT | |
| RIGHT | ||
| 019 | A 1162231204 | ENGINE SUPPORT |
| LEFT | ||
| 025 | A 1162231304 | ENGINE SUPPORT |
| RIGHT | ||
| 031 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 031 | N 000125010532 | WASHER |
| A 1159903040 | WASHER | |
| 036 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 036 | N 304032010002 | NUT |
| 042 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 042 | N 000125008443 | WASHER |
| 048 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 048 | N 304017008043 | SCREW |
| A 1112200117 | REPAIR KIT | |
| ENGINE MOUNTING | ||
| 054 | A 1085860022 | REPAIR KIT |
| Repalced by: A 1122230012 | ||
| 054 | A 1122230012 | RUBBER MOUNTING |
| A 1082200017 | REPAIR KIT | |
| 061 | A 1112200017 | REPAIR KIT |
| 067 | A 1212230331 | PLATE |
| 072 | A 1212200471 | SCREW |
| 078 | N 000931012120 | SCREW |
| N 000931012132 | SCREW | |
| 085 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 085 | N 000137012206 | SPRING WASHER |
| 090 | N 914019008000 | COMBINATION BOLT |
| 096 | A 1162230034 | COVERING |
| 102 | A 1082410002 | SUPPORT |
| ENGINE SHOCK ABSORBERS | ||
| 108 | N 912004010102 | LOCK WASHER |
| 114 | N 000912010069 | SCREW |
| 120 | A 1112400402 | ENGINE SUPPORT |
| REAR | ||
| 120 | A 1112400402 | ENGINE SUPPORT |
| REAR | ||
| A 1082420401 | ENGINE SUPPORT | |
| REAR | ||
| A 1082420401 | ENGINE SUPPORT | |
| REAR | ||
| A 1082420401 | ENGINE SUPPORT | |
| REAR | ||
| A 1092400006 | CONSOLE | |
| 126 | A 1104900444 | PLATE |
| 126 | A 1104900444 | PLATE |
| A 1104900644 | PLATE | |
| A 1104900644 | PLATE | |
| 132 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 132 | N 000137008212 | SPRING WASHER |
| 132 | N 000137008212 | SPRING WASHER |
| 137 | N 000934008013 | NUT |
| 137 | N 000934008013 | NUT |
| A 1202230412 | RUBBER MOUNTING | |
| A 1202230612 | RUBBER MOUNTING | |
| A 1112400118 | REPAIR KIT | |
| ENGINE REAR MOUNTING | ||
| A 1112400118 | REPAIR KIT | |
| ENGINE REAR MOUNTING | ||
| A 1082400418 | REPAIR KIT | |
| ENGINE REAR MOUNTING | ||
| A 1082400418 | REPAIR KIT | |
| ENGINE REAR MOUNTING | ||
| A 1082400418 | REPAIR KIT | |
| ENGINE REAR MOUNTING | ||
| 143 | A 1095860024 | REPAIR KIT |
| ENGINE REAR MOUNTING | ||
| 149 | A 1112400071 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 149 | A 1112400071 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 149 | A 1112400071 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933012039 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933012039 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933012039 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000137012206 | SPRING WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000137012206 | SPRING WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933008145 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933008145 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000125008443 | WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934008013 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934008013 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 155 | A 1102400402 | ENGINE SUPPORT |
| 155 | A 1102400402 | ENGINE SUPPORT |
| A 1109870939 | RUBBER BUFFER | |
| A 1109870939 | RUBBER BUFFER | |
| A 1102420213 | RUBBER MOUNTING | |
| A 1102420213 | RUBBER MOUNTING | |
| N 000125006421 | WASHER | |
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| N 000125006449 | WASHER | |
| N 007981006302 | SHEET METAL SCREW | |
| N 007981006302 | SHEET METAL SCREW | |
| 161 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 161 | N 304017008021 | SCREW |
| 161 | N 304017008021 | SCREW |
| 167 | N 912004008102 | LOCK WASHER |
| 167 | N 912004008102 | LOCK WASHER |
| 173 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 173 | N 000125008443 | WASHER |
| 173 | N 000125008443 | WASHER |
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| 179 | N 000936012010 | NUT |
| Repalced by: N 304035012002 | ||
| 179 | N 304035012002 | NUT |
| A 1109870939 | RUBBER BUFFER | |
| ENGINE REAR SUPPORT | ||
| N 007981006302 | SHEET METAL SCREW | |
| ENGINE REAR SUPPORT | ||
| N 000125006421 | WASHER | |
| ENGINE REAR SUPPORT | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| ENGINE REAR SUPPORT | ||
| 185 | A 0002400648 | ENGINE VIBRATION ABSORBER |
| Repalced by: A 0002401348 | ||
| 185 | A 0002401348 | ENGINE VIBRATION ABSORBER |
| 185 | A 0002401348 | ENGINE VIBRATION ABSORBER |
| 191 | A 1082410102 | SUPPORT |
| 191 | A 1082410102 | SUPPORT |
| A 1082410202 | SUPPORT | |
| 197 | N 000933008145 | SCREW |
| 197 | N 000933008145 | SCREW |
| 203 | N 912004008102 | LOCK WASHER |
| 203 | N 912004008102 | LOCK WASHER |
| 208 | A 1072410065 | RUBBER BUFFER |
| 208 | A 1072410065 | RUBBER BUFFER |
| 214 | A 1082410012 | RETAINER |
| 214 | A 1082410012 | RETAINER |
| 219 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 219 | N 913002006009 | NUT |
| 219 | N 913002006009 | NUT |
| A 1082420140 | BRACKET | |
| 229 | A 1082401902 | ENGINE SUPPORT |
| REAR | ||
| 229 | A 1082401902 | ENGINE SUPPORT |
| REAR | ||
| 235 | A 1084900144 | PLATE |
| A 1144920318 | BASE PLATE | |
| 241 | N 912004010102 | LOCK WASHER |
| 247 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 247 | N 304032010002 | NUT |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| A 1162400418 | RUBBER MOUNTING | |
| A 1082420031 | MOUNTING PLATE | |
| 253 | A 1085860124 | REPAIR KIT |
| 258 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 258 | N 304017008039 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING,REAR | ||
| 258 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 258 | N 304017008039 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING,REAR | ||
| 264 | N 912004008102 | LOCK WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING,REAR | ||
| 270 | A 1082420284 | SHIM |
| ENGINE SUPPORT TO RUBBER MOUNTING,REAR | ||
| 276 | A 1082420140 | BRACKET |
| 276 | A 1082420140 | BRACKET |
| 282 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 282 | N 304017008034 | SCREW |
| 282 | N 304017008034 | SCREW |
| 287 | N 007349008001 | WASHER |
| 287 | N 007349008001 | WASHER |
| 293 | N 912004008102 | LOCK WASHER |
| 299 | A 1089870440 | RUBBER BUFFER |
| EXHAUST PIPE STOP | ||
| A 1089870840 | RUBBER BUFFER | |
| RIGHT | ||
| A 1089870940 | RUBBER BUFFER | |
| EXHAUST PIPE STOP | ||
| 305 | A 1089870740 | RUBBER BUFFER |
| 305 | A 1089870740 | RUBBER BUFFER |
| 311 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 311 | N 000137012206 | SPRING WASHER |
| 311 | N 000137012206 | SPRING WASHER |
| 317 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 317 | N 308673012002 | NUT |
| 317 | N 308673012002 | NUT |
| 323 | A 0002400648 | ENGINE VIBRATION ABSORBER |
| Repalced by: A 0002401348 | ||
| 323 | A 0002401348 | ENGINE VIBRATION ABSORBER |
| 323 | A 0002401348 | ENGINE VIBRATION ABSORBER |
| A 0002401348 | ENGINE VIBRATION ABSORBER | |
| 329 | A 1082410102 | SUPPORT |
| 335 | A 1092410302 | SUPPORT |
| A 1092410040 | BRACKET | |
| 341 | A 1092400040 | BRACKET |
| 347 | A 1092400045 | PROTECTIVE PLATE |
| A 1092410234 | SCREENING PLATE | |
| Repalced by: A 1072400245 | ||
| A 1072400245 | PROTECTIVE PLATE | |
| 353 | N 000933008145 | SCREW |
| N 000933008269 | SCREW | |
| Repalced by: N 304014008002 | ||
| N 304014008002 | SCREW | |
| 360 | N 912004008102 | LOCK WASHER |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| 365 | A 1072410065 | RUBBER BUFFER |
| 365 | A 1072410065 | RUBBER BUFFER |
| 371 | A 1082410012 | RETAINER |
| 371 | A 1082410012 | RETAINER |
| A 1082410112 | RETAINER | |
| N 913002006005 | NUT | |
| Repalced by: N 913002006009 | ||
| N 913002006009 | NUT | |
| 377 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 377 | N 913002006009 | NUT |
| A 1072400117 | REPAIR KIT | |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
