Transporto priemonė: 280 SE; VIN numerio dalis: 108018

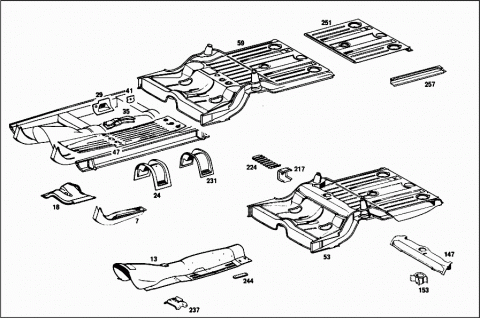

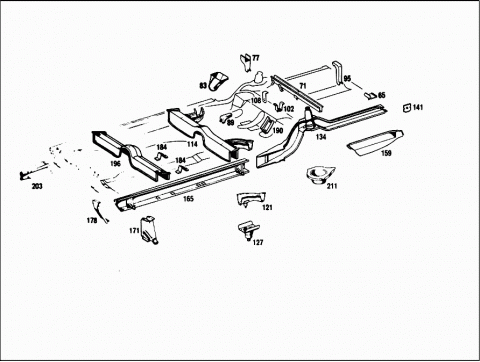

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE

#	Kodas	Pavadinimas
007	A 1106100713	SIDE MEMBER
	Repalced by: A 1086100113
	A 1086100113	SIDE MEMBER
		LEFT
	A 1106100813	SIDE MEMBER
		RIGHT
	A 1106160466	TUNNEL
	Repalced by: A 1106160966
013	A 1106160966	TUNNEL
	A 1086160066	TUNNEL
	A 1086160066	TUNNEL
018	A 1106100254	BRIDGE
	A 1086100054	BRIDGE
	Repalced by: A 1086100154
	A 1086100154	BRIDGE
	A 1086100154	BRIDGE
024	A 1106100352	TAKE-UP DEVICE
	A 1106160220	MOUNTING
	Repalced by: A 1086100053
029	A 1086100053	MOUNTING
035	A 1106160128	GUIDE
041	A 1106100311	PLATE
	Repalced by: A 1269840125
041	A 1269840125	THREADED CHUCK
	Repalced by: A 1269840025
041	A 1269840025	THREADED CHUCK
047	A 1106160767	FLOOR
	Repalced by: A 1086160167
	A 1086160167	FLOOR
		LEFT
	A 1106160867	FLOOR
		RIGHT
	A 1106100861	FLOOR
		REAR
	A 1106101261	FLOOR
	Repalced by: A 1106101661
	A 1106101061	FLOOR
	Repalced by: A 1106101661
053	A 1106101461	FLOOR
	Repalced by: A 1106101661
	A 1106101661	FLOOR
		REAR
	A 1106101661	FLOOR
		REAR
	A 1086100153	MOUNTING
		LEFT
	A 1086100153	MOUNTING
		LEFT
	A 1086100253	MOUNTING
		RIGHT
	A 1086100253	MOUNTING
		RIGHT
	A 1086100253	MOUNTING
		LEFT AND RIGHT
	A 1086100253	MOUNTING
		RIGHT
	A 1106160062	FLOOR
	Repalced by: A 1106160462
059	A 1106160462	FLOOR
		REAR
	A 1106100025	REINFORCEMENT
	Repalced by: A 1106100725
065	A 1106100725	REINFORCEMENT
	A 1106100016	CROSS MEMBER
	Repalced by: A 1106100216
071	A 1106100216	CROSS MEMBER
077	A 1106120324	BRACKET
083	A 1106100131	CONSOLE
089	A 1104271041	BRACKET
		BRAKE CABLES
095	A 1106160022	BRACKET
		EXHAUST PIPE SUSPENSION
102	A 1104200686	BRACKET
		FROM BRAKE HOSE TO T-FITTING
108	A 1104280340	BRACKET
		BRAKE HOSE
	A 1106100014	CROSS MEMBER
114	A 1106100114	CROSS MEMBER
114	A 1106100114	CROSS MEMBER
121	A 1106100127	DIAGONAL GIRDER
		LEFT
	A 1106100227	DIAGONAL GIRDER
		RIGHT
127	A 1103500633	BELL HUB
	A 1106100510	SIDE MEMBER
	Repalced by: A 1106101510
	A 1106101310	SIDE MEMBER
	Repalced by: A 1106101510
	A 1106101110	SIDE MEMBER
	Repalced by: A 1106101510
	A 1106101010	SIDE MEMBER
	Repalced by: A 1106101610
	A 1106101410	SIDE MEMBER
	Repalced by: A 1106101610
	A 1106101210	SIDE MEMBER
	Repalced by: A 1106101610
134	A 1106101510	SIDE MEMBER
		REAR LEFT
	A 1106101610	SIDE MEMBER
		REAR RIGHT
141	A 1106100311	PLATE
	Repalced by: A 1269840125
141	A 1269840125	THREADED CHUCK
	Repalced by: A 1269840025
141	A 1269840025	THREADED CHUCK
	A 1106100117	CROSS MEMBER
	Repalced by: A 1106100217
147	A 1106100217	CROSS MEMBER
147	A 1106100217	CROSS MEMBER
153	A 1106100158	CUP
159	A 1106110140	END PIECE
		LEFT
	A 1106110640	END PIECE
		RIGHT
165	A 1106100309	SUPPORT
		OUTSIDE LEFT
	A 1106100409	SUPPORT
		OUTSIDE RIGHT
	A 1116108052	TAKE-UP DEVICE
	Repalced by: A 1106100052
171	A 1106100052	TAKE-UP DEVICE
		FRONT
	A 1116108152	TAKE-UP DEVICE
	Repalced by: A 1106100452
	A 1106100452	TAKE-UP DEVICE
		REAR
178	A 1106110340	END PIECE
		LEFT
	A 1106110440	END PIECE
		RIGHT
184	A 1106160631	CONSOLE
190	A 1084200186	BRACKET
196	A 1106100220	CROSS MEMBER
	A 1086100020	CROSS MEMBER
	A 1086100020	CROSS MEMBER
	A 0019895985	ADHESIVE TAPE
203	A 1116110227	MOUNTING
203	A 1116110227	MOUNTING
	A 1086110027	MOUNTING
	A 1086100553	MOUNTING
	A 1086100553	MOUNTING
	A 1086100653	MOUNTING
	A 1086100653	MOUNTING
211	A 1103250915	SPRING CASE
217	A 1126110120	SIDE MEMBER
		LEFT
	A 1126110220	SIDE MEMBER
		RIGHT
224	A 1126160167	FLOOR
		LEFT
	A 1126160267	FLOOR
		RIGHT
231	A 1096100052	TAKE-UP DEVICE
237	A 1096100636	BRACKET
237	A 1096100636	BRACKET
237	A 1096100636	BRACKET
244	A 1106110411	PLATE
	Repalced by: A 1082420140
251	A 1106160162	FLOOR
		REAR
257	A 1106110321	TUBE
		LEFT REAR SIDE MEMBER
	A 1106110821	TUBE
		RIGHT REAR SIDE MEMBER
