Transporto priemonė: 280 SE; VIN numerio dalis: 108018
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

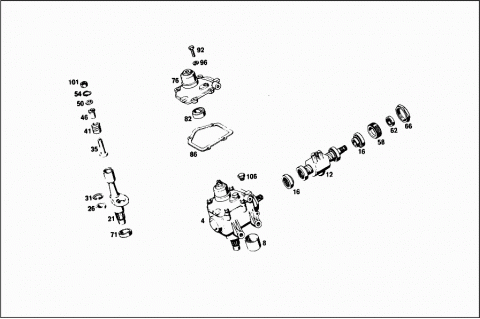

| 004 | A 1114604301 | STEERING BOX ASSEMBLY |
| A 1114604401 | STEERING BOX ASSEMBLY | |
| 008 | A 1114620350 | BUSHING |
| 012 | A 3094600308 | STEERING WORM |
| A 3094600408 | STEERING WORM | |
| 016 | A 0009815027 | ANGULAR CONTACT BEARING |
| 021 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 30 MM | ||
| 026 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 031 | N 000472030000 | LOCK RING |
| 035 | A 1114620471 | SCREW |
| 041 | A 1119932101 | SPRING |
| 046 | A 1114620485 | THRUST PIECE |
| 050 | A 1114610462 | THRUST WASHER |
| 054 | A 0049949241 | LOCK |
| 058 | A 1114610406 | SET COLLAR |
| 062 | A 0029974746 | SEAL RING |
| A 0029977046 | SEAL RING | |
| A 0049971546 | SEAL RING | |
| 066 | A 1209900551 | NUT |
| 071 | A 0019979346 | SEAL RING |
| A 0029977146 | SEAL RING | |
| A 0029977246 | SEAL RING | |
| 076 | A 1114600814 | STEERING BOX COVER |
| A 1114600714 | STEERING BOX COVER | |
| 082 | A 1114620250 | BUSHING |
| 086 | A 1114610280 | GASKET |
| 092 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 092 | N 304017008034 | SCREW |
| 096 | N 000127008200 | LOCK WASHER |
| 101 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 101 | N 304032010003 | NUT |
| 106 | N 007604012102 | SCREW PLUG |
| 111 | A 1124602501 | STEERING BOX ASSEMBLY |
| A 1114604601 | STEERING BOX ASSEMBLY | |
| Repalced by: A 1094601101 | ||
| A 1094601101 | STEERING BOX ASSEMBLY | |
| A 1094600601 | STEERING BOX ASSEMBLY | |
| A 1094600901 | STEERING BOX ASSEMBLY | |
| 115 | A 1124601202 | STEERING BOX |
| Repalced by: A 1094600402 | ||
| 115 | A 1094600402 | STEERING BOX |
| A 1124601302 | STEERING BOX | |
| Repalced by: A 1094600802 | ||
| A 1094600802 | STEERING BOX | |
| Repalced by: A 1094601101 | ||
| A 1094601101 | STEERING BOX ASSEMBLY | |
| A 1094600402 | STEERING BOX | |
| A 1094601002 | STEERING BOX | |
| 119 | A 0019970245 | SEAL RING |
| Repalced by: A 0139973648 | ||
| 119 | A 0139973648 | SEAL RING |
| 121 | A 0009818210 | NEEDLE BEARING |
| A 0039811810 | NEEDLE BEARING | |
| 124 | A 0019972545 | SEAL RING |
| 127 | A 1129970030 | SCREW PLUG |
| 132 | N 007603008109 | SEAL RING |
| 137 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 137 | N 007604010108 | SCREW PLUG |
| 141 | N 007603010404 | SEAL RING |
| 145 | N 915013004002 | SCREW FITTING |
| 149 | N 007603010100 | SEAL RING |
| N 900083013500 | PLUG | |

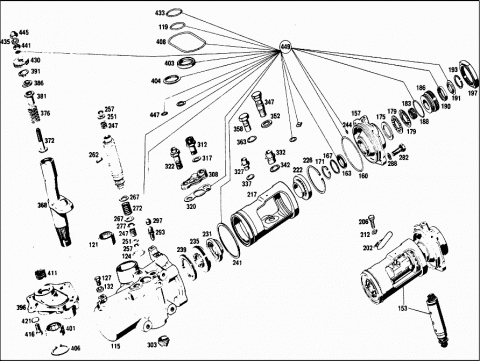

| 153 | A 1124602885 | PISTON |
| A 1124602985 | PISTON | |
| A 1094600185 | PISTON | |
| 157 | A 1124602014 | STEERING BOX COVER |
| A 1124602114 | STEERING BOX COVER | |
| A 1004601814 | STEERING BOX COVER | |
| 160 | A 0019972645 | SEAL RING |
| Repalced by: A 0149976148 | ||
| 160 | A 0149976148 | SEAL RING |
| 163 | A 1124600061 | GASKET |
| 167 | A 1124620162 | THRUST WASHER |
| 171 | A 0009942641 | LOCK |
| 175 | A 1124610162 | THRUST WASHER |
| 179 | A 0009810418 | ROLLER BEARING |
| A 0009810818 | ROLLER BEARING | |
| 183 | A 0009816310 | NEEDLE BEARING |
| 186 | A 1124600386 | THREADED INSERT |
| 188 | A 0009979745 | SEAL RING |
| 190 | A 0059975846 | SEAL RING |
| 191 | A 0019974040 | SEAL RING |
| 193 | A 0009942641 | LOCK |
| 197 | A 1209900551 | NUT |
| 202 | A 1129950020 | CLAMP |
| A 1089950420 | CLAMP | |
| A 1089950420 | CLAMP | |
| 206 | A 1209900520 | SCREW |
| 212 | A 1129940005 | LOCK |
| 217 | A 1124601585 | PISTON |
| A 1124603485 | PISTON | |
| A 1124601685 | PISTON | |
| A 1124603585 | PISTON | |
| 222 | A 0009813927 | ANGULAR CONTACT BEARING |
| A 0009814627 | ANGULAR CONTACT BEARING | |
| 226 | A 1124660173 | LOCK |
| A 0019945141 | LOCK | |
| 231 | A 0009814027 | ANGULAR CONTACT BEARING |
| 235 | A 1124661905 | COVER |
| 239 | A 1124660134 | SCREW COLLAR |
| 241 | A 1124660160 | SEAL RING |
| 244 | A 0049974445 | SEAL RING |
| 247 | A 1129939501 | SPRING |
| 251 | A 1124660462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| A 1124660562 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.1 MM | ||
| A 1124660662 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.2 MM | ||
| A 1124660762 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.3 MM | ||
| A 1124660962 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.5 MM | ||
| A 1124661062 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.6 MM | ||
| A 1124661162 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.7 MM | ||
| A 1124661262 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.8 MM | ||
| A 1124661362 | THRUST WASHER | |
| AS REQUIRED | ||
| 1.9 MM | ||
| A 1124661462 | THRUST WASHER | |
| AS REQUIRED | ||
| 2.9 MM | ||
| A 1129939501 | SPRING | |
| 257 | A 0009943841 | LOCK |
| 262 | A 1129910141 | CLAMPING PIN |
| 267 | A 1124660275 | WASHER |
| 272 | A 1129931902 | SPRING |
| 277 | A 0009945441 | LOCK |
| 282 | N 000933010105 | SCREW |
| 288 | N 912004010102 | LOCK WASHER |
| A 1099970030 | SCREW PLUG | |
| 293 | A 0004200855 | BLEEDER VALVE |
| 293 | A 0004200855 | BLEEDER VALVE |
| A 1004600072 | BREATHER | |
| 297 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 297 | A 0004210887 | PROTECTIVE CAP |
| 303 | A 1124661105 | COVER |
| 308 | A 1124661205 | COVER |
| TOP | ||
| A 1094660105 | COVER | |
| TOP | ||
| A 1094660205 | COVER | |
| TOP | ||
| A 1124661405 | COVER | |
| TOP | ||
| A 1094660305 | COVER | |
| TOP | ||
| 312 | A 1129971772 | FITTING |
| 317 | N 007603014100 | SEAL RING |
| 320 | A 1124660380 | GASKET |
| 322 | A 1129972172 | FITTING |
| A 0059979845 | SEAL RING | |
| 327 | N 915013006002 | SCREW FITTING |
| 332 | N 915013010001 | SCREW FITTING |
| 337 | N 007603012110 | SEAL RING |
| 342 | N 007603016401 | SEAL RING |
| 347 | A 1009971872 | FITTING |
| DELIVERY | ||
| 352 | N 007603018100 | SEAL RING |
| N 900083016000 | PLUG | |
| N 900083020000 | PLUG | |
| N 007603012102 | SEAL RING | |
| N 007603016103 | SEAL RING | |
| 358 | A 1009971972 | FITTING |
| RETURN | ||
| 363 | N 007603016401 | SEAL RING |
| 368 | A 1124600511 | STEERG. WORM SECTOR SHAFT |
| A 1094600211 | STEERG. WORM SECTOR SHAFT | |
| 372 | A 1114620471 | SCREW |
| A 1094620171 | SCREW | |
| 376 | A 1119932101 | SPRING |
| 381 | A 1114620485 | THRUST PIECE |
| 386 | A 1114610462 | THRUST WASHER |
| 391 | A 0049949241 | LOCK |
| 396 | A 1094600215 | STEERING BOX COVER |
| A 1094600315 | STEERING BOX COVER | |
| A 0019970245 | SEAL RING | |
| Repalced by: A 0139973648 | ||
| A 0139973648 | SEAL RING | |
| 401 | A 0009818110 | NEEDLE BEARING |
| 403 | A 0059975946 | SEAL RING |
| 404 | A 0019973940 | SEAL RING |
| 406 | A 0009945341 | LOCK |
| 408 | A 0029974745 | SEAL RING |
| A 0049974445 | SEAL RING | |
| 411 | A 1129939701 | SPRING |
| 416 | N 000912008096 | SCREW |
| Repalced by: N 000912008202 | ||
| 416 | N 000912008202 | SCREW |
| 421 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 421 | N 000137008212 | SPRING WASHER |
| 430 | A 1124660172 | NUT |
| A 1094660072 | NUT | |
| 433 | A 0019970145 | SEAL RING |
| 435 | N 007603010100 | SEAL RING |
| 441 | A 1089900051 | NUT |
| 445 | N 001587010000 | CAP NUT |
| N 000917010002 | NUT | |
| 447 | A 0099977245 | SEAL RING |
| 449 | A 1094600261 | GASKET KIT |

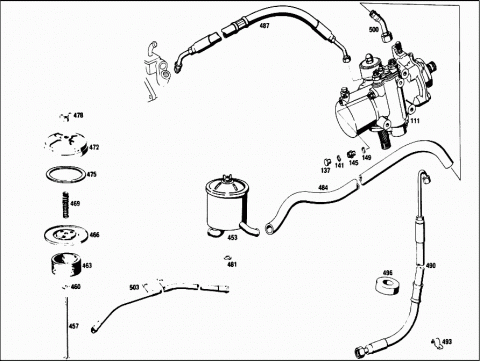

| 453 | A 1894600383 | OIL TANK |
| A 1094600083 | OIL TANK | |
| 457 | A 0009904133 | SCREW |
| Repalced by: N 000931006172 | ||
| 457 | N 000931006172 | SCREW |
| A 1892360171 | SCREW | |
| 460 | A 0004660373 | LOCK |
| 463 | A 0002360055 | FILTER |
| 466 | A 0002360076 | WASHER |
| 469 | A 0019931401 | SPRING |
| 472 | A 0004601182 | COVER |
| 475 | A 0002360080 | GASKET |
| 478 | N 000315006000 | NUT |
| 481 | A 1109870541 | RUBBER RING |
| N 900288092100 | CLAMP | |
| 484 | A 0069970982 | HOSE |
| ORDER BY THE METER | ||
| N 916001020000 | CLAMP | |
| 487 | A 1099970882 | HOSE |
| A 1099973782 | HOSE | |
| A 1099974682 | HOSE | |
| 490 | A 0059971282 | HOSE |
| A 1099974282 | HOSE | |
| A 1099974882 | HOSE | |
| 493 | A 1089950520 | CLAMP |
| N 073379008100 | HOSE | |
| N 007976005203 | SHEET METAL SCREW | |
| 496 | A 1124660282 | RUBBER RING |
| 500 | A 1124601024 | LINE |
| A 1094600924 | LINE | |
| A 1094601124 | LINE | |
| A 1124600724 | LINE | |
| Repalced by: A 1124601024 | ||
| A 1124601024 | LINE | |
| A 1124601024 | LINE | |
| 503 | A 1094600024 | LINE |
| A 0069970982 | HOSE | |
| ORDER BY THE METER | ||
| A 1124660282 | RUBBER RING | |
| A 1109870541 | RUBBER RING | |
| N 916026020001 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 1129976982 | HOSE | |
| STEERING BOX TO IDLING ADJUSTMENT PRESSURE CYLINDER | ||

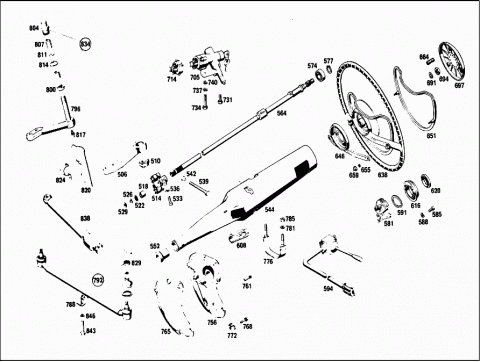

| 506 | A 1114632301 | PITMAN ARM |
| A 1114632401 | PITMAN ARM | |
| A 1124631401 | PITMAN ARM | |
| A 1094630701 | PITMAN ARM | |
| A 1124631501 | PITMAN ARM | |
| A 1094630801 | PITMAN ARM | |
| 510 | N 000937022000 | NUT |
| N 000094005033 | COTTER PIN | |
| A 1114600310 | STEERING COUPLING | |
| Repalced by: A 3094600210 | ||
| 514 | A 3094600210 | STEERING COUPLING |
| A 1154600510 | STEERING COUPLING | |
| A 1154600510 | STEERING COUPLING | |
| 518 | A 1114620165 | RING |
| 522 | A 1119903040 | WASHER |
| 526 | N 912002010001 | LOCK |
| 529 | A 1369909540 | WASHER |
| 533 | A 1119900420 | SCREW |
| 536 | N 912006008000 | LOCK WASHER |
| 539 | N 000931010253 | SCREW |
| STEERING TO FRAME FLOOR UNIT | ||
| 542 | N 912004010102 | LOCK WASHER |
| STEERING TO FRAME FLOOR UNIT | ||

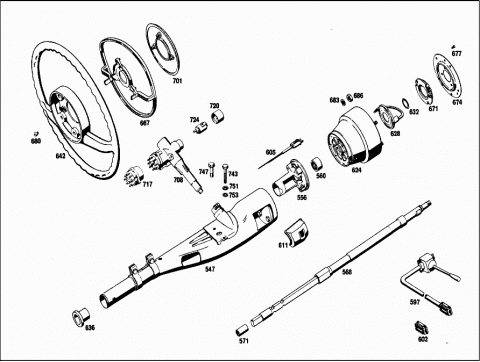

| 544 | A 1084600416 | STEER. COLUMN JACKET TUBE |
| 547 | A 1084604816 | STEER. COLUMN JACKET TUBE |
| 547 | A 1084604816 | STEER. COLUMN JACKET TUBE |
| A 1084607616 | STEER. COLUMN JACKET TUBE | |
| A 1084606216 | STEER. COLUMN JACKET TUBE | |
| A 1084600516 | STEER. COLUMN JACKET TUBE | |
| A 1084604916 | STEER. COLUMN JACKET TUBE | |
| A 1084604916 | STEER. COLUMN JACKET TUBE | |
| A 1084607716 | STEER. COLUMN JACKET TUBE | |
| A 1084607016 | STEER. COLUMN JACKET TUBE | |
| 552 | A 1164620096 | BOOT |
| 556 | A 1154621835 | BEARING BODY |
| 556 | A 1154621835 | BEARING BODY |
| A 1154621835 | BEARING BODY | |
| 560 | A 0009818910 | NEEDLE BEARING |
| Repalced by: A 0189816110 | ||
| 560 | A 0189816110 | NEEDLE BEARING |
| 560 | A 0189816110 | NEEDLE BEARING |
| N 000912006064 | SCREW | |
| BEARING BODY TO STEERING COLUMN JACKET TUBE | ||
| N 000912006064 | SCREW | |
| BEARING BODY TO STEERING COLUMN JACKET TUBE | ||
| N 000137006204 | SPRING WASHER | |
| BEARING BODY TO STEERING COLUMN JACKET TUBE | ||
| N 000137006204 | SPRING WASHER | |
| BEARING BODY TO STEERING COLUMN JACKET TUBE | ||
| 564 | A 1084600409 | STEERING SHAFT |
| A 1104605009 | STEERING SHAFT | |
| 568 | A 1084602609 | STEERING SHAFT |
| 568 | A 1084602609 | STEERING SHAFT |
| 568 | A 1084602609 | STEERING SHAFT |
| 568 | A 1084602609 | STEERING SHAFT |
| A 1084602909 | STEERING SHAFT | |
| A 1084602909 | STEERING SHAFT | |
| A 1084602909 | STEERING SHAFT | |
| A 1084602909 | STEERING SHAFT | |
| 571 | A 1164620060 | SEAL RING |
| 574 | N 000625006004 | GROOVED BALL BEARING |
| 577 | N 000471020001 | LOCK RING |
| 581 | A 1114620628 | BEARING RING |
| 585 | N 000912006014 | SCREW |
| 588 | N 000137006100 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 588 | N 000137006204 | SPRING WASHER |
| 591 | N 000472042001 | LOCK RING |
| 594 | A 0015458524 | SWITCH,AUTOMATIC |
| 597 | A 0035457924 | SWITCH,AUTOMATIC |
| 597 | A 0035457924 | SWITCH,AUTOMATIC |
| A 0025451124 | SWITCH,AUTOMATIC | |
| A 0025459824 | SWITCH,AUTOMATIC | |
| A 0025459824 | SWITCH,AUTOMATIC | |
| A 0035452728 | PLUG | |
| 602 | A 0035453728 | PLUG |
| Repalced by: A 0125450328 | ||
| 602 | A 0125450328 | PLUG HOUSING |
| Repalced by: A 0095455628 | ||
| 602 | A 0095455628 | PLUG HOUSING |
| 602 | A 0095455628 | PLUG HOUSING |
| A 0095455728 | COVER | |
| TO 009 545 56 28 | ||
| N 914025004103 | COMBINATION BOLT | |
| SWITCH TO BEARING BODY | ||
| 605 | A 1074640143 | CONTACT PIECE |
| 605 | A 1074640143 | CONTACT PIECE |
| 608 | A 1084620196 | BOOT |
| A 1154621396 | BOOT | |
| 611 | A 1154621396 | BOOT |
| 611 | A 1154621396 | BOOT |
| A 1084620496 | BOOT | |
| CABLE PASSAGE THRU STEERING COLUMN JACKET TUBE | ||
| 616 | A 0004640928 | CONTACT RING |
| 620 | A 0009811018 | ROLLER BEARING |
| 624 | A 1154600897 | PROTECTIVE SLEEVE |
| Repalced by: A 1164600003 | ||
| A 1164600003 | STEERING WHEEL | |
| A 1164600003 | STEERING WHEEL | |
| 628 | A 1154640017 | CONTACT PLATE |
| 628 | A 1154640017 | CONTACT PLATE |
| 632 | N 900055032200 | LOCK RING |
| 632 | N 900055032200 | LOCK RING |
| 636 | A 1164620096 | BOOT |
| 636 | A 1164620096 | BOOT |
| 638 | A 1124600203 | STEERING WHEEL |
| A 1154640201 | STEERING WHEEL | |
| Repalced by: A 1164600003 | ||
| 642 | A 1164600003 | STEERING WHEEL |
| 642 | A 1164600003 | STEERING WHEEL |
| A 1169900121 | SCREW | |
| TO 116460 00 03 | ||
| A 1169935501 | SPRING | |
| TO 116 460 00 03 | ||
| A 1169935101 | SPRING | |
| TO 116 460 00 03 | ||
| A 1164640050 | BUSHING | |
| TO 116 460 00 03 | ||
| A 1164640177 | PROTECTIVE RING | |
| Repalced by: A 6019900540 | ||
| A 6019900540 | WASHER | |
| TO 116 460 00 03 | ||
| A 1164640077 | PROTECTIVE RING | |
| TO 116 460 00 03 | ||
| A 1169901040 | WASHER | |
| TO 116 460 00 03 | ||
| 646 | A 1114641236 | HUB |
| 651 | A 1004640115 | SIGNAL RING |
| 655 | A 1114640073 | LOCK |
| 659 | A 1114640172 | NUT |
| 664 | A 1114640024 | INSULATING PART |
| 667 | A 1154640415 | SIGNAL RING |
| 667 | A 1154640415 | SIGNAL RING |
| 671 | A 0004640928 | CONTACT RING |
| 674 | A 1154640134 | BRACKET |
| 674 | A 1154640134 | BRACKET |
| 677 | N 007987003122 | SCREW |
| 677 | N 007987003122 | SCREW |
| 680 | A 1154640024 | INSULATING PART |
| 680 | A 1154640024 | INSULATING PART |
| 683 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 683 | N 000137008212 | SPRING WASHER |
| STEERING WHEEL TO COLLAPSIBLE COLLAR | ||
| 683 | N 000137008212 | SPRING WASHER |
| STEERING WHEEL TO COLLAPSIBLE COLLAR | ||
| 686 | N 000934008013 | NUT |
| STEERING WHEEL TO COLLAPSIBLE COLLAR | ||
| 686 | N 000934008013 | NUT |
| STEERING WHEEL TO COLLAPSIBLE COLLAR | ||
| 691 | N 912004014100 | LOCK WASHER |
| 694 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 694 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 694 | N 308675014002 | NUT |
| 697 | A 1114600642 | COVER PLATE |
| 701 | A 1154640342 | PAD |
| 701 | A 1154640342 | PAD |
| 705 | A 0004622430 | STEERING LOCK |
| 708 | A 0004624930 | STEERING LOCK |
| 708 | A 0004624930 | STEERING LOCK |
| 708 | A 0004624930 | STEERING LOCK |
| 708 | A 0004624930 | STEERING LOCK |
| A 0004625330 | STEERING LOCK | |
| A 0004625330 | STEERING LOCK | |
| A 0004625330 | STEERING LOCK | |
| A 0004625330 | STEERING LOCK | |
| A 0004626830 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 0004628030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620030 | STEERING LOCK | |
| Repalced by: A 1164620830 | ||
| A 1164620830 | STEERING LOCK | |
| Repalced by: A 1164621030 | ||
| A 1164621030 | STEERING LOCK | |
| A 0004622530 | STEERING LOCK | |
| A 0004625030 | STEERING LOCK | |
| A 0004625030 | STEERING LOCK | |
| A 0004625030 | STEERING LOCK | |
| A 0004625030 | STEERING LOCK | |
| A 0004625430 | STEERING LOCK | |
| A 0004625430 | STEERING LOCK | |
| A 0004625430 | STEERING LOCK | |
| A 0004625430 | STEERING LOCK | |
| A 0004626930 | STEERING LOCK | |
| Repalced by: A 1164620930 | ||
| A 0004628130 | STEERING LOCK | |
| Repalced by: A 1164620930 | ||
| A 1164620130 | STEERING LOCK | |
| Repalced by: A 1164620930 | ||
| A 1164620930 | STEERING LOCK | |
| 714 | A 0004620693 | IGNITION SWITCH |
| 717 | A 1164620093 | IGNITION SWITCH |
| 717 | A 1164620093 | IGNITION SWITCH |
| N 000084004105 | SCREW | |
| 720 | A 0004620923 | COVER |
| 720 | A 0004620923 | COVER |
| A 0004621023 | COVER | |
| A 0004621323 | COVER | |
| 724 | A 0004624830 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| 724 | A 0004624830 | TUMBLER |
| STATE LOCK NO. WHEN ORDERING | ||
| A 0004626630 | TUMBLER | |
| STATE LOCK NO. WHEN ORDERING | ||
| A 0004627930 | TUMBLER | |
| STATE LOCK NO. WHEN ORDERING | ||
| A 0004600004 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 1164620079 | TUMBLER | |
| WITHOUT LOCK UNDEFINED | ||
| A 0004620332 | KEY | |
| A 1114620132 | KEY | |
| N 009046020000 | SPLIT RING | |
| A 1154600322 | CLAMPING PIECE | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| A 1154600322 | CLAMPING PIECE | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 000931006094 | SCREW | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 000931006094 | SCREW | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 912004006102 | LOCK WASHER | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 912004006102 | LOCK WASHER | |
| STEERING LOCK TO STEERING COLUMN JACKET TUBE | ||
| N 007985004123 | SCREW | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO STEERING LOCK | ||
| N 000931006096 | SCREW | |
| IN STEERING LOCK BRACKET | ||
| N 000931006096 | SCREW | |
| IN STEERING LOCK BRACKET | ||
| N 000931006096 | SCREW | |
| IN STEERING LOCK BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| IN STEERING LOCK BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| IN STEERING LOCK BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| IN STEERING LOCK BRACKET | ||
| 731 | N 000933008145 | SCREW |
| 734 | N 000931008244 | SCREW |
| 737 | N 000127008200 | LOCK WASHER |
| 740 | N 000125008407 | WASHER |
| 743 | A 0029907701 | SCREW |
| 743 | A 0029907701 | SCREW |
| 747 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 747 | N 304017008018 | SCREW |
| 747 | N 304017008018 | SCREW |
| 747 | N 304017008018 | SCREW |
| 747 | N 304017008018 | SCREW |
| 751 | N 000127008203 | LOCK WASHER |
| 753 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 753 | N 009021008213 | WASHER |
| Repalced by: N 000000003250 | ||
| 753 | N 000000003250 | WASHER |
| 753 | N 000000003250 | WASHER |
| 756 | A 1084620095 | COVERING |
| 756 | A 1084620095 | COVERING |
| A 1084600295 | COVERING | |
| A 1084600295 | COVERING | |
| A 1084620195 | COVERING | |
| A 1084620495 | COVERING | |
| A 1084620495 | COVERING | |
| A 1084600395 | COVERING | |
| A 1084600395 | COVERING | |
| 761 | A 1114620880 | GASKET |
| 761 | A 1114620880 | GASKET |
| 765 | A 1114621380 | GASKET |
| 765 | A 1114621380 | GASKET |
| A 1084620280 | GASKET | |
| A 1084620280 | GASKET | |
| A 1084600161 | GASKET | |
| A 1084600161 | GASKET | |
| A 1084620380 | GASKET | |
| A 1084620380 | GASKET | |
| A 1114620175 | WASHER | |
| A 1114620175 | WASHER | |
| 768 | N 914007006004 | COMBINATION BOLT |
| 768 | N 914007006004 | COMBINATION BOLT |
| 772 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 772 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 772 | A 0019906791 | NUT RETAINER |
| 772 | A 0019906791 | NUT RETAINER |
| 776 | A 1114600765 | STRAP |
| A 1114600665 | STRAP | |
| 781 | N 000125008407 | WASHER |
| 785 | N 000985008001 | NUT |
| 788 | A 1104600205 | DRAG LINK |
| A 1104600405 | DRAG LINK | |
| A 1094600205 | DRAG LINK | |
| A 1094600305 | DRAG LINK | |
| Repalced by: A 1094600205 | ||
| A 1094600205 | DRAG LINK | |
| A 0003380297 | BOOT | |
| Repalced by: A 0003381397 | ||
| A 0003381397 | BOOT | |
| A 0003380963 | CLAMPING RING | |
| BOTTOM | ||
| A 0003381063 | CLAMPING RING | |
| TOP | ||
| 792 | A 0003300485 | REPAIR KIT |
| DRAG LINK | ||
| 796 | A 1114601319 | INTERMEDIATE LEVER |
| 796 | A 1114601319 | INTERMEDIATE LEVER |
| 796 | A 1114601319 | INTERMEDIATE LEVER |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1084630310 | STEERING INTERMEDIATE ARM | |
| A 1084630510 | STEERING INTERMEDIATE ARM | |
| A 1084630510 | STEERING INTERMEDIATE ARM | |
| A 1114601419 | INTERMEDIATE LEVER | |
| A 1114601419 | INTERMEDIATE LEVER | |
| A 1114601419 | INTERMEDIATE LEVER | |
| A 1084630410 | STEERING INTERMEDIATE ARM | |
| A 1084630410 | STEERING INTERMEDIATE ARM | |
| A 1084630610 | STEERING INTERMEDIATE ARM | |
| A 1084630610 | STEERING INTERMEDIATE ARM | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| 800 | A 1114630060 | SEAL RING |
| 800 | A 1114630060 | SEAL RING |
| A 1204630250 | BUSHING | |
| STEERING INTERMEDIATE ARM | ||
| 804 | A 1114630133 | CAP |
| 804 | A 1114630133 | CAP |
| 807 | A 1119930401 | SPRING |
| 807 | A 1119930401 | SPRING |
| 811 | A 1114630062 | THRUST WASHER |
| 811 | A 1114630062 | THRUST WASHER |
| 814 | A 1819940010 | LOCK |
| 814 | A 1819940010 | LOCK |
| 817 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 817 | N 071412008102 | GREASE NIPPLE |
| 817 | N 071412008102 | GREASE NIPPLE |
| 820 | A 1114630090 | PROTECTIVE PLATE |
| 820 | A 1114630090 | PROTECTIVE PLATE |
| 820 | A 1114630090 | PROTECTIVE PLATE |
| A 1084630090 | PROTECTIVE PLATE | |
| A 1084630090 | PROTECTIVE PLATE | |
| A 1074630090 | PROTECTIVE PLATE | |
| A 1074630090 | PROTECTIVE PLATE | |
| A 1074630190 | PROTECTIVE PLATE | |
| 824 | A 1114631140 | BRACKET |
| A 1114631640 | BRACKET | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 304017006016 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 912004006102 | LOCK WASHER | |
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| N 304032006008 | NUT | |
| 829 | A 1209900155 | NUT |
| N 000094002077 | COTTER PIN | |
| A 1114631056 | DUST CAP | |
| A 1114630052 | SPACER WASHER | |
| Repalced by: A 1244630077 | ||
| A 1244630077 | WASHER | |
| N 000960016287 | SCREW | |
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| 834 | A 1114600050 | REPAIR KIT |
| 834 | A 1114600050 | REPAIR KIT |
| 834 | A 1114600050 | REPAIR KIT |
| A 1244600019 | REPAIR KIT | |
| Repalced by: A 1264600819 | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| A 1264600819 | INTERMEDIATE LEVER | |
| REPAIR KIT | ||
| 838 | A 0004635132 | SHOCK ABSORBER |
| (STEERING SHOCK ABSORBER) | ||
| 843 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 843 | N 000961010031 | SCREW |
| N 000960010037 | SCREW | |
| 846 | N 912004010102 | LOCK WASHER |
| N 000137010201 | SPRING WASHER | |
| N 000985010005 | NUT | |
| N 000936010010 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
