Transporto priemonė: 280 SE 4.5 USA; VIN numerio dalis: 108067

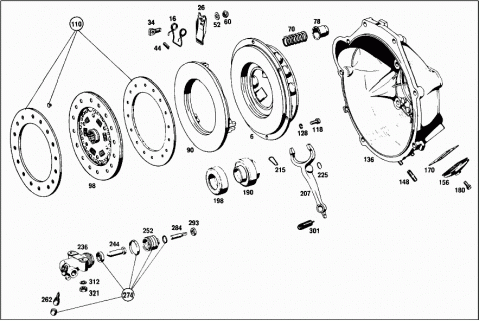

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 0002509604 | CLUTCH PRESSURE PLATE |
| 016 | A 0002520427 | SPRING |
| 026 | A 0002524213 | RELEASE LEVER |
| 034 | A 0002520374 | PIN |
| 044 | N 001481006002 | CLAMPING SLEEVE |
| 052 | A 0002520151 | SPACER RING |
| 060 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 060 | A 0002522772 | NUT |
| 070 | A 0002521820 | PRESSURE SPRING |
| 55 MM | ||
| 078 | A 0002520335 | SLEEVE |
| 090 | A 0002522106 | CLUTCH PRESSURE PLATE |
| 098 | A 0042501703 | CLUTCH DISC |
| Repalced by: A 0102502603 | ||
| 098 | A 0102502603 | CLUTCH DISC |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002526110 | CLUTCH LINING | |
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002526010 | CLUTCH LINING | |
| A 0002521075 | RIVET | |
| A 0002522275 | RIVET | |
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| 110 | A 1145860025 | REPAIR KIT |
| CLUTCH LINING FOR 002 250 28 03 | ||
| 118 | N 000933008108 | SCREW |
| 128 | N 000127008203 | LOCK WASHER |
| 136 | A 1112502005 | HOUSING |
| 148 | N 000835008062 | STUD |
| 156 | A 1202540097 | BOOT |
| 170 | A 1202540058 | SEAL HOLDER |
| 180 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 180 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000127012201 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008114 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 190 | A 1112500115 | RELEASE BEARING |
| WITH RELEASE BODY | ||
| A 1112500215 | RELEASE BEARING | |
| WITH RELEASE BODY | ||
| 198 | A 0009814325 | BALL BEARING |
| A 0019814525 | BALL BEARING | |
| 207 | A 1112930211 | RELEASE YOKE |
| 215 | A 3199930025 | SPRING |
| 225 | N 071805016300 | SNAP RING |
| 236 | A 0002951907 | SLAVE CYLINDER |
| 1" X 26 MM | ||
| 244 | A 0002950374 | PIN |
| A 0002950583 | BOOT | |
| A 0002950583 | BOOT | |
| 252 | A 0002951683 | BOOT |
| 252 | A 0002951683 | BOOT |
| 262 | A 0002950120 | VALVE |
| A 0004210878 | BALANCE WEIGHT | |
| A 0005860929 | REPAIR KIT | |
| A 0005860929 | REPAIR KIT | |
| 274 | A 0005861329 | REPAIR KIT |
| 274 | A 0005861329 | REPAIR KIT |
| 284 | A 1112950733 | ROD |
| 293 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 293 | N 304035008001 | NUT |
| 301 | A 1119931110 | SPRING |
| 312 | N 000127008203 | LOCK WASHER |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 321 | N 000934008013 | NUT |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 328 | A 0012504204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032509104 | ||
| 328 | A 0032509104 | CLUTCH PRESSURE PLATE |
| A 0042501703 | CLUTCH DISC | |
| Repalced by: A 0102502603 | ||
| 338 | A 0102502603 | CLUTCH DISC |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| A 0002521075 | RIVET | |
| A 1085860025 | REPAIR KIT | |
| CLUTCH LINING | ||
| 350 | A 1145860025 | REPAIR KIT |
| CLUTCH LINING | ||
| 358 | N 000933008108 | SCREW |
| 366 | N 000127008203 | LOCK WASHER |
| 374 | A 1112502005 | HOUSING |
| 384 | N 000835008062 | STUD |
| 392 | A 1152511601 | BELL HOUSING |
| Repalced by: A 1152512601 | ||
| 392 | A 1152512601 | BELL HOUSING |
| 403 | A 1202540097 | BOOT |
| 414 | A 1202540058 | SEAL HOLDER |
| 422 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 422 | N 304017006018 | SCREW |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000933012071 | SCREW | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000127012201 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000933008114 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION | ||
| N 000137008204 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION | ||
| 430 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 438 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 438 | N 304032010002 | NUT |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 448 | N 000931010236 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 456 | N 000125010504 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 464 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010005 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 472 | A 1159910115 | BALL PIVOT |
| 490 | N 000137010201 | SPRING WASHER |
| 505 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 505 | N 304035010001 | NUT |
| 515 | A 0002500515 | RELEASE BEARING |
| 523 | A 0002505515 | RELEASE BEARING |
| 523 | A 0002506815 | RELEASE BEARING |
| 532 | A 1112930211 | RELEASE YOKE |
| 540 | A 1152900029 | RELEASE YOKE |
| 548 | A 3199930025 | SPRING |
| 558 | N 071805016300 | SNAP RING |
| 567 | A 0002954207 | SLAVE CYLINDER |
| A 0002950473 | LOCK | |
| Repalced by: A 0005862029 | ||
| A 0005862029 | REPAIR KIT | |
| A 0002950573 | LOCK | |
| A 0002951683 | BOOT | |
| A 0004201055 | BLEEDER VALVE | |
| A 0004217187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| A 0004210887 | PROTECTIVE CAP | |
| 575 | A 0002956507 | SLAVE CYLINDER |
| Repalced by: A 0012956807 | ||
| 575 | A 0012956807 | SLAVE CYLINDER |
| A 0002956307 | SLAVE CYLINDER | |
| Repalced by: A 0002958207 | ||
| A 0002958207 | SLAVE CYLINDER | |
| 583 | A 0002952183 | BOOT |
| 592 | A 0009945935 | SNAP RING |
| 601 | A 0004201055 | BLEEDER VALVE |
| 612 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 612 | A 0004210887 | PROTECTIVE CAP |
| A 0005862029 | REPAIR KIT | |
| 618 | A 0002903367 | REPAIR KIT |
| A 0005861829 | REPAIR KIT | |
| SLAVE CYLINDER | ||
| A 0005861829 | REPAIR KIT | |
| SLAVE CYLINDER | ||
| A 0002900611 | REPAIR KIT | |
| SLAVE CYLINDER | ||
| N 000127008203 | LOCK WASHER | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000934008013 | NUT | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 624 | A 1152951340 | BRACKET |
| 632 | A 1152510080 | GASKET |
| 638 | N 000127008203 | LOCK WASHER |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 644 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 644 | N 304017008027 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| A 1152900713 | LINE | |
| Repalced by: A 1082901113 | ||
| 650 | A 1082901113 | LINE |
| Repalced by: A 1093207753 | ||
| 650 | A 1093207753 | LINE |
| FROM HOSE TO CLUTCH SLAVE CYLINDER | ||
| 658 | A 1152950740 | BRACKET |
| A 1082950340 | BRACKET | |
| 664 | N 073379006101 | HOSE |
| PIPE LINE TO BELL HOUSING | ||
| 670 | A 1072950173 | LOCK |
| PIPE LINE TO BELL HOUSING | ||
| 676 | N 000127008203 | LOCK WASHER |
| PIPE LINE TO BELL HOUSING | ||
| 680 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 680 | N 304017008016 | SCREW |
| PIPE LINE TO BELL HOUSING | ||
| A 1112501602 | HYDRAULIC CLUTCH | |
| A 1112501602 | HYDRAULIC CLUTCH | |
| 688 | A 1112501502 | HYDRAULIC CLUTCH |
| 688 | A 1112501502 | HYDRAULIC CLUTCH |
| 689 | A 1302500902 | HYDRAULIC CLUTCH |
| 689 | A 1152501202 | HYDRAULIC CLUTCH |
| 690 | A 1092502002 | CONVERTER |
| Repalced by: A 1172500202 | ||
| 690 | A 1172500202 | CONVERTER |
| WITH STARTING RING GEAR | ||
| 691 | A 1809970530 | SCREW PLUG |
| N 000908010000 | SCREW PLUG | |
| 694 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| A 1129900079 | SCREW | |
| A 1129900079 | SCREW | |
| 701 | A 1092500012 | STARTING RING GEAR |
| 708 | N 000912006004 | SCREW |
| 714 | A 1112502205 | HOUSING |
| 720 | A 1122570590 | COVER PLATE |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO HOUSING | ||
| 726 | A 1152501905 | HOUSING |
| 732 | A 1092501205 | HOUSING |
| Repalced by: A 1162502705 | ||
| 732 | A 1162502705 | HOUSING |
| A 1092570150 | BUSHING | |
| REPAIR SIZE | ||
| 738 | A 1152500357 | BREATHER |
| Repalced by: A 1152500066 | ||
| 738 | A 1152500066 | OIL PIPE |
| 744 | A 1152571057 | SCREW COLLAR |
| 758 | N 000908022010 | SCREW PLUG |
| 764 | N 000908022010 | SCREW PLUG |
| 770 | A 0005466541 | CABLE CONNECTOR |
| 776 | A 1122570490 | COVER PLATE |
| 782 | N 000084004164 | SCREW |
| 788 | N 000137004100 | SPRING WASHER |
| N 000912008047 | SCREW | |
| N 000912008047 | SCREW | |
| 792 | N 000933008316 | SCREW |
| Repalced by: A 0089907401 | ||
| 792 | A 0089907401 | SCREW |
| 792 | A 0089907401 | SCREW |
| N 000933008006 | SCREW | |
| N 000933008222 | SCREW | |
| 798 | N 000137008204 | SPRING WASHER |
| 802 | A 1109902040 | WASHER |
| 809 | A 1152770314 | INTERMEDIATE PLATE |
| 815 | A 1002770314 | INTERMEDIATE PLATE |
| N 000137008204 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000931008327 | SCREW | |
| Repalced by: N 304017008043 | ||
| N 304017008043 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| 822 | N 000931010283 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931010102 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012149 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012133 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000931012137 | SCREW | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 829 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 829 | N 000125010532 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000125013008 | WASHER | |
| N 000137010201 | SPRING WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
