Transporto priemonė: 280 SE 4.5 USA; VIN numerio dalis: 108067

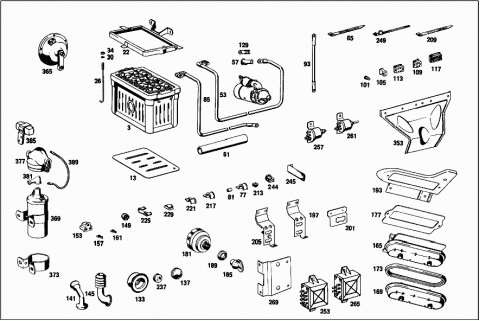

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0025419901 | BATTERY |
| CABLE HARNESS MOUNTING | ||
| 12V/70AH | ||
| 008 | A 0035413201 | BATTERY |
| Repalced by: A 0015418001 | ||
| 008 | A 0015418001 | BATTERY |
| Repalced by: A 0045410301 | ||
| 008 | A 0045410301 | BATTERY |
| 12 V/88 AH | ||
| 100 AH | ||
| A 0005461835 | BOOT | |
| Repalced by: A 0005462335 | ||
| A 0005462335 | BOOT | |
| Repalced by: A 0015460835 | ||
| A 0015460835 | BOOT | |
| 013 | A 1105410135 | BOTTOM |
| 018 | A 1085410005 | PROTECTIVE PLATE |
| 022 | A 1085400423 | MOUNTING FRAME |
| A 1879950037 | CLAMP | |
| N 007976004205 | SHEET METAL SCREW | |
| N 007976004217 | SHEET METAL SCREW | |
| 026 | A 1205410124 | CLAMPING SCREW |
| 026 | A 1205410124 | CLAMPING SCREW |
| 026 | A 1205410124 | CLAMPING SCREW |
| 030 | N 912004006102 | LOCK WASHER |
| 034 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 034 | N 304032006008 | NUT |
| 037 | A 1145400173 | BRACKET |
| TO MOUNT BATTERY AND BATTERY FRAME | ||
| 041 | A 0009909491 | NUT RETAINER |
| TO MOUNT BATTERY AND BATTERY FRAME | ||
| 045 | N 000933006130 | SCREW |
| TO MOUNT BATTERY AND BATTERY FRAME | ||
| 049 | N 912004006102 | LOCK WASHER |
| TO MOUNT BATTERY AND BATTERY FRAME | ||
| N 000934006024 | NUT | |
| BATTERY POS.TERMINAL | ||
| N 000125006421 | WASHER | |
| BATTERY POS.TERMINAL | ||
| N 912004006102 | LOCK WASHER | |
| BATTERY POS.TERMINAL | ||
| 053 | A 1145400030 | POSITIVE CABLE |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| A 1085400530 | POSITIVE CABLE | |
| A 1085400730 | POSITIVE CABLE | |
| A 1095400530 | POSITIVE CABLE | |
| N 912004008102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR | ||
| N 000934008013 | NUT | |
| CABLE TO STARTING MOTOR | ||
| 057 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 057 | A 1165460135 | BOOT |
| A 1115460235 | BOOT | |
| A 1879950037 | CLAMP | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| N 007976004205 | SHEET METAL SCREW | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| A 0005460830 | INSULATING HOSE | |
| 061 | A 0005462930 | INSULATING HOSE |
| A 0019974190 | LOOM TIE | |
| 100 MM | ||
| 065 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 065 | A 0019974390 | LOOM TIE |
| 069 | A 1805400441 | GROUND STRAP |
| N 007976004205 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| 073 | A 0005460837 | GROMMET |
| Repalced by: A 0005460937 | ||
| 073 | A 0005460937 | GROMMET |
| A 0005460937 | GROMMET | |
| A 1085406609 | CABLE HARNESS | |
| FROM CABLE CONNECTOR TO STARTING MOTOR | ||
| 077 | A 1369950137 | CLAMP |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL CENTER | ||
| 081 | A 1085460253 | SPACER TUBE |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL CENTER | ||
| N 007976004211 | SHEET METAL SCREW | |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL CENTER | ||
| A 1095401109 | CABLE HARNESS | |
| FROM STARTING MOTOR TO CABLE CONNECTOR | ||
| N 900261008001 | CABLE SHOE | |
| A 1369950137 | CLAMP | |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL REINFORCEMENT | ||
| N 007976004205 | SHEET METAL SCREW | |
| STARTING CABLE AND MAIN CABLE HARNESS TO FIRE WALL REINFORCEMENT | ||
| A 0005460837 | GROMMET | |
| Repalced by: A 0005460937 | ||
| A 0005460937 | GROMMET | |
| STARTING CABLE TO BATTERY FRAME,BOTTOM | ||
| N 007976004205 | SHEET METAL SCREW | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| N 912004004100 | LOCK WASHER | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| N 007985006127 | SCREW | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| N 912004006102 | LOCK WASHER | |
| STARTING CABLE TO CABLE CONNECTOR | ||
| 085 | A 1105400631 | NEG. CABLE |
| 089 | A 1095400031 | NEG. CABLE |
| 093 | A 1165400531 | NEG. CABLE |
| A 1165400231 | NEG. CABLE | |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| GROUND CABLE TO FRAME CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| GROUND CABLE TO FRAME CROSS MEMBER | ||
| N 000934008013 | NUT | |
| GROUND CABLE TO FRAME CROSS MEMBER | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| GROUND CABLE TO FIRE WALL | ||
| N 912004008102 | LOCK WASHER | |
| GROUND CABLE TO FIRE WALL | ||
| 097 | A 1165460006 | ELECTRIC CABLE |
| FROM ALTERNATOR TO CABLE CONNECTOR | ||
| A 0005463335 | BOOT | |
| FROM ALTERNATOR TO CABLE CONNECTOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MAIN CABLE HARNESS | ||
| A 1085401205 | CABLE HARNESS | |
| A 1085402005 | CABLE HARNESS | |
| A 1085401605 | CABLE HARNESS | |
| A 1085402405 | CABLE HARNESS | |
| A 1085401305 | CABLE HARNESS | |
| A 1085402105 | CABLE HARNESS | |
| A 1085401705 | CABLE HARNESS | |
| A 1085402505 | CABLE HARNESS | |
| A 1085403205 | CABLE HARNESS | |
| A 1085403305 | CABLE HARNESS | |
| A 1085404805 | CABLE HARNESS | |
| A 1085405205 | CABLE HARNESS | |
| A 1085406305 | CABLE HARNESS | |
| A 1085403605 | CABLE HARNESS | |
| A 1085403705 | CABLE HARNESS | |
| A 1085405005 | CABLE HARNESS | |
| A 1085405305 | CABLE HARNESS | |
| A 1085406405 | CABLE HARNESS | |
| A 1085407105 | CABLE HARNESS | |
| A 1085407205 | CABLE HARNESS | |
| A 1085406905 | CABLE HARNESS | |
| A 1085407305 | CABLE HARNESS | |
| 101 | A 0005454728 | PLUG |
| UNIPOLAR | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| 1-PIN | ||
| 105 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 105 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0045459228 | PLUG | |
| 3-POLE | ||
| A 0055450228 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| 109 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 109 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 109 | A 0155454928 | PLUG |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 113 | A 0008210065 | CASE |
| 6-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| 113 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| A 0045452628 | PLUG | |
| 8-POLE | ||
| 117 | A 0025453528 | PLUG |
| Repalced by: A 0095452628 | ||
| 117 | A 0095452628 | PIN BUSHING HOUSING |
| 12-POLE | ||
| A 0035452728 | PLUG | |
| 14-POLE | ||
| A 0035454628 | PLUG | |
| Repalced by: A 0105450428 | ||
| A 0105450428 | PIN BUSHING HOUSING | |
| 14-POLE | ||
| A 0035453828 | PLUG | |
| Repalced by: A 0095452328 | ||
| A 0095452328 | PIN BUSHING HOUSING | |
| 14-POLE | ||
| 121 | A 0005440560 | PLUG SOCKET HOUSING |
| A 0045459428 | PIN BUSHING HOUSING | |
| A 0005466940 | CABLE SHOE | |
| A 0005440056 | CONTACT PIECE | |
| A 0005440056 | CONTACT PIECE | |
| A 0115455928 | PIN BUSHING HOUSING | |
| A 0055451828 | PIN BUSHING | |
| A 1159970781 | GROMMET | |
| 125 | A 1095400038 | ELECTRIC CABLE |
| 129 | A 0005463540 | CABLE SHOE |
| STARTING MOTOR | ||
| N 900261008001 | CABLE SHOE | |
| STARTING MOTOR | ||
| A 0005464240 | CABLE SHOE | |
| STARTING MOTOR | ||
| 133 | A 1119971681 | GROMMET |
| 133 | A 1119971681 | GROMMET |
| A 1159970781 | GROMMET | |
| 137 | A 1119970181 | GROMMET |
| BACK-UP LAMP CABLE | ||
| A 0009972881 | GROMMET | |
| BACK-UP LAMP CABLE | ||
| 141 | A 1085460085 | PROTECTIVE TUBE |
| 145 | A 1105460085 | PROTECTIVE TUBE |
| 149 | A 0005440486 | PLUG |
| 153 | A 0025459528 | PIN BUSHING HOUSING |
| 157 | A 0005464640 | CABLE SHOE |
| 161 | A 0005464340 | PIN BUSHING |
| A 0005464540 | CABLE SHOE | |
| A 0005464740 | CABLE SHOE | |
| Repalced by: A 0005464640 | ||
| A 0005464640 | CABLE SHOE | |
| A 0005460845 | INSULATING SLEEVE | |
| A 0005460845 | INSULATING SLEEVE | |
| A 0005460145 | INSULATING SLEEVE | |
| A 0005460145 | INSULATING SLEEVE | |
| A 1085400250 | FUSE BOX | |
| Repalced by: A 1105400050 | ||
| 165 | A 1105400050 | FUSE BOX |
| A 1085400350 | FUSE BOX | |
| Repalced by: A 1115400050 | ||
| 169 | A 1115400050 | FUSE BOX |
| A 0005451003 | CAP | |
| 173 | A 0005450180 | GASKET |
| 177 | A 0005451580 | GASKET |
| 181 | A 0005452804 | SWITCH |
| A 0005452904 | SWITCH | |
| A 0005453704 | LIGHT SWITCH | |
| N 007985004136 | SCREW | |
| N 006797004232 | TOOTHED WASHER | |
| 185 | A 1105451137 | BUTTON |
| A 1155400583 | HANDLE | |
| A 0005452345 | BOOT | |
| A 0005452245 | BOOT | |
| 189 | A 1105450272 | NUT |
| A 0045459428 | PIN BUSHING HOUSING | |
| A 0045459428 | PIN BUSHING HOUSING | |
| A 0005466940 | CABLE SHOE | |
| A 0005466940 | CABLE SHOE | |
| A 0055450228 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| A 0055450228 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| A 0005467840 | PIN BUSHING | |
| A 0005467840 | PIN BUSHING | |
| A 0005467940 | PIN BUSHING | |
| A 0005467940 | PIN BUSHING | |
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0005464240 | CABLE SHOE | |
| A 0045459528 | PLUG | |
| 4-POLE | ||
| A 0045459528 | PLUG | |
| 4-POLE | ||
| A 0005458234 | FUSE | |
| FUSE BOX | ||
| N 072581025100 | FUSE | |
| FUSE BOX | ||
| 193 | A 1085400073 | BRACKET |
| FUSE BOX | ||
| N 007976004205 | SHEET METAL SCREW | |
| BRACKET TO BODY | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| BRACKET TO BODY | ||
| N 007985004136 | SCREW | |
| FUSE BOX TO BRACKET | ||
| N 000137004202 | SPRING WASHER | |
| FUSE BOX TO BRACKET | ||
| A 0005451580 | GASKET | |
| FUSE BOX TO BRACKET | ||
| A 1085404909 | CABLE HARNESS | |
| IDLING SHUT-OFF VALVE | ||
| A 0005454728 | PLUG | |
| UNIPOLAR | ||
| A 0009881878 | CLIP | |
| A 1369950135 | CLAMP | |
| MAIN CABLE HARNESS TO FUSE BOX BRACKET | ||
| N 007985001196 | SCREW | |
| MAIN CABLE HARNESS TO FUSE BOX BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO FUSE BOX BRACKET | ||
| A 1085450240 | BRACKET | |
| Repalced by: A 1085400473 | ||
| 197 | A 1085400473 | BRACKET |
| PLUG CONNECTOR TO INSTRUMENT PANEL CROSS BRACE | ||
| N 007976004205 | SHEET METAL SCREW | |
| PLUG CONNECTOR TO INSTRUMENT PANEL CROSS BRACE | ||
| 201 | A 1235454940 | BRACKET |
| 12-POLE CABLE CONNECTOR TO FRONT PANEL PILLAR | ||
| 201 | A 1235454940 | BRACKET |
| 12-POLE CABLE CONNECTOR TO FRONT PANEL PILLAR | ||
| 201 | A 1235454940 | BRACKET |
| 12-POLE CABLE CONNECTOR TO FRONT PANEL PILLAR | ||
| 201 | A 1235454940 | BRACKET |
| 12-POLE CABLE CONNECTOR TO FRONT PANEL PILLAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| 12-POLE CABLE CONNECTOR TO FRONT PANEL PILLAR | ||
| 205 | A 1085400473 | BRACKET |
| CABLE PLUG CONNECTION | ||
| A 1085451640 | BRACKET | |
| CABLE PLUG CONNECTION | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| A 0009903891 | NUT RETAINER | |
| Repalced by: A 0009903931 | ||
| A 0009903931 | SCREW | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| 209 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 209 | A 1149970590 | LOOM TIE |
| A 1149970190 | LOOM TIE | |
| N 040621014200 | INSULATING HOSE | |
| MAIN CABLE HARNESS TO INSTRUMENT PANEL BRACE | ||
| A 0029884878 | CLIP | |
| BACK-UP LIGHT PLUG CONNECTION,BIPOLAR | ||
| 213 | A 0029880178 | CLIP |
| BACK-UP LIGHT SWITCH CABLE TO LEFT TOEBOARD | ||
| A 0009873272 | EDGE GUARD SECTION | |
| BACK-UP LIGHT SWITCH CABLE TO LEFT TOEBOARD | ||
| 217 | A 1879950037 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| 221 | A 1369950037 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| N 007976004211 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| A 1085460253 | SPACER TUBE | |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| N 007976004211 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| 225 | A 1119880178 | CLIP |
| MAIN CABLE HARNESS AND HOOD RELEASE TO LEFT WHEEL ARCH PANEL | ||
| 229 | A 0019881078 | CLIP |
| MAIN CABLE HARNESS AND HOOD RELEASE TO LEFT WHEEL ARCH PANEL | ||
| A 1369950037 | CLAMP | |
| MAIN CABLE HARNESS AND HOOD RELEASE TO LEFT WHEEL ARCH PANEL | ||
| N 007976004205 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS AND HOOD RELEASE TO LEFT WHEEL ARCH PANEL | ||
| A 1095450840 | BRACKET | |
| ELECTRIC CABLE OF DECLUTCHING START START SWITCH AND BACK-UP LIGHT SWITCH | ||
| N 007976004205 | SHEET METAL SCREW | |
| ELECTRIC CABLE OF DECLUTCHING START START SWITCH AND BACK-UP LIGHT SWITCH | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL,CENTER | ||
| A 1369950137 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL,CENTER | ||
| A 1085460253 | SPACER TUBE | |
| MAIN CABLE HARNESS TO FIRE WALL,CENTER | ||
| N 007976004211 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO FIRE WALL,CENTER | ||
| A 1085460253 | SPACER TUBE | |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| N 007976004211 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| 233 | A 1989950037 | CLAMP |
| MAIN CABLE HARNESS TO FIRE WALL,RIGHT | ||
| A 0009883378 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEELHOUSE PANEL AND TO CENTRAL CROSS MEMBER | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEELHOUSE PANEL AND TO CENTRAL CROSS MEMBER | ||
| A 0009873272 | EDGE GUARD SECTION | |
| WITH CLAMPING STRIP FILLER | ||
| 237 | A 0009972881 | GROMMET |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| A 0009888978 | CLIP | |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| A 0009873272 | EDGE GUARD SECTION | |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| N 000933004030 | SCREW | |
| MAIN CABLE HARNESS TO RADIATOR BAFFLE, RIGHT | ||
| N 912004004100 | LOCK WASHER | |
| MAIN CABLE HARNESS TO RADIATOR BAFFLE, RIGHT | ||
| N 000934004006 | NUT | |
| MAIN CABLE HARNESS TO RADIATOR BAFFLE, RIGHT | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| CABLES TO ALTERNATOR | ||
| N 000137006204 | SPRING WASHER | |
| CABLES TO ALTERNATOR | ||
| A 0005463335 | BOOT | |
| CABLES TO ALTERNATOR | ||
| A 0029880078 | CLIP | |
| THERMOSWITCH CABLE | ||
| A 0009972881 | GROMMET | |
| THERMOSWITCH CABLE | ||
| A 0005450745 | BOOT | |
| THERMOSWITCH CABLE | ||
| N 000933004030 | SCREW | |
| MAIN CABLE HARNESS GROUND CONNECTION TO FRAME FLOOR UNIT | ||
| N 912004004100 | LOCK WASHER | |
| MAIN CABLE HARNESS GROUND CONNECTION TO FRAME FLOOR UNIT | ||
| N 000934004006 | NUT | |
| MAIN CABLE HARNESS GROUND CONNECTION TO FRAME FLOOR UNIT | ||
| A 1085400007 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085400807 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085400807 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085401407 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085401207 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085401607 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085400107 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085400907 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085400907 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085401507 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085401307 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1085402007 | CABLE HARNESS | |
| A 1095400307 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1095400707 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1095400607 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1095400807 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 1095401007 | CABLE HARNESS | |
| TAIL LAMP | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| A 1119970281 | GROMMET | |
| A 0025452628 | PLUG | |
| Repalced by: A 0095455428 | ||
| A 0095455428 | PLUG HOUSING | |
| 12-POLE | ||
| 244 | A 0029884878 | CLIP |
| 244 | A 0029884878 | CLIP |
| A 0005458234 | FUSE | |
| A 0005458234 | FUSE | |
| 244 | A 0029880878 | CLIP |
| 245 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS IN REAR INSIDE OF THE CAR | ||
| 245 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS IN REAR INSIDE OF THE CAR | ||
| 245 | A 1085400273 | BRACKET |
| TAIL LAMP CABLE HARNESS IN REAR INSIDE OF THE CAR | ||
| N 040621014200 | INSULATING HOSE | |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| N 040621014200 | INSULATING HOSE | |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| N 040621014200 | INSULATING HOSE | |
| TAIL LAMP CABLE HARNESS IN THE REAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS IN REAR INSIDE OF THE CAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS IN REAR INSIDE OF THE CAR | ||
| N 007976004205 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS IN REAR INSIDE OF THE CAR | ||
| 249 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 249 | A 1149970590 | LOOM TIE |
| A 0009883378 | CLIP | |
| LUGGAGE COMPARTMENT LAMP CABLE | ||
| A 0009881778 | CLIP | |
| LUGGAGE COMPARTMENT LAMP CABLE | ||
| A 0009883378 | CLIP | |
| LUGGAGE COMPARTMENT LAMP CABLE | ||
| A 1085402509 | CABLE HARNESS | |
| SOLENOID VALVE TO KICK-DOWN SWITCH | ||
| A 1085402509 | CABLE HARNESS | |
| SOLENOID VALVE TO KICK-DOWN SWITCH | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0065459328 | PLUG | |
| Repalced by: A 0095454228 | ||
| A 0095454228 | PLUG | |
| 4-POLE | ||
| A 0095454228 | PLUG | |
| 4-POLE | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| A 0065457828 | PLUG HOUSING | |
| A 0065457828 | PLUG HOUSING | |
| A 1085402609 | CABLE HARNESS | |
| STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH | ||
| A 1085402609 | CABLE HARNESS | |
| STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH | ||
| A 1085402609 | CABLE HARNESS | |
| STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 1095401209 | CABLE HARNESS | |
| BIPOLAR | ||
| A 0065459328 | PLUG | |
| Repalced by: A 0095454228 | ||
| A 0095454228 | PLUG | |
| 4-POLE | ||
| A 0095454228 | PLUG | |
| 4-POLE | ||
| A 0095454228 | PLUG | |
| 4-POLE | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| A 0065457828 | PLUG HOUSING | |
| A 0065457828 | PLUG HOUSING | |
| A 0065457828 | PLUG HOUSING | |
| A 0003040040 | BRACKET | |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| A 0003040040 | BRACKET | |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| N 007985004123 | SCREW | |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| N 007985004123 | SCREW | |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| A 1085402209 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 1085403509 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 1085403809 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 1085403609 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| 1-PIN | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| 1-PIN | ||
| A 0035454728 | PLUG | |
| Repalced by: A 0085450828 | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0085450828 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| A 0065458128 | PIN BUSHING HOUSING | |
| 8-POLE | ||
| A 0005464340 | PIN BUSHING | |
| A 0005460845 | INSULATING SLEEVE | |
| A 0009972281 | GROMMET | |
| A 1119972381 | GROMMET | |
| Repalced by: A 0089971781 | ||
| A 0089971781 | GROMMET | |
| 253 | A 0005450632 | CONTROL UNIT |
| A 0005450832 | CONTROL UNIT | |
| A 1085405609 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 0005453132 | CONTROL UNIT | |
| Repalced by: A 0005454032 | ||
| A 0005454032 | CONTROL UNIT | |
| A 0005454032 | CONTROL UNIT | |
| ADVANCE/RETARD MECHANISM | ||
| A 0005453732 | CONTROL UNIT | |
| IDLING ADJUSTMENT | ||
| A 0015420419 | RELAY | |
| 257 | A 0015400097 | VALVE |
| Repalced by: A 0015407097 | ||
| 257 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 257 | A 0015408697 | VALVE |
| ELECTRIC | ||
| 257 | A 0015408697 | VALVE |
| ELECTRIC | ||
| 257 | A 0015408697 | VALVE |
| ELECTRIC | ||
| 261 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 261 | A 0015408697 | VALVE |
| THREE-WAY | ||
| 261 | A 0015408697 | VALVE |
| THREE-WAY | ||
| 265 | A 0005429519 | RELAY |
| A 0005429319 | RELAY | |
| 269 | A 1085420840 | BRACKET |
| RELAY AND SWITCH | ||
| 269 | A 1085420840 | BRACKET |
| RELAY AND SWITCH | ||
| N 007985004129 | SCREW | |
| RELAY AND SWITCH TO BRACKET | ||
| N 007985004129 | SCREW | |
| RELAY AND SWITCH TO BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| RELAY AND SWITCH TO BRACKET | ||
| N 009021004207 | WASHER | |
| RELAY AND SWITCH TO BRACKET | ||
| A 0009902048 | WASHER | |
| RELAY AND SWITCH TO BRACKET | ||
| A 0009902048 | WASHER | |
| RELAY AND SWITCH TO BRACKET | ||
| N 000934004006 | NUT | |
| RELAY AND SWITCH TO BRACKET | ||
| N 000934004006 | NUT | |
| RELAY AND SWITCH TO BRACKET | ||
| N 007976005203 | SHEET METAL SCREW | |
| N 007976005203 | SHEET METAL SCREW | |
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| VALVE TO WHEELHOUSE PANEL | ||
| N 000000000453 | SHEET METAL SCREW | |
| VALVE TO WHEELHOUSE PANEL | ||
| A 0005464340 | PIN BUSHING | |
| A 0005460845 | INSULATING SLEEVE | |
| A 0005425819 | RELAY | |
| 269 | A 1085420040 | BRACKET |
| RELAY | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| RELAY BRACKET TO LEFT WHEELHOUSE PANEL | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| RELAY BRACKET TO LEFT WHEELHOUSE PANEL | ||
| N 912004006102 | LOCK WASHER | |
| RELAY BRACKET TO LEFT WHEELHOUSE PANEL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| RELAY BRACKET TO LEFT WHEELHOUSE PANEL | ||
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| RELAY TO BRACKET | ||
| A 0005463335 | BOOT | |
| A 0005463335 | BOOT | |
| A 1369950137 | CLAMP | |
| A 1369950137 | CLAMP | |
| A 1369950137 | CLAMP | |
| A 1369950135 | CLAMP | |
| A 1129950120 | CLAMP | |
| A 1209930225 | SPRING | |
| A 0005429719 | RELAY | |
| A 1085404709 | CABLE HARNESS | |
| A 0045458528 | PLUG | |
| Repalced by: A 0085452028 | ||
| A 0085452028 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0005464340 | PIN BUSHING | |
| A 0005460845 | INSULATING SLEEVE | |
| A 0005425819 | RELAY | |
| A 1085420040 | BRACKET | |
| N 007981004342 | SHEET METAL SCREW | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| N 072601012230 | BULB | |
| A 0029886978 | CLIP | |
| CABLE CONNECTOR TO KICK-DOWN SWITCH | ||
| A 1209930225 | SPRING | |
| A 0009957401 | CLAMP | |
| SEAT BELT CABLE HARNESS TO TUNNEL | ||
| N 007976004203 | SHEET METAL SCREW | |
| A 1085406409 | CABLE HARNESS | |
| SEAT BELT WARNING SYSTEM | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR; SEAT BELT WARNING SYSTEM | ||
| A 0025452428 | PLUG | |
| Repalced by: A 0095454028 | ||
| A 0095454028 | PLUG HOUSING | |
| BIPOLAR; SEAT BELT WARNING SYSTEM | ||
| A 0005425919 | RELAY | |
| N 007981004342 | SHEET METAL SCREW | |
| A 0029884878 | CLIP | |
| A 0009959801 | CLAMP | |
| Repalced by: A 1159950101 | ||
| A 1159950101 | CLAMP | |
| N 007976004203 | SHEET METAL SCREW | |
| A 1085421040 | BRACKET | |
| A 0029884878 | CLIP | |
| N 007976004203 | SHEET METAL SCREW | |
| A 1085421140 | BRACKET | |
| A 0029880178 | CLIP | |
| A 1085402609 | CABLE HARNESS | |
| ADDITIONAL CABLE,AUTOMATIC TRANSMISSION | ||
| A 0035457128 | PLUG | |
| Repalced by: A 0065457828 | ||
| A 0065457828 | PLUG HOUSING | |
| AUTOMATIC TRANSMISSION | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR; AUTOMATIC TRANSMISSION | ||
| A 0065459328 | PLUG | |
| Repalced by: A 0095454228 | ||
| A 0095454228 | PLUG | |
| 4-POLE; AUTOMATIC TRANSMISSION | ||
| A 0005425819 | RELAY | |
| N 007981004342 | SHEET METAL SCREW | |

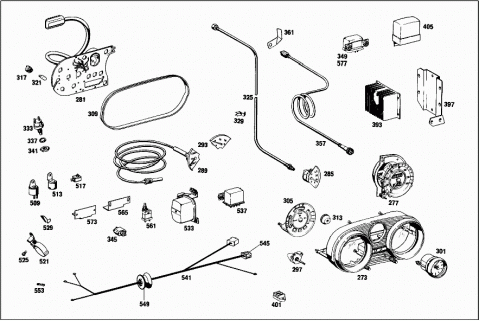

| 273 | A 0005421256 | HOUSING |
| 277 | A 0055426906 | SPEEDOMETER |
| Repalced by: A 0065428406 | ||
| 277 | A 0065428406 | SPEEDOMETER |
| 1:4.08 | ||
| A 0065428406 | SPEEDOMETER | |
| 1:4.08 | ||
| A 0065428406 | SPEEDOMETER | |
| 1:4.08 | ||
| A 0065428406 | SPEEDOMETER | |
| 1:4.08 | ||
| A 0065429206 | SPEEDOMETER | |
| 1:3.92 | ||
| A 0075424506 | SPEEDOMETER | |
| 1:3.23 | ||
| 281 | A 0005420378 | CONNECTION PLATE |
| A 0005420878 | CONNECTION PLATE | |
| A 0035452728 | PLUG | |
| 285 | A 0015424902 | OIL PRESSURE GAUGE |
| 285 | A 0015424902 | OIL PRESSURE GAUGE |
| A 0015426002 | OIL PRESSURE GAUGE | |
| A 0015426002 | OIL PRESSURE GAUGE | |
| A 0015427002 | OIL PRESSURE GAUGE | |
| A 0015427202 | OIL PRESSURE GAUGE | |
| A 0015427202 | OIL PRESSURE GAUGE | |
| 289 | A 0035421505 | TEMPERATURE GAUGE |
| 293 | A 0005429603 | FUEL GAUGE DASH UNIT |
| 293 | A 0005429603 | FUEL GAUGE DASH UNIT |
| A 0015420303 | FUEL GAUGE DASH UNIT | |
| A 0015420303 | FUEL GAUGE DASH UNIT | |
| A 0015420503 | FUEL GAUGE DASH UNIT | |
| 297 | A 0005421025 | POTENTIOMETER |
| A 0005421525 | POTENTIOMETER | |
| 301 | A 0005420711 | CLOCK |
| 305 | A 0005420058 | DIAL FACING |
| A 0005421458 | DIAL FACING | |
| 309 | A 1085420080 | GASKET |
| N 000084003104 | SCREW | |
| OIL PRESSURE GAUGE | ||
| N 000084003101 | SCREW | |
| WATER TEMPERATURE GAUGE | ||
| N 000934004006 | NUT | |
| FUEL GAUGE | ||
| N 000433004307 | WASHER | |
| FUEL GAUGE | ||
| N 006797004232 | TOOTHED WASHER | |
| FUEL GAUGE | ||
| 313 | A 1089900057 | NUT |
| 317 | A 0005454019 | SOCKET |
| 321 | A 0005446794 | BULB |
| Repalced by: N 072601012240 | ||
| 321 | N 072601012240 | BULB |
| A 1085400059 | HOSE | |
| Repalced by: A 1085420144 | ||
| A 1085400259 | HOSE | |
| Repalced by: A 1085420144 | ||
| 325 | A 1085420144 | PIPE LINE |
| OIL PRESSURE GAUGE LINE | ||
| 325 | A 1085420144 | PIPE LINE |
| OIL PRESSURE GAUGE LINE | ||
| 325 | A 1085420144 | PIPE LINE |
| OIL PRESSURE GAUGE LINE | ||
| A 1085420544 | PIPE LINE | |
| A 1085420544 | PIPE LINE | |
| A 1085420644 | PIPE LINE | |
| A 1095420444 | PIPE LINE | |
| A 1109971281 | GROMMET | |
| A 1119972381 | GROMMET | |
| Repalced by: A 0089971781 | ||
| A 0089971781 | GROMMET | |
| 329 | A 0029886078 | CLIP |
| 329 | A 0029886078 | CLIP |
| 329 | A 0029886078 | CLIP |
| A 1119971481 | GROMMET | |
| CAPILLARY TUBE TO FIRE WALL | ||
| 333 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 337 | N 006797012250 | TOOTHED WASHER |
| 341 | A 0009909251 | NUT |
| 345 | A 0015450211 | SWITCH |
| PILOT | ||
| A 0019906751 | NUT | |
| Repalced by: A 0002520372 | ||
| A 0002520372 | NUT | |
| N 000137008204 | SPRING WASHER | |
| N 912006008000 | LOCK WASHER | |
| A 1145840021 | GUIDE SIGN | |
| LIGHT ROTARY SWITCH | ||
| 349 | A 0005425819 | RELAY |
| MIXTURE ENRICHMENT CONTROL | ||
| 349 | A 0005425819 | RELAY |
| MIXTURE ENRICHMENT CONTROL | ||
| 349 | A 0005425819 | RELAY |
| STARTING VALVE | ||
| 353 | A 1085420040 | BRACKET |
| RELAY | ||
| 353 | A 1085420040 | BRACKET |
| RELAY | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| RELAY BRACKET TO WHEELHOUSE PANEL | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| RELAY BRACKET TO WHEELHOUSE PANEL | ||
| N 912004006102 | LOCK WASHER | |
| RELAY BRACKET TO WHEELHOUSE PANEL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| RELAY BRACKET TO WHEELHOUSE PANEL | ||
| N 007981004326 | SHEET METAL SCREW | |
| RELAY TO RELAY BRACKET | ||
| 357 | A 1085420007 | FLEXIBLE SHAFT |
| 1350 MM | ||
| A 1095420207 | FLEXIBLE SHAFT | |
| 1300 MM | ||
| A 1085420307 | FLEXIBLE SHAFT | |
| 1450 MM | ||
| A 1095420507 | FLEXIBLE SHAFT | |
| 361 | A 1085420240 | BRACKET |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 1089970381 | GROMMET | |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 0009881878 | CLIP | |
| A 1099880078 | CLIP | |
| A 0025420020 | HORN | |
| Repalced by: A 0035421920 | ||
| 365 | A 0035421920 | HORN |
| LOW NOTE | ||
| A 0015423920 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0025420120 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0035422020 | HORN | |
| MEDIUM NOTE | ||
| A 0035421020 | HORN | |
| 335 HZ | ||
| A 0035421620 | HORN | |
| 335 HZ | ||
| A 0035420720 | HORN | |
| 400 HZ | ||
| A 0035421720 | HORN | |
| 400 HZ | ||
| N 900161010103 | SCREW | |
| HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HORN TO BRACKET | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| N 000084004156 | SCREW | |
| CABLE CONNECTION TO HORN | ||
| N 912004004100 | LOCK WASHER | |
| CABLE CONNECTION TO HORN | ||
| 369 | A 0001584903 | IGNITION COIL |
| 369 | A 0001584903 | IGNITION COIL |
| 369 | A 0001584903 | IGNITION COIL |
| A 0001582303 | IGNITION COIL | |
| Repalced by: A 0001582803 | ||
| A 0001582803 | IGNITION COIL | |
| A 0001582803 | IGNITION COIL | |
| A 0001582803 | IGNITION COIL | |
| 373 | A 0001580240 | BRACKET |
| N 000084005156 | SCREW | |
| N 000562006000 | NUT | |
| 377 | A 0001581185 | SUPPRESSOR HOUSING |
| N 000934005008 | NUT | |
| CABLES TO IGNITION COIL | ||
| N 912004005100 | LOCK WASHER | |
| CABLES TO IGNITION COIL | ||
| 381 | A 0005463335 | BOOT |
| A 2019902201 | SCREW | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| A 0009900848 | WASHER | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| 385 | A 0001580845 | SERIES RESISTOR |
| 385 | A 0001580845 | SERIES RESISTOR |
| 385 | A 0001580845 | SERIES RESISTOR |
| A 0001581345 | SERIES RESISTOR | |
| A 0001581345 | SERIES RESISTOR | |
| A 0001581345 | SERIES RESISTOR | |
| A 0001581945 | SERIES RESISTOR | |
| A 0001581945 | SERIES RESISTOR | |
| A 0001582045 | SERIES RESISTOR | |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| SERIES RESISTOR TO LEFT WHEEL ARCH PANEL | ||
| N 912004004100 | LOCK WASHER | |
| N 007985004123 | SCREW | |
| 389 | A 1085460003 | ELECTRIC CABLE |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| A 1145460003 | ELECTRIC CABLE | |
| A 1145460003 | ELECTRIC CABLE | |
| A 1145460003 | ELECTRIC CABLE | |
| A 1145460003 | ELECTRIC CABLE | |
| A 1081580073 | LOCK | |
| A 1081580073 | LOCK | |
| 393 | A 0005454132 | CONTROL UNIT |
| 393 | A 0005454132 | CONTROL UNIT |
| 397 | A 1085420740 | BRACKET |
| Repalced by: A 1085401273 | ||
| 397 | A 1085401273 | BRACKET |
| 397 | A 1085401273 | BRACKET |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 304017006018 | SCREW | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 304032006008 | NUT | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| N 000000002062 | SCREW | |
| N 000933004030 | SCREW | |
| GROUND CONNECTION TO BRACKET | ||
| N 000933004030 | SCREW | |
| GROUND CONNECTION TO BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GROUND CONNECTION TO BRACKET | ||
| N 009021004207 | WASHER | |
| GROUND CONNECTION TO BRACKET | ||
| N 912004004100 | LOCK WASHER | |
| GROUND CONNECTION TO BRACKET | ||
| N 912004004100 | LOCK WASHER | |
| GROUND CONNECTION TO BRACKET | ||
| N 000934004006 | NUT | |
| GROUND CONNECTION TO BRACKET | ||
| N 000934004006 | NUT | |
| GROUND CONNECTION TO BRACKET | ||
| 401 | A 0005467041 | CABLE CONNECTOR |
| BIPOLAR | ||
| 401 | A 0005467041 | CABLE CONNECTOR |
| BIPOLAR | ||
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| N 000000000453 | SHEET METAL SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO CABLE CONNECTOR | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO CABLE CONNECTOR | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CABLE TO CABLE CONNECTOR | ||
| N 007985004107 | SCREW | |
| CABLE TO CABLE CONNECTOR | ||
| A 1085404009 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 1085404009 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 0009888978 | CLIP | |
| A 0009888978 | CLIP | |
| N 007985004149 | SCREW | |
| CABLE TO SERIES RESISTOR | ||
| N 912004004100 | LOCK WASHER | |
| CABLE TO SERIES RESISTOR | ||
| N 912004004100 | LOCK WASHER | |
| CABLE TO SERIES RESISTOR | ||
| N 912004004100 | LOCK WASHER | |
| CABLE TO SERIES RESISTOR | ||
| N 007985004123 | SCREW | |
| CABLE TO SERIES RESISTOR | ||
| N 007985004123 | SCREW | |
| CABLE TO SERIES RESISTOR | ||
| 405 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 405 | A 0021547406 | REGULATOR AND CUT-OUT |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| REGULATOR AND CUT-OUT TO RIGHT WHEELHOUSE PANEL | ||
| N 912004006102 | LOCK WASHER | |
| REGULATOR AND CUT-OUT TO RIGHT WHEELHOUSE PANEL | ||
| A 0009902291 | NUT RETAINER | |
| REGULATOR AND CUT-OUT TO RIGHT WHEELHOUSE PANEL | ||
| 409 | A 1085401273 | BRACKET |
| 413 | A 0005454232 | CONTROL UNIT |
| N 007981004318 | SHEET METAL SCREW | |
| A 0005467041 | CABLE CONNECTOR | |
| N 007985004179 | SCREW | |
| GROUND CONNECTION CABLE CONNECTOR TO CONTROL BOX BRACKET | ||
| N 912004004100 | LOCK WASHER | |
| GROUND CONNECTION CABLE CONNECTOR TO CONTROL BOX BRACKET | ||
| N 000934004006 | NUT | |
| GROUND CONNECTION CABLE CONNECTOR TO CONTROL BOX BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GROUND CONNECTION CABLE CONNECTOR TO CONTROL BOX BRACKET | ||
| N 007981004325 | SHEET METAL SCREW | |
| GROUND CONNECTION CABLE CONNECTOR TO CONTROL BOX BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO RADIATOR BAFFLE | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| BRACKET TO RADIATOR BAFFLE | ||
| A 1085406109 | CABLE HARNESS | |
| TRANSISTORIZED IGNITION CABLE | ||
| A 0009888978 | CLIP | |
| ADDITIONAL CABLE TO LEFT SIDE MEMBER | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CONNECTION TO CABLE CONNECTOR | ||
| N 912004004100 | LOCK WASHER | |
| CONNECTION TO CABLE CONNECTOR | ||
| N 900261004000 | CABLE SHOE | |
| CABLE CONNECTOR | ||
| 417 | A 0005428719 | RELAY |
| FUEL PUMP AND ELECTRONIC SYSTEM | ||
| N 007981004326 | SHEET METAL SCREW | |
| FUEL PUMP AND ELECTRONIC SYSTEM | ||
| 421 | A 0005429719 | RELAY |
| COLD STARTING VALVE AND ADDITIONAL FAN | ||
| A 0019889878 | CLIP | |
| FAN PLUG CONNECTOR TO CONTROL DEVICE BRACKET | ||
| A 1085405709 | CABLE HARNESS | |
| 425 | A 0019974681 | GROMMET |
| 429 | A 0135459228 | PLUG |
| 25-POLE | ||
| 433 | A 0005460643 | BRACKET |
| A 0005467040 | CABLE SHOE | |
| 437 | A 0005451945 | BOOT |
| N 007981002222 | SHEET METAL SCREW | |
| A 0005469741 | CABLE CONNECTOR | |
| 441 | A 0045454828 | PLUG |
| BIPOLAR | ||
| 445 | A 0045455028 | PLUG |
| 4-POLE | ||
| 449 | A 0065458728 | PLUG |
| 5-POLE | ||
| A 0005466940 | CABLE SHOE | |
| 453 | A 0005461135 | BOOT |
| A 0005462035 | BOOT | |
| A 0005461335 | BOOT | |
| A 0005461735 | BOOT | |
| 457 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 457 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 457 | A 0155454928 | PLUG |
| 4-POLE | ||
| 461 | A 0065455728 | PLUG |
| Repalced by: A 0095455228 | ||
| 461 | A 0095455228 | PLUG HOUSING |
| 4-POLE | ||
| 465 | A 0005460173 | RAIL |
| A 0055455628 | PLUG | |
| Repalced by: A 0095454428 | ||
| A 0095454428 | PIN BUSHING HOUSING | |
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| ELECTRONIC SYSTEM GROUND CONNECTION TO CROSS MEMBER,RIGHT | ||
| N 912004008102 | LOCK WASHER | |
| ELECTRONIC SYSTEM GROUND CONNECTION TO CROSS MEMBER,RIGHT | ||
| A 0005429719 | RELAY | |
| AIR POLLUTION CONTROL | ||
| A 0015420219 | RELAY | |
| 469 | A 0015400097 | VALVE |
| Repalced by: A 0015407097 | ||
| 469 | A 0015407097 | VALVE |
| Repalced by: A 0015408697 | ||
| 469 | A 0015408697 | VALVE |
| ELECTRONIC | ||
| 469 | A 0015408697 | VALVE |
| ELECTRONIC | ||
| N 007981004318 | SHEET METAL SCREW | |
| VALVE WITH BRACKET TO RELAY BRACKET | ||
| 473 | A 1095451340 | BRACKET |
| VALVE WITH BRACKET TO RELAY BRACKET | ||
| 477 | A 0005452632 | CONTROL UNIT |
| ELECTRONIC | ||
| 481 | A 0025422817 | SENSOR |
| DELIVERY | ||
| 485 | A 1115400080 | COVERING |
| ELECTRONIC SWITCH | ||
| 489 | A 1095400773 | BRACKET |
| 493 | A 1095450540 | BRACKET |
| BRACKET TO ELECTRONIC SWITCH | ||
| 497 | N 007985005125 | SCREW |
| Repalced by: N 007985005157 | ||
| 497 | N 007985005157 | SCREW |
| BRACKET TO ELECTRONIC SWITCH | ||
| 501 | N 912004005100 | LOCK WASHER |
| BRACKET TO ELECTRONIC SWITCH | ||
| 505 | A 1099870139 | RUBBER BUFFER |
| ELECTRONIC SWITCH | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AND TO SIDE MEMBER | ||
| N 007985006190 | SCREW | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AND TO SIDE MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AND TO SIDE MEMBER | ||
| N 000125006421 | WASHER | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AND TO SIDE MEMBER | ||
| A 1239901336 | SCREW | |
| CONTROL DEVICE BRACKET TO AIR BAFFLE AND TO SIDE MEMBER | ||
| N 007976004214 | SHEET METAL SCREW | |
| PRESSURE SENSOR TO FIRE WALL | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| PRESSURE SENSOR TO FIRE WALL | ||
| N 916033012100 | CLAMP | |
| PRESSURE SENSOR TO FIRE WALL | ||
| A 0005469641 | CABLE CONNECTOR | |
| 3-POLE | ||
| N 007985004179 | SCREW | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 007985006127 | SCREW | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 000934004006 | NUT | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 912004004100 | LOCK WASHER | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 912004005100 | LOCK WASHER | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| CABLE CONNECTOR TO RIGHT SIDE MEMBER | ||
| A 0005422623 | BUZZER | |
| A 0005422623 | BUZZER | |
| A 0005422623 | BUZZER | |
| A 0005422423 | BUZZER | |
| A 0005422423 | BUZZER | |
| A 0005422423 | BUZZER | |
| 509 | A 0005423223 | BUZZER |
| 513 | A 0005423323 | BUZZER |
| A 0008211352 | CONTACTOR | |
| DOOR | ||
| A 0008211352 | CONTACTOR | |
| DOOR | ||
| A 0008211352 | CONTACTOR | |
| DOOR | ||
| 517 | A 1245450414 | SWITCH |
| Repalced by: A 1245450214 | ||
| 517 | A 1245450214 | SWITCH |
| BUZZER CONTACT | ||
| 517 | A 1245450214 | SWITCH |
| BUZZER CONTACT | ||
| 517 | A 1245450214 | SWITCH |
| BUZZER CONTACT | ||
| 521 | A 1085400973 | BRACKET |
| 525 | N 007985005126 | SCREW |
| Repalced by: N 007985005127 | ||
| 525 | N 007985005127 | SCREW |
| Repalced by: N 007985005504 | ||
| 525 | N 007985005504 | SCREW |
| 529 | A 1082680118 | STOP LEVER |
| A 0005458411 | SWITCH | |
| Repalced by: A 0045450414 | ||
| A 0045450414 | SWITCH | |
| Repalced by: A 0045451814 | ||
| A 0045451814 | SWITCH | |
| N 900288019100 | CLAMP | |
| 533 | A 0005450132 | CONTROL UNIT |
| A 0005450132 | CONTROL UNIT | |
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| SWITCH TO WHEELHOUSE PANEL | ||
| N 912004006102 | LOCK WASHER | |
| SWITCH TO WHEELHOUSE PANEL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| SWITCH TO WHEELHOUSE PANEL | ||
| 537 | A 0005425919 | RELAY |
| N 007981004342 | SHEET METAL SCREW | |
| RELAY TO RELAY BRACKET | ||
| 541 | A 1085401309 | CABLE HARNESS |
| (ADDITIONAL CABLE) | ||
| A 1085401109 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| 545 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 545 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 549 | A 1009970381 | GROMMET |
| A 1109971281 | GROMMET | |
| 553 | A 0005464440 | CABLE SHOE |
| A 1085401609 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 1085401609 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 1085401609 | CABLE HARNESS | |
| (ADDITIONAL CABLE) | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0035452828 | PLUG | |
| Repalced by: A 0095459228 | ||
| A 0095459228 | PLUG | |
| A 0005425819 | RELAY | |
| N 007981004342 | SHEET METAL SCREW | |
| A 1085404309 | CABLE HARNESS | |
| A 1085404309 | CABLE HARNESS | |
| A 1085405209 | CABLE HARNESS | |
| ELECTRICAL PARTS USED FOR ADDITIONAL FAN | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| A 0085453728 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0045458628 | PLUG | |
| Repalced by: A 0075450028 | ||
| A 0075450028 | PIN BUSHING HOUSING | |
| Repalced by: A 0155454928 | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0155454928 | PLUG | |
| 4-POLE | ||
| A 0005464340 | PIN BUSHING | |
| A 0005464340 | PIN BUSHING | |
| A 0005460845 | INSULATING SLEEVE | |
| A 0005460845 | INSULATING SLEEVE | |
| 561 | A 0005459411 | SWITCH |
| 561 | A 0005459411 | SWITCH |
| 565 | A 1088210814 | BRACKET |
| 565 | A 1088210814 | BRACKET |
| N 000936010010 | NUT | |
| N 000936010010 | NUT | |
| N 900055010002 | SPRING WASHER | |
| N 900055010002 | SPRING WASHER | |
| A 0005458334 | FUSE | |
| A 0005458334 | FUSE | |
| A 0005458334 | FUSE | |
| A 0005425819 | RELAY | |
| A 0005425819 | RELAY | |
| 569 | A 0005459901 | FUSE BOX |
| 569 | A 0005459901 | FUSE BOX |
| A 0005459901 | FUSE BOX | |
| 573 | A 1088210514 | BRACKET |
| FUSE BOX | ||
| A 1085420040 | BRACKET | |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 912004006102 | LOCK WASHER | |
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| A 1088210614 | BRACKET | |
| FUSE BOX AND RELAY | ||
| 577 | A 1098201514 | BRACKET |
| FUSE BOX AND RELAY | ||
| N 007976004205 | SHEET METAL SCREW | |
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| N 000000000454 | SHEET METAL SCREW | |
| N 007981004342 | SHEET METAL SCREW | |
| N 007981004342 | SHEET METAL SCREW | |
| A 0005463335 | BOOT | |
| A 0005463335 | BOOT | |
| A 0029884878 | CLIP | |
| A 0029884878 | CLIP | |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| FUSE BOX CONNECTION,TERMINALS 15/54 | ||
| N 007985004107 | SCREW | |
| FUSE BOX CONNECTION,TERMINALS 15/54 | ||
| N 912004004100 | LOCK WASHER | |
| FUSE BOX CONNECTION,TERMINALS 15/54 | ||
| N 912004004100 | LOCK WASHER | |
| FUSE BOX CONNECTION,TERMINALS 15/54 | ||
| A 1088201714 | BRACKET | |
| WITH FUSE BOX LEFT WHEELHOUSE PANEL | ||
| 581 | A 0029884878 | CLIP |
| A 0045459528 | PLUG | |
| 4-POLE | ||
| A 0029886978 | CLIP | |
| CABLE CONNECTOR TO KICK-DOWN SWITCH | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
