Transporto priemonė: 280 SE 4.5 USA; VIN numerio dalis: 108067

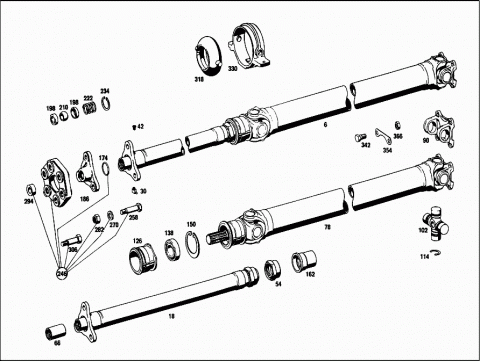

Grupė: 41 PROPELLER SHAFTS - 001 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1084100703 | PROPELLER SHAFT |
| Repalced by: A 1114102601 | ||
| A 1094101303 | PROPELLER SHAFT | |
| Repalced by: A 1084101601 | ||
| A 1084101601 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1084101103 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1084101903 | PROPELLER SHAFT | |
| Repalced by: A 1084102001 | ||
| A 1084102001 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1094100803 | PROPELLER SHAFT | |
| Repalced by: A 1094101601 | ||
| A 1094101601 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1094100603 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1084101603 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1084102003 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1084102503 | PROPELLER SHAFT | |
| SPLIT | ||
| A 1094101303 | PROPELLER SHAFT | |
| Repalced by: A 1084101601 | ||
| A 1084101601 | PROPELLER SHAFT | |
| SPLIT | ||
| 018 | A 1114102601 | PROPELLER SHAFT |
| FRONT | ||
| A 1084101601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1084101601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1114102701 | PROPELLER SHAFT | |
| FRONT | ||
| A 1084102001 | PROPELLER SHAFT | |
| FRONT | ||
| A 1094101601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1104104001 | PROPELLER SHAFT | |
| FRONT | ||
| A 1074105401 | PROPELLER SHAFT | |
| Repalced by: A 1074105601 | ||
| A 1074105601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1084102101 | PROPELLER SHAFT | |
| FRONT | ||
| A 1084101901 | PROPELLER SHAFT | |
| FRONT | ||
| 030 | N 071412006200 | GREASE NIPPLE |
| 042 | A 1229970087 | VALVE |
| 054 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 054 | A 1104110172 | NUT |
| 066 | A 1154100032 | CENTERING BUSHING |
| 078 | A 1094100202 | PROPELLER SHAFT |
| REAR | ||
| 090 | A 1114110044 | DRIVE FLANGE |
| 102 | A 1114100031 | UNIVERSAL JOINT CROSS |
| WITH NEEDLES AND NEEDLE BEARING BUSGINGS | ||
| 114 | A 1889940534 | SNAP RING |
| 1.45 MM AS REQUIRED | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM AS REQUIRED | ||
| A 1889940134 | SNAP RING | |
| 1.55 MM AS REQUIRED | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM AS REQUIRED | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM AS REQUIRED | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM AS REQUIRED | ||
| 126 | A 1104130401 | HOUSING |
| Repalced by: A 1104100422 | ||
| 126 | A 1104100422 | INTERMEDIATE BEARING |
| 138 | A 0039812325 | BALL BEARING |
| A 1154110796 | PROTECTIVE CAP | |
| 150 | N 000472055000 | LOCK RING |
| N 900055030200 | LOCK RING | |
| 162 | A 1154110697 | BOOT |
| Repalced by: A 2024110097 | ||
| 162 | A 2024110097 | BOOT |
| Repalced by: A 2024110497 | ||
| 162 | A 2024110497 | BOOT |
| 174 | A 1809971040 | SEAL RING |
| 186 | A 1114100130 | CENTERING FLANGE |
| 198 | A 1364110118 | BALL SOCKET |
| 210 | A 1844110017 | CENTERING BALL |
| 222 | A 1109933701 | SPRING |
| 234 | N 000984030000 | LOCK RING |
| A 1804110615 | FLEXIBLE JOINT DISC | |
| A 1154110915 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1164110115 | ||
| A 1164110115 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1164110215 | ||
| A 1164110215 | FLEXIBLE JOINT DISC | |
| 246 | A 1084100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| A 1264100215 | FLEXIBLE JOINT DISC | |
| PARTS KIT | ||
| 258 | A 1104110171 | SCREW |
| 270 | A 1879901440 | WASHER |
| 282 | N 000985012005 | NUT |
| 294 | A 1204110060 | RUBBER RING |
| 306 | A 1104110071 | SCREW |
| A 1879901440 | WASHER | |
| N 000985012005 | NUT | |
| N 070613010024 | SCREW | |
| Repalced by: A 1249903401 | ||
| A 1249903401 | SCREW | |
| Repalced by: A 1249903701 | ||
| A 1249903701 | SCREW | |
| A 1159903940 | WASHER | |
| N 913002010010 | NUT | |
| 318 | A 1114130312 | RUBBER MOUNTING |
| Repalced by: A 1114130012 | ||
| 318 | A 1114130012 | RUBBER MOUNTING |
| A 1084130112 | RUBBER MOUNTING | |
| 330 | A 1104130429 | BEARING BRACKET |
| N 914004008001 | COMBINATION BOLT | |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| A 1109900052 | NUT | |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| 342 | A 1119900020 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 354 | A 1119940209 | LOCK |
| PROPELLER SHAFT TO REAR AXLE | ||
| 366 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 366 | N 304035010001 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
