Transporto priemonė: 280 SE 4.5 USA; VIN numerio dalis: 108067

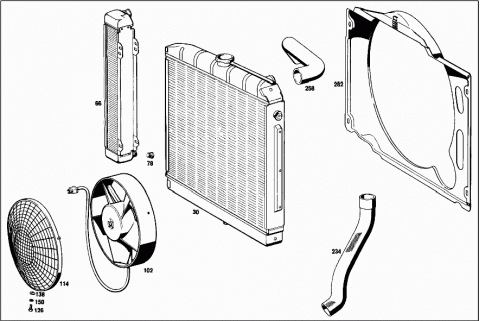

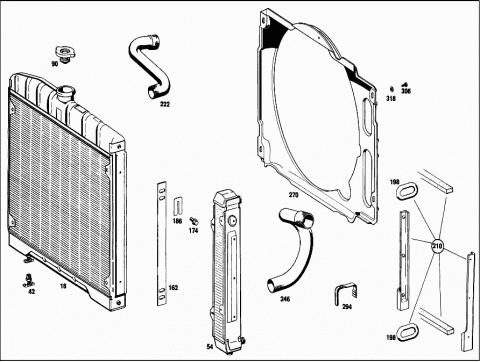

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1085000003 | RADIATOR | |
| Repalced by: A 1085000903 | ||
| A 1085000203 | RADIATOR | |
| Repalced by: A 1085000903 | ||
| A 1085000403 | RADIATOR | |
| Repalced by: A 1085000903 | ||
| A 1085000103 | RADIATOR | |
| Repalced by: A 1085000903 | ||
| A 1085000303 | RADIATOR | |
| Repalced by: A 1085000903 | ||
| A 1085000503 | RADIATOR | |
| Repalced by: A 1085000903 | ||
| A 1085000903 | RADIATOR | |
| WITH OIL HEAT EXCHANGER | ||
| A 1085010101 | RADIATOR | |
| Repalced by: A 1085010501 | ||
| A 1085010001 | RADIATOR | |
| Repalced by: A 1085010501 | ||
| 018 | A 1085010501 | RADIATOR |
| WITH OIL HEAT EXCHANGER | ||
| A 1085010901 | RADIATOR | |
| WITH OIL HEAT EXCHANGER | ||
| 030 | A 1095010301 | RADIATOR |
| WITH OIL HEAT EXCHANGER | ||
| A 0005010010 | DRAIN PIPE | |
| TO RADIATOR DRAIN HOSE | ||
| 042 | A 0005010065 | VALVE |
| DRAIN | ||
| A 0079972682 | HOSE | |
| DRAIN | ||
| 054 | A 1081800265 | OIL COOLER |
| AIR COOLING | ||
| A 1081800765 | OIL COOLER | |
| AIR COOLING | ||
| 066 | A 1161800065 | OIL COOLER |
| AIR COOLING | ||
| 078 | A 0019971530 | SCREW PLUG |
| A 0005010015 | RADIATOR CAP | |
| WITH PRESSURE RELIEF VALVE | ||
| A 0005000540 | VALVE | |
| 090 | A 1235010215 | RADIATOR CAP |
| N 000603006047 | SCREW | |
| OIL COOLER TO RADIATOR | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| OIL COOLER TO RADIATOR | ||
| N 000125006421 | WASHER | |
| OIL COOLER TO RADIATOR | ||
| 102 | A 0005004093 | BLOWER |
| 114 | A 0005030801 | PROTECTIVE GRILL |
| 126 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 126 | N 304017006018 | SCREW |
| 138 | N 000125006421 | WASHER |
| 150 | N 912004006102 | LOCK WASHER |
| 162 | A 1105020030 | DAMPING STRIP |
| 386 MM BETWEEN RADIATOR AND COVER PLATE | ||
| 174 | A 0029902801 | SCREW |
| 186 | A 1105040084 | SHIM |
| 198 | A 1155040082 | RUBBER RING |
| 210 | A 1145000012 | REPAIR KIT |
| RADIATOR MOUNTING | ||
| A 1085000012 | REPAIR KIT | |
| RADIATOR MOUNTING | ||
| 222 | A 1085010182 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| A 1085010582 | HOSE | |
| FROM THERMOSTAT TO RADIATOR | ||
| A 1085010782 | HOSE | |
| FROM THERMOSTAT TO RADIATOR | ||
| 234 | A 1165011282 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 246 | A 1085010482 | HOSE |
| FROM WATER PUMP TO RADIATOR | ||
| A 1085010682 | HOSE | |
| FROM WATER PUMP TO RADIATOR | ||
| 258 | A 1165010782 | HOSE |
| FROM WATER PUMP TO RADIATOR | ||
| N 900262009000 | LOOM TIE | |
| N 916026040000 | CLAMP | |
| Repalced by: A 0069974390 | ||
| A 0069974390 | LOOM TIE | |
| N 916026045000 | CLAMP | |
| Repalced by: A 0069970690 | ||
| A 0069970690 | LOOM TIE | |
| N 900263009000 | STRAP | |
| A 1085050055 | FAN SHROUD | |
| 270 | A 1085050255 | FAN SHROUD |
| A 1095050455 | FAN SHROUD | |
| Repalced by: A 1095050855 | ||
| 282 | A 1095050855 | FAN SHROUD |
| A 1085050006 | CLAMP | |
| 294 | A 1085050106 | CLAMP |
| A 1085050306 | CLAMP | |
| 306 | N 914006005000 | COMBINATION BOLT |
| 318 | A 0019901840 | WASHER |
| Repalced by: A 1269901440 | ||
| 318 | A 1269901440 | WASHER |
