Transporto priemonė: 280 SE 4.5 USA; VIN numerio dalis: 108067

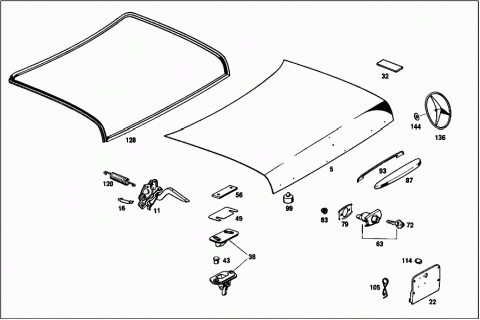

Grupė: 75 TRUNK LID - 001 OUTSIDE FLAPS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1087500075 | REAR LID |
| SHELL | ||
| 011 | A 1087500187 | HINGE |
| LEFT | ||
| A 1087500287 | HINGE | |
| RIGHT | ||
| N 000933008108 | SCREW | |
| TRUNK LID HINGE TO TAIL | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| TRUNK LID HINGE TO TAIL | ||
| N 000125008418 | WASHER | |
| TRUNK LID HINGE TO TAIL | ||
| N 009021003204 | WASHER | |
| TRUNK LID HINGE TO TAIL | ||
| N 912004008102 | LOCK WASHER | |
| TRUNK LID HINGE TO TAIL | ||
| 016 | A 1087500011 | PLATE |
| N 000933006026 | SCREW | |
| TRUNK LID HINGE TO TRUNK LID | ||
| N 912004006102 | LOCK WASHER | |
| TRUNK LID HINGE TO TRUNK LID | ||
| N 000125006421 | WASHER | |
| TRUNK LID HINGE TO TRUNK LID | ||
| A 1117505206 | FLAP | |
| Repalced by: A 1117505606 | ||
| 022 | A 1117505606 | FLAP |
| FILLER NECK | ||
| N 912004006102 | LOCK WASHER | |
| FILLER NECK FLAP TO REAR BODY BOTTOM PANEL | ||
| N 000933006026 | SCREW | |
| FILLER NECK FLAP TO REAR BODY BOTTOM PANEL | ||
| N 000125006421 | WASHER | |
| FILLER NECK FLAP TO REAR BODY BOTTOM PANEL | ||
| A 1087570059 | BRACE | |
| Repalced by: A 1157580897 | ||
| A 1157580897 | INTERMEDIATE LAYER | |
| 11 MM | ||
| 032 | A 1157580997 | INTERMEDIATE LAYER |
| Repalced by: A 1237580397 | ||
| 032 | A 1237580397 | INTERMEDIATE LAYER |
| 6 MM | ||
| 038 | A 1117505085 | LOCK |
| 043 | A 0019870640 | RUBBER BUFFER |
| Repalced by: A 1239870040 | ||
| 043 | A 1239870040 | RUBBER BUFFER |
| 049 | A 1117585010 | BASE PLATE |
| A 1117585111 | PLATE | |
| Repalced by: A 1167500011 | ||
| 056 | A 1167500011 | PLATE |
| N 007987006153 | SCREW | |
| UPPER PART OF LOCK TO LID | ||
| N 007987006153 | SCREW | |
| LOWER PART OF LOCK TO REAR BODY PANEL | ||
| 063 | A 1087500284 | FASTENER |
| A 1087500085 | LOCK | |
| WORKSHOP VERSION, WITH KEY; USED WITHOUT CODE 466 (CENTRAL LOCKG.MECHANISM) | ||
| A 1087500484 | FASTENER | |
| LESS KEY | ||
| 072 | A 0007661006 | KEY |
| A 0007663506 | KEY | |
| Repalced by: A 0007600406 | ||
| A 0007600406 | KEY | |
| MASTER KEY | ||
| HUF | ||
| 079 | A 1087580005 | PAD |
| 083 | A 0009900550 | NUT |
| 087 | A 1117585002 | HANDLE |
| 093 | A 1117585090 | SHIM |
| Repalced by: A 1087580105 | ||
| A 1087580105 | PAD | |
| HANDLE TO TRUNK LID | ||
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| HANDLE TO TRUNK LID | ||
| N 000137005203 | SPRING WASHER | |
| HANDLE TO TRUNK LID | ||
| 099 | A 1119871540 | RUBBER BUFFER |
| 105 | A 1117580127 | SPRING |
| Repalced by: A 1087580336 | ||
| A 1087580336 | SPRING | |
| LEFT | ||
| A 1117580227 | SPRING | |
| Repalced by: A 1087580436 | ||
| A 1087580436 | SPRING | |
| RIGHT | ||
| 114 | A 1119870140 | RUBBER BUFFER |
| Repalced by: A 1119871740 | ||
| A 1119871740 | RUBBER BUFFER | |
| A 1087580036 | SPRING | |
| Repalced by: A 1087580136 | ||
| 120 | A 1087580136 | SPRING |
| 128 | A 1087500077 | SEAL |
| 136 | A 1117585158 | MERCEDES STAR |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| MERCEDES STAR TO TRUNK LID | ||
| N 000125008418 | WASHER | |
| MERCEDES STAR TO TRUNK LID | ||
| 144 | A 1109870741 | RUBBER RING |
| MERCEDES STAR TO TRUNK LID | ||
