Transporto priemonė: 280 SE/C 3.5 USA; VIN numerio dalis: 111027

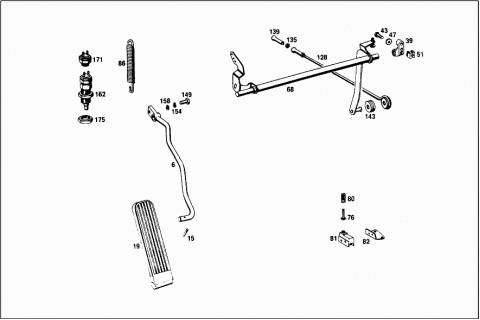

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ACCELERATOR PEDAL ASSEMBLY | ||
| 006 | A 1103000304 | ACCELERATOR PEDAL |
| 006 | A 1103000304 | ACCELERATOR PEDAL |
| 011 | A 1083010001 | LEVER |
| 011 | A 1083010001 | LEVER |
| 015 | A 1109970010 | PIN |
| 015 | A 1109970010 | PIN |
| 019 | A 1103010102 | PEDAL PLATE |
| Repalced by: A 1103000002 | ||
| 019 | A 1103000002 | PLATE |
| 019 | A 1103000002 | PLATE |
| A 1103010183 | INSERT | |
| Repalced by: A 1103010083 | ||
| A 1103010083 | INSERT | |
| A 1103010083 | INSERT | |
| A 1103010582 | PAD | |
| Repalced by: A 1103000002 | ||
| A 1103000002 | PLATE | |
| A 1103000002 | PLATE | |
| A 1153000104 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| A 1153000304 | ACCELERATOR PEDAL | |
| Repalced by: A 1233000204 | ||
| 024 | A 1233000204 | ACCELERATOR PEDAL |
| 024 | A 1233000204 | ACCELERATOR PEDAL |
| 027 | A 1233010022 | JOINT |
| 027 | A 1233010022 | JOINT |
| 031 | A 1163010182 | PAD |
| 031 | A 1163010182 | PAD |
| 035 | A 1163010082 | PAD |
| Repalced by: A 1163010182 | ||
| 035 | A 1163010182 | PAD |
| 035 | A 1163010182 | PAD |
| 039 | A 1103010018 | BEARING |
| 039 | A 1103010018 | BEARING |
| A 1213010018 | BEARING | |
| A 1213010018 | BEARING | |
| 043 | N 000931006082 | SCREW |
| 047 | N 000125006407 | WASHER |
| N 000137006204 | SPRING WASHER | |
| 051 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 051 | A 0009902291 | NUT RETAINER |
| 055 | A 1083010053 | SPACER TUBE |
| 060 | A 1143010051 | SPACER RING |
| 060 | A 1143010051 | SPACER RING |
| 064 | A 1839970081 | GROMMET |
| 068 | A 1113002620 | SHAFT |
| 072 | A 1093001620 | SHAFT |
| 076 | A 1089900157 | NUT |
| 080 | A 1089933101 | SPRING |
| 081 | A 0005455314 | SWITCH |
| 082 | A 1115450840 | BRACKET |
| N 000084002107 | SCREW | |
| SWITCH TO BRACKET | ||
| N 000125002800 | WASHER | |
| SWITCH TO BRACKET | ||
| N 000127002203 | LOCK WASHER | |
| SWITCH TO BRACKET | ||
| N 000934002001 | NUT | |
| SWITCH TO BRACKET | ||
| N 007976004207 | SHEET METAL SCREW | |
| 086 | A 1169930610 | SPRING |
| 087 | A 1153010241 | STOP |
| 092 | A 1159970640 | SEAL RING |
| 096 | A 1093001520 | SHAFT |
| 101 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| A 1263010485 | RUBBER BUFFER | |
| A 1163010150 | BUSHING | |
| 105 | A 1093010051 | SPACER RING |
| 109 | A 1169935001 | SPRING |
| 113 | A 1093000615 | ROD |
| 117 | N 000934005008 | NUT |
| 122 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 122 | A 0009918922 | BALL SOCKET |
| 128 | A 1113001215 | ROD |
| 132 | A 1093000315 | ROD |
| 135 | N 000934005008 | NUT |
| 139 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 139 | A 0009918922 | BALL SOCKET |
| 143 | A 1213010097 | BOOT |
| 149 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 149 | N 304017008016 | SCREW |
| 154 | N 000137008204 | SPRING WASHER |
| 158 | N 000125008407 | WASHER |
| 162 | A 1123000241 | STOP |
| 162 | A 1123000241 | STOP |
| 167 | A 1153000241 | STOP |
| 167 | A 1153000241 | STOP |
| 171 | A 0005451706 | SWITCH |
| 175 | A 1129900151 | NUT |
| 175 | A 1129900151 | NUT |
| 179 | A 1153040151 | NUT |
| 179 | A 1153040151 | NUT |
