Transporto priemonė: 280 SE/C 3.5 USA; VIN numerio dalis: 111027
Grupė: 82 ELECTRICAL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1118210651 | SWITCH | |
| Repalced by: A 1118210851 | ||
| 004 | A 1118210851 | SWITCH |
| N 072601012800 | BULB | |
| A 1118200492 | KNOB | |
| Repalced by: A 1108201592 | ||
| 006 | A 1108201592 | KNOB |
| 008 | A 1219901740 | WASHER |
| 010 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 010 | A 0085453728 | PIN BUSHING HOUSING |
| 010 | A 0085453728 | PIN BUSHING HOUSING |
| 010 | A 0085453728 | PIN BUSHING HOUSING |
| A 0008210725 | PLUG | |
| Repalced by: A 0008212026 | ||
| A 0008212026 | CONNECTOR | |
| 014 | A 0005454928 | PLUG |
| Repalced by: A 0045458428 | ||
| 014 | A 0045458428 | PLUG |
| Repalced by: A 1265401081 | ||
| 014 | A 1265401081 | PLUG SOCKET |
| 016 | A 0005454728 | PLUG |
| 016 | A 0005454728 | PLUG |
| 018 | A 0009881678 | CLIP |
| FOLDING TOP CABLE TO BOW AND TO FOLDING TOP LINKAGE | ||
| 018 | A 0009881678 | CLIP |
| CABLE HARNESS TO INSTRUMENT PANEL REINFORCEMENT | ||
| 020 | A 0009882878 | CLIP |
| 022 | A 0009973181 | GROMMET |
| 024 | A 0009881678 | CLIP |
| 026 | A 0009885578 | CLIP |
| 028 | A 0009888878 | CLIP |
| Repalced by: A 0039887978 | ||
| 028 | A 0039887978 | CLIP |
| 030 | A 0009971781 | GROMMET |
| 032 | A 0009882878 | CLIP |
| 034 | A 0009971881 | GROMMET |
| 036 | A 0009832991 | CARDBOARD |
| 3 X 60 X 80 MM | ||
| 038 | A 1118200042 | ELECTRIC MOTOR |
| 040 | A 0008241775 | CARBON BRUSH SET |
| 042 | A 1108240110 | CRANK |
| 044 | A 1108240097 | PAD |
| 046 | A 1119971140 | SEAL RING |
| Repalced by: A 1159971040 | ||
| 046 | A 1159971040 | SEAL RING |
| Repalced by: A 2019870241 | ||
| 046 | A 2019870241 | RUBBER RING |
| N 000931006026 | SCREW | |
| N 000127006200 | LOCK WASHER | |
| 050 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 050 | A 0009902291 | NUT RETAINER |
| 052 | A 1118205343 | LINKAGE |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 0008241472 | NUT | |
| Repalced by: A 0029902651 | ||
| 056 | A 0029902651 | NUT |
| A 1118240072 | NUT | |
| Repalced by: A 1108240472 | ||
| A 1108240472 | CAPSULE | |
| 058 | A 1118240172 | NUT |
| Repalced by: A 1108240472 | ||
| 058 | A 1108240472 | CAPSULE |
| 058 | A 1108240472 | CAPSULE |
| 060 | A 0008242282 | WASHER |
| 062 | A 0009901748 | WASHER |
| A 0008241172 | NUT | |
| A 0008242572 | NUT | |
| Repalced by: A 0009901253 | ||
| 064 | A 0009901253 | NUT |
| 064 | A 0009901253 | NUT |
| 066 | A 0009870741 | RUBBER RING |
| N 900161006101 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| A 1108200144 | WIPER ARM | |
| Repalced by: A 1108200744 | ||
| A 1108200744 | WIPER ARM | |
| LEFT | ||
| A 1108200744 | WIPER ARM | |
| LEFT | ||
| A 1108200244 | WIPER ARM | |
| Repalced by: A 1108200844 | ||
| 074 | A 1108200844 | WIPER ARM |
| RIGHT | ||
| 074 | A 1108200844 | WIPER ARM |
| RIGHT | ||
| 076 | A 0008240135 | SPRING |
| A 1108200045 | WIPER BLADE | |
| 078 | A 1108200245 | WIPER BLADE |
| 078 | A 1108200245 | WIPER BLADE |
| A 0008240227 | WIPER RUBBER | |
| Repalced by: A 1108200345 | ||
| A 1108200345 | WIPER BLADE | |
| 330 MM | ||
| 080 | A 0008241027 | WIPER RUBBER |
| 330 MM | ||
| 080 | A 0008241027 | WIPER RUBBER |
| 330 MM | ||
| A 0005426119 | RELAY | |
| A 0005426819 | RELAY | |
| A 1108250353 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| A 1108250553 | CIGAR LIGHTER | |
| Repalced by: A 1158250253 | ||
| 086 | A 1158250253 | CIGAR LIGHTER |
| A 1108250251 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| A 1108250351 | ELEMENT | |
| Repalced by: A 0008250551 | ||
| 088 | A 0008250551 | ELEMENT |
| 090 | A 0008250652 | INCANDESCENT SPIRAL |
| Repalced by: A 0008250252 | ||
| 090 | A 0008250252 | INCANDESCENT SPIRAL |
| A 1088200152 | READING LAMP | |
| AT ROOF REAR RAIL | ||
| 092 | A 1088200452 | READING LAMP |
| Repalced by: A 1088200352 | ||
| 092 | A 1088200352 | READING LAMP |
| 092 | A 1088200352 | READING LAMP |
| 094 | H 101808250109 | SHELL |
| N 072601012130 | BULB | |
| N 072601012120 | BULB | |
| N 072601012120 | BULB | |
| N 007982003316 | SHEET METAL SCREW | |
| N 007981003254 | SHEET METAL SCREW | |
| 100 | A 0018210251 | SWITCH |
| A 0008210452 | CONTACTOR | |
| Repalced by: A 0008211552 | ||
| 102 | A 0008211552 | CONTACTOR |
| 102 | A 0008211552 | CONTACTOR |
| A 0008210952 | CONTACTOR | |
| Repalced by: A 0008211752 | ||
| A 0008211652 | CONTACTOR | |
| Repalced by: A 0008211752 | ||
| 106 | A 0008211752 | CONTACTOR |
| 106 | A 0008211752 | CONTACTOR |
| A 1138250042 | ENTRANCE LAMP | |
| Repalced by: A 1138250142 | ||
| 108 | A 1138250142 | ENTRANCE LAMP |
| 110 | A 1088250142 | ENTRANCE LAMP |
| 110 | A 1088250142 | ENTRANCE LAMP |
| N 072601012120 | BULB | |
| N 072601012130 | BULB | |
| N 072601012130 | BULB | |
| N 007981002306 | SHEET METAL SCREW | |
| Repalced by: N 007981002322 | ||
| N 007981002322 | SHEET METAL SCREW | |
| ENTRANCE LAMP TO FUSE BOX BRACKET | ||
| N 007981002322 | SHEET METAL SCREW | |
| ENTRANCE LAMP TO FUSE BOX BRACKET | ||
| A 1088200052 | READING LAMP | |
| AT ROOF FRONT RAIL | ||
| 118 | A 1088200352 | READING LAMP |
| AT ROOF FRONT RAIL | ||
| 118 | A 1088200352 | READING LAMP |
| AT ROOF FRONT RAIL | ||
| 120 | H 101868250089 | RIM |
| Repalced by: A 1088200052 | ||
| 120 | A 1088200052 | READING LAMP |
| H 101868250010 | LENS | |
| Repalced by: A 1088200052 | ||
| 122 | A 1088200052 | READING LAMP |
| N 072601012130 | BULB | |
| N 072601012120 | BULB | |
| N 072601012120 | BULB | |
| N 007982003316 | SHEET METAL SCREW | |
| N 007981003254 | SHEET METAL SCREW | |
| 138 | A 1128200023 | INTERIOR LAMP |
| N 072601012800 | BULB | |
| 140 | A 1138200052 | READING LAMP |
| N 072601012120 | BULB | |
| A 0008210252 | CONTACTOR | |
| N 007983002203 | SHEET METAL SCREW | |
| A 0005455917 | SWITCH | |
| Repalced by: A 0008210852 | ||
| 144 | A 0008210852 | CONTACTOR |
| A 1129900057 | NUT | |
| Repalced by: A 0009900557 | ||
| 146 | A 0009900557 | NUT |
| H 311368250002 | FOLDING TOP LAMP | |
| Repalced by: A 1368250002 | ||
| 148 | A 1368250002 | FOLDING TOP LAMP |
| 150 | H 311368250010 | LENS |
| N 007995003011 | WOOD SCREW | |
| N 072601012130 | BULB | |
| 152 | A 1108250041 | INTERIOR LAMP |
| N 072601012701 | BULB | |
| N 007981003246 | SHEET METAL SCREW | |
| A 1118200761 | LIGHTING UNIT | |
| Repalced by: A 1088204461 | ||
| A 1088200461 | LIGHTING UNIT | |
| Repalced by: A 1088204461 | ||
| 158 | A 1088204461 | LIGHTING UNIT |
| Repalced by: A 1088207161 | ||
| 158 | A 1088204461 | LIGHTING UNIT |
| A 1088204261 | LIGHTING UNIT | |
| Repalced by: A 1088207161 | ||
| 160 | A 1088207161 | LIGHTING UNIT |
| LESS CONNECTION PLATE | ||
| 160 | A 1088207161 | LIGHTING UNIT |
| LESS CONNECTION PLATE | ||
| A 0015441189 | RIM | |
| Repalced by: A 1118260389 | ||
| 162 | A 1118260389 | RIM |
| A 1088204361 | TERMINAL PLATE | |
| WITH ELECTRIC CABLES | ||
| A 1118260489 | RIM | |
| Repalced by: A 1088260389 | ||
| A 1088260189 | RIM | |
| Repalced by: A 1088260389 | ||
| 164 | A 1088260389 | RIM |
| 166 | A 1118260590 | LENS |
| LEFT | ||
| 168 | A 1118260690 | LENS |
| RIGHT | ||
| 170 | A 0008260884 | SPRING |
| 172 | A 1118200520 | BLINKER LAMP |
| 172 | A 1118200520 | BLINKER LAMP |
| A 1118205120 | BLINKER LAMP | |
| Repalced by: A 1088200020 | ||
| A 1118205220 | BLINKER LAMP | |
| Repalced by: A 1088200020 | ||
| A 1088200020 | BLINKER LAMP | |
| 174 | A 1118260790 | LENS |
| 174 | A 1118260790 | LENS |
| A 0018264590 | LENS | |
| A 0008266680 | SEAL | |
| 176 | A 1118200096 | PAD |
| 176 | A 1118200096 | PAD |
| N 007981004325 | SHEET METAL SCREW | |
| N 007981004325 | SHEET METAL SCREW | |
| N 072601012170 | BULB | |
| N 072601012170 | BULB | |
| N 072601012210 | BULB | |
| A 0008260099 | BEAM UNIT | |
| Repalced by: A 0008263699 | ||
| 184 | A 0008263699 | BEAM UNIT |
| Repalced by: A 0008265599 | ||
| 184 | A 0008265599 | BEAM UNIT |
| 186 | A 0008260199 | BEAM UNIT |
| Repalced by: A 0008265499 | ||
| 186 | A 0008265499 | BEAM UNIT |
| 188 | A 0008210124 | PLUG SOCKET |
| 190 | A 1118260012 | ANGLE |
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| A 1108260341 | SIDE REFLECTOR | |
| Repalced by: A 0008260741 | ||
| 194 | A 0008260741 | SIDE REFLECTOR |
| LEFT FRONT (ORANGE) | ||
| 194 | A 0008260741 | SIDE REFLECTOR |
| LEFT FRONT (ORANGE) | ||
| A 1108260441 | SIDE REFLECTOR | |
| Repalced by: A 0008260841 | ||
| A 0008260841 | SIDE REFLECTOR | |
| RIGHT FRONT (ORANGE) | ||
| A 0008260841 | SIDE REFLECTOR | |
| RIGHT FRONT (ORANGE) | ||
| A 1108260141 | SIDE REFLECTOR | |
| Repalced by: A 0008260541 | ||
| A 1108260541 | SIDE REFLECTOR | |
| Repalced by: A 0008260541 | ||
| A 0008260941 | SIDE REFLECTOR | |
| Repalced by: A 0008260541 | ||
| 202 | A 0008260541 | SIDE REFLECTOR |
| RED; LEFT REAR | ||
| 202 | A 0008260541 | SIDE REFLECTOR |
| RED; LEFT REAR | ||
| A 1108260241 | SIDE REFLECTOR | |
| Repalced by: A 0008260641 | ||
| A 1108260641 | SIDE REFLECTOR | |
| Repalced by: A 0008260641 | ||
| A 0008261041 | SIDE REFLECTOR | |
| Repalced by: A 0008260641 | ||
| A 0008260641 | SIDE REFLECTOR | |
| RED; RIGHT REAR | ||
| A 0008260641 | SIDE REFLECTOR | |
| RED; RIGHT REAR | ||
| N 000934004004 | NUT | |
| SIDE REFLECTOR TO FENDER | ||
| N 000934004004 | NUT | |
| SIDE REFLECTOR TO FENDER | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| SIDE REFLECTOR TO FENDER | ||
| N 000125004319 | WASHER | |
| SIDE REFLECTOR TO FENDER | ||
| 216 | A 0008260341 | SIDE REFLECTOR |
| LEFT FRONT (ORANGE) | ||
| 216 | A 0008260341 | SIDE REFLECTOR |
| LEFT FRONT (ORANGE) | ||
| A 0008260441 | SIDE REFLECTOR | |
| RIGHT FRONT (ORANGE) | ||
| A 0008260441 | SIDE REFLECTOR | |
| RIGHT FRONT (ORANGE) | ||
| 220 | A 0008260141 | SIDE REFLECTOR |
| RED; LEFT REAR | ||
| 220 | A 0008260141 | SIDE REFLECTOR |
| RED; LEFT REAR | ||
| A 0008260241 | SIDE REFLECTOR | |
| RED; RIGHT REAR | ||
| A 0008260241 | SIDE REFLECTOR | |
| RED; RIGHT REAR | ||
| 224 | A 0008261457 | LENS |
| FRONT (ORANGE) | ||
| 224 | A 0008261457 | LENS |
| FRONT (ORANGE) | ||
| 226 | A 0008261557 | LENS |
| RED; REAR | ||
| 226 | A 0008261557 | LENS |
| RED; REAR | ||
| 228 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 228 | A 0095454028 | PLUG HOUSING |
| 228 | A 0095454028 | PLUG HOUSING |
| 230 | A 1159972081 | GROMMET |
| 230 | A 1159972081 | GROMMET |
| N 072601012900 | BULB | |
| N 072601012900 | BULB | |
| A 1118205162 | LICENSE PLATE LAMP | |
| Repalced by: G 101868200562 | ||
| 236 | H 101868200562 | LICENSE PLATE LAMP |
| LEFT | ||
| A 1118205262 | LICENSE PLATE LAMP | |
| Repalced by: G 101868200662 | ||
| H 101868200662 | LICENSE PLATE LAMP | |
| RIGHT | ||
| H 101868260166 | LENS | |
| Repalced by: A 1868260166 | ||

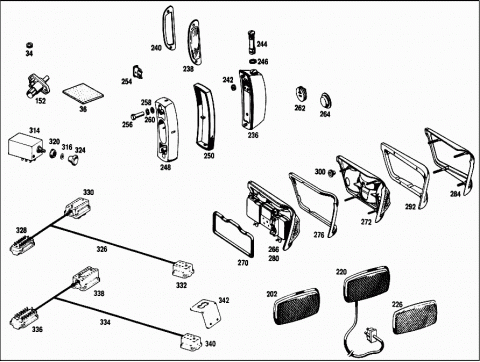

| 238 | A 1868260166 | LENS |
| H 101868260169 | SEAL | |
| Repalced by: A 1868260169 | ||
| 240 | A 1868260169 | SEAL |
| N 000091003110 | SCREW | |
| 242 | A 1369970981 | GROMMET |
| H 101868200084 | FASTENER | |
| Repalced by: A 1868200084 | ||
| 244 | A 1868200084 | FASTENER |
| 246 | H 101868260091 | SEAL RING |
| H 101208260597 | PAD | |
| Repalced by: A 1088260097 | ||
| 248 | A 1088260097 | PAD |
| 248 | A 1088260097 | PAD |
| H 101208260076 | ORNAMENTAL RING | |
| Repalced by: A 1088260289 | ||
| 250 | A 1088260289 | RIM |
| 250 | A 1088260289 | RIM |
| N 072601012130 | BULB | |
| A 1118207317 | ELECTRIC CABLE | |
| A 0005453128 | PLUG | |
| Repalced by: A 0025458628 | ||
| 254 | A 0025458628 | PLUG |
| 256 | A 1209900063 | HOLLOW SCREW |
| 258 | N 000433008406 | WASHER |
| 260 | N 000127008203 | LOCK WASHER |
| 262 | A 1119970281 | GROMMET |
| A 0009870444 | EXPANSION PLUG | |
| Repalced by: A 1109870944 | ||
| 264 | A 1109970944 | SEAL RING |
| A 0009883378 | CLIP | |
| 266 | A 1118205564 | TAIL LAMP |
| Repalced by: A 1118207164 | ||
| 266 | A 1118207164 | TAIL LAMP |
| LEFT | ||
| 266 | A 1118207164 | TAIL LAMP |
| LEFT | ||
| A 1118205664 | TAIL LAMP | |
| Repalced by: A 1118207264 | ||
| A 1118207264 | TAIL LAMP | |
| RIGHT | ||
| A 1118207264 | TAIL LAMP | |
| RIGHT | ||
| 270 | A 1118265058 | SEAL |
| INSIDE | ||
| 270 | A 1118265058 | SEAL |
| INSIDE | ||
| 272 | A 1118265152 | RIM |
| LEFT | ||
| 272 | A 1118265152 | RIM |
| LEFT | ||
| A 1118265252 | RIM | |
| RIGHT | ||
| A 1118265252 | RIM | |
| RIGHT | ||
| 276 | A 1118265158 | SEAL |
| OUTSIDE LEFT | ||
| 276 | A 1118265158 | SEAL |
| OUTSIDE LEFT | ||
| A 1118265258 | SEAL | |
| OUTSIDE RIGHT | ||
| A 1118265258 | SEAL | |
| OUTSIDE RIGHT | ||
| A 1118206364 | TAIL LAMP | |
| Repalced by: A 1118207164 | ||
| A 1118206364 | TAIL LAMP | |
| 280 | A 1118207164 | TAIL LAMP |
| LEFT | ||
| 280 | A 1118207164 | TAIL LAMP |
| LEFT | ||
| A 1118206464 | TAIL LAMP | |
| Repalced by: A 1118207264 | ||
| A 1118206464 | TAIL LAMP | |
| A 1118207264 | TAIL LAMP | |
| RIGHT | ||
| A 1118207264 | TAIL LAMP | |
| RIGHT | ||
| 284 | A 1118266152 | ORNAMENTAL FRAME |
| LEFT | ||
| 284 | A 1118266152 | ORNAMENTAL FRAME |
| LEFT | ||
| A 1118266252 | ORNAMENTAL FRAME | |
| RIGHT | ||
| A 1118266252 | ORNAMENTAL FRAME | |
| RIGHT | ||
| A 1138260156 | LENS | |
| LEFT | ||
| A 1138260156 | LENS | |
| LEFT | ||
| A 1138260256 | LENS | |
| RIGHT | ||
| A 1138260256 | LENS | |
| RIGHT | ||
| A 1118265358 | SEAL | |
| LEFT | ||
| A 1118265358 | SEAL | |
| LEFT | ||
| 292 | A 1118265558 | SEAL |
| LEFT | ||
| 292 | A 1118265558 | SEAL |
| LEFT | ||
| A 1118265458 | SEAL | |
| RIGHT | ||
| A 1118265458 | SEAL | |
| RIGHT | ||
| A 1118265658 | SEAL | |
| RIGHT | ||
| A 1118265658 | SEAL | |
| RIGHT | ||
| A 0019875951 | RUBBER SEAL | |
| Repalced by: A 1118265197 | ||
| A 1118265197 | PAD | |
| 350 MM | ||
| A 1118265197 | PAD | |
| 350 MM | ||
| 300 | A 1119900257 | NUT |
| N 912004012100 | LOCK WASHER | |
| N 000934005008 | NUT | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| N 072601012160 | BULB | |
| BLINKER LIGHT AND STOP LIGHT | ||
| N 072601012160 | BULB | |
| BLINKER LIGHT AND STOP LIGHT | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT AND STOP LIGHT | ||
| N 072601012190 | BULB | |
| BLINKER LIGHT AND STOP LIGHT | ||
| N 072601012600 | BULB | |
| BACK-UP LIGHT | ||
| N 072601012900 | BULB | |
| TAIL AND CLEARANCE LIGHTS | ||
| N 072601012900 | BULB | |
| TAIL AND CLEARANCE LIGHTS | ||
| N 072601012701 | BULB | |
| TAIL AND CLEARANCE LIGHTS | ||
| N 072601012701 | BULB | |
| TAIL AND CLEARANCE LIGHTS | ||
| A 0008210851 | SWITCH | |
| Repalced by: A 0018212951 | ||
| 314 | A 0018212951 | SWITCH |
| Repalced by: A 0015449532 | ||
| 316 | A 0009972040 | SEAL RING |
| 316 | A 0009972040 | SEAL RING |
| A 1108210059 | ESCUTCHEON | |
| Repalced by: A 1108210459 | ||
| A 1108210459 | ESCUTCHEON | |
| A 1108200392 | KNOB | |
| A 1108260524 | COVERING | |
| 320 | A 1108210259 | ESCUTCHEON |
| 320 | A 1108210259 | ESCUTCHEON |
| A 1108260022 | WASHER | |
| A 1108200092 | KNOB | |
| Repalced by: A 1108200392 | ||
| A 1108200392 | KNOB | |
| A 1108201492 | KNOB | |
| Repalced by: A 1158201992 | ||
| 324 | A 1158201992 | KNOB |
| 324 | A 1158201992 | KNOB |
| 326 | A 1084200417 | BRAKE ANCHOR PLATE |
| A 0025451828 | PLUG | |
| Repalced by: A 0035452728 | ||
| A 0035452728 | PLUG | |
| 13-PIN | ||
| 328 | A 0035450428 | PLUG |
| Repalced by: A 0035452728 | ||
| 328 | A 0035452728 | PLUG |
| 13-PIN | ||
| A 0015459428 | PLUG | |
| Repalced by: A 0035452728 | ||
| A 0035452728 | PLUG | |
| 13-POLE | ||
| 330 | A 0035450828 | PLUG |
| Repalced by: A 0035452728 | ||
| 330 | A 0035452728 | PLUG |
| 13-POLE | ||
| 332 | A 0025454428 | PLUG |
| Repalced by: A 0055451328 | ||
| 332 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 332 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 334 | A 1088200917 | ELECTRIC CABLE |
| 334 | A 1088200917 | ELECTRIC CABLE |
| 336 | A 0035453728 | PLUG |
| Repalced by: A 0095455628 | ||
| 336 | A 0095455628 | PLUG HOUSING |
| 336 | A 0095455628 | PLUG HOUSING |
| 338 | A 0095456028 | COVER |
| TO 009 545 56 28 | ||
| 338 | A 0095456028 | COVER |
| TO 009 545 56 28 | ||
| A 0015453826 | PLUG PIN | |
| 340 | A 0025454428 | PLUG |
| Repalced by: A 0055451328 | ||
| 340 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 340 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 340 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 342 | A 1088260014 | BRACKET |
| N 007976004205 | SHEET METAL SCREW | |

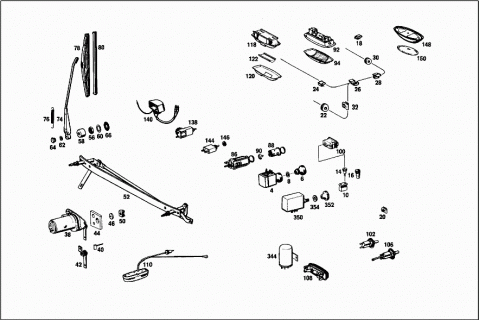

| 344 | A 0005445332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 344 | A 0005445332 | SENDER UNIT |
| 344 | A 0005446132 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 344 | A 0005446132 | SENDER UNIT |
| 344 | A 0005448332 | SENDER UNIT |
| Repalced by: A 0015444232 | ||
| 344 | A 0015444232 | SENDER UNIT |
| Repalced by: A 0005445832 | ||
| 344 | A 0005445832 | SENDER UNIT |
| AS REQUIRED | ||
| BOSCH | ||
| 344 | A 0005445832 | SENDER UNIT |
| AS REQUIRED | ||
| BOSCH | ||
| A 0015446632 | SENDER UNIT | |
| Repalced by: A 0015449532 | ||
| 350 | A 0015449532 | SENDER UNIT |
| 350 | A 0015449532 | SENDER UNIT |
| 352 | A 1158201992 | KNOB |
| 352 | A 1158201992 | KNOB |
| 354 | A 1158200403 | SELECTOR |
| 354 | A 1158200403 | SELECTOR |

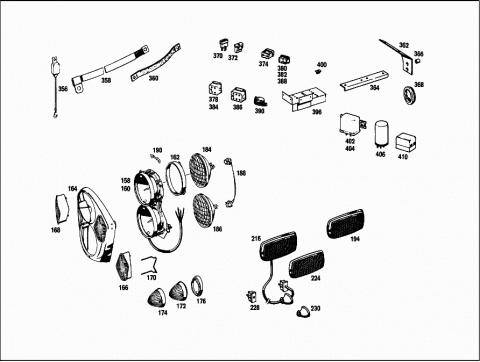

| 356 | A 0001569701 | CONDENSER |
| A 0001569801 | CONDENSER | |
| N 000933006123 | SCREW | |
| 358 | A 1115400241 | GROUND STRAP |
| Repalced by: A 1115400041 | ||
| 358 | A 1115400041 | GROUND STRAP |
| Repalced by: A 0005460720 | ||
| 358 | A 0005460720 | GROUND STRAP |
| 360 | A 1805400441 | GROUND STRAP |
| 362 | A 1118215714 | BRACKET |
| 364 | A 1118215014 | BRACKET |
| N 007976004211 | SHEET METAL SCREW | |
| 366 | A 1085460053 | SPACER TUBE |
| 368 | A 1809971281 | GROMMET |
| 368 | A 1809971281 | GROMMET |
| 370 | A 0025452428 | PLUG |
| Repalced by: A 0095454028 | ||
| 370 | A 0095454028 | PLUG HOUSING |
| 2-PIN | ||
| 370 | A 0095454028 | PLUG HOUSING |
| 2-PIN | ||
| 372 | A 0008210725 | PLUG |
| Repalced by: A 0008212026 | ||
| 372 | A 0008212026 | CONNECTOR |
| 2-POLE | ||
| 372 | A 0008212026 | CONNECTOR |
| 2-POLE | ||
| 374 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 374 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE | ||
| 374 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE | ||
| A 0045456228 | PIN BUSHING HOUSING | |
| Repalced by: A 0095458328 | ||
| A 0095458328 | PIN BUSHING HOUSING | |
| A 0095458328 | PIN BUSHING HOUSING | |
| 378 | A 0025455228 | PLUG |
| Repalced by: A 0045458628 | ||
| 378 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 378 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 378 | A 0155454928 | PLUG |
| 3-POLE | ||
| 378 | A 0155454928 | PLUG |
| 3-POLE | ||
| 380 | A 0045456328 | PLUG |
| Repalced by: A 0045456528 | ||
| 380 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 380 | A 0095459428 | PLUG |
| 3-POLE | ||
| 380 | A 0095459428 | PLUG |
| 3-POLE | ||
| 382 | A 0045456428 | PLUG |
| Repalced by: A 0045456528 | ||
| 382 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 382 | A 0095459428 | PLUG |
| 4-POLE | ||
| 382 | A 0095459428 | PLUG |
| 4-POLE | ||
| A 0045451628 | PLUG | |
| Repalced by: A 0045458628 | ||
| 384 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 384 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 384 | A 0155454928 | PLUG |
| 4-POLE | ||
| 384 | A 0155454928 | PLUG |
| 4-POLE | ||
| A 0025454528 | PLUG | |
| Repalced by: A 0055451328 | ||
| 386 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 386 | A 0065458028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 386 | A 0065458028 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 388 | A 0045456528 | PLUG |
| Repalced by: A 0095459428 | ||
| 388 | A 0095459428 | PLUG |
| 5-POLE | ||
| 388 | A 0095459428 | PLUG |
| 5-POLE | ||
| 390 | A 1149970190 | LOOM TIE |
| 390 | A 1149970190 | LOOM TIE |
| A 1149970490 | LOOM TIE | |
| Repalced by: A 1149970290 | ||
| A 1149970290 | LOOM TIE | |
| Repalced by: A 1149970590 | ||
| A 1149970590 | LOOM TIE | |
| A 1149970590 | LOOM TIE | |
| A 0019889878 | CLIP | |
| CABLE HARNESS TO BRACKET | ||
| A 0019889878 | CLIP | |
| CABLE HARNESS TO BRACKET | ||
| 396 | A 1095400273 | BRACKET |
| 396 | A 1095400273 | BRACKET |
| N 007981004326 | SHEET METAL SCREW | |
| N 007981004326 | SHEET METAL SCREW | |
| 400 | A 0009941345 | LOCK |
| 400 | A 0009941345 | LOCK |
| 402 | A 0005455819 | SOCKET |
| 402 | A 0005455819 | SOCKET |
| 404 | A 0005425919 | RELAY |
| 404 | A 0005425919 | RELAY |
| 406 | A 0005429719 | RELAY |
| 406 | A 0005429719 | RELAY |
| N 007981004326 | SHEET METAL SCREW | |
| RELAY TO BRACKET | ||
| N 007981004326 | SHEET METAL SCREW | |
| RELAY TO BRACKET | ||
| 410 | A 0005457101 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 410 | A 0005459901 | FUSE BOX |
| 2-POLE | ||
| 410 | A 0005459901 | FUSE BOX |
| 2-POLE | ||
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| FUSE BOX TO BRACKET | ||
| N 000000000454 | SHEET METAL SCREW | |
| FUSE BOX TO BRACKET | ||
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| 16 A | ||
| A 0005458334 | FUSE | |
| 16 A | ||

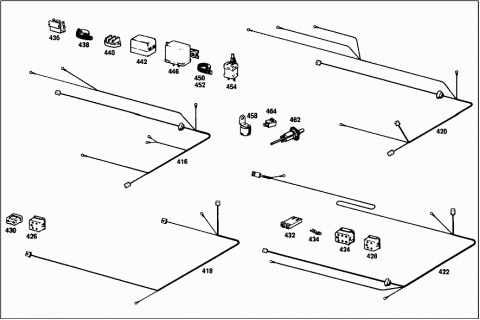

| 416 | A 1118206915 | ELECTRIC CABLE |
| 418 | A 1118207915 | ELECTRIC CABLE |
| 420 | A 1118206715 | ELECTRIC CABLE |
| 422 | A 1118208115 | ELECTRIC CABLE |
| 424 | A 0025454628 | PLUG |
| Repalced by: A 0055451328 | ||
| 424 | A 0055451328 | PLUG |
| Repalced by: A 0065458028 | ||
| 424 | A 0065458028 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 424 | A 0065458028 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 426 | A 0025455128 | PLUG |
| Repalced by: A 0045458628 | ||
| 426 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 426 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 426 | A 0155454928 | PLUG |
| 4-POLE | ||
| 428 | A 0025455228 | PLUG |
| Repalced by: A 0045458628 | ||
| 428 | A 0045458628 | PLUG |
| Repalced by: A 0075450028 | ||
| 428 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 428 | A 0155454928 | PLUG |
| 3-POLE | ||
| 428 | A 0155454928 | PLUG |
| 3-POLE | ||
| 430 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 430 | A 0085453728 | PIN BUSHING HOUSING |
| 2-POLE | ||
| 432 | A 0055451728 | PLUG |
| Repalced by: A 0115455928 | ||
| 432 | A 0115455928 | PIN BUSHING HOUSING |
| 434 | A 0055451828 | PIN BUSHING |
| 436 | A 0029884878 | CLIP |
| 438 | A 1149970190 | LOOM TIE |
| 440 | A 0005467041 | CABLE CONNECTOR |
| N 007981003326 | SHEET METAL SCREW | |
| 442 | A 0005457101 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 442 | A 0005459901 | FUSE BOX |
| 442 | A 0005459901 | FUSE BOX |
| N 072581016100 | FUSE | |
| Repalced by: A 0005458334 | ||
| A 0005458334 | FUSE | |
| A 0005458334 | FUSE | |
| 446 | A 0005425819 | RELAY |
| N 007985004129 | SCREW | |
| N 007985004128 | SCREW | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| 450 | A 0019974190 | LOOM TIE |
| 100 MM | ||
| 452 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 452 | A 0019974390 | LOOM TIE |
| 140 MM | ||
| 454 | A 0005459411 | SWITCH |
| N 000137010205 | PART NAME MISSING | |
| N 000936010003 | NUT | |
| A 0005422323 | BUZZER | |
| Repalced by: A 0005422623 | ||
| 458 | A 0005422623 | BUZZER |
| 458 | A 0005422623 | BUZZER |
| A 0005422423 | BUZZER | |
| A 0005422423 | BUZZER | |
| A 0008211452 | CONTACTOR | |
| Repalced by: A 0008211852 | ||
| 462 | A 0008211852 | CONTACTOR |
| 462 | A 0008211852 | CONTACTOR |
| 464 | A 0025421317 | SENDER UNIT |
| Repalced by: A 1245450214 | ||
| 464 | A 1245450414 | SWITCH |
| Repalced by: A 1245450214 | ||
| 464 | A 1245450214 | SWITCH |
| 464 | A 1245450214 | SWITCH |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
